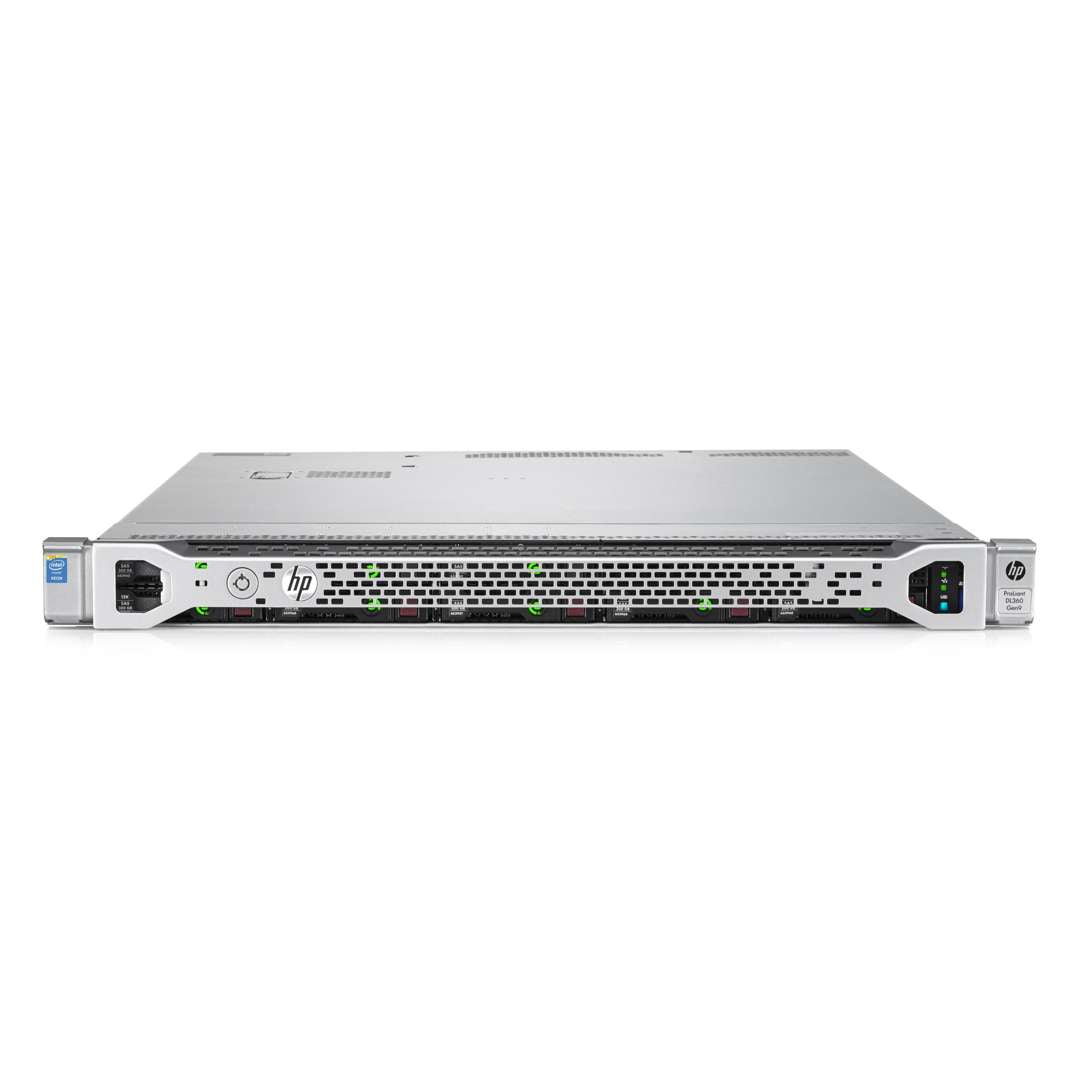

Quick Specs
What's New for DL360 Gen9
- Intel Xeon E5-2600 v4 Processors with 21% performance gain and up to 22 cores
- 2400MHz DDR4 memory offering up to 23% performance gain and 3.0 TB max capacity with 128GB LRDIMMs
- HPE 25Gb Ethernet Adapters to help improve performance with latency sensitive applications
- Industry-leading NVMe PCIe SFF SSDs up to 2.0 TB for low latency and top performance
- Direct connect up to 16 drives with HPE Smart Array P840ar Controller
- Build a fully functional server with ClearOS that is just right for you at no upfront cost. For more information, check the ClearOS link on the right.
Ideal for:
- Cloud Servers
- Corporate IT
- Database
- Retail Servers
Leveraging Intel’s latest E5-2600 v4 processors with 21% performance gain, plus the latest 2400 MHz HPE DDR4 SmartMemory supporting up to 3 TB and up to 23% performance increase. Manage your DL360 Gen9 Server in any IT environment by automating the most essential server lifecycle management tasks with HPE OneView and HPE Integrated Lights-Out: deploy, update, monitor and maintain with ease.
Memory Capacity
The HPE DL360 Gen9 Supports 2 Processors and 24 DIMMs in total. 12 DIMM slots per processor, 4 channels per processor, 3 DIMMs per channel . The max speed varies based on the processor’s Max Memory Speed.
Max Capacity Per DIMM Type
- (LRDIMM) 3TB (24 x 128GB LRDIMM)
- (RDIMM) 768GB (24 x 32GB RDIMM)
- (NVDIMM) 128GB (16 x 8GB NVDIMM)
This Rack server has NVDIMM support only with the E5-2600v4 processors, and can only be mixed with RDIMMs . NVDIMMs cannot be used with LRDIMMs and the MAX amount of NVDIMMs is 16 while the rest would need to be RDIMMs.
Max Capacity Per DIMM Type
- 128GB DIMMS cannot be mixed with any other size DIMMs.
- NVDIMMs are only supported on factory-configured servers with E5-2600 v4 processors

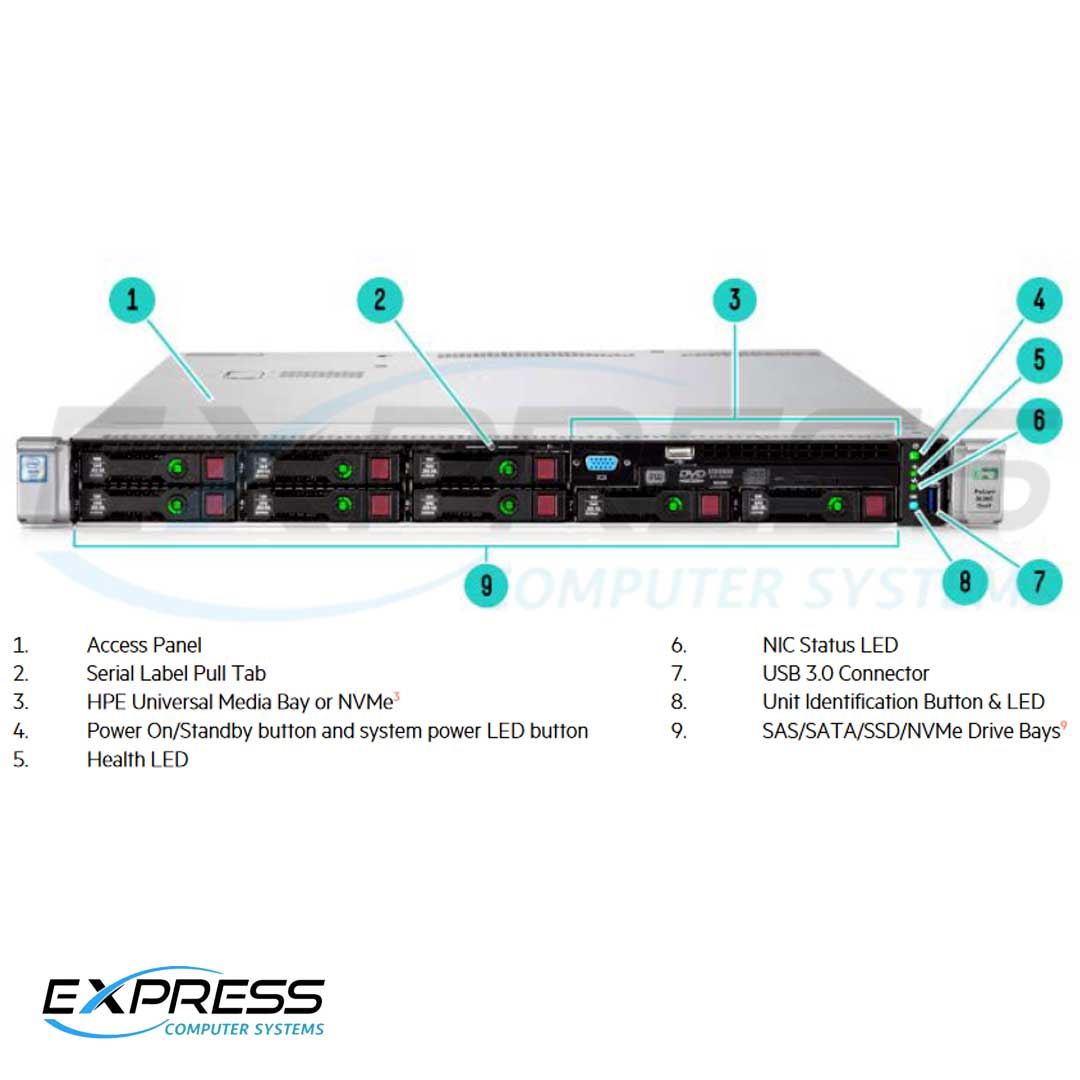

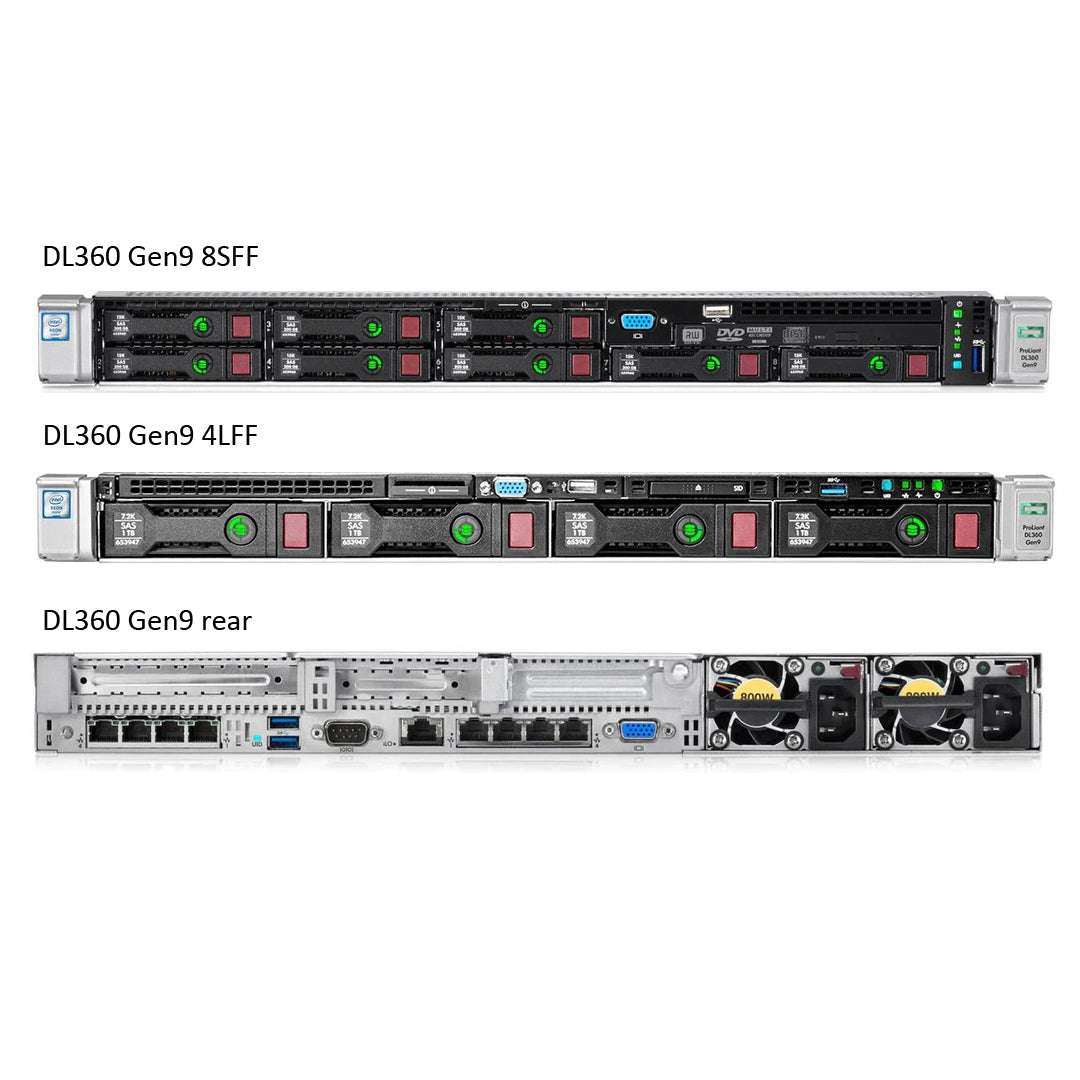

Chassis Configurations
8 SFF Upgrade Options to 10 Drives
ODD/Port Upgrades
- 8SFF SATA/SAS + 2SFF SATA /SAS with kit (764630-B21)
- 8SFF SATA/SAS + 2SFF NVMe with kit (764628-B21)
- 4SFF SATA/SAS + 6SFF NVMe with kit (817676-B21)
ODD/Port Upgrades
- DVD-RW, USB 2.0 and VGA, kit (764632-B21) SFF ONLY
- DVD ROM, USB 2.0 and VGA, kit (818213-B21) SFF ONLY
- USB 2.0 and VGA kit (764634-B21) SFF ONLY
- USB 2.0 and VGA kit (764638-B21) LFF ONLY
Maximum Internal Storage
- Hot Plug SFF SAS SSD 153.0TB 10 x 15.3TB
- Hot Plug SFF SATA SSD 76.8TB 10 x 7.68TB
- Hot Plug SFF SAS 20.0TB 10 x 2.0TB
- Hot Plug SFF SATA 20.0TB 10 x 2.0TB
- Hot Plug LFF SAS SSD 6.4TB 4 x 1.6TB
- Hot Plug LFF SATA SSD 15.36TB 4 x 3.84TB
- Hot Plug LFF SAS 48.0TB 4 x 12TB
- Hot Plug LFF SATA 48.0TB 4 x 12TB
- Hot Plug SFF NVMe PCIe SSD 61.44.TB 6 x 7.68TB NVMe + 4 x 3.84TB SFF SSD
Do you want NVMe Drives?
2 NVMe Drives - 764628-B21
The HPE DL360 Gen9 NVMe 2 Solid State Drive Express Bay Enablement Kit (764628-B21). It holds 2 NVMe Drives, not able to be installed with the Media Bay Kit since they take up the same spot. If NVMe drives are installed, you will need the High-Performance Fan Kit (766201-B21). This (764628-B21) card can only be installed in Slot 1 of the primary riser or slot 3 of the secondary riser.
6 NVMe Drives - 817676-B21
The next option for NVMe drives is the HPE DL360 Gen9 6 NVMe + 4 SAS/SATA Express Bay Enablement Kit (817676-B21). This card supports 6 NVMe Drives and is only allowed to be installed in Slot 1 of the primary riser.
Supported M.2 Options
The DL360 HPE Rack Server support M.2 drives on a PCIe adapter. The M.2 drives go in a PCIe slots and use B140i SATA controller only, not supported by the HPE Flexible Smart Arrays.

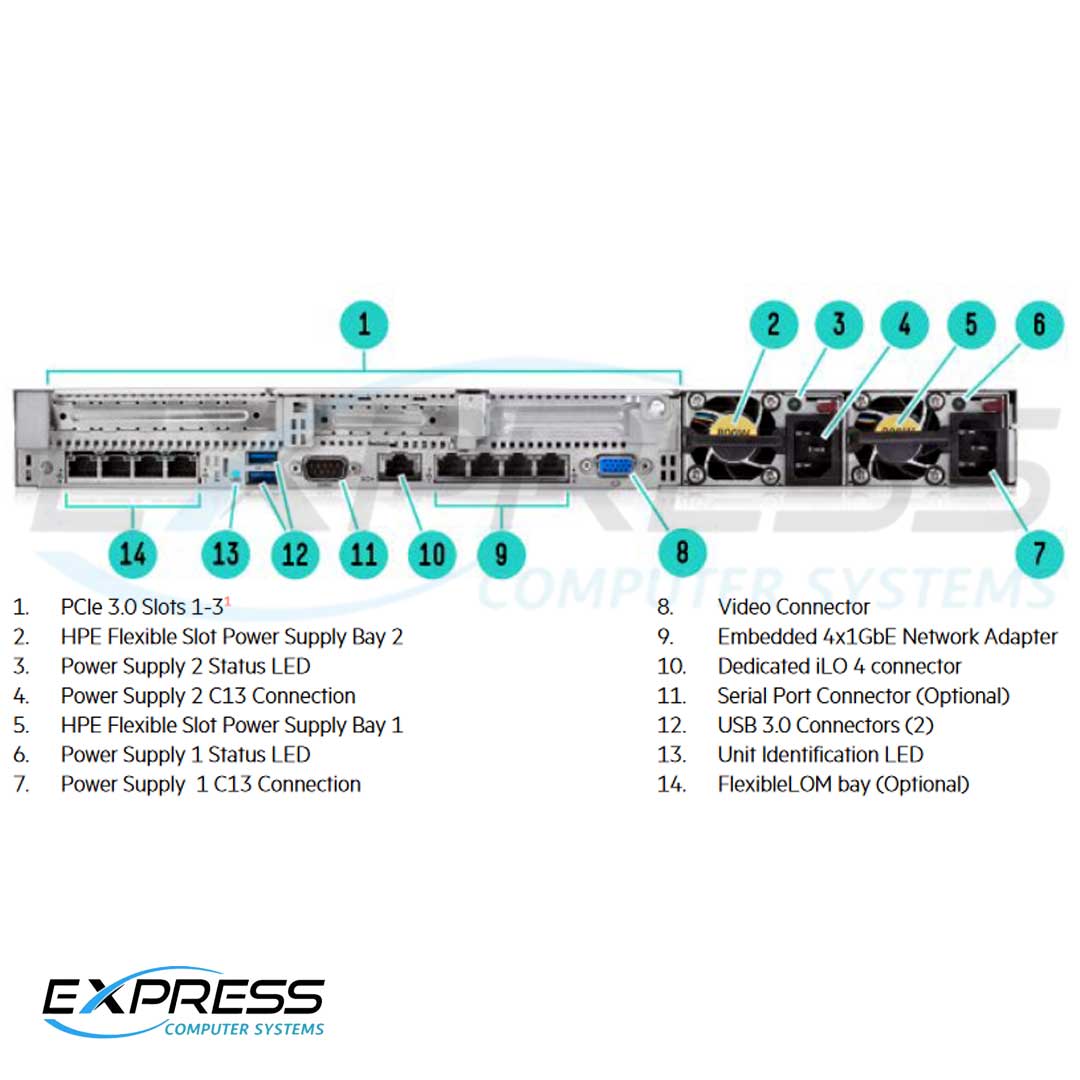

PCI Risers
The DL360 Gen9 has two risers to choose from, the Primary (775421-001) and Secondary risers. Both can be installed together, but the secondary riser has two options. A FH GPU Enablement riser (867249-B21) or the Low Profile PCIe Slot CPU2 Kit (764642-B21) which provides a PCIe 3.0x16 Low Profile slot.
Riser Configuration Options:
- 1 FH, ¾ length and 2 Low Profile slots
- 2 FH, ¾ length
| Name | Expansion Slot # | Technology | Bus Width | Connector Width | Bus Number | Form Factor |
|---|---|---|---|---|---|---|
| Primary Riser | 1 | PCIe 3.0 | x16 | x16 | 7 | Full-height, 3/4 length (up to 9.5") slot |
| 2 | PCIe 3.0 | x8 | x8 | 10 | Low Profile | |
| Secondary Riser Low Profile | 3 | PCIe 3.0 | x16 | x16 | 16 | Full-height, full-length slot Low Profile |
| Secondary Riser GPU Enablement | 3 | PCIe 3.0 | x16 | x16 | 20 | Full-height, 3/4 length (up to 9.5") slot |
Cooling
We are going to need some serious cooling if we configure this DL360 Rack Server to a performance level. Below you will see all the details that make upgrading your High-Performance Fan Kit, (766201-B21) mandatory:
A high-performance fan kit increases power consumption. To reduce power consumption, use a high-performance heatsink (795235-B21). When installing the second Processor, 2 Fans will be included and 1 heatsink. If you're upgrading the fans or the heatsink, keep this in mind.
High-Performance Fan Kit is need with
- 160W CPUs or higher,
- Installation of NVMe Drives
- 10SFF Chassis Configuration
- LRDIMM Configurations
- ASHRAE-compliant configurations
| Non-Redundant | Redundant | |
|---|---|---|
| 1P | N/A | 5 |
| 2P | N/A | 7 |
GPU / Workload Accelerator
For 1 GPU you can install the card in Slot 1 of the primary riser and use this HPE DL360 Gen9 GPU Cable for CPU1 Kit (766199-B21 ) to power the GPU. If 2 cards are installed, then HPE DL360 Gen9 2P PCIe GPU Enablement Kit (867249-B21) is required. If this kit is installed, you will need a second processor. You MUST also install the Smart Array P440ar Controller for 2 GPU Configurations (726740-B21). This controller has a unique heatsink that allows for the 2nd GPU to fit.
The GPU Enablement kit can support more than one Full Height/GPU card and includes 2 GPU power cables and a bracket; when this GPU Enablement kit is installed the Low Profile PCIe3.0 Slot 2 on the primary riser is not useable. You don’t need the CPU1 Cable kit since the GPU enablement kit comes with both cables.
Flex Slot your power!
All power supplies must be of the same input voltage, output rating, and efficiency rating. If non-matching power supplies are installed, you may receive an error message and/experience operational issues with your server. Mixing different power supplies in the same server may limit or disable some power supply features including support for power redundancy. To ensure access to all available features, all power supplies within the same server should have the same output and efficiency ratings. With the ability of add two GPUs or install high-powered fans and processors, you will need to make sure you have enough power to manage your system.
Lights Out! iLO
HPE Integrated Lights-Out (HPE iLO)
Monitor your servers for ongoing management, service alerting, reporting, and remote management with HPE iLO.
UEFI
Configure and boot your servers securely with industry-standard Unified Extensible
Firmware Interface (UEFI).
Intelligent Provisioning
Hassle-free server and OS provisioning for 1 or few servers with Intelligent Provisioning.
RESTful API
RESTful API for iLO 4 is Redfish 1.0 conformance for simplified server management such as configuration and maintenance tasks based on modern industry standards.
Embedded Remote Support
The Hewlett Packard Enterprise embedded remote support when used with Insight Online direct connect or HPE Insight Remote Support, allows HPE ProLiant servers to transmit hardware events directly to Hewlett Packard Enterprise or a Hewlett Packard Enterprise Authorized Partner for automated phone home support.
