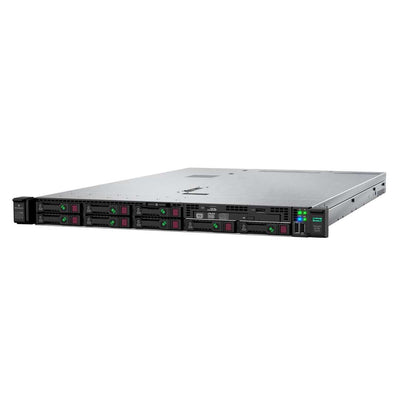

P19766-B21 - HPE ProLiant DL360 Gen10 8 NC Server Chassis

Hpe Proliant Dl360 Gen10 8Sff Nc Rack Server Chassis | P19766-B21

SKU: P19766-B21

Hpe Proliant Dl360 Gen10 8Sff Nc Rack Server Chassis | P19766-B21

Name: Hpe Proliant Dl360 Gen10 8Sff Nc Rack Server Chassis | P19766-B21
Brand: HPE
SKU: P19766-B21
Availability: InStock

HPE

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

What’s New for DL360 Gen10

Supporting the second generation Intel Xeon Scalable processor family with up to a 11% per-core performance gain over first generation and with memory speeds up to 2933 MT/s.
HPE Persistent Memory offers the flexibility to deploy as dense memory or fast storage featuring Intel Optane DC Persistent Memory and enables per-socket memory capacity of up to 3.0 TB.
800GB 1.6/3.2/6.4TB NVMe Mixed Use SFF SSDs
960GB 1.92/3.84/7.68TB NVMe Read Intensive SFF SSDs
480GB/1.92/3.84TB SATA Mixed Use SFF SSDs
HPE StoreFabric SN1610Q 32Gb 1 port Fibre Channel Host Bus Adapter
HPE StoreFabric SN1610Q 32Gb 2 port Fibre Channel Host Bus Adapter
Networking Choice (NC) server models provide greater flexibility in the primary networking selection.
HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
Enhanced iLO 5 security features such as Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor.

Other Versions:

HPE ProLiant DL360 Gen9
HPE ProLiant DL360 Gen10
HPE ProLiant DL360 Gen10 Plus
HPE ProLiant DL360 Gen11 20 EDSFF
HPE ProLiant DL360 Gen11 8SFF
HPE ProLiant DL360 Gen11 4LFF

(Click to View)

Ideal for:

Cloud Servers
Corporate IT
Data Analytics
Database
High-Performance Computing (HPC)
Hyper-Converged infrastructure (HCI)
Virtual Desktop Interface (VDI)
Virtualization
Virtual Machines (VM)

Chassis Specs

CTO Server [Chassis]	HPE DL360 Gen10 4LFF CTO Server	HPE DL360 Gen10 8SFF CTO Server	HPE DL360 Gen10 Premium 10NVMe CTO Server	HPE DL360 Gen10 4LFF NC CTO Server	HPE DL360 Gen10 8SFF NC CTO Server	HPE DL360 Gen10 Premium 10NVMe NC CTO Server	HPE DL360 Gen10 8SFF BC NC CTO Server	HPE DL360 Gen10 8SFF BC CTO System
SKU Number	867958-B21	867959-B21	867960-B21	P19765-B21	P19766-B21	P19767-B21	P56949-B21	P56950-B21
Processor	Not included as standard
DIMM Slots	24-DIMM slots DDR4 (Max 12 NVDIMMs with Gen 1 Processor) (Max 12 HPE Persistent Memory with Gen 2 Processors)
Storage Controller	Embedded SW RAID (S100i) with 14 SATA ports Optional: Choice of HPE modular Smart Array and PCIe plug-in controller
PCIe	2 PCIe slots (1 x16 FH / 1 x8 LP) Optional: 1 x16 FH or LP
Drives Cage - included	4 LFF - SAS/SATA	8 SFF - SAS/SATA Optional: up to 2 NVMe or 2 Dual uFF (4x M.2 cartridges)	10 NVMe - SAS/SATA/NVME Optional: 1 Dual uFF (2x M.2 cartridges)	4 LFF - SAS/SATA	8 SFF - SAS/SATA Optional: up to 2 NVMe or 2 Dual uFF (4x M.2 cartridges)	10 NVMe - SAS/SATA/NVME Optional: 1 Dual uFF (2x M.2 cartridges)	8 SFF - SAS/SATA Basic Carrier (BC) Optional: up to 2 NVMe or 2 Dual uFF (4x M.2 cartridges)	8 SFF - SAS/SATA Basic Carrier (BC) Optional: up to 2 NVMe or 2 Dual uFF (4x M.2 cartridges)
Network Controller	Embedded 1Gb Ethernet 4-Port 331i Adapter or Choice of HPE FlexibleLOM and stand-up card for additional NICs.			Choice of HPE FlexibleLOM and stand-up card for additional NICs.				Embedded 1Gb Ethernet 4-Port 331i Adapter or Choice of HPE FlexibleLOM and stand-up card for additional NICs.
Fans	1 CPU – 5 Standard Fans 2 CPU – 7 Standard Fans Optional: High Performance Fans		2 CPU – 7 High Performance Fans	1 CPU – 5 Standard Fans 2 CPU – 7 Standard Fans Optional: High Performance Fans		2 CPU – 7 High Performance Fans	1 CPU – 5 Standard Fans 2 CPU – 7 Standard Fans Optional: High Performance Fans
Management	HPE iLO with Intelligent Provisioning (standard) Optional: iLO Advanced and OneView
USB	Front: 1 USB 3.0 + iLO service port Rear: 2 USB 3.0 Internal: 2 USB 3.0 Optional: 1 USB 2.0 (lose iLO serv. Port)					Front: 1 USB 3.0 + iLO service port Rear: 2 USB 3.0 Internal: 2 USB 3.0	Front: 1 USB 3.0 + iLO service port Rear: 2 USB 3.0 Internal: 2 USB 3.0 Optional: 1 USB 2.0 (lose iLO serv. Port)

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Spec Sheet 4

Technical specifications	HPE ProLiant DL360 Gen10 server
Processor name	Intel
Processor family	Intel® Xeon® Scalable 8100/8200 series - Intel® Xeon® Scalable 3100/3200 series
Number of processors	2, maximum depending on model
Processor core available	4 to 28 core, depending on model
Processor cache	8.25 - 38.50 MB L3, depending on processor
Processor speed	3.9 GHz, maximum depending on processor
Expansion slots	3, for detailed descriptions refer to the QuickSpecs
Maximum memory	3.0 TB with 128 GB DDR4 6.0 TB with HPE 512GB 2666 Persistent Memory Kit
Memory, standard	3.0 TB (24 X 128 GB) LRDIMM 6.0 TB (12 X 512 GB) HPE Persistent Memory
Memory slots	24 DIMM slots
Memory type	HPE DDR4 SmartMemory and Intel® Optane™ persistent memory 100 series for HPE, depending on model
System fan features	Hot-plug redundant standard
Network controller	Embedded 4 X 1GbE Ethernet Adapter (select models) or HPE FlexibleLOM and optional PCIe stand-up cards, depending on model
Storage controller	HPE Smart Array S100i and/or HPE Essential or Performance RAID controllers, depending on model
Product Dimensions (imperial)	SFF Chassis: 1.69 x 17.11 x 27.83 in, LFF Chassis: 1.69 x 17.11 x 29.5 in
Weight	28.74 lb minimum, 37 lb maximum
Infrastructure management	HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses)
Drive supported	4 LFF SAS/SATA 8 SFF SAS/SATA + 2 NVMe 10 SFF SAS/SATA 10 SFF NVMe 1 SFF or 1 Dual UFF rear drive optional depending on model
