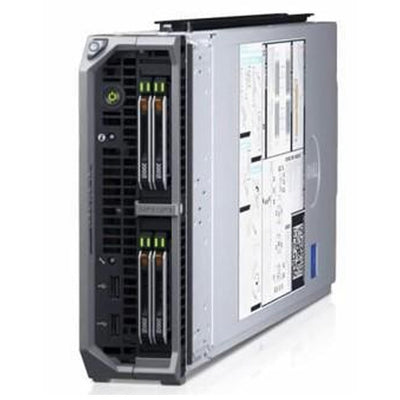

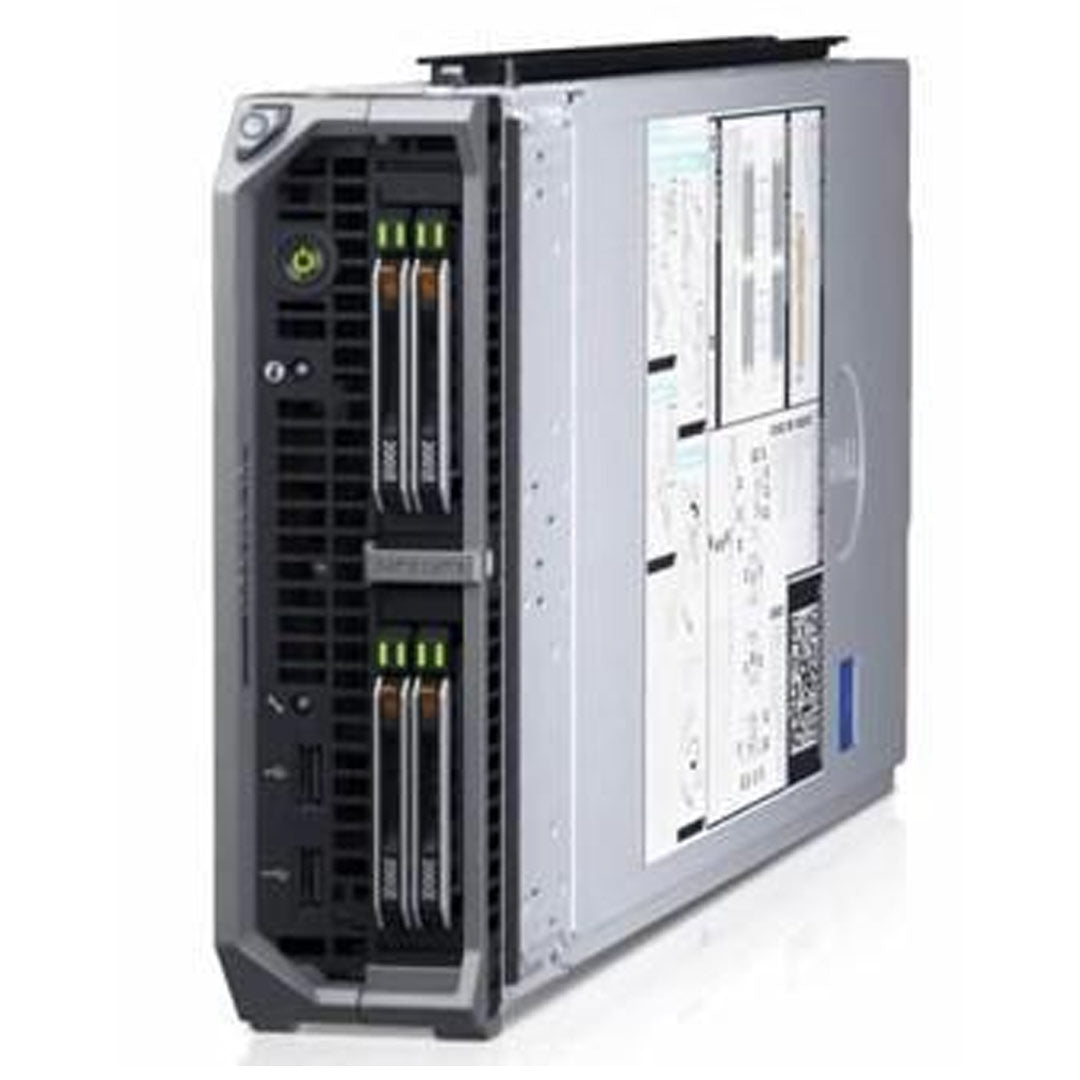

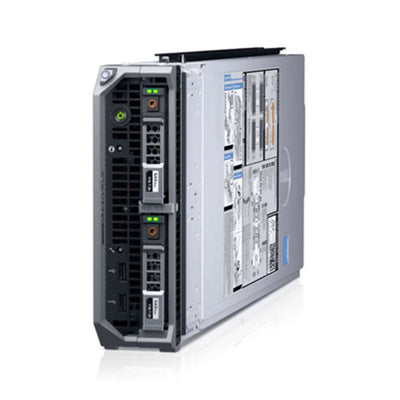

    Dell PowerEdge M630 CTO Blade Server (for PE M1000e or VRTX)

    Brand:
    Type:
    CTO Servers
    Condition:
    ECS Refurbished & Tested
    -PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
    -SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

    READ ME

    • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
    • “Submit for Quote” items can be added to your cart and sent to us via the cart page
    • Click the blue bar to close/open a section from view after choosing your options

    Server Chassis

    Select Processor

    Intel Xeon E5-2600v3

    Supports up to (2) processors

    Intel Xeon E5-2600v4

    Supports up to (2) processors

    Memory

    12 DIMMs per processor (up to 24 DIMMs in a dual-processor configuration)

    RAID Controllers (Optional)

    Default PERC S130 (SW RAID)

    Drives uSATA (1.8") Drives (Optional)

    Can select up to 4 Drives

    Drives SAS (2.5") (Optional)

    Can select up to 2 Drives

    Drives SATA (2.5") (Optional)

    Can select up to 2 Drives

    Drives NVMe (2.5") (Optional)

    Can select up to 2 Drives

    Network Daughter Card (NDC) Fab A

    2 x PCIe 3.0 (x8) mezzanine cards

    Mezzanine Card for Fabric B (Optional)

    Mezzanine Card for Fabric C (Optional)

    Mezzanine Card for Fabric B (Optional)

    *Required for VRTX Fabric B

    Mezzanine Card for Fabric C (Optional)

    *Required for VRTX Fabric C

    Dell Optical Drive (Optional)

    Security Trusted Platform Module 1.2 (Optional)

    iDRAC Remote Options (Optional)

    iDRAC8 with Lifecycle Controller, iDRAC8 Express (default)

    Internal Dual SD Module (IDSDM) (Optional)

    This IDSDM does not come with drives.
    Supports up to 2 SD Cards.

    ECS Warranty

    Helpful Tip: Once desired configuration is selected click "Add to Cart". From the cart page you can submit a submit a quote request for best pricing

    Quick Specs

    Form Factor:

    Half Height 10U/16N M1000e | 10U/4N VRTX

    Processor | Max: 44 Cores

    2 x Intel Xeon E5-2600v4

    Memory | Max: 1.5TB

    24 DDR4 RDIMM 2400Mhz

    Boot Options:

    IDSDM
    Internal USB
    vFlash with iDRAC8 Enterprise

    Storage | Max: N/A

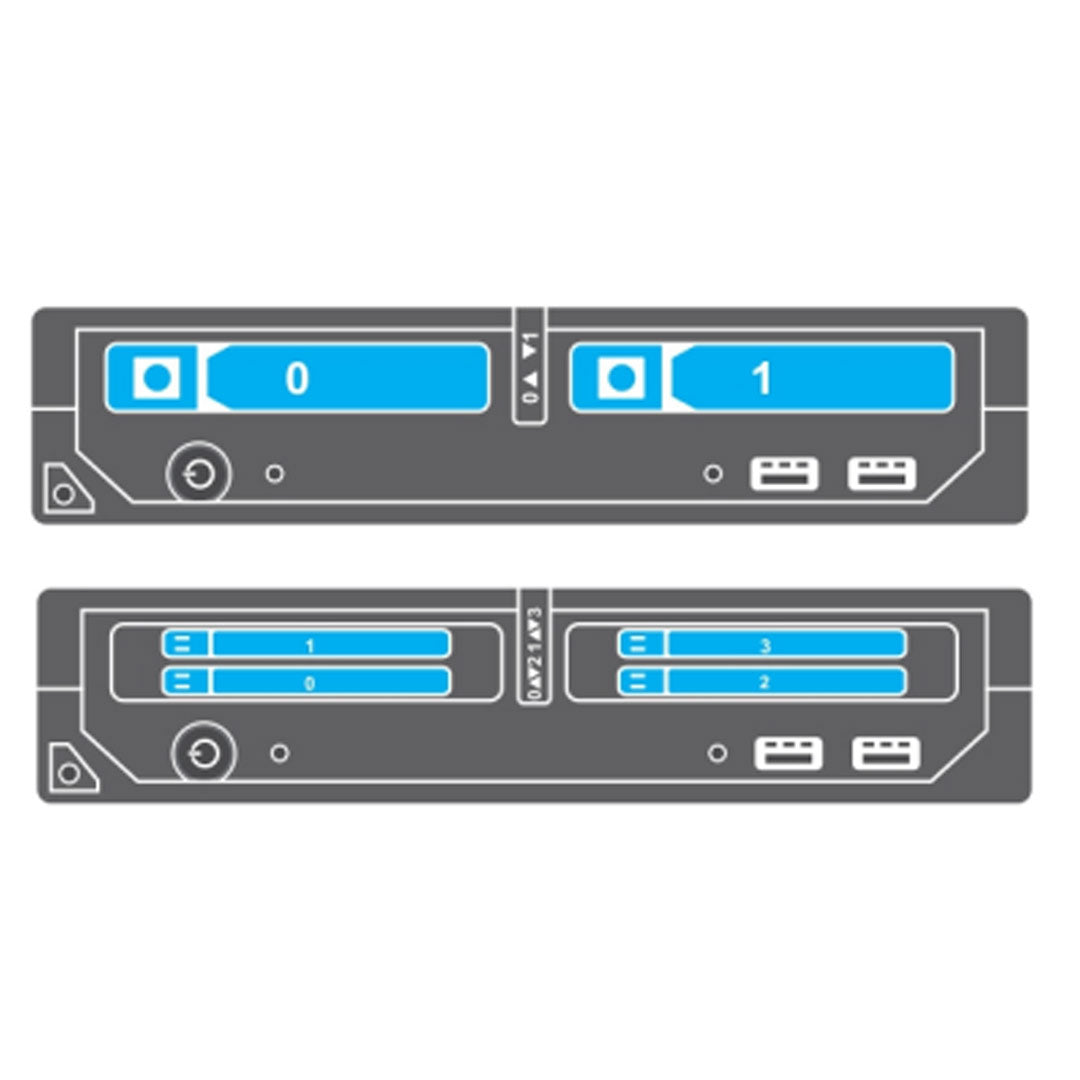

    2x 2.5" SAS/SATA/NVMe or
    4x 1.8" SFF SAS/SATA/NVMe

    Storage Controllers

    PERC S130 (SW RAID)
    PERC H330, PERC H730P, and PERC H730

    PCIe | Max: 3.0

    1 LOM, 2 Mezzanine Slots

    GPU:

    None

    Ideal for:

    • High-Performance Computing (HPC)

    This is one of the supported Blade servers, each Modular Enclosure is a separate CTO you must configure.

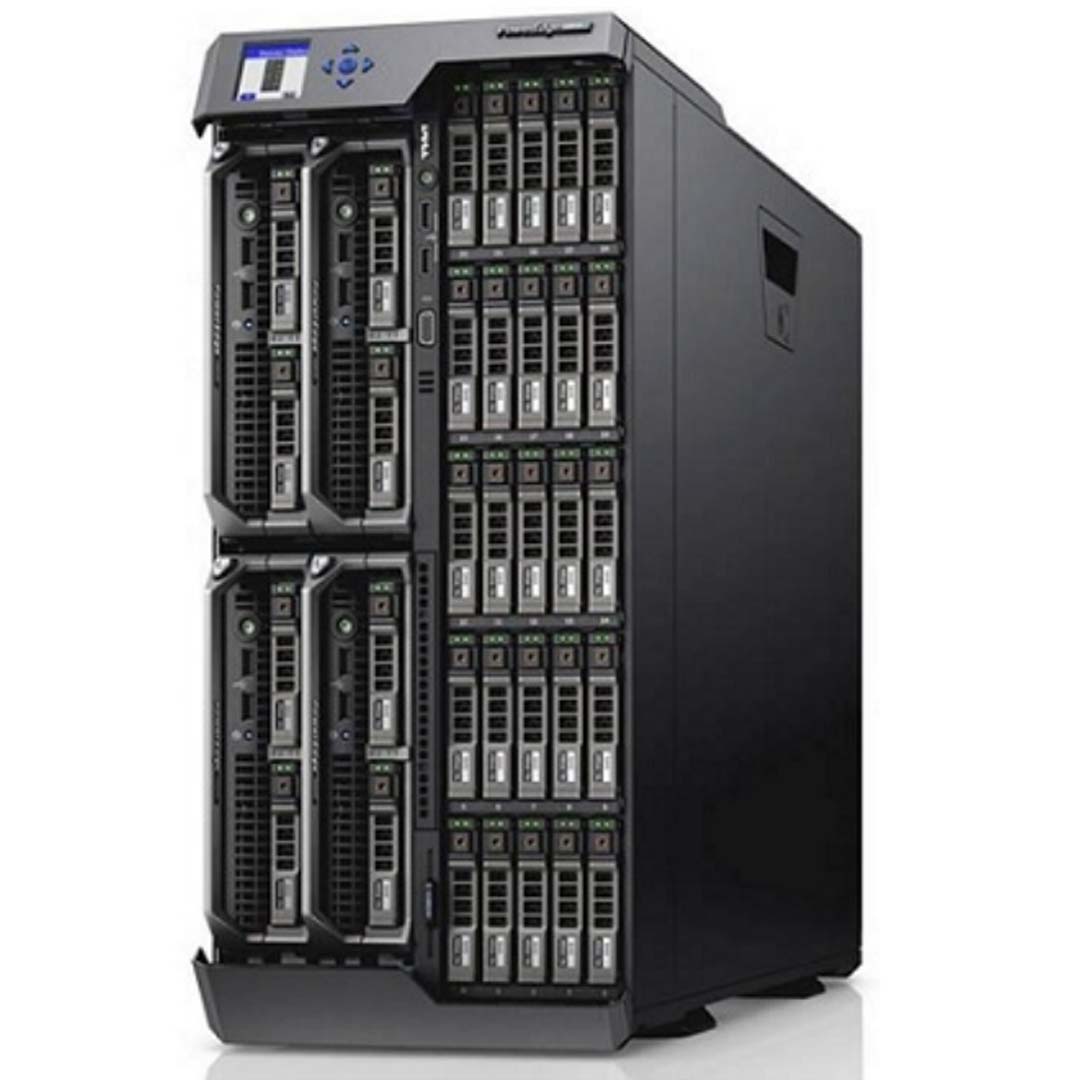

    Dell Supported M1000e and VRTX Modular Architecture

    Deliver the compute power your demanding applications require with the flexible PowerEdge M630 blade server, a member of the 13th generation of PowerEdge servers. Designed for the PowerEdge M1000e blade server chassis and the PowerEdge VRTX modular infrastructure, the M630 offers exceptional scalability in environments ranging from IT as a service (XaaS) providers and private clouds to remote and branch offices.



    Tailor your blades to your business

    The M630 provides the flexibility to optimize in-server storage and IO performance, allowing you to tailor your servers to your workloads today and adapt as your needs change over time.


    Heat Sinks & Dimensions
    Heat Sink

    For processors of 105 W, 120 W, or 135 W, use heat sinks of 68 mm width.CAUTION: For processors of 135 W (four cores, six cores, or eight cores) or 145 W, use heat sinks of 86 mmwidth.NOTE: Mixing processors of different wattages is not supported.

    Dimensions & Weight
    • Depth: 544.3 mm (21.42")
    • Height: 50.3 mm (1.98")
    • Width: 192.3 mm (7.57")
    • Weight: 6.8 kg (14.99 lb)
    Memory
    Memory module sockets Memory capacity Minimum RAM Maximum RAM Speed
    PowerEdge M630 64 GB quad rank (LRDIMMs) 4 GB with single processor
    • Up to 768 GB with a single processor
    • Up to 1536 GB with a dual processor
    2400 MT/s, 2133 MT/s, or 1866 MT/s, DDR4 DIMMs
    32 GB quad rank (LRDIMMs) 2133 MT/s, or 1866 MT/s,, DDR4 DIMMs
    4 GB, 8 GB, 16 GB or 32 GB single rank (RDIMMs) 2400 MT/s, 2133 MT/s, or 1866 MT/s, DDR4 DIMMs
    8 GB, 16 GB and 32 GB dual rank (RDIMMs) 2400 MT/s, 2133 MT/s, or 1866 MT/s, DDR4 DIMMs

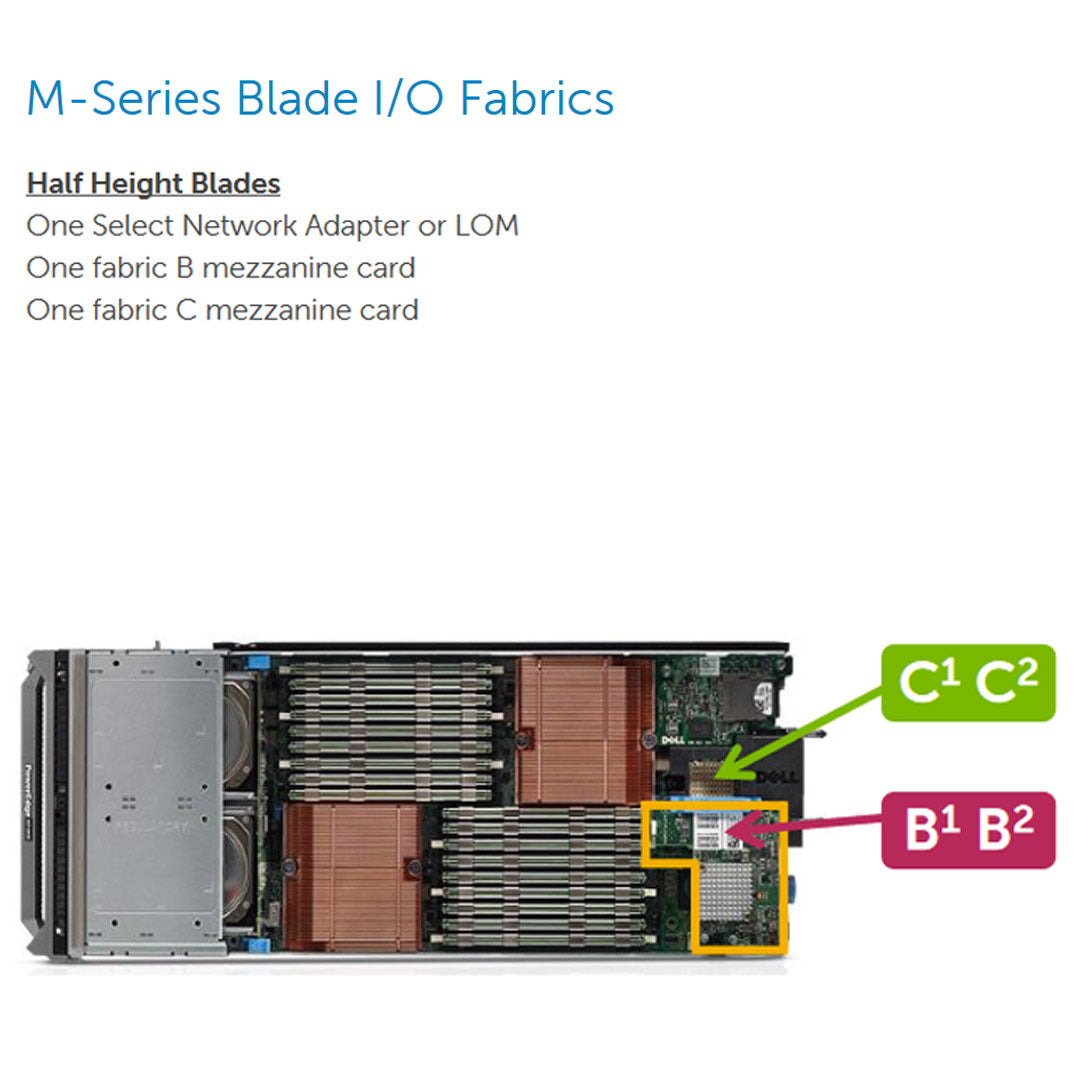

    PCIe Mezzanine & bNDC
    2x PCIe Mezzanine Slots:
    • Mezzanine card slot C supports Fabric C. This card must match the fabric type of I/O modules installed in I/O module baysC1 and C2.
    • Mezzanine card slot B supports Fabric B. This card must match the fabric type of I/O modules installed in I/O module baysB1 and B2.

    Blade Network Daughter Card (bNDC)

    The Network Daughter Card (NDC) is a small, removable mezzanine card. The NDC provides you with a flexibility of choosingdifferent network connectivity option, for example—4 x 1GbE, 2 x 10GbE or 2 x Converged Network Adapter.

    Boot Options:
    IDSDM with USB

    The Internal Dual SD Module (IDSDM) card provides two SD card slots and a USB interface dedicated for the embedded hypervisor. This card offers the following features:

    • Dual card operation—maintains a mirrored configuration by using SD cards in both slots and provides redundancy.
    • Single card operation—single card operation is supported, but without redundancy.

    vFlash SD

    The vFlash SD card is positioned under the bNDC in the rear of the system. This is supported with the upgraded iDRAC8 Enterprise.
