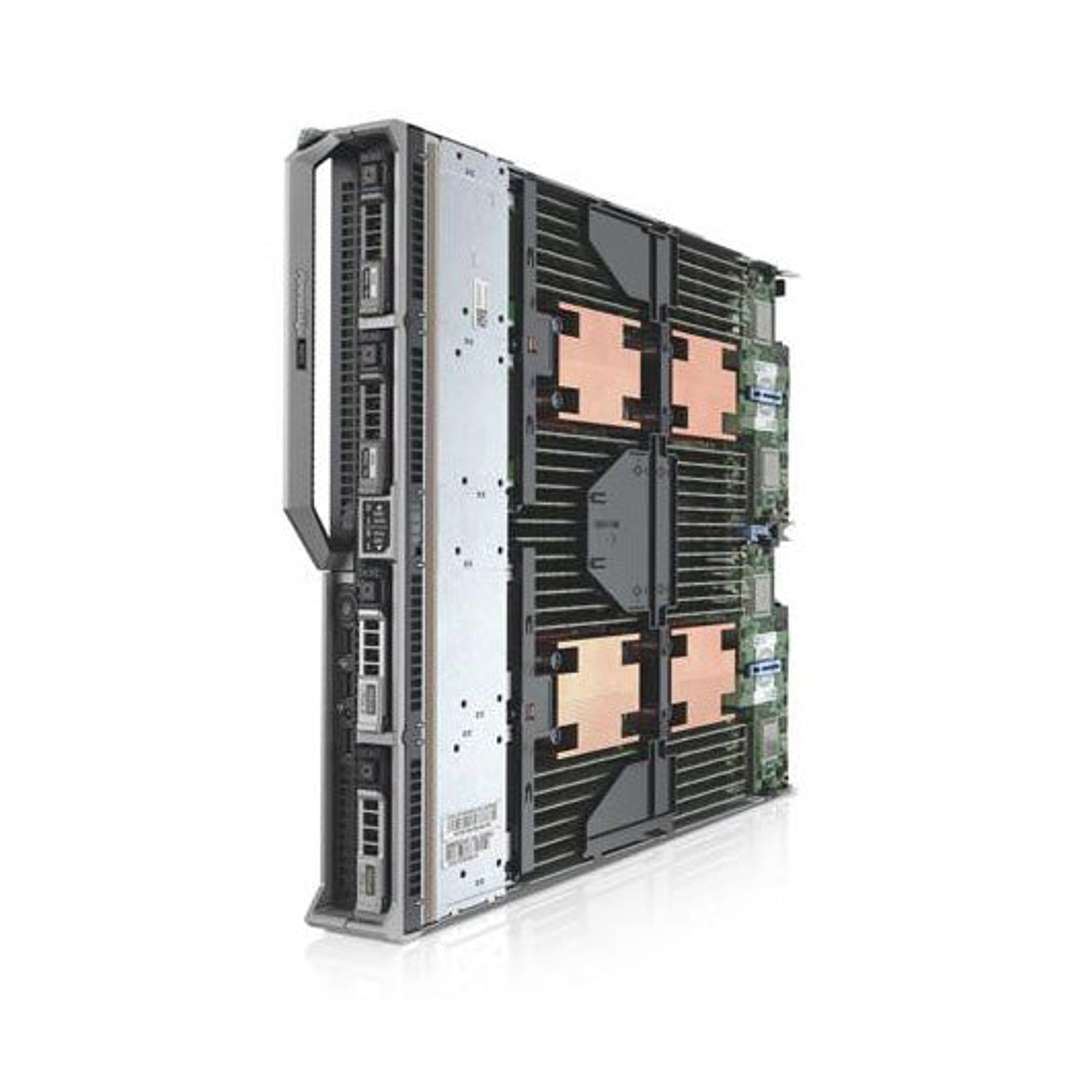

Dell PowerEdge M820 Blade Server CTO

Name: Dell PowerEdge M820 Blade Server CTO
Brand: Dell
SKU: DPE-M820-CTO
Availability: OutOfStock

Dell

| CTO Servers |

DPE-M820-CTO

.price-ui--loading { display: block !important; opacity: 1 !important; }

Configure for Pricing

READ ME

Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
“Quote” items can be added to your cart and sent to us via the cart page
Click the blue bar to close/open a section from view after choosing your options

Server Chassis

Dell PowerEdge M820 Blade Server Chassis (4x2.5") Quote Dell PowerEdge M820 Blade Server Chassis (2x2.5") Quote Dell PowerEdge M820 Blade Server Chassis (2x2.5" HDD + 2x2.5" SSD) Quote

Select Processor

Intel Xeon E5-4600

Supports up to (4) processors

Intel Xeon E5-4650L (2.6Ghz / 8 Core / 20MB / 115W) 2-Processor | SR0QS Quote Intel Xeon E5-4650 (2.7Ghz / 8 Core / 20MB / 130W) 2-Processor | SR22J Quote Intel Xeon E5-4640 (2.4Ghz / 8 Core / 20MB / 95W) 2-Processor | SR22L Quote Intel Xeon E5-4620 (2.2Ghz / 8 Core / 16MB / 95W) 2-Processor | SR22K Quote Intel Xeon E5-4617 (2.9Ghz / 6 Core / 15MB / 130W) 2-Processor | SR0L5 Quote Intel Xeon E5-4610 (2.4GHz / 6 Cores / 15MB / 95W) Processor Quote Intel Xeon E5-4607 (2.2Ghz / 6 Core / 12MB / 95W) 2-Processor | SR0KU Quote Intel Xeon E5-4603 (2.0Ghz / 4 Core / 10MB / 95W) 2-Processor | SR0LF Quote

Memory

12 DIMMs per processor (up to 48 DIMMs in a 4-processor configuration)

Dell 4GB DDR3 1333MHz R1 RDIMM Quote Dell 4GB DDR3 1600MHz R1 RDIMM Quote Dell 4GB DDR3 1333MHz R2 RDIMM Quote Dell 4GB DDR3 1600MHz R2 RDIMM Quote Dell 8GB DDR3 1333MHz R2 RDIMM Quote Dell 8GB DDR3 1600MHz R2 RDIMM Quote Dell 16GB DDR3 1333MHz R2 RDIMM Quote Dell 16GB DDR3 1600MHz R2 RDIMM Quote Dell 32GB DDR3 1333MHz R4 RDIMM Quote

RAID Controllers (Optional)

Dell PERC 8 H310 Mezzanine RAID Controller Quote Dell PERC 8 H710 Mezzanine RAID Controller Quote Dell PERC 8 H710p Mezzanine RAID Controller Quote

SSD NVMe PCIe (2.5") SFF Drives (Optional)

Supports (2) SSD NVME PCIe Drives
Supports (2) SSD or HDD Drives

Dell Enterprise Class 2.5" 175GB NVMe SSD Quote Dell Enterprise Class 2.5" 350GB NVMe SSD Quote

Fabric A - Network Daughter Card

Supports up to (2) NDC's

Dell Broadcom 57810S-K Dual Port 10Gb bNDC | JVFVR $34.99 Dell Intel X520-k Dual Port 10Gb bNDC | XWKGY $20.00 Dell Qlogic QMD8262-k Dual Port 10Gb bNDC | FM9J6 Quote

VRTX Mezzanine Card for Fabric B (Optional)

Supports up to (4) cards that get connect to the Fabric B on the VRTX Modular Server

Dell VRTX PCIe Pass Through Mezzanine Adapter | 3N9XX Quote

VRTX Mezzanine Card for Fabric C (Optional)

Supports up to (4) cards that get connect to the Fabric C on the VRTX Modular Server

Dell VRTX PCIe Pass Through Mezzanine Adapter | 3N9XX Quote

Trusted Platform Module 1.2 (Optional)

TPM Trusted Platform Module 1.2 $55.00

Internal Dual SD Module (IDSDM) (Optional)

If you choose a SD Card, you must choose the SD Card Reader at the top.

Dell Dual SD Card Reader IDSDM w/ USB Slot Quote Dell 8GB SD Card Quote Dell 16GB SD Card Quote Dell 32GB SD Card Quote

iDRAC Remote Options (Optional)

Dell iDRAC 7 Enterprise License Quote Dell iDRAC Riser Card with SD Slot Quote Dell 16GB vFlash MicroSD Card $25.00

ECS Warranty

ECS-1-Year - ECS 1-Year NBD Parts Replacement Warranty *Included as Standard for USA Customers* $1.00 ECS-2-Year - ECS 2-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-3-Year - ECS 3-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-4-Year - ECS 4-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-5-Year - ECS 5-Year NBD Parts Replacement Warranty (Ask for Quote) Quote

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs

Form Factor:

Full-Height Blade Server

Processor | Max: 8 Cores

4 x Intel Xeon E5-4600

Memory | Max: 1.5TB or 2TB

48 DDR3 RDIMM 1600MHz
LRDIMM 1333MHz

Boot Options:

IDSDM

Storage | Max: 4.8TB

2 or 4 SFF SAS/NL-SAS HDD/SSD

Storage Controllers:

PERC H310
PERC H710
PERC H710P

PCIe:

4x Mezzanine slots PCIe 3.0

iDRAC:

iDRAC7 Express for Blades with Lifecycle Controller (default)

Ideal for:

Virtualization

This is one of the supported Blade Servers, each Modular Enclosure is a separate CTO you must configure.

Supported Dell M1000e & VRTX Architecture

Dell M1000e Blade Architecture

Dell VRTX Blade Architecture

The Dell PowerEdge M820 blade server delivers exceptional performance and scalability for core business applications or consolidated environments with no compromise on enterprise-class features.

Image of the VRTX and M1000e Modular Servers

The PowerEdge M820’s scalability makes it a perfect fit for core business applications or consolidated workloads. Virtual environments supporting large numbers of sizeable virtual machines will find the M820 a perfect choice. With up to four Intel Xeon E5-4600 processors and up to 1.5TB of RAM per node—12TB of memory in just a single M1000e chassis—the M820’s remarkable computational capability and memory scalability can address even the toughest demands. With Dell’s Select Network Adapter, you can fully customize the I/O capabilities of the M820 to match the networking technology that’s right for your applications.

Ensure business continuity

Ensure maximum uptime with the fully redundant M-series power, cooling and networking infrastructure designed to provide the stability and resiliency our customers demand for Enterprise-class deployments. The M820’s design matches Dell’s commitment to reliability, with features such as multiple hardware RAID choices and our unique failsafe virtualization technology, which utilizes redundant SD media to provide failover capabilities for embedded hypervisors.

Improve operational efficiency

Help manage your servers using the Dell OpenManage portfolio, including Dell’s exclusive Integrated Dell Remote Access Controller (iDRAC) with Lifecycle Controller. iDRAC, an embedded systems management feature, allows Dell servers to be managed in physical, virtual, local and remote environments, either in-band or out-of-band and with or without a systems management software agent. OpenManage also integrates and connects to leading third-party systems management solutions you may already use, allowing you to maintain a single point of control and capitalize on your existing investment. OpenManage simplifies the lifecycle of deploying, updating, monitoring, and maintaining your Dell PowerEdge servers.

The PowerEdge M-series blade server line

Implement the right combination of features and performance scalability with the PowerEdge M-series blade servers that can handle tough workloads in any size data centers. In addition to the world-class management features provided in all PowerEdge servers, the M820 also takes advantage of the capabilities of the M1000e Chassis Management Controller (CMC). The CMC allows M-series blades to be managed individually or as groups, in single or multiple chassis, and within a data center or in multiple geographically dispersed locations around the globe without requiring a single agent or additional hardware. PowerEdge M-series blade servers use the redundant power, cooling, and networking infrastructure provided by the Dell M1000e blade enclosure, which is exceptionally easy to deploy and manage and maximizes power and cooling efficiency.
