Quick Specs

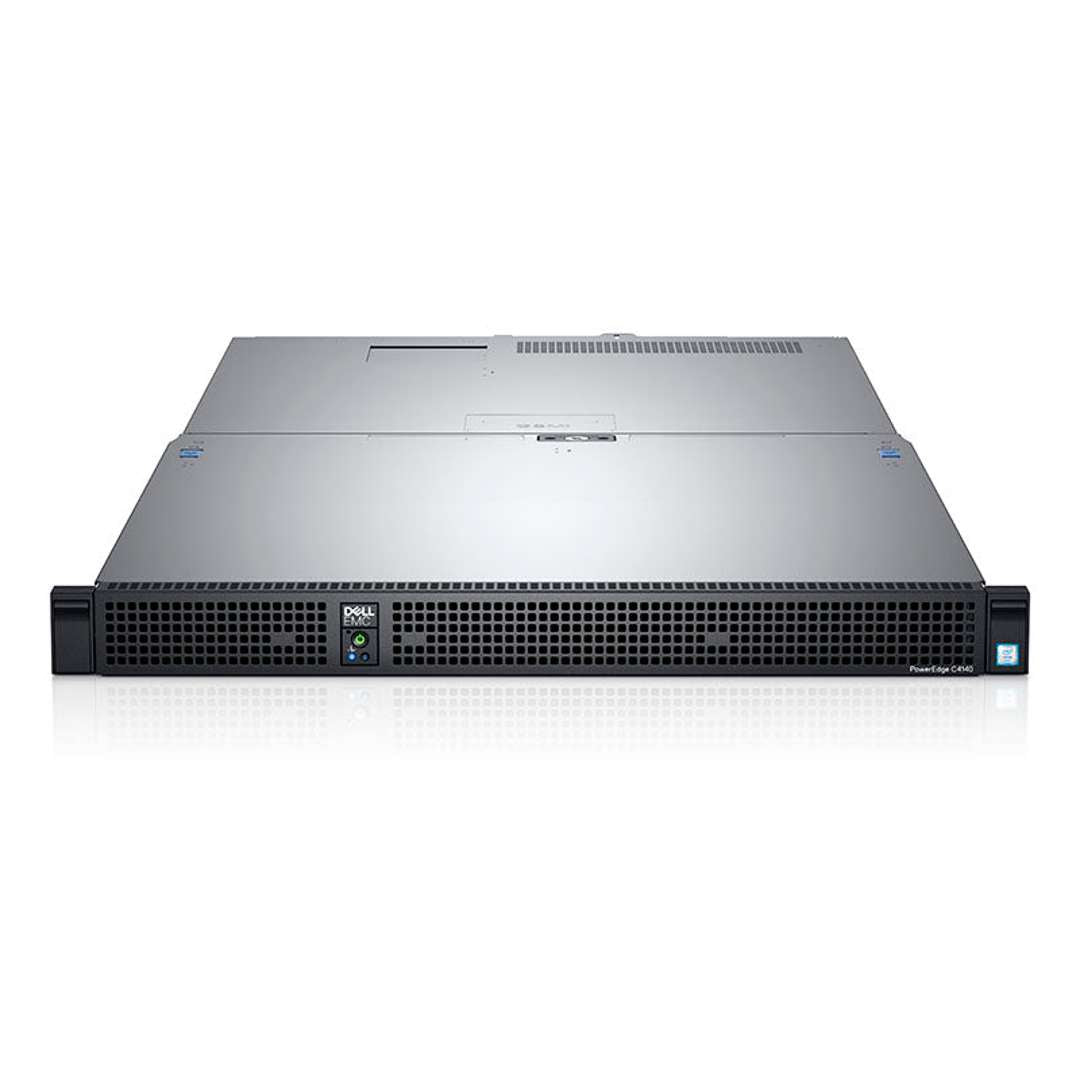

1U rack server
Processor | Max: 24 Cores2x 1st or 2nd Generation Intel Xeon Scalable
Memory | Max: 1.5TB24 DDR4 RDIMM/LRDIMM 2933Mhz
Storage:Optional - instead of second PSU with up to 2x 2.5" SSD
System supports up to 2x PCIe SSD AIC
PERC H840, 12 Gbps SAS HBA
Boot Options:vFlash
vFlash + IDSDM
BOSS-S1 (Required)
None
PCIe Slots:3x PCIe 3.0
PCIe Slot 2 is for the BOSS Card
iDRAC9 with Lifecycle Controller
GPU:Four (4) SMX2 NVLink or PCIe GPU slots
Ideal for:
- Big Data Analytics
- Artificial Intelligence (AI)
- Machine Learning (ML)
- Deep Learning (DL)
- High-Performance Computing

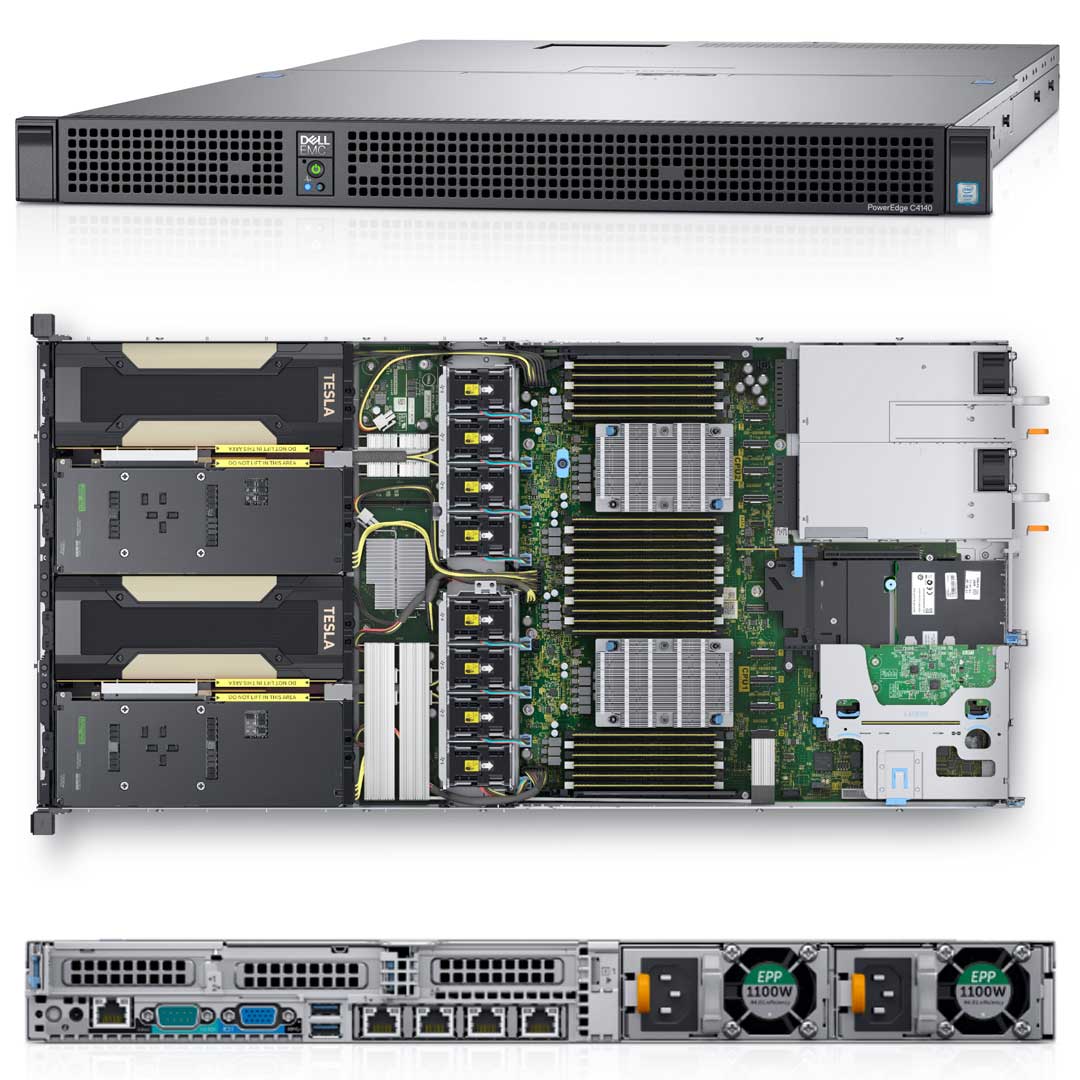

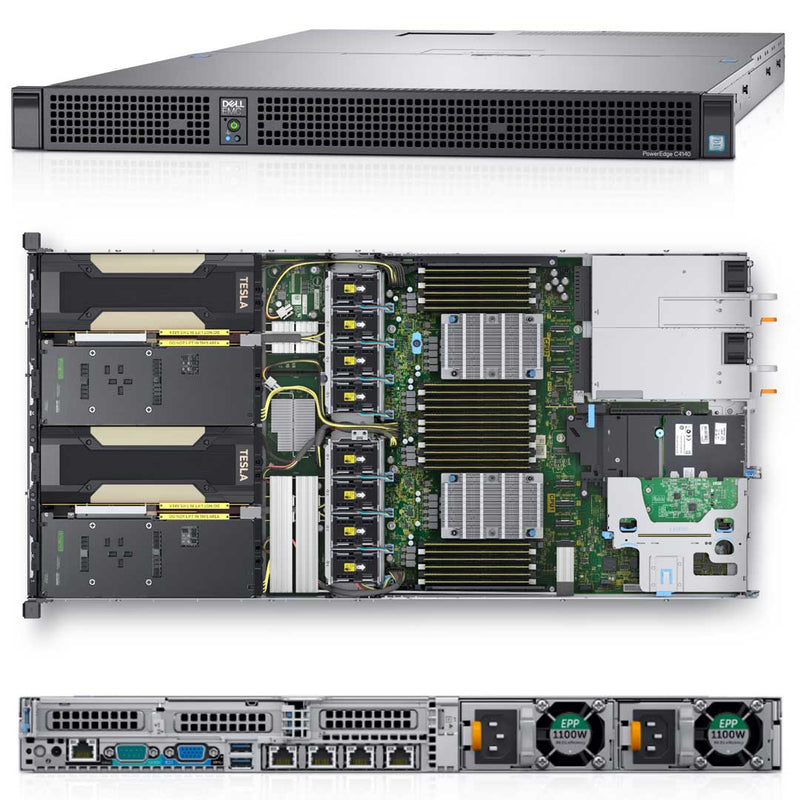

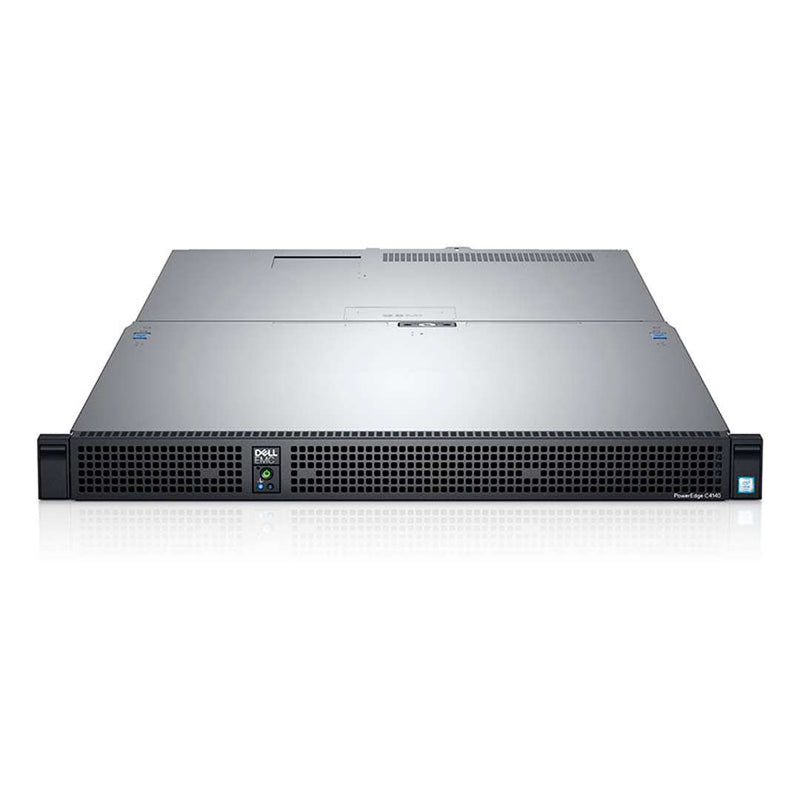

The PowerEdge C4140 is an accelerator-optimized, 1U rack server designed for most demanding workloads. It is ideal for cognitive workloads such as artificial intelligence, machine learning, deep learning and for technical computing in industry verticals such as financial services, life sciences, High-Performance Computing (HPC), and oil and gas exploration
Artificial Intelligence focused, ultra-dense, 4 GPU, 2 socket, 1U rack server
The C4140 is the industry’s leading accelerator-optimized, ultra-dense server platform. It handles the most demanding cognitive and technical computing workloads. The C4140 delivers un-throttled performance with its unique interleaved GPU design and no-compromise acceleration technology. Dell EMC offers pre-configured Ready Bundles for Machine Learning and Deep Learning applications and empowers enterprises to easily adopt and quickly deploy their Cognitive and HPC solutions using Dell EMC PowerEdge C4140. For low latency, high-performance applications such as Machine Learning, Deep Learning or Financial, the Dell EMC PowerEdge C4140 is the right fit.
The Dell EMC OpenManage systems management portfolio enables peak efficiency for PowerEdge servers, through intelligent, automated management of routine IT tasks. Combined with the unique, agent-free management capabilities of the embedded iDRAC9 with Lifecycle Controller, the C4140 is effortlessly managed, freeing up your time for high profile projects.
- Increase IT data protection and integrity with the embedded security features of iDRAC9.
- Improve IT productivity and agility with OpenManage Essentials: from bare-metal deployment to ongoing maintenance, and enforcement of IT policies within production environments.
Increase performance with flexible accelerator technology
The PowerEdge C4140 is an incredibly dense rack server designed to handle the most demanding technical computing workloads in financial services, life sciences, machine and deep learning, oil and gas exploration, and high-performance computing (HPC).
- Features the latest generation of Intel® Xeon® Scalable Processors at 165W thermal design power (TDP).
- The C4140 delivers un-throttled performance with its unique interleaved GPU design and no-compromise acceleration technology.
- Supports up to 300W per accelerator card.
Designed for the most demanding cognitive and technical computing.
Give challenging cognitive computing workloads what they need with this high-density, accelerator-optimized server. The PowerEdge C4140 provides maximum density and outstanding thermal efficiency for scale-out performance. Speed up your applications with four GPUs/FPGAs in a 1U, 2-socket package.
| System Options | No of Processors | No of GPUs | GPU form Factor | Processor - GPU PCIe Link(s) | (*)Optional Add-In Cards |
|---|---|---|---|---|---|
| Configuration B | 2 | 4 (x16 Slot) | PCIe | (1) x16 Link | (2) x16 AIC PCIe |
| Configuration C | 2 | 4 (x16 Slot) | PCIe | (4) x16 Links | (2) x16 AIC PCIe |
| Configuration G | 2 | 4 (x16 Slot) | PCIe | (2) x16 Links | (2) x16 AIC PCIe |
| Configuration K | 2 | 4 (x16 Socket) | SXM2 | (1) x16 Link | (2) x16 AIC PCIe |
| Configuration M | 2 | 4 (x16 Socket) | SXM2 | (4) x16 Links | (2) x16 AIC PCIe |
| Slot #2 is reserved for BOSS card which is mandatory. | |||||

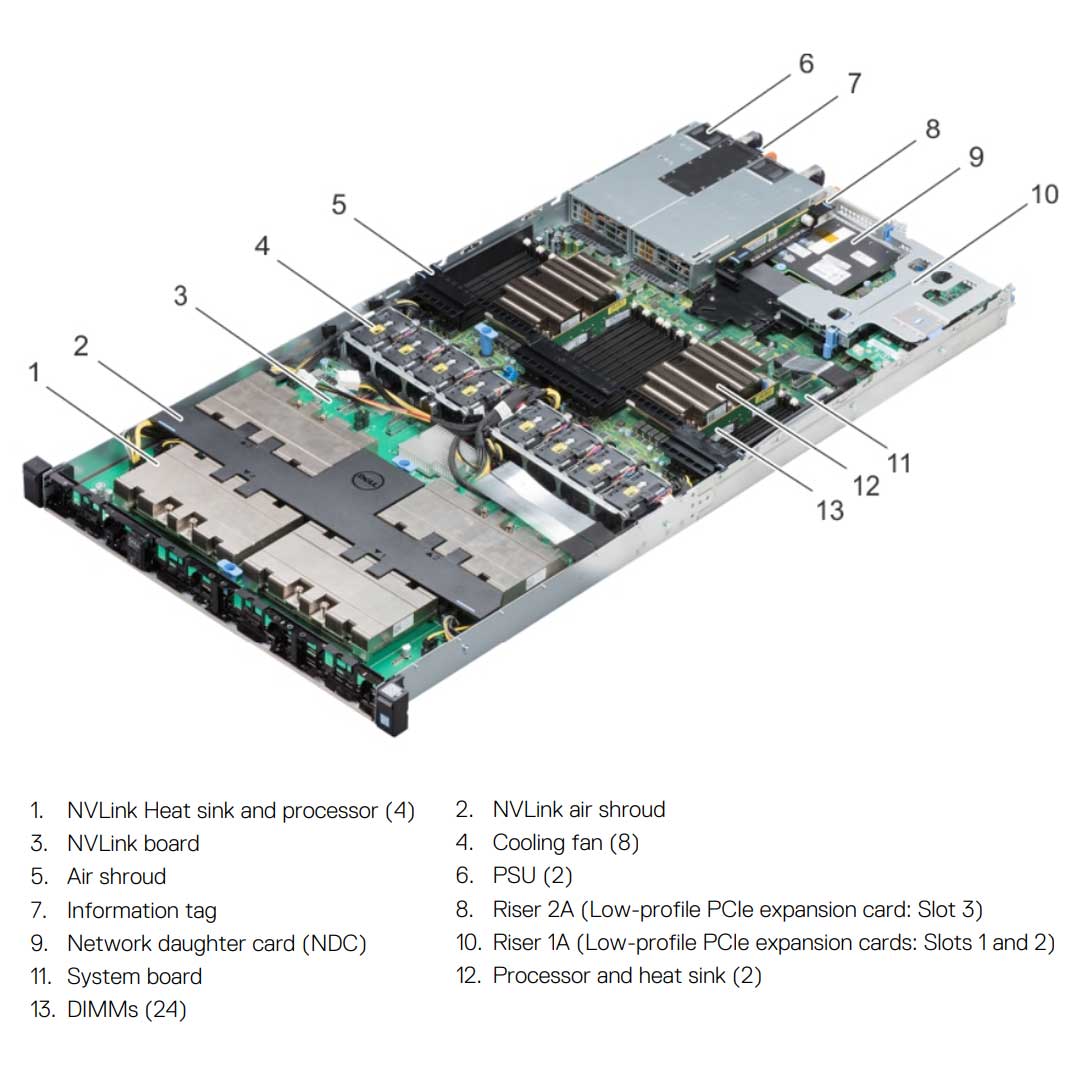

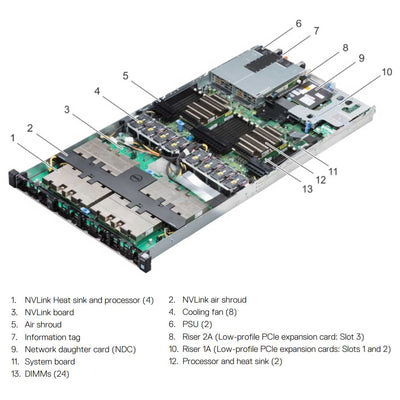

SMX2 NVLink
Dell C4140 SXM2 GPU Options
- Configuration K – 2 CPUs with 4 GPUs NVLINK2
- Configuration M – 2 CPUs with 4 GPUs direct NVLINK2
PCIe
Dell C4140 PCIe GPU Options
- Configuration B – 2 CPUs with 4 GPUs switched
- Configuration C - 2 CPUs with 4 GPUs direct
- Configuration G – 2 CPUs with 4 GPUs virtual switched
| DIMM Speed | DIMM Type | DIMM Capacity (GB) | Ranks per DIMM | Data Width | SDDC Support | DIMM Volts |
|---|---|---|---|---|---|---|
| 2666 MT/s | RDIMM | 8 | 1 | x8 | Advanced ECC | 1.2 |
| 2666 MT/s | RDIMM | 16 | 2 | x8 | Advanced ECC | 1.2 |
| 2666 MT/s | RDIMM | 32 | 2 | x4 | All Modes | 1.2 |
| 2666 MT/s | LRDIMM | 64 | 4 | x4 | All Modes | 1.2 |
| DIMM Speed | DIMM Type | DIMM Capacity (GB) | Ranks per DIMM | Data Width | SDDC Support | DIMM Volts |
|---|---|---|---|---|---|---|
| 2666 MT/s | RDIMM | 8 | 1 | x8 | Advanced ECC | 1.2 |
| 2933 - 2666 MT/s | RDIMM | 16 | 2 | x8 | Advanced ECC | 1.2 |
| 2933 - 2666 MT/s | RDIMM | 32 | 2 | x4 | All Modes | 1.2 |
| 2933 - 2666 MT/s | LRDIMM | 64 | 2 | x4 | All Modes | 1.2 |
This system has 1 option for drives but it takes up a PSU slot. Which is not ideal when running 4 GPUs in a single system. Since the C4140 does not hold any drives, Dell has provided the BOSS-S1 that will be installed in Slot 2 of the PCIe Riser 1. This BOSS-S1 card will provide the system with a Boot Option for the main OS. This system also supports vFlash or vFlash + IDSDM for booting the Hypervisor's OS.

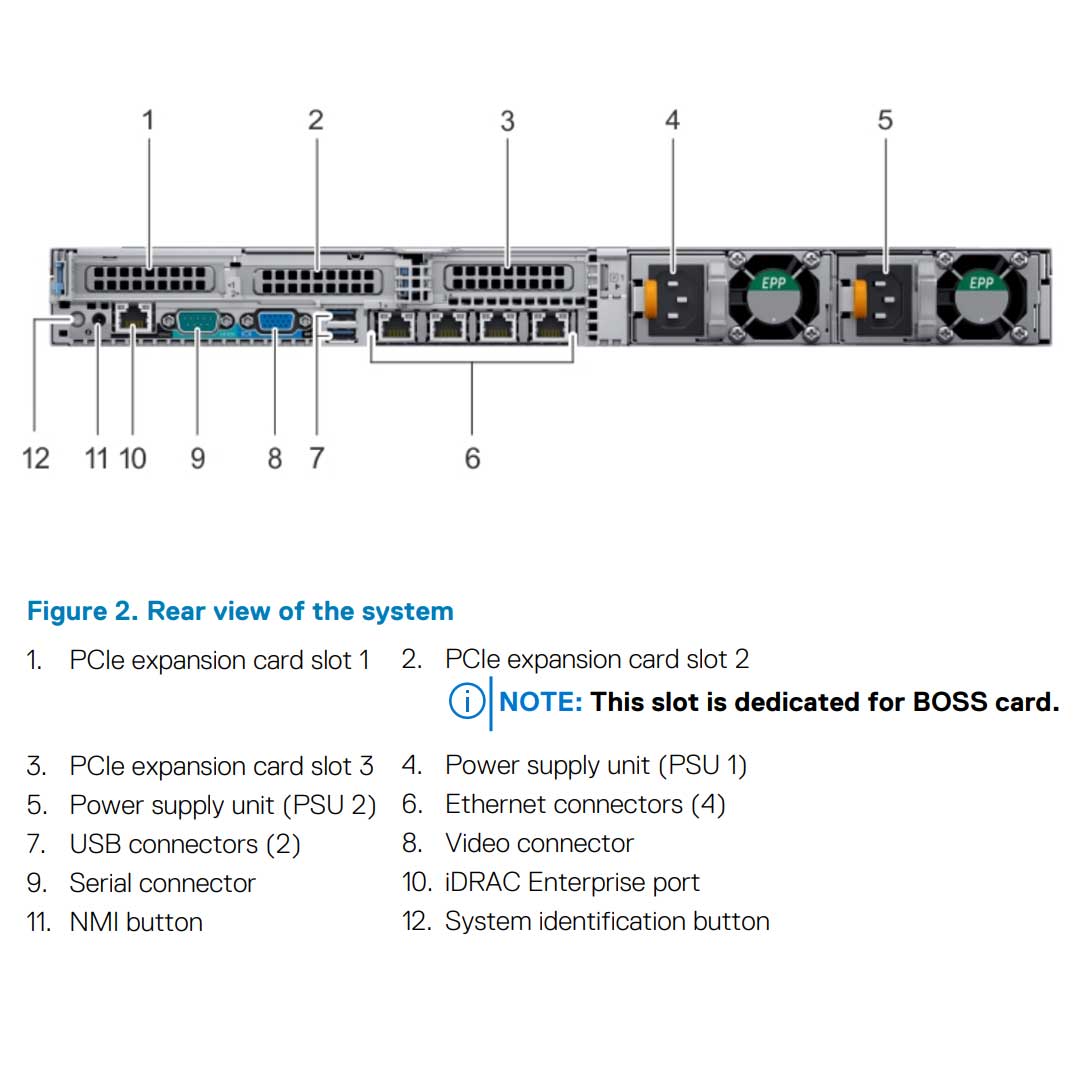

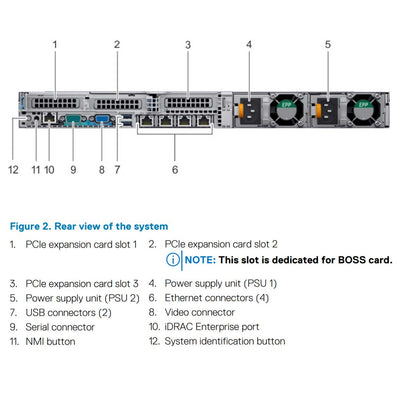

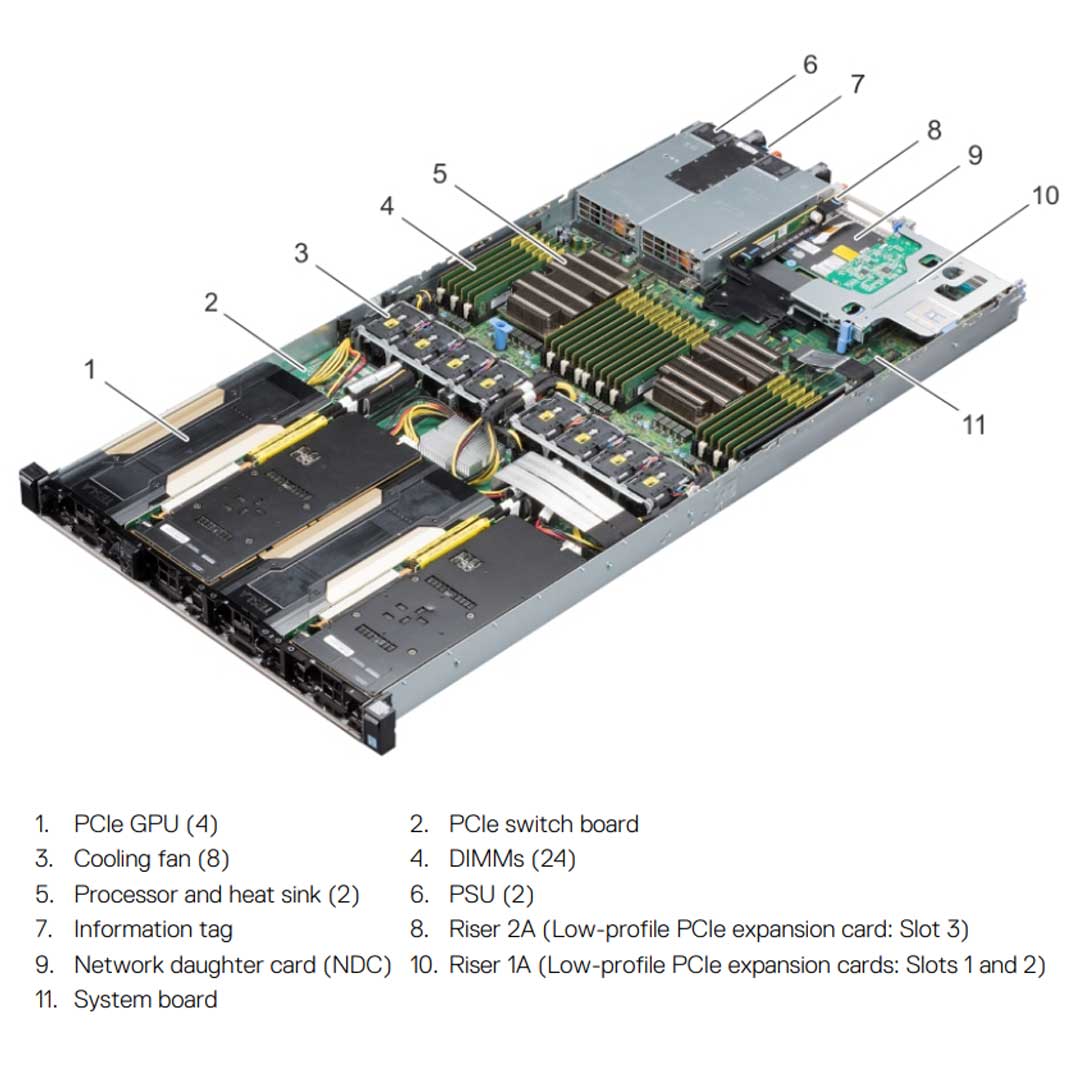

The Dell C4140 Rack Server comes with a Network Daughter Card installed below Riser 2. The two supported options are Quad Port 10Gb Base-T or SFP. You also have 2 PCIe slots when both risers are installed for extra Networking Adapters.
| Expansion card riser | PCIe slots on the riser | Processor connection | Height | Length | Slot width |
|---|---|---|---|---|---|
| Riser 1A | Slot 1 | Processor 1 | Low Profile | Half Length | x16 |
| Slot 2 For BOSS Card | Processor 1 | Low Profile | Half Length | x4 | |
| Riser 2A | Slot 3 | Processor 2 | Low Profile | Half Length | x16 |
| Wattage | Frequency | Voltage | Class | Heat dissipation |
|---|---|---|---|---|
| 2000W | 50/60Hz | 100-240Vac/11.5A | Platinum | 7500 BTU/hr |
| 2400W | 50/60Hz | 100-240Vac/11.5A | Platinum | 9000 BTU/hr |
Dimensions
- Width: 482.4 mm (18.99")
- Height: 43.1 mm (1.69")
- Depth: 941.8 mm (37.07")
- Weight:
- (Configuration B - w/ PCIe GPUs) 22.1 kg (48.7 lb)
- (Configuration K - w/ SXM2 GPUs) 24 kg (52.91 lb)

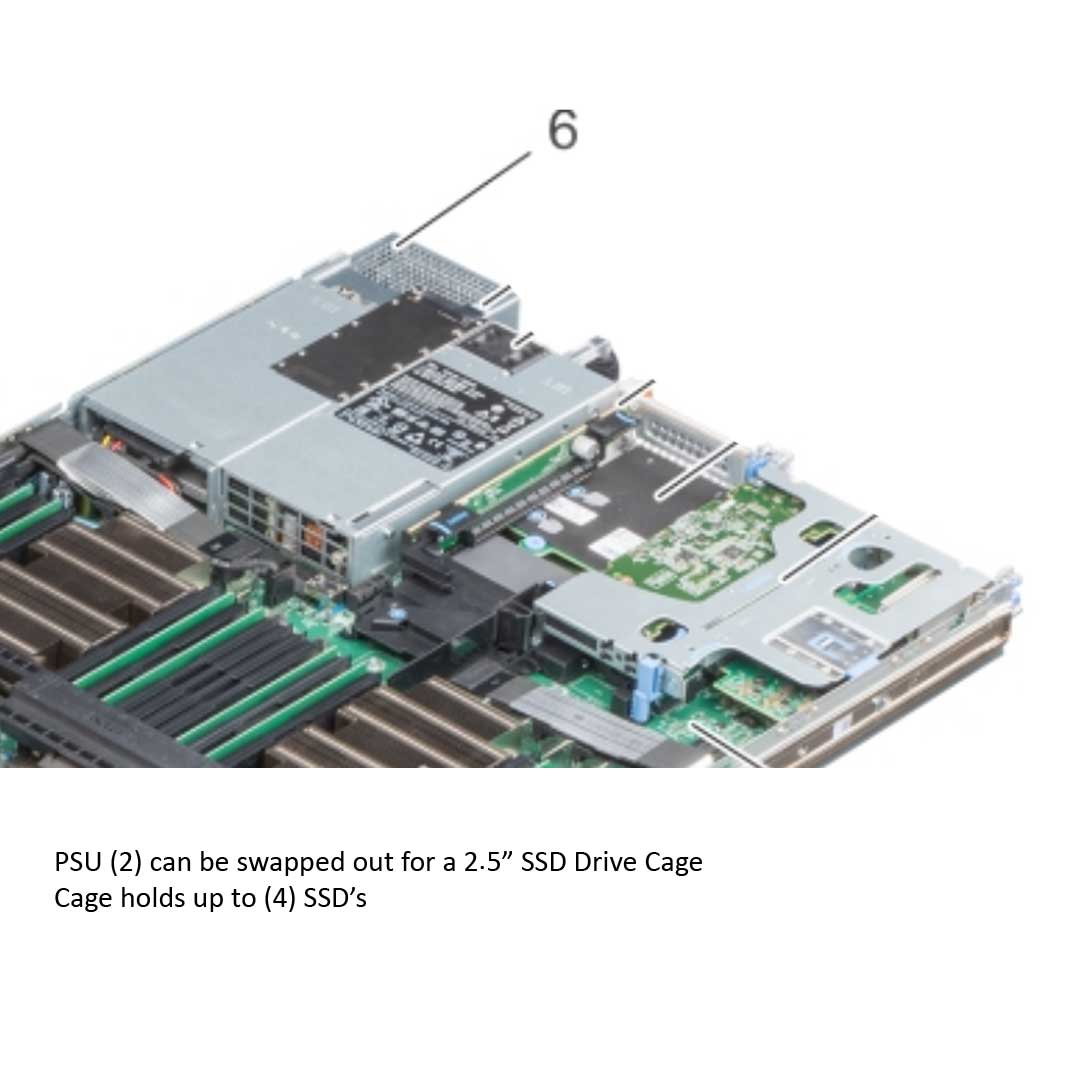

2x 2.5" Cabled Drives
There is an option to remove the seconds PSU and install 2x 2.5" drives. With this option, you can't have a redundant PSU configuration. The server also comes with support for the BOSS-S1 and the ability to install PCIe SSD AIC cards for extra storage.
