Tech

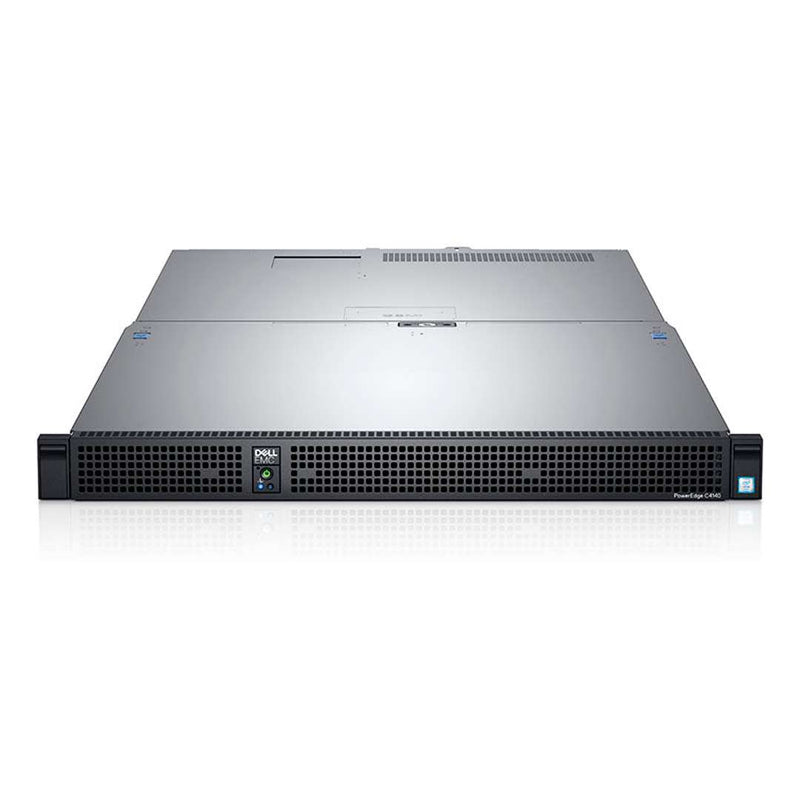

1U rack server
Processor | Max: 24 Cores2x 1st or 2nd Generation Intel Xeon Scalable
Memory | Max: 1.5TB24 DDR4 RDIMM/LRDIMM 2933Mhz
Storage:Optional - instead of second PSU with up to 2x 2.5" SSD
System supports up to 2x PCIe SSD AIC
PERC H840, 12 Gbps SAS HBA
Boot Options:vFlash
vFlash + IDSDM
BOSS-S1 (Required)
None
PCIe Slots:3x PCIe 3.0
PCIe Slot 2 is for the BOSS Card
iDRAC9 with Lifecycle Controller
GPU:Four (4) SMX2 NVLink or PCIe GPU slots
- Big Data Analytics
- Artificial Intelligence (AI)
- Machine Learning (ML)
- Deep Learning (DL)
- High-Performance Computing
The PowerEdge C4140 is an accelerator-optimized, 1U rack server designed for most demanding workloads. It is ideal for cognitive workloads such as artificial intelligence, machine learning, deep learning and for technical computing in industry verticals such as financial services, life sciences, High-Performance Computing (HPC), and oil and gas exploration
Artificial Intelligence focused, ultra-dense, 4 GPU, 2 socket, 1U rack server
The C4140 is the industry’s leading accelerator-optimized, ultra-dense server platform. It handles the most demanding cognitive and technical computing workloads. The C4140 delivers un-throttled performance with its unique interleaved GPU design and no-compromise acceleration technology. Dell EMC offers pre-configured Ready Bundles for Machine Learning and Deep Learning applications and empowers enterprises to easily adopt and quickly deploy their Cognitive and HPC solutions using Dell EMC PowerEdge C4140. For low latency, high-performance applications such as Machine Learning, Deep Learning or Financial, the Dell EMC PowerEdge C4140 is the right fit.
The Dell EMC OpenManage systems management portfolio enables peak efficiency for PowerEdge servers, through intelligent, automated management of routine IT tasks. Combined with the unique, agent-free management capabilities of the embedded iDRAC9 with Lifecycle Controller, the C4140 is effortlessly managed, freeing up your time for high profile projects.
- Increase IT data protection and integrity with the embedded security features of iDRAC9.
- Improve IT productivity and agility with OpenManage Essentials: from bare-metal deployment to ongoing maintenance, and enforcement of IT policies within production environments.
Increase performance with flexible accelerator technology
The PowerEdge C4140 is an incredibly dense rack server designed to handle the most demanding technical computing workloads in financial services, life sciences, machine and deep learning, oil and gas exploration, and high-performance computing (HPC).
- Features the latest generation of Intel® Xeon® Scalable Processors at 165W thermal design power (TDP).
- The C4140 delivers un-throttled performance with its unique interleaved GPU design and no-compromise acceleration technology.
- Supports up to 300W per accelerator card.
Designed for the most demanding cognitive and technical computing.
Give challenging cognitive computing workloads what they need with this high-density, accelerator-optimized server. The PowerEdge C4140 provides maximum density and outstanding thermal efficiency for scale-out performance. Speed up your applications with four GPUs/FPGAs in a 1U, 2-socket package.
| System Options | No of Processors | No of GPUs | GPU form Factor | Processor - GPU PCIe Link(s) | (*)Optional Add-In Cards |
|---|---|---|---|---|---|
| Configuration B | 2 | 4 (x16 Slot) | PCIe | (1) x16 Link | (2) x16 AIC PCIe |
| Configuration C | 2 | 4 (x16 Slot) | PCIe | (4) x16 Links | (2) x16 AIC PCIe |
| Configuration G | 2 | 4 (x16 Slot) | PCIe | (2) x16 Links | (2) x16 AIC PCIe |
| Configuration K | 2 | 4 (x16 Socket) | SXM2 | (1) x16 Link | (2) x16 AIC PCIe |
| Configuration M | 2 | 4 (x16 Socket) | SXM2 | (4) x16 Links | (2) x16 AIC PCIe |
| Slot #2 is reserved for BOSS card which is mandatory. | |||||
Dell C4140 SXM2 GPU Options
- Configuration K – 2 CPUs with 4 GPUs NVLINK2
- Configuration M – 2 CPUs with 4 GPUs direct NVLINK2
Dell C4140 PCIe GPU Options
- Configuration B – 2 CPUs with 4 GPUs switched
- Configuration C - 2 CPUs with 4 GPUs direct
- Configuration G – 2 CPUs with 4 GPUs virtual switched
| DIMM Speed | DIMM Type | DIMM Capacity (GB) | Ranks per DIMM | Data Width | SDDC Support | DIMM Volts |
|---|---|---|---|---|---|---|
| 2666 MT/s | RDIMM | 8 | 1 | x8 | Advanced ECC | 1.2 |
| 2666 MT/s | RDIMM | 16 | 2 | x8 | Advanced ECC | 1.2 |
| 2666 MT/s | RDIMM | 32 | 2 | x4 | All Modes | 1.2 |
| 2666 MT/s | LRDIMM | 64 | 4 | x4 | All Modes | 1.2 |
| DIMM Speed | DIMM Type | DIMM Capacity (GB) | Ranks per DIMM | Data Width | SDDC Support | DIMM Volts |
|---|---|---|---|---|---|---|
| 2666 MT/s | RDIMM | 8 | 1 | x8 | Advanced ECC | 1.2 |
| 2933 - 2666 MT/s | RDIMM | 16 | 2 | x8 | Advanced ECC | 1.2 |
| 2933 - 2666 MT/s | RDIMM | 32 | 2 | x4 | All Modes | 1.2 |
| 2933 - 2666 MT/s | LRDIMM | 64 | 2 | x4 | All Modes | 1.2 |
This system has 1 option for drives but it takes up a PSU slot. Which is not ideal when running 4 GPUs in a single system. Since the C4140 does not hold any drives, Dell has provided the BOSS-S1 that will be installed in Slot 2 of the PCIe Riser 1. This BOSS-S1 card will provide the system with a Boot Option for the main OS. This system also supports vFlash or vFlash + IDSDM for booting the Hypervisor's OS.
The Dell C4140 Rack Server comes with a Network Daughter Card installed below Riser 2. The two supported options are Quad Port 10Gb Base-T or SFP. You also have 2 PCIe slots when both risers are installed for extra Networking Adapters.
| Expansion card riser | PCIe slots on the riser | Processor connection | Height | Length | Slot width |
|---|---|---|---|---|---|
| Riser 1A | Slot 1 | Processor 1 | Low Profile | Half Length | x16 |
| Slot 2 For BOSS Card | Processor 1 | Low Profile | Half Length | x4 | |
| Riser 2A | Slot 3 | Processor 2 | Low Profile | Half Length | x16 |
| Wattage | Frequency | Voltage | Class | Heat dissipation |
|---|---|---|---|---|
| 2000W | 50/60Hz | 100-240Vac/11.5A | Platinum | 7500 BTU/hr |
| 2400W | 50/60Hz | 100-240Vac/11.5A | Platinum | 9000 BTU/hr |
Dimensions
- Width: 482.4 mm (18.99")
- Height: 43.1 mm (1.69")
- Depth: 941.8 mm (37.07")
- Weight:
- (Configuration B - w/ PCIe GPUs) 22.1 kg (48.7 lb)
- (Configuration K - w/ SXM2 GPUs) 24 kg (52.91 lb)
There is an option to remove the seconds PSU and install 2x 2.5" drives. With this option, you can't have a redundant PSU configuration. The server also comes with support for the BOSS-S1 and the ability to install PCIe SSD AIC cards for extra storage.
Current Configuration
(List below serves as quick links to each section)
Server Chassis
Select Processor
Memory for 1nd Gen Processors
Memory for 2nd Gen Processors
Boot Optimized Storage Subsystem (BOSS)
Select Drive | 2.5" SSD SATA
GPU PCI-e Accelerators
GPU SMX2 NVLink Accelerators
iDRAC9 with Lifecycle Controller Remote Options
Power Supplies
ECS Warranty
The request has been sent.
Thank you.
Price as Configured:
$0
Base Standard Capabilities
| Feature | PowerEdge C4140 Technical specification | |
|---|---|---|
| Processor | Two Intel® Xeon® Scalable processors, up to 20 cores per processor | |
| Memory | Up to 24 DDR4 DIMMs in total; Supports RDIMM /LRDIMM speeds up to 2666, 1.5 TB Max ECC Registered DDR4 | |
| Storage controllers | IDSDM or Internal M.2 Boot Module (2 x M.2) -120G or 240G (mirrored configuration) | |
| Power supplies | 2000W, 2400W hot-plug, Redundant power supply unit (PSU) | |
| Accelerators | NVIDIA® Tesla® P40, P100 12GB PCIe, P100 16GB PCIe and NVLinkTM, V100 16GB PCIe and NVLink GPUs | |
| Network daughter cards and Optional adapters | Support for the following Network Daughter Cards: Intel® 10 GbE (2 + 2) Base-T Intel® 10 GbE (2 + 2) SFP+ Support for the following PCIE N/W adapters: Mellanox ConnectX®-4 Single Port VPI QSFP28 EDR LP PCIe Adapter Mellanox ConnectX®-4 Dual Port VPI QSFP28 EDR LP PCIe Adapter | Intel Omni-Path Single Port Host Fabric Adapter 100 Series LP PCIe Adapter Intel 2x 10GbE adapter Intel 2x 25GbE adapter Support for 2x NVMe/PCIE SSD AIC in rear slots: 1.6/3.2/6.4TB |
| Dimensions | 4.28 cm (1.69 in), W: 43.4 cm (17.09 in), D: 92.62 cm (36.46 in) Max weight: 24 kg (52.91 lb) | |
| Embedded / At-Server | iDRAC9 with Lifecycle Controller | |
| Consoles | OpenManage Enterprise OpenManage Essentials | OpenManage Server Administrator OpenManage Power Center |
| Security | TPM 1.2/2.0 optional Cryptographically signed firmware Silicon Root of Trust | Secure Boot System Lockdown System Erase |
| O & Ports | Four (4) Double Wide accelerator Gen3 x16 PCIe slots Two (2) low profile Gen3 x16 PCIe slots Front ports: Power button, System ID / Status LED, Health Status LED Rear ports: 2 USB 3.0 Port and iDRAC ethernet port | |
| Supported operating systems | Canonical® Ubuntu® Server LTS 16.04.3 Red Hat® Enterprise Linux 7.4 SUSE® Linux Enterprise Server 12 SP3® | For specifications and interoperability details, see Dell.com/OSsupport. |
| Recommended support and services | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, visit dell.com/itlifecycleservices. | |
| Dell Financial Services | Deliver results with easy financing. Explore financial options that move at the speed of business. For more information, visit https://www.emc.com/products/how-to-buy/global-financial-services/index.htm.* | |
Spec Sheet 4
| Feature | C4130 | C4140 |
|---|---|---|
| CPU | Up to 2x Intel Broadwell (Support up to 2x 145 W processors with ambient restrictions) | 2x Intel Purley socket P (Support for up to 2x 150 W processor) |
| Front Side Bus | Intel QuickPath Interconnect (QPi) | Intel Ultra Path Interconnect (UPI, 11.2 GT/s) |
| Memory | DDR4 up to 16x RDIMMs (256 GB) | • DDR4 up to 24x RDIMMs
• RDIMM - 8 GB, 16 GB, 32 GB • LRDIMM 64 GB |
| Storage controller | • Hardware RAID: PERC9 in a standard slot - select
adapters
• Chipset SATA software RAID |
• PCIe M.2 boot module
• Optional chipset SATA software RAID |
| Storage | • Internal: IDSDM, Optional drive carrier instead of
second power supply with up to 4x 2.5-inch drive.
• Rear: 2x 1.8 inch SSD • Bandwidth: 12Gb/6Gbn SAS HP hard drive |
• Internal: IDSDM or Internal M.2 boot module (2x
M.2) for boot
• Optional carrier instead of second PSU with up to 2 x 2.5 inch SSD |
| NDC/LOM | • No NDC is supported.
• 2x 1Gbe LOM (Intel®) |
Intel NDC: 10 GbE (2+2) BT or SFP+ (2+2) or x550 10GBASE-T |
| Max PCIe slots | • 4 x 300 W DW/FH/10.5 inch with custom
brackets
• SXM2 form factor with NVLINK interconnect |
• 4 x 300 W DW/FH/10.5 inch PCIe with custom
brackets
• SXM2 form factor w/NVLINK interconnect |
| Accelerators or GPUs | • 4 x 300 W DW/FH/10.5 inch with custom
brackets
• SXM2 form factor with NVLINK interconnect |
• 4 x 300 W DW/FH/10.5 inch PCIe with custom
brackets
• SXM2 form factor w/NVLINK interconnect |
| Internal 96-lane PCIe Gen3 Switch | • Configurations B, G, and K use PCIe switch.
• Configurations C and M do not. |
• Support for PCIe Configuration B, C, and G
• Support for NVLink Configuration K and M |
| System Management | • Base: IDRAC 8 Express with Lifecycle
configuration options
• Upsell: Enterprise edition • No front USB or Dell Quick Sync 1.0 (NFC) |
• iDRAC9 with Lifecycle Controller
• Upsell: Enterprise edition • No front USB or Dell Quick Sync 2.0 |
| Standard Rear ports | • Dedicated iDRAC
• Serial port • Video port • 2 x USB 3.0 • 2 x 1G LOM |
• Dedicated iDRAC
• RJ45 • Serial port • Video port • 2 x USB 3.0 |
| Dimensions | Height: 1U; Depth: 35 inches | Height: 1U; Depth: 35 inches |
