Quick Specs
What's New for ML150 Gen9
- (2) E5-2600 v3 & v4
- (16) DDR4 DIMM Slots
- Broadcom 5717 Dual-port 1Gb
- (6) PCIe 3.0 slots.(2) PCIe 3.0 x16; (4) PCIe 3.0 x 8 (x8 speed)
- HPE 12TB SATA 7.2 K LFF HDD
- HPE RDX 4TB USB 3.0 External/ Internal Disk Backup System
- HPE iLO (Firmware HPE iLO4 2.0 or later) with NAND
Ideal for:
- Cloud Servers
- Corporate IT
- Data Analytics
- Database
- Hyper-Converged infrastructure (HCI)
- Retail Servers
- Virtual Desktop Interface (VDI)
- Virtualization
- Anything as a service (Xaas)

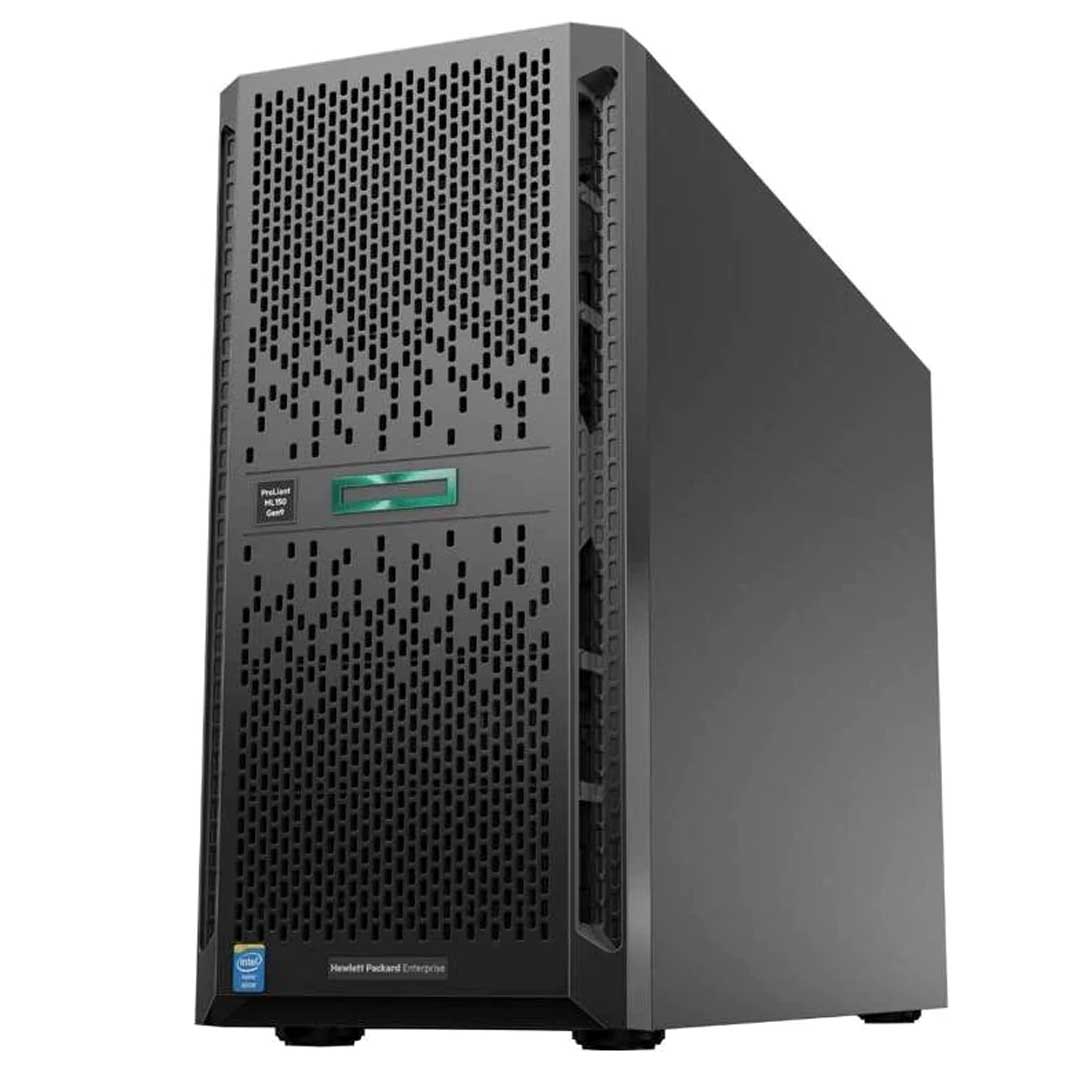

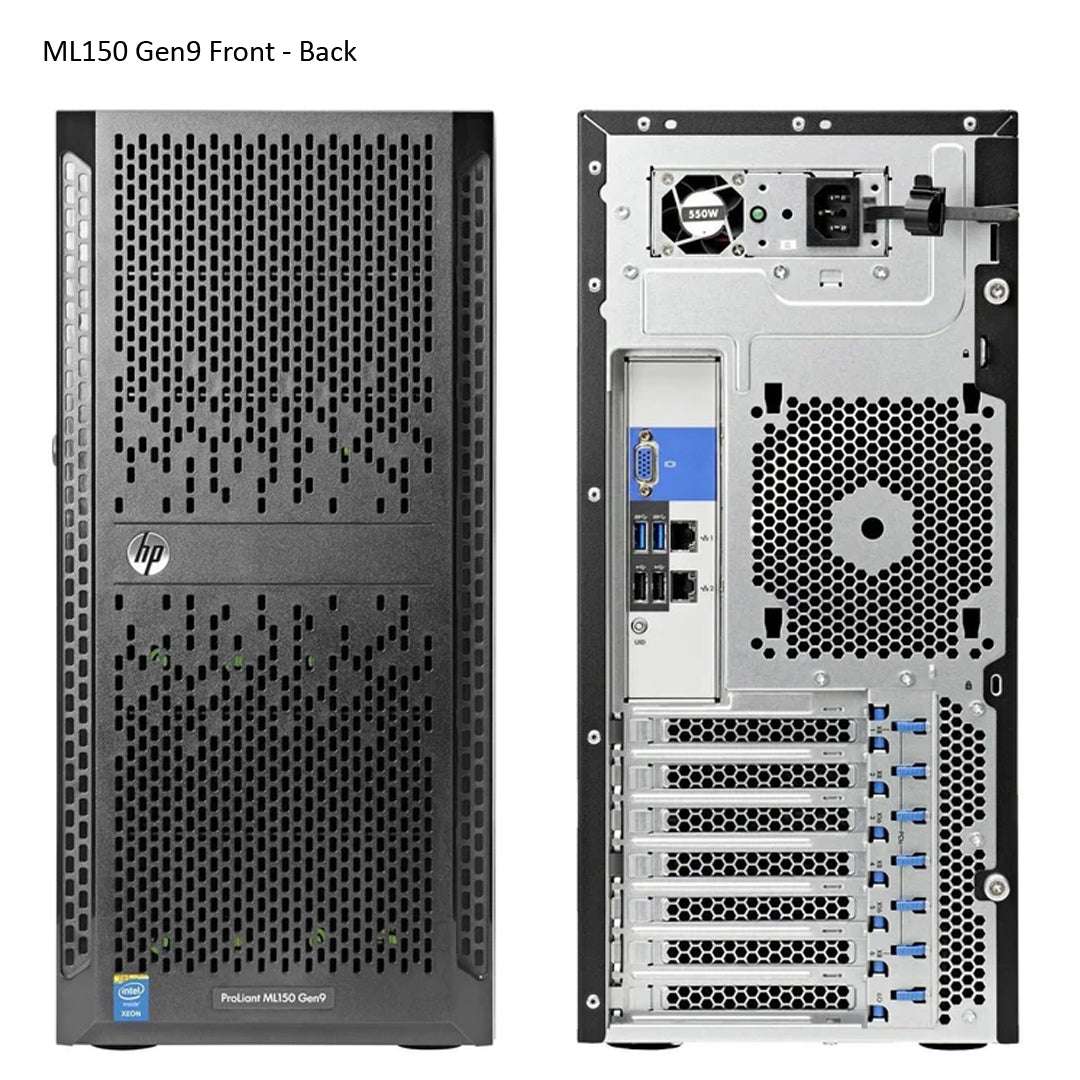

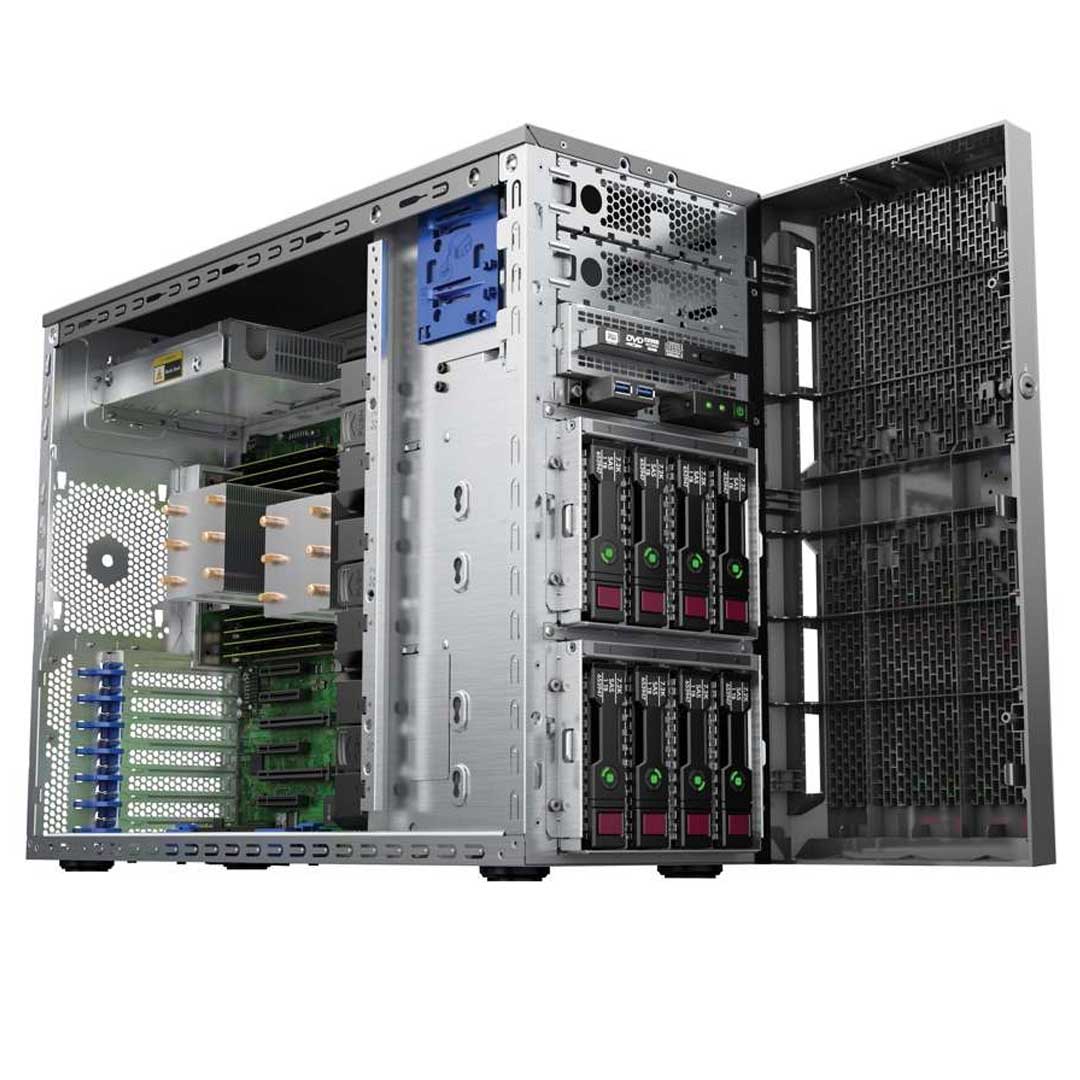

The HPE ProLiant ML150 Gen9 Server, designed for SMBs, supports up to two Intel Xeon E5-2600 v3/v4 processors in a tower form factor that is rack-mountable. It combines performance, efficiency, and manageability with room for growth. Featuring an embedded SATA HPE Dynamic Smart Array B140i Controller for boot and data.
It also supports HPE Smart Array Controllers for enhanced performance and 12 Gb/s SAS, or HPE Smart HBAs for high-performance SAS connectivity in HBA or RAID modes. With a compact 24-inch chassis and built-in ProLiant technologies, it simplifies server deployment and management, boosting productivity and scalability for growing businesses.

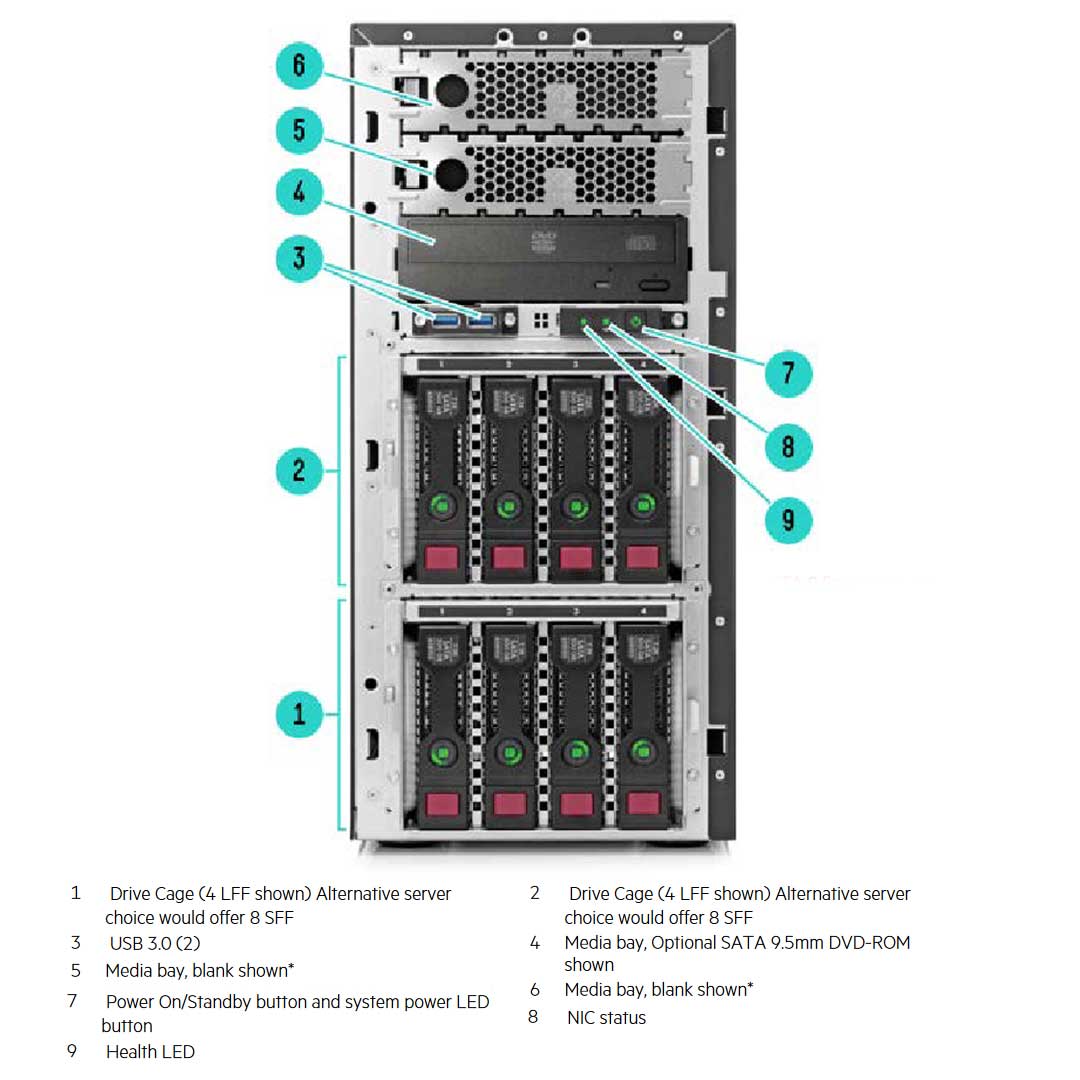

Chassis Options
| CTO Server [Chassis] | HP ProLiant ML150 Gen9 Non-hot Plug 4LFF Configure-to-order Server |
HP ProLiant ML150 Gen9 Hot Plug 4LFF Configure-to-order Server |
HP ProLiant ML150 Gen9 Hot Plug 8SFF Configure-to-order Server |
|---|---|---|---|
| SKU Number | 767062-B21 | 767063-B21 | 767064-B21 |
| Processor | 2 (optional) x HPE Smart Socket Guide | ||
| DIMM Slots | 16 DIMM slots for RDIMM, LRDIMM DDR4 Memory | ||
| Storage Controller | HPE Dynamic Smart Array B140i | ||
| PCIe | 6 Standard (4FH/HL, 2FH/FL) | ||
| Drive Cage - included | 4LFF Non Hot Plug | 4LFF Hot Plug | 8SFF Hot Plug |
| Network Controller | Broadcom 5717 Dual-port 1GbE | ||
| Fans | 2 non hot plug, non-redundant fans | ||
| USB | 2 front, 2 internal, 4 rear | ||
Non-hot Plug 4LFF
Controller
onboard B140i SATA controller
UpgradesSecond Non-hot-plug drive cage (792353-001)
9/10LFF Drive Kit (788567-B21)
Non-Hot-Plug (NHPE) SATA is limited to the B140i controller and SATA drives.
Hot Plug 4LFF
Controller
H240 12Gb 2-ports Int Smart HBA (726907-B21)
UpgradesSecond 4LFF Hot Plug Drive Cage (725872-B21 - 792351-001)
One H240 Cable Kit (784606-B21) per Drive Cage.
Hot Plug 8SFF
Controller
8SFF - H240 (726907-B21)
16SFF - P840 (726907-B21)
Upgrades8SFF Hot Plug Drive Cage (725874-B21 - 792352-001)
The P840 requires (2) Mini SAS P440/P840 Cable Kit (784608-B21) for 16 DrivesProcessor Options | (2) Intel E5-2600 v3 & v4

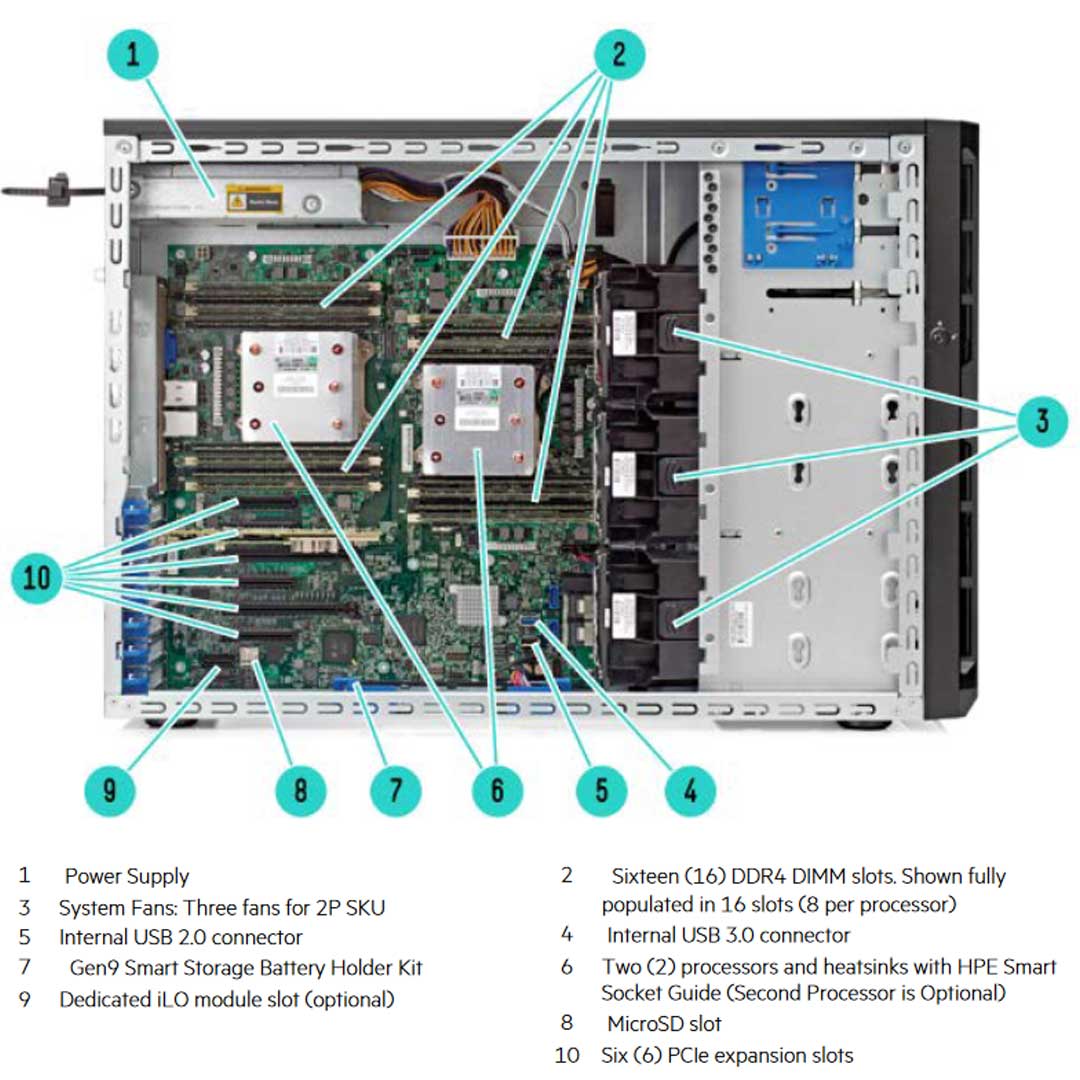

Cooling Architecture
The HPE 5U 2-Socket Tower Server supports 1 or 2 CPUs, with differences in cooling architecture. A 1-socket system uses 2 fans (792347-001), with one fan including spacers. For a 2-socket system, the spacers are removed, and a third fan (792347-001) is added. All fans must be installed in the Fan Holder (792348-001) for proper cooling.
Mixing different processor models is not supported.

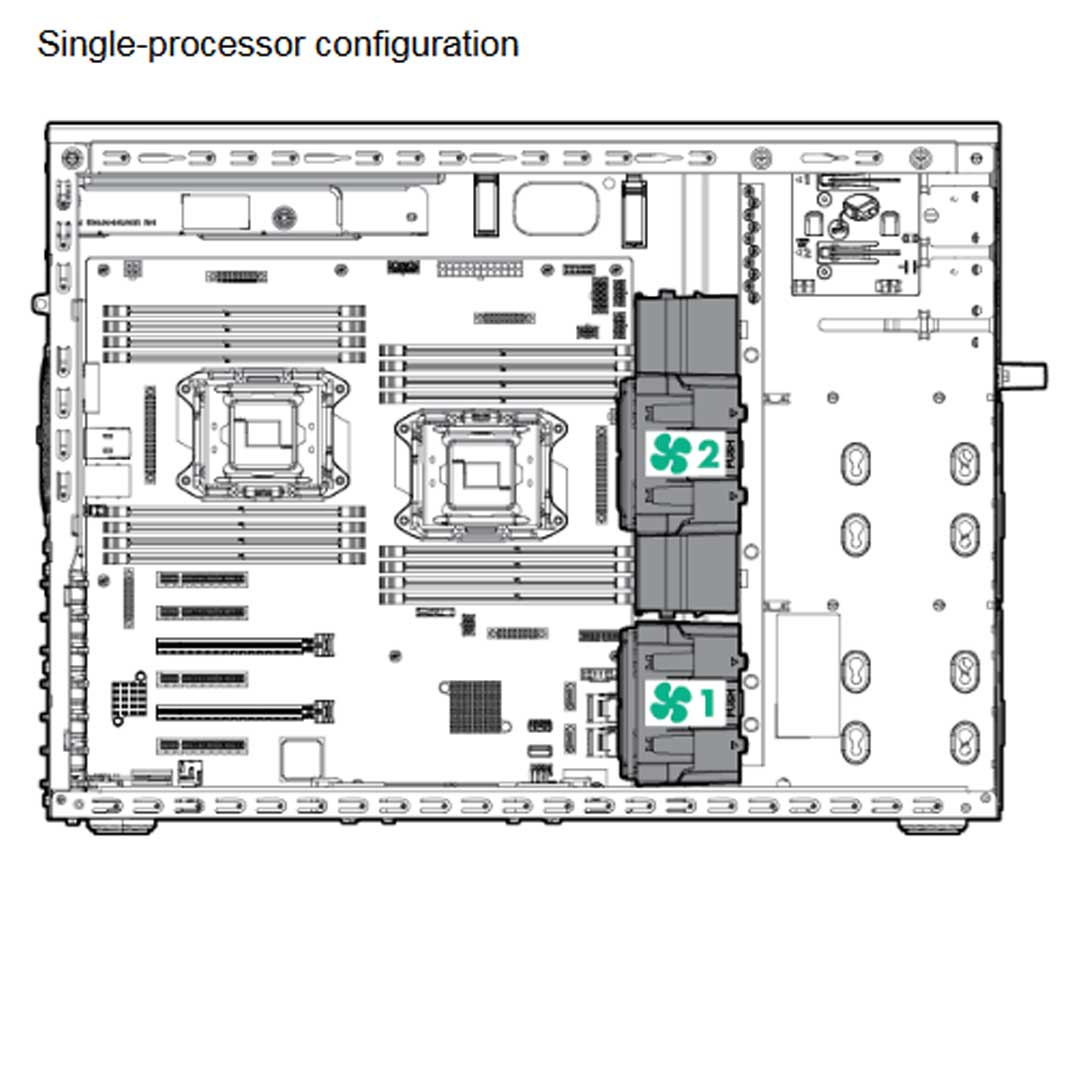

1 Socket ConfigurationRequires (2) Fans (792347-001)
One fan includes spacers

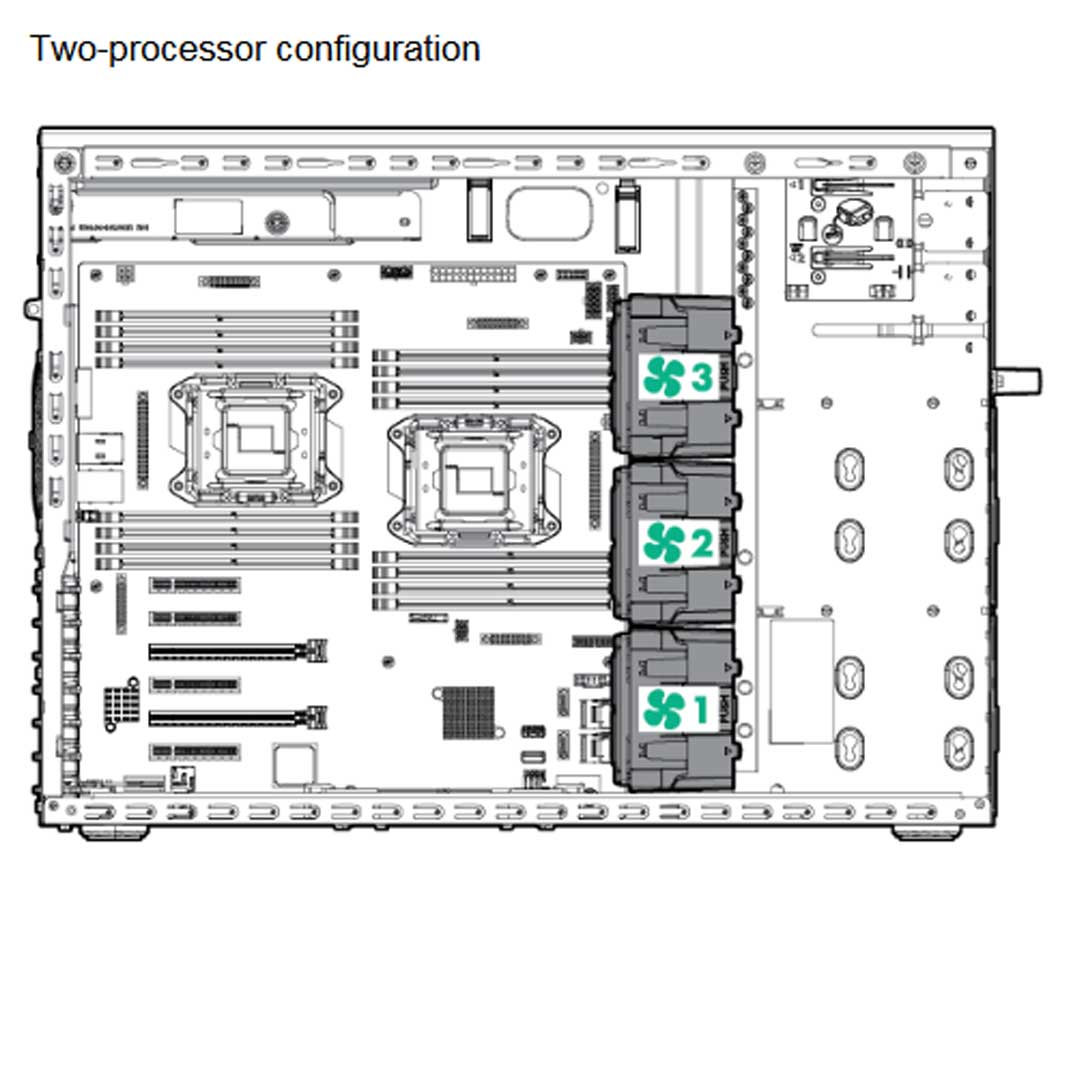

2 Socket ConfigurationRequires (3) Fans (792347-001)
Recommend to select 900W for 2P configMemory | (16) DDR4 DIMM Slots
The HPE ProLiant ML150 Gen9 server supports both RDIMMs and LRDIMMs, but they cannot be mixed. DIMMs of different speeds can be used together, with the server selecting an optimal common speed. In configurations with two processors, DIMMs should be balanced across both processors for optimal performance. If only one processor is installed, only half of the DIMM slots in the HPE ML150 Gen9 will be available.
Intel Xeon E5-2600 v3 processors
- Single-rank and dual-rank PC4-2133 (DDR4-2133) RDIMMs operating at up to 2133 MT/s
- Dual-rank and quad-rank PC4-2133 (DDR4-2133) LRDIMMs operating at up to 2133 MT/s
Intel Xeon E5-2600 v4 processors
- Single-rank and dual-rank PC4-2400T (DDR4-2400) RDIMMs operating at up to 2400 MT/s
- Dual-rank and quad-rank PC4-2400T (DDR4-2400) LRDIMMs operating at up to 2400 MT/s
Storage Options
Non-hot Plug 4LFF Drive CageMust select B140i CTRL
Only support NHPE SATA HDD
Non-hot Plug 4LFF Only
Non-hot Plug 9/10 Drive CageMust select B140i CTRL
Only support NHPE SATA HDD
Non-hot Plug 4LFF Chassis Only
Hot Plug 4LFF Drive CageRequires the H240 CTRL
(1) H240 Cable Kit per cage
Hot Plug 4LFF Chassis Only
Hot Plug 8SFF Drive Cage8SFF Drives w/ H240 CTRL
16SFF Drives w/ P840 CTRL
Hot Plug 8SFF Chassis Only| Maximum Internal Storage | Capacity | Configuration |
|---|---|---|
| Hot Plug LFF SAS | 80TB | 8x10TB |
| Hot Plug LFF SATA | 80TB | 8x10TB |
| Hot Plug SFF SAS | 32TB | 16x2TB |
| Hot Plug SFF SATA | 32TB | 16x2TB |
| Non Hot Plug LFF SATA | 40TB | 10x4TB |
| Hot Plug LFF SAS SSD | 12.8TB | 8x1.6TB |
| Hot Plug LFF SATA SSD | 30.72TB | 8x3.84TB |
| Hot Plug SFF SAS SSD | 30.72TB | 16x1.92TB |
| Hot Plug SFF SATA SSD | 61.44TB | 16x3.84TB |
Networking & Controllers
B140i ControllerSupports 10 SATA Drives
RAID support 0, 1, 10, 5 SATA
Don't mix with standup Int CTRL
SATA Drives Chassis Only
H240 ControllerMax drives 8
Supports SAS & SATA Drives
8LFF/8SFF needs 2 cable kits
Includes PCI Baffle (779861-B21)
P840 ControllerMax drives 16
Supports SAS & SATA Drives
16SFF needs 2 cable kits
16SFF Chassis OnlyGraphic Processing Unit (GPU) | (2) Single-Wide
The HPE ML150 Gen 9 Server supports up to two full-length, single-width GPUs. If one processor is installed, the GPU must be installed in PCIe slot 5. To install a GPU in PCIe slot 3, a second processor is required.
The following GPU's are supported:
- HP AMD FirePro W7100 8GB GDDR5 Accelerator Kit (J0H10A - 803279-001)
- HP ML150 Gen9 GPU Enablement Kit (779863-B21)
Requirements:
- HP ML150 Gen9 GPU Enablement Kit (779863-B21)
- HPE ML150 Gen9 PCI BAFFLE Kit (779861-B21)
Power Supply Units (PSU)
This ML150 Server comes with a power 550W Non Redundant Power Supply Unit (PSU) (766879-001). You also have the option of a of two different Redundant Power Supply Models.
The first Redundant Power Supply Model is the HPE RPS backplane (784636-001) that holds ONLY the HPE 800 W/900 W Gold AC Power Input Module (754376-001).
- 800W/900W hot-plug AC power supply
- Up to 92% efficiency
- 100-240VAC at 50-60Hz nominal input
- Single PSU provides up to 550W (100-127VAC) and 900W (200-240VAC) each
- Dual PSU configuration provides up to 550W (100-127VAC) and 800W (200-240VAC) each
The Second Redundant Power Supply Model is the HPE 900 W AC 240VDC RPS Power Backplane (830022-001). This can ONLY be used with the PSU HPE 900 W AC 240V DC Power Input Module (830219-001).
- 900W AC/240VDC power hot-plug supply module
- Up to 94% efficiency
- 90-132VAC / 180-264VAC at 47-63Hz, or
- 180-320VDC input power
- (AC and DC both use the same C14 power input connector)
