HPE ProLiant DL20 Rack Server (G10) CTO

HPE

| CTO Servers



Multi-Quantity Discounts Available for ALL Line Items

** LARGE DISCOUNTS available for complete systems. Pricing displayed is for single item purchases **

Use the configuration tool to create your solution and submit it us for a quote OR send us a message with your complete build requirements to receive best pricing

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Chassis Options

HPE Processors

Intel Xeon E-2200

Supports only (1) Processor

Bezel and Blanks (Optional)

Bezel kits mus thave the HPE DL20 Latch Ear FIO Kit

Cable Kit (Optional)

Memory

Supports up to (4) DIMMs

Drive Options (Optional)

HPE LFF Drives SATA Non-Hot-Plug (3.5in) (Optional)

Supports up to (2) Drives.

HPE LFF Drives SAS (3.5in) (Optional)

Supports up to (2) Drives.

HPE LFF Drives SATA (3.5in) (Optional)

Supports up to (2) Drives.

HPE LFF Drives SAS (2.5in) (Optional)

Supports up to (4) Drives.

HPE LFF Drives SATA (2.5in) (Optional)

Supports up to (4) Drives.

PCI Riser Options (Optional)

M.2 Drives (Optional)

Networking Adapters (Optional)

Network Adapters, Converged Network Adapter, InfiniBand Adapters
Default HPE embedded 1Gb 2-port network Adapter
If Quantity 2 or more of 817753-B21 (HPE 10/25GbE 2p SFP28 MCX4121A Adptr) is selected along with 8GB DIMM then system memory must be 16GB or higher.
Due to design limitation of the Butterfly Riser it is not possible to populate a 4-port RJ45 PCIe card into slot1 of DL20 Gen10 as it will cause an interference between the 4-port RJ45 and the FH bkt of slot2. Therefore, a 4-port RJ45 PCIe card can only be accommodated in slot2 of DL20 Gen10 with a FH bracket.

FlexibleLOM Adapters (Optional)

This riser is mandatory for installing FlexibleLOM riser kit (P06667-B21)
When a FlexibleLOM adapter is installed on a server with default iLO settings, the port 1 of FlexibleLOM adapter will be configured as shared iLO port.

Host Bus Adapters (HBAs) (Optional)

Storage Controller (Optional)

HPE Smart Array 14-port S100i SR Gen10 SW RAID
If P408e-p or P408i-a controller is selected then HPE 12W Smart Storage Battery (782961-B21) must be selected along with the HPE Energy Pack holder (P07881-001).

Optical Drives (Optional)

The SFF Chassis need the enablement kit to install an ODD.

USBs (Optional)

iLo Server Management (Optional)

iLO Management (standard), Intelligent Provisioning (standard)

Rail Kit (Optional)

Trust Platform Module (TPM) (Optional)

For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.
Legacy FIO Setting (758959-B22) can be selected to configure the system in Legacy mode.

Power Supply Unit (PSU)

The 290W Platinum power supply (P21649-B21), 500W, and 800W Power Supply all meet the EU Lot 9 regulation, which is essential in countries that mandatorily require CE marking, effective from 01 March 2020.

Select Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs
  • (1) Intel Xeon E-2100 or E-2200
  • (4) 2666MT/s DDR4
  • Max Memory 64GB
  • (2) PCIe Gen3.0 slots
  • Supports up to (4 SFF + 2 SFF Rear) Drives
  • Support M.2 SSDs for boot
  • HPE S100i SR Gen10 software RAID
  • Optional Flexible LOM riser
  • HPE iLO 5 ASIC
  • HPE InfoSight
  • Support for HPE 361i 1Gb 2-Port network adapter
  • New 480GB NVMe SSD support
  • GPU Not Supported
Other Versions

(Click to View)

Ideal for:
  • Cloud Servers
  • Corporate IT
  • Data Analytics
  • Edge Servers
  • Point-of-Sale (POS)
  • Retail Servers
  • Virtual Desktop Interface (VDI)
  • Web Tech
HPE DL20 Gen10 Chassis Options

The HPE DL20 Gen 10 rack server can support up to 6SFF Drives in the SFF Chassis. This server also supports the M.2 drives for BOOT. This is a great way to save some extra space for storage. The (2) M.2 drives are installed on a PCIe adapter card that is supported by every chassis.

Below are the supported Chassis Options

DL20 Gen 10 Non-Hot Plug 2LFF P06962-B21 DL20 Gen 10 Non-Hot Plug 2LFF
P06961-B21
HPE DL20 Gen 10 2LFF P06962-B21 DL20 Gen 10 2LFF
P06962-B21
HPE DL20 Gen 10 4SFF P06963-B21 DL20 Gen 10 4SFF
P06963-B21
CTO Server [Chassis] HPE ProLiant DL20 Gen10 Non-hot Plug 2LFF Configure-to-order Server
 HPE ProLiant DL20 Gen10 2LFF Configure-to-order Server HPE ProLiant DL20 Gen10 4SFF Configure-to-order Server
SKU Number P06961-B21 P06962-B21 P06963-B21
Processor 1
DIMM Slots 4 DIMM slots for UDIMM DDR4 Memory
Storage Controller Embedded 14-port S100i
PCIe 2 PCIe 3.0 Slots
Drives Cage 2LFF Non Hot Plug 2LFF Hot Plug 4SFF Hot Plug
Network Controller HPE embedded 1Gb 2-port network Adapter
Fans 3 non hot plug, non-redundant
USB 2 front, 1 internal, 2 rear
Ears HPE Thumbscrew Ears
Maximum Internal Storage
  • SFF SAS HDD | 14.4TB (4+2) 2.4TB
  • SFF SAS SSD | 92.16TB (4+2) 15.36TB
  • SFF SATA HDD | 12TB (4+2) 2.0TB
  • SFF SATA SSD | 46.08TB (4+2) 7.68TB
  • LFF SAS HDD | 32TB 2x 16TB
  • LFF SAS SSD | 3.2TB 2x 1.6TB
  • LFF SATA HDD | 32TB 2x 16TB
  • LFF SATA SSD | 15.36TB 2x 7.68TB
  • M.2 NVMe SSD (BOOT) | 480GB 1x 480GB
  • M.2 SATA SSD | 1.92TB 2x 960GB
Drive configurations below
  • 2 Non-Hot-Plug Drives = 2LFF HDD drives
  • 2 Drives = 2LFF HDD drives
  • 4 Drives = 4SFF HDD/SSD drives
  • 6 Drives = 4SFF HDD/SSD + 2SFF HDD/SSD drives
Chassis Upgrade for 4SFF

The HPE DL20 Gen10 2SFF HDD Enablement Kit (P06671-B21) takes up the same slot as the ODD. When this is installed the only option for an Optical Drive is with an HPE Mobile USB DVD-RW Optical Drive 701498-B21. This USB Kit is only supported on USB 3.0 ports.

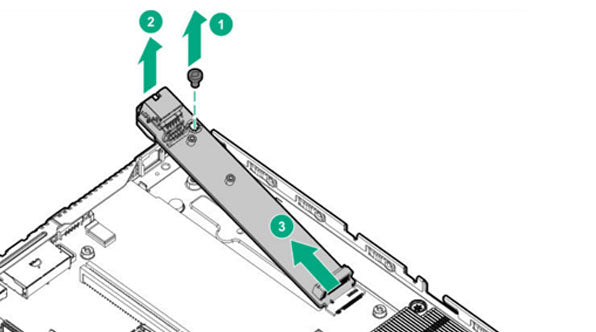

HPE DL20 Gen10 (SATA/NVMe) M.2 Drives

The HPE DL20 supports two types of M.2 Drives. One NVMe drive or 2 SATA drives. Each option has a different adapter card installed. You can install a normal Stand-up card, The HPE Universal SATA 6G AIC HHHL M.2 SSD Enablement Kit (878783-B21). Or, the HPE DL20/ML30 Gen10 M.2/Dedicated iLO and Serial Port Kit (P06687-B21).

The SATA M.2 Adapter can hold 2 drives while the NVMe M.2 Card can only support 1 NVMe M.2 Drive. The NVMe M.2 kit includes one dedicated iLO module and one serial port cable, with one M.2 slot for BOOT.

HPE DL20 Gen 10
HPE DL20 Gen10 PCI Risers

The DL20 Gen10 only has 1 Butterfly riser with 2 Riser Card options. HPE DL20 Gen10 x8x16 FlexibleLOM Riser Kit (P06667-B21). The other option is the HPE DL20 Gen10 PCIe Low Profile Riser Kit (P09145-B21).

Expansion Slots # Technology Bus Width Connector Width Processor Slot Form Factor
Primary LP Riser 1 PCIe 3.0 x8 x8 CPU1 Low Profile
2 PCIe 3.0 x8 x16 CPU1 Full Height / Half Length
FlexibleLOM Riser 1 PCIe 3.0 x8 x8 CPU1 FlexibleLOM
2 PCIe 3.0 x8 x16 CPU1 Full Height / Half Length
HPE DL20 Gen 10 Adaptive RAID on Chip (AROC) Adaptive RAID on Chip (AROC)

To save a PCIe slot, use an Adaptive RAID on Chip (AROC) Cards when installing RAID or a SAS controller. If you do install the Performance Smart Arrays P408i-a or P408e-p, you will also need to install the HPE 12W Smart Storage Lithium-ion Battery (782961-B21) and its holder.

HPE DL20 Gen 10 FlexLOM Riser FlexLOM Riser

The PCIe3x8 FlexLom riser kits has a dedicated slot for only the FlexibleLOM cards in Slot 1. The FlexLom is the only way to install a 4 port card in slot 1.

HPE DL20 Gen 10 Primary LP Riser Primary LP Riser

Due to design limitations of the Butterfly Riser, it's only possible to populate a 4-port RJ45 PCIe card into slot 2 unless you install a FlexLOM.

Default Controller | S100i

HPE Smart Array S100i SR Gen10 SW RAID is installed but off by default and must be enabled by selecting (784308-B21). The S100i is a 14-port SATA controller, but only 12 ports are accessible as 2 are leveraged to support the 2 M.2 Boot options on the Primary Riser. The S100i supports Windows only.

HPE DL20 Gen10 Lights Out! iLO
HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting, and remote management with HPE iLO.

UEFI

Configure and boot your servers securely with industry-standard Unified Extensible Firmware Interface (UEFI).

RESTful API

RESTful API for iLO 4 is Redfish 1.0 conformance for simplified server management such as configuration and maintenance tasks based on modern industry standards.

Intelligent Provisioning

Hassle-free server and OS provisioning for 1 or few servers with Intelligent Provisioning.

Embedded Remote Support

The Hewlett Packard Enterprise embedded remote support when used with Insight Online direct connect or HPE Insight Remote Support, allows HPE ProLiant servers to transmit hardware events directly to Hewlett Packard Enterprise or a Hewlett Packard Enterprise Authorized Partner for automated phone home support.

Current Configuration

(List below serves as quick links to each section)

Chassis Options

HPE Processors

Bezel and Blanks

Cable Kit

Memory

Drive Options

HPE LFF Drives SATA Non-Hot-Plug (3.5in)

HPE LFF Drives SAS (3.5in)

HPE LFF Drives SATA (3.5in)

HPE LFF Drives SAS (2.5in)

HPE LFF Drives SATA (2.5in)

PCI Riser Options

M.2 Drives

Networking Adapters

FlexibleLOM Adapters

Host Bus Adapters (HBAs)

Storage Controller

Optical Drives

USBs

iLo Server Management

Rail Kit

Trust Platform Module (TPM)

Power Supply Unit (PSU)

Select Warranty

The request has been sent.
Thank you.

Price as Configured:
$0

Error Submitting Cart. Please get in touch with us for support.

Please select all the mandatory items in the configuration list before submitting the cart.

One or more items in your cart has no price. This will be submitted as a "Request for a Quote".

Base Standard Capabilities

Product features

Feature
Description
Processors
Intel Xeon processor E-Series processor family is designed to deliver the best combination of performance, built-in capabilities, and cost-effectiveness. The product also supports Intel Pentium and Intel Core-i3 dual core processors
Choose one of the following processors based on the model
Intel Xeon E-2200 Series
Intel Models
CPU Frequency
Cores
L3 Cache
Power
DDR4
Intel SGX
G5420
3.8 GHz
2
4MB
54 W
2400
No
i3-9300
3.7 GHz
4
8MB
62 W
2400
No
E-2224
3.4 GHz
4
8MB
71 W
2666
No
E-2226G
3.4 GHz
6
12MB
80 W
2666
No
E-2234
3.6 GHz
4
8MB
71 W
2666
No
E-2236
3.4 GHz
6
12MB
80 W
2666
No
E-2244G
3.8 GHz
4
8MB
71 W
2666
No
E-2274G
4.0 GHz
4
8MB
71 W
2666
Yes
E-2286G
4.0 GHz
6
12MB
95 W
2666
Yes
E-2278G
3.4 GHz
8
16MB
80 W
2666
Yes
Intel Xeon E-2100 Series
Intel Xeon Models
CPU Frequency
Cores
L3 Cache
Power
DDR4
Intel SGX
G5400
3.7 GHz
2
4MB
58 W
2400
No
i3-8300
3.7 GHz
4
8MB
62 W
2400
No
E-2124
3.3 GHz
4
8MB
71 W
2666
No
E-2126G
3.3 GHz
6
12MB
80 W
2666
No
E-2134
3.5 GHz
4
8MB
71 W
2666
No
E-2136
3.3 GHz
6
12MB
80 W
2666
No
E-2144G
3.6 GHz
4
8MB
71 W
2666
No
E-2174G
3.8 GHz
4
8MB
71 W
2666
Yes
E-2186G
3.8 GHz
6
12MB
95 W
2666
Yes
Form factor
1U rack
Chassis types

  • 4 SFF with options supporting: +2 SFF

  • 2 LFF Hot Plug

  • 2 LFF Non Hot Plug

System fans
Includes 3 standard single rotor non-hot plug and non-redundant fans
Chipset
Intel C242 Chipset
On system management chipset
HPE iLO 5 ASIC
Memory
Type
Dual in-line Memory Module (DIMM) Slots Available
Maximum capacity (UDIMM)
HPE DDR4 Unbuffered Unregistered Dual in-line Memory Module (UDIMM)
4
4 DIMM slots per processor
2 channels per processor
2 DIMMs per channel
64GB
4 x 16GB UDIMM - 2666 MT/s
Memory protection
ECC
Network controller

  • HPE Ethernet 1Gb 2-port 361i network Adapter (Intel i350)

  • HPE Ethernet 1Gb 2-port 332i network Adapter ( BCM5720)

  • The HPE ProLiant DL20 Gen10 server offers the user a dual-port NIC standard with the option to upgrade with a variety of networking options.

Expansion slots
Expansion Slots #
Technology
Bus Width2
Connector Width
Processor
Slot Form Factor
Primary FIO LP riser
1
PCIe 3.0
X 8
X 8
CPU1
Low profile
2
PCIe 3.0
X 8
X 16
CPU1
Full height half length
Flexible LOM riser 1
1
PCIe 3.0
X 8
X 8
CPU1
Flexible LOM
2
PCIe 3.0
X 8
X 16
CPU1
Full height half length
NOTE:
  1. This riser is mandatory for installing FlexibleLOMs.
  2. Bus Width indicates the number of physical electrical lanes running to the connector.
Storage controllers
Software RAID
HPE Smart Array S100i SR Gen10 software RAID
Essential RAID controllers

  • HPE Smart Array E208i-a SR G10 LH controller

  • HPE Smart Array E208e-p SR Gen10 controller

Performance RAID controllers

  • HPE Smart Array P408i-a SR G10 LH controller

  • HPE Smart Array P408e-p SR Gen10 controller

Internal storage devices
Optical drive:
Available on 4 SFF and 2 LFF CTO Servers as an option (DVD-ROM or DVD-RW)
Hard drives
None ship standard

Specs 1

Maximum storage
storage
Capacity
Configuration
Hot Plug SFF SAS HDD
14.4TB
4+2 x 2.4TB (With optional +2 drive option)
Hot Plug SFF SATA HDD
12TB
4+2 x 2.0TB (With optional + 2 drive option)
Hot Plug SFF SAS SSD
91.8TB
4+2 x 15.3TB (With optional + 2 drive option)
Hot Plug SFF SATA SSD
23.04TB
4+2 x 3.84TB (With optional + 2 drive option)
Hot Plug LFF SAS HDD
24TB
2 x 12TB
Hot Plug LFF SATA HDD
24TB
2 x 12TB
Hot Plug LFF SAS SSD
1.6TB
2 x 800GB
Hot Plug LFF SATA SSD
3.84TB
2 x 1.92TB
Power supply

  • HPE 290 W FIO power supply

  • HPE 500 W Flex Slot Platinum hot plug low halogen power supply kit

  • HPE 800 W Flex Slot -48 V dc Platinum hot plug low halogen power supply kit

Interfaces
Serial
1 Port - Optional
Video
1 Rear - VGA port (Standard on all chassis types)
Network ports
2 x 1 GbE Embedded NIC (Standard on all chassis types)
iLO Remote management port
1Gb Dedicated - Optional
USB 3.0
5 USB Ports (Standard)

  • Front: 1 x USB 3.0, 1 x USB iLO service port

  • Rear: 2 x USB 3.0

  • Internal: 1 x USB 3.0

Industry standard compliance

  • ACPI 6.1 Compliant

  • PCIe 3.0 Compliant

  • WOL Support

  • Microsoft Logo certifications

  • PXE Support

  • USB 3.0 Compliant

  • USB 2.0 Compliant

  • SMBIOS 3.1

  • Unified Extensible Firmware Interface (UEFI) Forum 2.6

  • Redfish API

  • IPMI 2.0

  • Secure Digital 4.0

  • Trusted Platform Module (TPM) 1.2 and 2.0 support

  • Advanced Encryption Standard (AES)

  • Triple Data Encryption Standard (3DES)

  • SNMP v3

  • TLS 1.2

  • DMTF Systems Management Architecture for Server Hardware Command Line (SMASH CLP)

  • Active Directory v1.0

  • ASHRAE A3/A4

  • Energy Star

Upgradeability
One of the following depending on model

  • FlexibleLOM connector for 1Gb or 10Gb or 25Gb networking options

  • Up to 4 DIMM slots available for higher memory capacity

  • Up to 4SFF (+2SFF optional) Drive bays or 2LFF Drive bays

  • HPE Smart Array or Smart HBA controller

  • Redundant power supply

  • Dedicated iLO management port

  • M.2 NVMe SSDs for boot

Graphics
16MB Video Memory

  • Integrated Matrox G200 video standard

  • Video modes up to 1920 x 1200- 60 Hz (32 bp)

  • 16MB Video Memory

  • HPE iLO 5 on system management memory

  • 32MB Flash

  • 4 Gbit DDR3 with ECC protection

Embedded management

  • HPE iLO

  • UEFI

  • Intelligent Provisioning

  • iLO RESTful API

Server utilities

  • Active Health System

  • Active Health System Viewer

  • Smart Update

  • iLO Amplifier Pack

  • HPE iLO Mobile Application

  • RESTful Interface tool (iLOREST)

  • Scripting Tools

  • HPE OneView Standard

  • HPE Systems Insight Manager (HPE SIM)

Security

  • UEFI Secure boot and secure start support

  • Immutable Silicon Root of Trust

  • FIPS 140-2 validation

  • Common criteria certification

  • Configurable for PCI DSS compliance

  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser

  • Support for Commercial National Security Algorithms (CNSA)

  • iLO Security Modes including a New iLO Advanced Premium Security License

  • Granular control over iLO interfaces

  • Smart card (PIV/CAC) and Kerberos based 2-factor Authentication

  • Tamper-free updates – components digitally signed and verified

  • Secure recovery – recover critical firmware to known good state on detection of compromised FW

  • Ability to rollback firmware

  • Secure erase of NAND

  • TPM 1.2 option

  • TPM 2.0 option

  • Chassis intrusion detection option

  • Intel SGX

top

Specs 2

Software overview

Feature
Description
Operating Systems and Virtualization Software

  • Windows Server 2016 and 2019 (Most recent version)

  • VMware vSphere 6.7 and 6.5 U2

  • Red Hat Enterprise Linux (RHEL) 7.6 and 8.0

  • SUSE Linux Enterprise Server (SLES) 15 and 12 SP3

  • ClearOS/VM 7.5

  • CentOS 7.5

NOTE:
  • VMware support is available on Intel Xeon E-Series processors only.
  • ClearOS allows user to build a fully functional server that is just right for user at no upfront cost.

top

Physical specifications

Specifications
Description
Dimensions (H x W x D)
SFF Drives
4.32 x 43.46 x 38.22 cm (1.70 x 17.11 x 15.05 in)
LFF Drives
4.32 x 43.46 x 38.22 cm (1.70 x 17.11 x 15.05 in)
Weight (Approximate)
7.88 kg (17.37 lb)
(Non hot Plug 2 LFF fully loaded (All hard drives, power supplies, and processors installed)
7.9 kg (17.41 lb)
Hot Plug 2LFF fully loaded (One hard drive, power supply, and processor installed)
Hot Plug 4SFF fully loaded (Two hard drives, power supply, and processor installed)

top

Electrical specifications

Specifications
Description
290 W Non-hot plug power supply
Rated line voltage
100 to 120 V ac
200 to 240 V ac
Rated input current
5.5 A Maximum (At 100 V ac)
Rated input frequency
50 to 60 Hz
Rated input power
550 W (At 100 V ac)
BTU rating (Maximum)
1130 BTU/hr (At 115 V ac)
1126 BTU/hr (At 230 V ac)
Power supply output (Per power supply)
Rated steady state power: 290 W Maximum
Maximum peak power: 366 W within 10 seconds
500 W/800 W Redundant power supply
Rated line voltage (Per power supply)
100 to 120 V ac
200 to 240 V ac
BTU rating (Maximum)
For 800 W power supply: 3207 BTU/hr (At 100 V ac), 3071 BTU/hr (At 200 V ac), 3112 BTU/hr (At 240 V dc) for China only
For 500 W power supply: 1979 BTU/hr (At 100 V ac), 1911 BTU/hr (At 200 V ac), 1965 BTU/hr (At 240 V dc) for China only
Power specifications
To review typical system power ratings use the Power Advisor which is available via the online tool located at Click here to view the "Rack and power infrastructure" for more information and also Click on the system of interest. Example: DL20 Gen10 - Follow the instructions of the next screens.
Power supply output (Per power supply)
Rated steady state power:

  • For 800 W power supply: 800 W (At 100 V ac), 800 W (At 240 V ac), 800 W (At 240 V dc) input for China only

  • For 500 W power supply: 500 W (At 100 V ac), 500 W (At 240 V ac), 500 W (At 240 V dc) input for China only

Maximum peak power:

  • For 800 W Power Supply:800 W (At 100 V ac), 800 W (At 240 V ac), 800 W (At 240 V dc) input for China only

  • For 500 W Power Supply: 500 W (At 100 V ac), 500 W (At 240 V ac), 500 W (At 240 V dc ) input for China only

  • For 800 W Power Supply: 800 W (At 100 V ac), 800 W (At 240 V ac), 800 W (At 240 V dc) input for China only

top

Environmental specifications

Specifications
Description
System inlet temperature
Standard operating support
10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed.
System performance during standard operating support may be reduced if operating above 30°C (86°F).
Extended ambient operating support
For approved hardware configurations, the supported system inlet range is to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft).
For approved hardware configurations, the supported system inlet range is to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft).
System performance may be reduced if operating in the ambient operating range.
Non-operating
-30°C to 60°C (-22°F to 140°F) Maximum rate of change is 20°C/hr (36°F/hr).
Relative humidity (Non-condensing)
Operating: 8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.
Non-operating: 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing
Altitude
Operating: 3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating: 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic noise
Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels
Configuration SKU
P17077-B21
P17078-B21
P17079-B21
P17080-B21
P17081-B21
Idle
LWAd
3.8 B
3.8 B
3.7 B
3.8 B
3.8 B
LpAm
20 dBA
21 dBA
21 dBA
21 dBA
20 dBA
Operating
LWAd
3.8 B
4.5 B
4.5 B
4.7 B
4.8 B
LpAm
21 dBA
29 dBA
29 dBA
29 dBA
30 dBA
Configuration SKU
P06476-B21
P08335-B21
P06477-B21
P06478-B21
P06479-B21
Idle
LWAd
3.8 B
3.8 B
3.7 B
3.8 B
3.8 B
LpAm
21 dBA
20 dBA
21 dBA
20 dBA
20 dBA
Operating
LWAd
4.3 B
4.5 B
4.5 B
4.6 B
4.4 B
LpAm
26 dBA
28 dBA
28 dBA
28 dBA
27 dBA
NOTE: Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on system configuration. Values are subject to change without notification and are for reference only.

top

Safety certifications

Specifications
Description
Emissions Classification (EMC)
To view the regulatory information for users product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center: Click here to view the Enterprise Safety and Compliance for more information .

top

Spec Sheet 4

Technical specifications HPE ProLiant DL20 Gen10 server
Processor family Intel® Xeon® E-2100/2200 series, Intel® Core™ i3, Intel® Pentium®
Processor core available 8 or 6 or 4 or 2
Processor cache Up to 16 MB L3
Processor speed Up to 4.0 GHz
Power supply type 290W entry-level power supply or 500W Flex Slot redundant power supply or 800W 48VDC Flex Slot redundant power supply
Expansion slots Two maximum, for detail descriptions reference the QuickSpecs
Maximum memory 64 GB
Memory slots 4 DIMM slots, maximum
Memory type HPE Standard Memory
Memory protection features ECC
System fan features Non-hot plug non-redundant
Network controller 1 GB 361i Ethernet adapter 2 ports (or)
1 Gb 332i Ethernet adapter 2 ports
Storage controller HPE S100i, HPE Smart Array E208i-a or HPE Smart Array P408i-a
Product Dimensions (imperial) 1.70 x 17.11 x 15.05 in (HxWxD)
Weight 13.18 lb minimum 20.81 lb maximum
Infrastructure management HPE iLO5
Drive supported 2 Non-hot plug LFF or 2 Hot plug LFF or 4+2 Hot plug SFF

You may also like
