HPE ProLiant Apollo 4500 Server (G9) CTO
Configure for Pricing
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
What's New
- (3) 4U Chassis Options
- D6000 DAS Support
- XL450 Node server (786593-B21)
- (2) Intel Xeon E5-2600 v3 and v4
- (16) 2400MT/s DDR4 DIMMs Per Node
- (4) PCIe Slots per 2Socket Node
- HPE Ethernet 1Gb 2-port 361i Adapter standard
- HPE iLO 4
Ideal for:
- Big Data Analytics
- Cloud Servers
- Data Analytics
- Database
- High-Performance Computing (HPC)
- Hyper-Converged infrastructure (HCI)
- Virtualization
With the HPE Apollo 4500 Systems, HPE challenges the notion that one-size-fits all for Big Data infrastructure by creating purpose-built systems that specifically address storage and analytics workloads.
For object storage, the ultra-dense Apollo 4510 includes 1 server and up to 68 Large Form Factor (LFF) drives in a 4U chassis for a maximum of 680 TB per system.. For Hadoop® and other Big Data solutions, the Apollo 4530 uniquely offers 3 servers per chassis, ideal for housing 3 copies of data in a single system.
CTO Configuration Support
Need help with the configuration? Contact us today!
Chassis & Node Options
HPE Apollo XL450 Node Server (786593-B21)
- (2) Intel Xeon E5-2600 v3 and v4
- (16) 2400MT/s DDR4 DIMMs Per Node
- (2) SFF SAS/SATA HDD/SSD
- (4) PCIe Slots per 2 Socket Node
- Up to (2) M.2 Drives
- HPE Dynamic Smart Array B140i SATA RAID
- HPE Ethernet 1Gb 2-port 361i Adapter standard
SFF SAS drives are selected, H244br or P244br is required.
-
HPE Apollo XL450 Service Guide
-
HPE Apollo XL450 User Guide

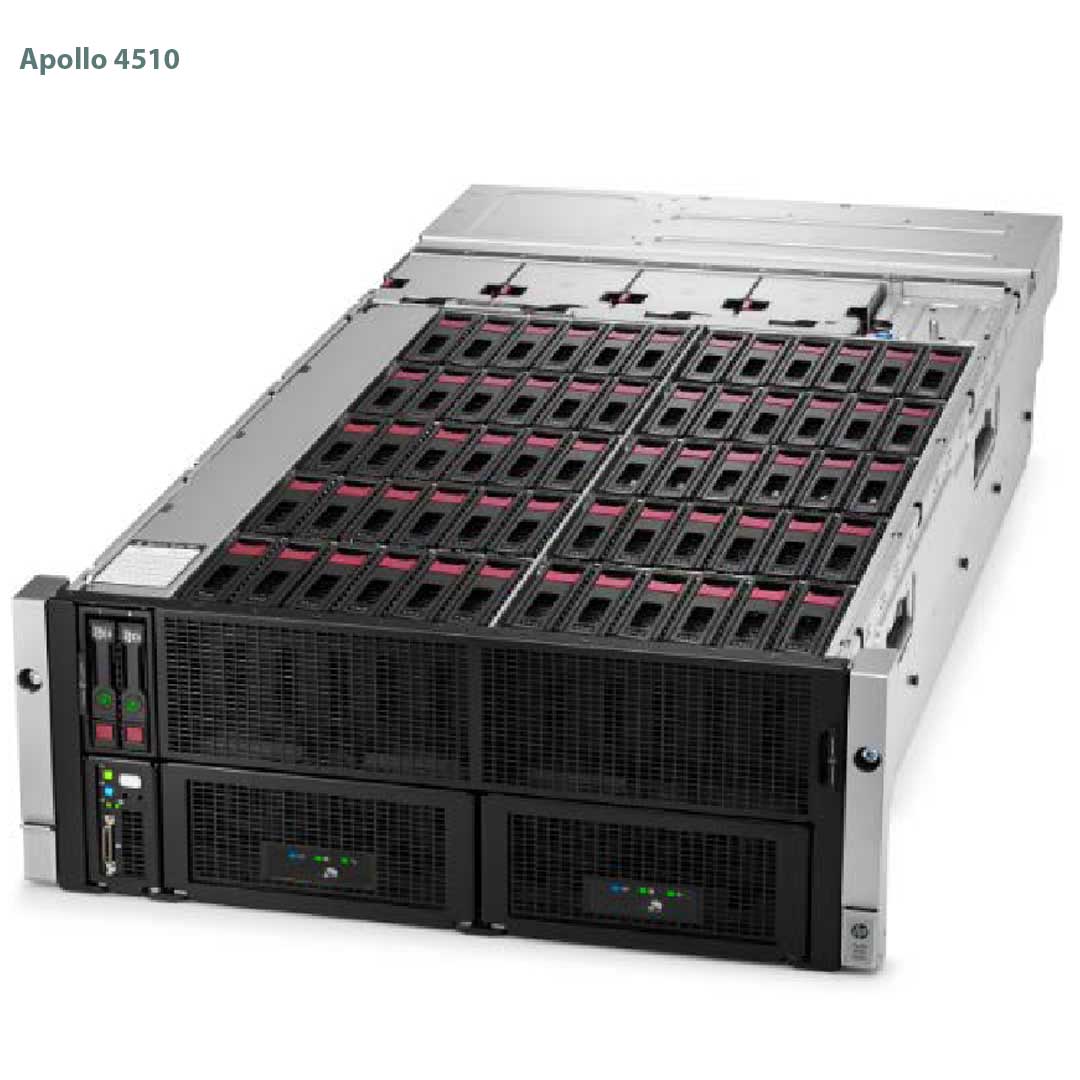

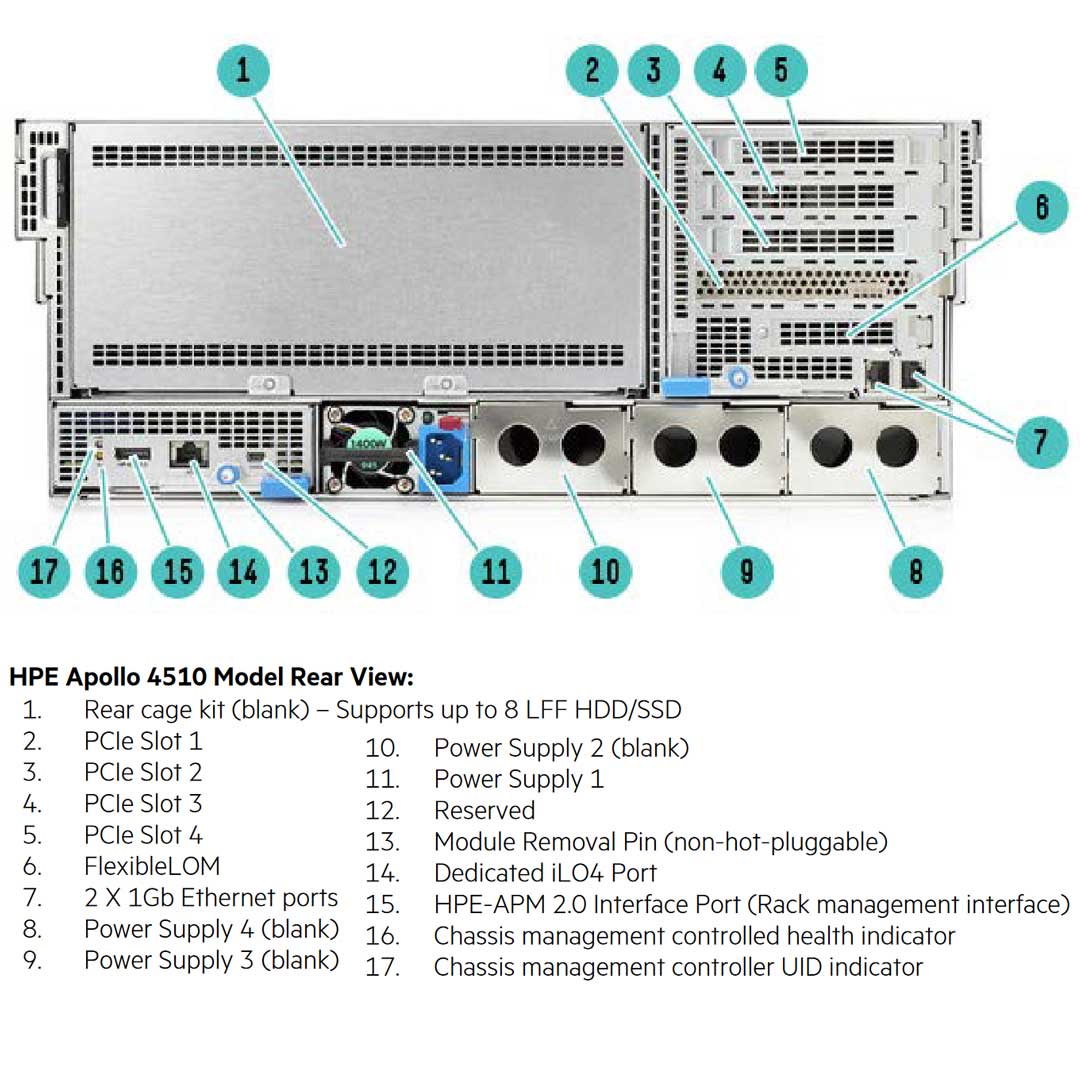

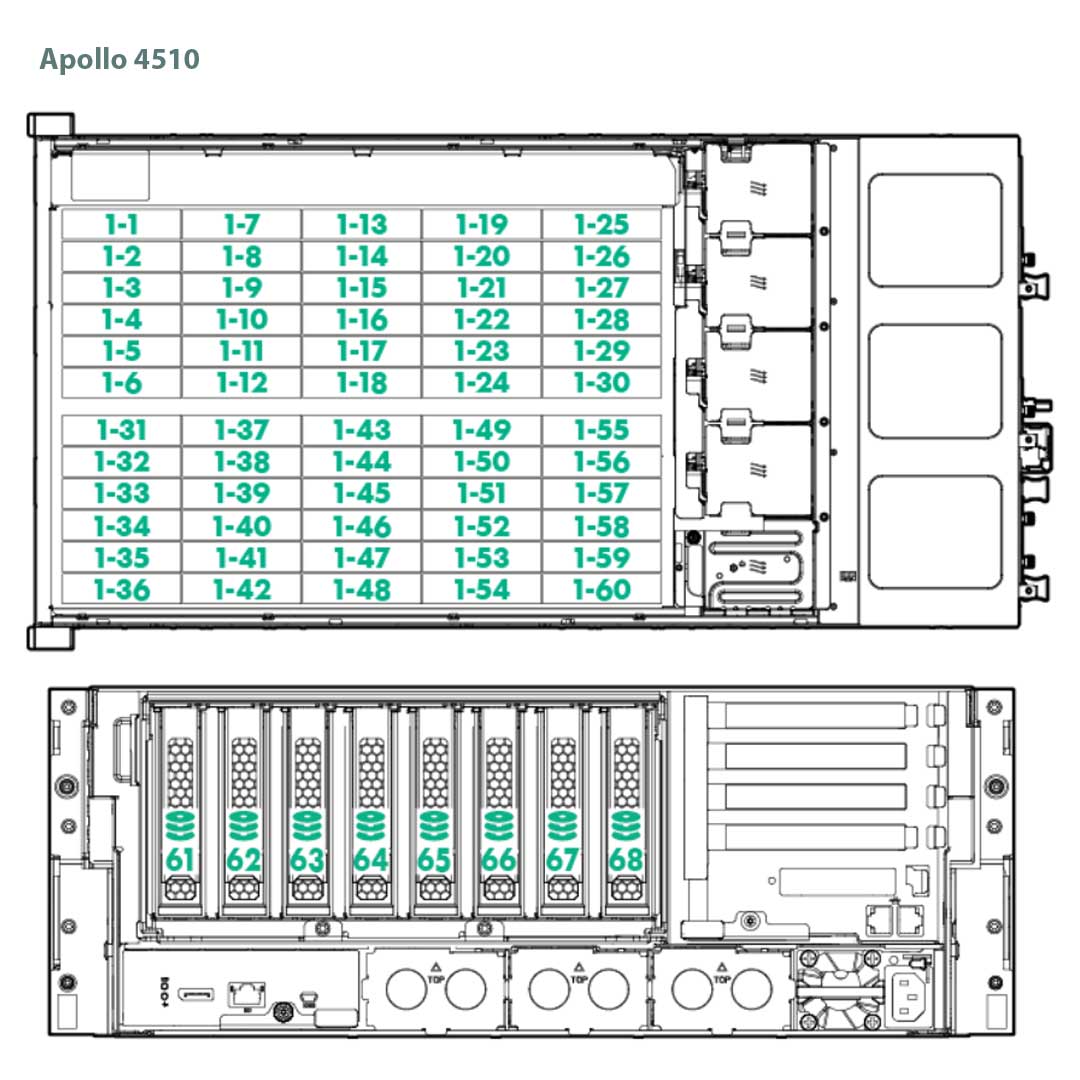

Apollo 4510 Chassis (799581-B21)
Specs
- (1) XL450 Node | 786593-B21
- (68) LFF SAS/SATA Drives
- (4) PCIe Slots
- (8) LFF Rear Drive | 799377-B21
Chassis Manuals
-
Apollo 4510 Service Guide
-
Apollo 4510 Installation Guide

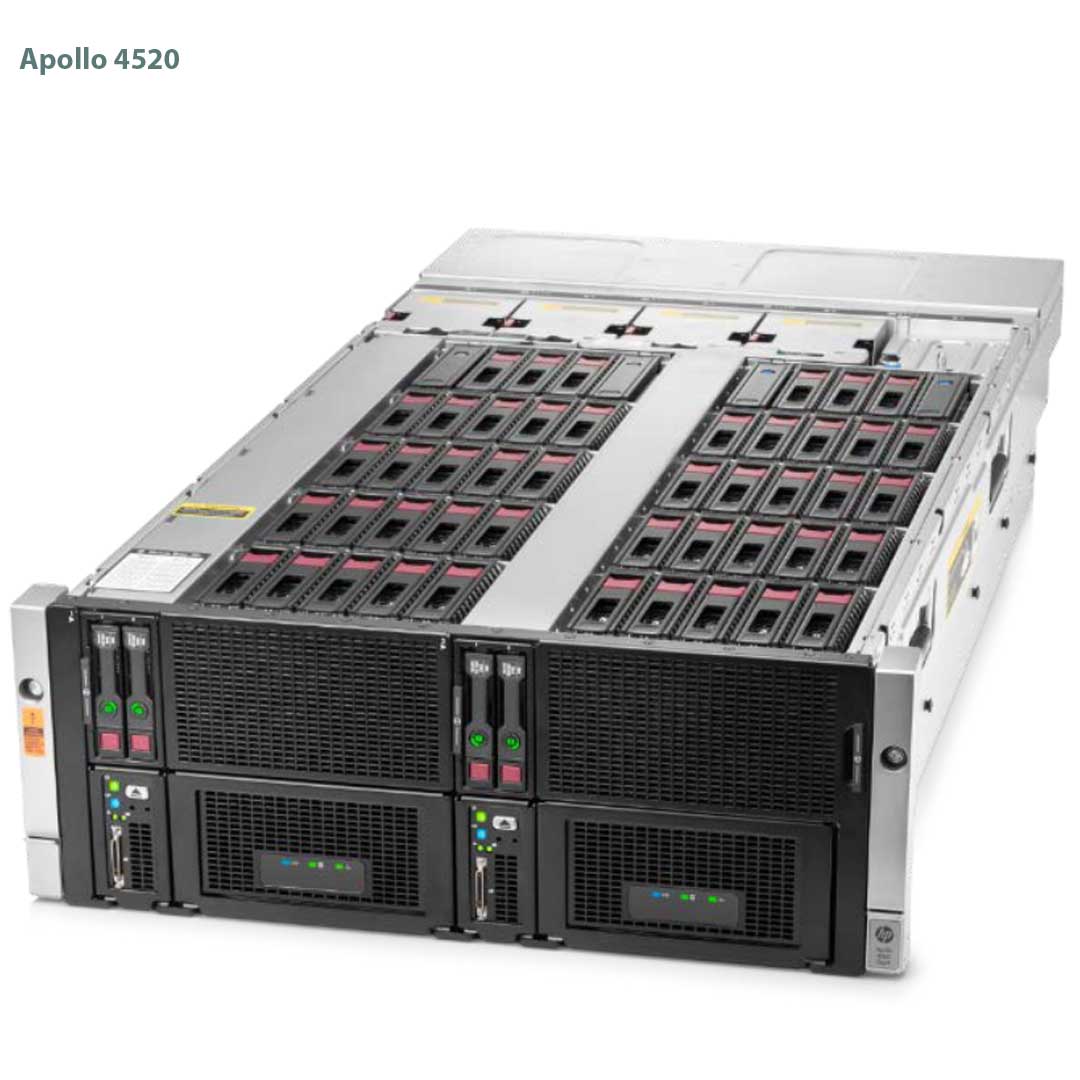

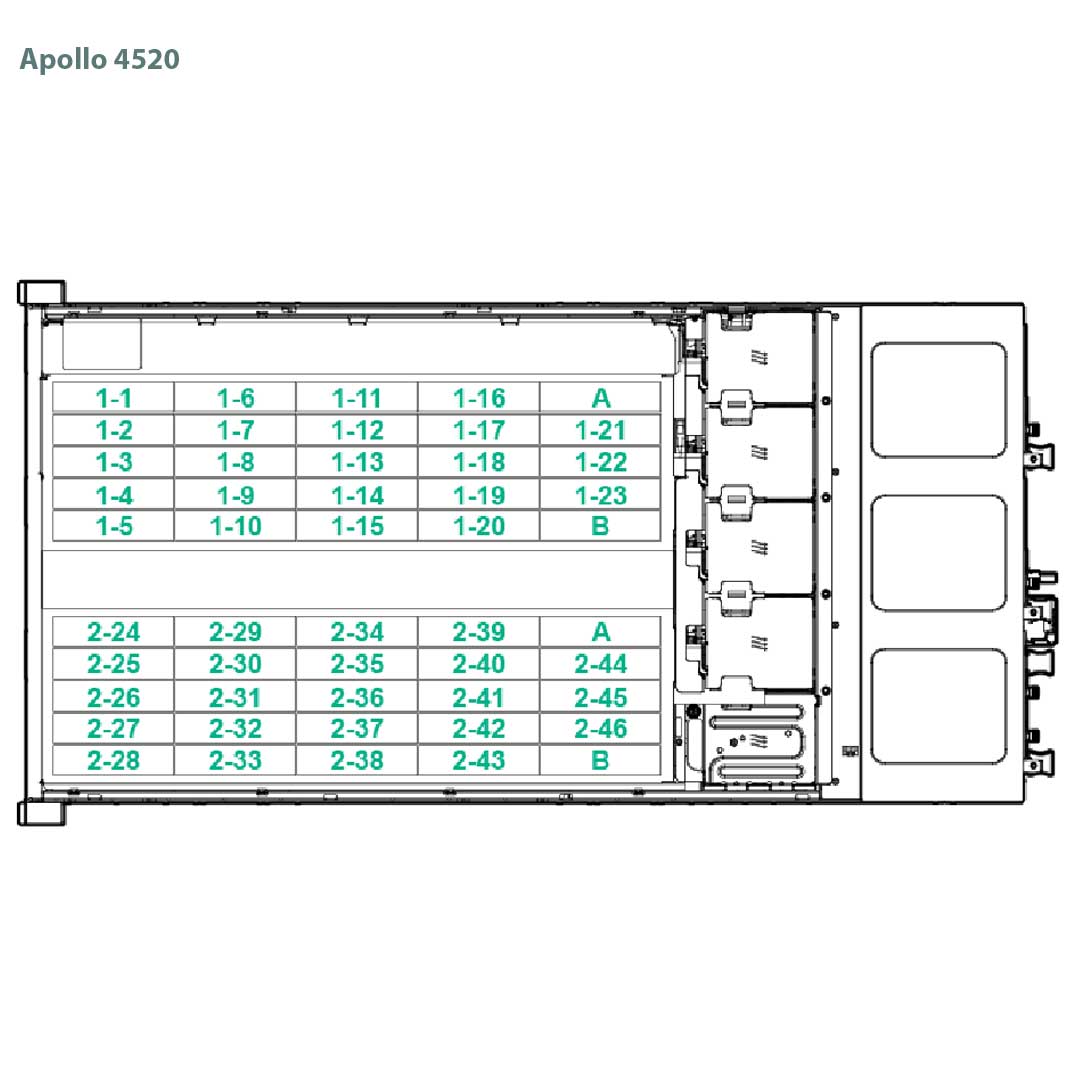

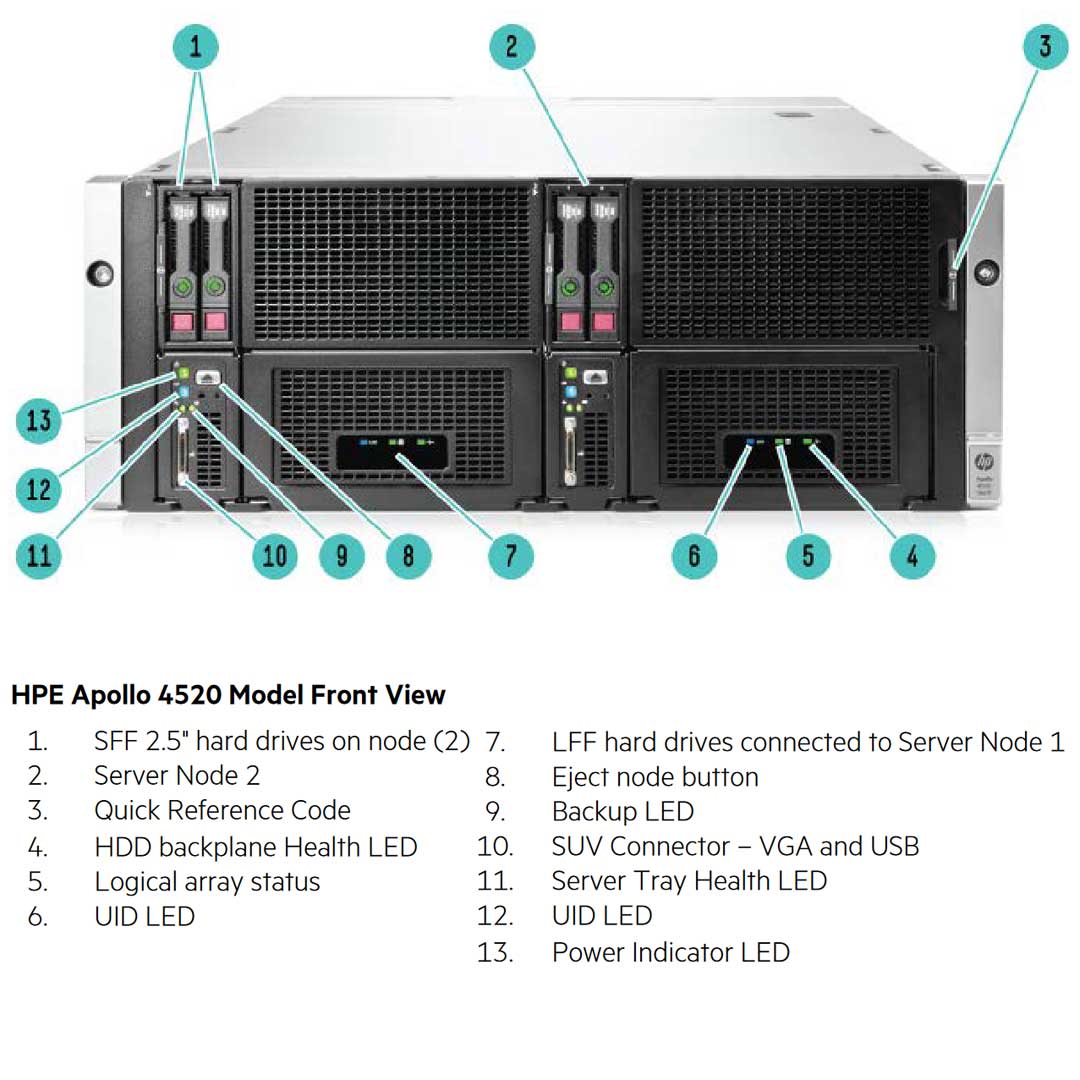

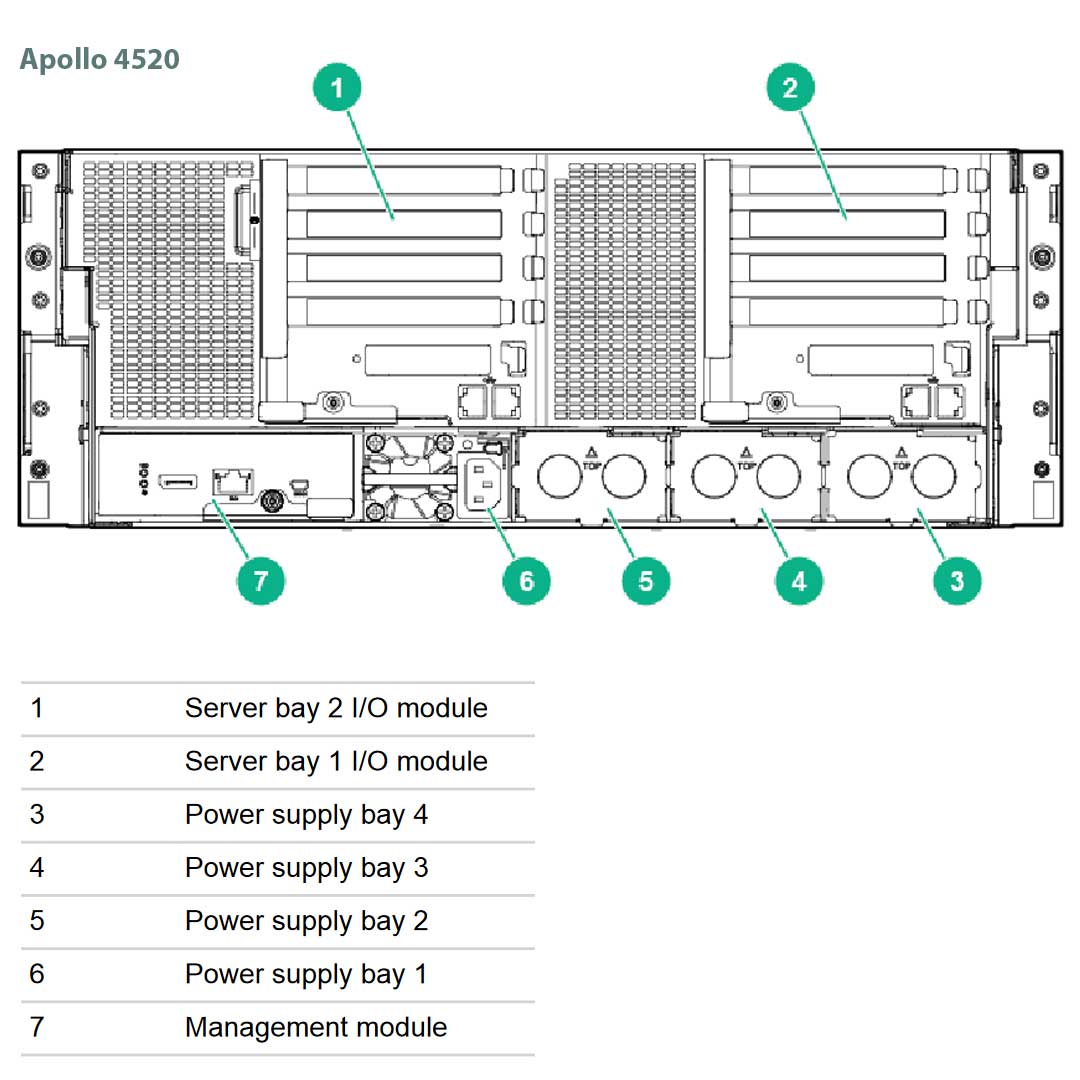

Apollo 4520 Chassis (799581-B22)
Specs
- (2) XL450 Node | 786594-B22
- 2 SAS EXP for Failover
- (46) LFF SAS Drives
- (8) PCIe Slots
- SAS ONLY
Chassis Manuals
-
Apollo 4520 Service Guide
-
Apollo 4520 Installation Guide

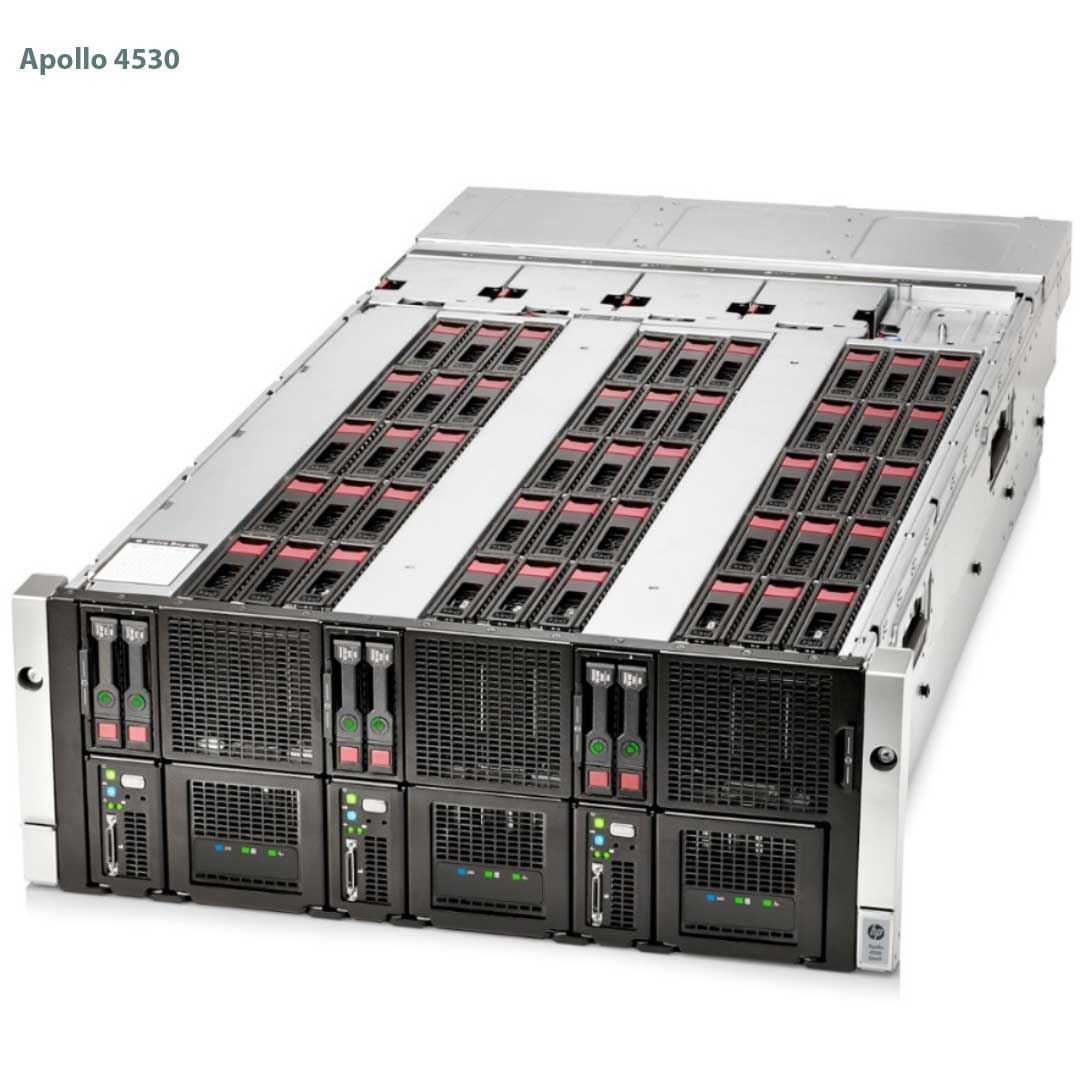

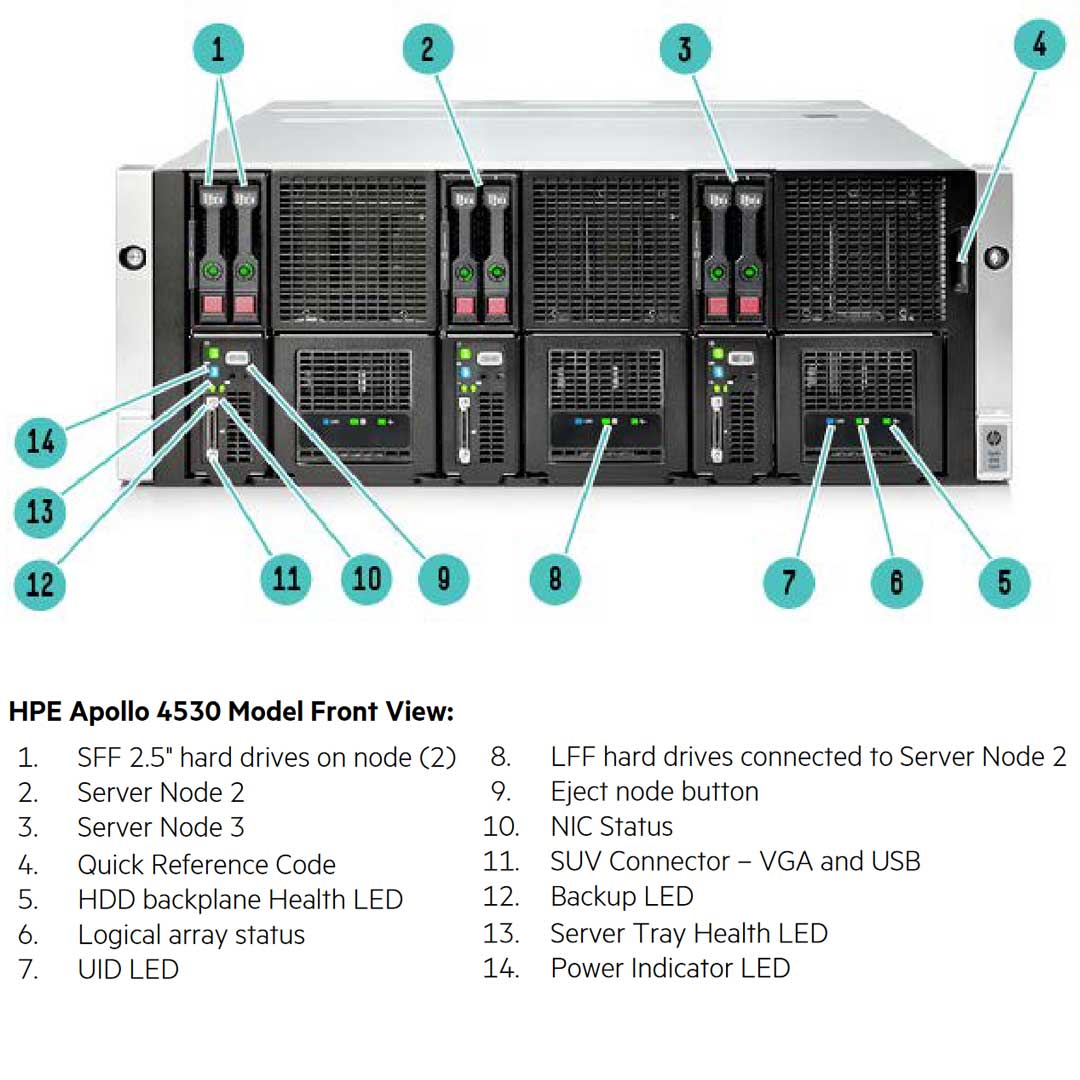

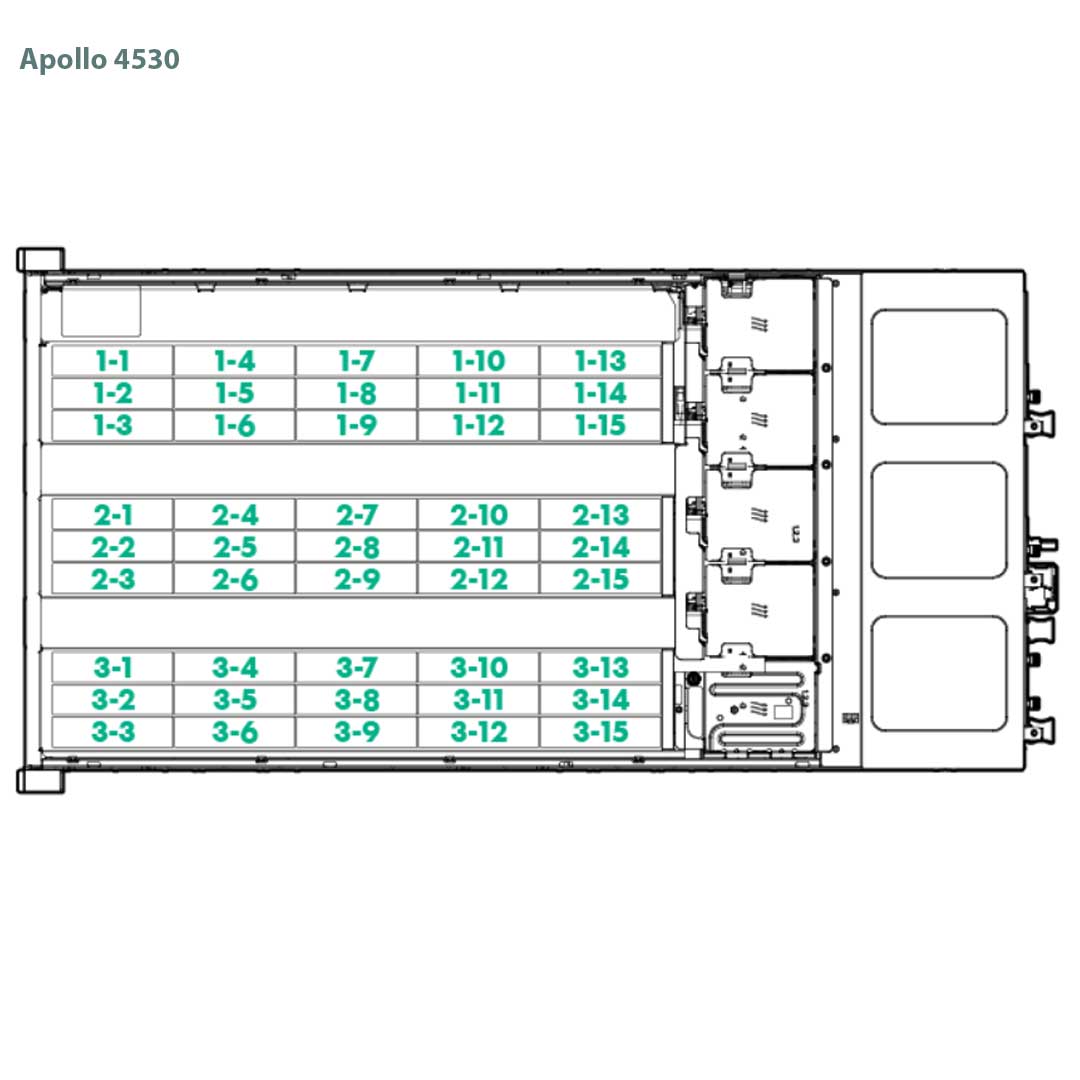

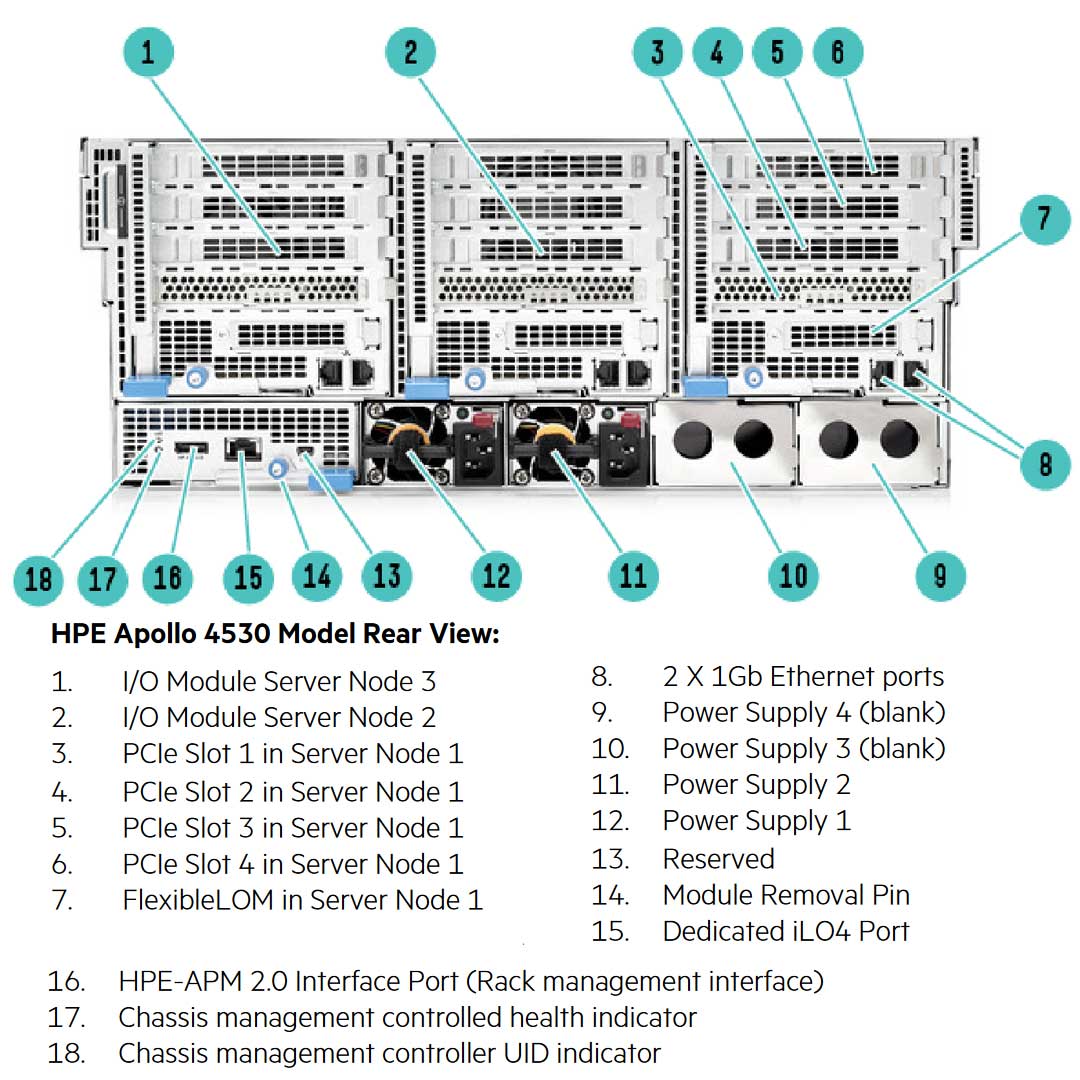

Apollo 4530 Chassis (799581-B23)
Specs
- (3) XL450 Node | 786595-B23
- (45) LFF SAS/SATA Drives
- (12) PCIe Slots
Chassis Manuals
-
Apollo 4530 Service Guide
-
Apollo 4530 Installation Guide
HPE Smart Storage Controllers
The HPE Smart Storage Battery supports up to two Smart Array Controllers per node. This dual controller configuration is only supported in the 4510 and 4520 Node.
Below is a table outlining the Controller QTY per Chassis. If you need 4 PCIe slots, 2 Processors are required.
Hardware RAID/HBA Controllers
- HPE Smart Array P440/4G Controller
- HPE Smart Array P840/4G Controller
- HPE H240 Smart HBA
For hardware RAID/HBA with LFF drives, one of the Controllers is required.
SAS Controllers for D6000 / D6020
- HPE H241 Smart HBA
- HPE Smart Array P441/4G Controller
- HPE Smart Array P841/4G Controller
SA/HBA that end in 1 refer to external controllers for storage outside of the system. 0 refers to internal storage
| 1xH240 | 2xH240 | 1xP440 | 2xP440 | 1xP840 | |
|---|---|---|---|---|---|
| Apollo 4510 | x | x | x | x | x |
| Apollo 4520 | x | x | |||
| Apollo 4530 | x | x |
HPE Apollo 4500 Gen9 Plus PCI Risers
Apollo 4510 (4) PCIe Slots
Apollo 4520 (8) PCIe Slots
Apollo 4530 (12) PCIe Slots
The total PCIe slots available depend on the number of processors selected. One processor provides support for 2 PCIe slots (slots 1 and 2) and Two processors provide support for 4 PCIe slots per XL450 Node Server. Each riser has 1 FlexibleLOM slot and 4 PCIe slots.
The Apollo 4520 System offers an extra PCIe Riser options. The HPE Apollo 4500 x16 I/O Module Kit (855128-B21). Which contains one x16 bus width slot and three x8 PCIe slots.
| Expansion Slots # | Technology | Bus Width | Connector Width | Form Factor | Notes |
|---|---|---|---|---|---|
| 0 | PCIe 3.0 | x8 | x16 | Low Profile | CPU0; FlexibleLOM |
| 1 | PCIe 3.0 | x8 | x16 | Low Profile | CPU0; SA/HBA |
| 2 | PCIe 3.0 | x8 | x16 | Low Profile | |
| 3 | PCIe 3.0 | x8 | x16 | Low Profile | |
| 4 | PCIe 3.0 | x8 | x16 | Low Profile |
HPE Apollo 4500 Gen9 Plus PCI Risers
The HPE Apollo 4500 Gen9 systems are designed to support up to four hot-plug power supply units (PSUs), ensuring high availability and redundancy. These servers typically require a minimum of two power supplies for standard operation to provide redundancy and meet power requirements for workloads.
