HPE ProLiant Apollo 4200 Server (G9) CTO
Configure for Pricing
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
What's New
- 2U (28 LFF or 54 SFF) Chassis Options
- Optional rear drive up to 6 SFF or 4 LFF
- (2) Intel Xeon E5-2600 v3 or v4 processors
- (16) 2400MT/s DDR4 DIMMs | 8 DIMMs per processor
- Supports up to 1.5 TB of DDR4 memory
- (7) PCIe 3.0 slots
- HPE's Silicon Root of Trust
- HPE iLO 4
- No NVMe Support
- No GPU Supported
Ideal for:
- Big Data Analytics
- Cloud Servers
- Data Analytics
- Video Streaming
The HPE Apollo 4200 Gen9 Server combines high storage density and robust performance in a 2U form factor. It supports up to 28 LFF or 54 SFF hot-plug drives, providing industry-leading capacity for data-intensive workloads. With the LFF chassis, users can achieve up to 224 TB of storage using 8 TB drives, scaling to over 4.4 PB in a standard 42U rack. For high-performance applications, the SFF chassis supports up to 54 SAS or SSD drives with 12 Gb/s throughput, ideal for Hadoop, content delivery, and object storage workloads. Its efficient design and management features make it a standout solution for modern enterprise storage needs.
The HPE Apollo 4200 Gen9 Server does not natively support GPU accelerators in its standard configuration. It is primarily designed for storage-dense workloads and high-capacity data applications like Hadoop, object storage, and content delivery, rather than compute-intensive tasks that require GPUs.
CTO Configuration Support
Need help with the configuration? Contact us today!

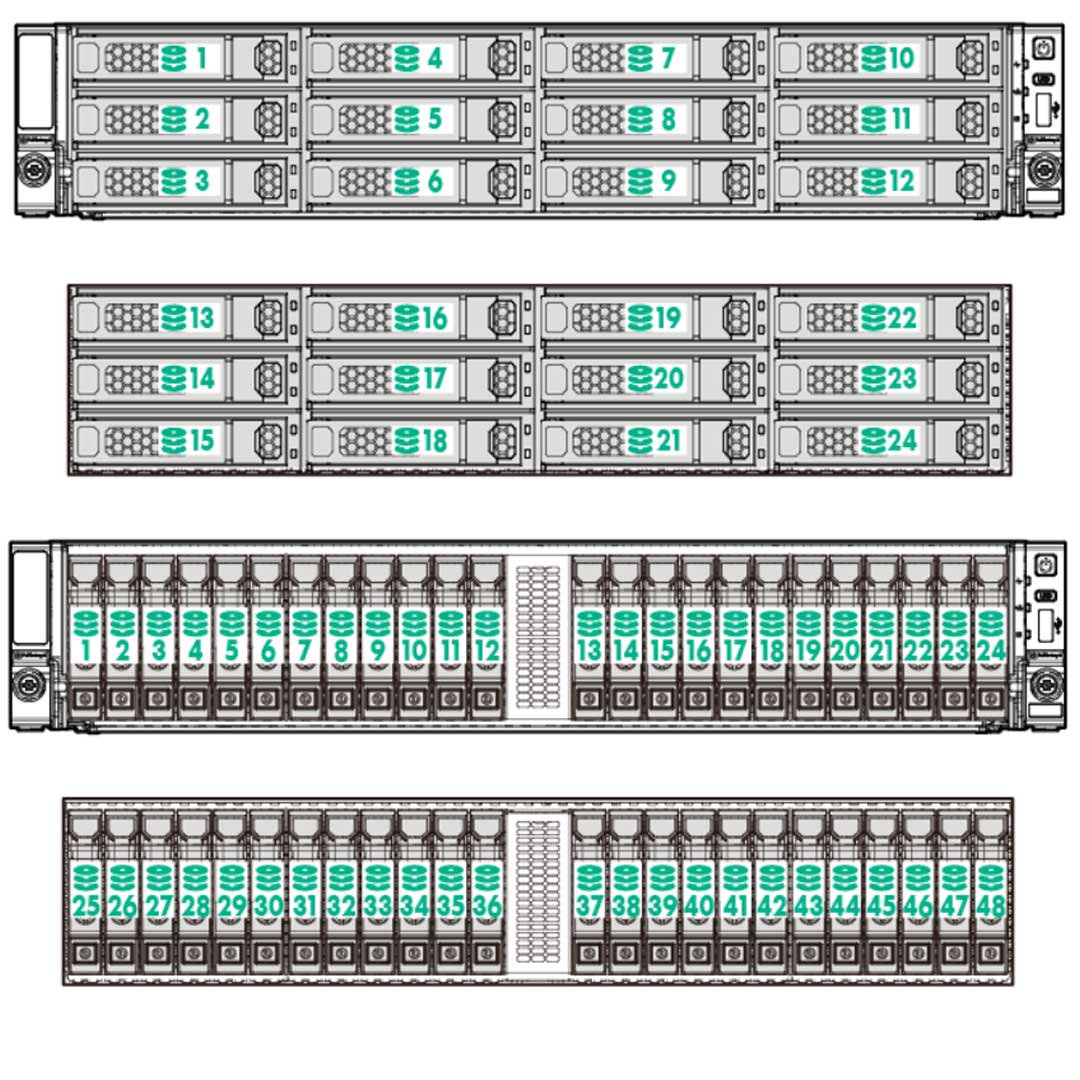

Chassis Options

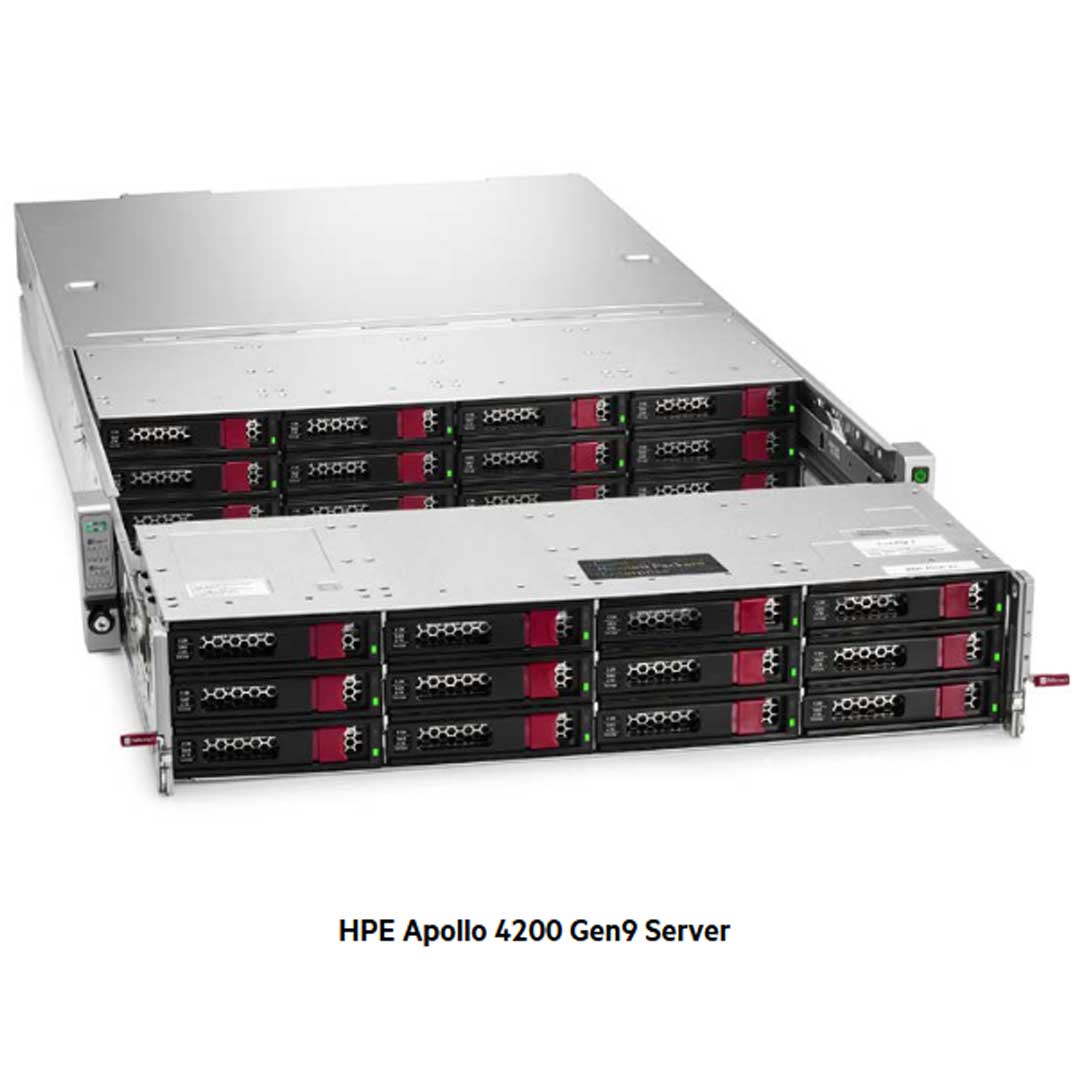

Apollo 4200 Gen9 LFF808027-B21

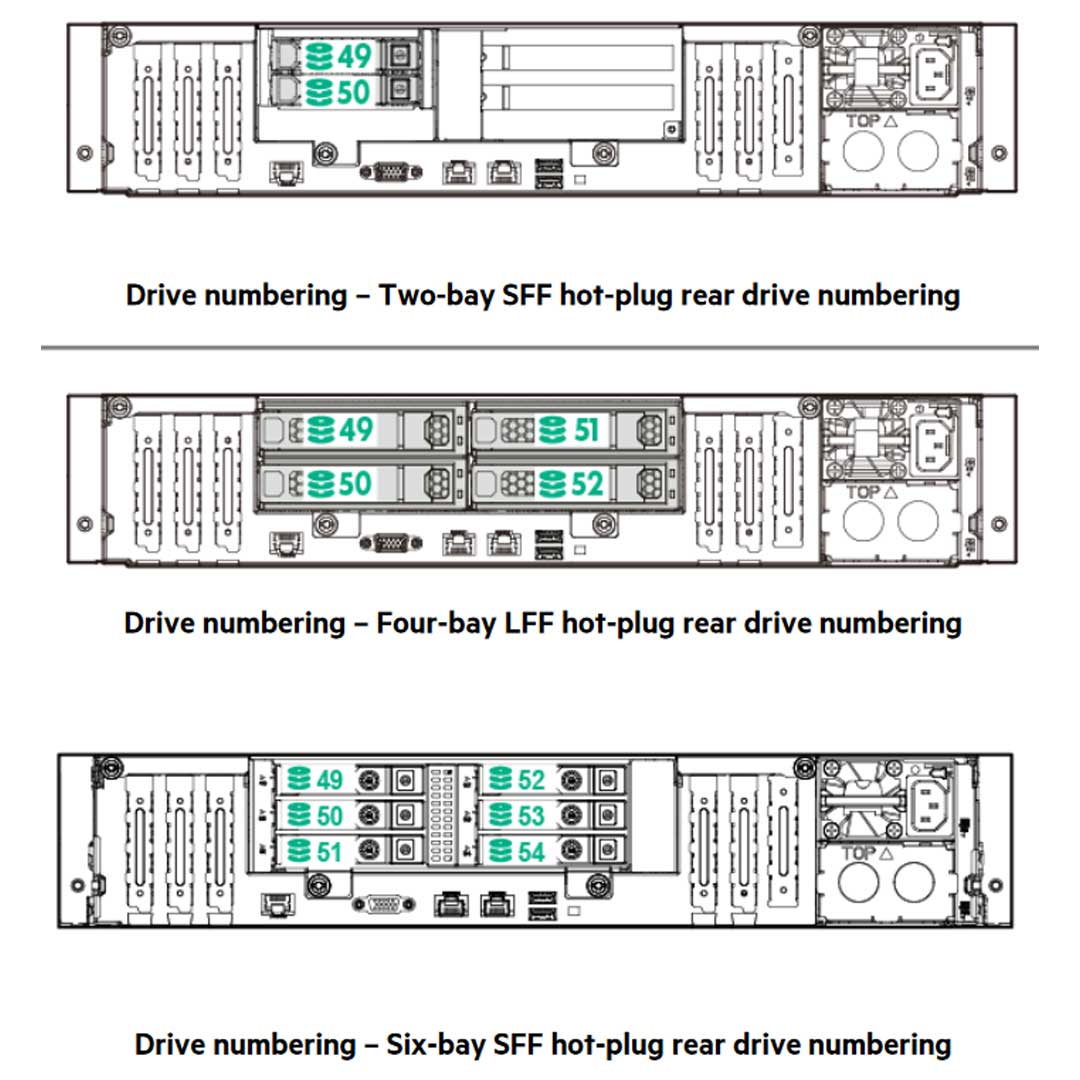

Rear Drive Options
Dimensions: (H) x (W) x (D)
- 4LFF Rear Cage Kit (806563-B21)
- 2SFF Rear Cage Kit (806564-B21)
- SAS 392TB (24+4) x 14TB
- SAS SSD 41.5TB (24) x 1.6TB + (4) x 800GB
- SATA 108TB (48+6) x 2TB
- SATA SSD 414.72TB (48+6) x 7.68TB
Dimensions: (H) x (W) x (D)
- 3.44 x 17.63 x 32 in
- 8.75cm x 44.8 x 81.28 cm
- Min: 51.04 lb (23.2 kg)
- Max: 89.32 lb (40.6 kg)

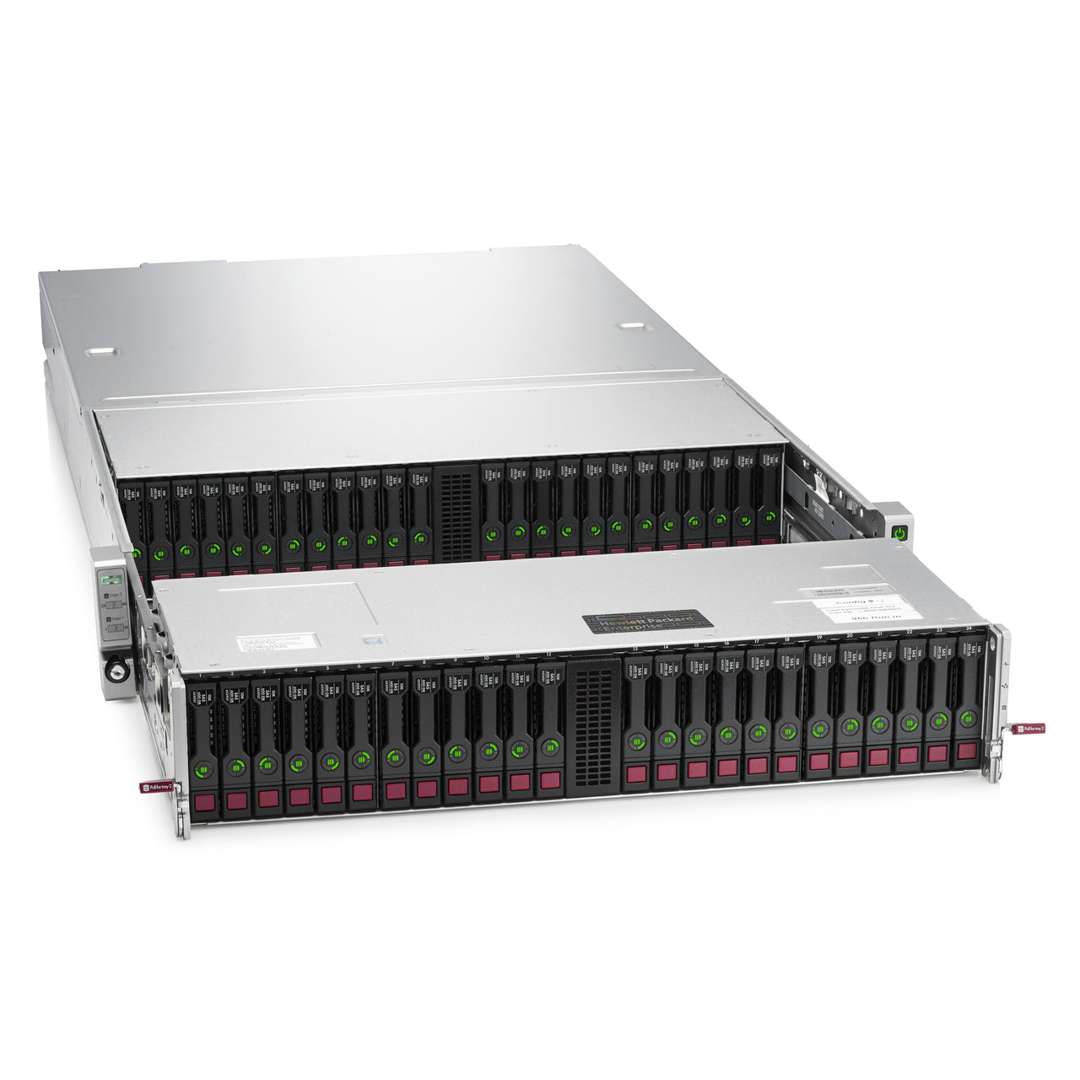

Apollo 4200 Gen9 SFF808028-B21
Rear Drive Options
Dimensions: (H) x (W) x (D)
- 2SFF Rear Cage Kit (806564-B21)
- 6SFF Rear Cage Kit (838833-B21)
- SAS 129.6TB (48+6) x 2.4TB
- SAS SSD 740TB (48) x 15.3TB + (6) x 960GB
- SATA 108TB (48+6) x 2TB
- SATA SSD 414.72TB (48+6) x 7.68TB
Dimensions: (H) x (W) x (D)
- 3.44 x 17.63 x 32 in
- 8.75cm x 44.8 x 81.28 cm
- Min: 46.64 lb (21.2 kg)
- Max: 77lb (35kg)
| HPE Apollo 4200 Gen9 LFF CTO Server | HPE Apollo 4200 Gen9 SFF CTO Server | |
|---|---|---|
| SKU Number | 808027-B21 | 808028-B21 |
| Processor | 2 (optional) x HPE Smart Socket Guide | |
| DIMM Slots | 16 DIMM slots for RDIMM, LRDIMM DDR4 Memory | |
| Storage Controller | HPE Smart Array P840ar, plus HPE Dynamic Smart Array B140i , optional HPE Flexible Smart Array or Smart HBA controller |
|
| PCIe | 2 PCIe slots and FlexibleLOM (Plus FHHL Riser option+3 PCI slots available with upgrade to second processor) |
|
| Drive Cage | 24 LFF Hot Plug and optional 4LFF Rear Cage Kit, , 2SFF Rear Cage Kit, or 6SFF Rear Cage Kit |
48 SFF Hot Plug and optional 2 SFF Rear Cage Kit or 6 SFF Rear Cage Kit |
| Network Controller | HPE Embedded 1Gb Ethernet 2-port 361i Adapter, plus optional HPE FlexibleLOM or stand up card | |
| Fans | 4 fans standard for 1P, 5 fans standard for 2P, plus redundant fan option | 4 fans standard for 1P, 5 fans standard for 2P, plus redundant fan option |
| Management | iLO Management (standard), Intelligent Provisioning (standard), iLO Advanced (optional), Insight Control (optional) |
|
| USB | 1 front, 2 rear, 1 internal | 1 front, 2 rear, 1 internal |
Processors & Memory

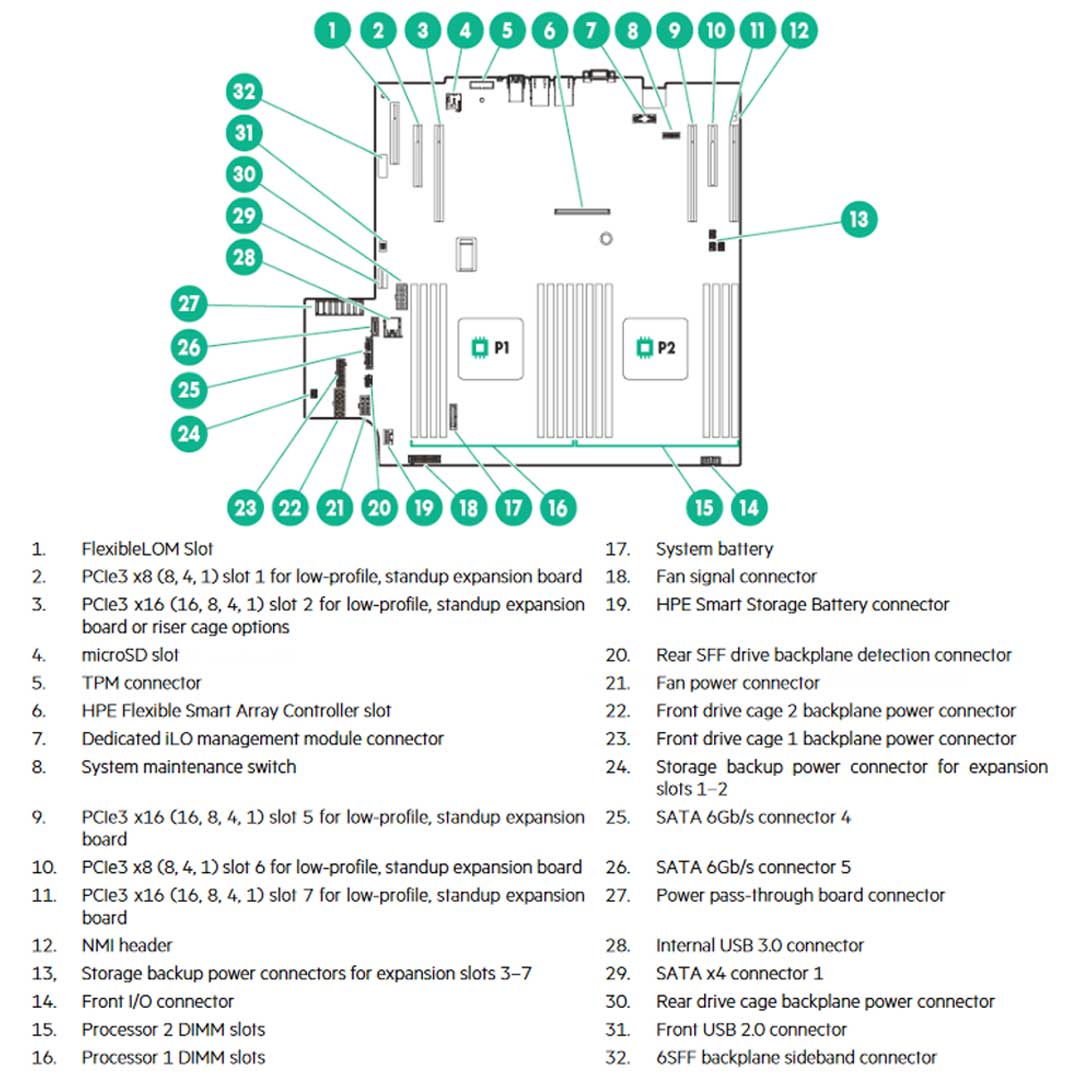

The HPE ProLiant XL420 Gen9 Motherboard, integrated into the Apollo 4200 rack server, supports up to two Intel Xeon E5-2600 v3 or v4 processors, delivering scalable performance for enterprise workloads. Processor mixing is not supported, ensuring consistent and reliable operation. Each processor socket supports 8 DIMMs, for a total of 16 DIMMs and up to 1.0 TB of DDR4 SmartMemory, with speeds of up to 2400 MT/s, depending on the configuration.
Installing both processors unlocks additional expansion with PCIe slots 5, 6, and 7, offering flexibility for networking or storage upgrades. For enhanced expandability, the optional 2 SFF and 2 Full-Height Half-Length Riser Kit (806564-B21) enables PCIe slots 3 and 4 by utilizing slot 2 as a standup expansion, disabling it in the process.
HPE Smart Storage Dual-Controller | B140i & P840ar
Apollo 4200 has the P840ar embedded in the chassis by default, including the HPE Smart Storage Battery. It also has the B140i Controller embedded in the system that only works in UEFI mode. The B140i will not operate in Legacy mode. Users can choose between the hardware RAID (P840ar) for advanced features and performance or the software RAID (B140i) for simpler configurations.
Please read the controller Modes below for more insight into the Advanced Configurations and their requirments.
2SFF and 2 FHHL Riser kit (806564-B21)
Some cards can only be installed in certain PCIe Slots and might require other items for the integration to work properly. For example, if you want to use the Smart Array P441 or P841. You need to install the 2SFF and 2 FHHL Riser kit (806564-B21). The reason why is that these cards are only supported in PCIe slot 3 or 4. The only way to enable these slots is with this Riser Kit.
P440 SAS Controller (726821-B21)
If you want to install the P440 SAS Controller (726821-B21) you better have the PCIe slot 1 open since this is the only slot that supports this card. The reason for this card is to provide support for SAS and SATA drives in the Rear and 2nd HDD Cage.
HPE H240 12Gb 2-ports Int Smart Host Bus Adapter (726907-B21)
The last adapter with requirements is the HPE H240 12Gb 2-ports Int Smart Host Bus Adapter (726907-B21). This adapter provides support for the rear SAS/SATA Drive Cage. If this card is selected, it is required to also install the HBA H240 FIO Rear Cable Kit (838823-B21) and HBA H240 FIO Controller Mode for Rear Storage (838827-B21).
Controller Modes
The (5) Controller modes provide different methods to controlling the drive bays. There are 2 Front Drive Bays and 1 optional rear drive bay with 3 different options. If you install a rear drive option, one of the controller modes below must be selected. To make life easy we have placed the supported Controller modes under each rear drive cage.
4 LFF Rear Drive Kit (806563-B21)
Supported Controller Mode
SATA B140i (813545-B21)
2nd Cage (813546-B21)
SAS Smart HBA H240 (838827-B21)
SAS Smart Array P440 (838830-B21)
2 SFF and 2 FHHL Kit (806564-B21)
Supported Controller Mode
SATA B140i (813545-B21)
2nd Cage (813546-B21)
SAS Smart HBA H240 (838827-B21)
SAS Smart Array P440 (838830-B21)
6 SFF Rear Drive Kit (838833-B21)
Supported Controller Mode
Dual SAS Smart Array P440 (P03845-B21)
Below we have added some quick notes about drive allocation when installing a controller mode.
Please read the manual for all the details into the controller mode.
HPE SATA B140i CTRL Mode
Rear Storage (813545-B21)
Can only be selected with SATA drives for rear HDDs.
HPE 2nd Cage CTRL Mode
Rear Storage (813546-B21)
The Rear HDDs will be under the same controller as the 2nd HDD cage
HPE SAS Smart HBA H240 CTRL Mode
Rear Storage (838827-B21)
The Rear HDDs will be under the optional HPE H240 12Gb 2-ports Int Smart Host Bus Adapter (726907-B21)
HPE SAS Smart Array P440 CTRL Mode
Rear Storage (838830-B21)
The Rear HDDs will be under the optional HPE Smart Array P440/4GB FBWC 12Gb 1-port Int SAS Controller (726821-B21)
HPE Dual SAS Smart Array P440 CTRL Mode
Front Storage (P03845-B21)
The Rear HDDs will be under the default HPE Flexible Smart Array P840ar/2G FIO Controller and the two front HDD cage will be under the two optional HPE Smart Array P440/4GB FBWC 12Gb 1-port Int SAS Controller (726821-B21)
HPE Apollo 4200 Gen9 Plus PCI Risers
The Rack server holds 7 PCIe 3.0 Slots on the 2U chassis.
The second processor must be installed to enable the use of the PCIe slots 5, 6, & 7.
| Expansion Slots | Slot # | Technology | Bus Width | Connector Width | Form Factor | Notes |
|---|---|---|---|---|---|---|
| CPU1, (STANDARD) | 1 | PCIe 3.0 | x8 | x8 | Low Profile | Proc 1 |
| 2 | PCIe 3.0 | x16 | x16 | Low Profile | Proc 1 | |
| Slots with 2 PCIe FHHL riser (CPU1) (Optional 2SFF and 2 FHHL Kit: (806564-B21) |
3 | PCIe 3.0 | x8 | x8 | Full-height, half-length slot | Proc 1 |
| 4 | PCIe 3.0 | x8 | x8 | Full-height, half-length slot | Proc 1 | |
| Notes: | Using the optional FHHL kit (PN: 806564-B21), the two PCIe slots (slots 3 and 4) are available by using slot 2 as a standup expansion slot, so slot 2 is not available. | |||||
| Notes: | PCIe slots 1-4 are associated with processor 1. | |||||
| CPU 2 (Optional) | 5 | PCIe 3.0 | x16 | x16 | Low Profile | Proc 2 |
| 6 | PCIe 3.0 | x8 | x8 | Low Profile | Proc 2 | |
| 7 | PCIe 3.0 | x16 | x16 | Low Profile | Proc 2 | |
Networking Abilities | FlexibleLOM
With 7 PCIe slots and 1 Dedicated FlexibleLOM PCIe slot supporting 1Gb or 10Gb networking. The combination of FlexibleLOM, integrated NICs, and PCIe networking adapters makes the Apollo 4200 Gen9 server highly adaptable for a wide range of networking demands, from standard enterprise applications to high-performance computing environments.
The FlexLOM can only be installed in PCIe Slot 1.
HPE Apollo 4200 Gen9 Cooling
HPE Apollo 4200 Gen9 Redundant Fan Kit (806562-B21). For 1 processor configuration, the Redundant Fan Kit (806562-B21) will ship 4 additional fans, for a total of 8 fans. There will be one spare fan in the carton for the future upgrade to 2 processors. For 2 processor configurations, the HPE Apollo 4200 Gen9 Redundant Fan Kit (806562-B21) will ship 5 fans for redundant function.
| System Fans | Non-Redundant | Redundant |
|---|---|---|
| When 1 Processor is selected | 4 fans | 8 fans |
| When 2 Processors are selected | 5 fans | 10 fans |
HPE Power Supply Units (PSU)
The HPE Apollo 4200 Gen9 server features hot-swappable Flex Slot PSUs available in 500W, 800W, 1400W, and 1600W capacities, offering scalability and redundancy for high-availability environments. These PSUs, certified with 80 PLUS Platinum or Titanium for energy efficiency, are compact and modular, saving space and reducing operational costs. To maintain proper cooling and performance, specific PSU wattages may require additional fan configurations.
All power supplies must be of the same input voltage, output rating, and efficiency rating. If non-matching power supplies are installed, you may receive an error message and/or experience operational issues with your server.
HPE IntegratedLights Out! | HPE iLO 4
Integrated Lights-Out (iLO)
Monitor your servers for ongoing management, service alerting, reporting, and remote management with HPE iLO.
UEFI
Configure and boot your servers securely with industry-standard Unified Extensible
Firmware Interface (UEFI).
RESTful API
iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards.
Intelligent Provisioning
Hassle-free server and OS provisioning for 1 or few servers with Intelligent Provisioning.
