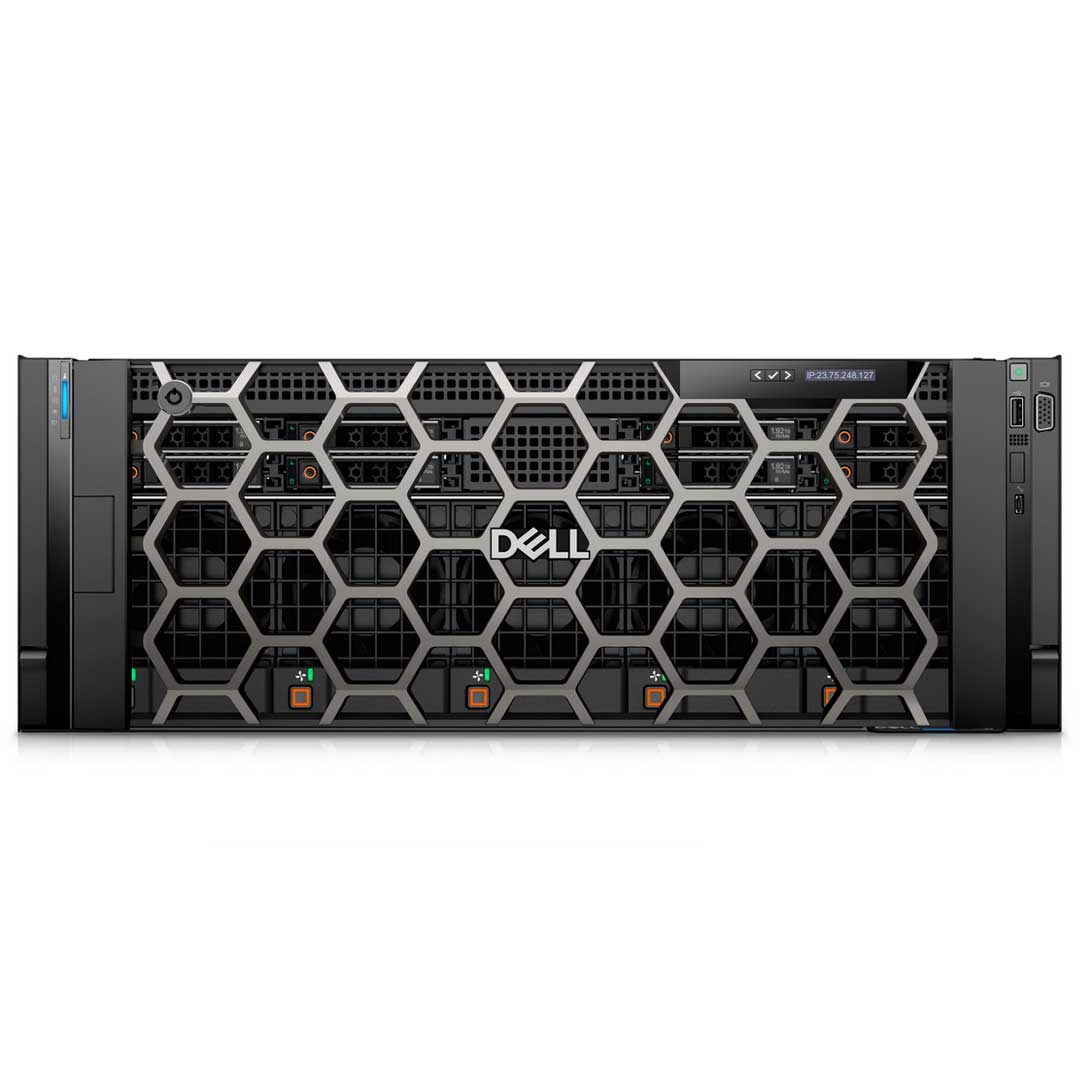

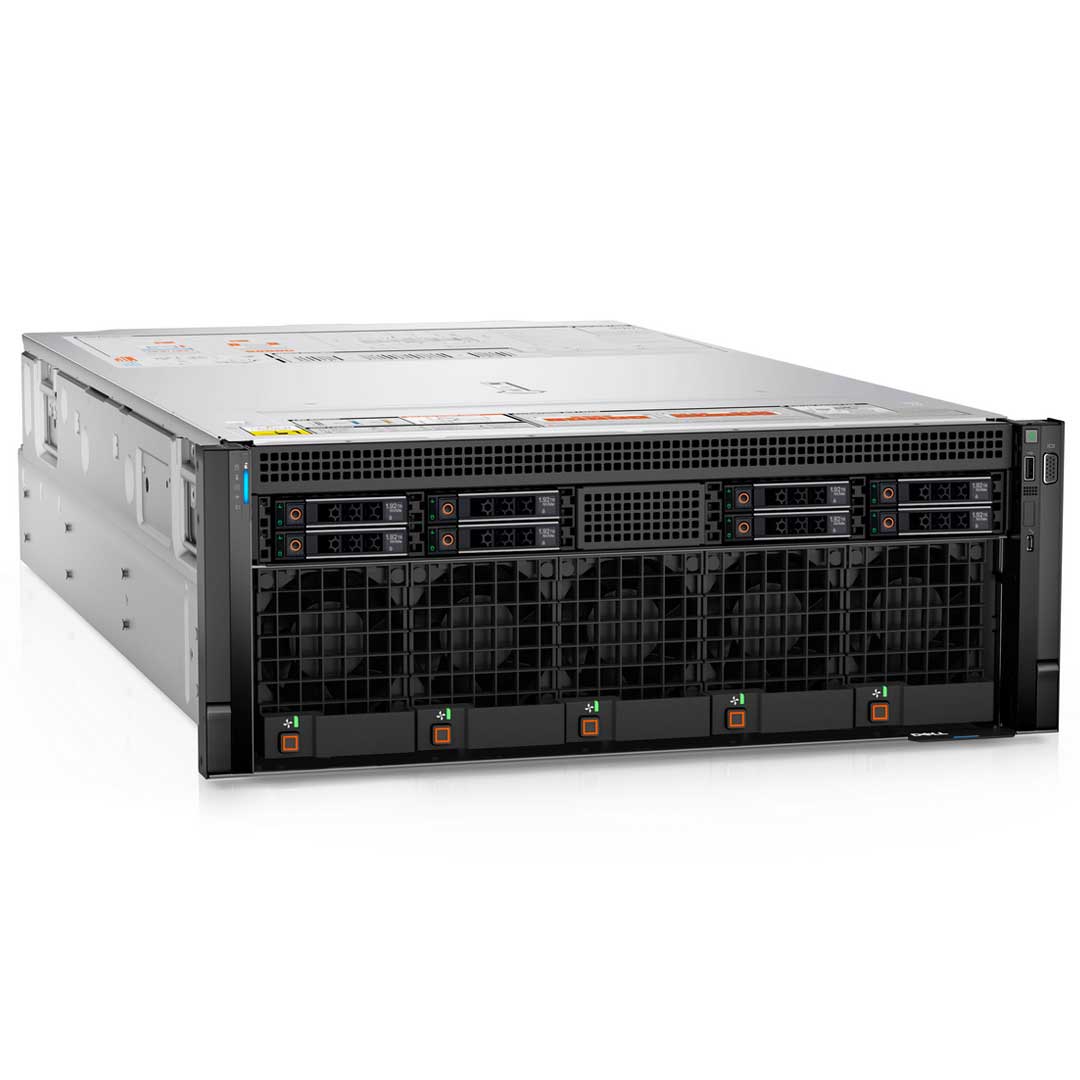

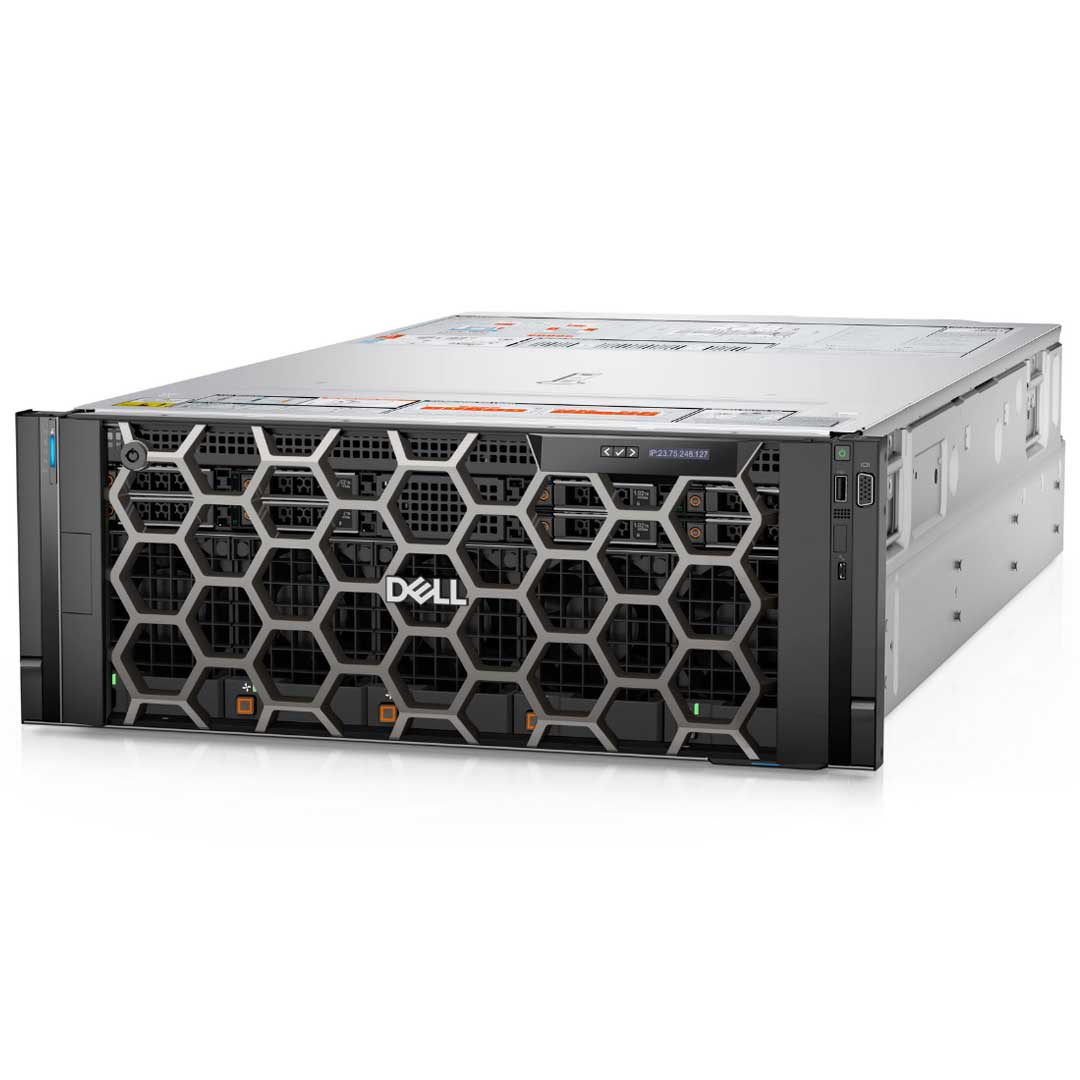

Dell PowerEdge XE8640 CTO Rack Server

Contact for Pricing Price: Configure for Price

Brand:

Dell

Type:

CTO Servers

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

Form Factor:

4U Rack Server

Processor | Max: 56 Cores (PP)

2x 4th Gen Intel Xeon Scalable Processors

Memory | Max: 4TB

32 DDR5 RDIMM 4800Mhz

Storage | Max: 122.88TB

8x 2.5" NVMe SSD

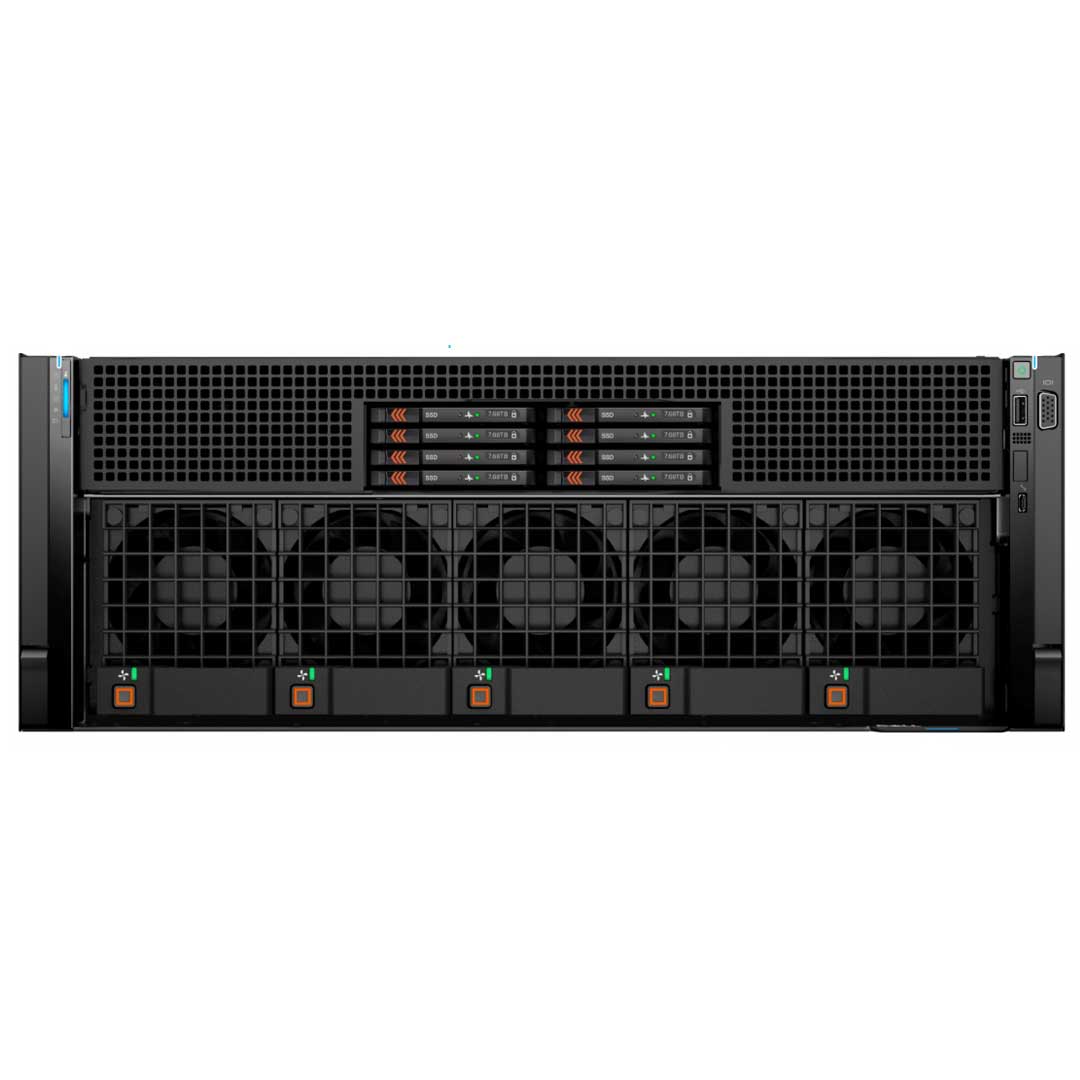

8x E3.S NVMe SSD

Boot Options

BOSS-N1

RAID Controller:

S160 (SW RAID)
H965i

NIC/OCP

2 x 1GbE LOM
1 x OCP 3.0 (x8 PCIe lanes)

Remote Management:

iDRAC9

PCIe Slots:

4 PCIe slots (4 x16 Gen5)

GPU:

4 NVIDIA HGX H100 80GB 700W SXM5 GPUs
fully interconnected with NVIDIA NVLink technology
Liquid Assisted Air Cooling for GPU
Note: No facility water to rack required

Other Versions:

Ideal for:

Artificial Intelligence (AI)
Deep Learning (DL)
High Performance Computing (HPC)
Machine Learning (ML)
Virtualization

Harness the power of AI

Drive traditional AI, HPC and simulation applications with optimized compute and accelerated throughput for automating insights into outcomes. Develop and deploy machine learning models, maximize AI initiatives with the latest NVIDIA^® GPUs with a 4-way architecture.

Purpose-built performance

Efficiently drive traditional AI training, HPC and data analytics applications with four high performance accelerators and air-cooling. Get the ultimate balance of performance, power and price with Intel^® CPUs and the newest NVIDIA^® H100 Tensor Core GPUs.

Drive a wide range of AI workloads with two powerful 4th generation Intel ^® Xeon^® processors^®
Four (4) NVIDIA H100 Tensor core 700W SXM5 GPUs for extreme performance, fully interconnected with NVIDIA NVLink technology.
Improve training performance with up to 900GB/s bandwidth for GPU-GPU communication, 1.5x more than the previous generation.
Built for dense inferencing in fields like oil and gas, finance and healthcare
Boost performance with DDR5 memory and PCIe Gen5 support
Support for the highest wattage next-gen technologies up to 35°C ambient temperature with a 4U air-cooled design

Transform your business

Strike the perfect balance between performance, power and cost when deploying a solution to suit your IT strategy.

Next generation NVIDIA^® GPUs achieve superior AI performance in medical imaging, business decision making applications and most other applications
Get continuous data processing and faster I/O performance with GPU Direct Storage transfers, bypassing server CPUs
Scale with confidence thanks to support for up to 32 DDR5 memory DIMM slots, up to eight drives and up to 4 PCIe Gen 5 expansion slots

Accelerated I/O Throughput

Deploy latest generation technologies including DDR5, NVLink, PCIe Gen 5.0, and NVMe SSDs to push the boundaries of data flow and computing possibilities.

Up to four PCIe Gen 5 slots and up to 8 drives enable optimal expansion for high-performance AI operations.
Supports NVIDIA GDS (GPUDirect® Storage), a direct data path for direct memory access (DMA) transfers between GPU memory and storage, increasing system bandwidth and decreasing latency and utilization load on the CPU
4U air-cooled design chassis supports the highest wattage next-gen technologies in up to 35C ambient

Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.

Cooling & Fans

With most GPU servers the cooling is a major part of the success of the machine running smoothly and efficiently. The XE8640 Rack Server holds up to 6 Standard (STD) fans installed in the mid tray and up to 5 High performance (HPR) gold grade fans installed on the front of the system. A keynote is that all the fans are hot-swappable and when GPUs are installed you can install the Liquid Assisted Air Cooling for GPU.

Note: No facility water to rack required.

Image of the Heat Sink and Mid Fan Tray in the XE8640 Rack Server by Dell.

Air cooling for Processors

Up to 6 Standard (STD) fans installed in mid tray help cool the Processors, DIMMs, and Drives. This is the top Layer of the XE8640 4U Rack server.

Image of the GPU Fan and LAAC cooling for the H100 in the Dell XE8640 Rack Server.

Liquid Assisted Air Cooling for GPU

4 NVIDIA HGX H100 80GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology. Are cooled by the LAAC and Up to 5 High performance (HPR) gold-grade fans installed on the front of the system.

Note:

No facility water to rack required.

Memory

The system memory is organized into eight channels per processor (two memory sockets per channel),16 DIMMs per processor, and 32 DIMMs per system. The system only supports ECC DDR5 memory with speeds up to 4800Mhx on a (1DPC) and 4400Mhz on a (2DPC) configuration.

DIMM type	Rank per DIMM and Data Width	DIMM capacity (GB)	Speed (MT/s); Voltage (V); DIMM per channel (DPC)
DIMM type	Rank per DIMM and Data Width	DIMM capacity (GB)	1 DIMM per channel (DPC)	2 DIMMs per channel (DPC)
RDIMM	DR X 8	32 GB	4800 MT/s	4400 MT/s
RDIMM	DR X 4	64 GB	4800 MT/s	4400 MT/s
RDIMM 3DS	4R X 4	128GB	4800 MT/s	4400 MT/s

GPU

The H100 SMX5 GPUs are on the bottom layer of the XE8640 Rack Server. Three different components make up the bottom layer, PDB, H100 Tray, and the LAAC. The Power Distribution Board sits at the very bottom with the H100 Tray on top. The LAAC gets laid on top of the H100 in the GPU tray to cool the H100 SMX5 GPUs. The Top Tray Layer gets placed on top of this bottom layer to support the CPU. DIMMs, and Drives.

The Power Distribution Board in a Dell XE8640 Rack Server.

Bottom Layer (PDB)

The Power Distribution Board is at the very bottom of the XE8640 Bottom Layer. This PDB Connects to the GPU via the Versabay board (VSB).

The GPU Tray for the XE8640 Rack Server by Dell.

Bottom Layer (GPU Tray)

The second layer in the Bottom layer is the GPUs themselves. This tray holds 4 Nvidia H100 SMX5 GPUs and the PCI Switchboard which provides all the PCIe lanes needed for the GPUs to run at full power.

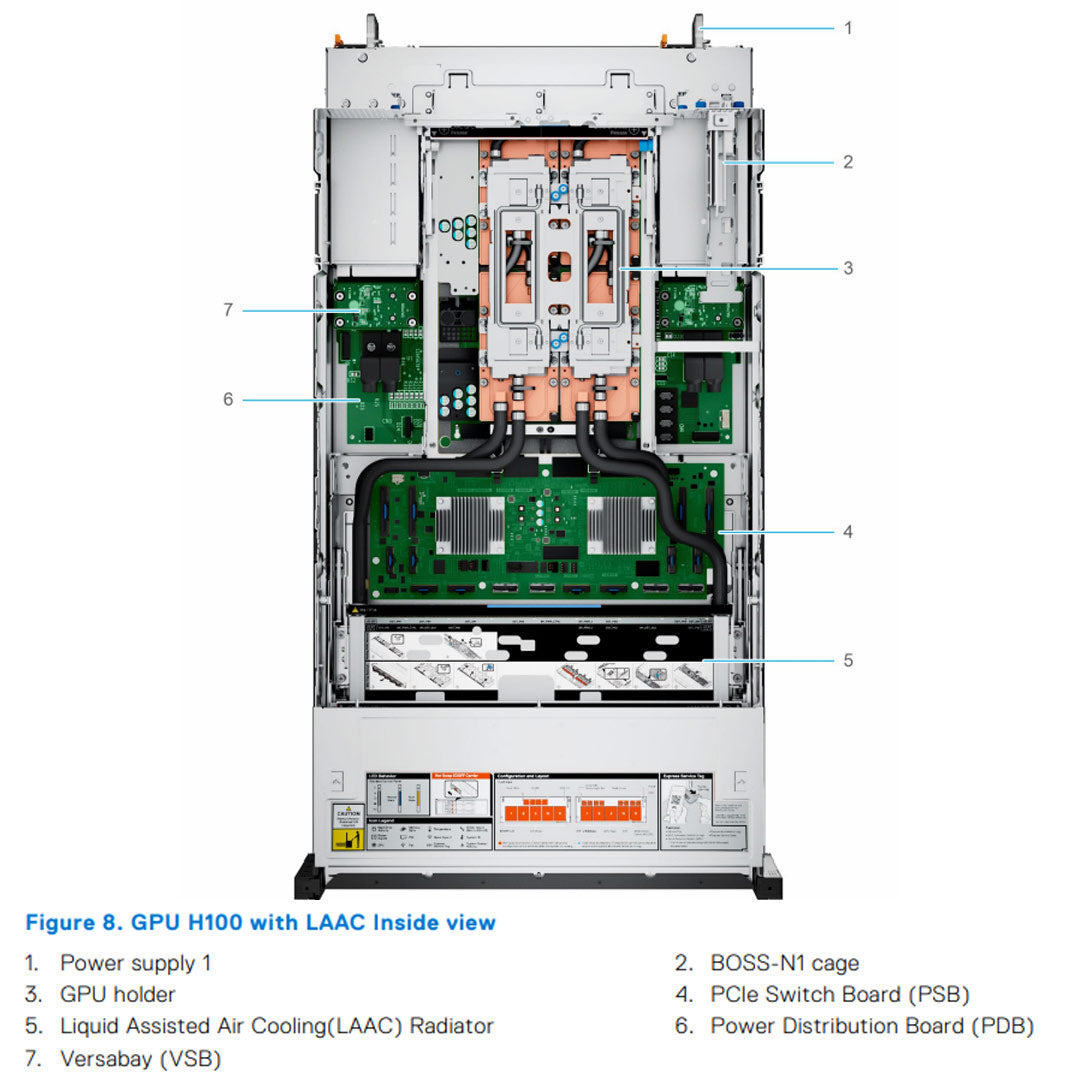

Liquid Assisted Air Cooling (LAAC) Radiator for the Dell XE8640 Rack Server.

Bottom Layer (LAAC)

With so much GPU power you'll need a system that can cool these H100's down. This last layer of the Bottom Layer is the Liquid Assisted Air Cooling (LAAC) Radiator which is helped by 5 High performance fans. These fans sit in the front of the chassis.

Top Layer

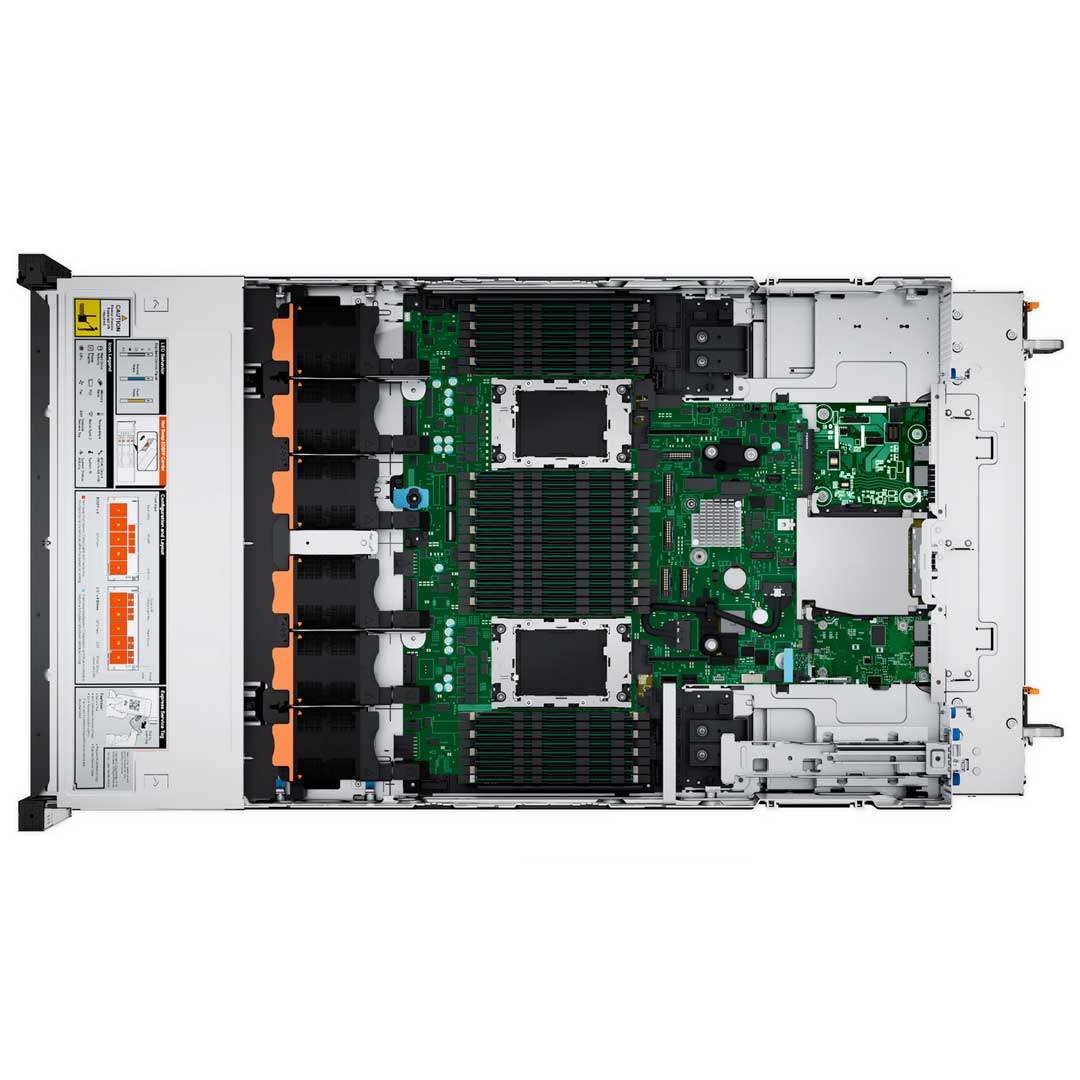

The final top layer in this 4U Rack server holds the Drives, CPUs, and DIMMs. The top layer of the XE8640 rack server is cooled down by 6 Standard fans. These fans sit in a mid-fan tray right behind the Drives.

This is a GPU-intense server for HPC, AI, and Machine Learning systems. The Dell XE8640 Rack Server supports 4x NVIDIA SMX5 GPUs w/ NVLINK HGX H100 80 GB/700 W. The system board connects to these GPUs via the Versabay Board (VSB). The Versabay Boards are designed to offer flexibility in terms of adding extra functionalities such as additional storage controllers, network interface cards (NICs), or specialized processing units.

The Dell PowerEdge XE8640 supports the LAAC liquid Cooling option to help with the system temperature. View the manual for more details into the GPU and cooling.

Imaage of the internal fans on the Dell PowerEdge XE8640 Rack GPU Server

Expansion Slots

PCIe Riser Configurations 1. R1A+R4A

Location	Height	Length	CPU1	CPU2
Location	Height	Length	Riser R1A	Riser R4A
PCIe Slot -1	FH	HL	PCIe Gen5 X16	N/A
PCIe Slot -2	FH	HL	PCIe Gen5 X16	N/A
PCIe Slot -3	FH	HL	N/A	PCIe Gen5 X16
PCIe Slot -4	FH	HL	N/A	PCIe Gen5 X16

The XE8640 GPU server only has 1 riser configuration. You simply have the choice of whether to install risers or not.

Image of Riser 4A for the Dell XE8640 Rack Server.

Networking / Boot Options

Image of the OCP 3.0 card in the XE8640 Rack Server by Dell.

Networking OCP 3.0

The XE8640 has two networking options. The LOM card and the OCP 3.0 Card. The Lom card has the default 2 1GbE Ports. While the OCP 3.0 card can expand the Networking of the XE8640 to 4 Ports at 25GbE.
10 GbE x 4, 25 GbE x 2, 25 GbE x 4

The BOSS-N1 Boot Option for the Dell XE8640 Rack Sever.

Boot Option BOSS-N1

The BOSS-N1 Module saves a drive from being designated the boot option and provides up to 2 M.2 NVMe SSD Drives. These drives are hot-swappable and provide a full OS boot option.

Storage Controllers

The XE8640 Rack server supports the PERC 12 H965i for Hardware RAID along with the S160 for Software RAID. In addition, the rack server also holds the BOSS-N1 Modular Internal Boot device. This BOSS-N1 holds two M.2 NVMe SSD drives with a capacity of 480GB or 960GB.

Supported storage controller card
Software RAID ● S160
Hardware RAID ● H965i

Image of the fPERC Tray on the XE8640 Rack Server.

Power & Dimensions

The PowerEdge XE8640 system supports up to 4 AC or DC power supply units (PSUs) with 3+1 redundancy, autosensing, and auto-switching capability. Similar to the Riser config there is only one choice for a Power Supply Unit. The XE8640 can support up to 4x 2800W 200-240V PSUs. This type of battery is needed when installing a SMX5 GPU which consumes 700W during peak performance.

Dimensions & Weight:

Width: 447 mm (17.6 inches)
Height: 174.3 mm (6.86 inches)
Length: 901mm (35.46 inches)
Weight: 61.4 kg (135.36 lb)

Feature	Technical Specifications** (Additional features Coming Soon.)
Processor	Two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor
Memory	• 32 DDR5 DIMM slots, supports RDIMM 4 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only
GPU	• 4 NVIDIA HGX H100 80GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology
Storage controllers	• Internal boot: Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs • Software RAID: S160
Drive bays	Front Bays • Up to 8 x 2.5-inch NVMe SSD drives max 122.88 TB
Power Supplies	2800W Titanium 200-240 VAC or 240 VDC, hot swap redundant
Cooling Options	• Air cooling for Processors • Liquid Assisted Air Cooling for GPU Note: No facility water to rack required.
Chipset	Intel® C741 chipset
PCIe	2 CPU configuration: Up to 4 PCIe slots (4 x16 Gen5)
Embedded NIC	2 x 1 GbE
Network Options	1 x OCP 3.0 (x8 PCIe lanes)
Fans	• Up to 6 Standard (STD) fans installed in mid tray • Up to 5 High performance (HPR) gold grade fans installed on the front of the system • All are hot swap fans
Dimensions and weight	• Height — 174.3 mm (6.86 inches) • Width — 481.91 mm (18.97 inches) • Depth — 901.4 mm (35.48 inches) with bezel — 865.54 mm (34.07 inches) inch without bezel • Weight — 61.4 kg (135.36 pounds)
Form Factor	4U rack server
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module
Bezel	Optional LCD bezel or security bezel
OpenManage Software	• CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center	• CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center
OpenManage Integrations	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow	• Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager
Security	• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check)	• Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Ports	Front ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA	Rear ports • 1 x USB 2.0 • 1 x USB 3.0 • 1 x VGA • 1 x RJ45 iDRAC9 ethernet port
Operating Systems and Hypervisors	• Canonical Ubuntu Server LTS • Red Hat Enterprise Linux

Feature

Technical Specifications** (Additional features Coming Soon.)

Processor

Two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor

Memory

• 32 DDR5 DIMM slots, supports RDIMM 4 TB max, speeds up to 4800 MT/s
• Supports registered ECC DDR5 DIMMs only

GPU

• 4 NVIDIA HGX H100 80GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology

Storage controllers

• Internal boot: Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs
• Software RAID: S160

Drive bays

Front Bays
• Up to 8 x 2.5-inch NVMe SSD drives max 122.88 TB

Power Supplies

2800W Titanium 200-240 VAC or 240 VDC, hot swap redundant

Cooling Options

• Air cooling for Processors
• Liquid Assisted Air Cooling for GPU
Note: No facility water to rack required.

Chipset

Intel® C741 chipset

PCIe

2 CPU configuration: Up to 4 PCIe slots (4 x16 Gen5)

Embedded NIC

2 x 1 GbE

Network Options

1 x OCP 3.0 (x8 PCIe lanes)

Fans

• Up to 6 Standard (STD) fans installed in mid tray
• Up to 5 High performance (HPR) gold grade fans installed on the front of the system
• All are hot swap fans

Dimensions and weight

• Height — 174.3 mm (6.86 inches)
• Width — 481.91 mm (18.97 inches)
• Depth — 901.4 mm (35.48 inches) with bezel
— 865.54 mm (34.07 inches) inch without bezel
• Weight — 61.4 kg (135.36 pounds)

Form Factor

4U rack server

Embedded Management

• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module

Bezel

Optional LCD bezel or security bezel

OpenManage Software

• CloudIQ for PowerEdge plug in
• OpenManage Enterprise
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center

OpenManage Integrations

• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow

• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager

Security

• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)

• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Ports

Front ports
• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 2.0
• 1 x VGA

Rear ports
• 1 x USB 2.0
• 1 x USB 3.0
• 1 x VGA
• 1 x RJ45 iDRAC9 ethernet port

Operating Systems and Hypervisors

• Canonical Ubuntu Server LTS
• Red Hat Enterprise Linux

Feature	PowerEdge XE8545	PowerEdge XE8640
Processor	● 2x AMD Milan Processor (SP3) processor ● Interchip global memory interconnect (xGMI2).	2x 4th Generation Intel Xeon Scalable processors with up to 56 cores
Accelerators/GPUs	● 4x NVIDIA GPUs w/ NVLINK HGX A100 4-GPU 40GB/400W or HGX A100 4-GPU 80GB/500W	● 4x NVIDIA GPUs w/ NVLINK ● HGX H100 4-GPU 80 GB/700 W
Memory	● 32x RDIMM, DDR4 with ECC, bandwidth up to 3200 MT/S	● 32x RDIMM, DDR5 with ECC, bandwidth up to 4800 MT/S
Disk Drives	● 10x 2.5 inches 12 Gb SAS SSD or 12 Gb SATA SSD - or mixed, with up to 8x NVMe SSD	● 8x 2.5 inches U.2 NVMe SSD ● 8x 2.5 inches U.2 SAS/ SATA,SSD ● 8x E3.S NVMe SSD
Storage Controllers	● BOSS S1.5, H745,H755	● BOSS N1, H965i
NVMe PCIe SSD	● Up to 8x NVMe SSD	● Up to 8x NVMe SSD
PCIe Slots	● Up to 4x PCIe Gen4 slots (3x 16 or 2 x16 + 2 x8)	● Up to 4x 16 PCIe Gen5 slots
LOM	● 2x 1 GbE	● 2x 1 GbE
OCP 3.0	● Max 1 x OCP 3.0	● Max 1 x OCP 3.0 (PCIe x8)
USB Ports	● Front: 1 port (USB 2.0), dedicated for iDRAC ● Rear: 1 port (USB 3.0) + 1 port (USB 2.0 + Bison)	● Front: 1 port (USB 2.0), dedicated for iDRAC ● Rear: 1 port (USB 3.0) + 1 port (USB 2.0 )
Rack Height	● 4U	● 4U
Power Supplies	● Platinum: 2400 W (Mixed Mode: AC 100 V~240 V input) ● Titanium: 2800 W (Mixed Mode: AC 200 V~240 V input) ● 2800 W (Mixed Mode: DC 240 V input)	● Titanium: 2800 W (Mixed Mode: 200-240 VAC or 240 HVDC input)
System Management	● iDRAC9 with Lifecycle Controller with feature additions. ● Front: 1 dedicated Micro USB for iDRAC ● Rear: 1 dedicated RJ45 for iDRAC	● iDRAC9 with Lifecycle Controller with feature additions. ● Front: 1 dedicated Micro USB for iDRAC
Availability	● Hot-plug drives ● Hot-plug redundant cooling. ● Hot-plug redundant power supplies. ● BOSS-S1V5	● Hot-plug drives ● Hot-plug redundant cooling. ● Hot-plug redundant power supplies. ● BOSS-N1
Security	● TPM 2.0	● TPM 2.0

Feature

PowerEdge XE8545

PowerEdge XE8640

Processor

● 2x AMD Milan Processor (SP3) processor
● Interchip global memory interconnect (xGMI2).

2x 4th Generation Intel Xeon Scalable processors with up to 56 cores

Accelerators/GPUs

● 4x NVIDIA GPUs w/ NVLINK HGX A100 4-GPU 40GB/400W
or HGX A100 4-GPU 80GB/500W

● 4x NVIDIA GPUs w/ NVLINK
● HGX H100 4-GPU 80 GB/700 W

Memory

● 32x RDIMM, DDR4 with ECC, bandwidth up to 3200 MT/S

● 32x RDIMM, DDR5 with ECC, bandwidth up to 4800 MT/S

Disk Drives

● 10x 2.5 inches 12 Gb SAS SSD or 12 Gb SATA SSD - or mixed, with up to 8x NVMe SSD

● 8x 2.5 inches U.2 NVMe SSD
● 8x 2.5 inches U.2 SAS/ SATA,SSD
● 8x E3.S NVMe SSD

Storage Controllers

● BOSS S1.5, H745,H755

● BOSS N1, H965i

NVMe PCIe SSD

● Up to 8x NVMe SSD

PCIe Slots

● Up to 4x PCIe Gen4 slots (3x 16 or 2 x16 + 2 x8)

● Up to 4x 16 PCIe Gen5 slots

LOM

● 2x 1 GbE

OCP 3.0

● Max 1 x OCP 3.0

● Max 1 x OCP 3.0 (PCIe x8)

USB Ports

● Front: 1 port (USB 2.0), dedicated for iDRAC
● Rear: 1 port (USB 3.0) + 1 port (USB 2.0 + Bison)

● Front: 1 port (USB 2.0), dedicated for iDRAC
● Rear: 1 port (USB 3.0) + 1 port (USB 2.0 )

Rack Height

● 4U

Power Supplies

● Platinum: 2400 W (Mixed Mode: AC 100 V~240 V input)
● Titanium: 2800 W (Mixed Mode: AC 200 V~240 V input)
● 2800 W (Mixed Mode: DC 240 V input)

● Titanium: 2800 W (Mixed Mode: 200-240 VAC or 240 HVDC input)

System Management

● iDRAC9 with Lifecycle Controller with feature additions.
● Front: 1 dedicated Micro USB for iDRAC
● Rear: 1 dedicated RJ45 for iDRAC

● iDRAC9 with Lifecycle Controller with feature additions.
● Front: 1 dedicated Micro USB for iDRAC

Availability

● Hot-plug drives
● Hot-plug redundant cooling.
● Hot-plug redundant power supplies.
● BOSS-S1V5

● Hot-plug drives
● Hot-plug redundant cooling.
● Hot-plug redundant power supplies.
● BOSS-N1

Security

● TPM 2.0

Dell PowerEdge XE8640 CTO Rack Server

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

READ ME

Select Chassis

Select Processor

4th Generation Intel® Xeon® Scalable Processors

Bezel (Optional)

Memory

SSD (2.5\") SAS Drives (Optional)

SSF NVMe Drives (Optional)

E3.S EDSFF (Optional)

Risers (Optional)

OCP 3.0 (Optional)

Storage Controllers (Optional)

Boot Optimized Storage Subsystem (BOSS-N1): (Optional)

Rail Kits (Optional)

TPM (Optional)

iDRAC 9 (Optional)

Power Supplies

ECS Warranty

Quick Specs

Ideal for:

Current Configuration

Select Chassis

Select Processor

Bezel (Optional)

Memory

SSD (2.5\") SAS Drives (Optional)

SSF NVMe Drives (Optional)

E3.S EDSFF (Optional)

Risers (Optional)

OCP 3.0 (Optional)

Storage Controllers (Optional)

Boot Optimized Storage Subsystem (BOSS-N1): (Optional)

Rail Kits (Optional)

TPM (Optional)

iDRAC 9 (Optional)

Power Supplies

ECS Warranty

Manuals

Manuals

Product Specs

Base Standard Capabilities

Compare Servers

Shipping Information

ECS Warranty Information

About Express Computer Systems

Related Items

Your Recently Viewed Items

Subscribe

Shop with Confidence
