Specs
CTO Item
This part is strictly for configuring Dell servers. If you have landed on this page and you're looking for a specific part number. Please send us a "Request a Quote" with the part number you need.
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Features | Technical specification | |
|---|---|---|
| Processor | Up to four 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores each | |
| Memory | 48 DDR4 DIMM slots, Supports RDIMM /LRDIMM, up to 2933MT/s, 6TB max Up to 12 NVDIMM, 384GB Max Up to 24 Intel® Optane™ DC persistent memory PMem, max 12.28TB, (15.36TB max with PMem and LRDIMM) Supports registered ECC DDR4 DIMMs only | |
| Storage controllers | Internal Controllers: PERC H330, H730P, H740P, HBA330 External Controllers: H840, 12 Gbps SAS HBA Software RAID:S140 Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480GB Internal Dual SD Module | |
| Drive bays | Front bays:
| |
| Power supplies | Gold:1100W - 48VDC Platinum: 750W, 1100W, 1100W 240VDC, 1600W, 2000W, 2400W Titanium: 750W Hot plug power supplies with full redundancy option 6 fans with N +1 redundancy | |
| Dimensions | Form factor: Rack (2U) Height: 86.8mm (3.4”) Width*: 434.0mm (17.08”) Depth*: 835.9mm (32.9”) Weight: 36.6kg (80.7lbs.) *Dimensions do not include bezel, brackets or PSU handles | |
| Embedded management | iDRAC9, iDRAC Direct, Quick Sync 2 BLE/wireless | |
| Bezel | Optional LCD bezel or security bezel | |
| OpenManage Software | OpenManage Enterprise, OpenManage Power Center, OpenManage Mobile | |
| Integrations and connections | Integrations: Microsoft System Center VMware vCenter BMC Software Red Hat Ansible Modules | Connections: IBM Tivoli® Netcool/OMNIbus Micro Focus Operations Manager i (OMi) Nagios® Core Nagios® XI |
| Tools | Dell EMC Repository Manager Dell EMC Update Package Dell EMC System Update Dell EMC Server Update Utility iDRAC Service Module iDRAC RESTful API with Redfish OpenManage Server Administrator OpenManage Storage Services | |
| Security | TPM 1.2/2.0 optional Cryptographically signed firmware Secure Root of Trust Secure Boot Secure Erase System Lockdown (requires iDRAC Enterprise or Datacenter) | |
| I/O & Ports | Network daughter card options:

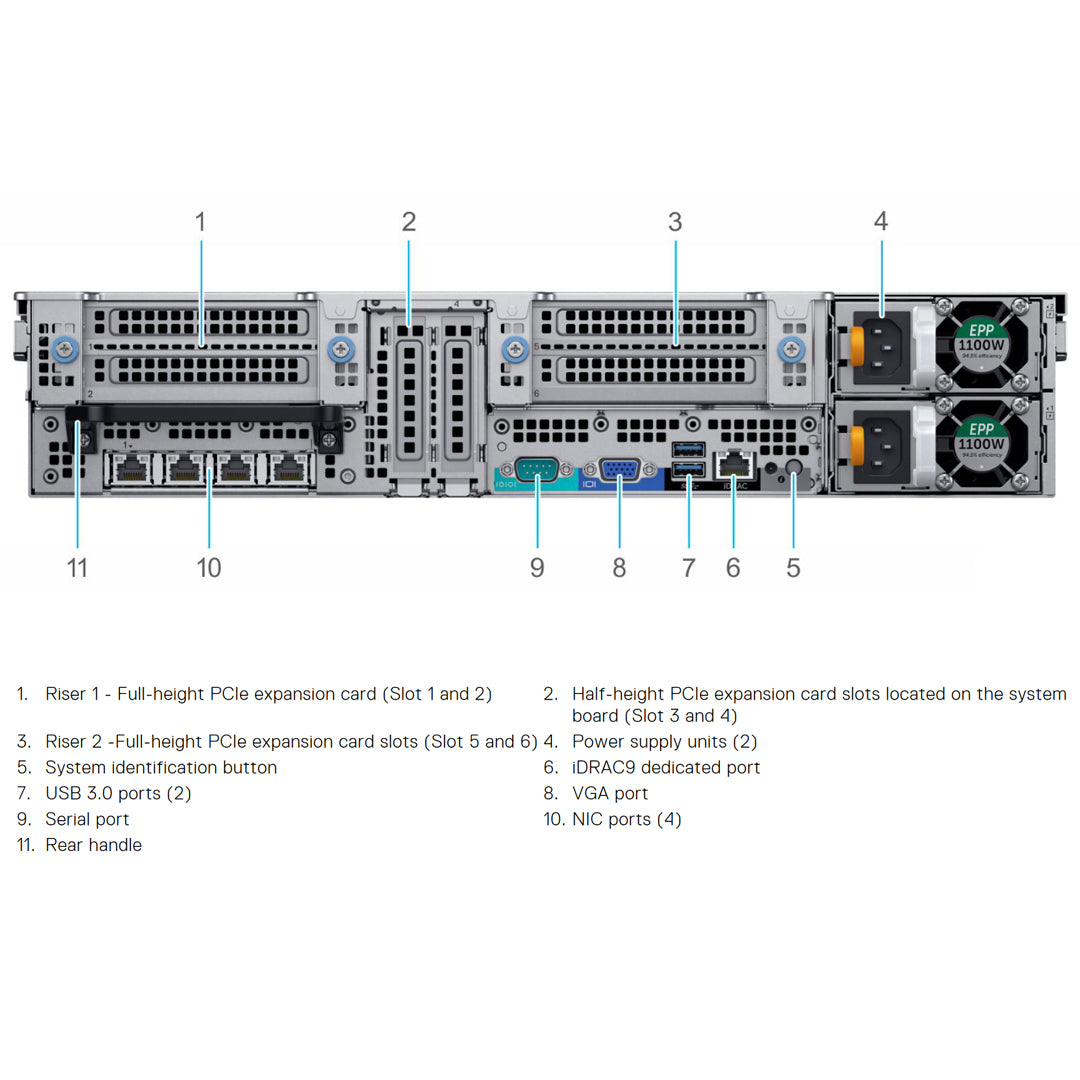

| Rear Ports:
|
| Accelerator Options | Up to 2 doublewidth GPUs or up to 2 full-height FPGAs ***GPUs/FPGAs not available with the 2 x 2.5” rear drive bay. | |
| Supported operating systems | Canonical® Ubuntu® LTS Citrix® Hypervisor Microsoft Windows Server® LTSC with Hyper-V Oracle® Linux Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi | |
