Dell PowerEdge R7725xd Rack Server | Configurable

Name: Dell PowerEdge R7725xd Rack Server | Configurable
Brand: Dell
SKU: DPE-R7725XD-CTO

Dell

| CTO Servers

READ ME

Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
“Quote” items can be added to your cart and sent to us via the cart page
Click the blue bar to close/open a section from view after choosing your options

Select Chassis

40x E3.S/L NVMe Chassis | Dell PowerEdge R7725xd Quote 24x 2.5" U.2 NVMe Chassis | Dell PowerEdge R7725xd Quote

Select Processor

You can not mix CPUs

AMD 9005 Series

Cooling Options

STD Heatsink | Refurbished Dell PowerEdge Gen 17 Quote RC06Y - Dell 2U T-Wing CPU Heatsink | Dell PowerEdge R7725xd Quote 2KY4J - Dell 2U T-Wing Air Shroud | Dell PowerEdge R7725xd Quote High-Performance Silver Fan | Dell PowerEdge Gen 17 $119.00 7F0CF — High Performance Gold Fan | Dell PowerEdge Gen 17 $95.00 5337J - High Performance Platinum Fan Assembly | Refurbished Dell Gen 17 Quote

Memory

Dell 128GB 6400MHz 2Rx4 DDR5 RDIMM Memory | 9C0R6 Quote Dell 96GB 6400MHz 2Rx4 DDR5 RDIMM Memory | JRGVT Quote Dell 64GB 6400MHz 2Rx4 DDR5 RDIMM Memory | N66RP Quote Dell 32GB 6400MHz 2Rx8 DDR5 RDIMM Memory | G9PYX Quote Dell 16GB 6400MHz 1Rx8 DDR5 RDIMM Memory | DXMWH Quote

SFF U.2 NVMe Drives

Dell Enterprise Class 2.5" 122.88TB U.2 NVMe (G5) SSD Quote Dell Enterprise Class 2.5" 61.44TB U.2 NVMe (G4) SSD Quote Dell Enterprise Class 2.5" 30.72TB U.2 NVMe (G4) SSD Quote Dell Enterprise Class 2.5" 15.36TB U.2 NVMe (G5) SSD Quote Dell Enterprise Class 2.5" 7.68TB U.2 NVMe (G5) SSD Quote Dell Enterprise Class 2.5" 6.4TB U.2 NVMe (G5) SSD Quote Dell Enterprise Class 2.5" 3.84TB U.2 NVMe (G5) SSD Quote

E3.S NVMe (G5)

Dell Enterprise Class 245.76TB E3.L NVMe (G5) SSD Quote Dell Enterprise Class 1.8" 122TB E3.S NVMe (G5) SSD Quote Dell Enterprise Class 1.8" 61.44TB E3.S NVMe (G5) SSD Quote Dell Enterprise Class 1.8" 30.72TB E3.S NVMe (G5) SSD Quote

Boot Options

Dell Enterprise Class 960GB M.2 (2280) NVMe SSD Quote Dell Enterprise Class 480GB M.2 (2280) NVMe RI SSD Quote VR56V - Dell BOSS-N1 DC-MHS M.2 Hot-Plug Carrier Quote NH7WD - Dell BOSS-N1 DC-MHS M.2 NVMe Hot-Plug Boot Controller Card Quote

Open Compute Program (OCP) 3.0

Broadcom 57412 Dual Port 10Gb Base-T RJ45 OCP 3.0 NIC Quote Broadcom 5719 Quad Port 1Gb Base-T RJ45 OCP 3.0 NIC Quote

Riser Configurations

RC4 : Riser Configuration 4 (R1b + R2b + R3b + R5e) | Dell PowerEdge R7725xd Quote RC3 : Riser Configuration 3 (R1b + R2b + R5e) | Dell PowerEdge R7725xd Quote RC1 : Riser Configuration 1 (R1b + R2a + R4a + R5b) | Dell PowerEdge R7725xd Quote

Power Supply Units

Dell Titanium 3200W Mixed Mode 73.5mm Power Supply Unit (PSU) Quote Dell Titanium 2400W Mixed Mode 73.5mm Power Supply Unit (PSU) Quote Dell Titanium 1800W Mixed Mode 60mm Power Supply Unit (PSU) Quote Dell Titanium 1500W Mixed Mode 60mm Power Supply Unit (PSU) Quote

Rail Kits

Dell B20 Stab-In Static ReadyRails Rail Kit | PF21C $105.00 Dell B22 Drop-in/Stab-in Generic Tool-less 4-Post Rail Kit Quote Dell B21 Sliding ReadyRails Il 4-Post 2U Rail Kit | K87YW $119.95

Bezel

0HYF5 — 2U Front Bezel | Dell PowerEdge Gen 17 Quote

ECS Warranty

ECS-1-Year - ECS 1-Year NBD Parts Replacement Warranty *Included as Standard for USA Customers* $1.00 ECS-2-Year - ECS 2-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-3-Year - ECS 3-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-4-Year - ECS 4-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-5-Year - ECS 5-Year NBD Parts Replacement Warranty (Ask for Quote) Quote

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs

Form Factor:

2U rack server (storage dense)

Processor | Max: 192 Cores per CPU

2x AMD EPYC 9005 Series (Zen 5)

Memory | Max: 3TB

24 DDR5 RDIMM slots (12 per CPU), up to 6400 MT/s
Supports registered ECC DDR5 DIMMs only

Storage:

24 x 2.5" U.2 Gen5 NVMe
40 x E3.S/E3.L Gen5 NVMe

Storage Controller:

Direct-attach NVMe (no PERC)

Boot Options:

BOSS-N1 DC-MHS (rear)

Networking Options (NOC):

1x OCP 3.0 (Gen3 x4, up to 10GbE)
1GbE dedicated BMC port

Remote Management:

iDRAC10

PCIe Slots:

Up to 5x Gen5 x16

Other Versions

(Click to View)

Ideal for:

Object Storage
Data Analytics
AI Data Pipelines

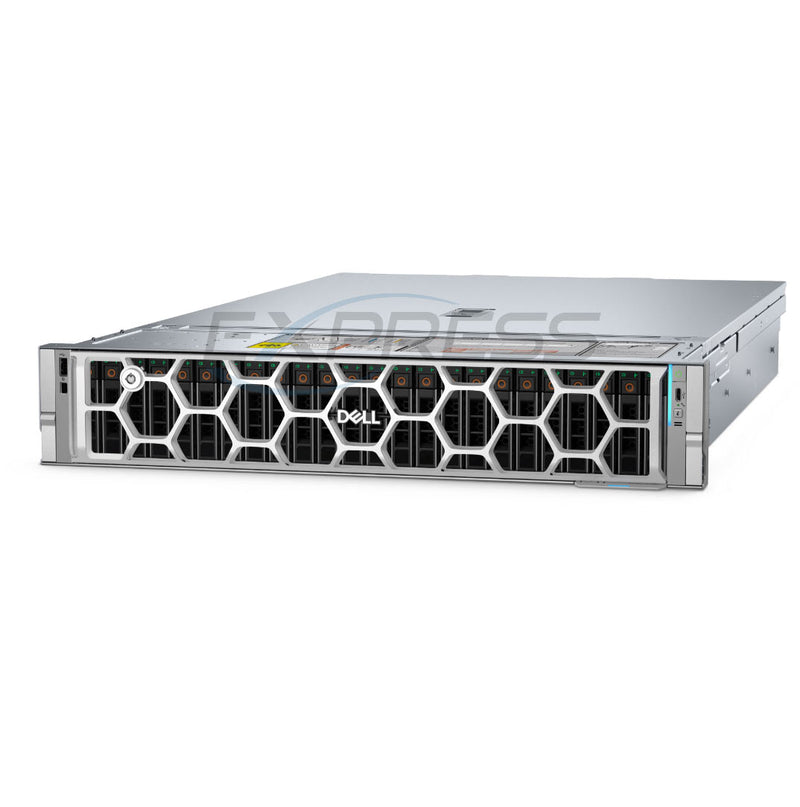

The Dell PowerEdge R7725xd is a 2U, dual-socket storage-dense rack server built on two 5th Generation AMD EPYC 9005 Series processors with up to 192 cores each. With 24 DDR5 DIMMs (up to 3TB at 6400 MT/s), up to 24 x 2.5" U.2 or 40 x E3.S/E3.L Gen5 NVMe front drives, up to five PCIe Gen5 slots and OCP 3.0 networking, it is built for object storage and other capacity-hungry workloads.

Chassis Configurations

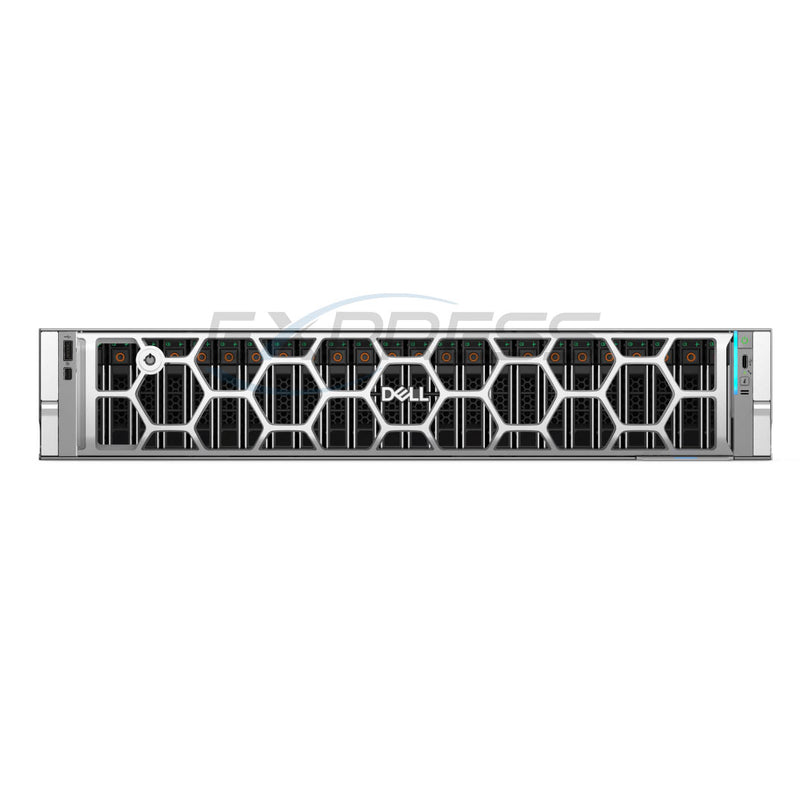

Dell PowerEdge R7725xd 24 x 2.5in U.2 NVMe

24 x 2.5" U.2 NVMe

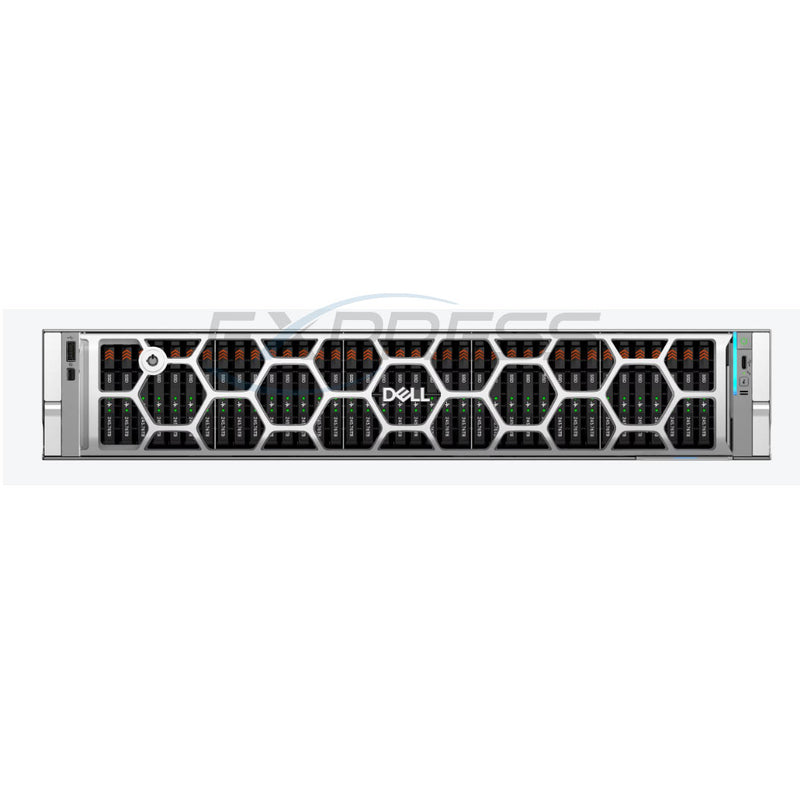

40 x E3.S/L NVMe

ⓘ Drives Gen5 NVMe only: no SAS/SATA, no rear drives and no RAID controller. Max weight: 26.95 kg (59.41 lb) with 24 x 2.5" U.2, 29.51 kg (65.05 lb) with 40 x E3.S/L.

AMD EPYC 9005 Series Processors

Up to two 5th Gen AMD EPYC 9005 Series processors (SP5) with up to 192 Zen 5 cores each.

What EPYC 9005 Brings

Up to 2x AMD EPYC 9005 (SP5)
Up to 192 Zen 5 cores per CPU
125 W to 500 W TDP
128 PCIe Gen5 lanes per CPU
CXL 2.0 support

Requirements & Limitations

Up to 300 W: standard heatsink, HPR Silver fans
320-400 W: standard heatsink, HPR Gold fans
500 W (9755, 9965): T-wing heatsink RC06Y, shroud 2KY4J and HPR Platinum fans

Cooling Options

Processor TDP	Heat sink	Fan
125 W to 300 W (9015, 9115, 9135, 9255, 9335, 9355, 9455)	STD heat sink	HPR Silver fan
320 W to 400 W (9175F, 9275F, 9375F, 9475F, 9555, 9575F, 9655, 9745, 9825, 9845)	STD heat sink	HPR Gold fan
500 W (9755, 9965)	2U T-wing heat sink + T-wing shroud	HPR Platinum fan

ⓘ Fans Air cooled with six hot-swap fans required for a dual-processor system.

Memory Options | 24x DDR5

DIMM type	Rank	Capacity	Rated speed	Maximum system capacity
RDIMM	1R	16 GB	6400 MT/s (1DPC)	384 GB
	2R	32 GB		768 GB
		64 GB		1.5 TB
		96 GB		2.3 TB
		128 GB		3 TB

ⓘ Memory 12 DDR5 DIMM slots per processor, 1.1 V. RDIMM only; maximum speed depends on the CPU SKU and DIMM population.

Storage Controllers & Boot (Internal)

BOSS-N1 DC-MHS Boot Controller

Front drives: direct-attach Gen5 NVMe; no internal RAID controller (PERC), external HBA or software RAID
Boot: BOSS-N1 DC-MHS, hardware RAID 1 or RAID 0 across 2 x M.2 NVMe SSDs (1 virtual disk)
M.2 SSDs: read-intensive 480 GB or 960 GB; 64K stripe size only; M.2 drives are not hot-plug

Form Factor & Placement

DC-MHS module installed at the rear of the system in its own BOSS position (PCIe Gen3 x4); does not use a riser PCIe slot
Up to 2 M.2 NVMe drives in a removable BOSS-N1 card carrier

ⓘ Storage The R7725xd has no internal RAID controller, external HBA or software RAID: front U.2 and E3.S/L drives connect directly over NVMe.

Networking Options (OCP 3.0)

OCP NIC 3.0 Slot

Form factor: OCP 3.0 SFF (small form factor)
Interface: PCIe Gen3 x4
Location: one embedded OCP slot (slot 10) at the rear
NC-SI (iDRAC shared NIC) supported on slot 10; WoL supported; 15 W to 35 W per card

Supported Speeds & Ports

Broadcom 4 x 1GbE BASE-T
Broadcom 2 x 10GbE BASE-T
Port type: BASE-T (RJ45), max 10GbE

ⓘ OCP One optional OCP 3.0 NIC (slot 10, PCIe Gen3 x4) at 1GbE or 10GbE BASE-T, plus a 1GbE dedicated BMC port. Faster networking uses PCIe add-in NICs.

Riser Configurations

Config No.	Riser configuration	PCIe slots	Processors
RC 1:	R1b + R2a + R4a + R5b	2 (FH), 3 (LP), 7 (FH), 9 (LP); Gen5 x16	2
RC 3:	R1b + R2b + R5e	2 (FH), 3 (FH), 7 (FH), 8 (FH); Gen5 x16	2
*RC 4:**	R1b + R2b + R3b + R5e	2, 3, 4, 7, 8 (FH); Gen5 x16	2

ⓘ PCIe Up to five PCIe Gen5 x16 slots. No rear storage or PERC in any riser configuration. *RC 4 and the R3b riser: (not available at launch).

Compare: R7725xd vs R7725

Feature	PowerEdge R7725xd	PowerEdge R7725
Form factor	2U rack, storage dense	2U rack
Drive bays / storage	24 x 2.5" U.2 Gen5 NVMe or 40 x E3.S/L Gen5 NVMe; direct-attach, no PERC	12 x 3.5" SAS/SATA; 8/16/24 x 2.5"; 16 SAS/SATA + 8 NVMe; 8-40 x E3.S; PERC H365i/H965i/H975i
CPUs	2x AMD EPYC 9005, up to 192 cores	2x AMD EPYC 9005, up to 192 cores
Memory	24 DDR5 RDIMM, up to 6400 MT/s, 3 TB max	24 DDR5 RDIMM, up to 6400 MT/s, 6 TB max
PCIe / risers	Up to 5 Gen5 slots; 1 OCP 3.0 (Gen3 x4)	Up to 8 Gen5 slots; dual OCP
GPU	Not supported	Up to 2 x 450 W DW or 6 x 75 W SW
Cooling	Air cooling only, up to 6 fans	Air or Direct Liquid Cooling (DLC), up to 6 fans
PSU	*Titanium 1500 / 1800 / 2400* / 3200 W**	Platinum 800/1100 W; Titanium 800-3200 W incl. 277 Vac/HVDC; 1400 W -48 VDC

ⓘ Compare The R7725xd trades GPU, liquid cooling and SAS/SATA support for maximum all-NVMe capacity. *Not available at launch (RC4, R3b riser, 1800 W / 2400 W PSUs, bezel).

Remote Management | iDRAC10

Embedded Management

iDRAC10 with 1GbE dedicated BMC Ethernet port
iDRAC Direct via front USB Type-C
iDRAC RESTful API with Redfish, RACADM CLI, IPMI

Security

TPM 2.0 FIPS, Secure Boot, Silicon Root of Trust
AMD SEV / SME, System Lockdown, Secure Erase, SEDs
Chassis Intrusion Detection

Power Supply Units (PSU)

Form factor	Output	Power cord
Redundant 60 mm	1500 W Titanium mixed mode	C13
Redundant 60 mm	1800 W Titanium mixed mode (not available at launch)	C15
Redundant 73.5 mm	2400 W Titanium mixed mode (not available at launch)	C19
Redundant 73.5 mm	3200 W Titanium mixed mode	C19

ⓘ PSU Two redundant hot-swap Titanium PSUs. 1500 W drops to 1050 W at 100-120 Vac. *Not available at launch (RC4, R3b riser, 1800 W / 2400 W PSUs, bezel).

Dimensions & Weight

Dimensions

Width: 482.0mm (18.98")
Height: 86.8mm (3.42")
Depth (U.2): 802.4mm (31.59") with bezel, 801.51mm (31.55") without
Depth (E3.S/L): 831.85mm (32.75") with bezel, 830.96mm (32.71") without

Weight

24 x 2.5" U.2 NVMe, RC1 (max) 26.74 kg (58.95 lbs)
24 x 2.5" U.2 NVMe, RC3 (max) 26.95 kg (59.41 lbs)
40 x E3.S/L NVMe (max) 29.51 kg (65.05 lbs)
