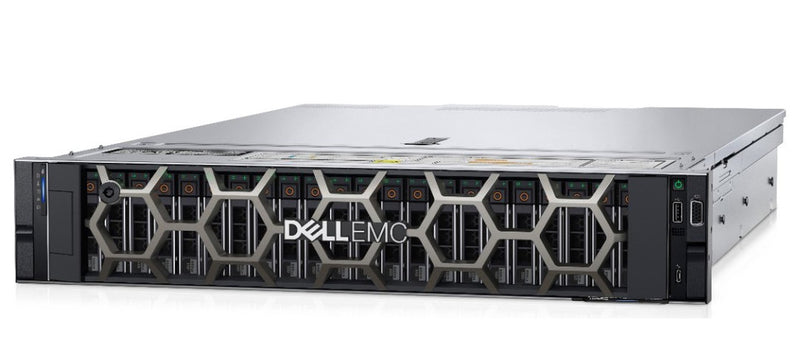

Dell PowerEdge R750xs

The Dell PowerEdge R750xs is a 2U dual-socket rack server running up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores each. It offers 16 DDR4 RDIMM slots (up to 1TB at up to 3200 MT/s), front storage up to 12x 3.5" or 24x 2.5" (16 SAS/SATA plus 8 NVMe) with two optional rear bays, up to five PCIe Gen4 slots plus one Gen3, two 1GbE LOM ports and an OCP 3.0 slot. Managed by iDRAC9, it is a value platform for storage-heavy, scale-out and virtualization workloads. Fully configurable.

Looking to compare generations? See its Gen 16 successor, the Dell PowerEdge R760xs, or compare Gen 15 models: Dell PowerEdge R650xs and Dell PowerEdge R750xa.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 2U Rack
  • Processors: Up to 2x 3rd Gen Intel Xeon Scalable (up to 32 cores)
  • Memory: 16x DDR4 RDIMM slots, up to 1TB
  • Memory Speed: Up to 3200 MT/s

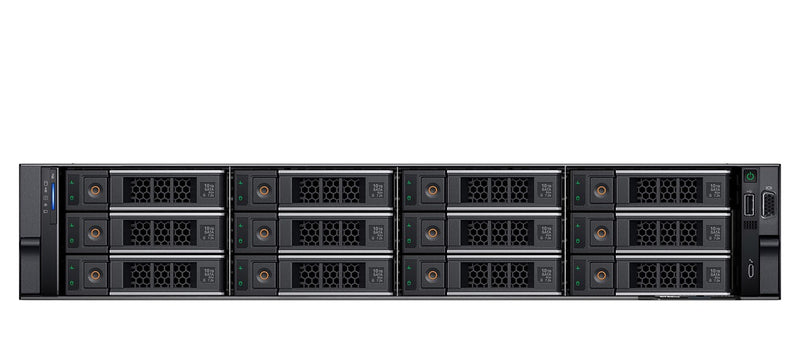

  • Storage: Up to 12x 3.5" or 24x 2.5" (16 SAS/SATA + 8 NVMe), plus 2x rear 2.5"
  • Expansion: Up to 5x PCIe Gen4 + 1x Gen3 slots
  • GPU Support: Not supported
  • Networking: 2x 1GbE LOM, 1x OCP 3.0
  • Management: iDRAC9
  • Cooling: Air, up to 6 hot-swap fans
  • Power: Redundant PSUs, 600W to 1400W, or 1100W -48V DC

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R750XS →

Customize & Get Pricing

Configure your Dell PowerEdge R750xs with the exact specs you need

Configure This Server

Dell PowerEdge R750xs vs R740: Specs & Key Differences

Feature PowerEdge R750xs PowerEdge R740
Processors Up to 2x 3rd Gen Intel Xeon Scalable (up to 32 cores) Up to 2x 2nd Gen Intel Xeon Scalable (up to 28 cores)
Memory 16x DDR4 RDIMM slots, up to 1TB
Up to 3200 MT/s		 24x DDR4 slots, up to 1TB RDIMM
Up to 2933 MT/s
Persistent Memory Not supported 12x Intel Optane DC PMem or 12x NVDIMM
Storage Up to 12x 3.5" or 24x 2.5" (16 SAS/SATA + 8 NVMe)
Rear 2x 2.5"		 Up to 16x 2.5" or 8x 3.5"
Storage Controllers PERC H345, H745, H755, H755N, HBA355i PERC H330, H730P, H740P, HBA330
PCIe Up to 5x Gen4 + 1x Gen3 Up to 8x Gen3 (4x x16)
Networking 2x 1GbE LOM + OCP 3.0 OCP riser: 4x 1GbE, 4x 10GbE, 2x 10GbE + 2x 1GbE or 2x 25GbE
Power 600W to 1400W 495W to 2400W
Management iDRAC9 iDRAC9
Form Factor 2U Rack 2U Rack

Frequently Asked Questions

Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores each, linked by Intel UPI.

It has 16 DDR4 RDIMM slots for up to 1TB at speeds up to 3200 MT/s. Intel Optane Persistent Memory and NVDIMM are not supported.

Front options include 8 or 12x 3.5-inch SAS/SATA, 8x 2.5-inch SAS/SATA/NVMe, 16x 2.5-inch SAS/SATA, or 16x SAS/SATA plus 8x NVMe, with an optional rear module for 2x 2.5-inch drives. Please specify your capacity needs when you submit your quote configuration.

No. Dell's spec sheet lists GPU support as not available for the R750xs. For GPU acceleration in a Gen 15 2U chassis, consider the PowerEdge R750xa.

Dell compares the R750xs with the R740. It moves to 3rd Gen Xeon Scalable with up to 32 cores, raises memory speed to 3200 MT/s, supports up to 12x 3.5-inch drives, and adds PCIe Gen4, LOM and OCP 3.0. It has 16 DIMM slots versus 24 and drops persistent memory support.
