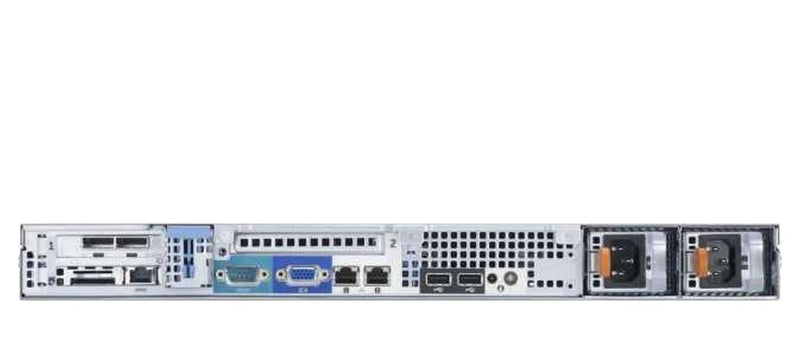

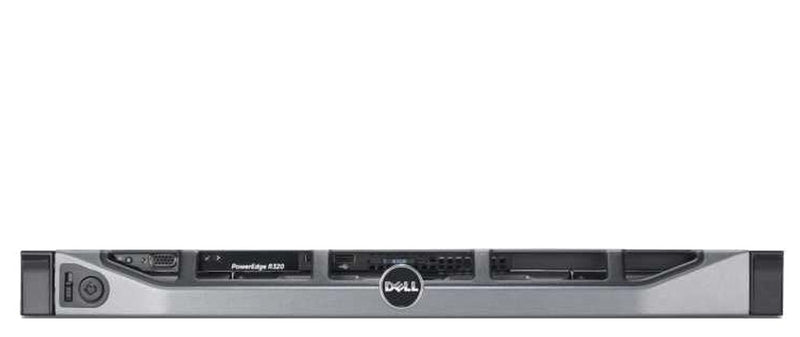

Dell PowerEdge R320

The Dell PowerEdge R320 is a 1U single-socket rack server for growing businesses that need more memory and storage than an entry box. It takes one Intel Xeon E5-2400 or E5-2400 v2 processor with up to 10 cores, six DDR3 DIMM slots for up to 192GB at 1600 MT/s, and up to eight 2.5" or four 3.5" drives. Two PCIe slots, dual 1GbE ports, optional redundant 350W or 550W power and iDRAC7 round it out. Fully configurable.

Looking to compare generations? See its Gen 13 successor, the Dell PowerEdge R330, or compare Gen 12 models: Dell PowerEdge R420 and Dell PowerEdge R620.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 1U Rack
  • Processors: 1x Intel Xeon E5-2400/E5-2400 v2, E5-1410 or Pentium 1400
  • Memory: 6x DDR3 DIMM slots, up to 192GB
  • Memory Speed: Up to 1600 MT/s
  • Storage: Up to 8x 2.5" or 4x 3.5" hot-plug, or 4x 3.5" cabled
  • Expansion: 2x PCIe slots (1x Gen3, 1x Gen2)
  • GPU Support: Not listed by Dell
  • Networking: 2x 1GbE LOM
  • Management: iDRAC7 with Lifecycle Controller
  • Cooling: Air, 4 to 5 fans
  • Power: 350W cabled, or 350W/550W hot-plug redundant PSUs

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R320 →

Customize & Get Pricing

Configure your Dell PowerEdge R320 with the exact specs you need

Configure This Server

Dell PowerEdge R320 vs R330: Specs & Key Differences

Feature PowerEdge R320 PowerEdge R330
Processors 1x Intel Xeon E5-2400/E5-2400 v2 (up to 10 cores) 1x Intel Xeon E3-1200 v5/v6, Pentium or Core i3
Memory 6x DDR3 DIMM slots, up to 192GB 4x DDR4 UDIMM slots, up to 64GB
Memory Speed Up to 1600 MT/s Up to 2400 MT/s
Storage Up to 8x 2.5" or 4x 3.5" hot-plug, or 4x 3.5" cabled Up to 8x 2.5" or 4x 3.5" hot-swap, or 4x 3.5" cabled
Storage Controllers PERC S110, H310, H710
External H810		 PERC S130, H330, H730, H830
PCIe 2x (1x Gen3 x16, 1x Gen2) 2x PCIe 3.0
Networking 2x 1GbE LOM 2x 1GbE LOM
Management iDRAC7 with Lifecycle Controller iDRAC8 with Lifecycle Controller
Power 350W cabled; 350W or 550W hot-plug redundant Up to 2x 350W hot-plug redundant
Form Factor 1U Rack 1U Rack

Frequently Asked Questions

One Intel Xeon E5-2400 or E5-2400 v2 processor with 2 to 10 cores, or an entry Xeon E5-1410 or Pentium 1400 chip, on the Intel C600 chipset.

Six DDR3 DIMM sockets accept registered or unbuffered modules, for up to 192GB at speeds up to 1600 MT/s.

Dell offers four 3.5-inch cabled drives, four 3.5-inch hot-plug drives (with a 2.5-inch hybrid carrier option) or eight 2.5-inch hot-plug drives, with PERC S110, H310 or H710. Please specify your capacity needs when you submit your quote configuration.

Yes. Hot-plug 350W or 550W Platinum supplies can be paired for redundancy; a fifth fan is added in that configuration. A lower-cost cabled 350W option is also offered.

The Gen 13 R330 switches to Xeon E3-1200 v5/v6 processors and DDR4-2400, but drops to four UDIMM slots and 64GB. The R320 keeps the edge on memory capacity at 192GB, while the R330 brings iDRAC8 and two PCIe 3.0 slots. Drive layouts are nearly the same.
