Dell PowerEdge R220

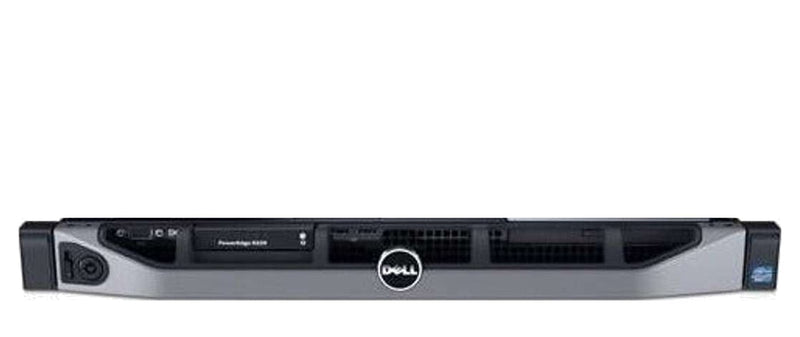

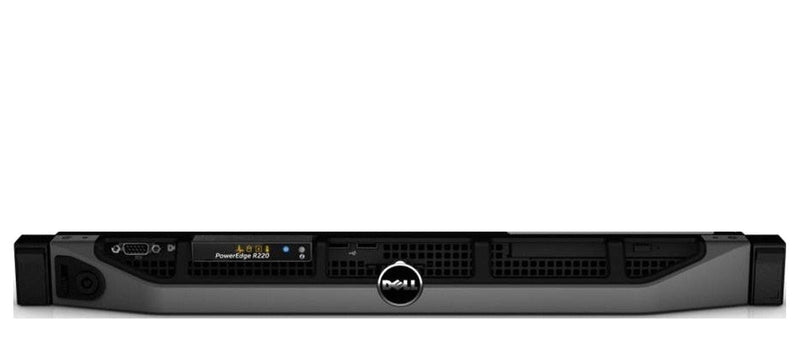

The Dell PowerEdge R220 is a short-depth 1U single-socket rack server, just 15.5" deep, made for tight spaces such as offices, closets and branch sites. It runs one Intel Xeon E3-1200 v3 processor (or a Pentium, Celeron or Core chip) with four DDR3 UDIMM slots for up to 32GB at 1600 MT/s, holds two 3.5" or two 2.5" drives plus a slim optical drive, and adds one PCIe 3.0 x16 slot, dual 1GbE ports and optional iDRAC7. Fully configurable.

Looking to compare generations? See its Gen 13 successor, the Dell PowerEdge R230, or compare Gen 12 models: Dell PowerEdge R320 and Dell PowerEdge R420.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 1U Rack, short depth
  • Processors: 1x Intel Xeon E3-1200 v3, Pentium, Celeron or Core
  • Memory: 4x DDR3 UDIMM slots, up to 32GB
  • Memory Speed: Up to 1600 MT/s
  • Storage: Up to 2x 3.5" or 2x 2.5"
  • Expansion: 1x PCIe 3.0 x16 slot
  • GPU Support: Not listed by Dell
  • Networking: 2x 1GbE LOM
  • Management: Optional iDRAC7 with Lifecycle Controller
  • Cooling: Air, 3 cooling fans
  • Power: Single 250W PSU

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R220 →

Customize & Get Pricing

Configure your Dell PowerEdge R220 with the exact specs you need

Configure This Server

Dell PowerEdge R220 vs R230: Specs & Key Differences

Feature PowerEdge R220 PowerEdge R230
Processors 1x Intel Xeon E3-1200 v3, Pentium, Celeron or Core 1x Intel Xeon E3-1200 v6, Pentium, Core i3 or Celeron
Memory 4x DDR3 UDIMM slots, up to 32GB 4x DDR4 UDIMM slots, up to 64GB
Memory Speed Up to 1600 MT/s Up to 2400 MT/s
Storage Up to 2x 3.5" or 2x 2.5" Up to 4x 3.5" cabled or hot-swap
Storage Controllers PERC S110, H310
External H810		 PERC S130, H330, H730
External H830
PCIe 1x PCIe 3.0 x16 2x PCIe 3.0
Networking 2x 1GbE LOM 2x 1GbE LOM
Management Optional iDRAC7 iDRAC8 with Lifecycle Controller
Power Single 250W Single 250W cabled
Form Factor 1U Rack (15.5" deep) 1U Rack (19.5" deep)

Frequently Asked Questions

It takes a single processor from the Intel Xeon E3-1200 v3 family, with Pentium, Celeron and Core options for lighter or budget builds, on the Intel C222 chipset.

Four DDR3 unbuffered DIMM sockets support 4GB to 32GB in total, at speeds up to 1600 MT/s.

The chassis holds two drives, either 3.5-inch SATA, SAS or nearline SAS or 2.5-inch SAS, nearline SAS or SSD, plus one slim optical drive. RAID options include PERC S110 and H310. Please specify your capacity needs when you submit your quote configuration.

Its chassis is only about 15.5 inches deep and runs at quiet office noise levels, so it fits shallow racks and shared spaces. Five USB ports and an optional iDRAC7 make it easy to manage.

The Gen 13 R230 moves to Xeon E3-1200 v6 processors and DDR4-2400 memory, doubles maximum RAM to 64GB, adds a second PCIe slot and room for four 3.5-inch drives, and uses iDRAC8. It is a deeper 19.5-inch chassis. Dell's R230 spec sheet was used for the R230 column.
