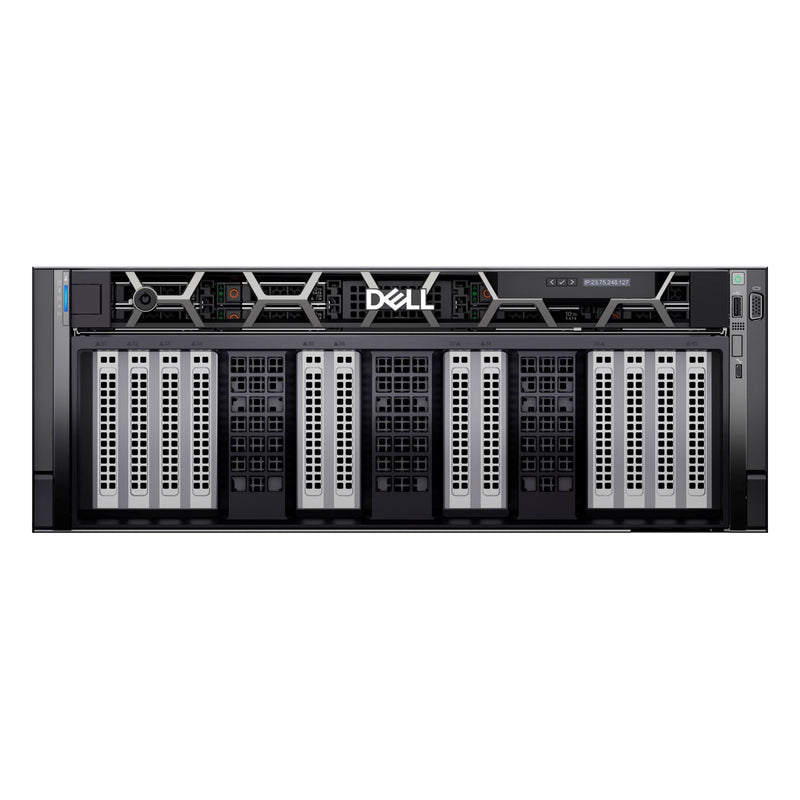

4U rack server, direct liquid cooled (DLC)
Processor | Max: 64 Cores per CPU2x 5th Generation Intel Xeon Scalable
Memory | Max: 4TB32 DDR5 RDIMM slots, up to 5600 MT/s
GPU:8x NVIDIA HGX H200 141GB SXM5 or
8x NVIDIA HGX B200 180GB SXM6
8 x 2.5" U.2 NVMe (direct attached)
Boot Options:BOSS-N1 (2 x M.2 NVMe, RAID 1)
Networking Options (NOC):2x 1GbE LOM
1x OCP 3.0 (x8)
iDRAC9
PCIe Slots:Up to 12x Gen5 x16 FHHL
(Click to View)
- Artificial Intelligence (AI)
- LLM Training & Inference
- Deep Learning (DL)
- High-Performance Computing (HPC)

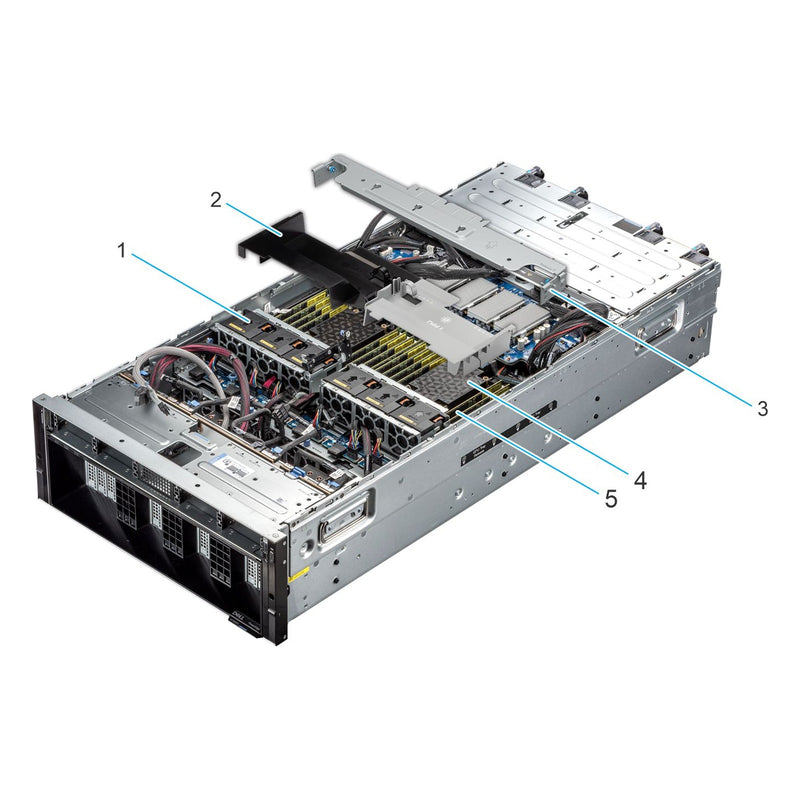

The Dell PowerEdge XE9680L is a 4U, dual-socket, direct liquid-cooled AI server. It pairs two 5th Generation Intel Xeon Scalable processors (up to 64 cores each) with an 8-GPU NVIDIA HGX H200 or B200 board fully connected by NVLink, 32 DDR5 DIMMs (up to 4TB), 8 x 2.5" U.2 NVMe drives and up to 12 PCIe Gen5 slots for 400G networking. Liquid cooling for the CPUs, GPUs and NVLink switches packs 8-GPU performance into 4U instead of 6U.
8 x 2.5" U.2 NVMeⓘ Drives One chassis: 8 x 2.5" U.2 NVMe SSDs attached directly to the PCIe switch boards, up to 122.88 TB. No PERC, SAS or SATA.
Two 5th Gen Intel Xeon Scalable processors (Emerald Rapids), up to 64 cores each.
- Up to 64 cores / 128 threads per CPU
- Up to 80 PCIe Gen5 lanes per CPU
- Up to 4 UPI links at 20 GT/s
- Intel TDX confidential computing
- 2 processors required (both sockets)
- Supported: 8592+, 8580, 8570, 8568Y+ (350 W), 8562Y+ (300 W)
- DLC cold plates only; no air heatsinks

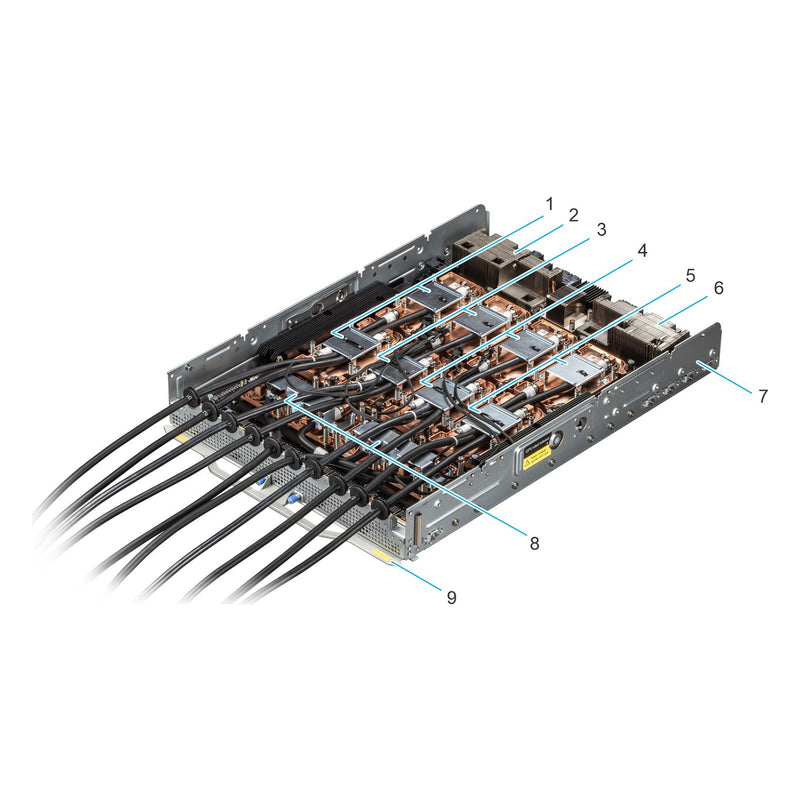

- Liquid-cooled GPU sled with 8 GPUs and NVLink switches
- Pairs with 6 x 2800 W Titanium PSUs

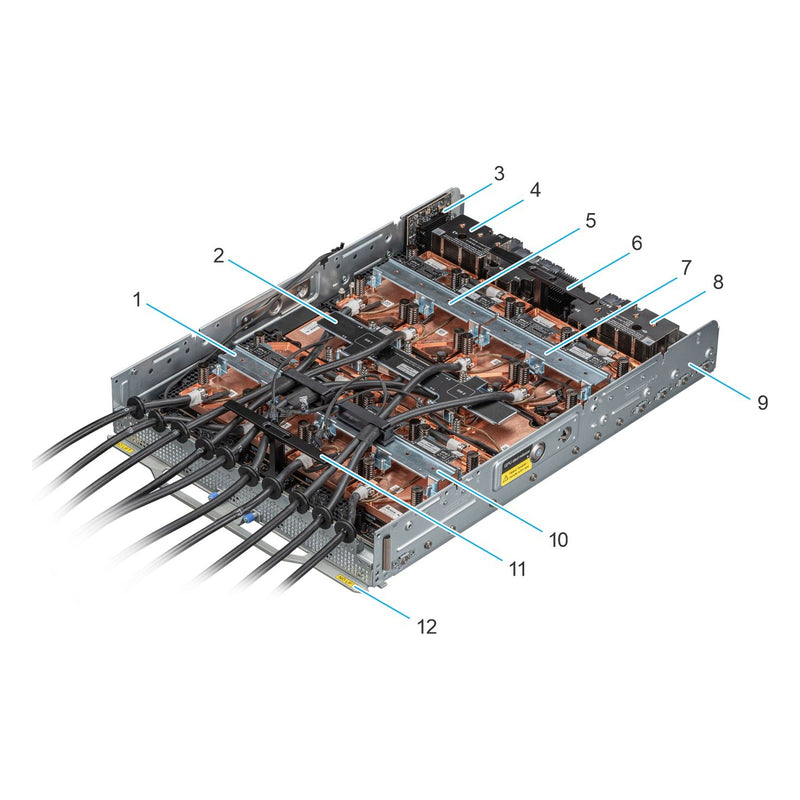

- Liquid-cooled GPU sled with 8 GPUs, NVLink switches and CX-7 modules
- Pairs with 6 x 3000 W Titanium PSUs
ⓘ GPU Each selection is a fully populated 8-GPU baseboard; GPUs are not sold or mixed individually.
| DIMM type | Rank | Capacity | Rated speed | Maximum system capacity |
|---|---|---|---|---|
| RDIMM | 2R | 64 GB | 5600 MT/s (1DPC), 4400 MT/s (2DPC) | 2 TB |
| 96 GB | 3 TB | |||
| 4R | 128 GB | 4 TB |
ⓘ Memory 16 DIMM slots per processor, 1.1 V. RDIMM only; do not mix capacities.
- Hardware RAID 1 across 2 x M.2 NVMe SSDs
- M.2 SSDs: 480 GB or 960 GB
- Installed at the rear; does not use a PCIe slot

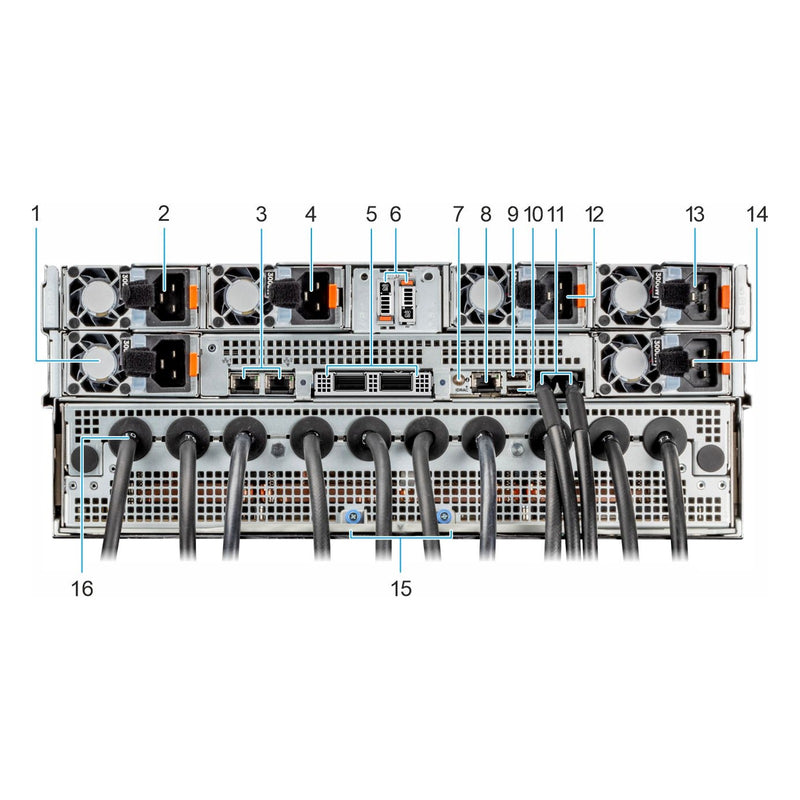

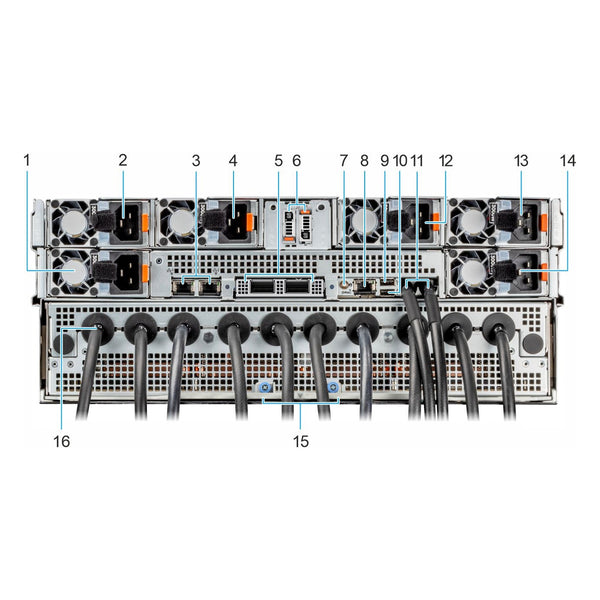

- 2 x 1GbE LOM (embedded)
- 1 x OCP 3.0 slot (PCIe x8): Intel 10GbE x 4 BASE-T, Broadcom 25GbE x 2, NVIDIA 25GbE x 2
- 12 x16 Gen5 FHHL slots (31-42) on 4 PCIe switch boards
- NVIDIA NDR400 / 400GbE NICs: up to 12
- DPUs over 75 W (BlueField-3): slots 33 and 39 only

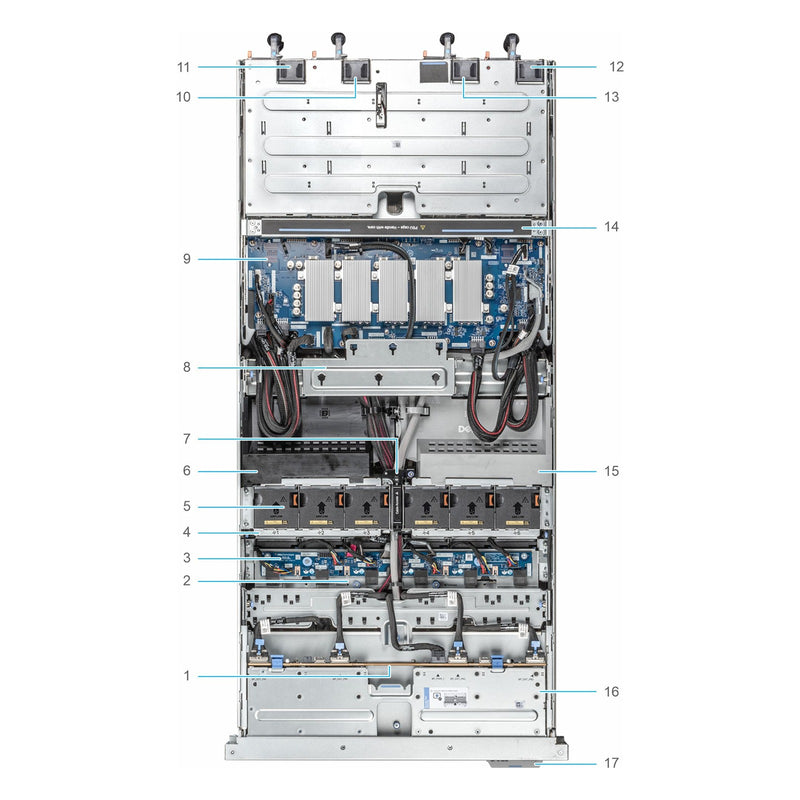

- DLC cold plates on CPUs, GPUs and NVLink switches
- 12 HPR Gold fans (6 top, 6 bottom layer)
- Rear coolant tubes connect to the rack manifold
- Dell IR5000 rack and CDU required
- Connect the liquid manifolds before power-on
- iDRAC9 with dedicated iDRAC Ethernet port
- iDRAC Direct (front Micro-AB USB)
- iDRAC RESTful API with Redfish
- TPM 2.0 FIPS, Secure Boot, Silicon Root of Trust
- System Lockdown, Secure Erase, SEDs
- Secured Component Verification
| Form factor | Output | Power cord |
|---|---|---|
| Redundant 86 mm (6 PSUs) | 2800 W Titanium mixed mode (H200) | C21 |
| 3000 W Titanium mixed mode (B200) | C21 |
ⓘ PSU Six hot-swap Titanium PSUs, 200-240 Vac or 240 Vdc, 3+3 FTR or 5+1 redundancy. Do not mix PSU vendors.
- Height: 174.3mm (6.86")
- Width: upper 2U 447mm (17.59"), lower 2U 434mm (17.08")
- Depth: 1037.57mm (40.82") with bezel, 1025.62mm (40.37") without
- With H200 GPUs (max) 91.63 kg (202.00 lbs)
- With B200 GPUs (max) 95.6 kg (210.76 lbs)
