Specs
Quick Specs
Tower server | 5U (Rack conversion kit)
Processor | Max: 28 Cores (PP)2x Gen 2 Intel Scalable Processors
Memory | Max: 3TB24 DDR4 RDIMM/LRDIMM 2933Mhz
Up to 12 NVDIMM | Max : 192GB
Storage | Max: 228TB8 3.5” SAS/SATA (HDD/SSD) | Max : 288TB
Boot OptionsBoot Optimized Server Storage (BOSS)
IDSDM
Internal USB
S140 (SW RAID)
PERC H330, H730P, H740P, H840, HBA330, 12Gbps SAS HBA (non-RAID)
2 x 10GbE LOM (1GbE/10GbE)
Remote Management:iDRAC9
PCIe Slots:Up to 8 PCIe Gen3 slots
GPU:(Rack Mode Only) 4x 300W (DW) passive or 8x 150W (SW)
Ideal for:
- Virtual Desktop Interface (VDI)
- Virtualization

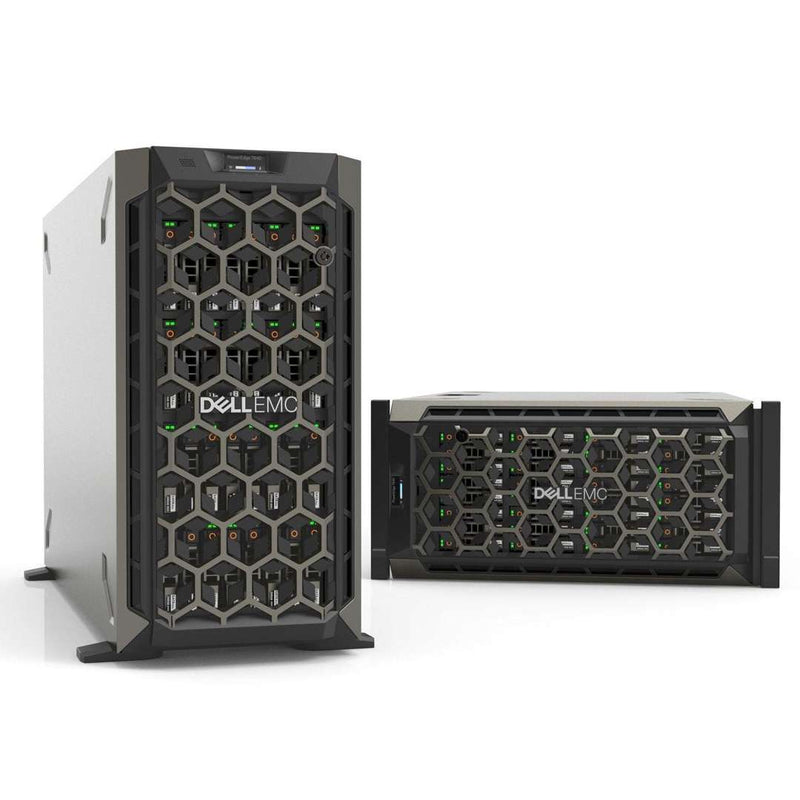

The PowerEdge T640 delivers ultimate two-socket performance and massive internal storage capacity in a rack or tower platform. The scalable T640 drives a wide range of workloads for mid-sized offices, remote sites and data centers.ity.
- Accelerate and consolidate data-intensive workloads in a 5U rack-capable tower platform.
- Scale effortlessly with maximum internal capacity and optimized performance.
- Mix and match NVMe, HDD and SSD drives to create your ideal configuration.
Drive Configurations:

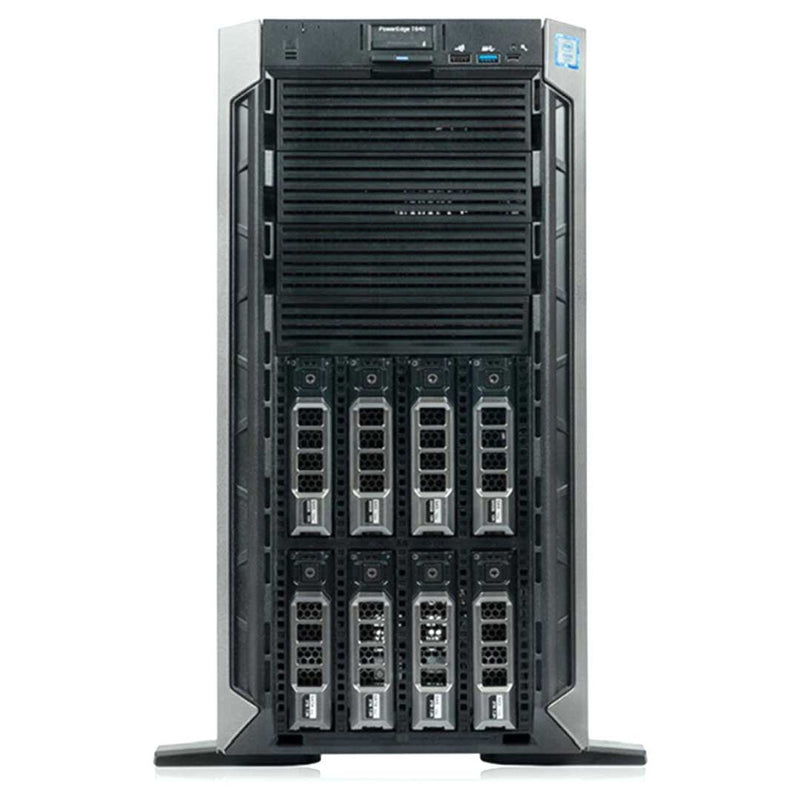

- 8 Bay - Up to 8x3.5" SAS/SATA/NL-SAS HDD or SSD
- 16 Bay - Up to 16x2.5" SAS/SATA/NL-SAS SSD
- 18 Bay - Up to 18x3.5" SAS/SATA/NL-SAS HDD or SSD
- 24 Bay - Up to 16x2.5" SAS/SATA/NL-SAS SSD + FLEX IO 8 NVMe
- 32 Bay - Up to 16x2.5" SAS/SATA/NL-SAS SSD + FLEX IO 16x2.5" SAS/SATA/NL-SAS SSD (Single PERC)
- NOTE - The Optional Flex Bay holds, Either 8 NVMe drives with 2 PCI-e Bridge Card installed. OR, 16 2.5" SSD Drives.
Adapt and scale to your dynamic business needs
The PowerEdge T640 balances cost-effective, in-server expansion with powerful performance to provide a scalable business architecture. The versatile T640 allows you to address data-heavy, diverse workloads including virtualization, databases, analytics, imaging applications and SDS. Meet dynamic performance and capacity demands with flexible storage and I/O options.
- Deliver fast insights with up to 8 NVMe drives, up to 2x more than the previous generation.
- Meet changing business requirements with a dual port 10GbE network.
- Future-proof data growth with up to 18 x 3.5” or 32 x 2.5” drives and 8 PCIe slots.
- Provide advanced imaging and VDI with up to 4 x 300W GPU accelerators.
Intuitive system management with intelligent automation
Dell EMC PowerEdge servers increase efficiency by leveraging the power and simplicity of the embedded iDRAC with Lifecycle Controller for smart automation of routine tasks. With agent-free management, the T640 is managed with ease and frees up time for your business priorities.
- Simplify and automate management of your Dell EMC infrastructure with OpenManage Enterprise.
- Take advantage of the OpenManage Mobile app and Quick Sync 2 capabilities to easily and effectively manage PowerEdge servers at the server, or wherever you are.
- Streamline management in virtualized environments with OpenManage Integrations for VMware vCenter or Microsoft System Center
Accelerate modern workloads with a scalable platform
The PowerEdge T640 is a versatile, powerhouse server ideal for mid-sized offices, remote sites and data centers. The T640 combines powerful performance and massive internal storage capacity in a rack or tower platform. Address a wide range of workloads and future-proof your data center with flexible storage, performance and I/O options.
Adapt and scale with greater versatility
Meet evolving business needs with the scalable business architecture of the PowerEdge T640. Accelerate demanding workloads and plan for future growth with cost-effective, in-server expansion.
- Deliver fast insights with up to 8 NVMe drives and 2 x 10GbE connections.
- Scale compute resources with Intel Xeon Scalable processors that deliver a 27% increase in cores and 50% increase in bandwidth over the previous generation.
- Address massive data growth with up to 18 x 3.5" or 32 x 2.5" drives and 8 PCIe slots.
- Provide advanced imaging and VDI with up to 4 x 300W GPU accelerators.
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | PowerEdge T640 Technical specification | |
|---|---|---|
| Processor | Up to two 2nd Generation Intel® Xeon ® Scalable processors, up to 28 cores per processor | |
| Memory | 24 DDR4 DIMM slots, Supports RDIMMS/ LRDIMMS, speeds up to 2993MT/s, 3TB max Up to 12 NVDIMM, 192GB max Supports registered ECC DDR4 DIMMs only | |
| Storage controllers | Internal controllers: PERC H330, H730P, H740P, HBA330, Software RAID (SWRAID) S140 External PERC (RAID): H840 External HBAs (non-RAID): 12Gbps SAS HBA Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 120GB, 240 GB | |
| Drive bays |
| |
| Power supplies | Titanium 750W Platinum 495W, 750W, 1100W, 1600W, 2000W and 2400W 48VDC 1100W, 240HVDC 750W Hot plug power supplies with full redundancy Up to 8 fans with N+1 redundancy (6 hot-pluggable internal fans plus 2 external fans) | |
| Dimensions and weight | Form factor: Tower or rack, 5U | Chassis max depth: 708.7 mm |
| Bezel | Optional security bezel | |
| Embedded / At-Server | iDRAC9 iDRAC Direct Quick Sync 2 BLE/wireless module | |
| Consoles & Mobile |
| |
| Integrations and connections | Integrations:
| Connections:
|
| Tools |
|
|
| Security |
|
|
| I/O & Ports |
| |
| GPU options |
| |
| Supported Operating systems | Canonical® Ubuntu® LTS Citrix® Hypervisor Microsoft Windows Server® LTSC with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® | |
Spec Sheet 4
| Feature | PowerEdge T640 | PowerEdge T630 |
|---|---|---|
| Processor | 2x 2nd Generation Intel® Xeon® processor Scalable Family | 2x Intel Xeon E5-2600 v3 (Haswell-EP), Broadwell |
| Memory Module | • 24 DDR4 DIMM slots
• Supports RDIMMs/LRDIMMs • Speeds up to 2933MT/s, 3TB max • Up to 12 NVDIMM, 192GB max |
• Up to 24 DDR4 DIMM slots
• 1.5TB max memory • Speeds up to 2400MT/s |
| Chipset | Intel Ultra Path Interconnect (UPI) | Intel QuickPath Interconnect (QPI) |
| Hard drive bays | 8x3.5 -inch, 18x3.5 -inch, 16x2.5 -inch, 16x2.5 -inch + 8x NVMe, 32x2.5 -inch - 12Gb SAS, 6Gb SATA | 8x3.5 -inch, 18x3.5 -inch, 16x2.5 -inch, 32x2.5 - inch - 12Gb SAS, 6Gb SATA |
| Storage Controllers | Adapters: HBA330, H330, H730P, H740P, H840, 12Gb SAS HBA Mini Mono: HBA330, H330, H730P, H740P SW RAID: S140 | Adapters: HBA330, H330, H730, H730P, H830 (ext) Mini Mono: HBA330, H330, H730, H730P SW RAID: S130 |
| PCIe SSD | Up to 8x PCIe SSD (NVMe) | 4x PCIe SSD |
| PCIe Slots | Max 8 PCIe 3.0 + 1 internal | Max 7 PCIe Gen3 + 1 internal |
| LOM | 2x 10GbE (10GBASE-T) Broadcom 57416 | 2x 1GbE |

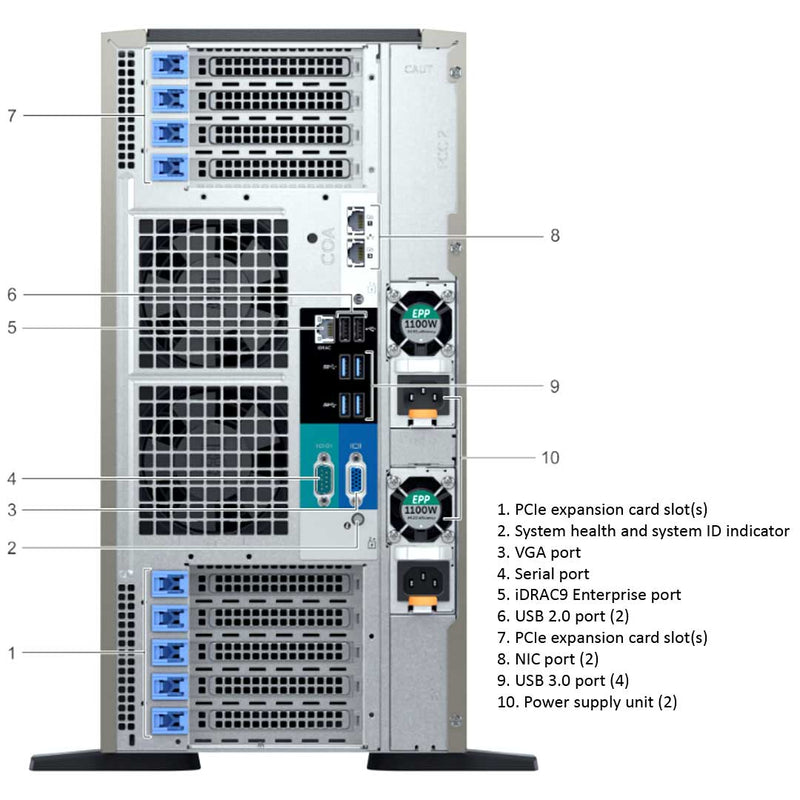

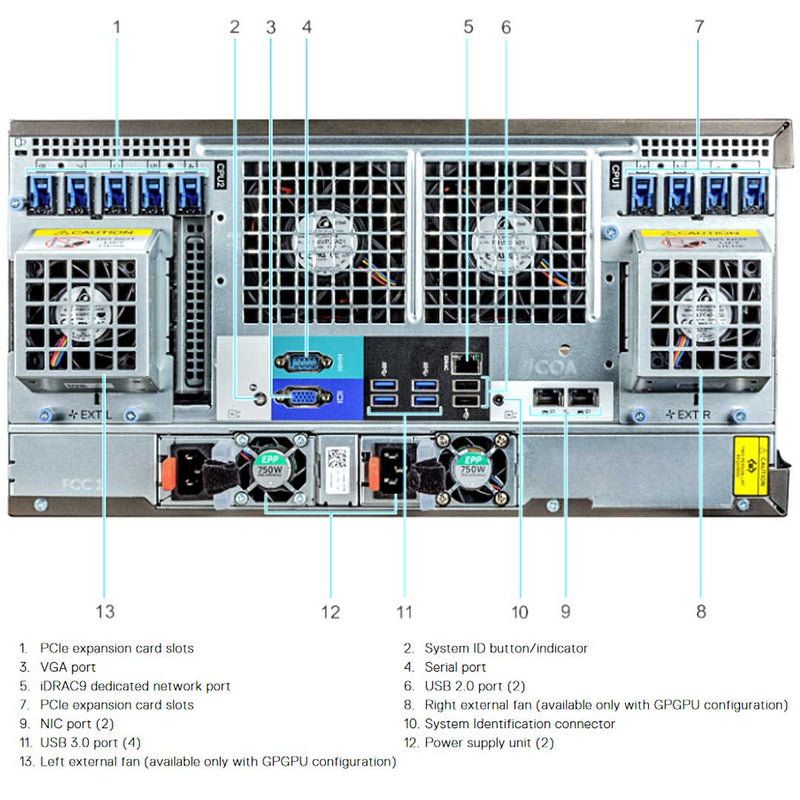

| USB Ports | Front: 1 port (USB 3.0), 1 port (USB 2.0), dedicated iDRAC, serial, video, 6x USB2.0/3.0 | Front: 1 port (USB 3.0), 1 port USB2.0, dedicated iDRAC, serial, video,4x USB 2.0 |
| Tower/Rack | 5U (rack) | 5U (rack) |
| Power Supplies | • 2400W Platinum (AC only)
• 2000 Platinum (AC only) • 1600W Platinum (AC only) • 1100W Platinum (AC/DC) • 750W Platinum/Titanium (AC only) • 750W Platinum Mixed Mode DC (For china only) • 495W Platinum (AC only) |
AC: 495W, 750W, 1100W DC: 1100W Mixed Mode: 750W 1100W DC, 1600W |
| Remote Management | iDRAC9 | iDRAC8 |
| Internal GPU | 4x 300W (DW) Passive or 8x 150W (SW) | 4x 300W (DW) Active or 7x 150w (SW) |
| Availability | • Hot-plug Drives
• Hot-plug Redundant Cooling • Hot-plug Redundant Power Supplies • BOSS • IDSDM |
• Hot-plug Drives
• Hot-plug redundant Cooling • Hot-plug Redundant Power Supplies • IDSDM Support |
