Quick Specs
Form Factor:
1U rack server
Processor | Max: 12 Cores2x Intel Xeon E5-2600 or
Intel Xeon E5-2600v2
16x DDR3 RDIMM or LV RDIMM 1333Mhz
Storage | Max: 2TB SATA II or 1.6TB SATA SSD2x SFF SAS/SATA
PCIe Slots:3x PCIe 3.0
GPU:None
Ideal for:
- Big Data Analytics
- High-Performance Computing (HPC)

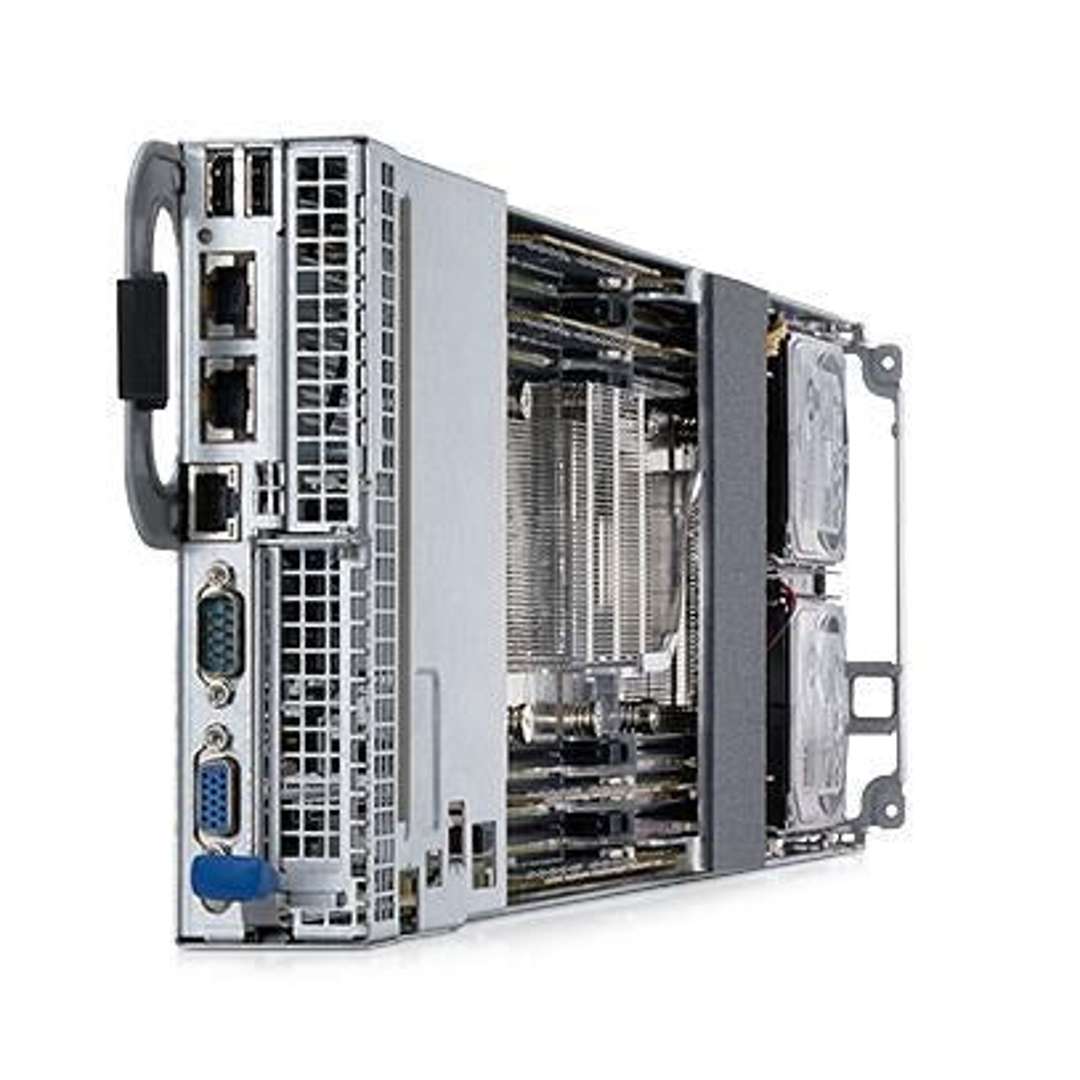

This C8220 Compute sled goes into the C8000 Enclosure. Click here to view the C8000 Rack Enclosures CTO.
System Board Options
Each system board supports different items. The correct Interposer board will come with the system you choose.
V1.0 (CN0W6W6G)
- CPU: Intel Xeon E5-2600 series processor
- Interposer: V1.0
V1.1 (CN0TND55)
- CPU: Intel Xeon E5-2600 series processor
- Interposer: V1.1
V1.2 (CN09N44V)
- CPU: Intel Xeon E5-2600V2 series processor
- Interposer: V1.1
Keep up with increasing demand
More than 30 billion pieces of content are shared on social media sites every month. One second of high‑definition video generates more than 2,000 times more bytes than a single page of text. Research simulations can generate terabytes of big data to process. Hosting and high performance computing workloads are becoming more resource‑intensive as they try to keep up with increasing demand.
With the Dell PowerEdge C8220 single‑wide compute sled, you get the cores, memory and I/O expansion flexibility you need to quickly meet the needs of the most demanding workloads.
Speed up workloads
The PowerEdge C8220 single-wide compute sled features dual Intel Xeon E5‑2600 or E5‑2600 v2 processors with up to 12 cores each, 16 DIMM slots for up to 512GB of memory, 2.5-inch SATA SSDs for up to 2TB of storage, PCIe 3.0, and dual-port embedded Gigabit Ethernet controllers.
Speed results: the Intel Xeon processor E5 product family can boost server performance by up to 80% over previous-generation processors, accelerate data availability to the processing cores, reducing latency by up to 30%, while delivering up to 70% more performance per watt.
Do more with less
Pack more compute power in the same space, with up to eight PowerEdge C8220 single-wide compute sleds in one 4U PowerEdge C8000 chassis.
The C8000 4U shared infrastructure chassis is designed for efficiency, using 94% platinum‑certified power supplies, and fewer, high-efficiency fans than more traditional servers. Compute, GPU and storage sleds all share chassis, power and cooling, helping save on the total cost of ownership.5 Help save even more by refreshing components, without having to replace the entire chassis.
Flex your IT muscle
Run a mix of hosting or Web tiers per chassis, or run blocks of tiers per chassis. Easily reconfigure the C8000 series and/or scale out as needed over time, by mixing and matching compute, GPU, storage, and power supply sleds within one chassis, multiple chassis, and/or across racks to help get results fast while saving on space, power and cooling.
The PowerEdge C8000 series is part of Dell’s hyperscale-inspired PowerEdge C server line de‑ signed to bring the most compute power in the least amount of space with the least energy draw to help lower operational costs. These servers offer the right combination of what you need and nothing more.
