-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

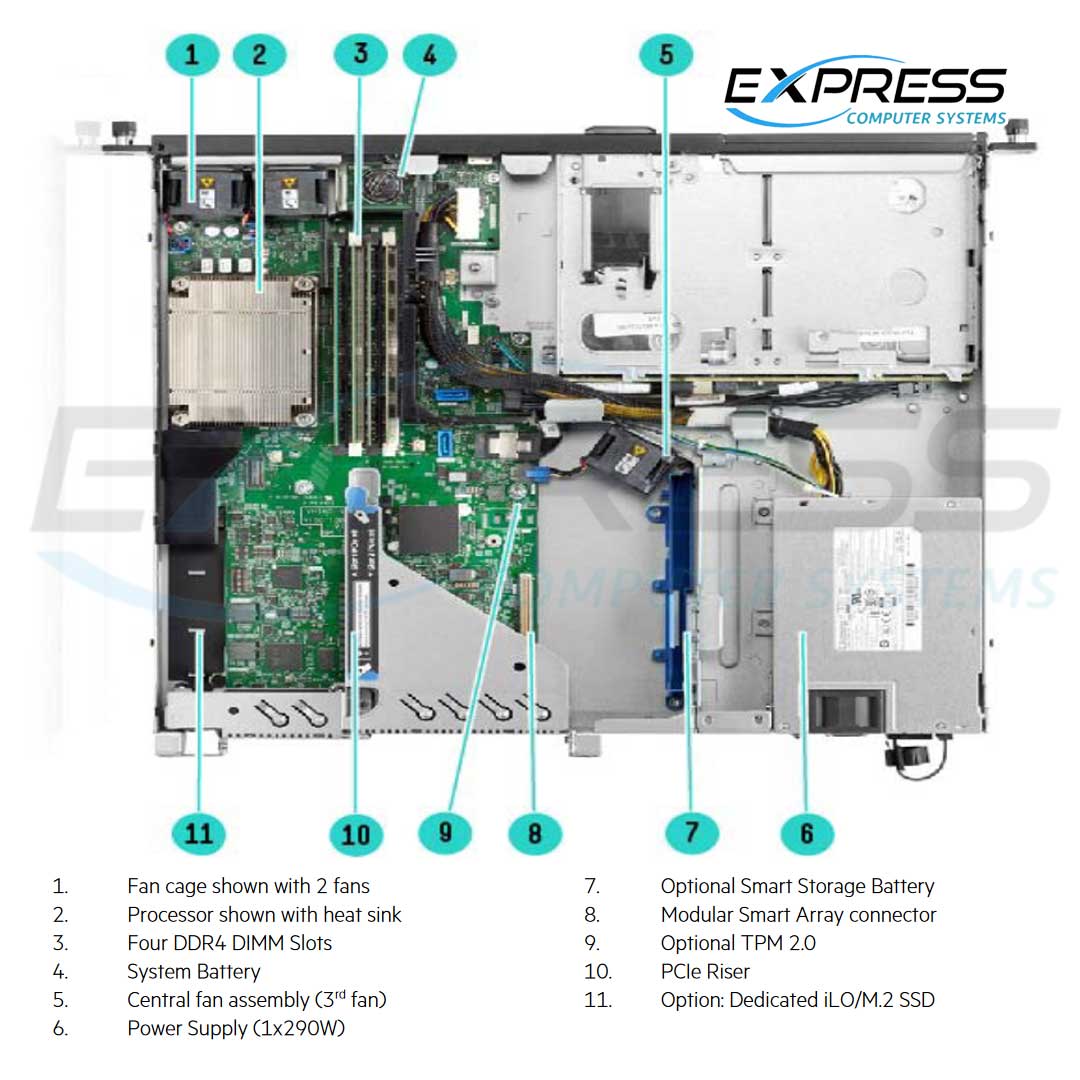

What's New
- (1) Intel Xeon E-2100 or E-2200
- (4) 2666MT/s DDR4
- Max Memory 64GB
- (2) PCIe Gen3.0 slots
- Supports up to (4 SFF + 2 SFF Rear) Drives
- Support M.2 SSDs for boot
- HPE S100i SR Gen10 software RAID
- Optional Flexible LOM riser
- HPE iLO 5 ASIC
- HPE InfoSight
- Support for HPE 361i 1Gb 2-Port network adapter
- New 480GB NVMe SSD support
- GPU Not Supported
Other Versions
(Click to View)
Ideal for:
- Cloud Servers
- Corporate IT
- Data Analytics
- Edge Servers
- Point-of-Sale (POS)
- Retail Servers
- Virtual Desktop Interface (VDI)
- Web Tech
HPE DL20 Gen10 Chassis Options
The HPE DL20 Gen 10 rack server can support up to 6SFF Drives in the SFF Chassis. This server also supports the M.2 drives for BOOT. This is a great way to save some extra space for storage. The (2) M.2 drives are installed on a PCIe adapter card that is supported by every chassis.
Below are the supported Chassis Options

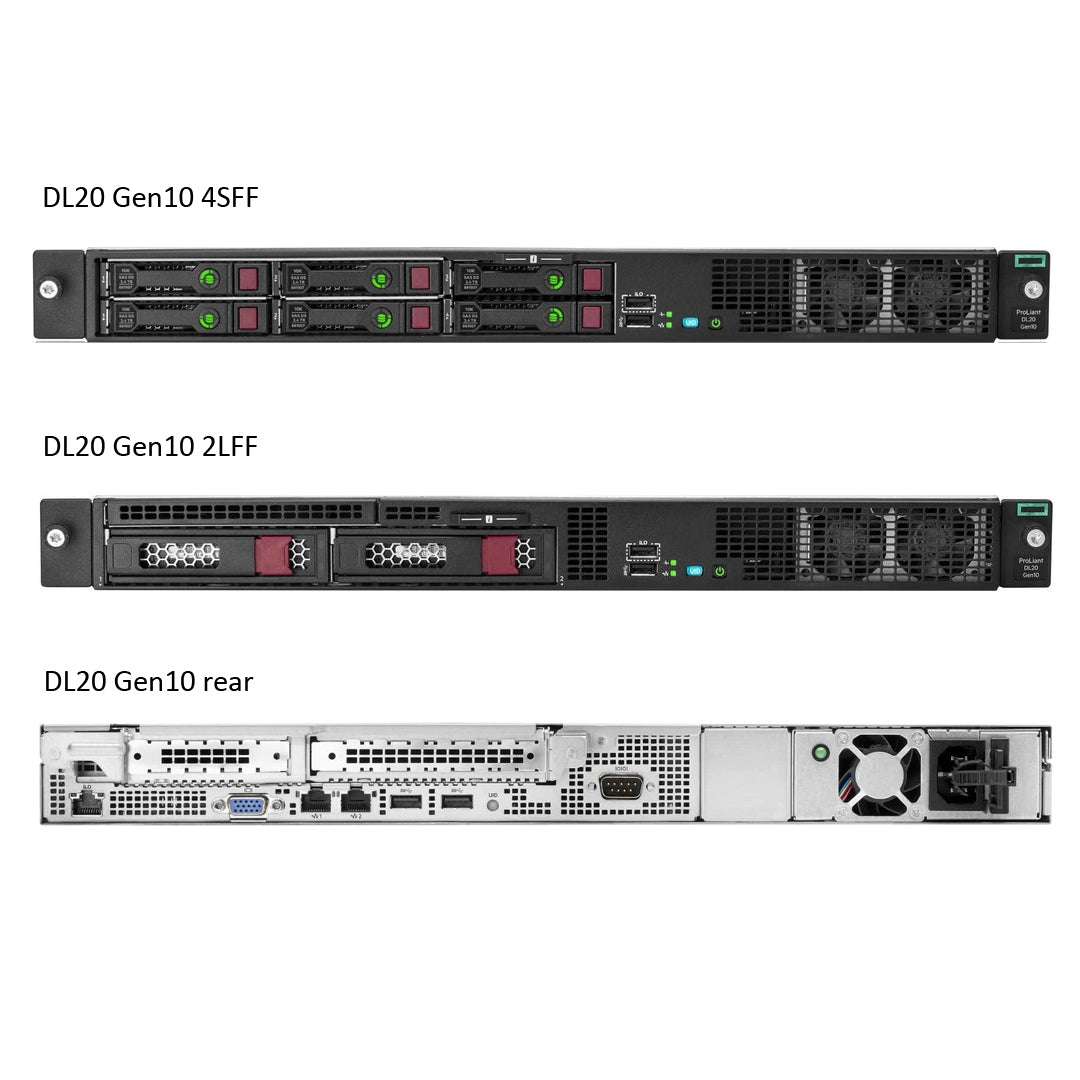

DL20 Gen 10 Non-Hot Plug 2LFFP06961-B21

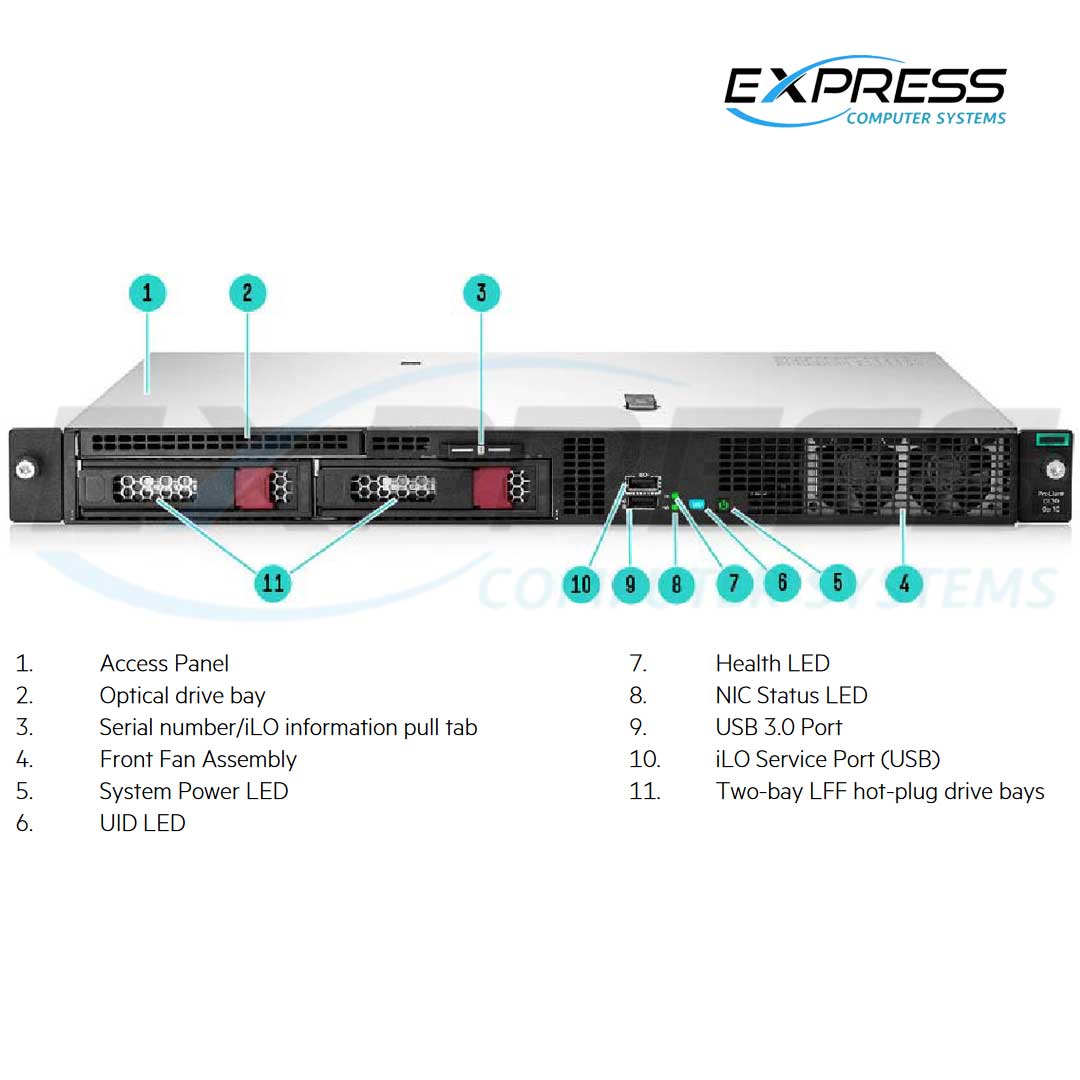

DL20 Gen 10 2LFF P06962-B21

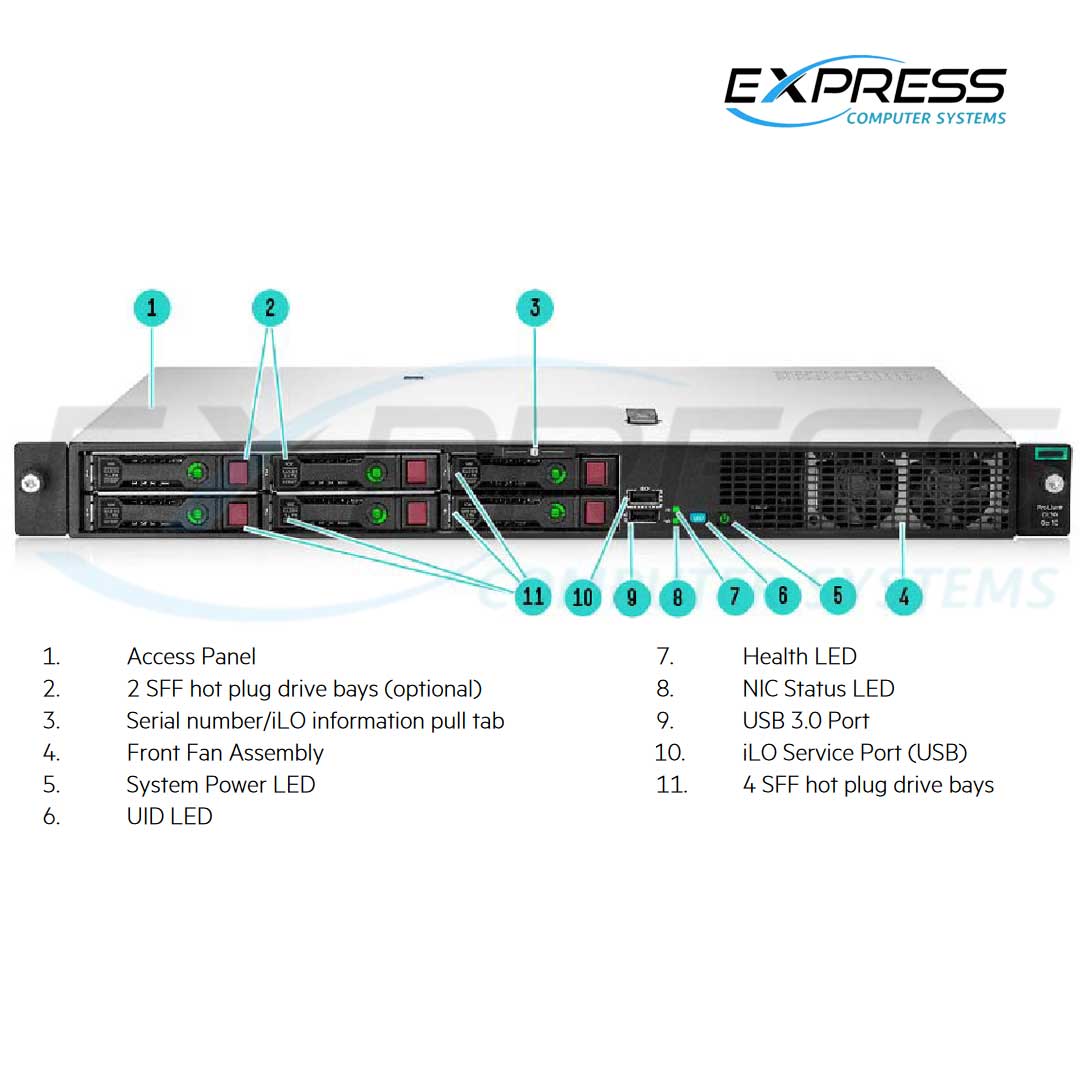

DL20 Gen 10 4SFF P06963-B21
| CTO Server [Chassis] | HPE ProLiant DL20 Gen10 Non-hot Plug 2LFF Configure-to-order Server |
HPE ProLiant DL20 Gen10 2LFF Configure-to-order Server | HPE ProLiant DL20 Gen10 4SFF Configure-to-order Server |
|---|---|---|---|
| SKU Number | P06961-B21 | P06962-B21 | P06963-B21 |
| Processor | 1 | ||
| DIMM Slots | 4 DIMM slots for UDIMM DDR4 Memory | ||
| Storage Controller | Embedded 14-port S100i | ||
| PCIe | 2 PCIe 3.0 Slots | ||
| Drives Cage | 2LFF Non Hot Plug | 2LFF Hot Plug | 4SFF Hot Plug |
| Network Controller | HPE embedded 1Gb 2-port network Adapter | ||
| Fans | 3 non hot plug, non-redundant | ||
| USB | 2 front, 1 internal, 2 rear | ||
| Ears | HPE Thumbscrew Ears | ||
Maximum Internal Storage
- SFF SAS HDD | 14.4TB (4+2) 2.4TB
- SFF SAS SSD | 92.16TB (4+2) 15.36TB
- SFF SATA HDD | 12TB (4+2) 2.0TB
- SFF SATA SSD | 46.08TB (4+2) 7.68TB
- LFF SAS HDD | 32TB 2x 16TB
- LFF SAS SSD | 3.2TB 2x 1.6TB
- LFF SATA HDD | 32TB 2x 16TB
- LFF SATA SSD | 15.36TB 2x 7.68TB
- M.2 NVMe SSD (BOOT) | 480GB 1x 480GB
- M.2 SATA SSD | 1.92TB 2x 960GB

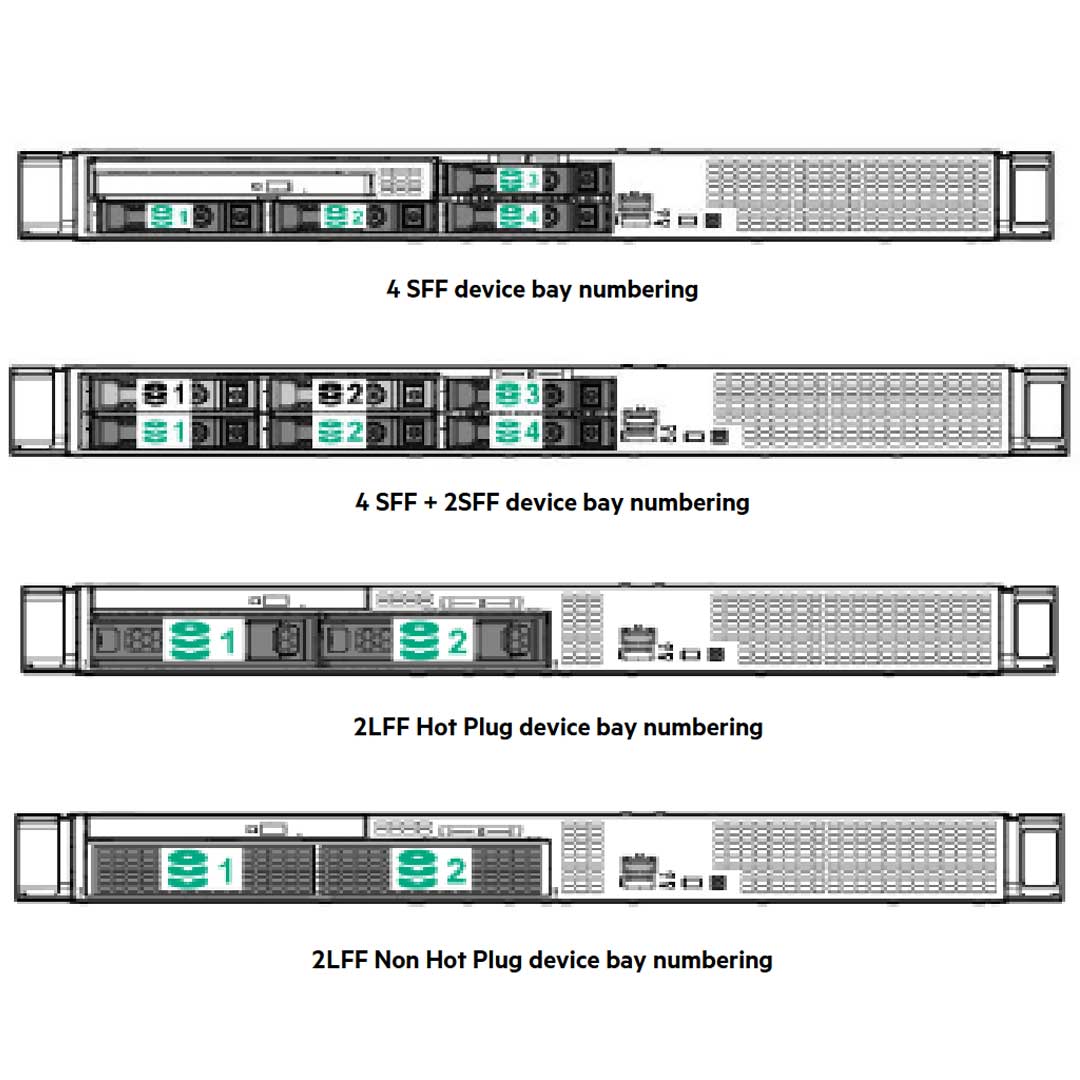

Drive configurations below
- 2 Non-Hot-Plug Drives = 2LFF HDD drives
- 2 Drives = 2LFF HDD drives
- 4 Drives = 4SFF HDD/SSD drives
- 6 Drives = 4SFF HDD/SSD + 2SFF HDD/SSD drives
The HPE DL20 Gen10 2SFF HDD Enablement Kit (P06671-B21) takes up the same slot as the ODD. When this is installed the only option for an Optical Drive is with an HPE Mobile USB DVD-RW Optical Drive 701498-B21. This USB Kit is only supported on USB 3.0 ports.
HPE DL20 Gen10 (SATA/NVMe) M.2 Drives
The HPE DL20 supports two types of M.2 Drives. One NVMe drive or 2 SATA drives. Each option has a different adapter card installed. You can install a normal Stand-up card, The HPE Universal SATA 6G AIC HHHL M.2 SSD Enablement Kit (878783-B21). Or, the HPE DL20/ML30 Gen10 M.2/Dedicated iLO and Serial Port Kit (P06687-B21).
The SATA M.2 Adapter can hold 2 drives while the NVMe M.2 Card can only support 1 NVMe M.2 Drive. The NVMe M.2 kit includes one dedicated iLO module and one serial port cable, with one M.2 slot for BOOT.

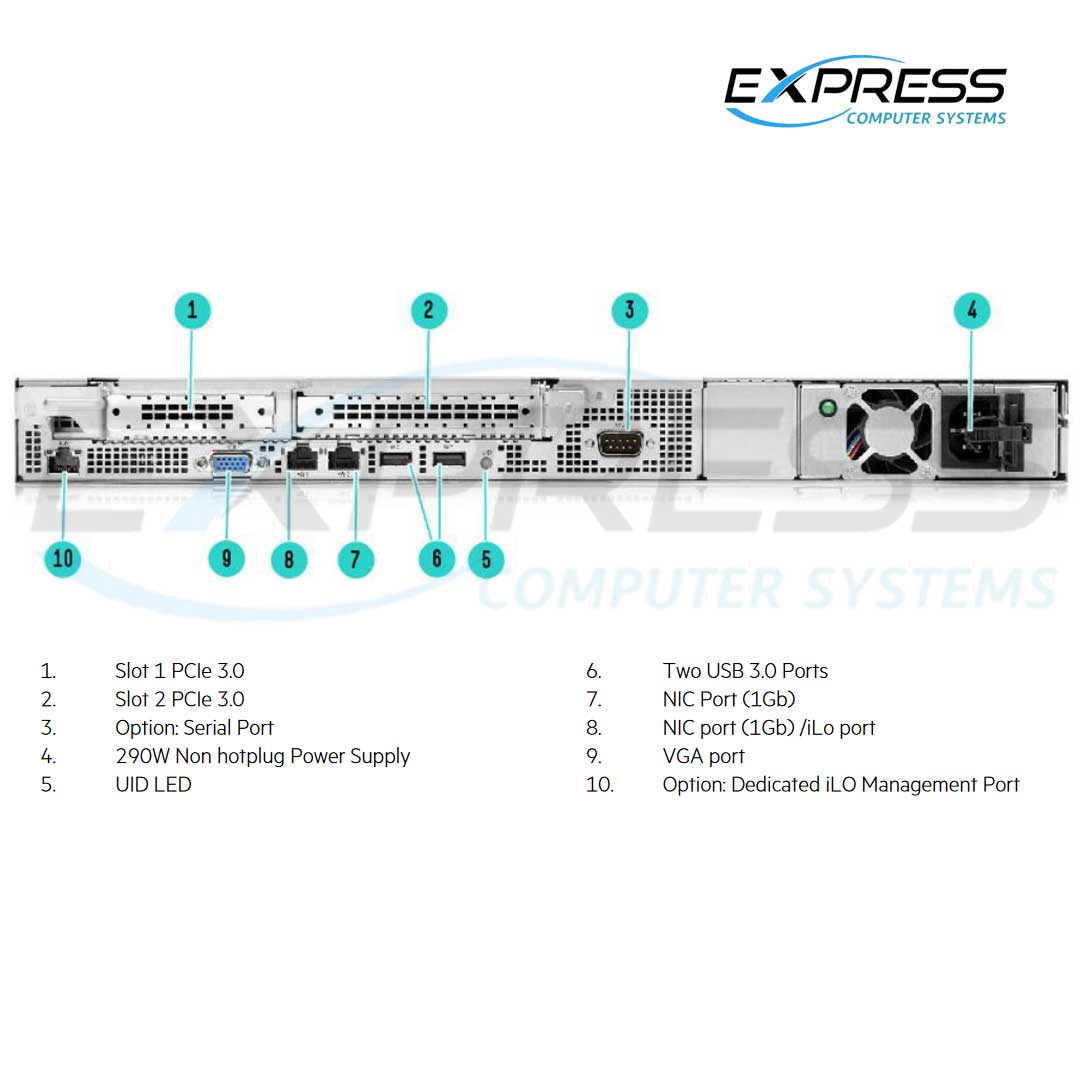

HPE DL20 Gen10 PCI Risers
The DL20 Gen10 only has 1 Butterfly riser with 2 Riser Card options. HPE DL20 Gen10 x8x16 FlexibleLOM Riser Kit (P06667-B21). The other option is the HPE DL20 Gen10 PCIe Low Profile Riser Kit (P09145-B21).
| Expansion Slots # | Technology | Bus Width | Connector Width | Processor | Slot Form Factor | |
|---|---|---|---|---|---|---|
| Primary LP Riser | 1 | PCIe 3.0 | x8 | x8 | CPU1 | Low Profile |
| 2 | PCIe 3.0 | x8 | x16 | CPU1 | Full Height / Half Length | |
| FlexibleLOM Riser | 1 | PCIe 3.0 | x8 | x8 | CPU1 | FlexibleLOM |
| 2 | PCIe 3.0 | x8 | x16 | CPU1 | Full Height / Half Length |
Adaptive RAID on Chip (AROC)To save a PCIe slot, use an Adaptive RAID on Chip (AROC) Cards when installing RAID or a SAS controller. If you do install the Performance Smart Arrays P408i-a or P408e-p, you will also need to install the HPE 12W Smart Storage Lithium-ion Battery (782961-B21) and its holder.
FlexLOM RiserThe PCIe3x8 FlexLom riser kits has a dedicated slot for only the FlexibleLOM cards in Slot 1. The FlexLom is the only way to install a 4 port card in slot 1.
Primary LP RiserDue to design limitations of the Butterfly Riser, it's only possible to populate a 4-port RJ45 PCIe card into slot 2 unless you install a FlexLOM.
Default Controller | S100i
HPE Smart Array S100i SR Gen10 SW RAID is installed but off by default and must be enabled by selecting (784308-B21). The S100i is a 14-port SATA controller, but only 12 ports are accessible as 2 are leveraged to support the 2 M.2 Boot options on the Primary Riser. The S100i supports Windows only.
HPE DL20 Gen10 Lights Out! iLO
HPE Integrated Lights-Out (HPE iLO)
Monitor your servers for ongoing management, service alerting, reporting, and remote management with HPE iLO.
UEFI
Configure and boot your servers securely with industry-standard Unified Extensible Firmware Interface (UEFI).
RESTful API
RESTful API for iLO 4 is Redfish 1.0 conformance for simplified server management such as configuration and maintenance tasks based on modern industry standards.
Intelligent Provisioning
Hassle-free server and OS provisioning for 1 or few servers with Intelligent Provisioning.
Embedded Remote Support
The Hewlett Packard Enterprise embedded remote support when used with Insight Online direct connect or HPE Insight Remote Support, allows HPE ProLiant servers to transmit hardware events directly to Hewlett Packard Enterprise or a Hewlett Packard Enterprise Authorized Partner for automated phone home support.
