HPE ProLiant Apollo 4510 Server (G10) CTO
Configure for Pricing
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
What's New

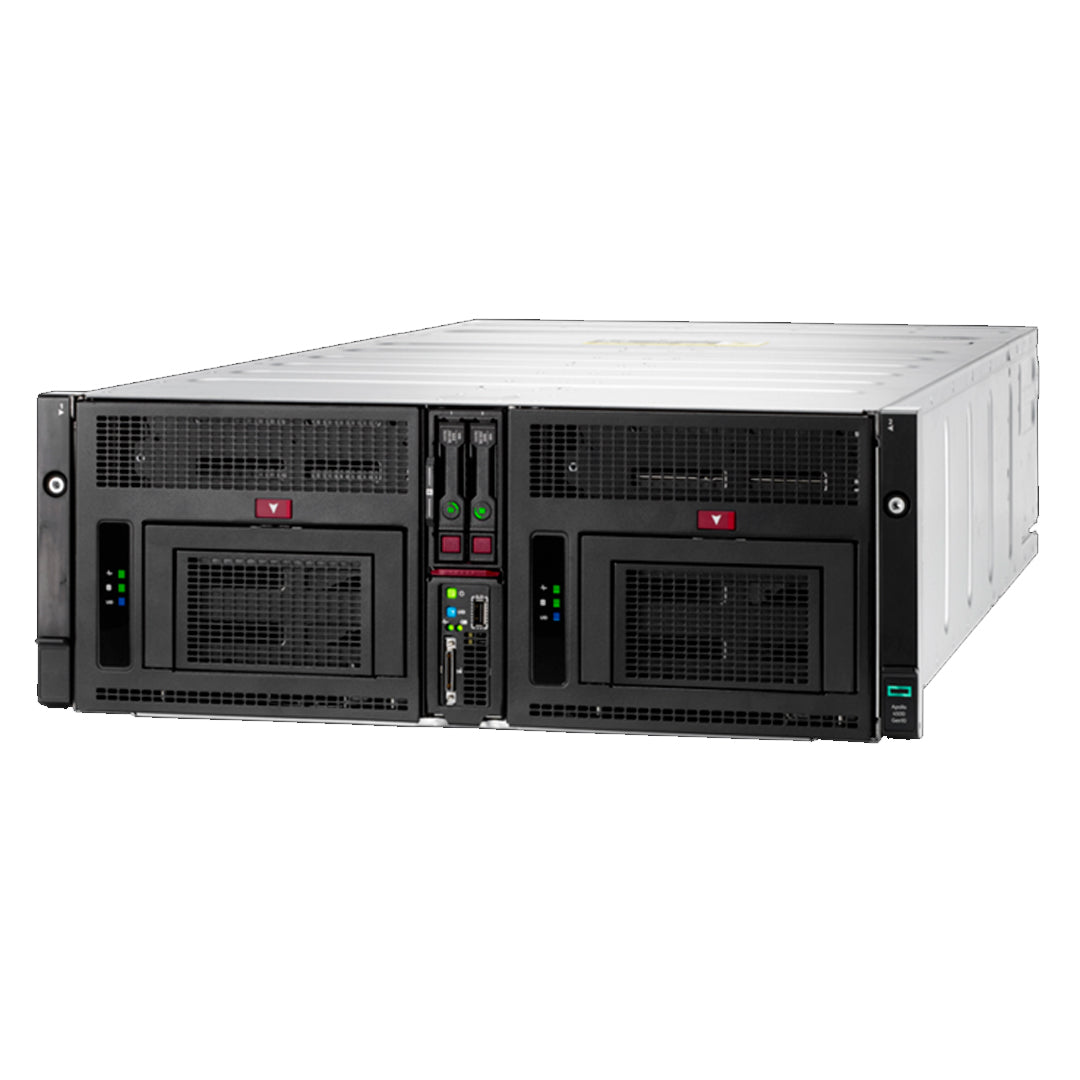

The HPE Apollo 4510 Gen10 System offers revolutionary storage density in a 4U form factor. Fitting in HPE standard 1075 mm rack, with one of the highest storage capacities in any 4U server with standard server depth. When you are running Big Data solutions, such as object storage, data analytics, content delivery, or other data-intensive workloads, the HPE Apollo 4510 Gen10 System allows you to save valuable data center space.

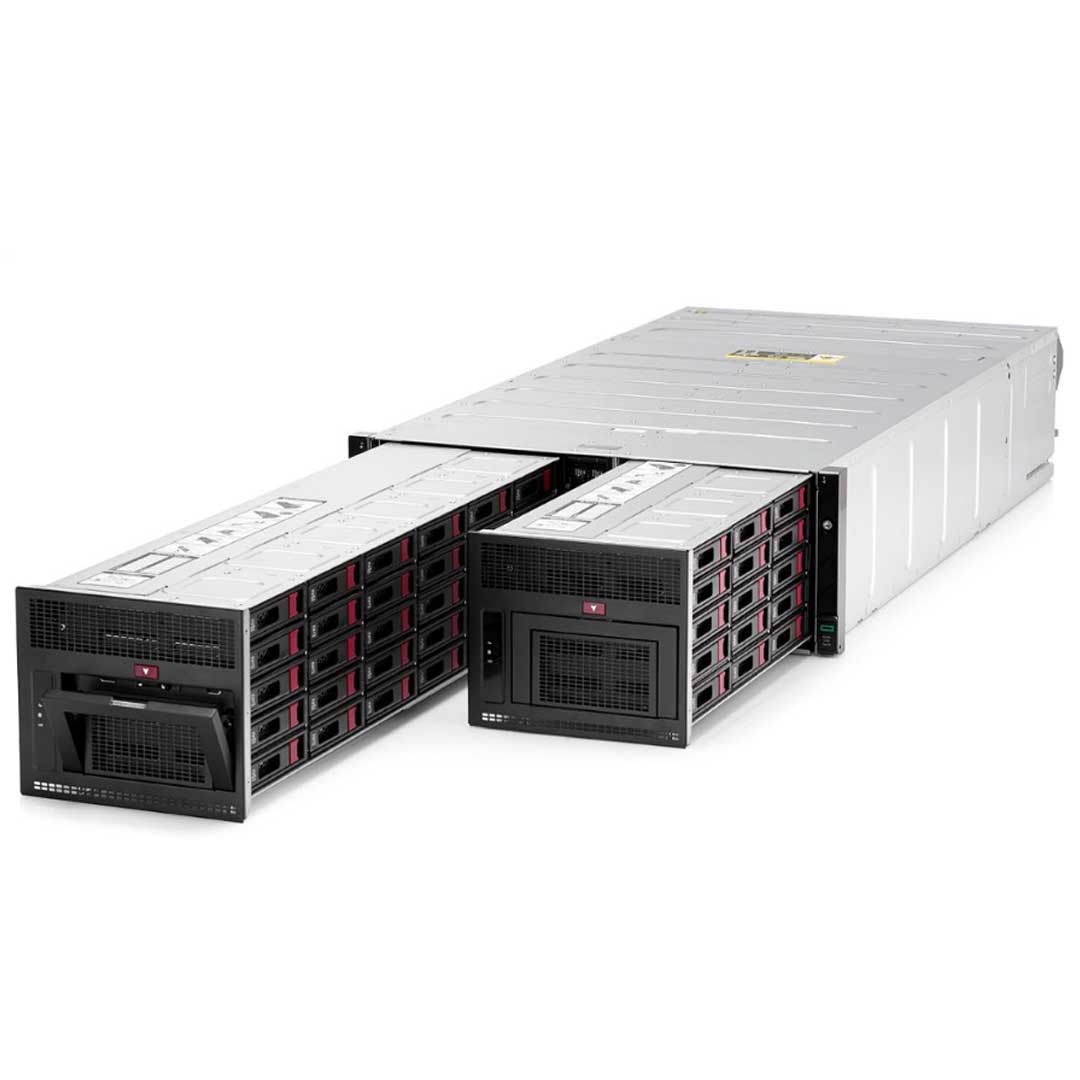

Its unique, density-optimized 4U form factor holds up to 60 large form factor (LFF) drives plus an additional two hot-plug small form factor (SFF) and/or internal M.2 drives. For configurability options, the LFF and SFF slots support SAS or SATA disk drives and SSDs, while the SFF and M.2 slots also support NVMe drives.

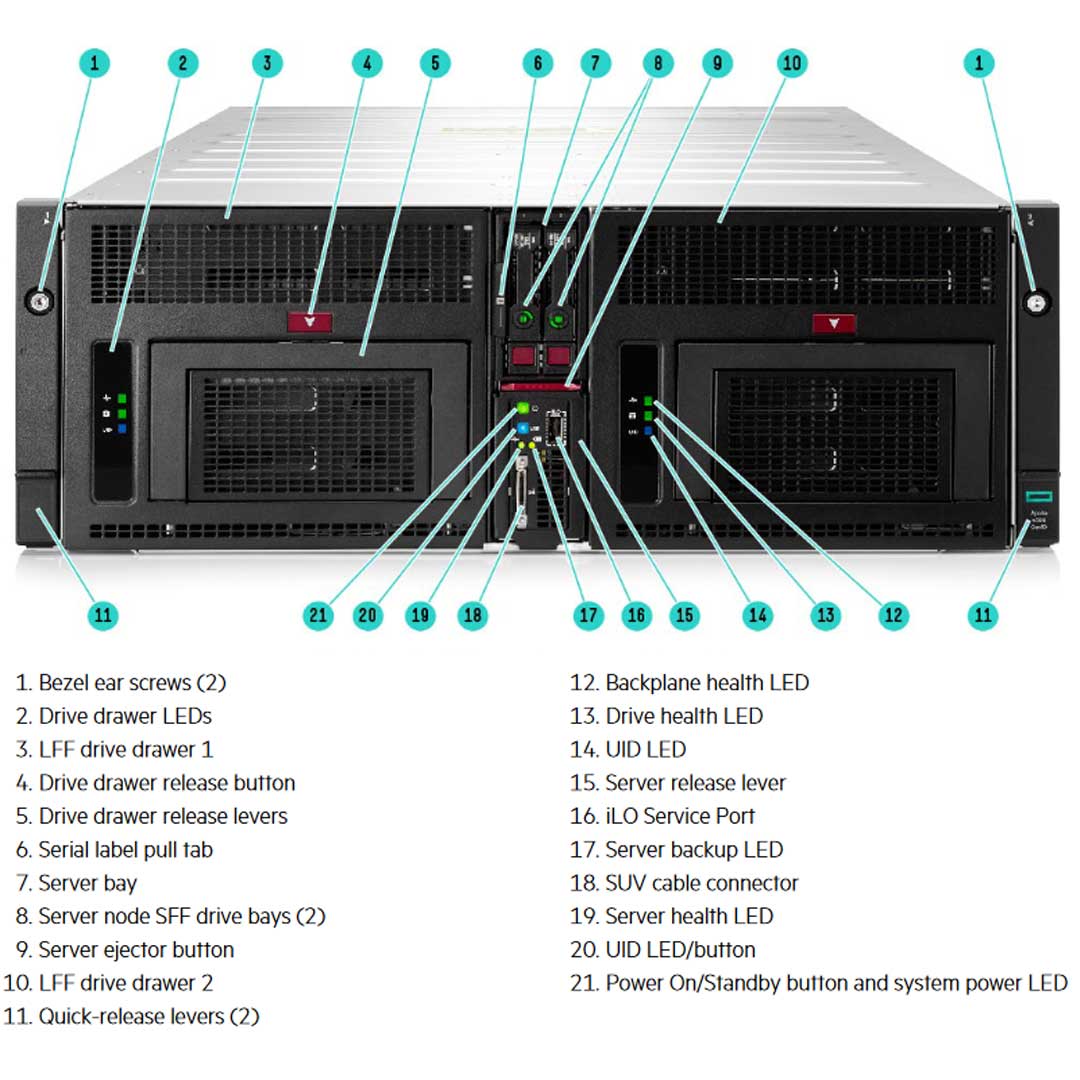

- Up to 60 hot-plug LFF drivers support in the front driver drawers with side loaded design
- 4U form factor fitting in HPE Standard 1075 mm racks
- Up to three X16 PCIe Gen3 slots.
- HPE Scalable persistent memory
- Front 2 hot-plug SFF in the HPE ProLiant XL450 Gen10 Server supports SAS/SATA/NVMe/SSD drivers with optional HPE Smart Array Gen10 controllers
- Additional boot/drive options: SATA M.2, dual uFF SSD (2 x M.2 cartridges)
- Intel Xeon processor scalable Family from 4 - 26 Cores, 85 - 150 W, 1.8 - 3.6 GHz
- HPE DDR4 SmartMemory up to 2666 MT/s
- HPE Flexible slot power supplies, 800 W and 1600 W, options of AC/ DC/ 277 V ac up to 96% efficiency
Ideal for:
- Big Data Analytics
- Cloud Servers
- Data Analytics
- Video Streaming
The Apollo 4510 Gen10 4U Rack server has up to 2 processors supported. Mixing different processor models is not supported. The 4510 Gen10 Server has a single XL450 Node that holds 2 SFF drives while the Apollo 4510 holds up to 60 LFF Drives. When two processors are selected a minimum of three power supplies per chassis is required.

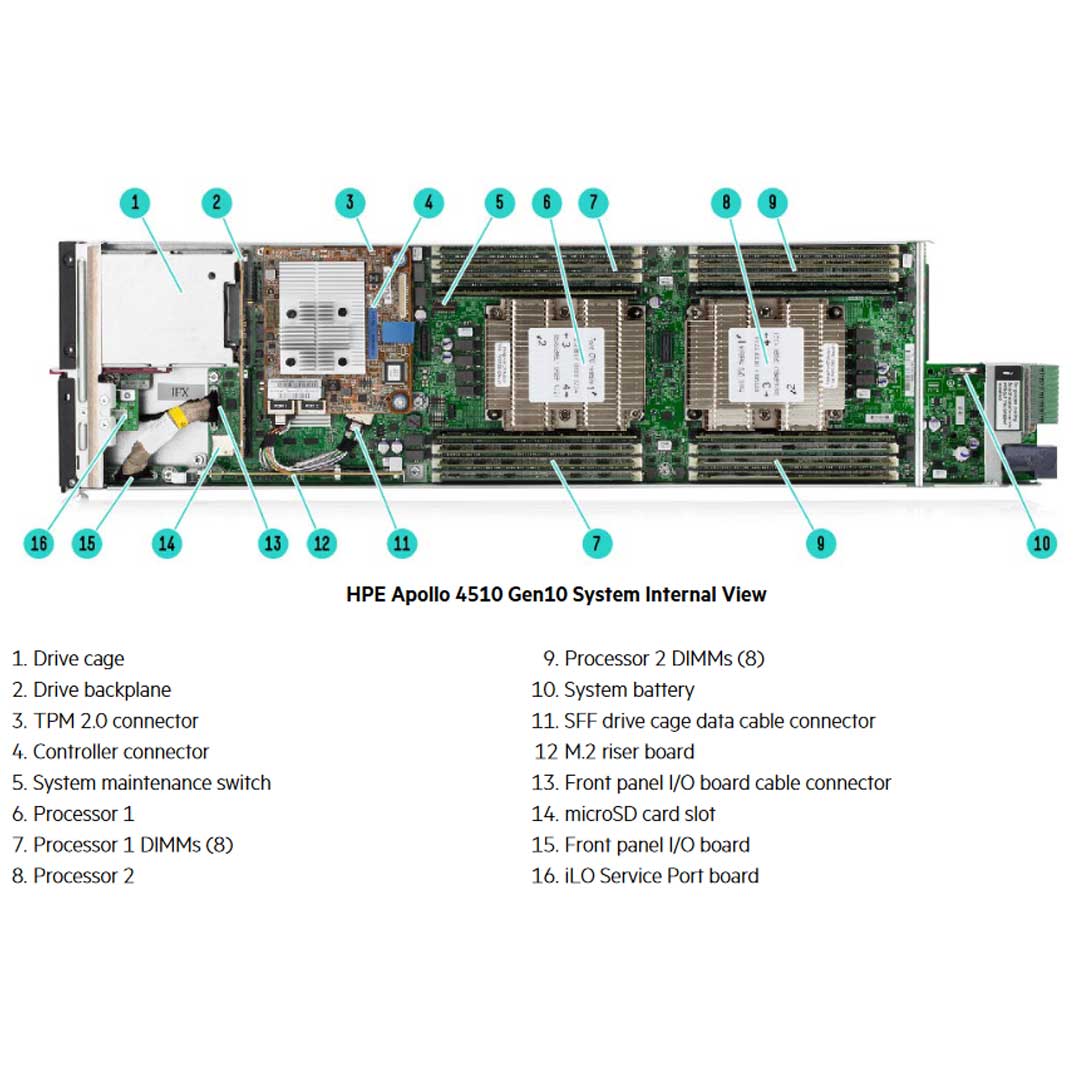

There are 16 DIMM slots available with 2 processors, 6 channels per processor, Up to 2 DIMMs per channel. LRDIMM, RDIMM maximum memory capacity is 1024 and 512 GB. Mixing of RDIMM and LRDIMM memory is not supported. HPE Persistent Memory featuring Intel® Optane™ DC persistent memory is only supported with select 2nd-generation Intel Xeon Scalable Series Processors ONLY (62xx/52xx/4215) and can only be mixed with either RDIMMs or LRDIMMs. PMEM maximum 512GB per processor/socket.
HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. If you plan to install SAS drives in the XL450. You will need to install one of the following. E208i-a and P408i-are connect to the 2 SFF drives in the server node and provide the capability for (up to) 12G SAS or 6G SATA hardware RAID/HBA functionality. If any of the Smart Array Performance RAID Controllers (P series) is installed. They require the purchase of one of the HPE 96W Smart Storage Battery (up to 20 Devices) with a 145mm Cable Kit (P01366-B21).
Maximum Internal Storage
| Drives | Maximum Capacity (raw) | Configuration |
|---|---|---|
| Hot Plug LFF SAS HDD | 1200TB | 60 x 20TB |
| Hot Plug LFF SATA HDD | 1200TB | 60 x 20TB |
| Hot Plug LFF SAS SSD | 96TB | 60 x 1.6TB |
| Hot Plug LFF SATA SSD | 460.8TB | 60 x 7.68TB |
| Hot Plug SFF SAS HDD | 4.8TB | 2 x 2.4TB |
| Hot Plug SFF SATA HDD | 4TB | 2 x 2TB |
| Hot Plug SFF NVMe SSD | 30.7TB | 2 x 15.36TB |
| Hot Plug SFF SAS SSD | 30.7TB | 2 x 15.36TB |
| Hot Plug SFF SATA SSD | 15.36TB | 2 x 7.68TB |
| ----- | ----- | ----- |
| M.2 Riser Board | 3.84TB | 2 x 1.92TB |
NVMe Drives
If SFF NVMe SSDs are selected, an HPE Smart Array controller is not required. The NVMe drives can only be installed in the XL450 2 SFF Drive slots. The main Chassis only supports HDD or SSD in a 3.5” Form Factor.
M.2 Drives
Two (2) M.2 22110 NVMe drive slots in the HPE ProLiant XL450 Gen10 Server. You can save room and make the boot more efficient when using the HPE NS204i-p x2 Lanes NVMe PCIe3 x8 OS Boot Device (P12965-B21).
HPE Apollo 4510 Gen10 PCI Risers

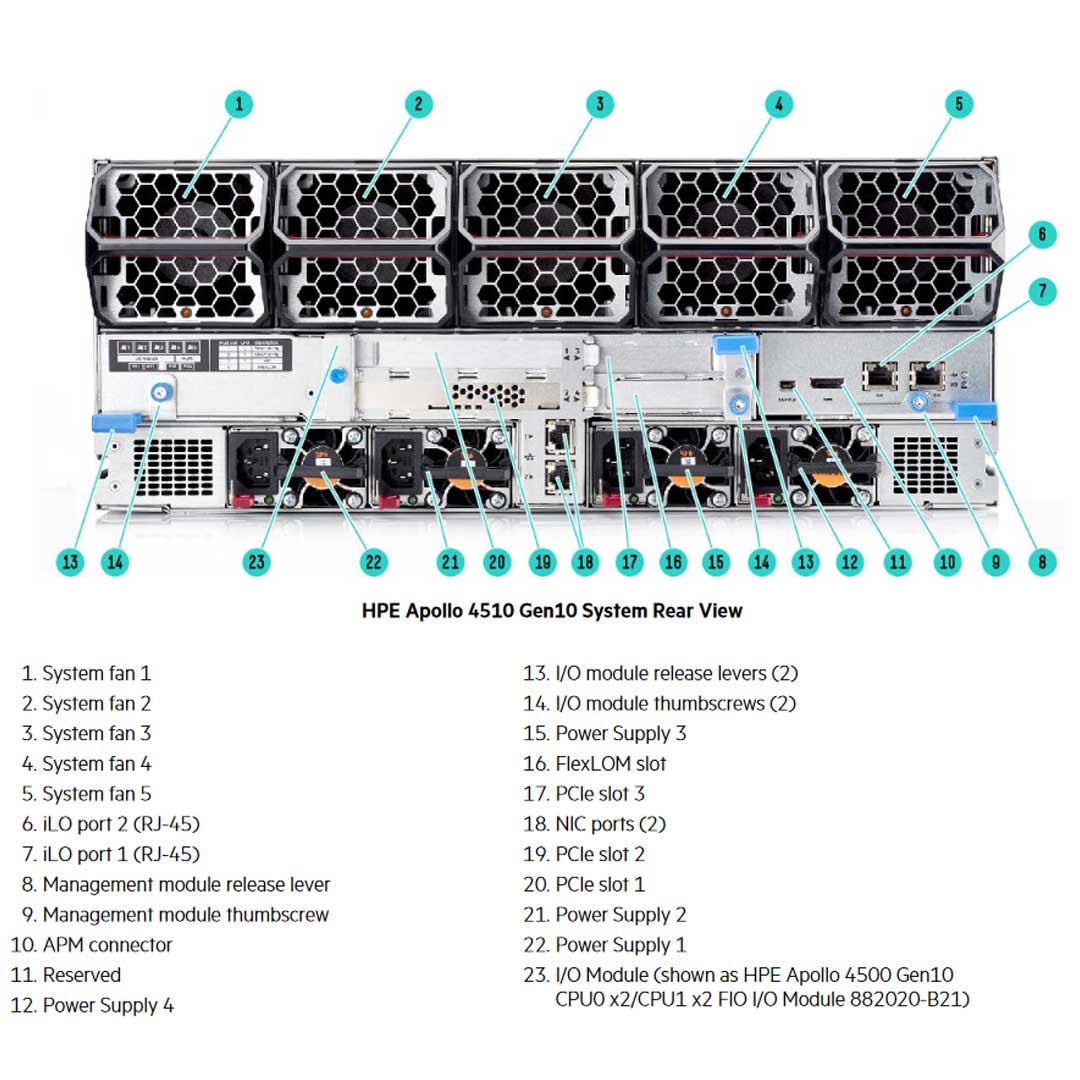

With 2 Processors installed, all 3 PCIe slots are available along with the FlexibleLOM adapter which does not take up a PCIe slot. The Apollo 4510 Gen10 ships with 2x 1 Gb Ethernet ports embedded. If any SAS drives are installed, you be required to select one of the Smart Arrays. If any of the Performance arrays are installed, you will then need to also add the HPE 96W Smart Storage Battery (up to 20 Devices) with a 145mm Cable Kit (P01366-B21).
| HPE Apollo 4500 Gen10 CPU0 x2/CPU1 x2 FIO I/O Module (default) | |||||
|---|---|---|---|---|---|
| Expansion Slots # | Technology | Bus Width | Connector Width | Form Factor | Notes |
| 1 | PCIe 3.0 | X16 | X16 | Full-height, half-length slot | Proc 2; SA |
| 2 | PCIe 3.0 | X16 | X16 | Full-height, half-length slot | Proc 1; SA |
| 3 | PCIe 3.0 | X16 | X16 | Low profile slot | Proc 2 |
| 4 | PCIe 3.0 | X8 | N/A | FlexLOM | Proc 1 |
| HPE Apollo 4500 Gen10 CPU0 x3/CPU1 x1 FIO I/O Module | |||||
|---|---|---|---|---|---|
| Expansion Slots # | Technology | Bus Width | Connector Width | Form Factor | Notes |
| 1 | PCIe 3.0 | X16 | X16 | Full-height, half-length slot | Proc 2; SA |
| 2 | PCIe 3.0 | X16 | X16 | Full-height, half-length slot | Proc 1; SA |
| 3 | PCIe 3.0 | X16 | X16 | Low profile slot | Proc 2 |
| 4 | PCIe 3.0 | X8 | N/A | FlexLOM | Proc 1 |
HPE Computation and Graphics Accelerators
The Apollo 4510 Gen10 can support 1 PCIe Accelerator in a Half Height Half Length slot. HPE 1.6TB NVMe Gen4 x8 High-Performance Mixed Use AIC HHHL PM1735 SSD (P26934-K21).
Cooling
Five (5) dual fan modules, shipped standard
Flex Slot your power!
Support for up to four (4) 800W or 1600W hot-plug redundant power supplies with up to 96% efficiency.
For 800W power supplies only: A minimum of three power supplies per chassis is required when two processors are selected.
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.
Lights Out! iLO
HPE iLO 5 ASIC. The rear of the chassis has 2 RJ-45 iLO ports.
HPE iLO with Intelligent Provisioning (standard) with Optional: iLO Advance and OneView
HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.
