Dell PowerEdge C6620 Node Server Chassis

SKU: DPE-C6620-Chassis

Dell PowerEdge C6620 Node Server Chassis

Name: Dell PowerEdge C6620 Node Server Chassis
Brand: Dell
SKU: DPE-C6620-Chassis
Price: 2950.0 USD
Availability: InStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

$2,950.00

Quick Specs

Form Factor: Quarter Height Blade Server
Processor: 2 x Intel Xeon E5-2400 | Max: 8 Cores
Memory: 6 DDR3 RDIMM 1600Mhz | Max: N/A
Storage: 2 SFF 1.8" SATA SSD | Max: 400GB
Rear Storage: None
PCIe Slots: 1 LOM and 1 Mezzanine Slot | Gen: 3.0
GPU: None

Ideal for:

Cloud Servers
High-Performance Computing (HPC)

PLEASE NOTE -
Since these are Quarter Height Sleds. They MUST go into the M420 Sleeve which holds (4) Sleds / Nodes. If you plan to order this Sled you must also order this Sleeve.

Image of the Sleeve that holds the M420 into the M1000e Chassis

Dell M1000e Blade Architecture

Image of the VRTX and M1000e Modular Servers

Dell’s no-compromise approach towards enterprise-class features on our M-series blade servers is not limited by the M420’s ultra-dense form-factor. The fully redundant and individually serviceable M420 platform offers such capabilities as hardware RAID and hot-pluggable dual solid-state drives in order to ensure maximum uptime. Dell’s unique failsafe virtualization technology even extends the redundancy and resiliency of the M420 to virtual environments, offering a redundant, failover-capable infrastructure for embedded hypervisors.

Improve operational efficiency

Help manage your servers using the Dell OpenManage™ portfolio, including Dell’s exclusive Integrated Dell Remote Access Controller (iDRAC) with Lifecycle Controller. iDRAC, an embedded systems management feature, allows Dell servers to be managed in physical, virtual, local and remote environments, either in-band or out-of-band and with or without a systems management software agent. OpenManage also integrates and connects to leading third-party systems management solutions you may already use, allowing you to maintain a single point of control and capitalize on your existing investment. OpenManage simplifies the lifecycle of deploying, updating, monitoring, and maintaining your PowerEdge servers

Enjoy remarkable computational density with the Dell™ PowerEdge™ M420 capable of deploying 32 server nodes in just 10U of rack space. Scaling up to 20 processor cores and 192GB of RAM, each M420 couples processing power and memory capacity with tremendous I/O throughput, with up to four ports of 10 Gigabit Ethernet (10GbE) available in an exceptionally compact, individually serviceable form factor. From entry and mid-tier business applications, to high node-count virtual environments, and even distributed workloads such as cloud or high-performance computing (HPC) environments, the M420 provides advantages for virtually any data center where a large number of computational nodes need to be deployed in minimal space.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Feature	Technical Specifications
Chassis	Dell PowerEdge C6600 chassis

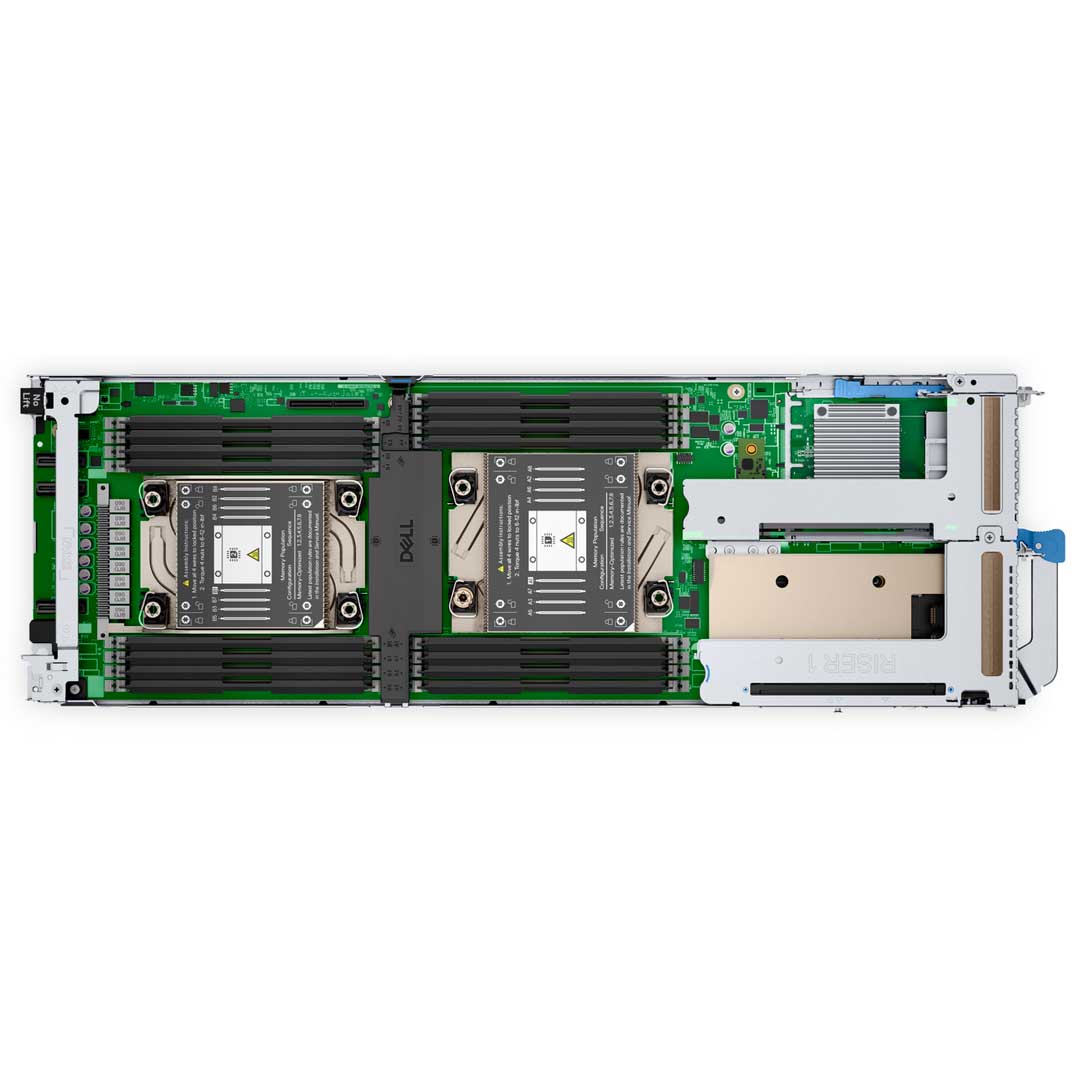

Nodes	Up to 4 hot-swappable 2-socket C6620 sleds in a 2U C6600 chassis
Processor	Up to two 4th Generation Intel Xeon Scalable processors, with up to 56 cores per processor
Memory	• 16 DDR5 DIMM slots, supports RDIMM of 4 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only
Storage controllers	• Internal controllers (RAID): PERC H965i, PERC H755, PERC H355 • Internal boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 SSDs 480 GB or 960 GB • Internal 12 Gbps SAS HBAs (non-RAID): Internal HBA355i • Software RAID: S160
Availability	Hot-plug redundant drives and PSUs
Drive Bays	Front bays: • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 61 TB • Up to 8 x E3.s NVMe SSD drives max 288 TB • System with no backplane
Power Supplies	• 3200W 277 VAC or 336 VDC redundant, hot swap • 2800W Titanium 200-240 VAC or 240 VDC redundant, hot swap • 2400W Platinum 100-240 VAC or 240 VDC redundant, hot swap • 1800W Titanium 200-240 VAC or 240 VDC redundant, hot swap
Cooling Options	Air cooling, optional processor liquid cooling
Fans	Up to 4 cold swap fans
Dimensions	• Height – 40.0 mm (1.57 inches) • Width – 174.4 mm (6.86 inches) • Depth – 549.7 mm (21.64 inches)
Weight	42.5 kg (93.69 pound)
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module
OpenManage Software	• CloudIQ for PowerEdge plugin • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin
Mobility	OpenManage Mobile
Integrations	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • RedHat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager
Security	• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	1 x 1 GbE
GPU Options	Up to 2 x 75W low-profile, half-length
Network cards	1 x OCP 3.0 x16 Gen4 (for network controller)

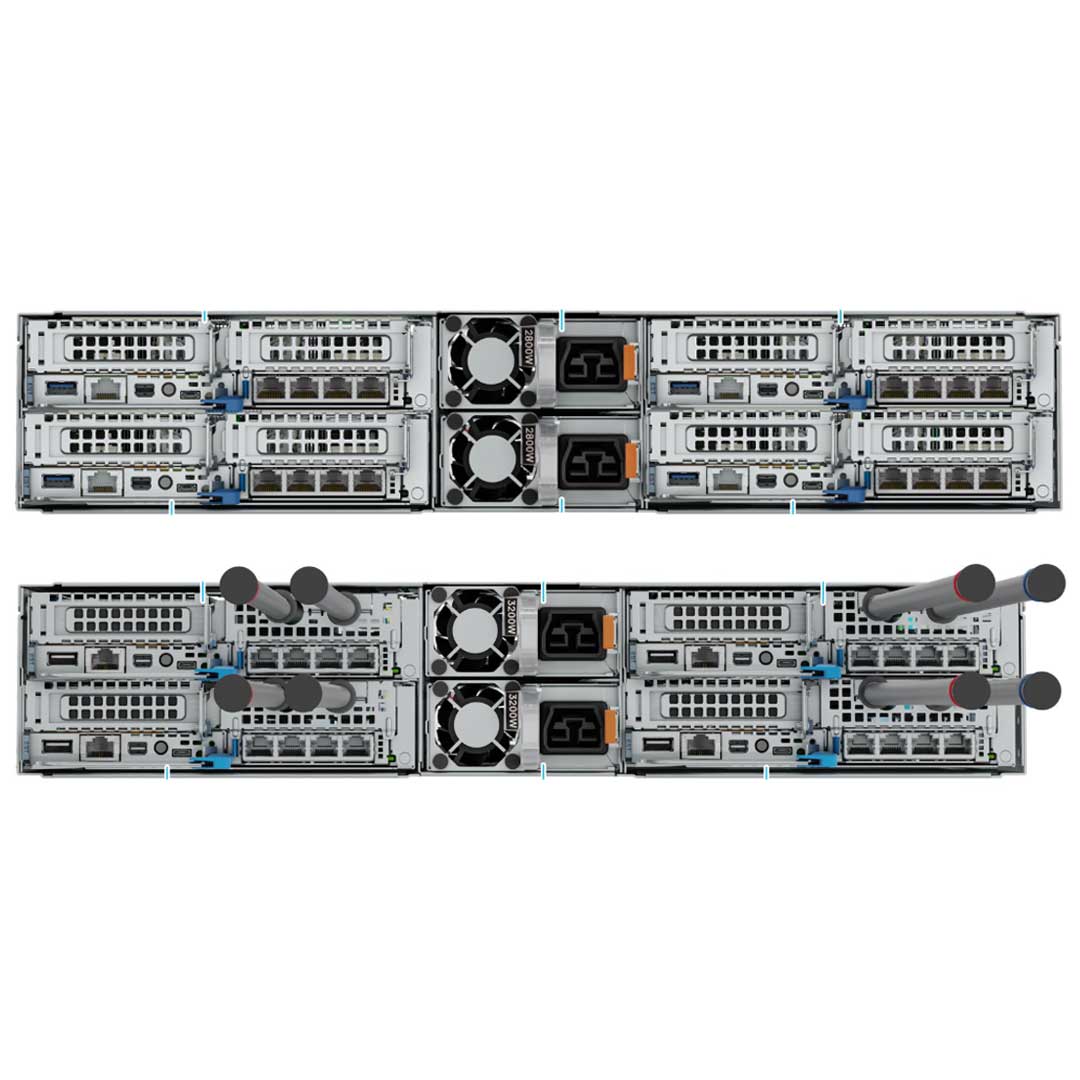

Rear Ports	• 1 x USB 3.0 • 1 x iDRAC ethernet port • 1 x iDRAC Direct (Micro-AB USB) port • 1 x Mini-DisplayPort
PCIe	2 x PCIe Gen5 slots: • 1 x16 Gen5 (x16 PCIe) low-profile, half-length (slot 1 optional) • 1 x16 Gen5 (x8 + x8 PCIe) low-profile, half-length for SNAP I/O module (slot 1 optional) • 1 x16 Gen5 (x16 PCIe) low-profile, half-length (slot 2 optional) • 1 x16 Gen5 (x8 PCIe) low-profile, half-length (slot 2 optional)
Operating System and Hypervisors	• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi/vSAN

Spec Sheet 4

Features	PowerEdge C6620		PowerEdge C6520
Processors	Up to two 4th Generation Intel Xeon Scalable processors with up to 56 cores		Up to two 3rd Generation Intel Xeon Scalable processors, up to 32 cores per processor
Memory	DIMM Speed: ● Up to 4800 MT/s Memory Type: ● High-Bandwidth Memory ● RDIMM Memory module slots: ● 16 DDR5 DIMM slots ● Supports registered ECC DDR5 DIMM slots only Maximum RAM: ● RDIMM 4 TB		DIMM Speed: ● Up to 3200 MT/s Memory Type: ● RDIMM ● LRDIMM Memory module slots: ● 16 DDR4 DIMM slots ● Supports registered ECC DDR4 DIMM slots only Maximum RAM: ● RDIMM 4 TB ● LRDIMM 4 TB
Storage Controllers	● Internal controllers: PERC H965i, PERC H755, HBA355, HBA355i ● Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 SSDs ● Software RAID: S160		● Internal Controllers: PERC H350, PERC H345, PERC H750, PERC H745, HBA355I, and HBA345 ● Internal Boot: Boot Optimized Storage Subsystem (BOSS-S1) - HWRAID 2 x M.2 SSDs 240 GB, 480 GB ● Software RAID: S150
Drive Bays	The C6600 chassis supports up to: ● 16 x 2.5-in SAS/SATA/NVMe (HDD/SSD) drives. ● 8 x E3.s NVMe SSDs		The C6400 chassis supports up to: ● 12 x 3.5-in hard drive - SAS/SATA ● 24 x 2.5-in hard drive - SAS/SATA/NVMe
Power Supplies	● 1800 W Titanium AC/200 - 240 V autoranging ● 1800 W DC/240 V ● 2400 W Platinum AC/100 - 240 V ● 2400 W DC/240 V ● 2800 W Titanium AC/200 - 240 V autoranging ● 2800 W DC/240 V ● 3200 W AC/277 V ● 3200 W DC336 V NOTE: 3200 W AC and DC power supplies are only available in North America.		● 1600 W Platinum AC/100 - 240 V autoranging ● 2000 W Platinum AC/100 - 240 V autoranging ● 2400 W Platinum AC/100 - 240 V autoranging ● 2600 W Platinum AC/100 - 240 V autoranging
Cooling Options	● Air cooling ● Liquid cooling		● Air cooling ● Liquid cooling
Fans	● 80 mm high-efficiency fan ● 60 mm high-efficiency fan ● 40 mm high-efficiency fan		60 mm high-efficiency fan
Fans	Up to four hot swap fans		Up to four hot swap fans
Dimension	Height: 40.0 mm (1.57 inches)		Height: 40.1 mm (1.58 inches)
	Width: 174.4 mm (6.86 inches)		Width: 174.4 mm (6.86 inches)
	Depth: 549.7 mm (21.64 inches) to rear lever hook		Depth: 570.34 mm (22.45 inches) to rear handle
Form Factor	2U4N compute sled		2U4N compute sled
Embedded Management	● iDRAC9 ● iDRAC Direct ● iDRAC RESTful with Redfish ● iDRAC Service Module		● iDRAC9 ● iDRAC Direct ● iDRAC RESTful with Redfish ● iDRAC Service Module
OpenManage Software	● OpenManage Enterprise ● OpenManage Power Manager plug-in ● OpenManage Update Manager plug-in ● OpenManage SupportAssist plug-in		● OpenManage Enterprise ● OpenManage Power Manager plug-in ● OpenManage Update Manager plug-in ● OpenManage SupportAssist plug-in
Mobility	OpenManage Mobile		OpenManage Mobile
Integrations and Connections	OpenManage Integrations ● BMC TrueSight ● Microsoft System Center ● Red Hat Ansible Modules ● VMware vCenter and vRealize Operations Manager	OpenManage Connections ● IBM Tivoli Netcool/OMNIbus ● IBM Tivoli Network Manager IP Edition ● Micro Focus Operations Manager ● Nagios Core ● Nagios XI	OpenManage Integrations ● BMC TrueSight ● Microsoft System Center ● Red Hat Ansible Modules ● VMware vCenter	● IBM Tivoli Netcool/OMNIbus ● IBM Tivoli Network Manager IP Edition ● Micro Focus Operations Manager ● Nagios Core ● Nagios XI
Security	● Cover latch ● Secure Boot mode ● Power Off security ● TPM 2.0 (not supported for China and Russia)		● Cover latch ● Secure Boot mode ● Power Off security ● TPM 2.0 (not supported for China and Russia)
Embedded NIC	Broadcom BCM5720 Gigabit Ethernet controller		Broadcom BCM5720 Gigabit Ethernet controller
Networking Options	● Broadcom BCM5720 Gigabit Ethernet controller ● OCP x16 Mezz 3.0		● Broadcom BCM5720 Gigabit Ethernet controller ● OCP x16 Mezz 3.0
GPU Options	Up to two 75 W (Low-Profile) GPUs.		One 70 W (Low-Profile) GPUs.
Ports	Rear ports: ● Power button with status LED ● Mini Display port connector ● 1G RJ45 port ● 1x USB 3.0 ● iDRAC Direct port (Micro AB-USB)		Rear Ports ● Power button with status LED ● Mini Display port connector ● 1G RJ45 port ● 1x USB 3.0 ● iDRAC Direct port (Micro AB-USB)
Ports	Internal Port: ● 1x SWIFT port ● 3x MCIO ports ● 1x NPIO port		Internal Port: ● 1x USB 2.0 port ● 2x Slimline ports ● 3x NPIO port
PCIe	2x PCIe Gen5 slot		3x PCIe Gen4 slots + 1x PCIe Gen3 slot
Operating System and Hypervisors	● Canonical Ubuntu Server LTS ● Windows Server with Hyper-V ● Red Hat Enterprise Linux ● SUSE Linux Enterprise Server ● VMware ESXi		● Citrix (R) Hypervisor (R) ● Microsoft (R) Windows Server (R) with Hyper-V ● Red Hat (R) Enterprise Linux ● SUSE (R) Linux Enterprise server ● VMware (R) ESXi (R)
