Dell PowerEdge R650 Rack Server CTO

Name: Dell PowerEdge R650 Rack Server CTO
Brand: Dell
SKU: DPE-R650-CTO
Availability: OutOfStock

Dell

| CTO Servers |

DPE-R650-CTO

.price-ui--loading { display: block !important; opacity: 1 !important; }

Configure for Pricing

Quick Specs

Form Factor:

1U rack server

Processor | Max: 40 Cores

2x 3rd Gen Intel Xeon Scalable

Memory | Max: 4TB LRDIMM - 8TB Pmem

32 DDR4 RDIMM/LRDIMM 3200Mhz

Storage | Max: 153TB

4x 3.5" SAS/SATA (HDD/SSD) Max: 64TB
8x 2.5" SAS/SATA/NVMe (HDD/SSD) Max: 122.8TB
10x 2.5" SAS/SATA/NVMe (HDD/SSD) Max: 153TB

Rear Drives | Max: 30.7TB

2x 2.5" SAS/SATA/NVME (HDD/SSD)

RAID Controller:

S150 (SW RAID SATA, NVMe)
H745, HBA355I, H345, H755, H755N, H840, HBA355E

Boot Options:

BOSS-S2
IDSDM
Internal USB

NIC/LOM:

2x 1GbE with BCM5720 LAN controller

OCP 3.0:

1x OCP 3.0 x8

PCIe Slots:

3x PCIe 4.0

GPU:

Up to 3x SW 75 W GPUs

Remote Management:

iDRAC9 with Lifecycle Controller

Other Versions

(Click to View)

Ideal for:

Artificial Intelligence (AI)
Corporate IT
Data Analytics
High-Performance Computing (HPC)
Machine Learning (ML)
Financial/Trading Servers
Virtual Desktop Interface (VDI)

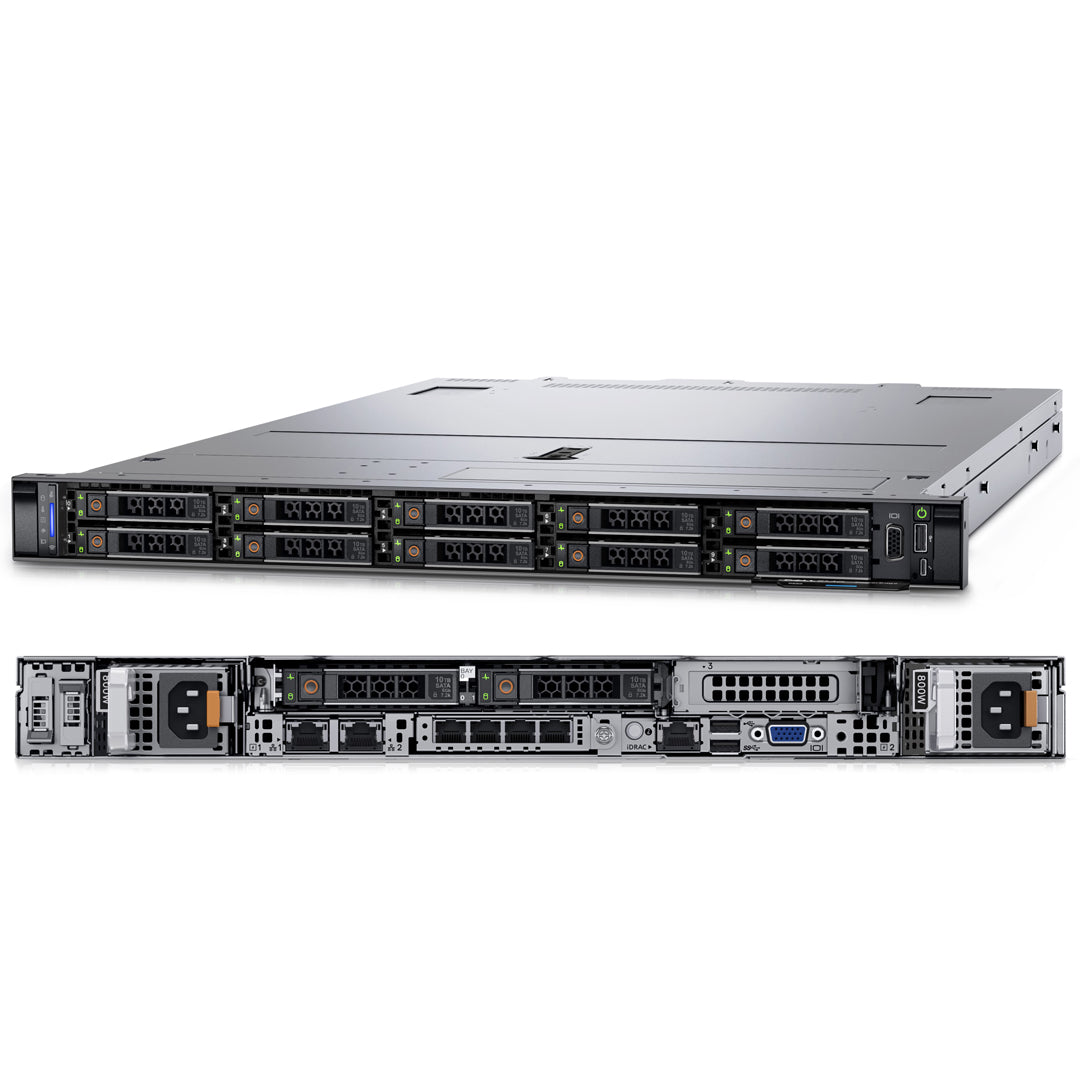

The Dell PowerEdge R650 Rack Server

A full-featured enterprise server, designed to optimize workload performance and data center density. The Dell PowerEdge R650 Server offers compelling performance, high-speed, memory and capacity, I/O bandwidth and storage to address data requirements.

Innovate at scale

The Dell PowerEdge R650 Rack Server, powered by the 3rd Generation Intel® Xeon® Scalable processors, is the optimal rack server to address application performance and acceleration. The Dell PowerEdge R650 Rack Server is a dual-socket/1U rack server that delivers outstanding performance for the most demanding workloads. It supports 8 channels of memory per CPU, and up to 32 DDR4 DIMMs @ 3200 MT/s speeds.

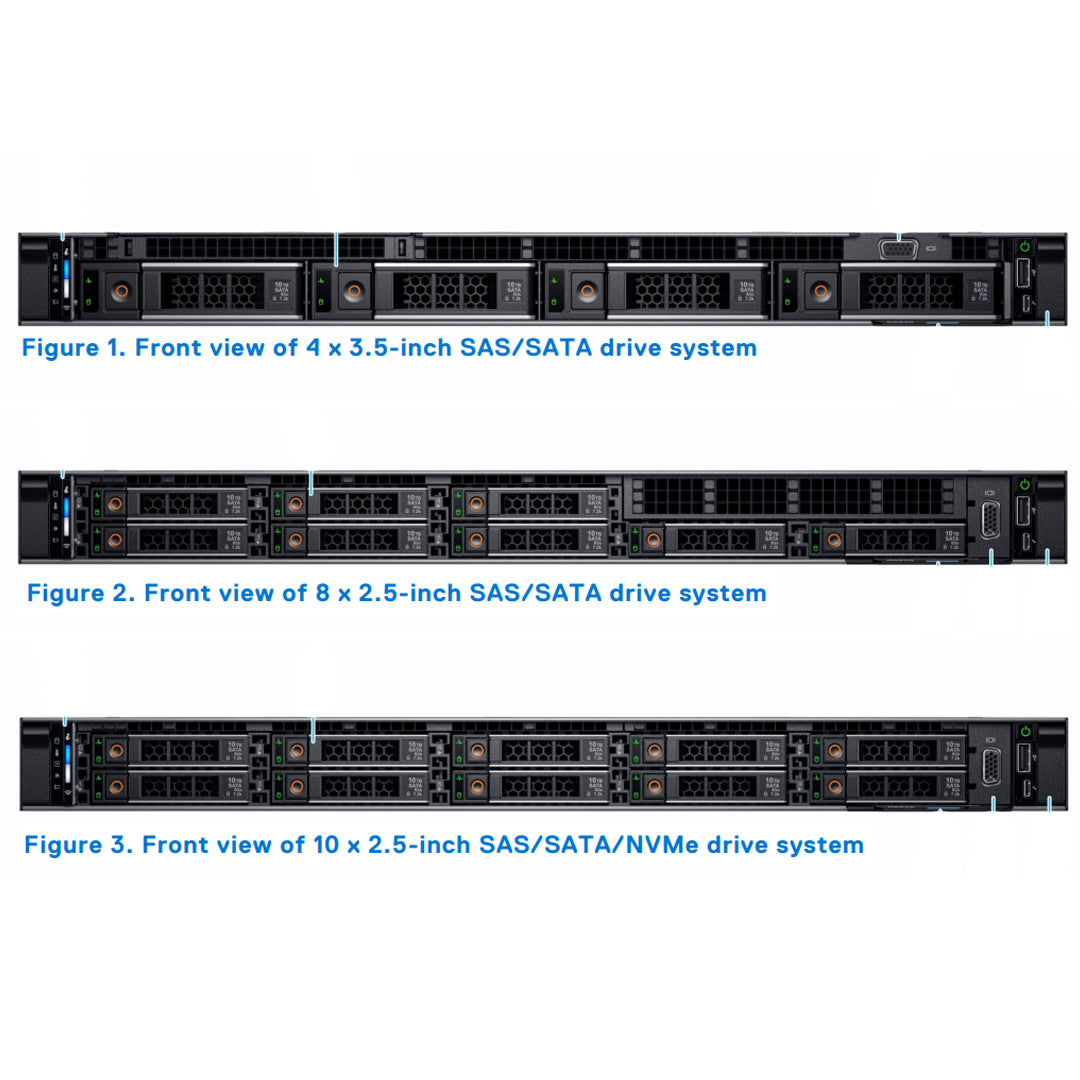

Storage Options

Internal storage

The Dell PowerEdge R650 Rack Server supports the following internal storage configuration.

4 x 3.5-inch (SAS/SATA)
4 x 3.5-inch (Chipset SATA)
4 x 3.5-inch (SAS/SATA) + 2 x 2.5-inch (SAS/SATA or NVMe)
8 x 2.5-inch (SAS/SATA, NVMe, or NVMe RAID)
10 x 2.5-inch (SAS/SATA or with 4 universal)
10 x 2.5-inch (SAS/SATA) + 2 x 2.5-inch (SAS/SATA)
10 x 2.5-inch (NVMe)
10 x 2.5-inch (NVMe) + 2 x 2.5-inch (NVMe)
10 x 2.5-inch (SAS/SATA or with 2 universal) - 1 socket only

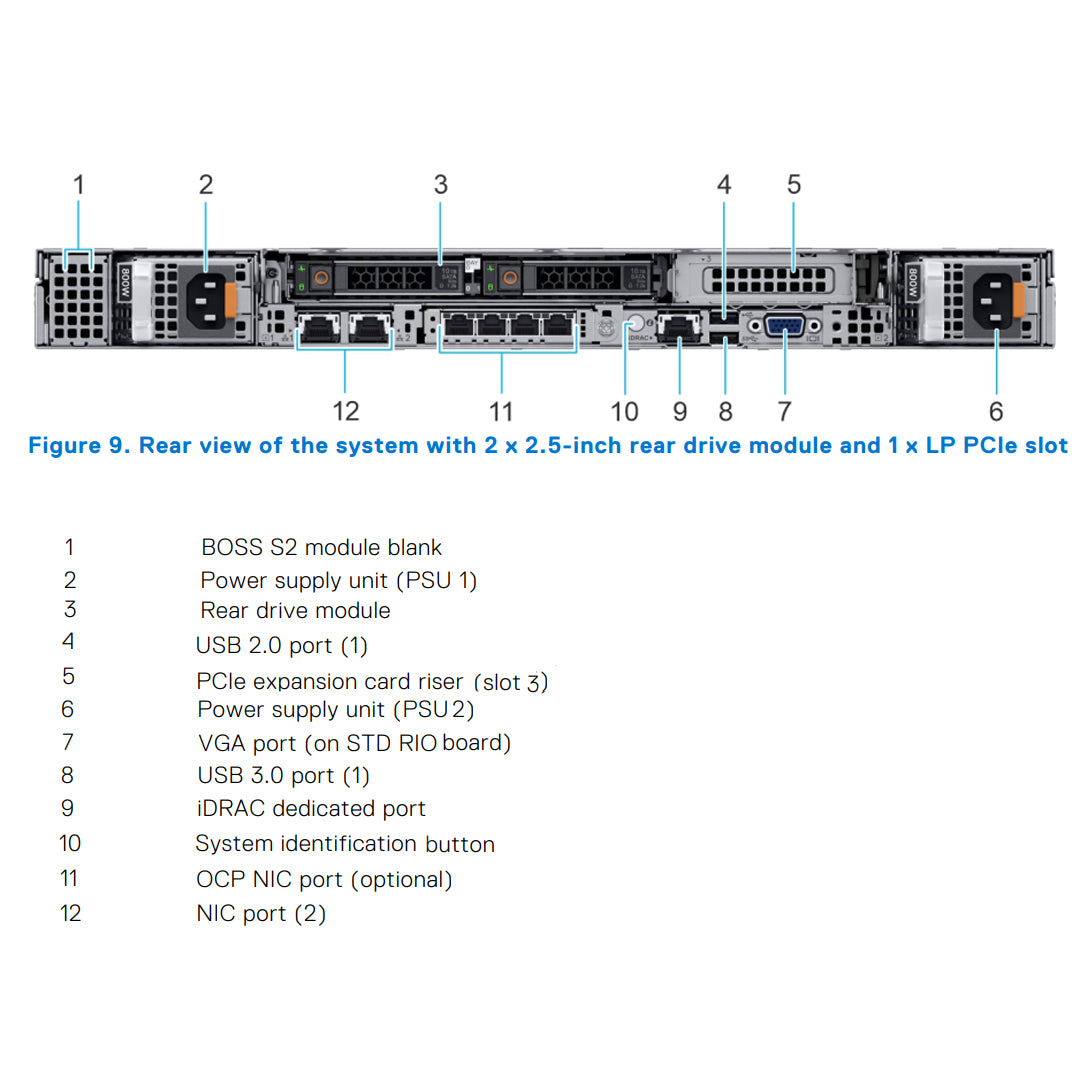

Rear Storage - 2x 2.5" SAS/SATA/NVMe Image of the Rear Drive Cage on the R650 Rack Server by Dell

Memory Supported

Each system supports maximum of one Intel Persistent Memory 200 series (BPS) memory module per channel. These DIMMs can also be mixed with either RDIMMs or LRDIMMs. The manuals have a lot of rules for the PMem Memory. Please check out the manual for all the rules and ristrictions.

Image of the Memory DIMM in the R650 Rack Server from Dell

DIMM type	Rank	Capacity	DIMM rated voltage and speed	Operating Speed
DIMM type	Rank	Capacity	DIMM rated voltage and speed	1 DIMM per channel (DPC)	2 DIMMs per channel (DPC)
RDIMM	1 R	8 GB	DDR4 (1.2 V), 3200 MT/s	3200 MT/s	3200 MT/s
RDIMM	2 R	16 GB, 32 GB, 64 GB	DDR4 (1.2 V), 3200 MT/s	3200 MT/s	3200 MT/s
LRDIMM	4 R	128 GB	DDR4 (1.2 V), 3200 MT/s	3200 MT/s	3200 MT/s
LRDIMM	8 R	256 GB	DDR4 (1.2 V), 3200 MT/s	3200 MT/s	3200 MT/s
Intel Persistent Memory 200 series (BPS)	2 R	128 GB, 256 GB, 512 GB	DDR4 (1.2 V), 3200 MT/s	3200 MT/s	3200 MT/s

Dell PowerEdge R650 Rack Server - Storage Controllers

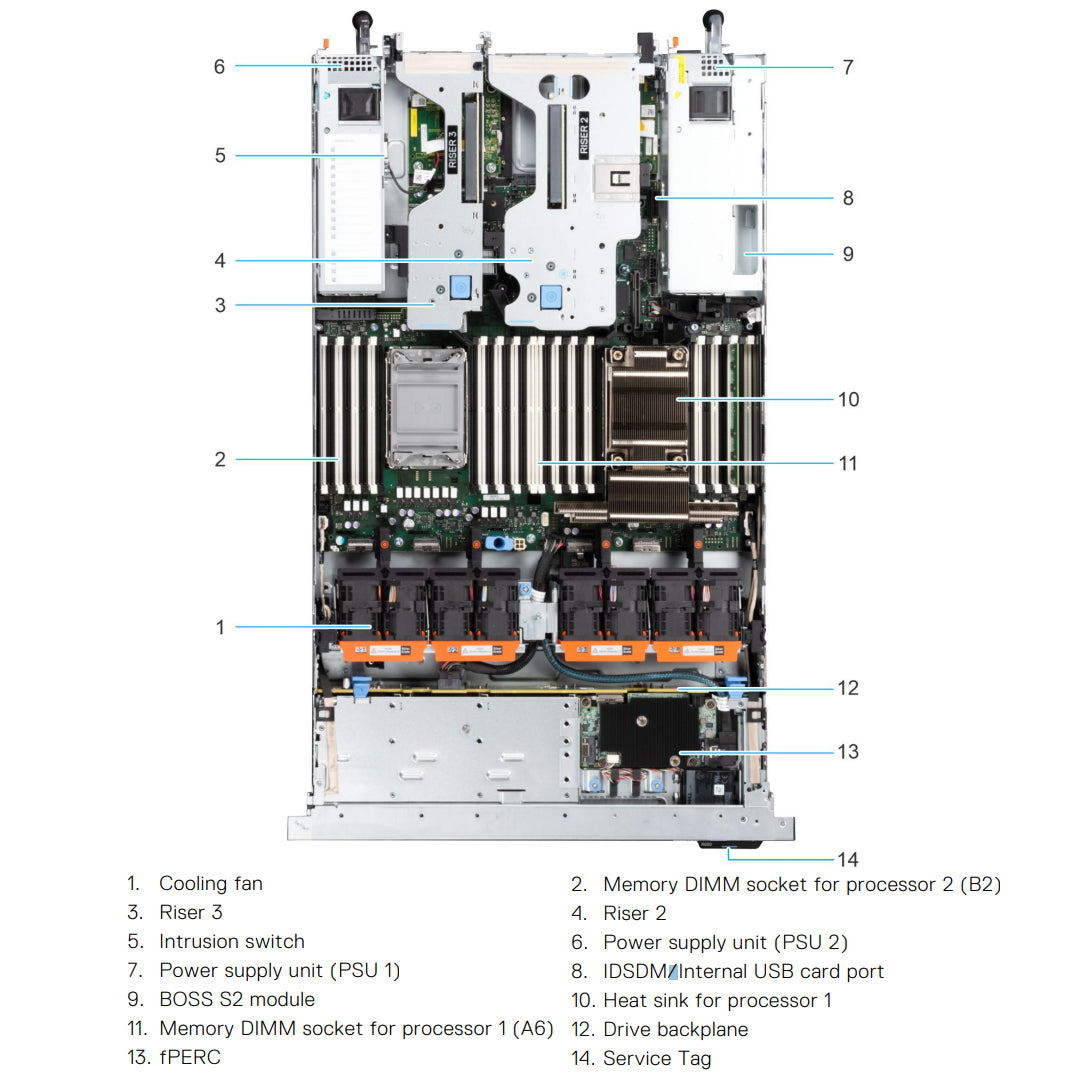

Dell’s RAID controller options offer performance improvements, including the fPERC solution. fPERC provides a base RAID HW controller without consuming a PCIe slot by using a small form factor and high-density connector to the base planar.

15G PERC Controller offerings will be a heavy leverage of 14G PERC family. The Value and Value Performance levels will carry over to 15G from 14G. New to 15G, is the Harpoon-based Premium Performance tier offering. This high-end offering will drive IOPs performance and enhanced SSD performance.

Performance Level	Controller & Description
Value Performance	S150 (SATA, NVMe) SW RAID SATA, NVMe
Value	H345, H355, HBA355I/E (Internal/External)
Value Performance	H745, H755, H755N
Premium Performance	H840

Boot Options

The Interal Dual SD Module for the R650 Rack Server by Dell

IDSDM

The IDSDM is unsupported if the Internal USB module is installed. You must choose between which one you would like to install. The IDSDM is perfect for booting the Hypervisor OS.

Internal USB

The Internal USB and IDSDM take up the same slot so they are not supported together. You must choose which one to install.

BOSS

The BOSS M.2 Drives have their own dedicated BOSS Riser Kit that supports 1 Riser card with 2 M.2 SATA Drives. This BOSS is designed to boot a full OS system without allocating a drive to it.

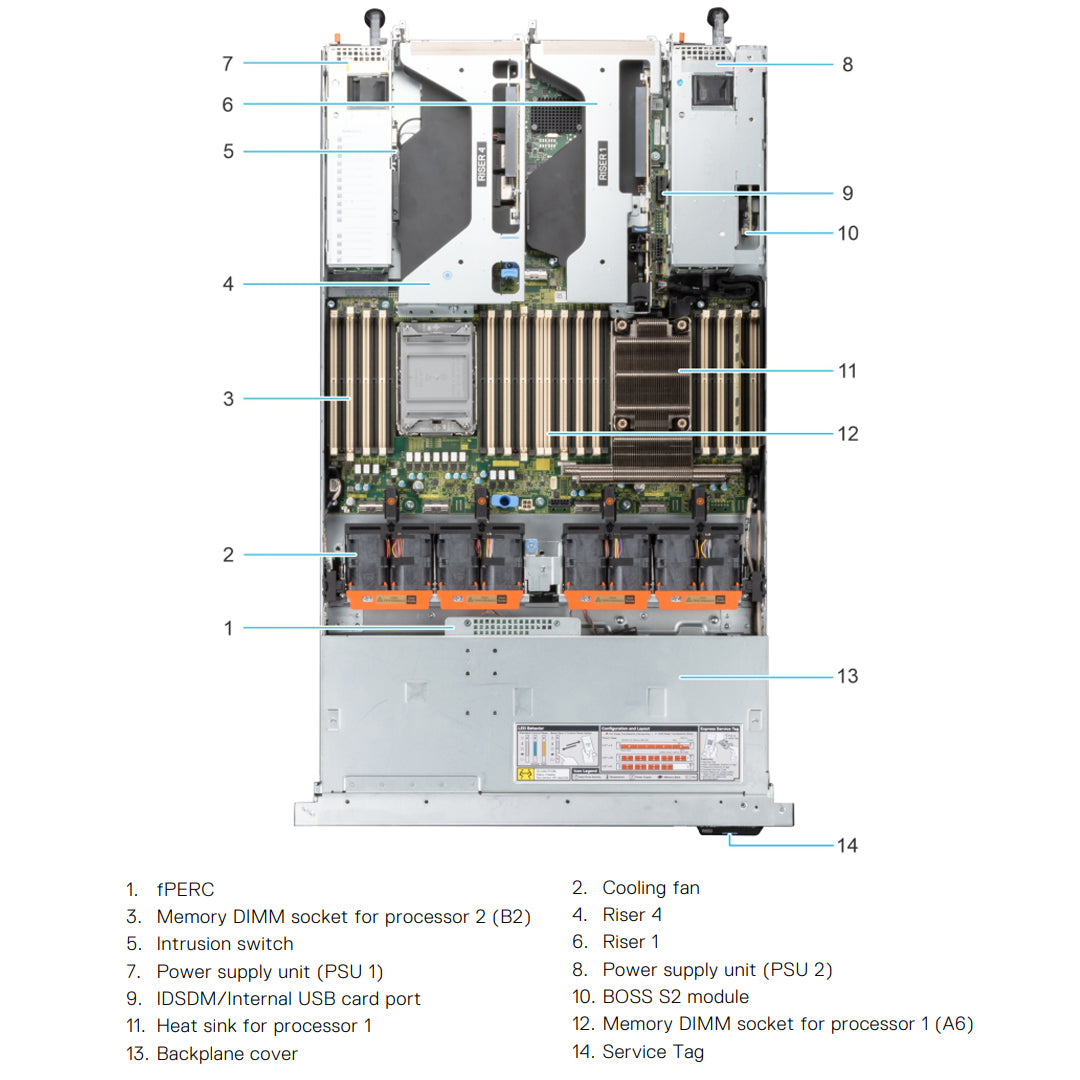

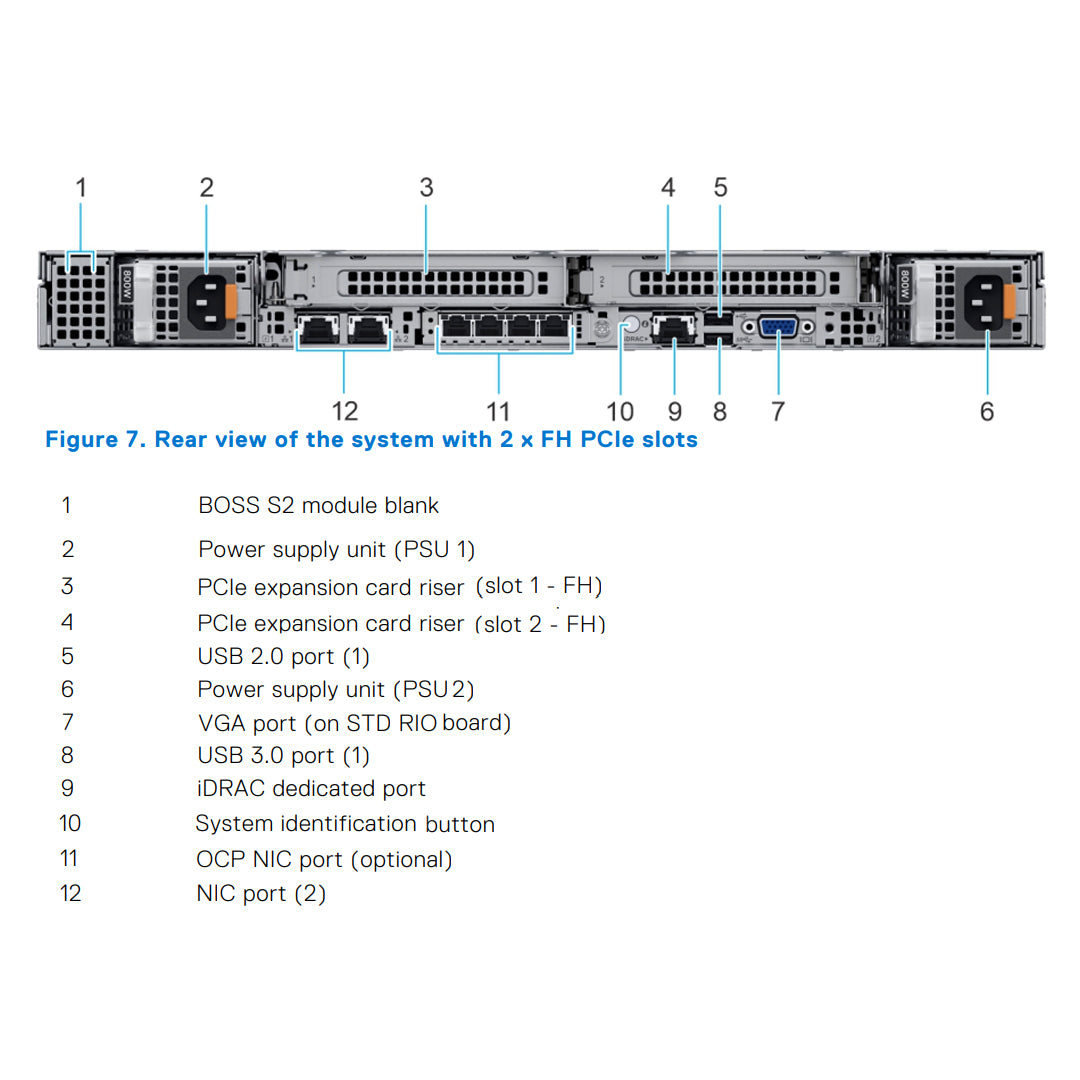

Riser offerings

The Dell PowerEdge R650 Rack Server have a no riser option. Shown below are the riser offerings for the PowerEdge R650.

Config No.	Riser configuration	No. of CPUs	PERC type supported	Rear storage	x8 CPU1	x16 CPU1	x8 CPU2	x16 CPU2
0-1	R2a+R3a	1	fPERC	No	0	1	0	0
0-2	R2a+R3a	2	fPERC	No	0	1	0	2
1	R2b+R3a	2	fPERC	No	0	1	1	1
2	R3a	2	fPERC	Yes	0	0	0	1
3	R1a+R4c+R4d	2	fPERC	No	0	1	0	1
4	R2a+R3a+R1d paddlecard	2	No	No	0	1	0	2
5	R2b+R3a+R1d paddlecard	2	No	No	0	1	1	1
6	R3a+R1d paddlecard	2	No	Yes	0	0	0	1
Riser R1D Paddle card (routes additional PCIe lanes for NVMe connection in the front backplane)

Riser offerings

Power Supply Unit (PSU)

Wattage	Frequency	Voltage	Class	Heat dissipation
800W AC/HVDC	50/60Hz	100~240Vac/9.2-4.7A 240Vdc/3.8A	Platinum	3139 BTU/hr
1100W AC/ HVDC	50/60Hz	100~240Vac/12.65-6.3A 240Vdc/5.2A	Titanium	4299 BTU/hr
1100W -48VDC	N/A	-48~-60Vdc/27A	N/A	4265 BTU/hr
1400W AC/HVDC	50/60Hz	100~240Vac/12-8A 240Vdc/6.6A	Platinum	5459 BTU/hr

Dimensions & Weight

Depth: 758.27 mm (29.85")
Height: 42.8 mm (1.68")
Width: 482 mm (18.97")
Weight: 21.2 kg (46.73lb)
