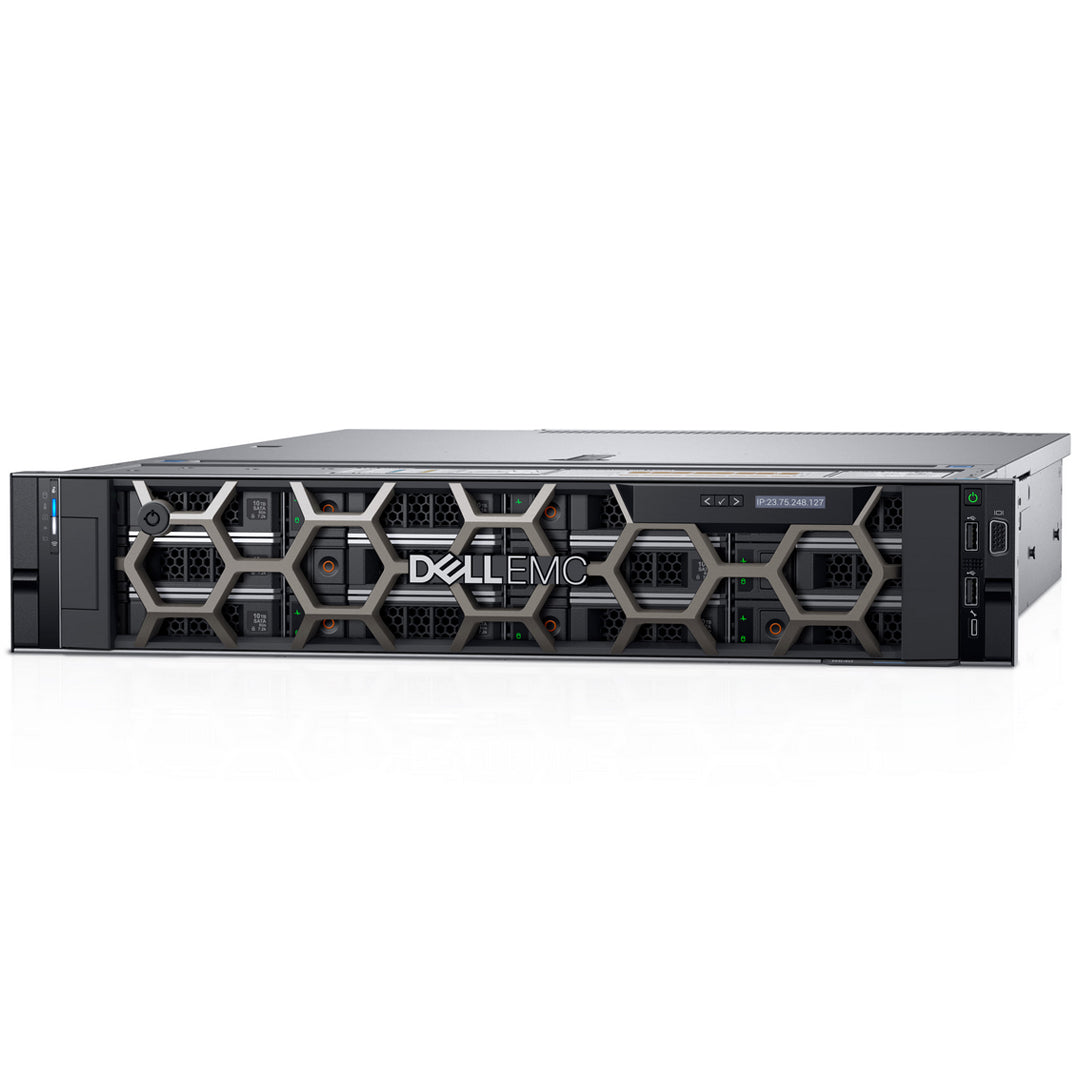

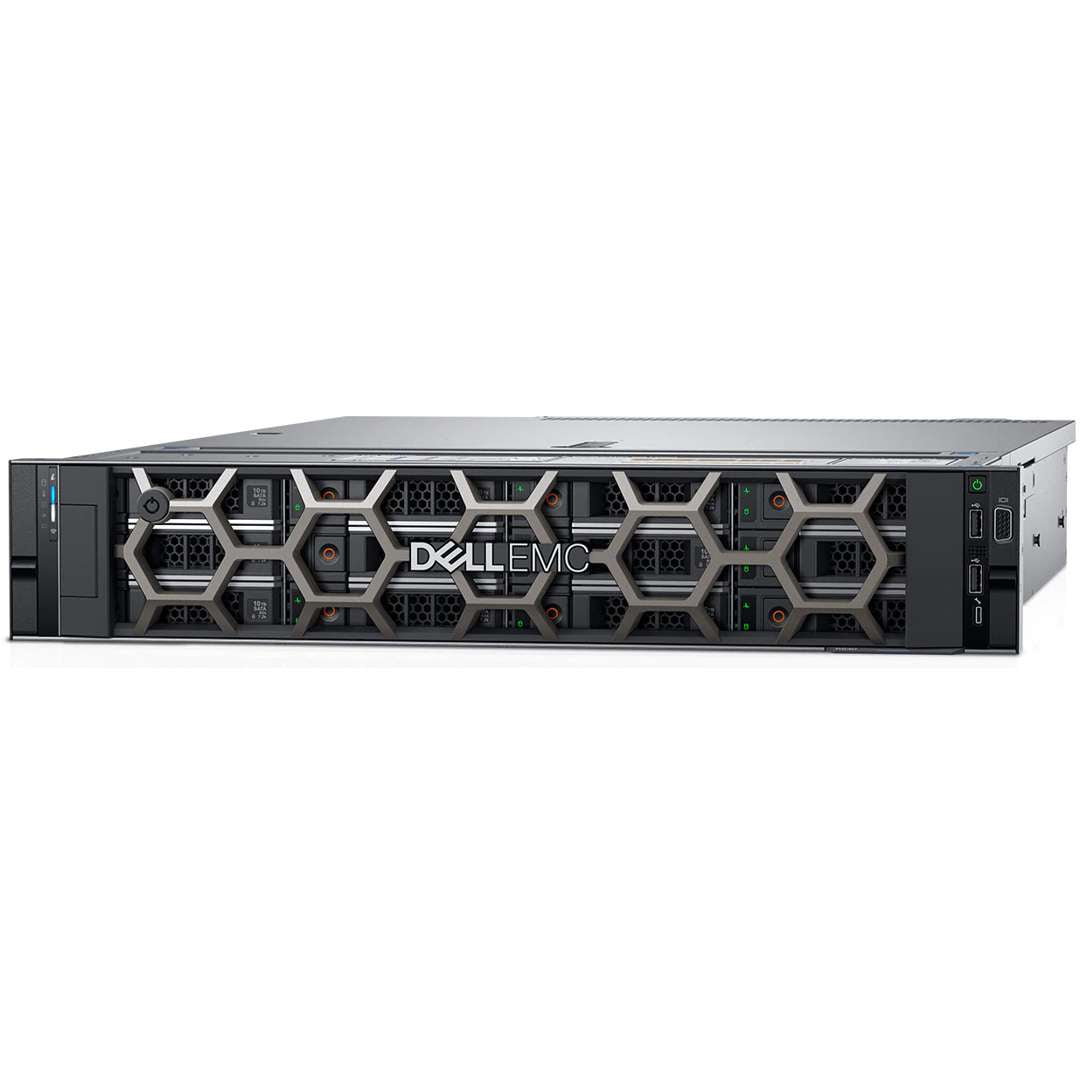

Dell PowerEdge R540 Rack Server Chassis (8x3.5")

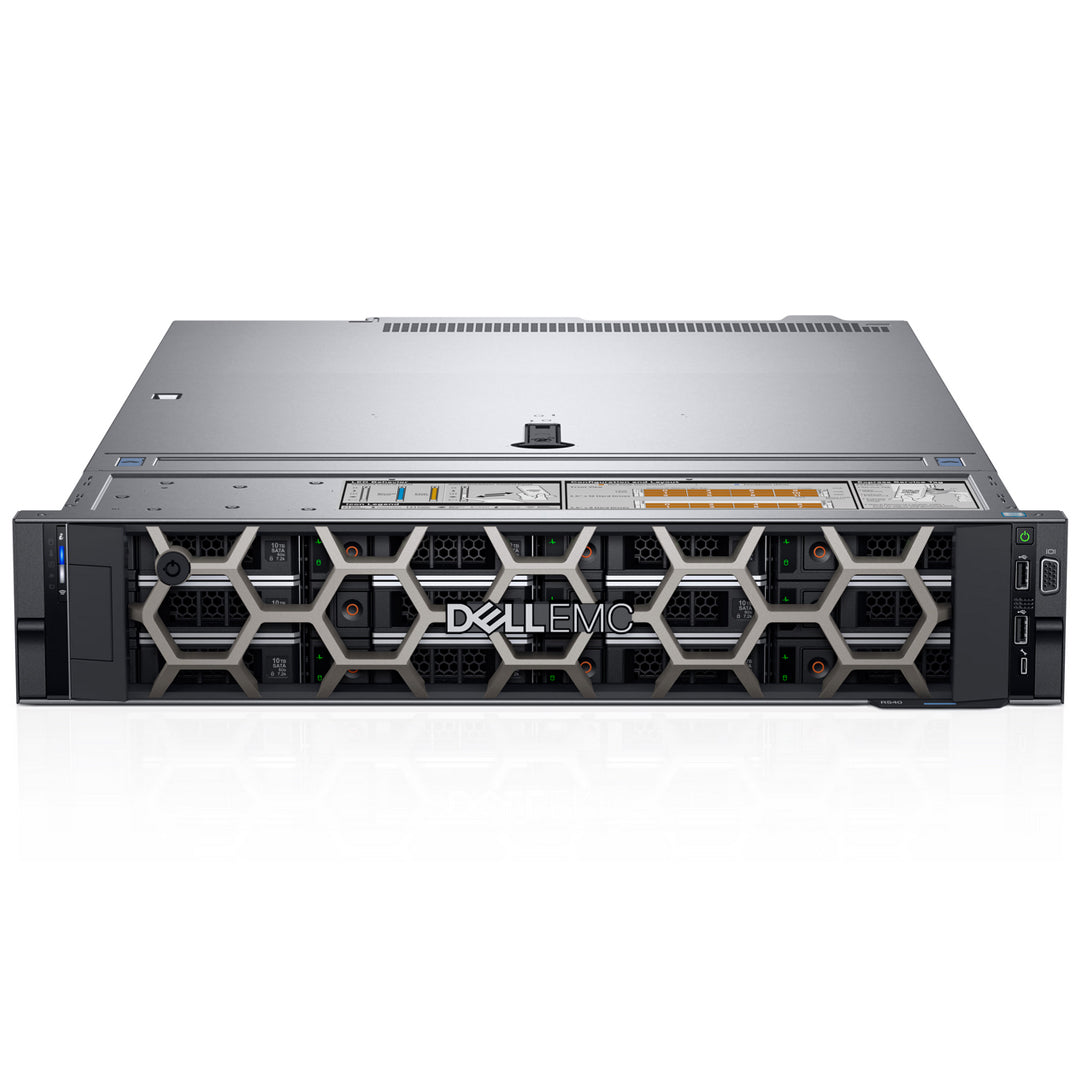

Dell Poweredge R540 Rack Server Chassis (8X3.5") | 94P80

SKU: 94P80

Dell Poweredge R540 Rack Server Chassis (8X3.5") | 94P80

Name: Dell Poweredge R540 Rack Server Chassis (8X3.5") | 94P80
Brand: Dell
SKU: 94P80
Price: 977.5 USD
Availability: InStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

$977.50

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

2U rack server

Processor Max: 20 Cores

2 x Intel Xeon Scalable

Memory Max: 1TB

16 DDR4 RDIMM/LRDIMM 2666Mhz

Embedded NIC:

LOM1: 2x1G
LOM Riser: 2x1GbE, 2X10GbE, 2x10GbE SFP+

Storage Max: 168TB

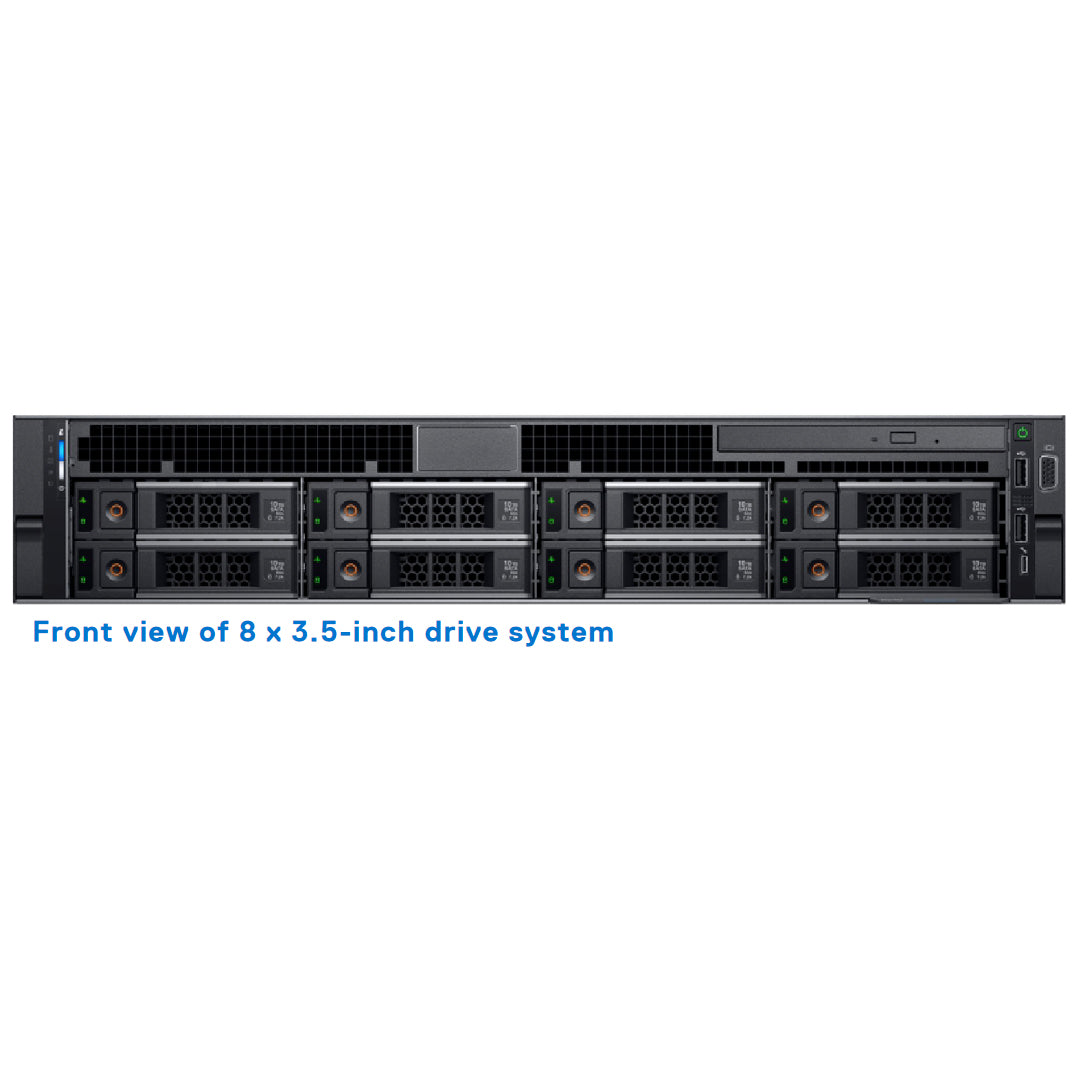

8x 3.5" + 2x 2.5" rear drive SAS/SATA (HDD/SSD) Rear Storage Max: 28TB

2 LFF SAS/SATA (HDD/SSD)

Storage Controller:

S140 (SW RAID) SATA
Internal: H330, H350, H730P, H740P, H750
External: HBA355e, H840, 12Gbps SAS HBA
SAS HBA: HBA330, HBA350i

Rear Storage:

2x 3.5" Drives (12 Bay Chassis Only)

PCIe Support:

w/ Rear Drive: 2 LP or 1 FH PCIe 3.0 Slots
w/o Rear Drive:1 LP + 4 FH PCIe 3.0 Slots

GPU:

None

Boot Options:

BOSS-S2
IDSDM with vFlash card

Remote Management:

iDRAC9 with Lifecycle Controller

Other Versions

Ideal for:

Data Analytics
Mail
Video Streaming
Virtualization
Web Tech

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Feature	PowerEdge R540 Technical specification
Processor	Up to two Intel® Xeon® Scalable processors, up to 20 cores per processor
Memory	16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 1TB max*
Storage controllers	Internal controllers: PERC H330, H730p, H740p, HBA330, Software RAID (SWRAID) S140 Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB External PERC (RAID): H840 External HBAs (non-RAID): 12 Gbps SAS HBA

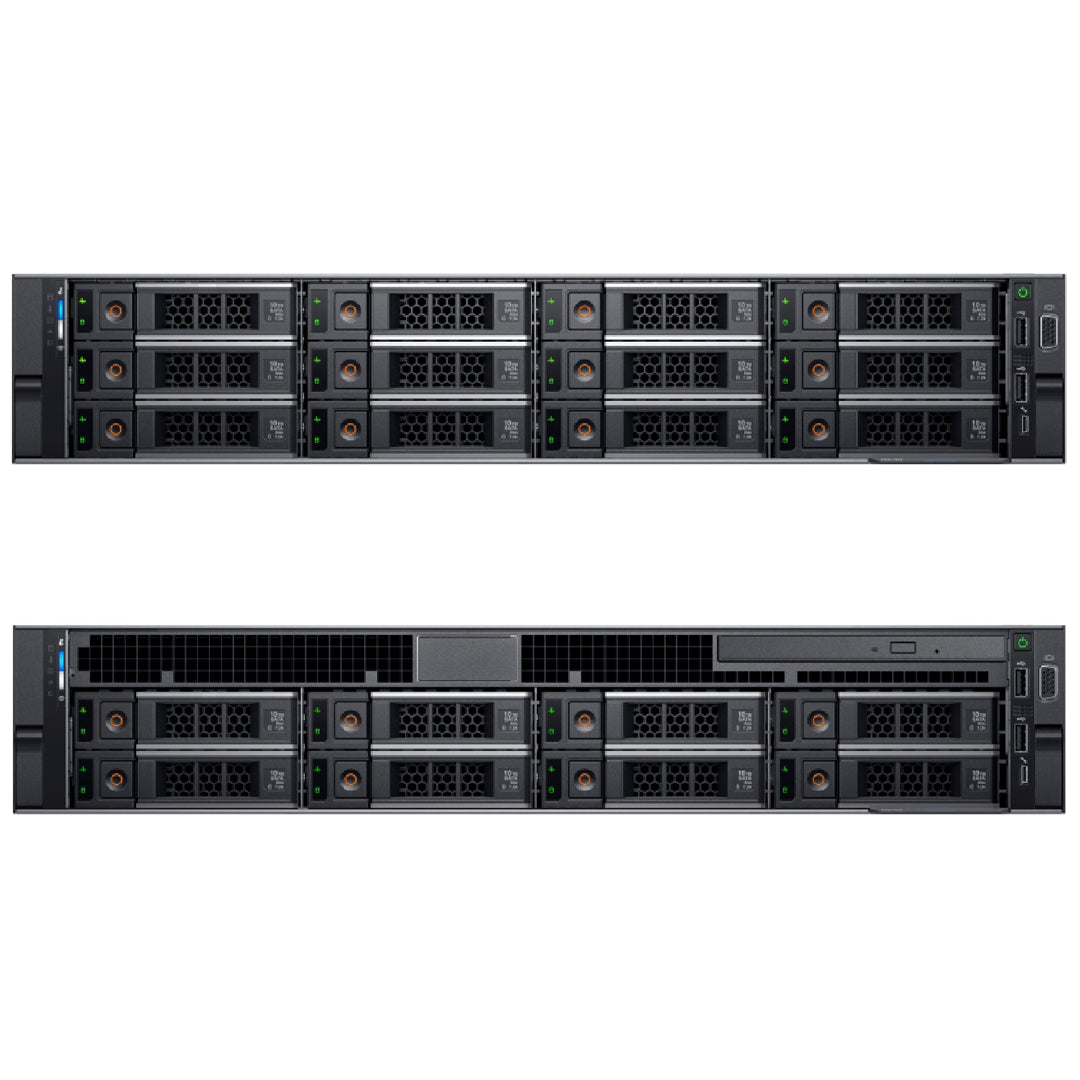

Drive bays	Front drive bays: Up to 12 x 3.5” SAS/SATA HDD max 168TB Rear drive bays: Up to 2 x 3.5 SAS/SATA HDD max 28TB Optional DVD-ROM, DVD+RW
Power supplies Fans	Titanium 750W, Platinum 495W, 750W, and 1100W 450W bronze 240HVDC 750W, 1100W 380 VDC Six hot pluggable fans for N+1 redundancy
Sizing	Form factor: Rack (2U)	Chassis max depth: 693.81 mm (without bezel) Max depth: 707.74 mm (with bezel)
Bezel	Optional LCD or security bezel
Embedded / At-Server	iDRAC9 with Lifecycle Controller iDRAC Direct	iDRAC REST API with Redfish Quick Sync 2 BLE/wireless module
Consoles & Mobile	OpenManage Enterprise (available soon) OpenManage Essentials	OpenManage Mobile OpenManage Power Center
Integrations	OpenManage integrations: Microsoft® System Center, VMware® vCenter™, BMC Software
Connections	Nagios Core and Nagios XI, HPE Operations Manager i (OMi)
Tools	Dell EMC Repository Manager Dell EMC Update Package Dell EMC System Update Dell EMC Server Update Utility	iDRAC Service Module OpenManage Server Administrator OpenManage Storage Services
Security	TPM 1.2/2.0 optional Cryptographically signed firmware Silicon Root of Trust	Secure Boot System Lockdown System Erase

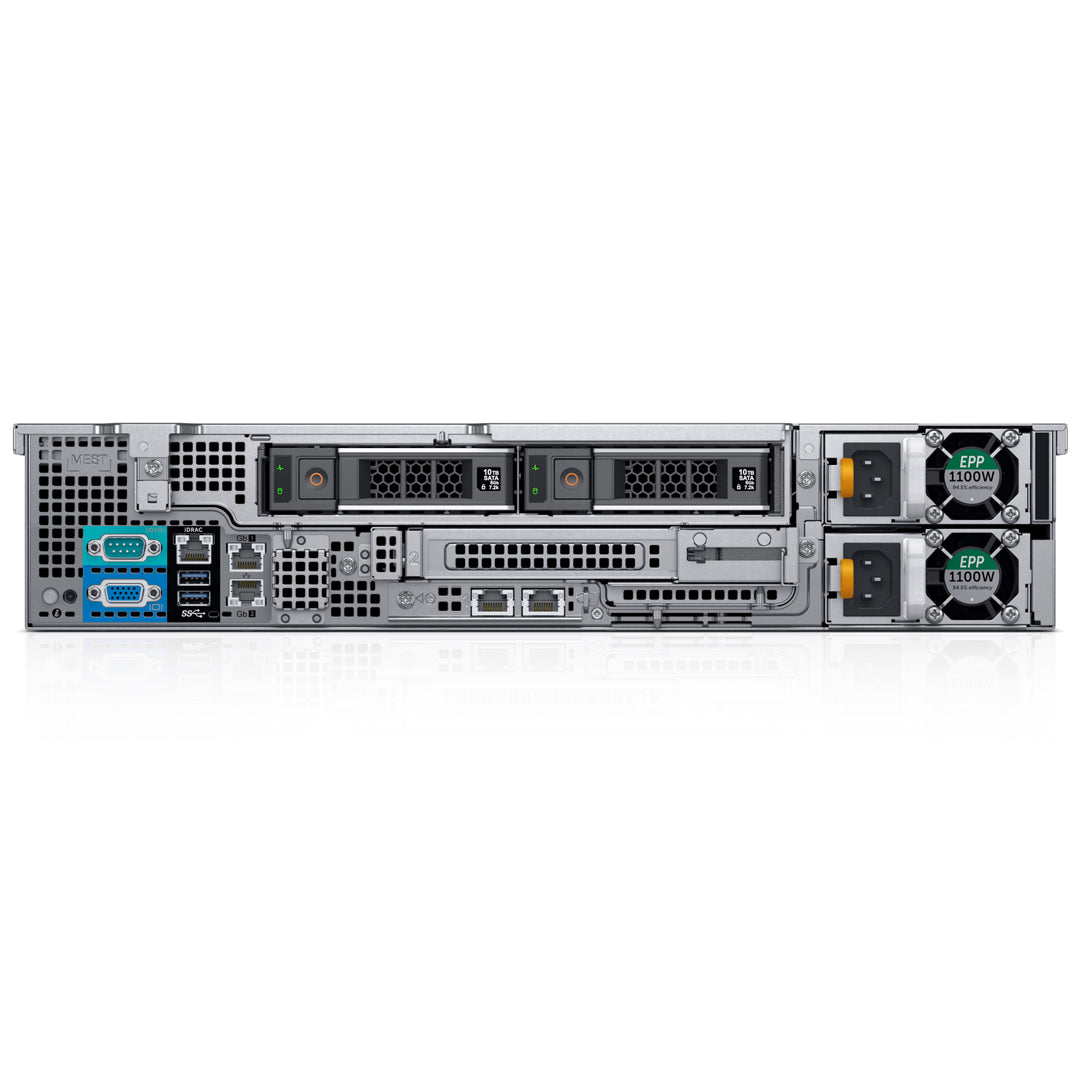

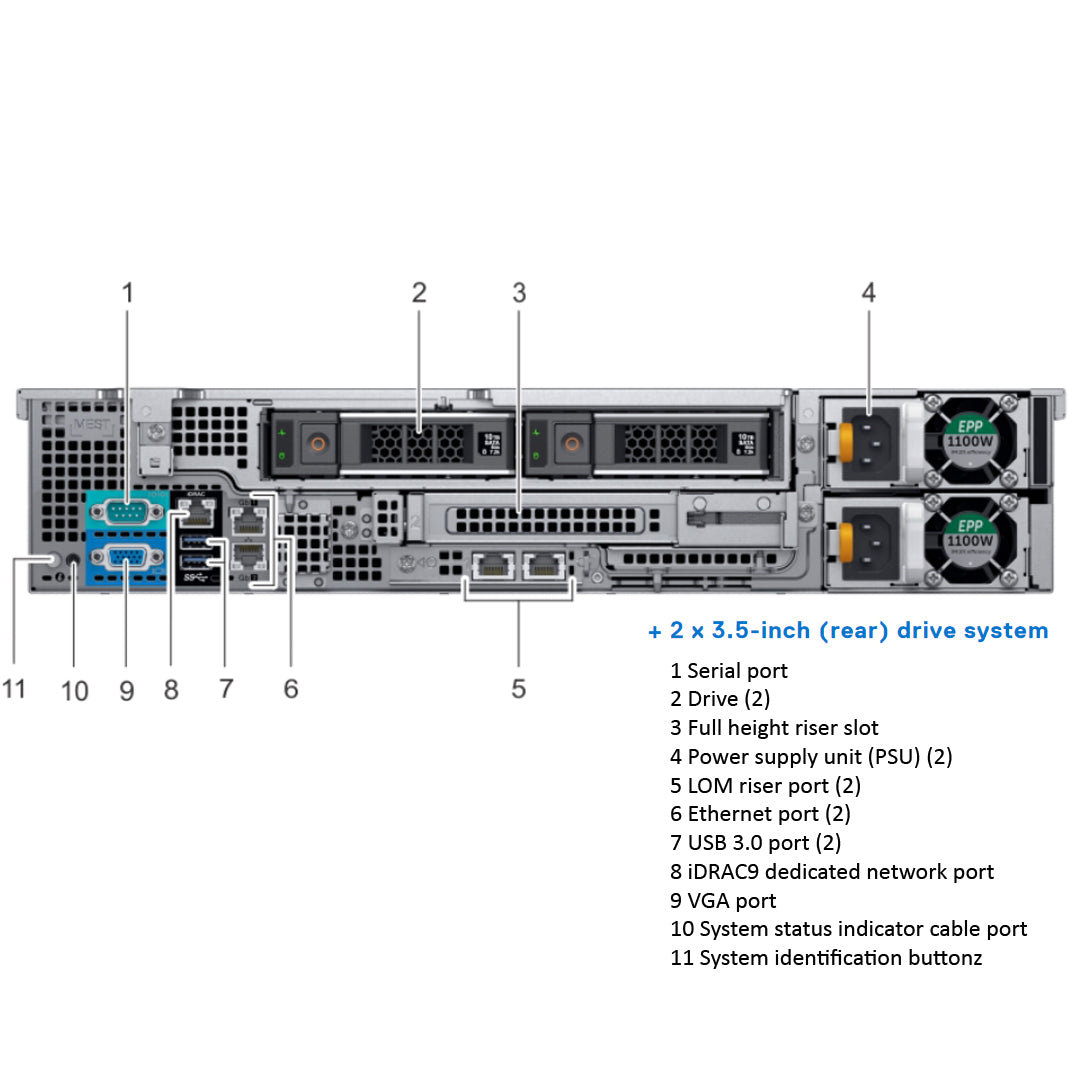

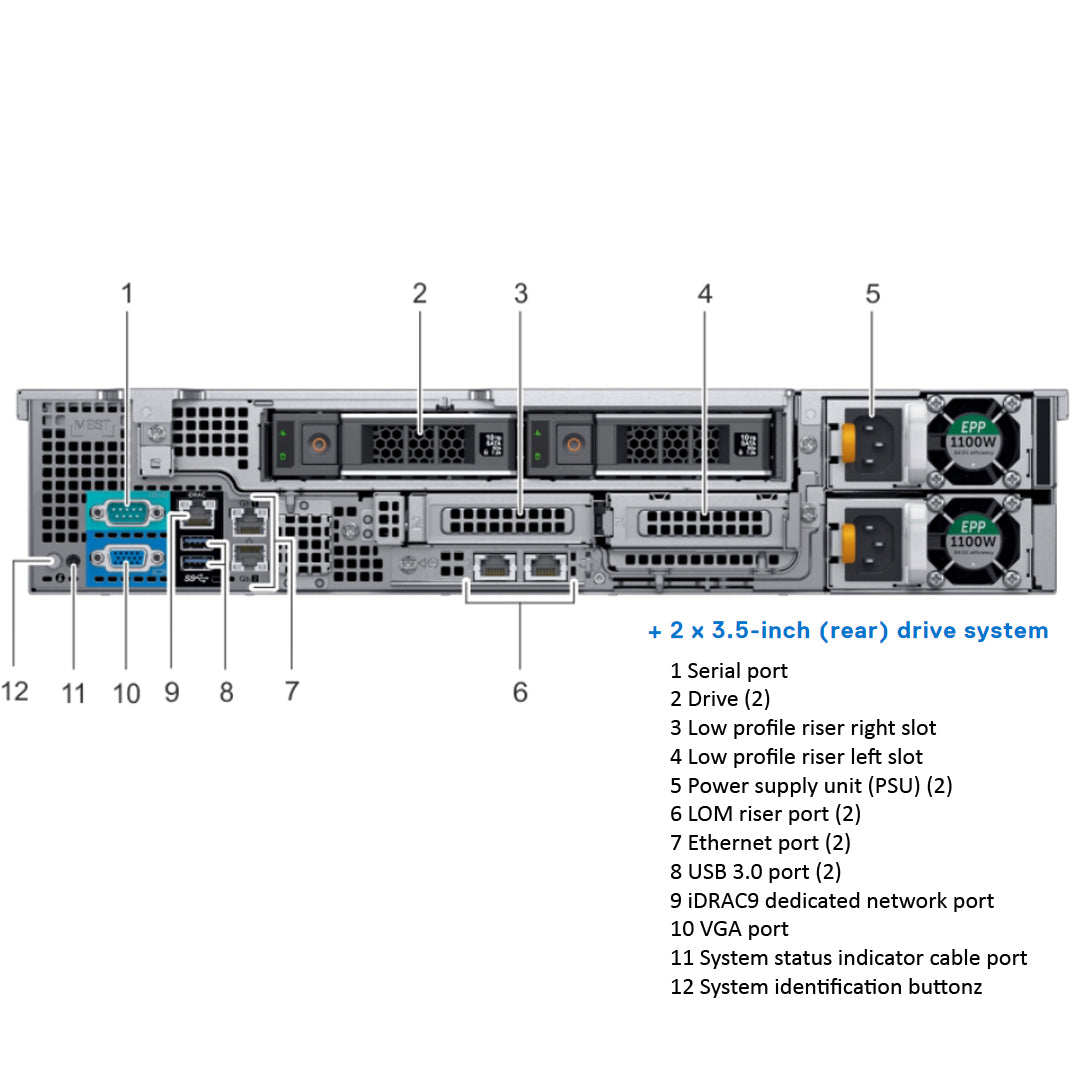

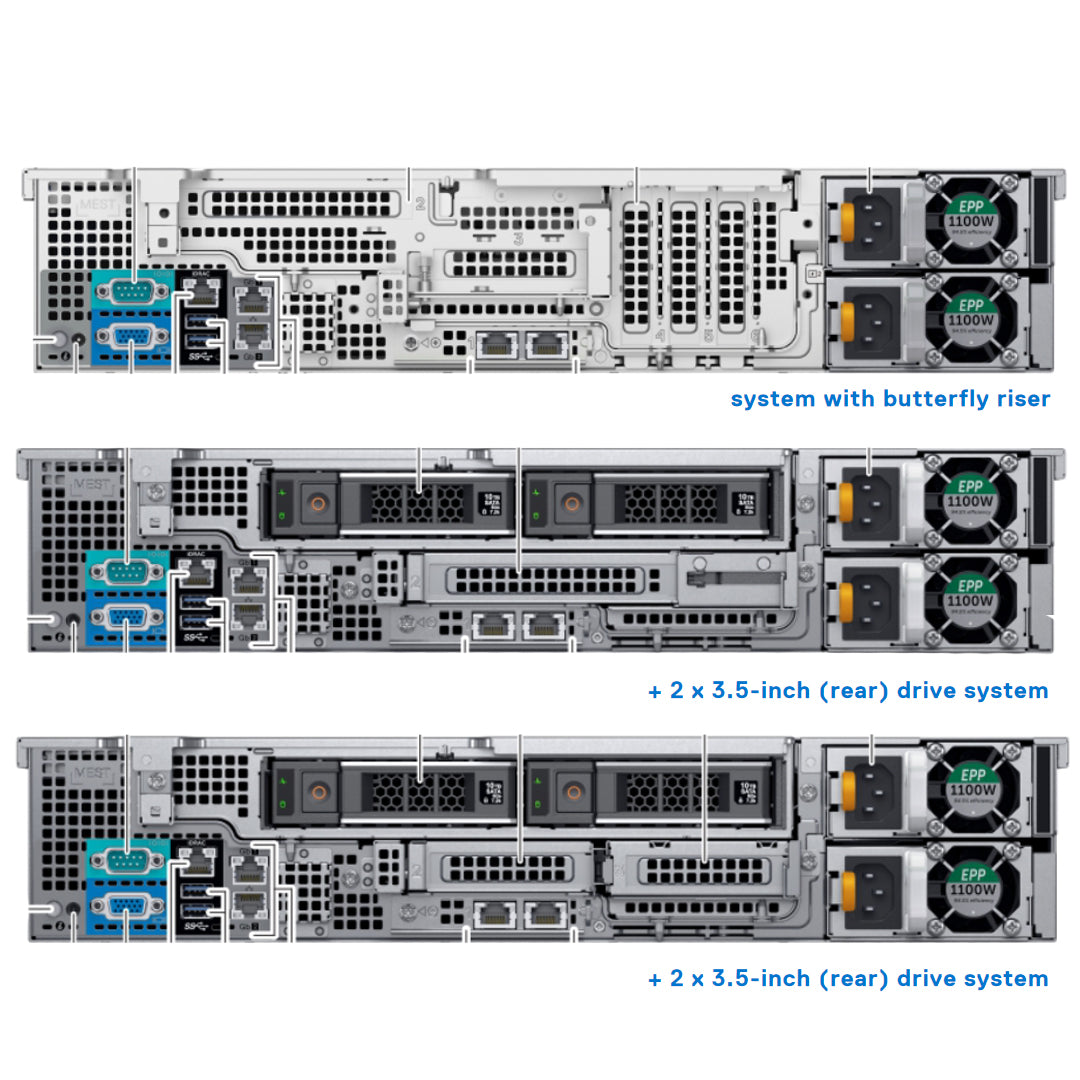

I/O & Ports	Network options: 2 x 1GE LOM + (optional) LOM Riser 2 x 1GE 2 x 10GE SFP+ 2 x 10GE BaseT Front ports: Video, 1 x USB 2.0, dedicated IDRAC Direct USB Rear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network port Non rear storage config: 5 PCIe slots 1xFH/FL + 1xHH/HL (2U Butterfly riser) slots + 3 HH/HL slots Rear storage config: 2 or 1 PCIe slots 2xHH/HL PCIe slot or 1x FH/HL PCIe slot
Supported operating systems	Canonical® Ubuntu® LTS Citrix® XenServer® Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi

Spec Sheet 4

Feature	PowerEdge R540	PowerEdge R530
Processor	The 2nd Generation Intel® Xeon® Scalable processor family	Intel® Xeon® Processor E5-2600 v3 or E5-2600 v4 product family
Chipset	Intel C620 series chipset	Intel C610
Memory	16x DDR4 RDIMM/LRDIMM	12 x DDR4 RDIMM/LRDIMM
Drive bays	12 x 3.5 inch SAS/SATA Rear: 2 x 3.5 inch SAS/SATA	12 x 3.5 inch SAS/SATA
PCIe Slots	Up to 5 x PCIe Gen3	Up to 3 x PCIe Gen3, and 2 x PCIe Gen2
RAID Controller	PERC 9/10/11	Mini-PERC 9
RAID Controller	● 14 x 3.5 inches or 2.5 inch SATA/SAS ● 8 x 3.5 inch SATA/SAS ● 2 x 2.5 inches rear SATA/SAS	● 8 x 2.5 inches or 3.5 inches SAS/ SATA
Embedded NIC	2x 1 Gb LOM and optional LAN on riser card: ● 2X 1 GbE ● 2X 10 GbE ● 2X 10 GbE SFP+	4 x 1 Gb
Power Supplies	● 450 W AC Cable PSU ● 495 W AC ● 750 W AC ● 750 W Mixed Mode HVDC (For China Only) ● 750 W Mixed Mode (DC input for China Use Only) ● 1100 W AC ● 1100 W Mixed Mode HVDC	● 450 W AC Cable PSU ● 495 W AC ● 750 W AC ● 1100 W AC ● 750 W DC
Remote Management	iDRAC9	iDRAC8
TPM	TPM 2.0 China, TPM1.2, TPM2.0	TPM China, TPM1.2, TPM2.0
Rear USB 3.0 port	Two rear ports	One rear port
iDRAC Direct front port	Micro-AB USB	Micro-AB USB
Cooling Fan	Up to 6 fan support	Up to 6 fan support
IDSDM Module	Internal Dual SD Module (IDSDM) and vFlash	Internal Dual SD Module (IDSDM)
BOSS Module	M.2 SATA interface	None
