Base Standard Capabilities
| Feature | PowerEdge R540 Technical specification | |
|---|---|---|
| Processor | Up to two Intel® Xeon® Scalable processors, up to 20 cores per processor | |
| Memory | 16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 1TB max* | |
| Storage controllers | Internal controllers: PERC H330, H730p, H740p, HBA330, Software RAID (SWRAID) S140 Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB External PERC (RAID): H840 External HBAs (non-RAID): 12 Gbps SAS HBA | |

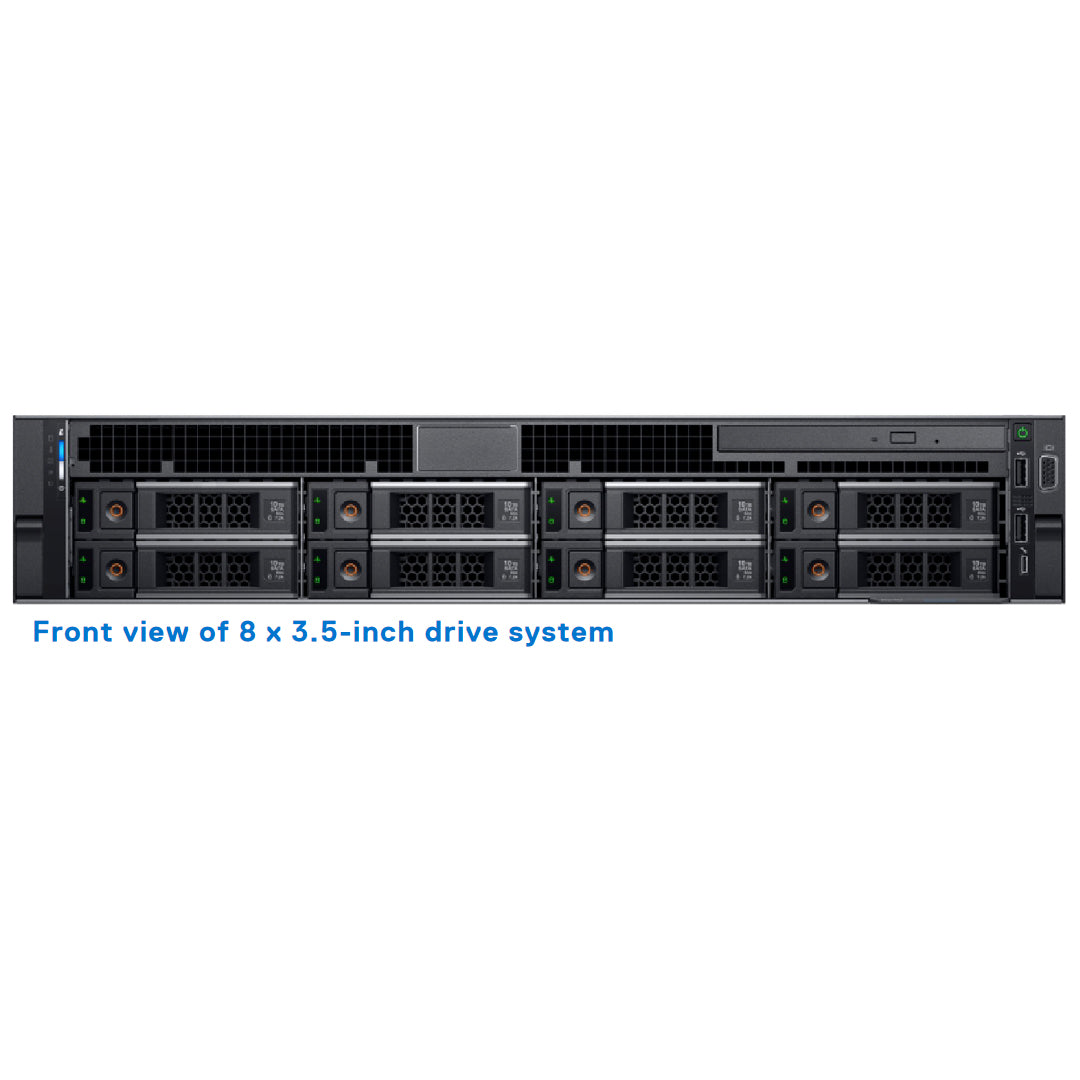

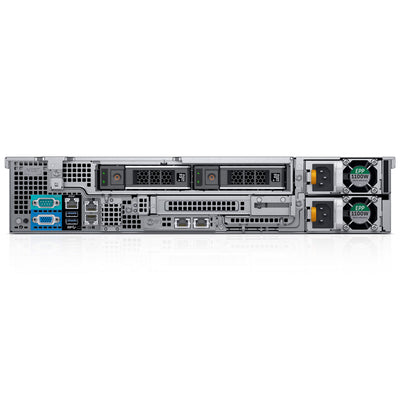

| Drive bays | Front drive bays: Up to 12 x 3.5” SAS/SATA HDD max 168TB Rear drive bays: Up to 2 x 3.5 SAS/SATA HDD max 28TB Optional DVD-ROM, DVD+RW | |
| Power supplies Fans | Titanium 750W, Platinum 495W, 750W, and 1100W 450W bronze 240HVDC 750W, 1100W 380 VDC Six hot pluggable fans for N+1 redundancy | |
| Sizing | Form factor: Rack (2U) | Chassis max depth: 693.81 mm (without bezel) Max depth: 707.74 mm (with bezel) |
| Bezel | Optional LCD or security bezel | |
| Embedded / At-Server | iDRAC9 with Lifecycle Controller iDRAC Direct | iDRAC REST API with Redfish Quick Sync 2 BLE/wireless module |
| Consoles & Mobile | OpenManage Enterprise (available soon) OpenManage Essentials | OpenManage Mobile OpenManage Power Center |
| Integrations | OpenManage integrations: Microsoft® System Center, VMware® vCenter™, BMC Software | |
| Connections | Nagios Core and Nagios XI, HPE Operations Manager i (OMi) | |
| Tools | Dell EMC Repository Manager Dell EMC Update Package Dell EMC System Update Dell EMC Server Update Utility | iDRAC Service Module OpenManage Server Administrator OpenManage Storage Services |
| Security | TPM 1.2/2.0 optional Cryptographically signed firmware Silicon Root of Trust | Secure Boot System Lockdown System Erase |
| I/O & Ports | Network options:

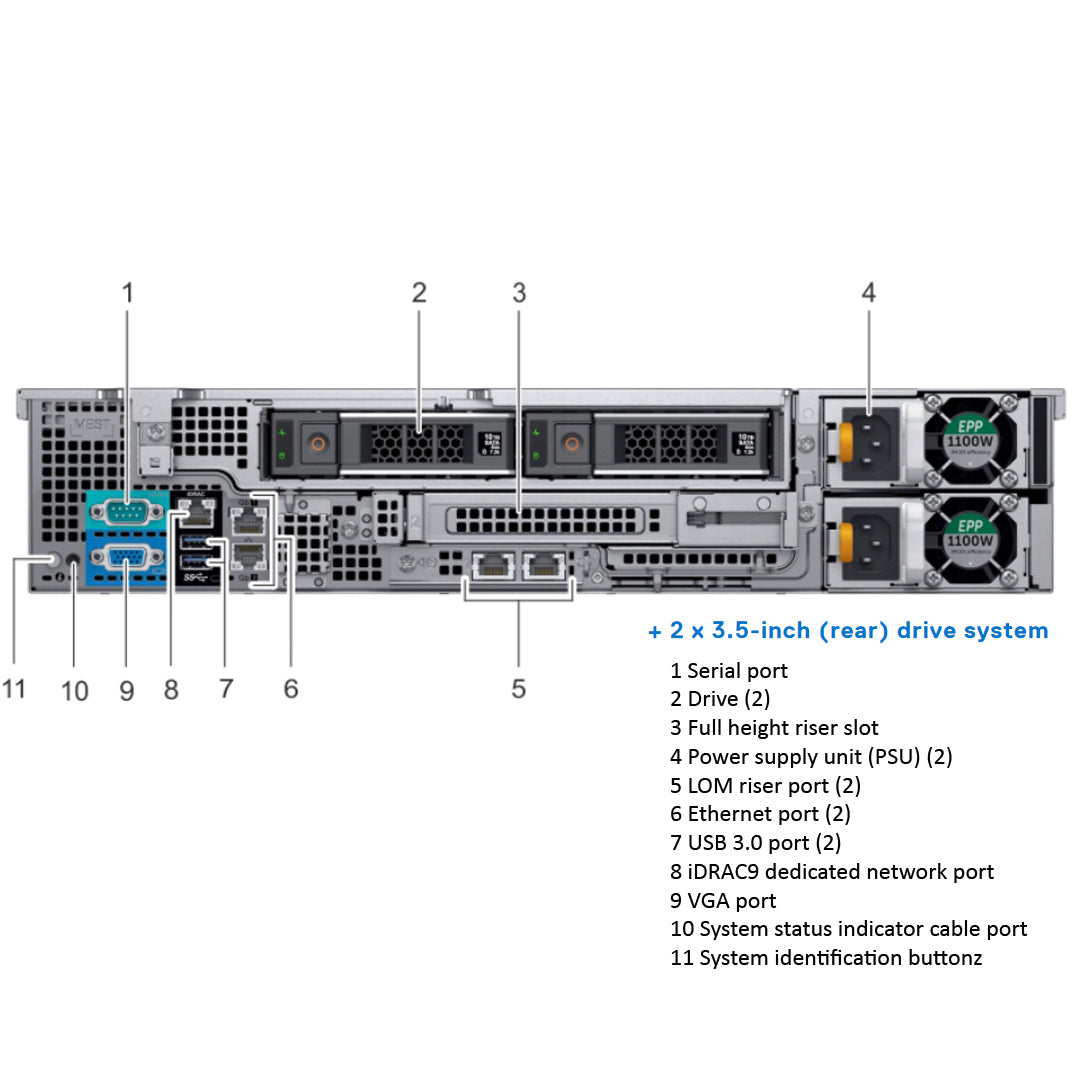

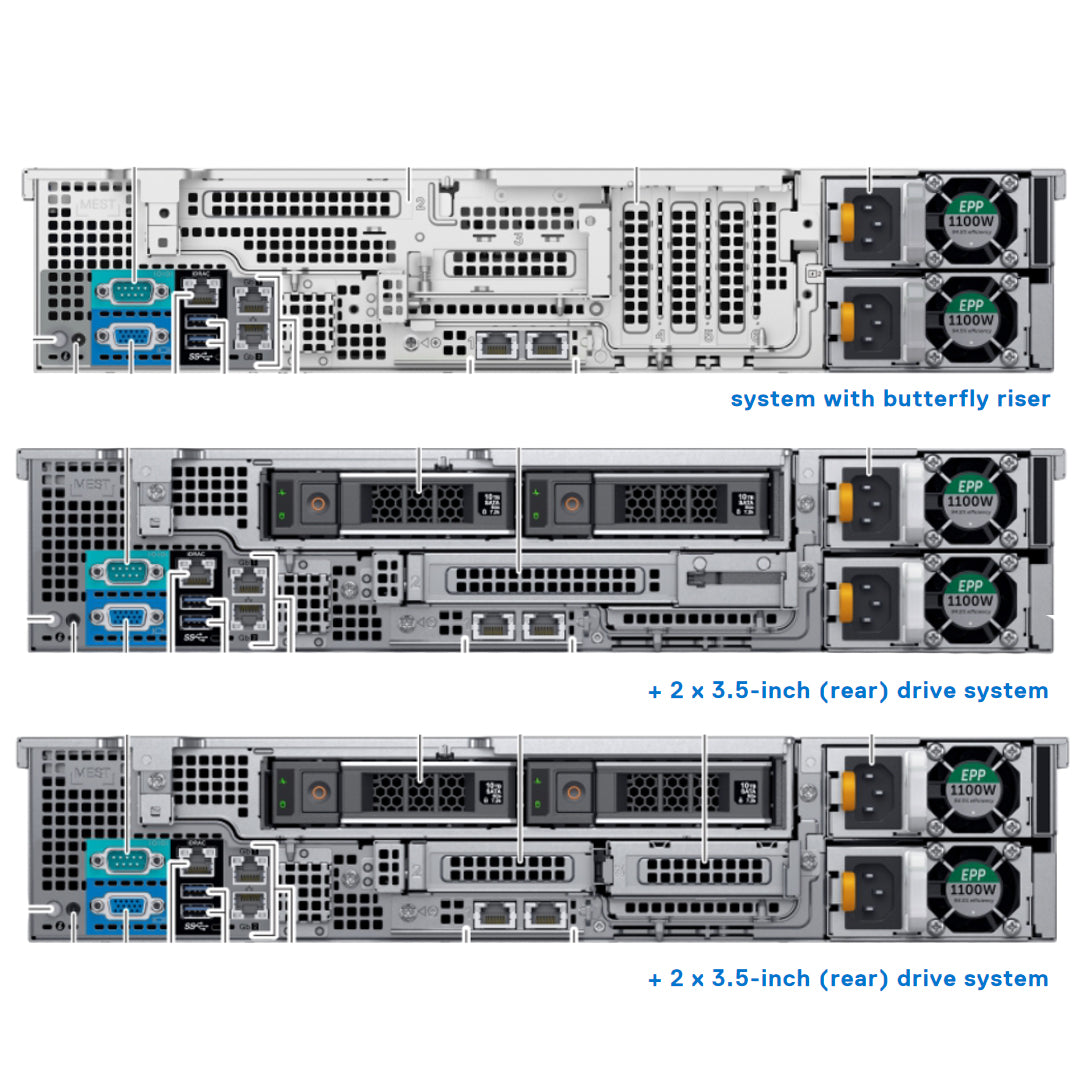

Rear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network port Non rear storage config:
| |
| Supported operating systems | Canonical® Ubuntu® LTS Citrix® XenServer® Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi | |
Spec Sheet 4
| Feature | PowerEdge R540 | PowerEdge R530 |
|---|---|---|
| Processor | The 2nd Generation Intel® Xeon® Scalable processor family | Intel® Xeon® Processor E5-2600 v3 or E5-2600 v4 product family |
| Chipset | Intel C620 series chipset | Intel C610 |
| Memory | 16x DDR4 RDIMM/LRDIMM | 12 x DDR4 RDIMM/LRDIMM |
| Drive bays | 12 x 3.5 inch SAS/SATA Rear: 2 x 3.5 inch SAS/SATA | 12 x 3.5 inch SAS/SATA |
| PCIe Slots | Up to 5 x PCIe Gen3 | Up to 3 x PCIe Gen3, and 2 x PCIe Gen2 |
| RAID Controller | PERC 9/10/11 | Mini-PERC 9 |
| RAID Controller | ● 14 x 3.5 inches or 2.5 inch SATA/SAS ● 8 x 3.5 inch SATA/SAS ● 2 x 2.5 inches rear SATA/SAS | ● 8 x 2.5 inches or 3.5 inches SAS/ SATA |
| Embedded NIC | 2x 1 Gb LOM and optional LAN on riser
card: ● 2X 1 GbE ● 2X 10 GbE ● 2X 10 GbE SFP+ | 4 x 1 Gb |
| Power Supplies | ● 450 W AC Cable PSU ● 495 W AC ● 750 W AC ● 750 W Mixed Mode HVDC (For China Only) ● 750 W Mixed Mode (DC input for China Use Only) ● 1100 W AC ● 1100 W Mixed Mode HVDC | ● 450 W AC Cable PSU ● 495 W AC ● 750 W AC ● 1100 W AC ● 750 W DC |
| Remote Management | iDRAC9 | iDRAC8 |
| TPM | TPM 2.0 China, TPM1.2, TPM2.0 | TPM China, TPM1.2, TPM2.0 |
| Rear USB 3.0 port | Two rear ports | One rear port |
| iDRAC Direct front port | Micro-AB USB | Micro-AB USB |
| Cooling Fan | Up to 6 fan support | Up to 6 fan support |
| IDSDM Module | Internal Dual SD Module (IDSDM) and vFlash | Internal Dual SD Module (IDSDM) |
| BOSS Module | M.2 SATA interface | None |
