Dell PowerEdge R760XS Rack Server Chassis (16x 2.5")

SKU: DPE-R760XS-16X2.5

Dell PowerEdge R760XS Rack Server Chassis (16x 2.5")

Name: Dell PowerEdge R760XS Rack Server Chassis (16x 2.5")
Brand: Dell
SKU: DPE-R760XS-16X2.5
Availability: InStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

2U rack server

Processor | Max: 32 Cores

2x Gen 4 Intel Xeon Scalable

Memory | Max: 1TB

16 ECC DDR5 RDIMM 4800Mhz

Storage | Max: 244.48TB

Front bays:
Up to 16 x 2.5" SAS/SATA (HDD/SSD) Max: 121.6 TB
Rear bays:
Not Supported

Boot Options

Boot Optimized Server Storage (BOSS-N1) Hot-Swap
USB

RAID Controller: (Adapter PERC)

S160 (SATA/NVMe SW RAID)
H355, H755, H755N, H965i, HBA355i, HBA355e, H965e

LOM

2 x 1GbE LOM card with BCM5720 LAN controller

Networking Options | Max Speed: 4x 25GbE Ports

OCP 3.0 x8 Mezz 3.0

Remote Management:

iDRAC9 with Lifecycle Controller

PCIe Slots:

1 CPU Config: Up to 4 PCIe slots (2 x8 Gen5, 1 x16 Gen4, 1 x8 Gen4)
2 CPU config: Up to 6 PCIe slots (2 x16 Gen5, 3 x16 Gen4, 1 x8 Gen4)

GPU:

2 x 75 W SW, LP

Ideal for:

Database
Virtual Desktop Interface (VDI)
Virtualization
Virtual Machines (VM)

Buy the performance and flexibility you need

The new Dell PowerEdge R760xs is a 2U, two-socket rack server. Buy the best fit in scalable performance and large storage capability with this purpose-built 2U system. Focused on delivering the latest technology to power the most popular applications and workloads used by businesses today, including virtual desktop infrastructure (VDI), virtual machines (VMs), and software-defined storage (SDS). All delivered in a thoughtfully crafted platform that will provide balanced compute that fits in your current infrastructure.

Easily configurable

Maximize your workload performance and boost outcomes with scale as you grow to compute, flexibly supporting a wide range of GPUs in a dual-socket/2U air-cooled server, accelerating applications from AI training and inferencing to Digital Twins to performance graphics and dense power-user collaboration environments.

Add up to two 4th generation Intel® Xeon® Scalable processors with up to 32 cores per socket for faster performance
Accelerate in-memory workloads with up to 16 DDR5 RDIMMS up to 4800 MT/sec
Improve data throughput and reduce latency with support up to 8 I/O device (up to available 6 PCIe slots, 1 OCP 3.0 networking slot, and 1 dedicated PERC slot)
Storage options include up to 12x 3.5” HDDs/SSDs, or up to 16x 2.5” HDD/SSDs, plus up to 8x NVMe drives

A breeze to cool

The 6 hot swappable fans come in 3 different types. Standard (STD) fans or the High performance Silver (HPR) fans or the High performance Gold (VHP) fans. Most configurations have the Standard Fan kit, If you install the BOSS-N1, GPU, or Rear Drives, Fan 1 will be upgraded to a GOLD fan. Below is a table outlining each config.

Thoughtfully designed to fit in your current air-cooled infrastructure
Alleviate the worry about expensive liquid cooling retrofitting to your data center
Synchronize your workload needs with a tailored performance configuration that is air cooled
Minimize the carbon footprint of your data center by better matching the system power consumption with anticipated workload requirements

Increase efficiency and accelerate operations with autonomous collaboration

The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.

Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations

Dell PowerEdge R760XS Base Knowledge

Strike the right balance between performance and flexibility with this air-cooled solution designed for the most popular IT applications.

Add up to two 4th generation Intel^® Xeon^® Scalable processors with up to 32 cores per socket for faster performance
Accelerate in-memory workloads with up to 16 DDR5 RDIMMS up to 4800 MT/sec
Improve data throughput and reduce latency with support up to 8 I/O devices
Up to 6 PCIe slots, 1 OCP 3.0 networking slot, and 1 dedicated PERC slot
Storage options include up to 12 x 3.5” HDDs/SSDs; or up to 16 x 2.5” HDD/SSDs, plus up to 8 x NVMe drives

Dell PowerEdge R760xs Configuration Options

Front Bay Drive Options:

All models support the BOSS option, with the exception of the 12 Bay Chassis. All other options support up to 2 GPUs if both CPUs are installed. The 12 Bay is the only config to support the rear bay option.

Drives Configurations:

0 drive bay
8x 3.5" SAS/SATA
12x 3.5" SAS/SATA + 2x 2.5" SAS/SATA/NVMe
8x 2.5" SAS/SATA
8x 2.5" NVMe

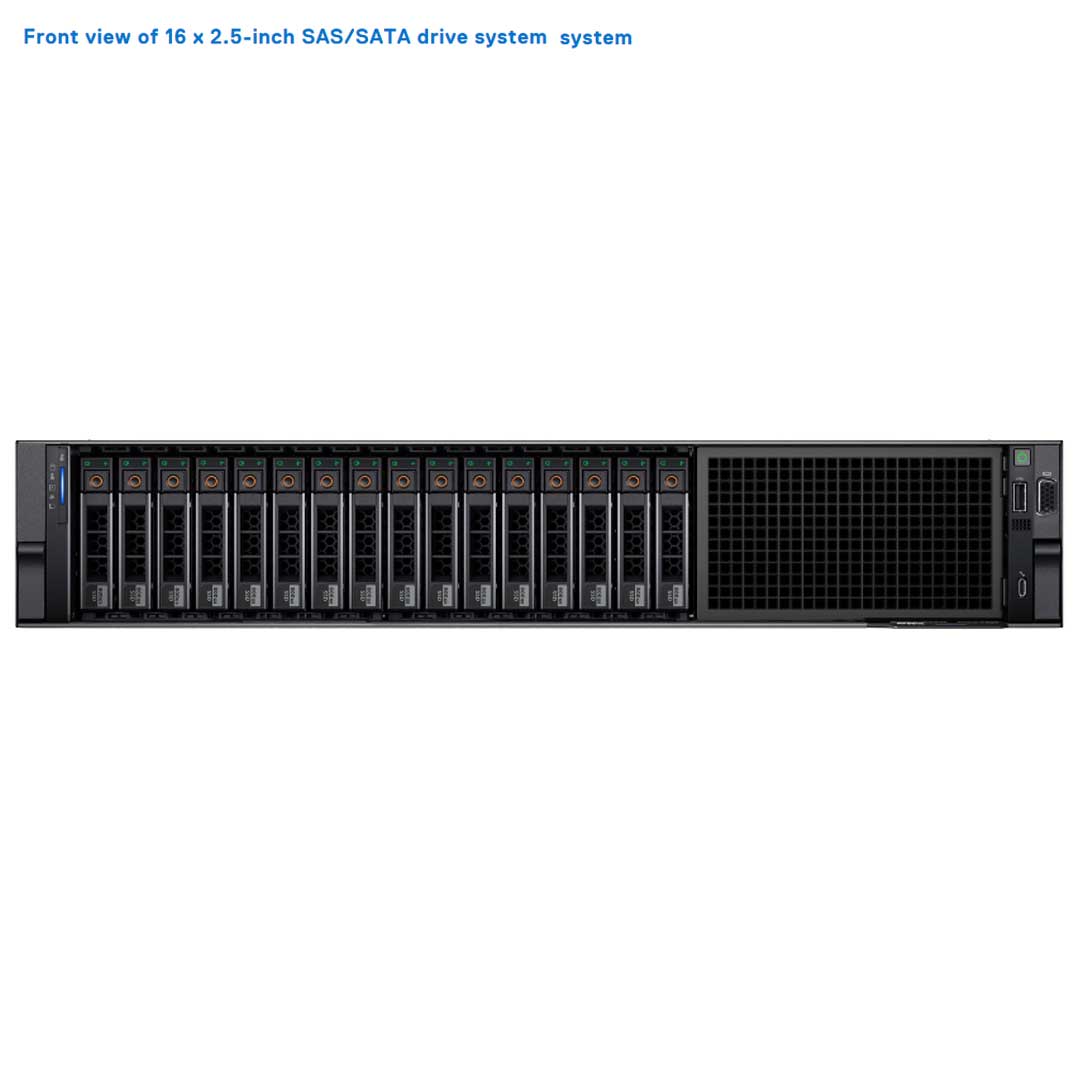

16x 2.5" SAS/SATA
16x 2.5" SAS/SATA + 8x 2.5" NVMe

Rear Bay Drive Options:

Only Supported on the 12 Bay Chassis. The rear-drive module doesn't support Kioxia CM6 series, Samsung PM1735 series, Hynix PE8010 7.68TB, Samsung PM1733a > 1.92TB, Samsung PM1735a > 1.6TB and Redtail NVMe drive.

Drives Supported in Rear

SAS (HDD/SSD)
SATA (HDD/SSD)
NVME (SSD)
Max Drive Capacity: 30.72TB

NOTE:

The 16 x 2.5-inch SAS/SATA backplane configuration is a combination of two 8 x 2.5-inch SAS/SATA backplanes, in 16 x 2.5-inch SAS/SATA + 8 x 2.5-inch NVMe backplane configuration and 16 x 2.5-inch SAS/SATA configuration in PowerEdge R760xs.

Limitations with the 12 LFF Chassis

The 12 Bay Chassis has some major restrictions with Thermal and what gear can be installed.

Cannot support PCIe card with the cooling requirement of more than 300LFM at 55C.
Cannot support OCP card with a cooling requirement of more than 250LFM at 55C
(3Y64D / 4TRD3 / GGGDF / R1KTR / Y4VV5) .
Solarflare Melrose DP 25 GBE SFP28 (TTKWY) not supported.
100 Gb network adapter or 100 Gb OCP is not supported.
The 12 Bay Chassis requires the optical transceiver with higher temperature spec (≥ 85°C) to support (M14MK / N8TDR).
The 12 Bay Chassis is the only one to support the rear drive cage.

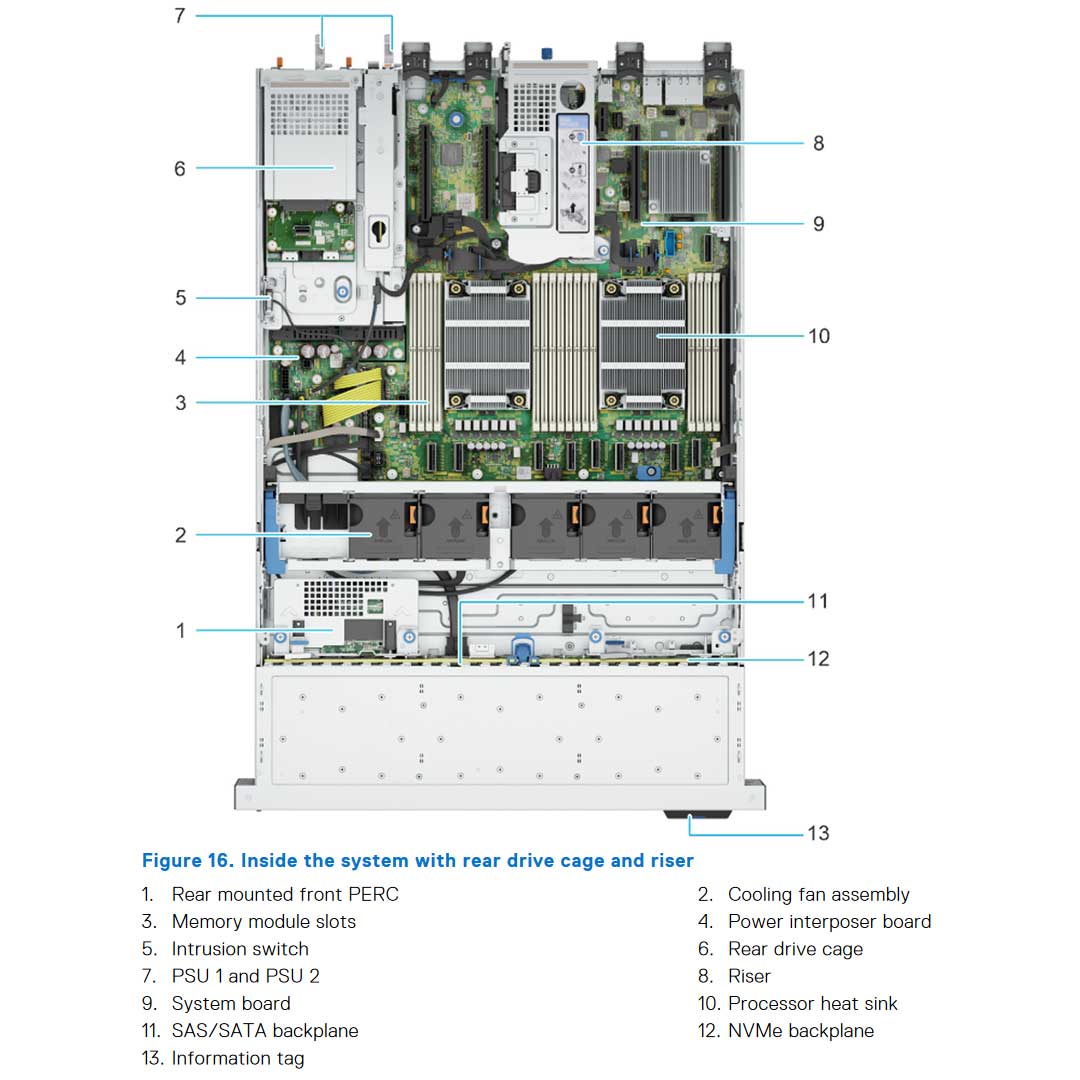

Image of the Dell PowerEdge R760xs Rear Drive Cage

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Feature	Technical Specifications
Processor	Up to two 4th Generation Intel Xeon Scalable processor with up to 32 cores per processor
Memory	• 16 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 4800 MT/s, supports registered ECC DDR5 DIMMs only
Storage controllers	• Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e; Software RAID: S160
GPU Options	2 x 75 W SW, LP
Drive Bays	Front bays: • 0 drive bay • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 121.6 TB • Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/ SSD) max 244.48 TB	Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB (supported only with 12 x 3.5-inch SAS/SATA HDD/SSD configuration)
Hot swap Redundant Power Supplies	• 1800 W Titanium 200—240 VAC or 240 HVDC • 1400 W Platinum 100—240 VAC or 240 HVDC • 1100 W Titanium 100—240 VAC or 240 HVDC • 1100 W LVDC -48 — (-60) VDC • 800 W Platinum 100—240 VAC or 240 HVDC, • 700 W Titanium 200—240 VAC or 240 HVDC • 600 W Platinum 100—240 VAC or 240 HVDC
Cooling Options	• Air cooling
Fans	• Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans, Up to 6 hot swappable fans
Dimensions and Weight	• Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 707.78 mm (27.85 inches) – without bezel 721.62 mm (28.4 inches) – with bezel • Weight – Max 28.6 kg (63.0 lbs.)
Form Factor	2U rack server
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module
Bezel	Optional LCD bezel or security bezel
OpenManage Software	• CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin
Mobility	OpenManage Mobile
OpenManage Integrations	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager
Security	• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secure Erase • Secured Component Verification (Hardware integrity check) • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	2 x 1 GbE LOM
Network options	1 x OCP card 3.0 (optional)
Ports	Front Ports: • 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA Internal Ports: 1 x USB 3.0 (optional)	Rear Ports • 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x Serial (optional)

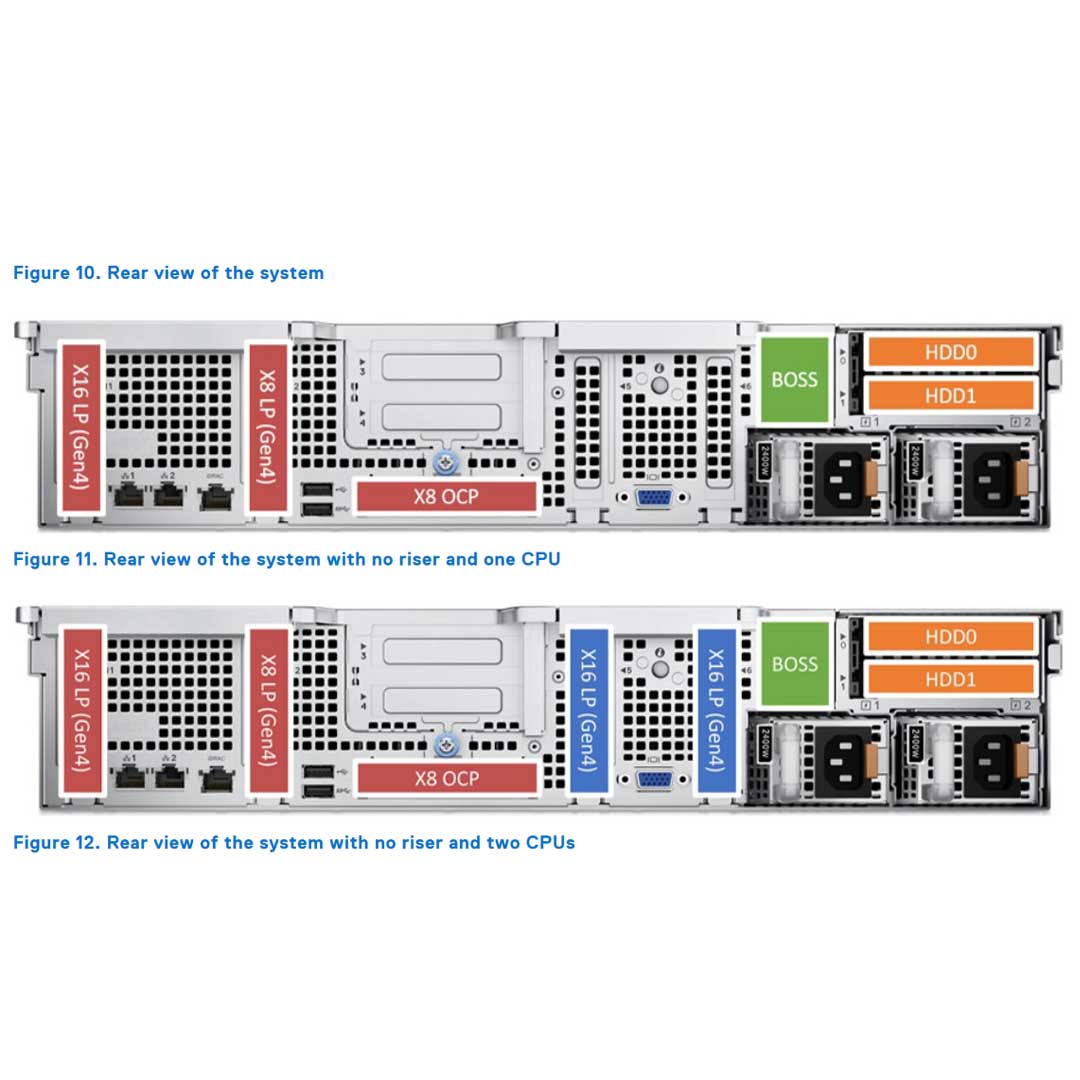

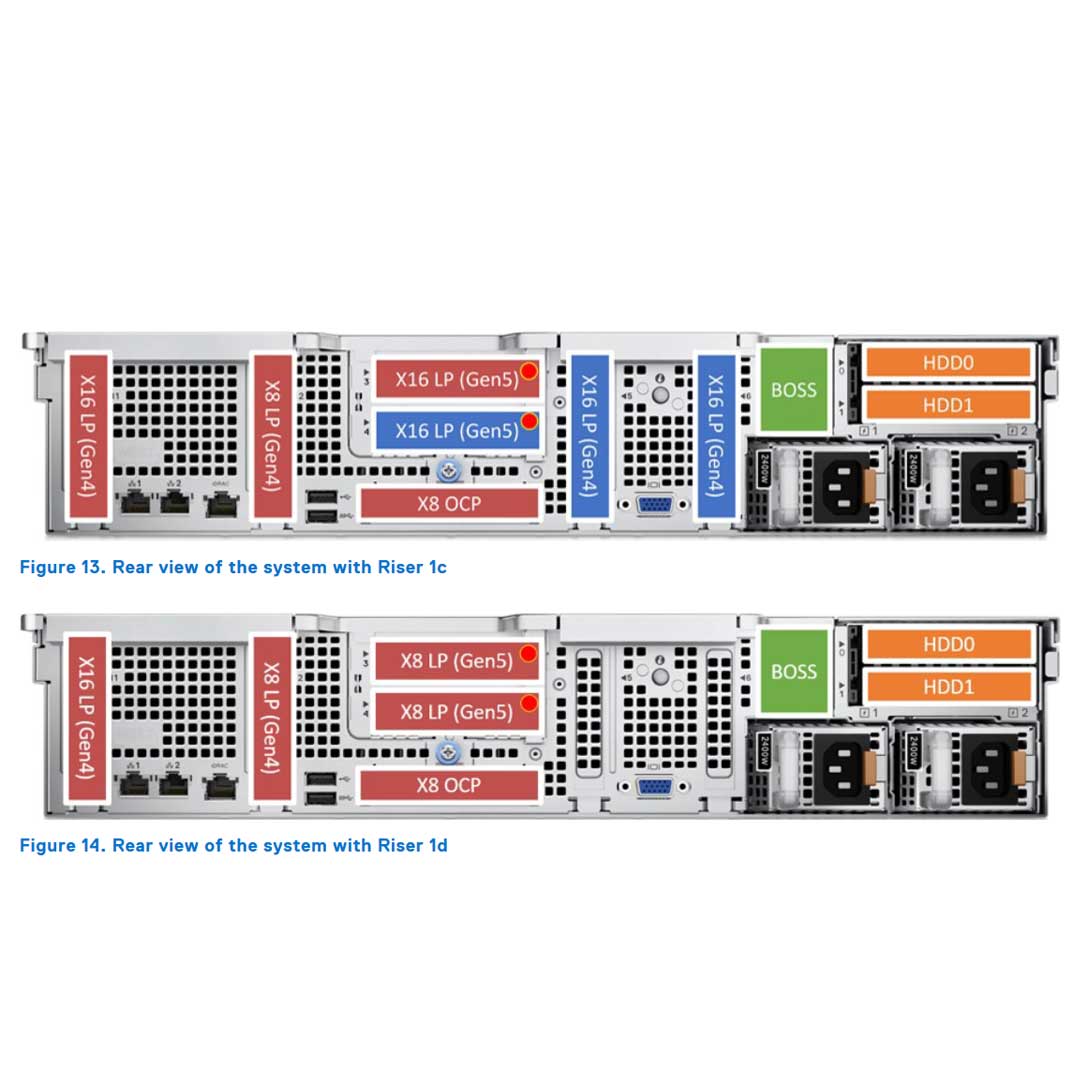

PCIe	• 1 CPU Configuration: Up to 4 PCIe slots (2 x8 Gen5, 1 x16 Gen4, 1 x8 Gen4) • 2 CPU configuration: Up to 6 PCIe slots (2 x16 Gen5, 3 x16 Gen4, 1 x8 Gen4)
Operating System and Hypervisors	• Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi • Canonical Ubuntu Server LTS

Spec Sheet 4

Dell PowerEdge R760XS Rack Server Chassis (16x 2.5")

Quick Specs

Ideal for:

Looking to Customize?

Base Standard Capabilities

Spec Sheet 4

You may also like

Currency

Welcome to the Request Express Quoting Form!

Feature	PowerEdge R760xs	PowerEdge R750xs
Processor	Maximum two 4th Generation Intel® Xeon® Scalable processors with maximum 32 cores per processor	Maximum two 3rd Generation Intel® Xeon® Scalable processors with maximum 32 cores per processor
Processor Interconnect	Intel Ultra Path Interconnect (UPI) , up to 3 links per CPU	Intel Ultra Path Interconnect (UPI)
Memory	16 DDR5 DIMM slots Supports RDIMM 1TB max Speed maximum 4800 MT/s Supports registered ECC DDR5 DIMMs only NVDIMM : No	16 DDR4 DIMM slots Supports RDIMM 1 TB max Speed maximum 3200 MT/s Supports registered ECC DDR4 DIMMs only Apache Pass : No NVDIMM : No
Storage Drives	Front bays: ● 0 drive bay ● Maximum 8x 3.5-inch SAS/SATA (HDD/ SSD) max 160 TB ● Maximum 12x 3.5-inch SAS/SATA (HDD/ SSD) max 240 TB ● Maximum 8x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB ● Maximum 16x 2.5-inch SAS/SATA (HDD/ SSD) max 121.6 TB ● Maximum 16x 2.5-inch (SAS/SATA) + 8x 2.5- inch (NVMe) (HDD/SSD) max 244.48 TB	Front bays: ● 0 drive bay ● Maximum 8x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB ● Maximum 12x 3.5-inch SAS/SATA (HDD/SSD) maximum 192 TB ● Maximum 8x 2.5-inch SAS/SATA/NVMe (HDD/ SSD) maximum 61.44 TB ● Maximum 16x 2.5-inch SAS/SATA (HDD/SSD) maximum 122.88 TB ● Maximum 16x 2.5-inch (SAS/SATA) + 8x 2.5- inch (NVMe) (HDD/SSD) maximum 184.32 TB
Storage Drives	Rear bays: ● Maximum 2x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB	Rear bays: ● Maximum 2x 2.5-inch SAS/SATA/NVMe (HDD/ SSD) maximum 15.36 TB
Storage Controllers	Internal controllers: H965i, HBA465i ( post RTS), H755, H755N, H355, HBA355i Internal Boot: Internal Dual SD Module or Boot Optimized Storage Subsystem (BOSS N1): HWRAID 2x M.2 SSDs and Internal USB External: 965e (post RTS), HBA 355e Software RAID: S160	Internal controllers: PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i Internal Boot: Internal Dual SD Module or Boot Optimized Storage Subsystem (BOSS S2): HWRAID 2x M.2 SSDs or Internal USB External PERC (RAID): PERC H840, HBA355e Software RAID: S150
PCIe SSD	Front: Maximum 16 x 2.5-inch (NVMe drives)	Maximum 16 x 2.5-inch (NVMe drives)
PCIe SSD	Rear: Up to 2 x 2.5-inch NVMe	Maximum 16 x 2.5-inch (NVMe drives)
PCIe Slots	Up to 6 PCIe slots (2 x Gen5, 4 x Gen4)	Up to 6 PCIe slots (5 x Gen4, 1 x Gen5)
Embedded NIC (LOM)	2x 1GbE LOM	2x 1GbE LOM
Networking Options (OCP 3.0)	Rear: 1 x OCP 3.0 (x8 PCIe lanes)	Maximum 1 OCP 3.0
GPU	Nvidia A2 (60 W, LP)	Not supported
USB Ports	Front ports ● 1x Dedicated iDRAC micro-USB ● 1x USB 2.0 ● 1x VGA	Front ports ● 1x Dedicated iDRAC micro-USB ● 1x USB 2.0 ● 1x VGA
	Rear ports: ● 1x USB 2.0 ● 1x Serial (optional) ● 1x USB 3.0 ● 2x Ethernet ● 1x VGA	Rear ports: ● 1x USB 2.0 ● 1x Serial (optional) ● 1x USB 3.0 ● 2x Ethernet ● 1x VGA
	Internal port: ● 1x USB 3.0 (optional)	Internal port: ● 1x USB 3.0 (optional)
Rack Height	2U rack server	2U rack server
Power Supplies	● 1800 W Platinum 100–240 VAC/ 240 VDC ● 1400 W Platinum 100–240 VAC/ 240 VDC ● 1100 W Titanium 100–240 VAC/ 240 VDC ● 1100 W DC/-48–(-60) V ● 800 W Platinum 100–240 VAC/ 240 VDC ● 700 W Titanium 200–240 VAC/240 VDC ● 600 W Platinum 100–240 VAC/ 240 VDC	● 1800 W Platinum 100–240 VAC/ 240 VDC ● 1400 W Platinum 100–240 VAC/ 240 VDC ● 1100 W Titanium 100–240 VAC/ 240 VDC ● 1100 W DC/-48–(-60) V ● 800 W Platinum 100–240 VAC/ 240 VDC ● 700 W Titanium 200–240 VAC/240 VDC ● 600 W Platinum 100–240 VAC/ 240 VDC
System Management	● Lifecycle Controller 3.x ● OpenManage ● QuickSync 2.0 ● OpenManage Enterprise Power Manager ● Digital License Key ● iDRAC Direct (dedicated micro-USB port) ● Easy Restore	● Lifecycle Controller 3.x ● OpenManage ● QuickSync 2.0 ● OpenManage Enterprise Power Manager ● Digital License Key ● iDRAC Direct (dedicated micro-USB port) ● Easy Restore
Availability	Hot-plug drives Hot-plug redundant cooling Hot-plug redundant power supplies BOSS-N1	Hot-plug drives Hot-plug redundant cooling Hot-plug redundant power supplies IDSDM BOSS S2
