Quick Specs
Form Factor:
2U rack server
Processor | Max: 32 Cores2x Intel Gen 3 Xeon Scalable
Memory | Max: 1TB16 ECC DDR4 RDIMM 3200Mhz
Storage | Max: 192TBFront bays:
0 drive bay
Up to 8x 3.5" SAS/SATA (HDD/SSD) max 128 TB
Up to 12x 3.5" SAS/SATA (HDD/SSD) max 192 TB
Up to 8x 2.5" SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Up to 16x 2.5" SAS/SATA (HDD/SSD) max 122.88 TB
Up to 16x 2.5" SAS/SATA (HDD/SSD) + 8 x 2.5" (NVMe) max 184 TB
Rear bays:
Up to 2x 2.5" SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
Boot Optimized Server Storage (BOSS-S2) Hot-Swap
Internal Dual SD Module
Internal USB
S150 (SW RAID SATA, NVMe)
H345, H745, H755, H755N, H840, HBA335i, HBA355e
2 x 1 GbE LOM
OCP 3.01 x OCP 3.0
Remote Management:iDRAC9 Express (default) with Lifecycle Controller
PCIe Slots:Up to 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slots
GPU:Not Supported
Other Versions
- Dell PowerEdge R710
- Dell PowerEdge R720
- Dell PowerEdge R720XD
- Dell PowerEdge R730
- Dell PowerEdge R730XD
- Dell PowerEdge R740
- Dell PowerEdge R740XD
- Dell PowerEdge R740XD2
- Dell PowerEdge R7415
- Dell PowerEdge R7425
- Dell PowerEdge R750
- Dell PowerEdge R750XA
- Dell PowerEdge R750XS
- Dell PowerEdge R7515
- Dell PowerEdge R7525
- Dell PowerEdge R760
- Dell PowerEdge R760XA
- Dell PowerEdge R760XS
- Dell PowerEdge R760XD2
- Dell PowerEdge R7615
- Dell PowerEdge R7625
(Click to View)
Ideal for:
- Database
- High-Performance Computing (HPC)
- Retail Servers
- Virtual Desktop Interface (VDI)
- Virtualization
The Dell EMC PowerEdge R750xs, with 3rd generation Intel® Xeon® Scalable processors, is purposefully designed with distinctive, customer-defined requirements to deliver enterprise performance for scale-out environments.
PowerEdge R750xsThe Dell EMC PowerEdge R750xs offers compelling performance, high-speed memory and capacity, I/O bandwidth and storage to address data requirements
Innovate at scale with challenging and emerging workloads
The new Dell EMC PowerEdge R750xs is a 2U, dual-socket, feature-optimized server with an ideal selection of CPU, I/O, and storage performance for scale-out environments. With it, you can:
- Add additional power and cores: Up to two 3rd generation Intel® Xeon® Scalable processors, up to 32 cores per socket
- Accelerate in-memory workloads: Up to 16 DDR4 RDIMMS, 3200 MT/sec
- Improve throughput, reduce latency: With up to 5 PCIe Gen4 slots, OCP 3.0 for network cards, and SNAP I/O support
- Include flexible storage: Up to 12x 3.5” SAS/SATA HDDs or SSDs; or up to 16x 2.5” SAS/SATA HDDs or SSDs, and 8 NVMe drives
- Enable virtualization, medium VM density or VDI, and software-defined storage node workloads
Increase efficiency and accelerate operations with autonomous collaboration
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
- Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
- Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
- Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
- Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools for on-premise, edge and cloud environments
Built-in proactive resilience through a complete portfolio of solutions
From the silicon and supply chain all the way to asset retirement, know that your servers are safe and secure with innovative Dell EMC and Intel technologies. We give you the confidence of cyber resilience with enterprise class security that minimizes risk for any organization, from small business to hyperscale.
- Start strong with platform security features, even before the server is built, including Secured Component Verification and Silicon Root of Trust
- Stay strong with continuous innovations that bolster cyber resilience, like OpenManage Secure Enterprise Key Manager and Automatic Certificate Enrollment
- Outmaneuver threats with intelligence, automation, and recovery tools that include iDRAC9 Telemetry, BIOS live scanning, and Rapid OS recovery

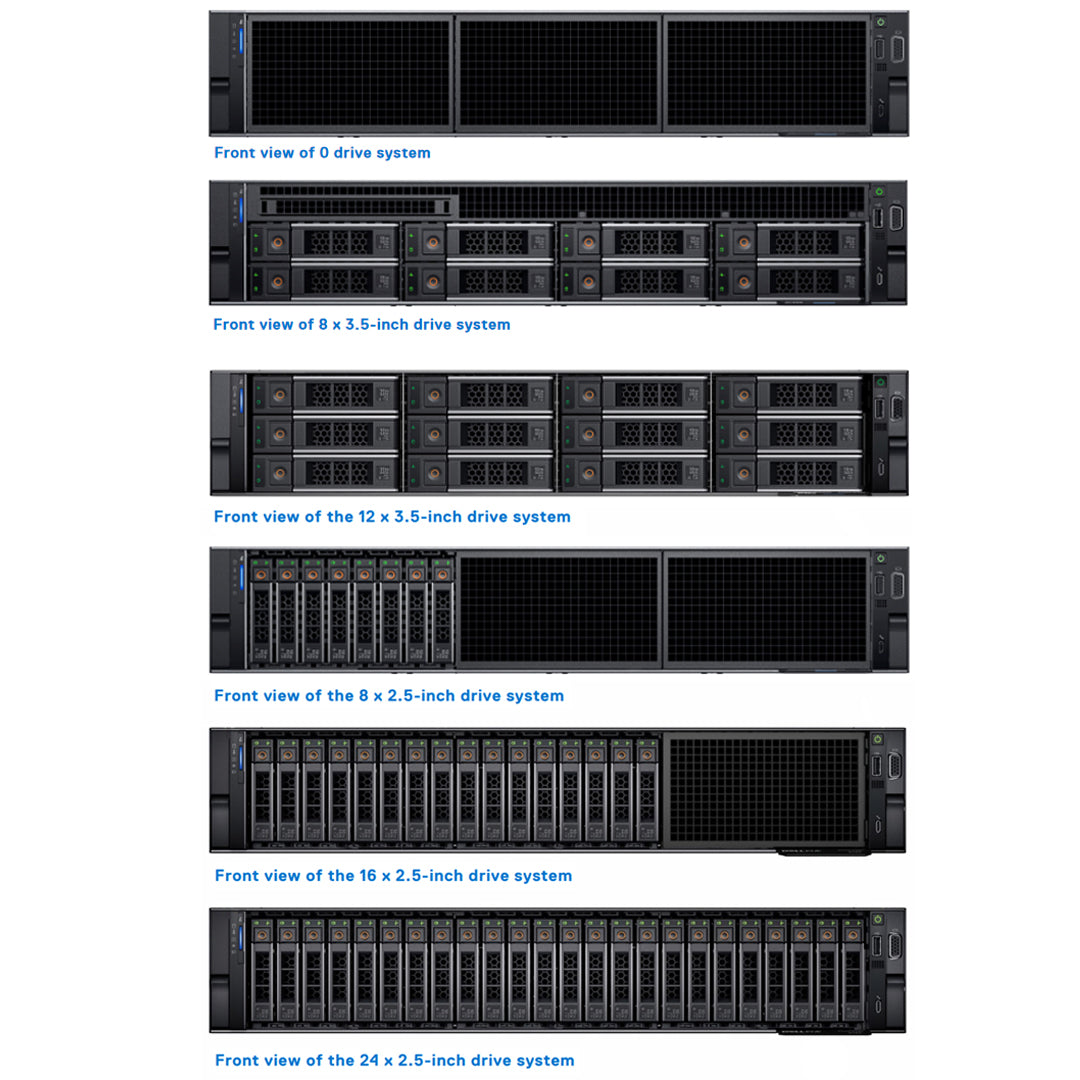

Drive Options
The R750xs has support for SAS/SATA and NVMe drives which boost performance and latency for the most demanding workloads. Below you will find the supported configurations:
- 16x 2.5" SAS/SATA + 8x 2.5" NVMe
- 16x 2.5" SAS/SATA
- 12x 3.5" SAS/SATA + 2x 2.5" SAS/SATA/NVMe (rear)
- 8x 2.5" SAS/SATA
- 8x 2.5" NVMe
- 8x 3.5" SAS/SATA
- Rear Drives are only supported on the 12 Bay Chassis
Memory
The PowerEdge R750xs supports up to 16 DIMMs, with up to 1024 GB of memory and speeds of up to 3200MT/s.The PowerEdge R750xs supports registered (RDIMMs) that use a buffer to reduce memory loading and provide greater density,allowing for the maximum platform memory capacity.
Maximum memory speed supported on the system depends on the processor specifications. So, while the DIMMssupports up to 3200 MT/s, the processor may not support this memory speed. Please refer table Supported processors in the Manuals below.
| Capacity | DIMM Type | Config | DRAM | DIMM Max Speed | Rated Voltage |
|---|---|---|---|---|---|
| 8 GB | RDIMM | 1R x8 | 8 GB | 3200 MT/s | 1.2 V |
| 16 GB | RDIMM | 2R x8 | 8 GB | 3200 MT/s | 1.2 V |
| 32 GB | RDIMM | 2R x8 | 16 GB | 3200 MT/s | 1.2 V |
| 64 GB | RDIMM | 2R x4 | 16 GB | 3200 MT/s | 1.2 V |
Storage Controllers
Dell's RAID controller options offer performance improvements, including the fPERC solution. fPERC provides a base RAID HWcontroller without consuming a PCIe slot by using a small form factor and high-density connector to the base planar.
| Performance Level | Controller & Description |
|---|---|
| Entry | S150 (SATA, NVMe) SWRAID |
| Value | H345, HBA355 (Internal/External) |
| Value Performance | H745, H755, H755N |
Networking OCP 3.0
The Open Compute Project (OCP) 3.0 supports up to 4 Ports each with a speed up to 25Gbps. This OCP 3.0 PCIe 4.0 provides the system with expanding the networkability without losing a PCIe slot. There are many option to choose from all with support for different protocols.
| Specs | OCP 3.0 |
|---|---|
| Max PCIe width | x16 |
| Max of ports | 4 |
| Port type | BT/SFP/SFP+/SFP28/SFP56 |
| Max port speed | 100Gbe |
| NC-SI | Yes |
| SNAPI/td> | Yes |
| WoL | Yes |
| Power consumption | 15 W — 150 W |
PCI Expansion Riser Configuration Options
| Configurations | Expansion Card Risers | PCIe Slots | Controlling Processor | Height | Length | Slot width | Power |
|---|---|---|---|---|---|---|---|
| Option 0. | R1A | 3 | Processor 1 | Low profile | Half length | x16 | 75 W |
| 4 | Processor 2 | Low profile | Half length | x16 | 75 W | ||
| Option 1. | R1B | 3 | Processor 1 and 2 | Low profile | Half length | x16 | 75 W |
| 4 | Processor 1 | Low profile | Half length | x8 | 75 W | ||
| Option 2. | NA | NA | NA | NA | NA | NA | NA |
| NA | NA | NA | NA | NA | NA | ||
| NOTE: Only one cable riser can be installed at a time in any given configuration. | |||||||
| NOTE: R1B is a SNAPI riser. | |||||||
No Riser
Riser R1A
Riser R1B (SNAPI)Boot Options
On the R750xs the IDSDM and the Internal USB are installed in the same slot. The system does not support both at the same time.
BOSS-S2
IDSDM
Internal USBPower & Dimensions
Power Supply Unit (PSU)
| Form factor | Output | Class |
|---|---|---|
| Redundant 60 mm | 600 W AC | Platinum |
| 800 W AC | Platinum | |
| 1100 W DC | N/A |
Dimension & Weight
- Depth: 707.78 mm (27.85")
- Width: 482.0 mm (18.97")
- Height: 86.8 mm (3.41")
- Weight:
- No backplane configuration: 18.54 kg (40.87 lb)
- 8x 3.5": 24.80 kg (54.67 lb)
- 12x 3.5": 28.76 kg (63.40 lb)
- 8x 2.5": 20.44 kg (45.06 lb)
- 16x 2.5": 21.94 kg (48.36 lb)
- 24x (16 SAS/SATA + 8 NVMe): 23.84 kg (52.55 lb)
