Home / Dell Server Equipment and more. / Dell PowerEdge R760 Rack Server Chassis (16x 2.5" EDSFF E3.S)
SKU: DPE-R760-CTO-16EDSFF

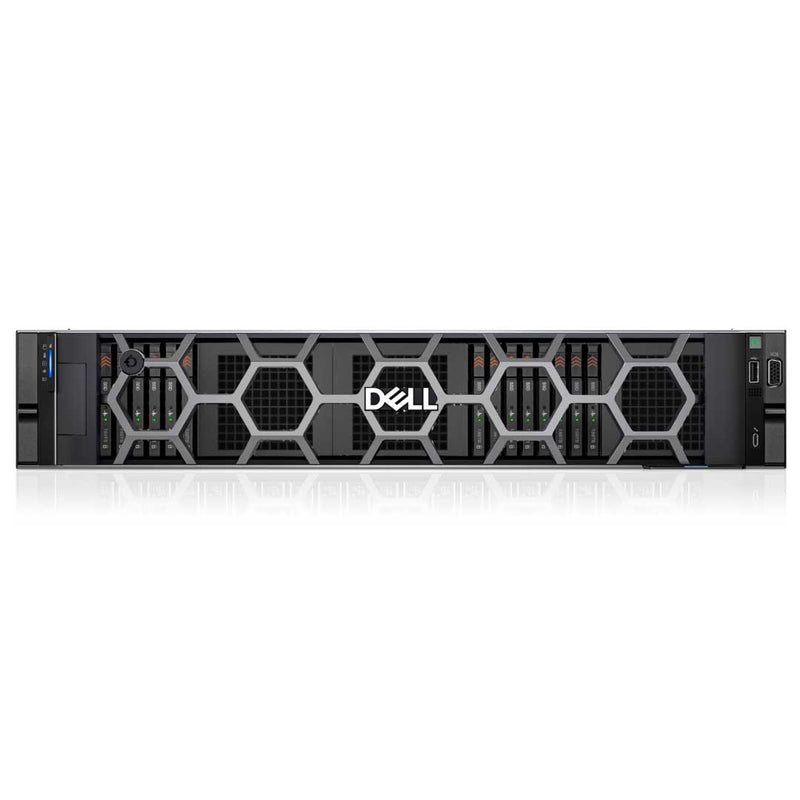

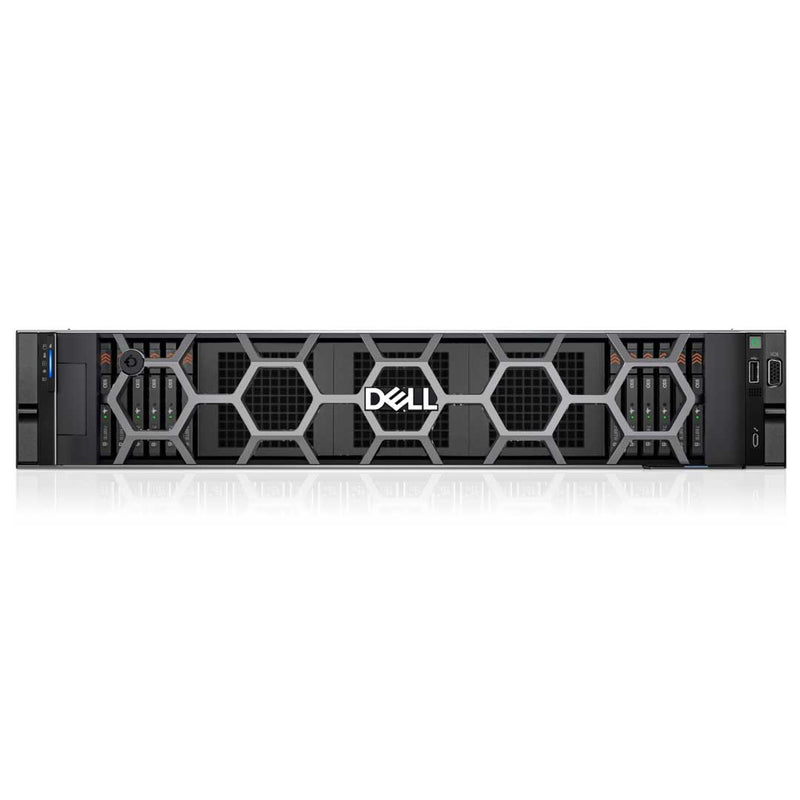

Dell PowerEdge R760 Rack Server Chassis (16x 2.5" EDSFF E3.S)

Dell

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

2U rack server

Processor Max: 56 Cores

2x Gen 4 Intel Xeon Scalable

Memory Max: 8TB

32 ECC DDR5 RDIMM 4800Mhz

Storage Max: N/A

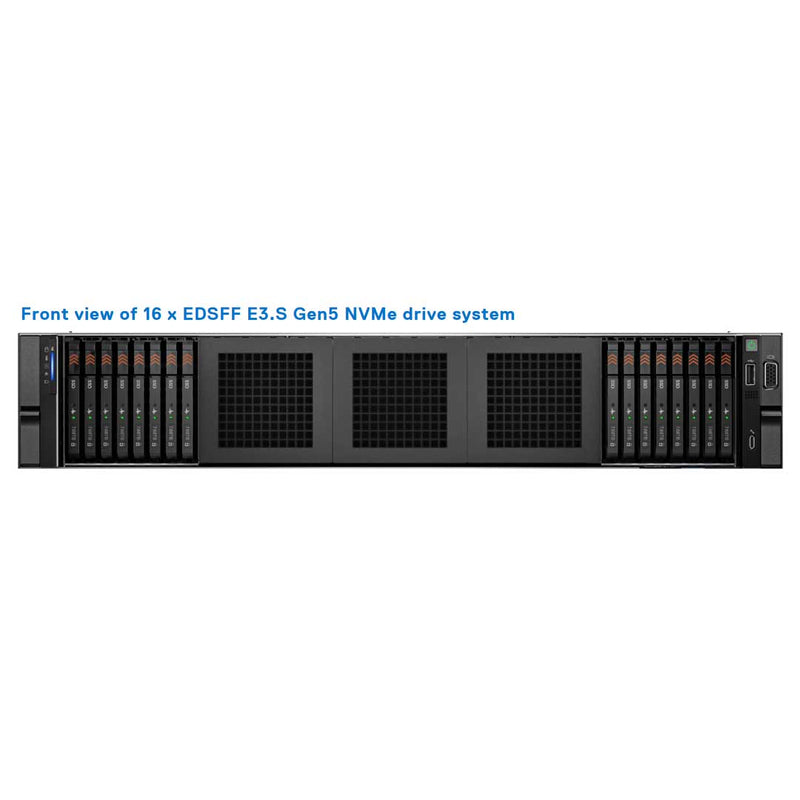

Front bays:

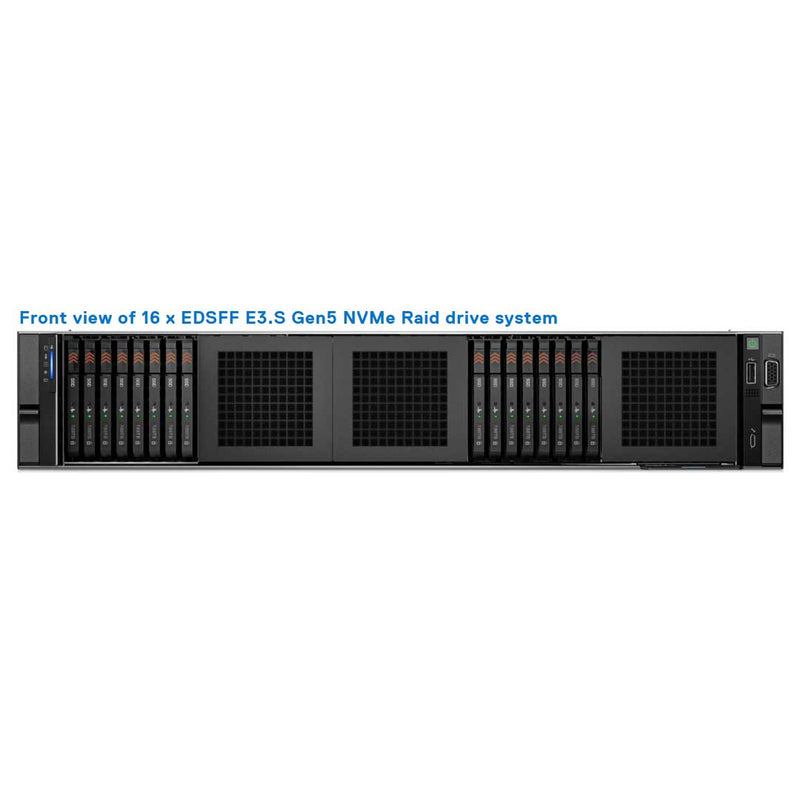

Up to 16 x 2.5" EDSFF E3.S

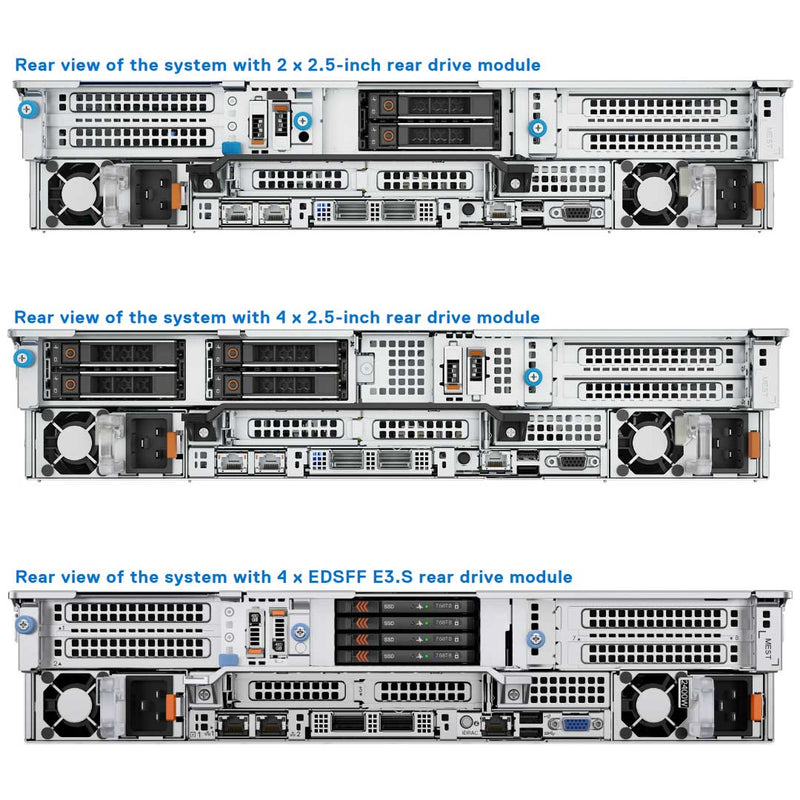

Rear bays:
Only Supported on the 12 and 24 Bay Chassis

Boot Options

Boot Optimized Server Storage (BOSS-N1) Hot-Swap
Internal USB

RAID Controller: (fPERC)

S160 (SATA/NVMe SW RAID)
H355i, H755, H755N, H965i, HBA355i, H355e, HBA355e, H965e

LOM/MIC

2 x 1GE LOM / 25 or 100 GbE x 2 (DPU Must be Installed)

Networking Options

OCP 3.0 x8 Mezz 3.0

Remote Management:

iDRAC9 with Lifecycle Controller

PCIe Slots:

Up to 8 x PCIe Gen5 or Gen 4 slots

SNAP Support Slot 7 SNAPI: 1 x16 Gen5 FH, HL

GPU:

Up to 2 x 350 W DW
6 x 75 W SW
12 x 3.5-inch and rear drive configuration systems do not support a GPU card.

Other Versions

Ideal for:

  • Artificial Intelligence (AI)
  • Data Analytics
  • Database
  • Machine Learning (ML)
  • Virtual Desktop Interface (VDI)
Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Spec Sheet 4

Rack Server R760 R660 R7625 R6625 R7615 R6615
Key attributes Provides performance and versatility for demanding applications Provides performance and versatility for demanding applications Breakthrough performance Breakthrough performance Powerful performance and scalability Peak performance and excellent TCO
Target workloads Mixed Workload Standardization Database and Analytics Virtual Desktop Infrastructure High Density Virtualization, Dense Database Analytics, Mixed Workload Standardization High Performance Computing (HPC), Virtual Desktop Infrastructure (VDI), Virtualization High Performance Computing (HPC), Virtual Desktop Infrastructure (VDI), Virtualization Software-Defined Storage (SDS), Virtualization, Data Analytics Virtualization, Hyper-Converged Infrastructure (HCI), Network Functions Virtualization (NFV)
Type of processor 2 x 4th Generation Intel® Xeon® Scalable processors; up to 56 cores per processor 2 x AMD EPYC™ 4th Generation 9004 Series Processor, up to 96 cores per processor 1 x AMD EPYC™ 4th Generation 9004 series processor; up to 96 cores
Memory (DDR5 DIMM slots & max) 32 (8 TB) 24 (1.5 TB*) 12 (768 GB*)
Disk drives up to: 12 x 3.5”
8 x 2.5”
16 x 2.5”
24 x 2.5”
2 x 2.5” or 4 x 2.5” (rear)		 8 x 2.5”
10 x 2.5”
2 x 2.5” (rear)		 8 x 3.5”
12 x 3.5”
8 x 2.5”
16 x 2.5”
24 x 2.5”
2 x 2.5” or 4 x 2.5”(rear)		 4 x 3.5”
8 x 2.5”
10 x 2.5”
2 x 2.5” (rear) 		8 x 3.5”
12 x 3.5”
8 x 2.5”
16 x 2.5”
24 x 2.5”
2 x 2.5” or 4 x 2.5”(rear)		 4 x 3.5”
8 x 2.5”
10 x 2.5”
2 x 2.5” (rear)
NVMe drives up to: 24 10 24 10 24 10
Gen5 PCIe slots up to: 4 2 4 2 4 2
Gen4 PCIe slots up to: 8 3 8 3 4 3
Accelerator support up to: 2 x 350 W DW or 6 x 75 W SW 2** x 75 W SW 2 x 300 W DW or 6 x 75 W SW 3 x 75 W SW 3 x 300 W DW or 6 x 75 W SW 3 x 75 W SW
Rack height (U) 2 1 2 1 2 1
Integrated security TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ, Cryptographically Signed Firmware, Chassis Intrusion Alert, Secure Boot being standard security, Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter), Data at Rest Encryption (SEDs with local or external key mgmt) Secured Component Verification (Hardware integrity check) and System Erase on all racks. TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ, Cryptographically Signed Firmware, Secure Boot, Secure Erase, Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter), AMD Secure Memory Encryption (SME) and AMD Secure Encrypted Virtualization (SEV)
* Future releases will include additional system capacity for DDR5 memory in R7625, R6625, R7615 and R6615.
** Future releases will include additional GPU slots in R660.
