Dell Poweredge Xr5610 Rack Server Chassis (4X 2.5") | Front Access

SKU: DPE-XR5610-4SFF-Chassis-FA

Dell Poweredge Xr5610 Rack Server Chassis (4X 2.5") | Front Access

Name: Dell Poweredge Xr5610 Rack Server Chassis (4X 2.5") | Front Access
Brand: Dell
SKU: DPE-XR5610-4SFF-Chassis-FA
Availability: InStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

1U Rack Server

Processor | Max: 32 Cores

1x 4th Gen Intel Xeon Scalable or Intel Xeon Edge-Enhanced processor (SPR-EE)

Memory | Max: 1TB

8x DDR5 RDIMM 4800Mhz

Storage | Max: 30.72TB

4x 2.5" SAS/SATA/NVMe (HDD/SSD)

RAID Controller:

S160, H355, H755, H965i, HBA355i, HBA355e

Boot Options:

BOSS-N1, USB

Lom / OCP:

4 x 25 GbE SFP+ LOM
1 x OCP card 3.0 (Optional)

Remote Management:

iDRAC9 with Lifecycle Controller

PCIe Slots:

2 PCIe slots (2 x16 Gen5)
(2 x16 Gen4) with Edge-Enhanced CPU Installed

GPU:

2 x 75 W GPUs

Other XR Versions:

Ideal for:

Artificial Intelligence (AI)
Deep Learning (DL)
Machine Learning (ML)
Military
Point-of-Sale (POS)
Retail Servers
Telecom Networks
Video Analytics

Dell Technology’s Most Versatile 1U Edge Server

The new Dell PowerEdge XR5610 is a powerful short-depth 1U server that is purpose-built for the edge. XR5610 is the upgraded successor to the popular XR11 and features generational enhancements that are designed to deliver high-performance compute and ruggedized deployment capability in a 463mm chassis. Well suited for 5G vRAN and ORAN telecom workloads, as well as military and defense deployments and retail AI including video monitoring, IoT device aggregation and PoS analytics

All-Purpose 1U Featuring Latest Tech

High-performance 1U designed for a variety of demanding workloads including Telecom, Retail, and Military
One Intel® Xeon Scalable Processor® with vRAN Boost® supporting up to 32 cores for ultimate edge performance
Up to 8 DDR5 DIMMs 4800MT/s for 50% increase from previous generation in memory bandwidth

Excels with a Variety of Demanding Edge Workloads

Excels in telecom deployments such as vRAN, ORAN, and others by offering PTP, SyncE via add-in NICs, Intel CPUs with vRAN Boost® featuring Integrated FEC, and NEBS Level 3 (SR3580) testing
Designed to support retail and manufacturing applications, including video monitoring, PoS analytics, and IoT device aggregation and analytics
Field ready for military and defense applications including remote support for field operations and reconnaissance, MIL tested

Purpose-built for the Edge

Built rugged to operate in temperatures from -5C to 55C; MIL 810H* and NEBS Level 3* (SR3580) tested
Offers easy serviceability with reverse I/O & power
Short-depth chassis to fit in space-constrained environments

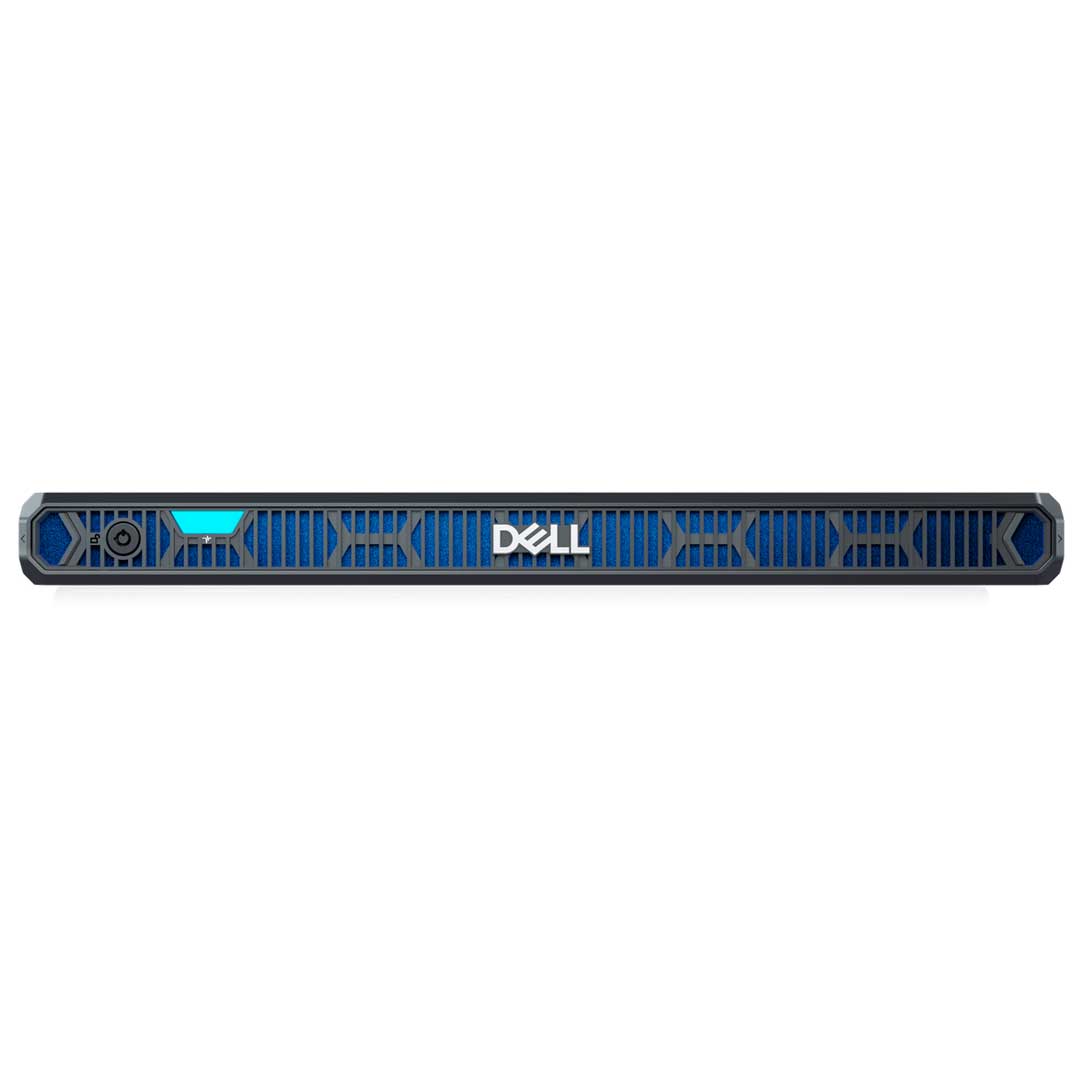

Withstand dusty and harsh environments with an optional lockable smart filtered bezel for extra physical security

Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Feature	Technical Specifications
Processor	One 4th Generation Intel Xeon Scalable processor with up to 32 cores per processor
Memory	8 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 4800 MT/s. Supports registered ECC DDR5 DIMMs only
Storage controllers	• Internal Controllers: PERC H965i, PERC H755, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs	• External HBA (non-RAID): HBA355e • Software RAID: S160
Drive Bays	Front bays: Up to 4 x 2.5-inch SATA, SAS, or NVMe SSDs max 30.72 TB
Hot swap redundant Power Supplies	• 1800 W Titanium 200—240 VAC or 240 HVDC • 1400 W Platinum 100—240 VAC or 240 HVDC • 1100 W Titanium 100—240 VAC or 240 HVDC	• 1100 W -48 — (-60) VDC • 800 W Platinum 100—240 VAC or 240 HVD • 800 W -48 — (-60) VDC
Cooling Options	Air cooling
Fans	6 Standard cold swap fans
Dimensions and Weight	Rear Accessed configuration	Front Accessed configuration
Dimensions and Weight	• Height: 42.8 mm (1.68 inches) • Width: 482.6 mm (19 inches) • Depth: 400 mm (15.74 inches) ear to rear wall • Depth: 487.7 mm (19.20 inches) with bezel • Depth: 463 mm (18.22 inches) without bezel • Weight: 11.27 kg (24.84 pounds)	• Height: 42.8 mm (1.68 inches) • Width: 482.6 mm (19 inches) • Depth: 400 mm (15.74 inches) ear to rear wall • Depth: 566.05 mm (22.28 inches) with bezel • Depth: 472.7 mm (18.61 inches) without bezel • Weight: 11.37 kg (25.06 pounds)
Form Factor	1U rack server
Embedded Management	iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module
Bezel	Optional bezel or security bezel with dust filter
OpenManage Software	• CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center	• OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin
Mobility	OpenManage Mobile
OpenManage Integrations	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow	• Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager
Security	• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check)	• Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	• 4 x 25 GbE SFP+ LOM
Network options	• 1 x OCP card 3.0 (optional)
Ports	For Rear Accessed configuration	For Front Accessed configuration
Ports	Front Ports • 1 x iDRAC Direct (Micro-AB USB 2.0) port, 1 x USB 2.0 Rear Ports • 1 x iDRAC dedicated port, 1 x USB 3.0, 1 x Serial (Micro- AB USB 2.0) port, 1 x Mini-DisplayPort, 1 x RJ45 for dry contact, 4 x 25 GbE SFP+ LOM	Front Ports • 1 x iDRAC Direct (Micro-AB USB 2.0) port, 1 x iDRAC dedicated port, 1 x USB 3.0, 1 x Serial (Micro-AB USB 2.0) port • 1 x Mini-DisplayPort, 4 x 25 GbE SFP+ LOM, 1 x RJ45 for dry contact Rear Ports • N/A
PCIe	1 CPU configuration: Up to 2 PCIe slots (2 x16 Gen5)
GPU	Up to 2 x 75 W GPUs (single-width, full-height, half-length)
Operating System and Hypervisors	• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux	• SUSE Linux Enterprise Server • VMware ESXi

Spec Sheet 4

Features	PowerEdge XR5610		PowerEdge XR11
Processors	1x 4th Gen Intel® Xeon® Scalable Processors including Edge Enhanced CPUs with Intel vRAN Boost		1 x 3rd Generation Intel® Xeon® Processor Scalable Family
CPU interconnect	Intel Ultra Path Interconnect (UPI)		Intel Ultra Path Interconnect (UPI)
Memory	● 8 x DDR5 RDIMM ● Up to 4800 MT/s		● 8 x DDR4 RDIMM, LRDIMM ● Two Intel Optane Persistent Memory 200 series configuration: ○ 4+4 ○ 6+1
Storage Controllers	● PERC 11G: H755, H355 ● PERC 12G: H965i ● HBA 11: HBA355i, HBA355e ● BOSS-N1 ● Software RAID: S160		● PERC 10G: H345 ● PERC 11G: H755, H355 ● HBA 11: HBA355i, HBA355e ● BOSS-S1 adapter ● BOSS-S1 ● Software RAID: S150
Drive Bays	4 x 2.5 inches 12 Gb SAS, 6 Gb SATA, NVMe		4 x 2.5 inches 12 Gb SAS, 6 Gb SATA, NVMe
Power Supplies	● AC (Platinum): 800 W, 1400 W, 1800 W ● AC (Titanium): 1100 W ● LVDC -48 VDC input: 800 W, 1100 W		● AC (Platinum): 800 W, 1400 W, ● AC (Titanium): 700 W, 1100 W ● LVDC @-48 VDC Input: 800 W, 1100 W

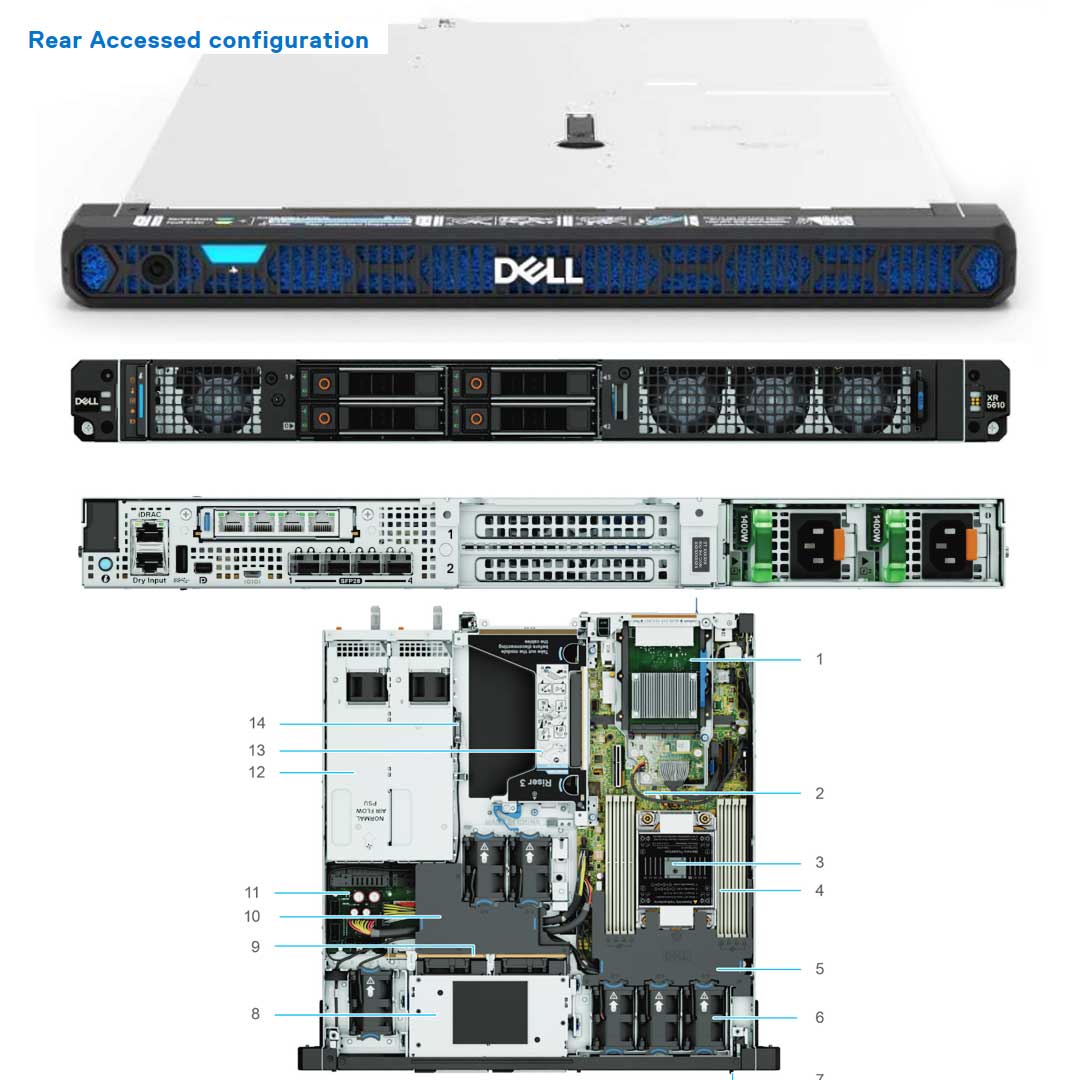

Chassis Orientation	XR5610 has two chassis options: 1. Rear Accessed Configuration, where power supplies and network cards are in the rear. NOTE: Network, serial, power supplies, USB, Mini DisplayPort, and PCIe slots are accessible in the rear of the platform and the hard drives, power button, Status LED, USB, and Management port are in the front of the system. 2. Front Accessed Configuration, where power supplies and network cards are in the front. NOTE: Power button, network ports, serial, USB, Mini DisplayPort, and PCIe Slots are accessible in the front of the platform and the hard drives and Status LED are in the rear of the system. The location of the control panel changes with the chassis orientation.		XR11 has two chassis options: 1. Rear Accessed Configuration, where power supplies and network cards are in the rear. NOTE: Network, serial, VGA, power supplies and PCIe slots are accessible in the rear of the platform and the hard drives, power button, Status LED, USB, and Management port are in the front of the system. 2. Front Accessed Configuration, where power supplies and network cards are in the front. NOTE: Power button, network ports, serial, VGA, and PCIe Slots are accessible in the front of the platform and the hard drives and Status LED are in the rear of the system. The location of the control panel changes with the chassis orientation.
Fans	Standard fans		Very High Performance fans
Fans	Standard fans		Very High Performance fans
Dimension Form Factor	Rear Accessed configuration	Front Accessed configuration	Rear Accessed configuration	Front Accessed configuration
	Height: 42.8 mm (1.68 inches)	Height: 42.8 mm (1.68 inches)	Height: 42.8 mm (1.68 inches)	Height: 42.8 mm (1.68 inches)
	Width: 482.6 mm (19 inches)	Width: 482.6 mm (19 inches)	Width: 482.6 mm (19 inches)	Width: 482.6 mm (19 inches)
	Depth: 487.7 mm (19.2 inches) with bezel	Depth: 566.05 mm (22.28 inches) with bezel	Depth: 477 mm (18.77 inches) with bezel	Depth: 400 mm (15.74 inches) ear to rear wall
	463 mm (18.22 inches) without bezel	472.7 mm (18.61 inches) without bezel	463 mm (18.22 inches) without bezel	463 mm (18.22 inches) without bezel
	1U rack server		1U rack server
Embedded Management	● iDRAC9 ● iDRAC Direct ● iDRAC RESTful API with Redfish ● iDRAC Service Module		● iDRAC9 ● iDRAC Direct ● iDRAC RESTful API with Redfish ● iDRAC Service Module
Bezel	Optional LCD bezel or security bezel		Optional LCD bezel or security bezel
OpenManage Software	● CloudIQ for PowerEdge plug in ● OpenManage Enterprise ● OpenManage Enterprise Integration for VMware vCenter ● OpenManage Integration for Microsoft System Center ● OpenManage Integration with Windows Admin Center ● OpenManage Power Manager plug-in ● OpenManage Service plug-in ● OpenManage Update Manager plug-in		● CloudIQ for PowerEdge plug in ● OpenManage Enterprise ● OpenManage Enterprise Integration for VMware vCenter ● OpenManage Integration for Microsoft System Center ● OpenManage Integration with Windows Admin Center ● OpenManage Power Manager plug-in ● OpenManage Service plug-in ● OpenManage Update Manager plug-in ● OpenManage SupportAssist plug-in
Mobility	OpenManage Mobile		OpenManage Mobile
Integrations and Connections	OpenManage Integrations ● BMC TrueSight ● Microsoft System Center ● OpenManage Integration with ServiceNow ● Red Hat Ansible Modules ● Terraform Providers ● VMware vCenter and vRealize Operations Manager		OpenManage Integrations ● Microsoft System Center ● OpenManage Integration with ServiceNow ● Red Hat Ansible Modules ● VMware vCenter ● Third-party Connectors (Naglos, Tivoli, Microfocus)
Security	● Cryptographically signed firmware ● Data at Rest Encryption (SEDs with local or external key management) ● Secure Boot ● Secured Component Verification (Hardware integrity check) ● Secure Erase ● Silicon Root of Trust ● System Lockdown (requires iDRAC9 Enterprise or Datacenter) ● TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ		● Cryptographically signed firmware ● Secure Boot ● Secured Component Verification (Hardware integrity check) ● Secure Enterprise Key Management ● Silicon Root of Trust ● System Lockdown (requires iDRAC9 Enterprise or Datacenter) ● TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	4 x 25 GbE LOM		4 x 25 GbE LOM
Networking Options	OCP 3.0 Mezz 3.0 (optional)		Not supported
GPU Options	Up to 2 x 75 W/150 W (SW/FH/HL)		Up to 2 x 70 W (SW/FH/HL)
Ports	Rear Accessed Configuration ● Front: ○ 1 x iDRAC Direct (Micro-AB USB 2.0) port ○ 1 x USB 2.0 ● Rear: ○ 1 x USB 3.0 ○ 1 x iDRAC dedicated port ○ 1 x Serial port (Micro-AB USB 2.0-compliant) ○ 1 x Mini-DisplayPort ○ 1 x RJ45 for dry contact ○ 4 x 25 GbE SFP+ LOM		Rear Accessed Configuration ● Front: ○ one standard USB 2.0 port ○ one micro USB 2.0 port dedicated to iDRAC management ● Rear: ○ one standard USB 3.0 port ○ one standard USB 2.0 port ○ one Dedicated 1 GbE ○ one Serial port ○ one VGA port ● Internal: one standard USB 3.0 port on Riser 1 B
Ports	Front Accessed Configuration ● Front: ○ 1 x iDRAC Direct (Micro-AB USB 2.0) port ○ 1 x iDRAC dedicated port ○ 1 x USB 3.0 ○ 1 x Serial (Micro-AB USB 2.0-compliant) ○ 1 x Mini-DisplayPort ○ 4 x 25 GbE SFP+ LOM ○ 1 x RJ45 for dry contact ● Rear: N/A		Front Accessed Configuration ● Front: ○ one standard USB 3.0 port, one standard USB 2.0 port, one micro USB 2.0 port that is dedicated to iDRAC management, one Dedicated 1 GbE, one Serial port, one VGA port ● Rear: N/A ● Internal: one standard USB 3.0 port on Riser 1 B
PCIe	One riser configuration: ● Up to 2 x PCIe Gen5 (two x16 PCIe Gen5)		Two riser configuration options: ● 3 x PCIe Gen4 (one x8 PCIe Gen4 + two x16 PCIe Gen4) ● 3 x PCIe Gen4 (one x16 PCIe Gen4 + two x16 PCIe Gen4) (Only supported for Front Accessed Chassis)
Operating System and Hypervisors	● Canonical Ubuntu Server LTS ● Microsoft Windows Server with Hyper-V ● Red Hat Enterprise Linux ● SUSE Linux Enterprise Server ● VMware ESXi		● Canonical Ubuntu Server LTS ● Citrix Hypervisor ● Windows Server LTSC with Hyper-V ● Red Hat Enterprise Linux ● SUSE Linux Enterprise Server ● VMware ESXi ● RHEL Realtime
