Quick Specs
Form Factor:
1U Rack Server
Processor | Max: 32 Cores1x 4th Gen Intel Xeon Scalable or Intel Xeon Edge-Enhanced processor (SPR-EE)
Memory | Max: 1TB8x DDR5 RDIMM 4800Mhz
Storage | Max: 30.72TB4x 2.5" SAS/SATA/NVMe (HDD/SSD)
RAID Controller:S160, H355, H755, H965i, HBA355i, HBA355e
Boot Options:BOSS-N1, USB
Lom / OCP:4 x 25 GbE SFP+ LOM
1 x OCP card 3.0 (Optional)
iDRAC9 with Lifecycle Controller
PCIe Slots:2 PCIe slots (2 x16 Gen5)
(2 x16 Gen4) with Edge-Enhanced CPU Installed
2 x 75 W GPUs
Other Versions
- Dell PowerEdge XR12
- Dell PowerEdge XR4000
- Dell PowerEdge XR5610
- Dell PowerEdge XR7620
- Dell PowerEdge XR8000
(Click to View)
Ideal for:
- Artificial Intelligence (AI)
- Deep Learning (DL)
- Machine Learning (ML)
- Military
- Point-of-Sale (POS)
- Retail Servers
- Telecom Networks
- Video Analytics
Dell Technology’s Most Versatile 1U Edge Server
The new Dell PowerEdge XR5610 is a powerful short-depth 1U server that is purpose-built for the edge. XR5610 is the upgraded successor to the popular XR11 and features generational enhancements that are designed to deliver high-performance compute and ruggedized deployment capability in a 463mm chassis. Well suited for 5G vRAN and ORAN telecom workloads, as well as military and defense deployments and retail AI including video monitoring, IoT device aggregation and PoS analytics
All-Purpose 1U Featuring Latest Tech
- High-performance 1U designed for a variety of demanding workloads including Telecom, Retail, and Military
- One Intel® Xeon Scalable Processor® with vRAN Boost® supporting up to 32 cores for ultimate edge performance
- Up to 8 DDR5 DIMMs 4800MT/s for 50% increase from previous generation in memory bandwidth
Excels with a Variety of Demanding Edge Workloads
- Excels in telecom deployments such as vRAN, ORAN, and others by offering PTP, SyncE via add-in NICs, Intel CPUs with vRAN Boost® featuring Integrated FEC, and NEBS Level 3 (SR3580) testing
- Designed to support retail and manufacturing applications, including video monitoring, PoS analytics, and IoT device aggregation and analytics
- Field ready for military and defense applications including remote support for field operations and reconnaissance, MIL tested
Purpose-built for the Edge
- Built rugged to operate in temperatures from -5C to 55C; MIL 810H* and NEBS Level 3* (SR3580) tested

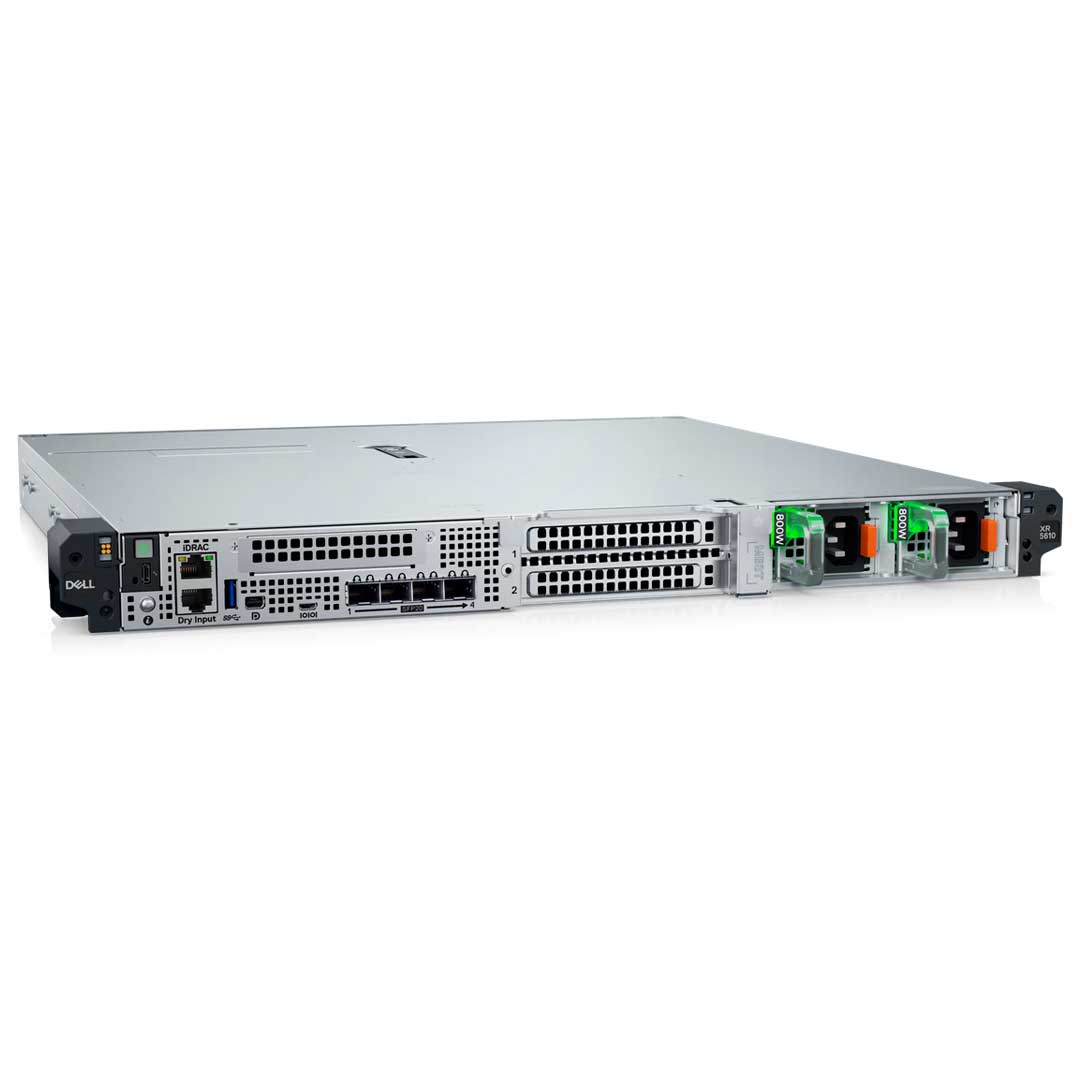

- Offers easy serviceability with reverse I/O & power
- Short-depth chassis to fit in space-constrained environments

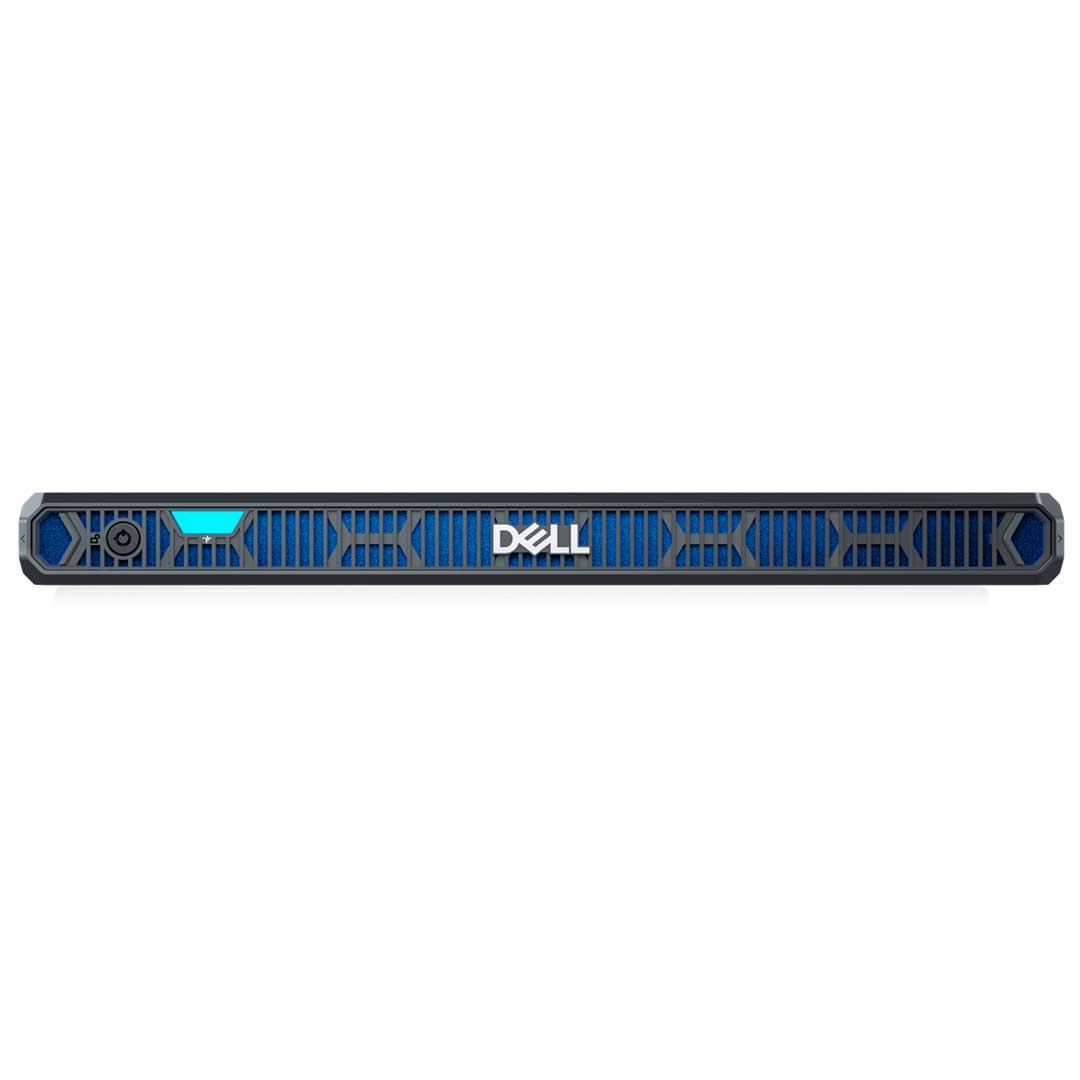

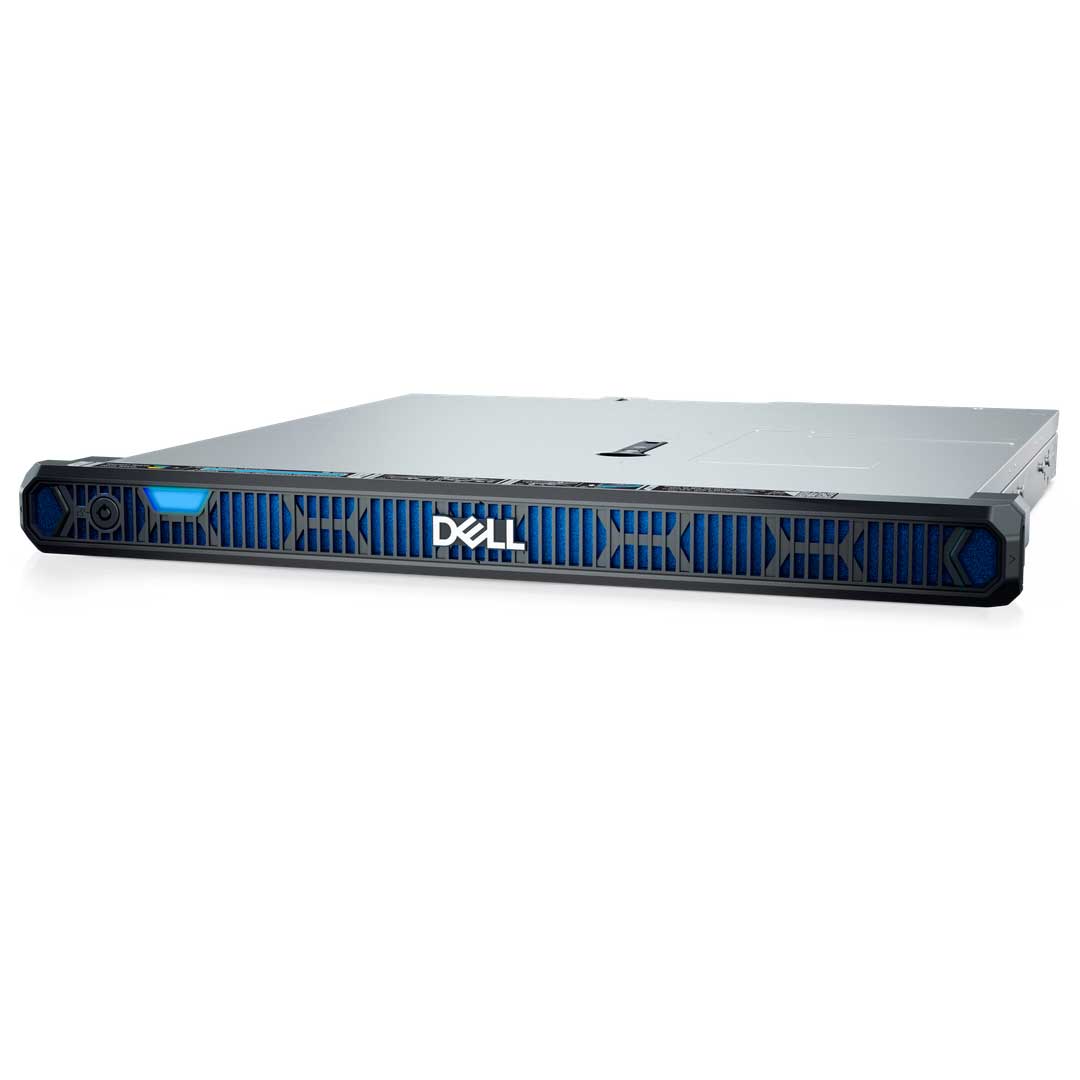

- Withstand dusty and harsh environments with an optional lockable smart filtered bezel for extra physical security
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.
Processors
Intel Xeon Scalable processor (SPR-SP)
- Core count: Up to 32 core processor
- Maximum number of PCIe lanes per CPU: Integrated 80 PCIe 5.0lanes @ 32GT/s PCIe Gen5
- Maximum TDP: 205W
Intel Xeon Edge-Enhanced processor (SPR-EE)
- Core count: Up to 32 core processor
- Maximum number of PCIe lanes per CPU: Integrated 80 PCIe 4.0lanes @ 32GT/s PCIe Gen4
80 lanes reduced to 64 lanes with EE MCC CPU and 48 lanes with EE LCC CPU. - Maximum TDP: 205W
- Rear Access Config - OCP is not supported with high TDP Edge-Enhanced CPU
Heatsink & Fans
Heat Sink
The PowerEdge XR5610 system operates in a few different environmental categories: ASHRAE A2/A3/A4 and Edge1 (50°C) and Edge2 (55°C). The heat sink will change based on which environment setup is followed. There are two types of heat sinks. The standard and the extended heat sink. You will only need the extended heat sink with Edge1 and Edge2 Ambient Air guides. You can read more about these Environmental Specifications in the manuals below.

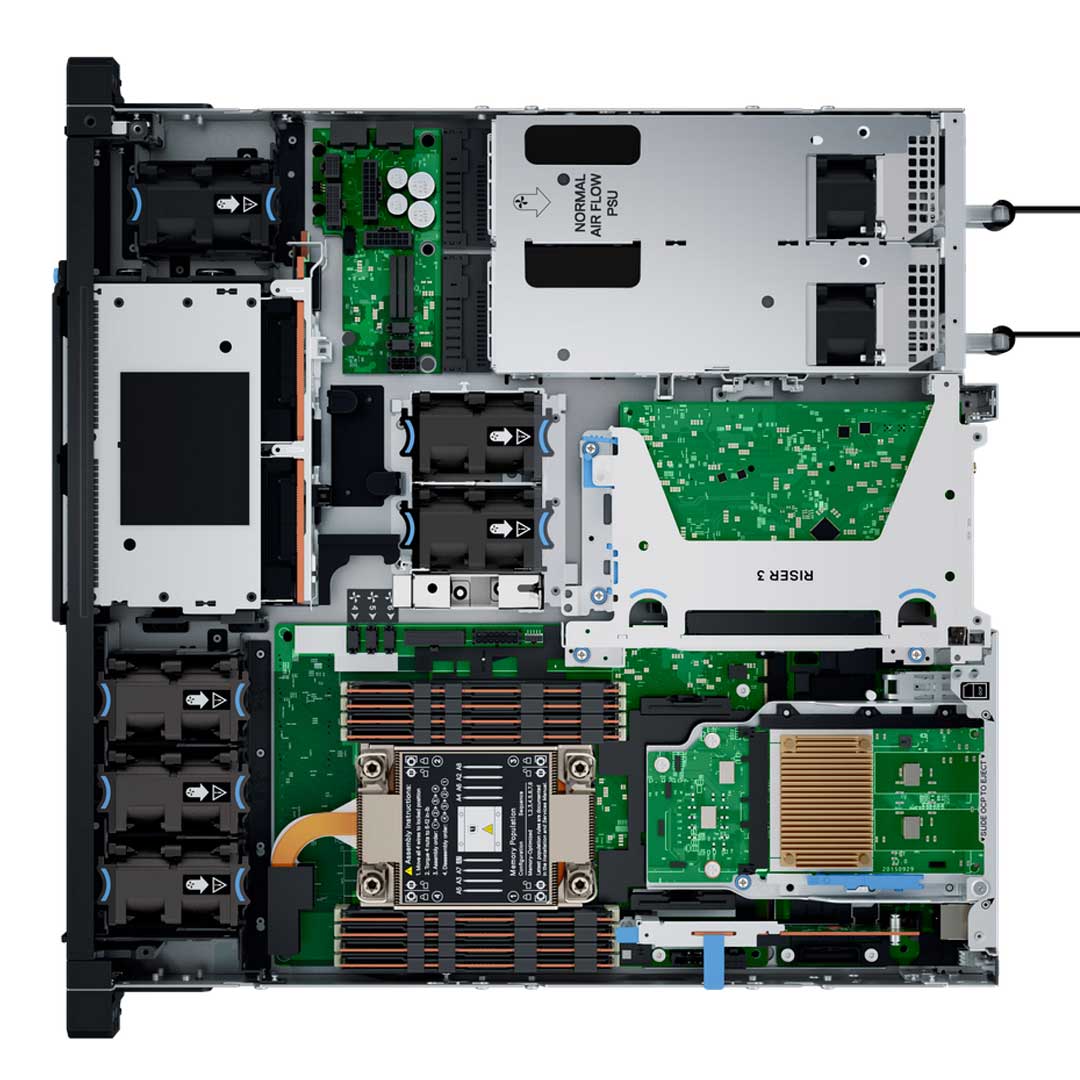

Cold Swap Fans
The Dell XR5610 supports up to six cold swap fans, no matter the direction of airflow.
There are 2 fans right behind the drive backplane along with 3 fans on one side and 1 fan on the other. Supporting the fans are the two air shrouds. One for the PCIe slots and one for the CPU / DIMMS. If a part is not supplied a blank must take its spot to keep the ambient airflow as efficient as possible.
Memory
The system holds 8 x DDR5 RDIMM at speeds up to 4800 MT/s or with 1 DIMM per channel (DPC) 4400 MT/s. Mixing of any different memory module capacities in a system is not supported. Supported RDIMM configurations are 1, 2, 4, 6, and 8 DIMMs.
| DIMM type | Rank | Capacity | DIMM rated voltage and speed | Operating Speed |
|---|---|---|---|---|
| 1 DIMM per channel (DPC) | ||||
| RDIMM | 1 R | 16 GB | DDR5 (1.1 V), 4800 MT/s | 4400 MT/s |
| 2 R | 32 GB, 64 GB | DDR5 (1.1 V), 4800 MT/s | 4400 MT/s | |
| 4 R | 128 GB | DDR5 (1.1 V), 4800 MT/s | 4400 MT/s |
Expansion Slots

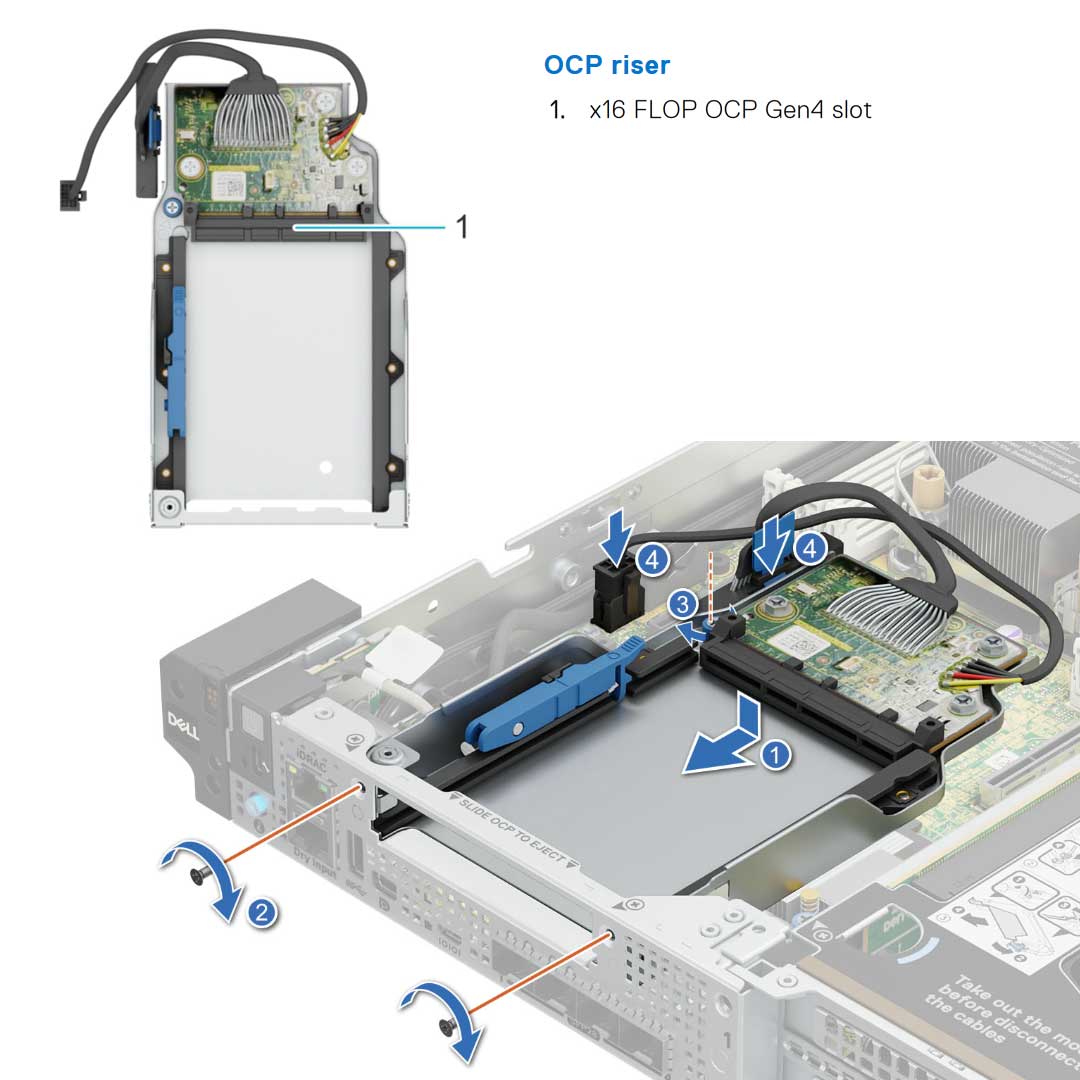

Dell XR5610 Rack Server has a PCIe Riser 3A (R3A) and a OCP (FLOP) Riser. The PCIe Riser 3A has up to 2 x PCIe Gen5 (two x16 PCIe Gen5). The OCP 3.0 PCIe 4 x16 Riser is the only way to install an OCP card that provides networking for the server without taking up a vital PCIe slot.
| Config No. | Riser configuration | No. of Processors | PERC type supported | Rear storage possible |
|---|---|---|---|---|
| 0 | NO RSR | 1 | N/A | No |
| 1 | IO1A+R3A | 1 | PERC adapter | No |
| 2 | IO1A (OCP Riser) | 1 | N/A | No |
| 3 | R3A | 1 | PERC adapter | No |
| NOTE: PERC H965i adapter can only be installed in slot 1 of the riser 3A. Slot 2 must be empty. | ||||
| NOTE: SmartNIC and PERC H965e or H355e cannot be installed simultaneously. Any storage card with an external port can only be supported in riser 3A slot 1. | ||||

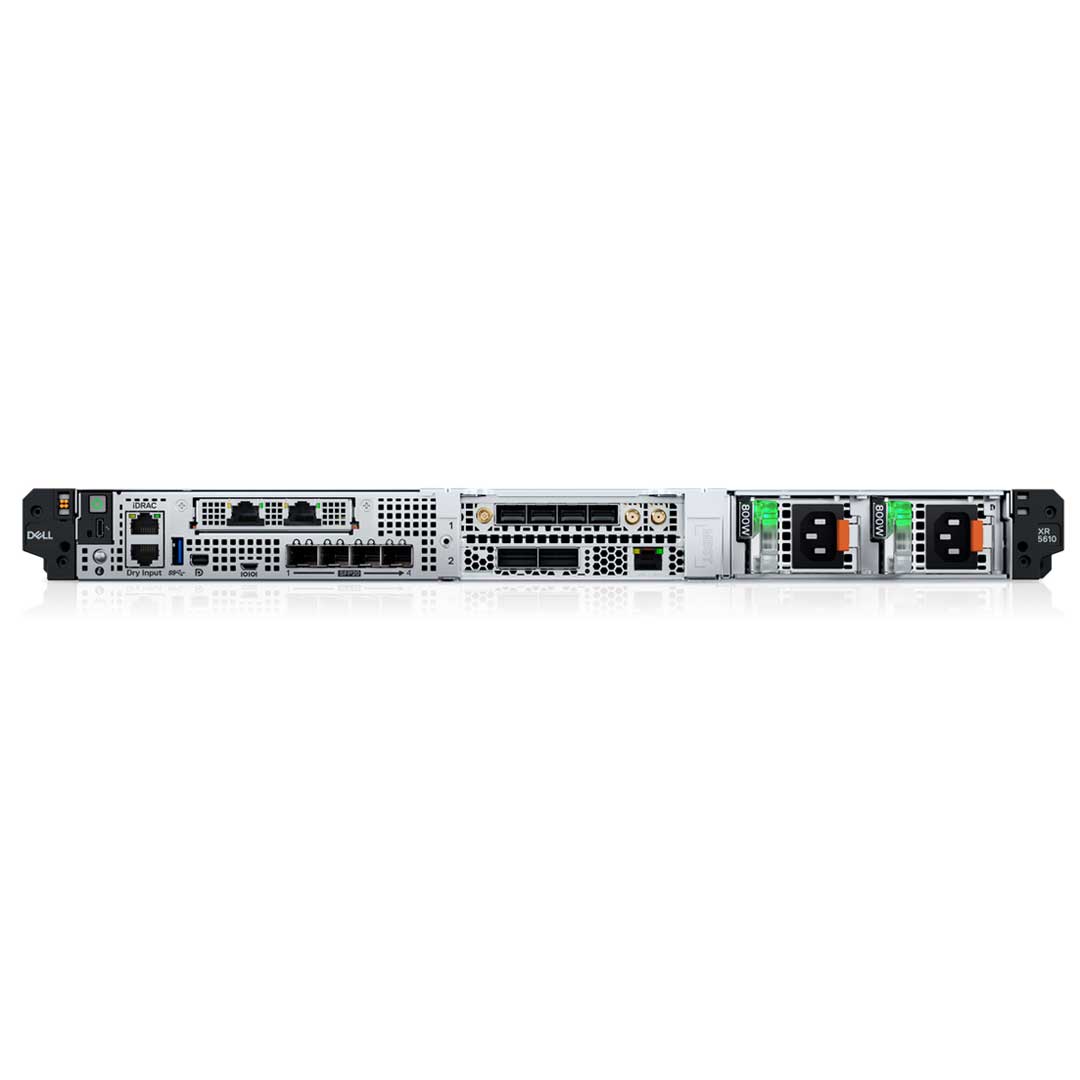

Networking / OCP 3.0
The PowerEdge XR5610 system supports 4 port embedded LOM that provide 10/25 GbE SFP28. You can also install the OCP 3.0 Mezz PCIe 4.0 x16 card (optional). This OCP has a dedicated PCIe slot for the special OCP Flop riser. The OCP card can support up to 4 ports at speeds of 25GbE
NOTE: SmartNIC and PERC H965e or H355e cannot be installed simultaneously. Any storage card with an external port can only be supported in riser 3A slot 1.
| Feature | Specifications |
|---|---|
| LOM | 10 GbE, 25 GbE |
| RJ45 for iDRAC | 1 GbE |
| OCP card (3.0) | 1 GbE, 10 GbE, 25 GbE |
| The system allows either NIC card or OCP card or both to be installed in the system. | |
| Shared management of iDRAC is capable through the embedded LOM and OCP ports. | |
Storage Controllers
The Dell XR5610 Rack Server supports PERC11 and PERC12 storage controllers. The Internal Controllers: PERC H965i, PERC H755, PERC H355, HBA355i can be installed in the R3A Riser. The system also supports the Boot Device BOSS-N1 Riser with 2x M.2 NVMe SSDs. This boot device frees up one of the 1 drives from being the dedicated boot drive.
NOTE: PERC H965i adapter can only be installed in slot 1 of riser 3A. Slot 2 must be empty.
| Performance Level | Controller and Description |
|---|---|
| Entry | S160 |
| Value | H355, HBA355 (internal/external) |
| Value Performance | H755 |
| Premium Performance | H965i |
GPU
The R3A riser supports up to 2 x 75 W/150 W (SW/FH/HL). This is what makes the sever ideal for video monitoring or Military workloads. Make sure to install the riser for GPU support.
Please read the ambient temperature tables in the manual below. GPUs are not supported in every setting and have some limitations.
A PCIe Cardholder will be installed when the Rugged Kit is selected on the CTO. This will ensure the card stays in place and is connected securely.
Power Supply Units (PSU)
This powerful 1U server supports up to 2 hot swap 60MM PSUs. The PowerEdge XR5610 has two types of Power Supply Units (PSUs). The PSUs with black straps are designed for Rear Accessed configuration while the PSUs with blue straps are designed for Front Accessed configuration
Front Accessed Supported PSUs
- Platinum 800 W AC/HDVC
- Titanium 1100 W AC/HVDC
- 1100 W -48-(-60) LVDC
- Platinum 1400 W AC/HVDC
Rear Accessed Supported PSUs
- Platinum 800 W AC/HDVC
- 800 W -48-(-60) LVDC
- Titanium 1100 W AC/HVDC
- Platinum 1800 W AC/HVDC
Dimensions & Weight:

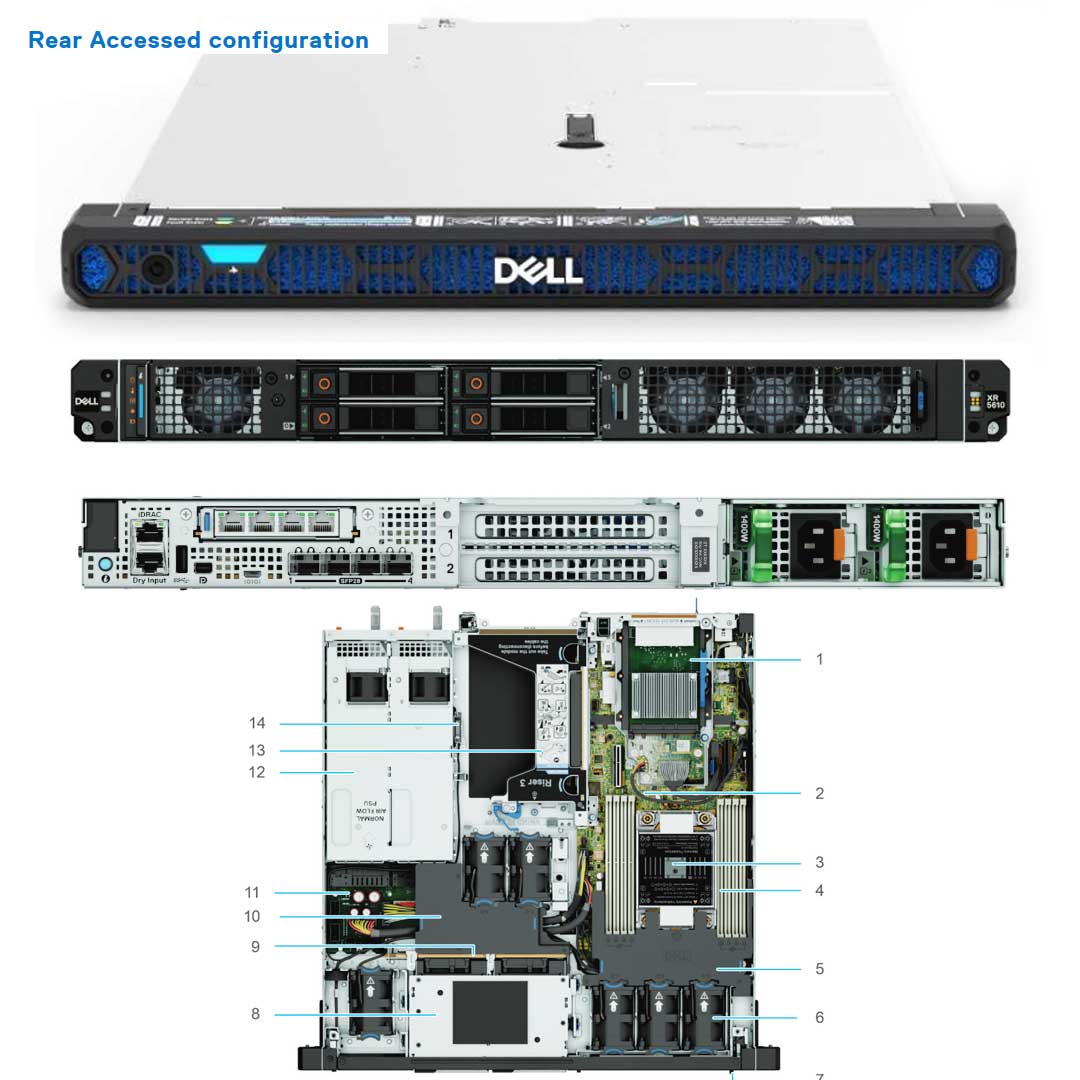

Rear Accessed Dimensions:
- Width: 6 mm (19 inches)
- Height: 8 mm (1.68 inches)
- Length: 400 mm (15.74 inches) ear to rear wall
- Length: 7 mm (19.20 inches) with bezel
- Length: 463 mm (18.22 inches) without bezel
- Weight: 11.27 kg (24.84 pounds)

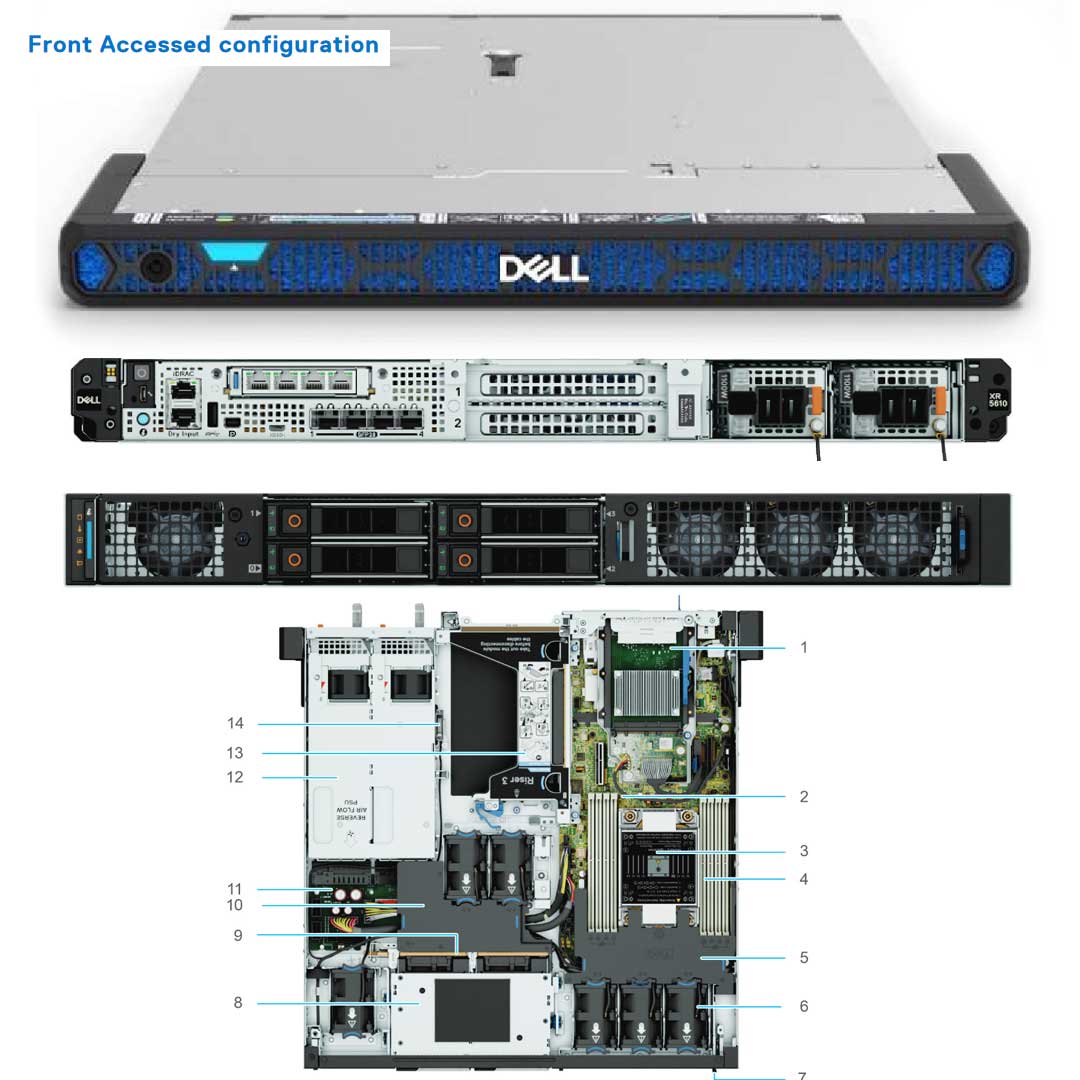

Front Accessed Dimensions:
- Width: 6 mm (19 inches)
- Height: 8 mm (1.68 inches)
- Length: 400 mm (15.74 inches) ear to rear wall
- Length: 05 mm (22.28 inches) with bezel
- Length: 7 mm (18.61 inches) without bezel
- Weight: 11.37 kg (25.06 pounds)
