Dell PowerEdge R760XA Config 1
Contact For Pricing
Thanks for the request. We'll get back to you with in 24 hours.
Quick Specs
| Configurations | Expansion Card Risers | PCIe Slots | Controlling Processor | Height | Length | Slot Width |
|---|---|---|---|---|---|---|
| Config1. 4 x16 Rear FH+ 8 x8 Front FH SW |
R1V | 1 and 2 | Processor 1 | Full height | Half length | x16 + x16 |

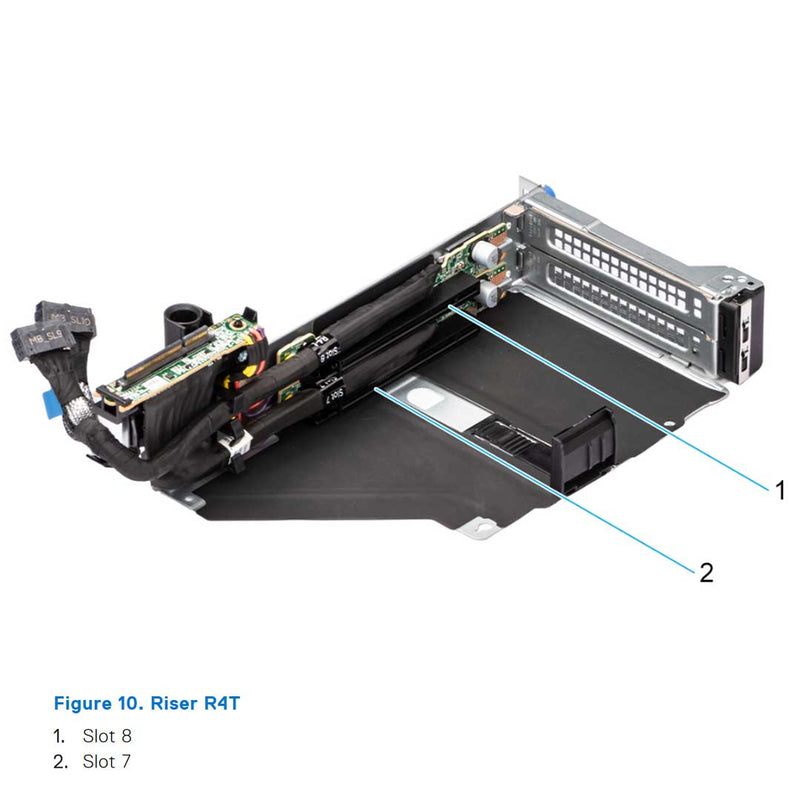

| R4T | 7 and 8 | Processor 2 | Full height | Half length | x16 + x16 | |

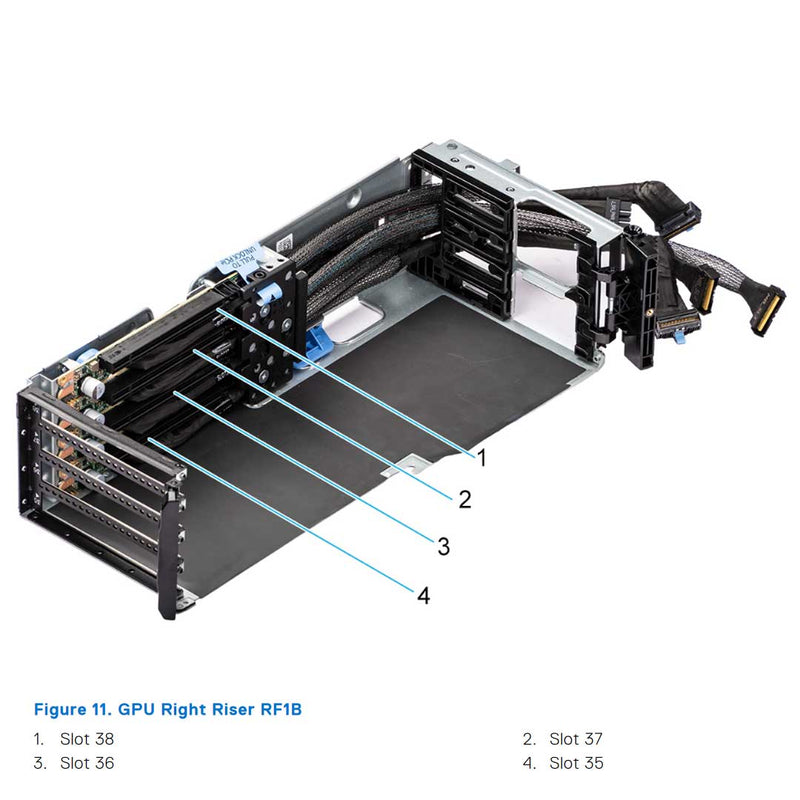

| RF1B | 35, 36, 37 and 38 | Processor 1 | Full Height, single width | Full length | x8 + x8 + x8 + x8 | |
| RF2B | 31, 32, 33 and 34 | Processor 2 | Full Height, single width | Full length | x8 + x8 + x8 + x8 |
Compatible With:
- Dell PowerEdge R760xa
