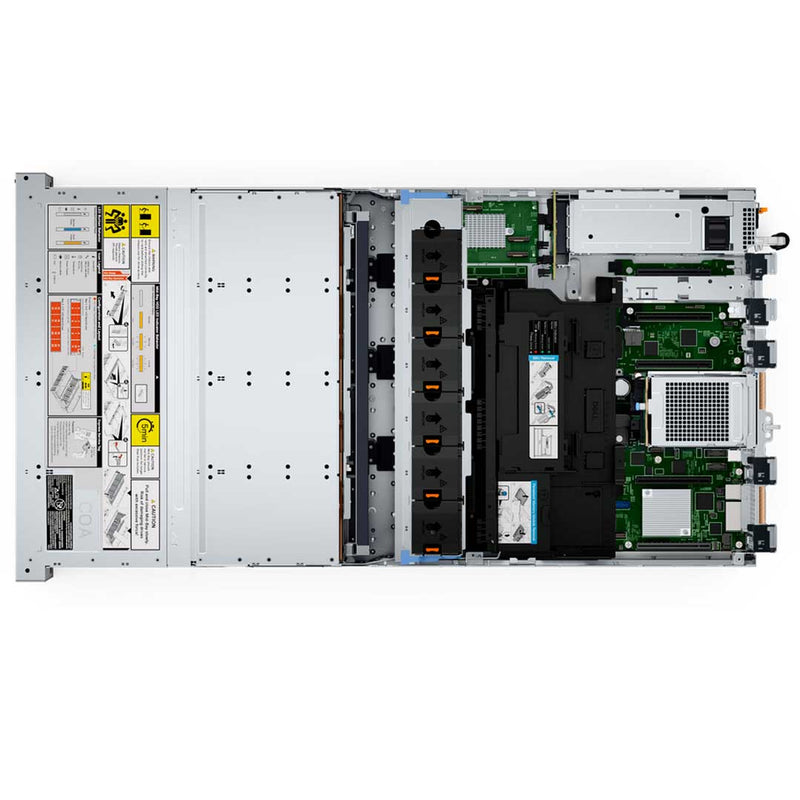

Dell PowerEdge R760XD2 Rack Server CTO

Dell

| CTO Servers |

DPE-R760XD2-CTO



Configure for Pricing

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Select Chassis

Select Processor

Supports up to 2 Processors.

4th Generation Xeon® Scalable Processors

Rear Drives

The 2.5" and EDSFF Risers have two options. One Rise sits of the side and another option is to mount the rear drives in the center of the system.

Bezel

Memory (Optional)

Supports up to 16 DDR5 DIMMS on a two socket configuration.

Storage Devices (Optional)

To support more thatn 16 SAS drives you will need to install the SAS Expander along with the H755 or HBA355i.
For more details please read the manual below.

Riser Options (Optional)

If you install anyone of these Rear Drives you will be losing PCIe slots. But you expand the LP to add two FH/FL PCIe slots by installing the Riser.
Please click each rear drive or riser to view more details about each.

LFF SAS Drives (Optional)

Supports up to 12 drive in the front tray and 12 drive in the mid tray.
If Rear LFF Drive Cage is installed, that takes up to 4 LFF drives.

LFF SATA Drives (Optional)

Supports up to 12 drive in the front tray and 12 drive in the mid tray.
If Rear LFF Drive Cage is installed, that takes up to 4 LFF drives.

SFF SAS Drives (Optional)

2.5" Drives will be placed in a 3.5" Carrier when installed in the front two drive bays.

SFF SATA Drives (Optional)

2.5" Drives will be placed in a 3.5" Carrier when installed in the front two drive bays.

NVMe Drives (Optional)

2.5" Drives will be placed in a 3.5" Carrier when installed in the front two drive bays.

EDSFF E3.S Drives (Optional)

Can only be installed in the Rear Drive EDSFF Cage.
Max 4 Drives supported.
You Must Install the REAR EDSFF Drive Cage

OCP NIC (Optional)

The system allows either LOM card or an OCP card or both to be installed in the system.

GPU (Optional)

Up to 2 x 75 W SW , 1 x 75 W SW + 1 x 150 W SW or 1 x180 W DW
You can not mix GPUs in this system.

TPM (Optional)

iDRAC9 (Optional)

Default iDRAC9 Express

Power Supply Units

Supports up to 2 PSU

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs

Form Factor:

2U rack server

Processor | Max: 56 Cores

2x Gen 4 Intel Xeon Scalable

Memory | Max: 1TB

16 ECC DDR5 RDIMM 4800Mhz

Storage | Max: 264TB

Front bays:
Up to 12x 3.5" SAS/SATA Max: 264 TB
Mid bays:
Up to 12x 3.5" SAS/SATA Max: 264 TB
Rear bays:
Up to 4x 3.5" SAS/SATA Max: 88 TB
Up to 4x 2.5" NVMe with 3.5" carrier Max: 30.72 TB
Up to 2x 2.5" NVMe Max: 15.36 TB
Up to 4x E3.S NVMe Max: 30.72 TB

Boot Options

Boot Optimized Server Storage (BOSS-N1) Hot-Swap
USB

RAID Controller: (Adapter PERC)

S160 (SATA/NVMe SW RAID)
H355, H755, H965i, H355i, HBA355e, H965e

LOM

2 x 1GbE LOM card with BCM5720 LAN controller

Networking Options | Max Speed: 4x 100GbE Ports

OCP 3.0 x8 Mezz 3.0

Remote Management:

iDRAC9 with Lifecycle Controller

PCIe Slots:

Up to 5 PCIe slots
Slot 1: 1 x16 Gen4 Low profile, Half length
Slot 2: 1 x8 (x16 connector) Gen4 Low profile, Half length

  • or 1 x16 Gen4 Full height, Full length
  • or 1 x16 Gen4 Full height, Half length

Slot 3: 1 x16 Gen4 Low profile, Half length

  • or 1 x16 Gen4 Full height, Full length
  • or 1 x16 Gen4 Full height, Half length

Slot 4: 1 x16 Gen4 Low profile, Half length
Slot 5: 1 x16 Gen4 Low profile, Half length
Note: Slot 5 is dedicated for internal PERC card

GPU:

Up to 2 x 75 W SW,
1 x 75 W SW + 1 x 150 W SW or 1 x 180 W DW

Other Versions

(Click to View)

Ideal for:

  • Video Analytics
  • Video Streaming

The Dell PowerEdge R760xa, is a purpose-built server designed to boost acceleration performance across the widest range of customer needs.

Meet your growing unstructured data needs with object storage technology

More capable and agile storage solution

Meet your growing unstructured data needs with object storage technology designed to be easily configurable, serviceable, and scalable. This 2U, 2 socket server is ideal for file and object storage, video capture/retrieval, and content delivery networks.

Storage tiering performance and capacity

Be confident knowing that with seven percent more drives and a capacity of up to 22 TB, the R760xd2 can manage the explosive growth of data. And, latency has been reduced using storage tiering and accelerators supported by PCIe Gen4. The system also offers a larger number of available PCIe slots with multiple configurations based on your requirements.

  • Maximize storage with seven percent more 3.5-inch drive space with up to 28 drives for a total capacity of 616 TB
  • Significantly reduce latency and improve performance using NVMe drives and NVIDIA accelerators
  • Reduce services cost when changing hot-plug drives and PCIe cards with the new external rail feature
  • Stay air-cooled with Smart Cooling technology including optimized chassis, fans, and baffles managed by Power Manager, the intelligent management software
Increase efficiency and accelerate operations with autonomous collaboration

The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.

Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations

Configuration Rules and limitations

Before we start let me show you some odd rules that will change the way you configure the server.

  • Single CPU support is there only for No Riser Configruations
  • In a "No riser" Configuration. The System cannot support the same type of 2.5" drive in front and rear storage (4 x 2.5") when using 2.5" in a 3.5" Carrier.
  • Rear Storage has a Drive Capacity limit of 7.68TB
  • The PERC H965e is restricted to slot 3 in configuration 2
  • GPUs are supported in Configuration 3 Only
  • Non-populated DIMMs must have a blank in Configuration 3.
  • For more details about these rules and limitations, please read the manual below.
Drive Configuration Options:
Chassis Options:
  • (2) 12x 3.5" (12 + 12)
  • (2) 12x 3.5" with rear 4x 3.5" SAS/SATA
  • (2) 12x 3.5" with rear 2x U.2 NVMe
  • (2) 12x 3.5" with rear 4x E3.S NVMe
  • The Dell SAS Expander Card for the R760XD2 supports the Storage controllers H755 and the HBA355i. The SAS Expander along with those Storage controllers allows the system to support up to 50 SAS Drives at up to 12 Gb/s.
Image of the SAS Expander to support over 16 Drives on a single RAID.

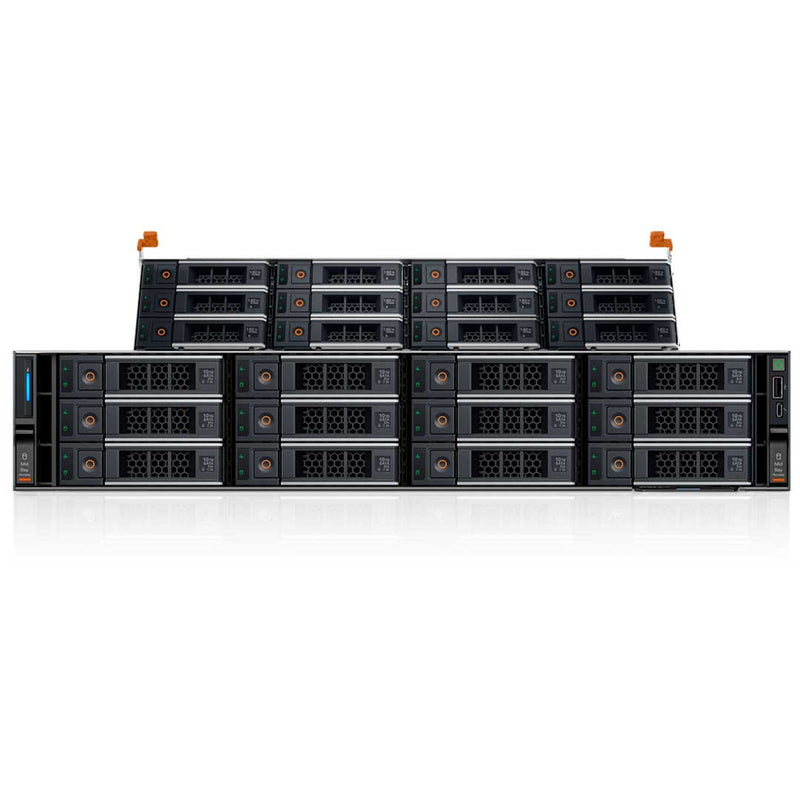

Image of the R760cd2 Front Bay Front Bay
Drive Options

12x 3.5" SAS/SATA

Supported Drives

SAS 12Gb/s 7.2K 2TB - 22TB
SATA 6Gb/s 7.2K 2TB - 22TB

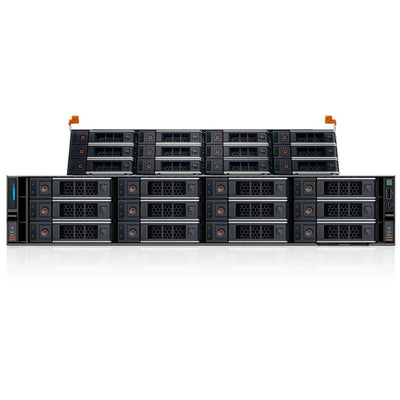

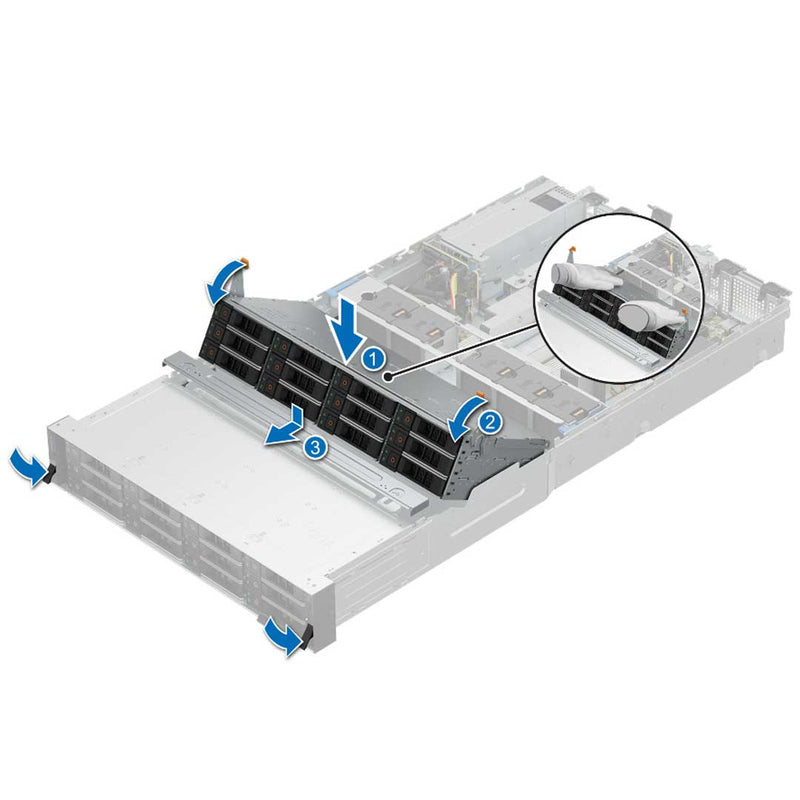

Image of the R760cd2 Mid Bay Mid Bay
Drive Options

12x 3.5" SAS/SATA

Supported Drives

SAS 12Gb/s 7.2K 2TB - 22TB
SATA 6Gb/s 7.2K 2TB - 22TB

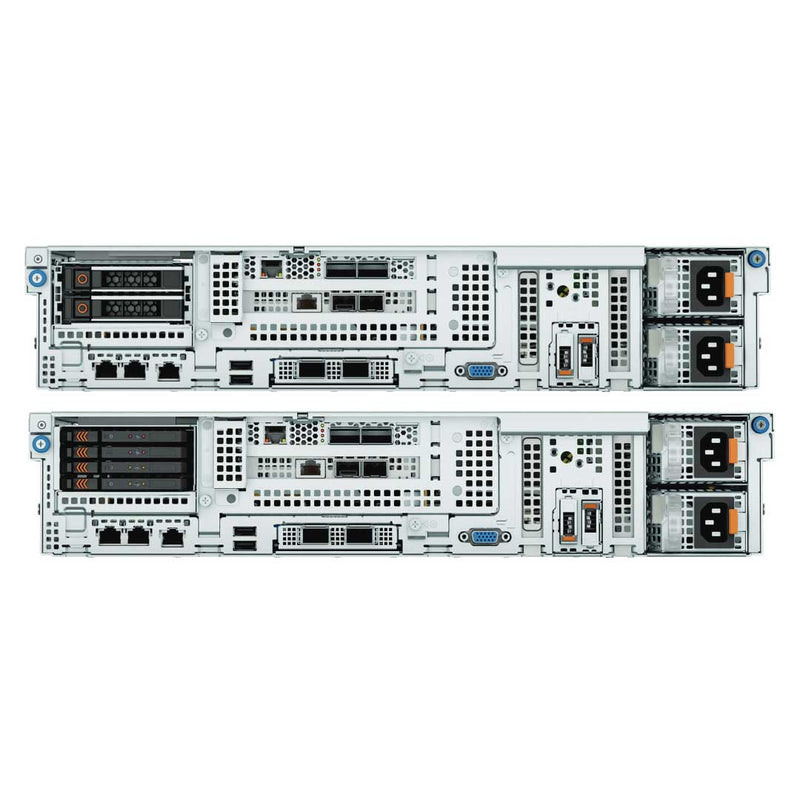

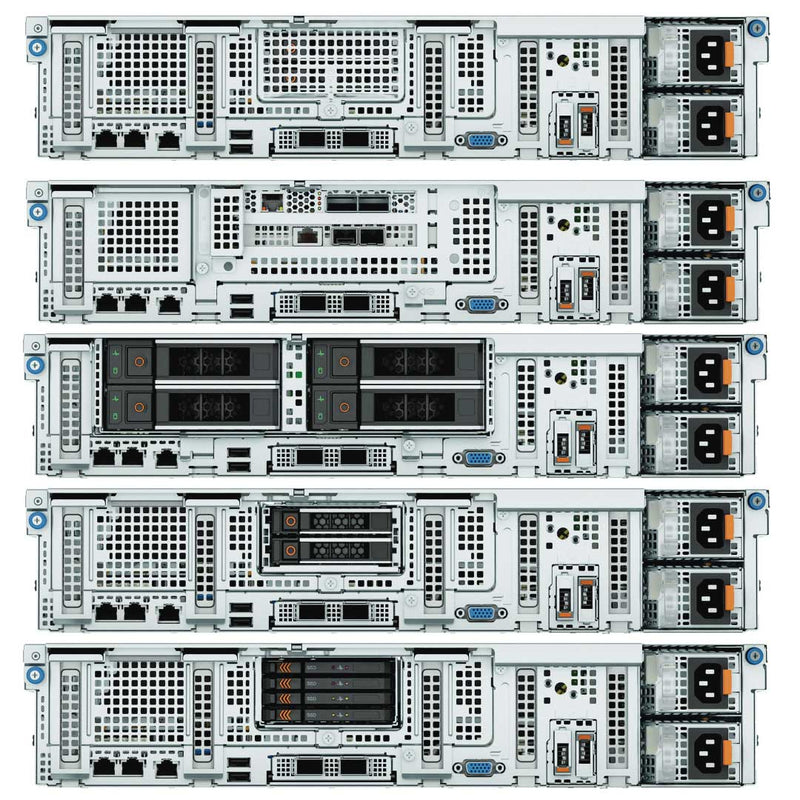

Image of the R760cd2 Back Bay Back Bay
Drive Options

Up to 4x 3.5" SAS/SATA
Up to 4x 2.5" Drives with 3.5" carrier
Up to 2x 2.5" NVMe
Up to 4x E3.S NVMe

Supported Drives

SAS 12Gb/s 10K & 24Gb/s SSD
SATA 6Gb/s SSD
NVMe Gen 4 SSD

Processor, Heatsink & Fans
Image of the Processors supported in in the R760xd2 Rack Server Processor

The following lists the features and functions that are in the upcoming 4th Generation Intel® Xeon Scalable Processor offering:

  • Faster UPI with up to four Intel Ultra Path Interconnect (Intel UPI) at up to 16 GT/s, increasing multi-socket bandwidth.
  • More, faster I/O with PCI Express 5 and up to 80 lanes (per socket)
  • Enhanced Memory Performance with DDR5 support and memory speed up to 4800 MT/s in one DIMM per channel (1DPC) and 4400 MT/s in two DIMM per channel (2DPC)
  • New built-in accelerators for data analytics, networking, storage, crypto, and data compression
Image of the 6 STD Fan in the R760xd2 Rack Server Heatsink & Fans

This server does not support high-end CPUs so the Standard 2U Heat Sink is the only one for this server. The same goes for the Fan system in this server.

The 6x Standard Hot-Swap Fan is the only choice for the PowerEdge R760xd2 Rack Server. Please view the manual below for more detailed information about the Ambient Temperature by looking up the "Thermal Restrictions Matrix".

Memory Options

With two CPUs you can install up to 16 DDR5 DIMM slots, support RDIMM 1 TB max, and speeds up to 4800 MT/s. Supports registered ECC DDR5 DIMMs only.

Rated DIMM Speed (MT/s) DIMM Type DIMM Capacity (GB) Ranks per DIMM Data Width DIMM Volts
4800 RDIMM 16 1 8 1.1
4800 RDIMM 32 2 8 1.1
4800 RDIMM 64 2 4 1.1
GPU / Expansion Slot Options

The Dell PowerEdge R760xd2 has 5 Low Profile PCIe Slots on the system board. Slot 5, the closest to the PSU is dedicated to a PERC card. The system also supports 1 Riser that has two options. A Full Length and Half Length option. This riser takes up the center of the chassis and gets installed above the OCP card. This riser provides two Half Length slots or 2 Full Length slots. When installing the riser your system will be able to support 1x DW GPU and or 2x SW GPUs.

Some PCIe slots get used when you install a rear drive cage. For example, when you install the 4x 3.5" rear drive cage, you will only have access to 3 PCIe slots with one of those being the dedicated perc slot 5. View the image above or the manual below for more details.

Image of the Riser for the R760xd2 Rack Server
GPU Options

Up to 2 x 75 W SW, 1 x 75 W SW + 1 x 150 W SW or 1 x 180 W DW

All GPU/FGPA cards require 2U L-type HSK and GPU shroud. The system can hold up to 3 GPUs at once with the Riser installed. The riser can support a DW GPU card while slots 1 and 4 hold a SW GPU each. This is just one type of GPU configuration the system can support. For more GPU details, please refer to the manuals below.

Networking Adapters LOM/OCP

The Dell PowerEdge R760XD2 has 2 Networking options to choose from. Both have dedicated slots and do not use a PCIe slot. This is great since with rear drives the PCIe slots can go from 5 to 2 with the installation of rear drives.

LOM/OCP 3.0

The R760xd2 has an optional 2 x 1 GbE LOM slot or the optional OCP 3.0 x8 slot for expanding the system networking capabilities. The OCP has 4 ports and speeds reaching up to 100Gb/s over those 4 Ports (4x 25Gb/s).

Image of a OCP 3.0 Network card being installed in the R760xd2 Rack Server
Storage Controllers Options
Storage Controllers

Dell's RAID controller options offer performance improvements, including the Adapter PERC solution. Adapter PERC provides a base RAID HW controller in PCIe Slot 5 which is a dedicated slot just for the PERC or HBA.

Note: PERC interposer cable has to be installed as PCIe Slot 5 to install adapter PERC on the system.

SAS Expander

To support more than 16 Drives on a single controller you will need to install the SAS Expander. The SAS Expander has a dedicated slot on the system board near the power supplies. Please read the Controller Specs below for more details.

Image of the R760xd2 with an PERC being installed.
Performance Level Controller and Description
Software NA (No SW RAID)
Internal H355, H755, H965i
External H965e,
SAS Host Bust Adapters (HBA) HBA355i, HBA355e

Storage Controller Specs

Model & Form Factors Interface Support PCI Support SAS Connection Cache Memory Size Write Back Cache RAID Levels Max Drive Support RAID Support
PowerEdge Server-Storage Controllers (PERC) Series 12
H965i Adapter 24Gb/s SAS
6Gb/s SAS/SATA
Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 16 ports/lanes - 2x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 16 Hardware
H965e Adapter 24Gb/s SAS
6Gb/s SAS/SATA
Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 16 ports/lanes - 2x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 16 Hardware
PowerEdge Server-Storage Controllers (PERC & SAS HBA) Series 11
H755 Adapter 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA
Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 16 ports- 2x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 16 Per Controller / 50 with SAS Expander Hardware
HBA355i Adapter 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 16 ports- 2x8 Internal N/A N/A N/A 16 Per Controller / 50 with SAS Expander N/A
HBA355e Adapter 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 16 ports- 4x4 external N/A N/A N/A 240 N/A
H355 Adapter 12Gb/s SAS
6Gb/s SAS/SATA		 PCIe Gen 4 16 ports- 2x8 Internal No Cache No Cache 0,1, 10 Up to 32 RAID,
or 32 Non- RAID		 Hardware
Power, Dimensions & Weight
Power

Supports up to 2 Hot-Swap Redundant PSUs.

  • 1800 W Titanium 200—240 VAC or 240 HVDC
  • 1400 W Platinum 100—240 VAC or 240 HVDC
  • 1100 W Titanium 100—240 VAC or 240 HVDC
  • 1100W LVDC –48 — –60 VDC
  • 700 W Titanium 200—240 VAC or 240 HVDC
Dimensions & Weight:

Width: 481.6 mm (18.96 inches)
Height: 86.8 mm (3.41 inches)
Length: 837 mm (32.95 inches)
Weight:
-- 46.3 kg (102.07 pounds) A server with fully populated drives
-- 23.72 kg (52.29 pounds) A server without drives and PSU installed

Current Configuration

(List below serves as quick links to each section)

Select Chassis

Select Processor

Rear Drives

Bezel

Memory

Storage Devices

Riser Options

LFF SAS Drives

LFF SATA Drives

SFF SAS Drives

SFF SATA Drives

NVMe Drives

EDSFF E3.S Drives

OCP NIC

GPU

TPM

iDRAC9

Power Supply Units

ECS Warranty

The request has been sent.
Thank you.

Price as Configured:
$0

Add to Cart

Error Submitting Cart. Please get in touch with us for support.

Please select all the mandatory items in the configuration list before submitting the cart.

One or more items in your cart has no price. This will be submitted as a "Request for a Quote".

You may also like
