Dell PowerEdge R7415 Rack Server Chassis (12x3.5")
Dell PowerEdge R7415 Rack Server Chassis (12x3.5")
Dell PowerEdge R7415 Rack Server Chassis (12x3.5")
Dell PowerEdge R7415 Rack Server Chassis (12x3.5")
Dell PowerEdge R7415 Rack Server Chassis (12x3.5")
Dell PowerEdge R7415 Rack Server Chassis (12x3.5")
Dell PowerEdge R7415 Rack Server Chassis (12x3.5")
Dell PowerEdge R7415 Rack Server Chassis (12x3.5")
SKU: DPE-R7415-12x3.5-Chassis

Dell PowerEdge R7415 Rack Server Chassis (12x3.5")

Dell

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

2U rack server

Processor | Max: 32 Cores

1x AMD EPYC

Memory | Max: N/A

16 ECC DDR4 RDIMM/LRDIMM 2666Mhz

Storage | Max: N/A

Front bays:12 LFF SAS/NL-SAS/SATA (HDD/SSD)
Rear bay: Up to 2x 3.5” SAS/SATA HDD
Note: The high-performance fans are required for:
12 x 3.5" drive + 2 x 3.5" rear drive, or
24 x 2.5"drive (with NVMe)

Boot Options

Boot Optimized Server Storage (BOSS)
Internal Dual SD module (IDSDM)

RAID Controller: MiniMono

H330, H730P, H740P, H840, HBA330, 12Gbps SAS HBA

NIC/LOM

2 x 1GE (default) or 2 x 10GE or 2 x 10GE SFP+

Remote Management:

iDRAC9 Express (default) with Lifecycle Controller

PCIe Slots:

Up to 4 PCIe 3.0 slots (3x 16 + 1x 8)

GPU: None
Other Versions

Ideal for:

  • Big Data Analytics
  • Virtualization

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

FeaturesTechnical specification
Processor1x AMD™ EPYC processor, up to 32 cores
Memory16 DDR4 DIMMs, RDIMM, LRDIMM
Storage controllersInternal Controllers: PERC H330, H730p, H740p, HBA330
External PERC (RAID): H840 12Gbps PERC9 or 10 series, mini PERC x8 slot
Boot Optimized Storage System: HW RAID 2 x M.2 + Internal USB + Internal Dual SD Module

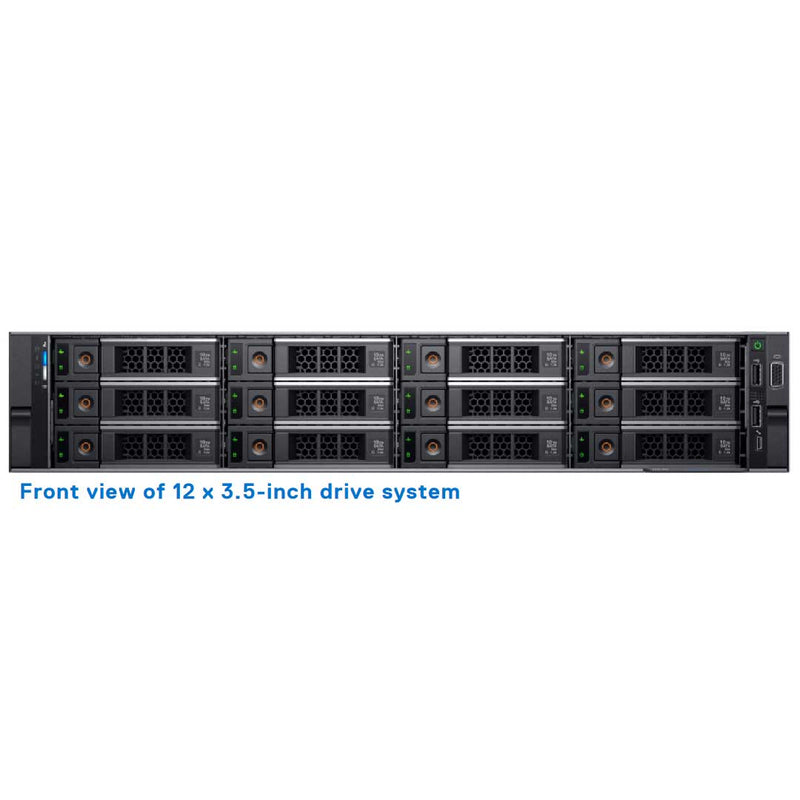

Drive baysFront bays:
  • Up to 24 x 2.5” SATA/SAS/NVMe
  • Or up to 12x 3.5” SAS/SATA HDD
Rear bays:
  • Up to 2x3.5” SAS/SATA HDD
Power suppliesTitanium 750W, Platinum 495W, 750W, 1600W
Hot plug power supplies with full redundancy
DimensionsForm factor: Rack (2U)
Chassis max depth: 707.74 mm (without bezel)
Max depth: 693.81 mm (with bezel)
Embedded / At-ServeriDRAC9 with Lifecycle Controller (no power capping)
iDRAC Direct
iDRAC REST API with Redfish support
Quick Sync 2 BLE/wireless module
BezelOptional LCD bezel or security bezel
OpenManage SoftwareOpenManage Enterprise
OpenManage Mobile
OpenManage Essentials
Integrations and connectionsIntegrations:
Microsoft System Center
VMware vCenter
BMC Software (available from BMC)		Connections:
HPE Operations Manager i (OMi)
Nagios® Core
Nagios® XI
ToolsDell EMC Repository Manager
Dell EMC Update Package
Dell EMC System Update
Dell EMC Server Update Utility		iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
SecurityTPM 1.2/2.0 optional
Cryptographically signed firmware
Secure Root of Trust
Secure Boot
Secure Erase
System Lockdown
I/O & PortsNetwork daughter card options:
  • 2 x 1GbE
  • 2 x 10GbE
  • 2 x 10GbE SFP+
  • 2 x 25Gb SPF+
Front Ports:
  • 2 x USB 2.0
  • 1 x Dedicated iDRAC Direct Micro-USB

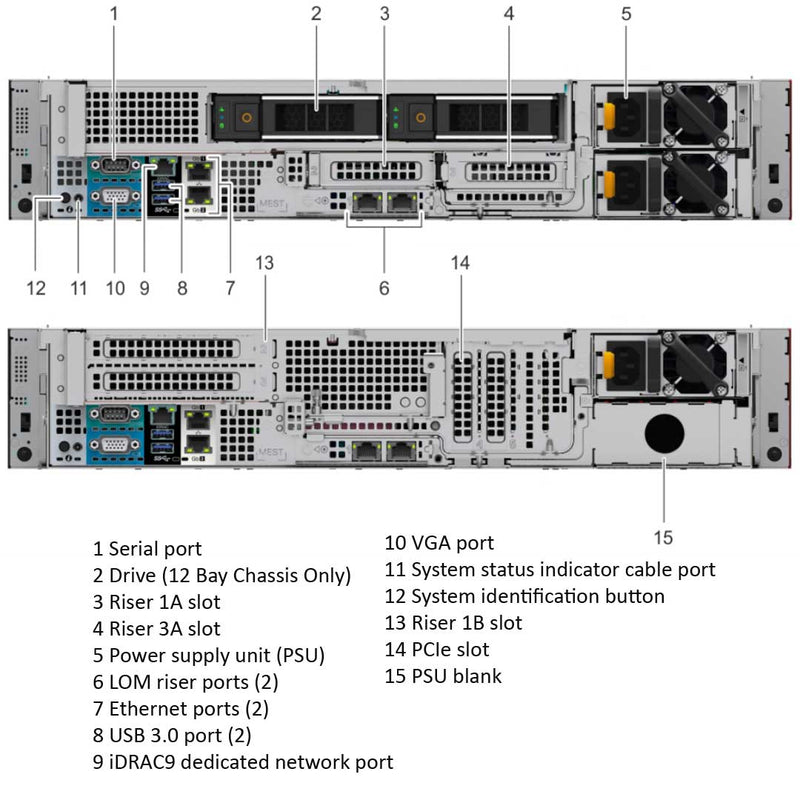

Rear Ports:
  • 2 x 1GbE
  • 1 x Dedicated iDRAC network port
  • 1 x Serial
  • 2 x USB 3.0
  • 1 x VGA
PCIe:
  • Up to 4 x Gen3 slots; 3 x 16 lanes and 1 x 8 lanes
Supported operating systemsMicrosoft Windows Server® 2016
Red Hat® Enterprise Linux 7.4
VMware® vSphere 2016 U1 (ESXi 6.5 U1)
Microsoft Windows Server® 2012 R2
