RC8 : Riser Configuration 8 | Dell PowerEdge R7715
Contact For Pricing
Thanks for the request. We'll get back to you with in 24 hours.
Condition: Refurbished ✓ Pulled from working servers & Tested. ✓ 1-year Parts Warranty.
Warranty | Return Policy
Riser Config Specs
| Riser Configurations |
Expansion card risers |
PCIe Slots | Form factor | Controlling processor |
Slot's electrical bandwidth/ physical connector |
|---|---|---|---|---|---|
|
RC8: 2 x16 LP + 3 x16 DW |

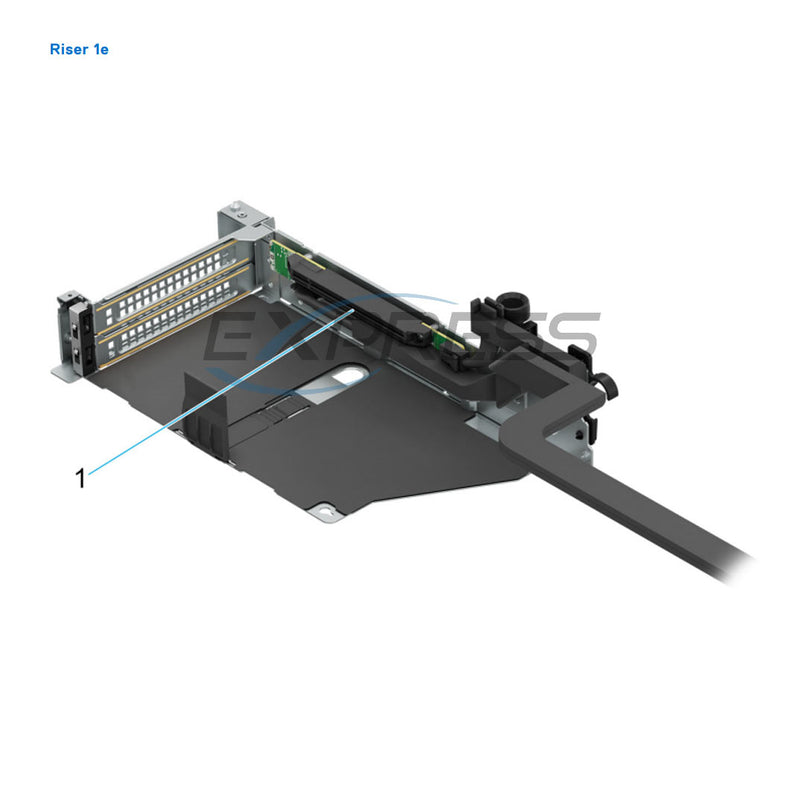

R1e | 2 | Full height | Processor 0 | PCIe Gen5 x16 (x16 connector) |

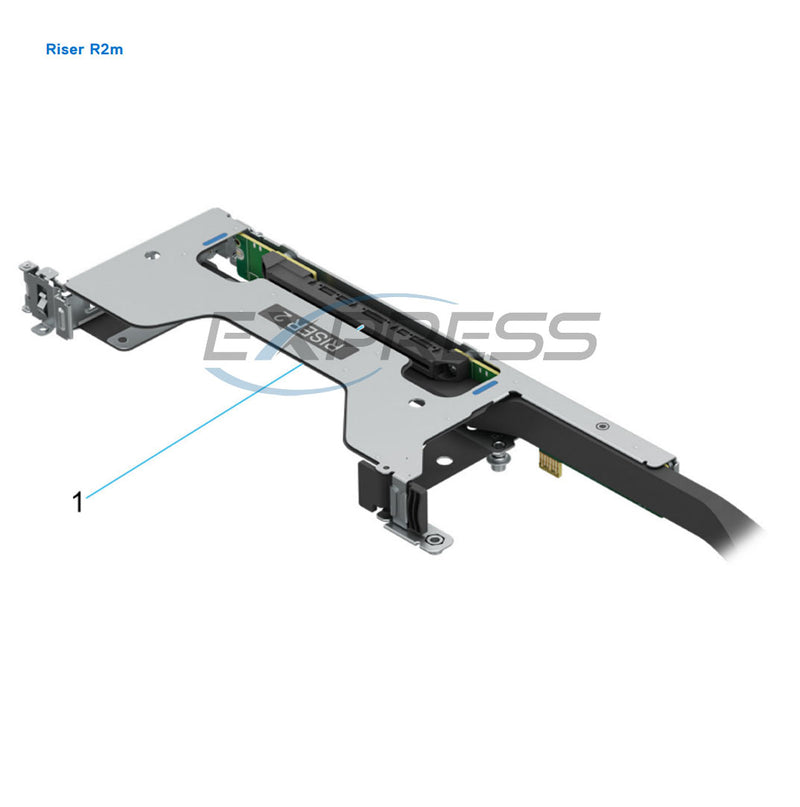

| R2m | 3 | Full height | Processor 0 | PCIe Gen5 x16 (x16 connector) | |
| R3b | 4 | Full height | Processor 0 | PCIe Gen5 x16 (x16 connector) | |

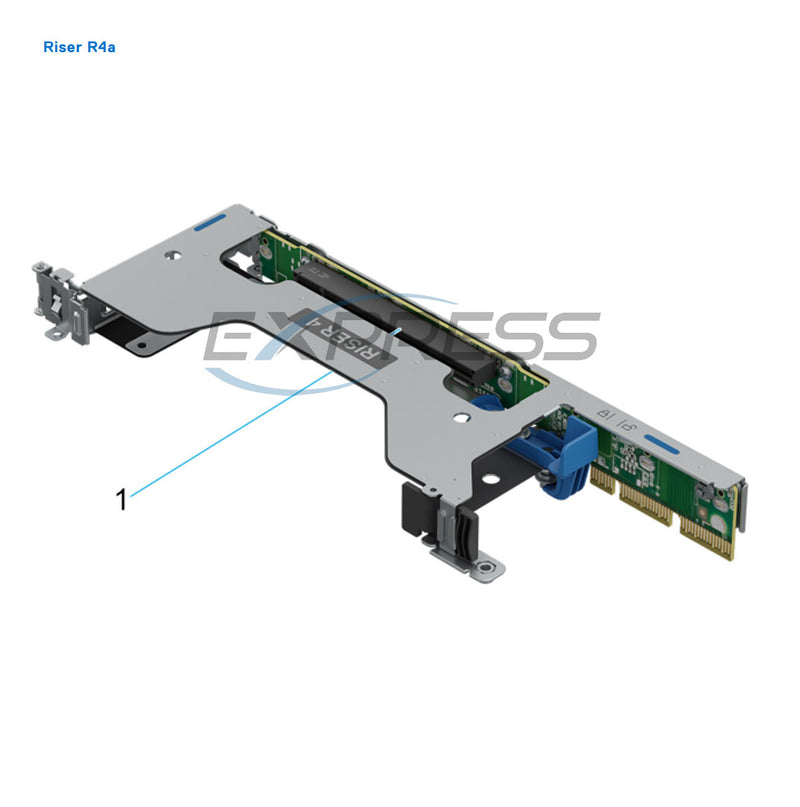

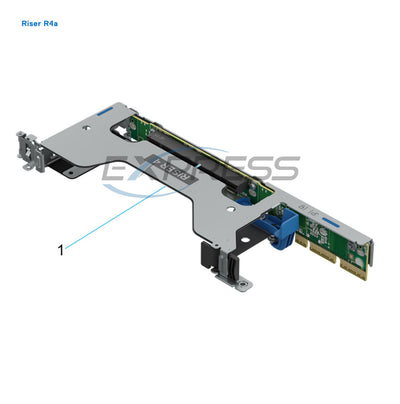

| R4a | 9 | Full height | Processor 0 | PCIe Gen5 x16 (x16 connector) | |

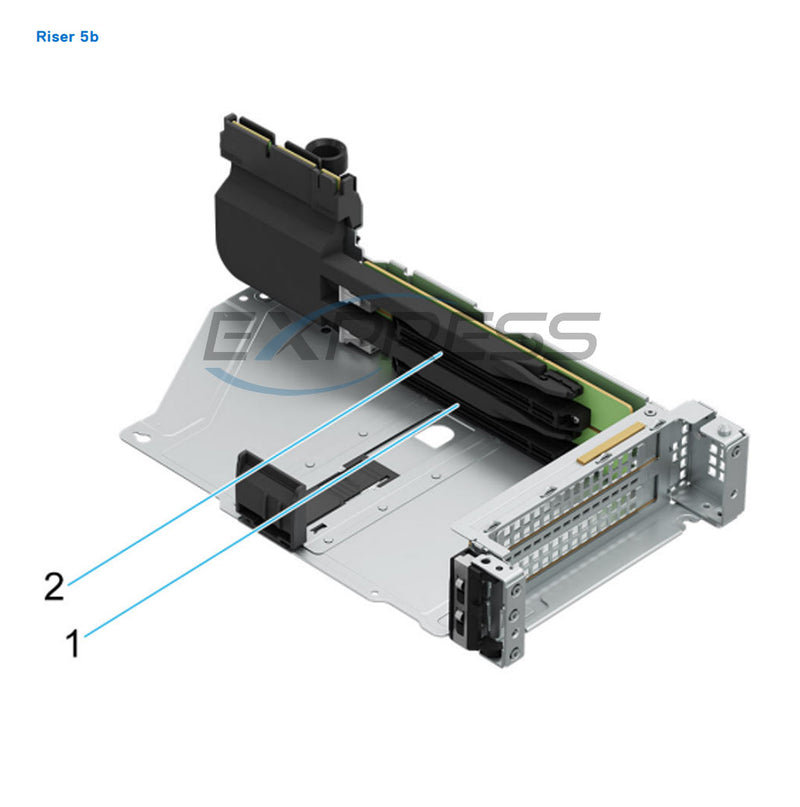

| R5b | 7 | Full height | Processor 0 | PCIe Gen5 x16 (x16 connector) | |
| OCP3 | 10 | OCP3 | Processor 0 | PCIe Gen5 x16 (4C+ connector) | |
| BOSS | 6 | BOSS | Processor 0 | PCIe Gen3 x4 (1C Connector) |
Compatible With:
- Dell PowerEdge R7715
