RC7 : Riser Configuration 7 | Dell PowerEdge R7715
Contact For Pricing
Thanks for the request. We'll get back to you with in 24 hours.
Condition: Refurbished ✓ Pulled from working servers & Tested. ✓ 1-year Parts Warranty.
Warranty | Return Policy
Riser Config Specs
| Riser Configurations |
Expansion card risers |
PCIe Slots | Form factor | Controlling processor |
Slot's electrical bandwidth/ physical connector |
|---|---|---|---|---|---|
|
RC7: 6 x8 FH + 2 x16 FH |
R1d | 1 | Full height | Processor 0 | PCIe Gen5 x8 (x16 connector) |
| 2 | Full height | Processor 0 | PCIe Gen5 x8 (x16 connector) | ||

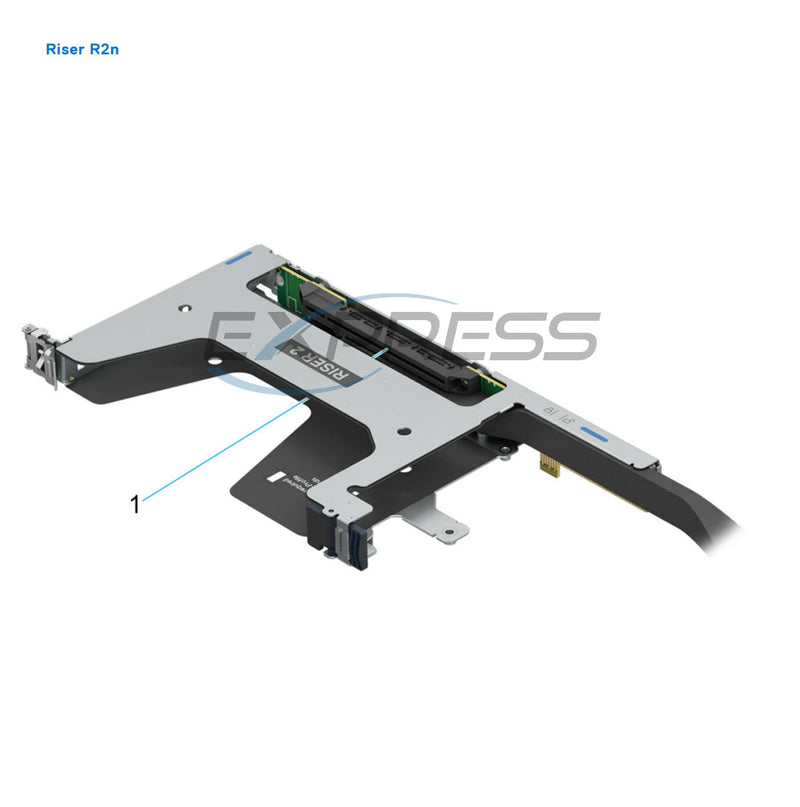

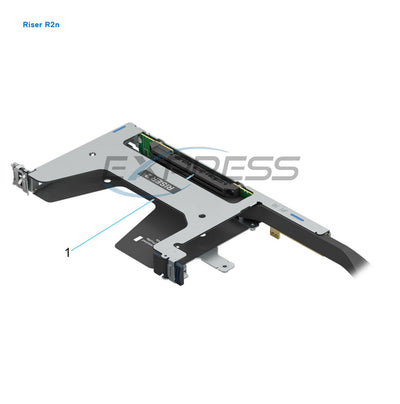

| R2n | 3 | Full height | Processor 0 | PCIe Gen5 x16 (x16 connector) | |
| R3a | 4 | Full height | Processor 0 | PCIe Gen5 x8 (x16 connector) | |
| 5 | Full height | Processor 0 | PCIe Gen5 x8 (x16 connector) | ||

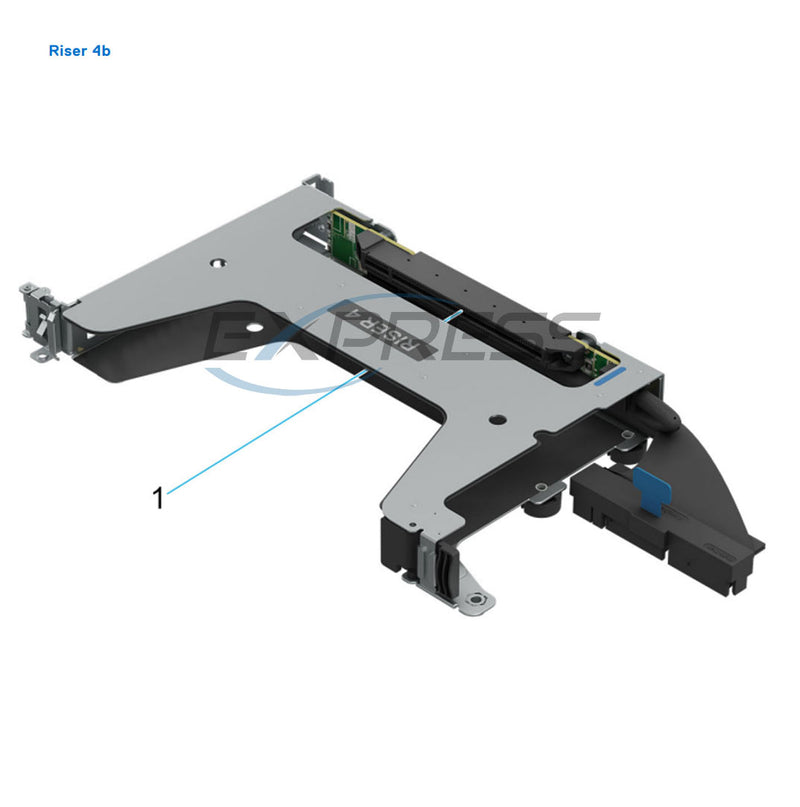

| R4b | 9 | Full height | Processor 0 | PCIe Gen5 x16 (x16 connector) | |
| R5a | 7 | Full height | Processor 0 | PCIe Gen5 x16 (x16 connector) |
Compatible With:
- Dell PowerEdge R7715
(Click to View)
