SKU: DPE-R760XD2-Chassis

Dell PowerEdge R760XD2 Rack Server Chassis (12x 3.5")

Name: Dell PowerEdge R760XD2 Rack Server Chassis (12x 3.5")
Brand: Dell
SKU: DPE-R760XD2-Chassis
Availability: InStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

2U rack server

Processor | Max: 56 Cores

2x Gen 4 Intel Xeon Scalable

Memory | Max: 1TB

16 ECC DDR5 RDIMM 4800Mhz

Storage | Max: 264TB

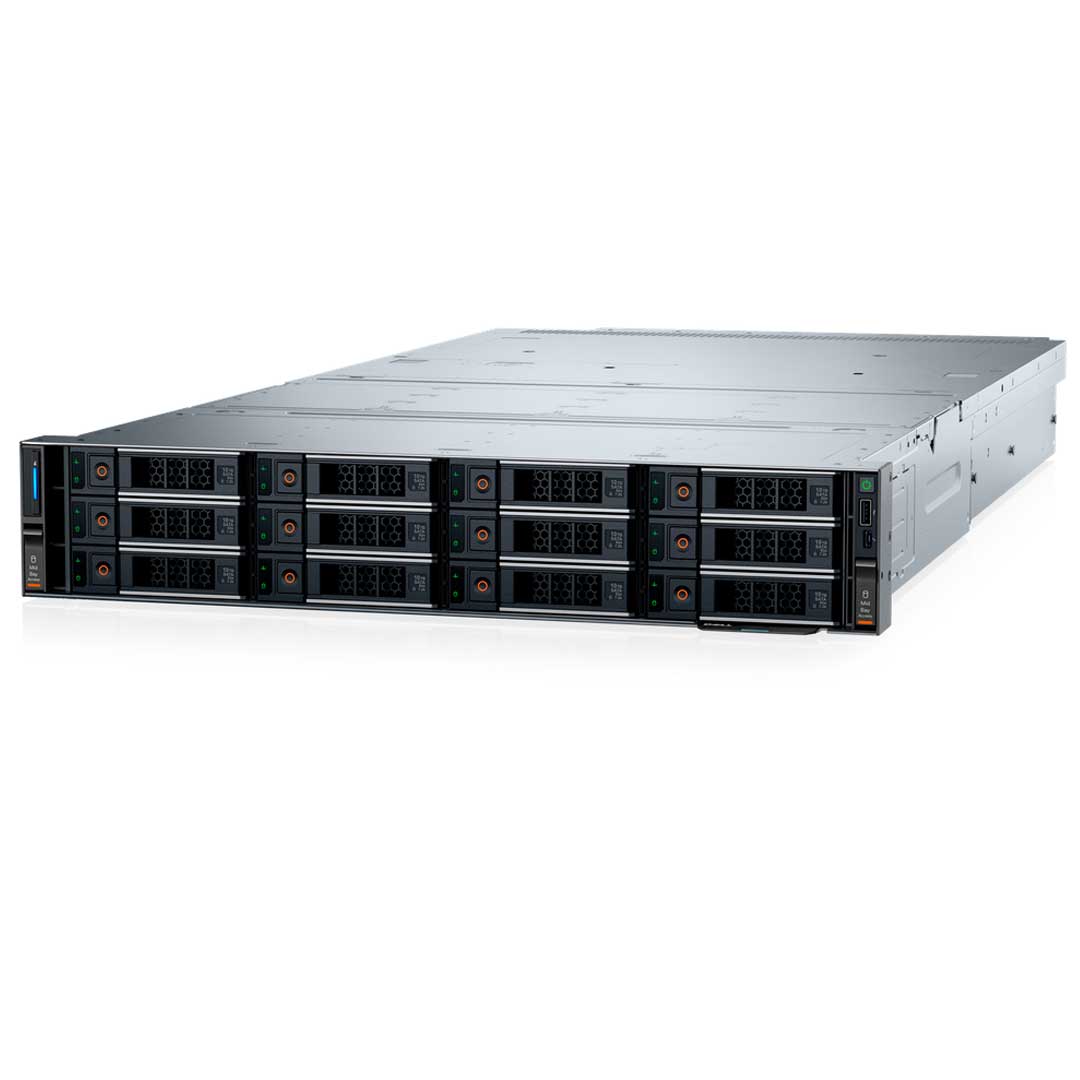

Front bays:
Up to 12x 3.5" SAS/SATA Max: 264 TB

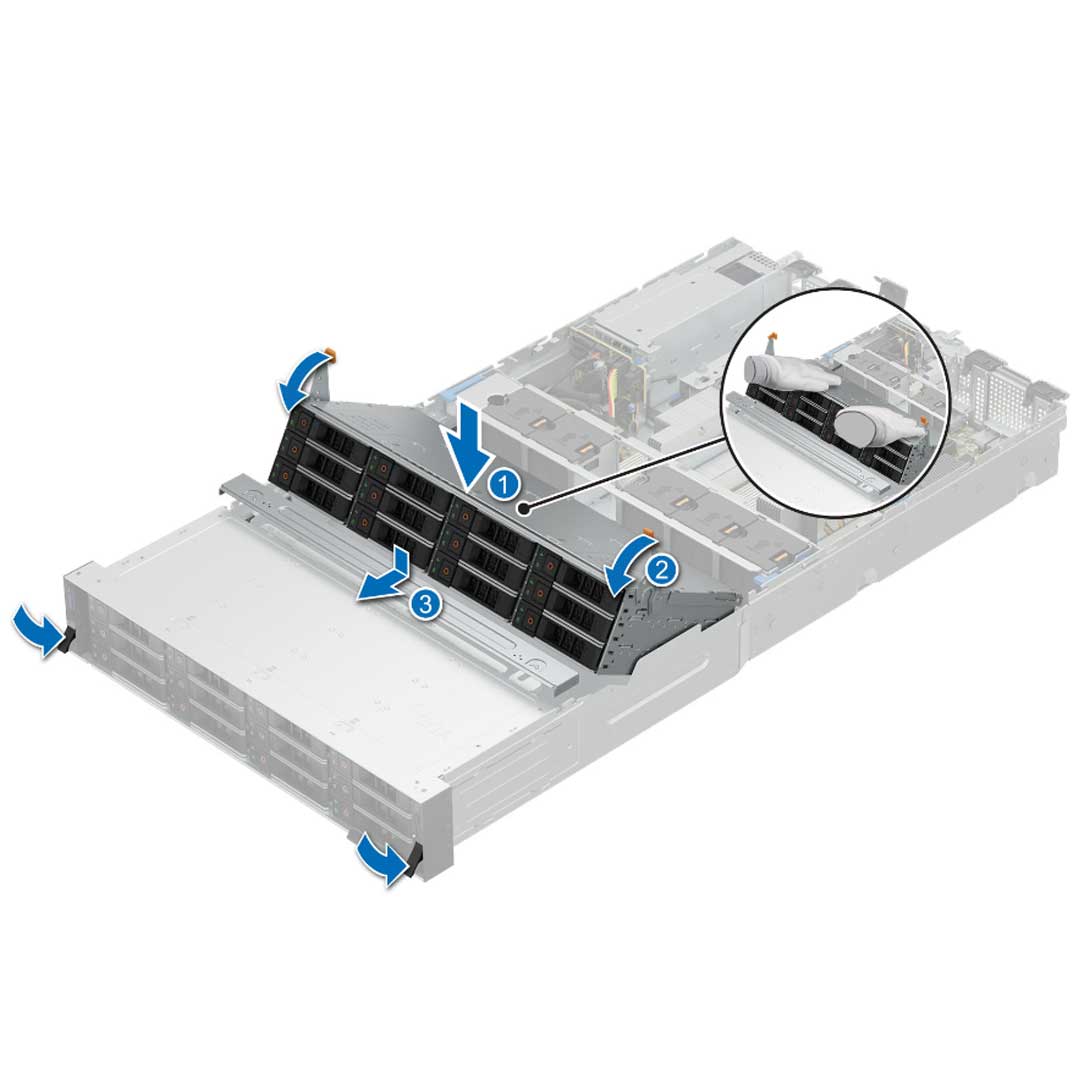

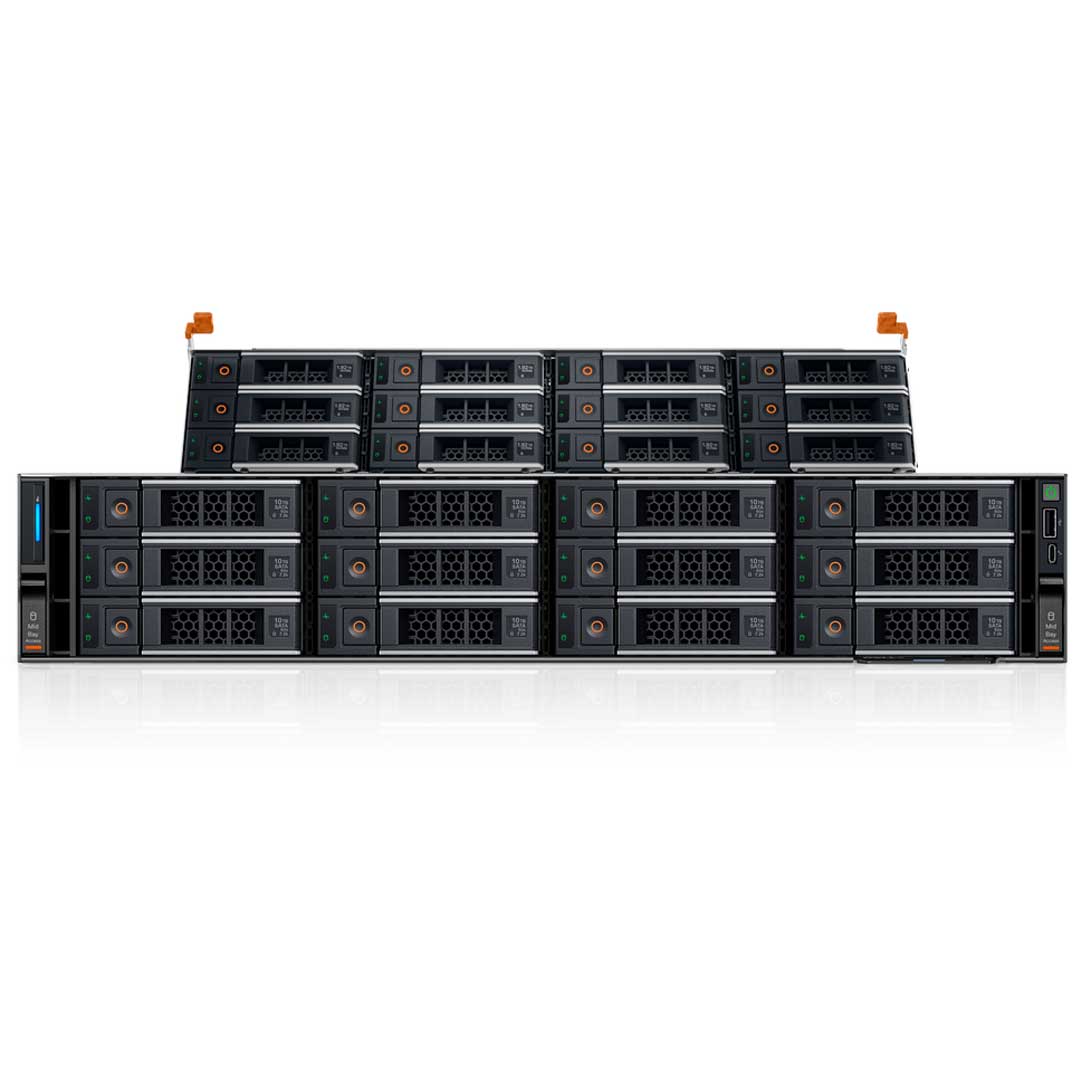

Mid bays:
Up to 12x 3.5" SAS/SATA Max: 264 TB

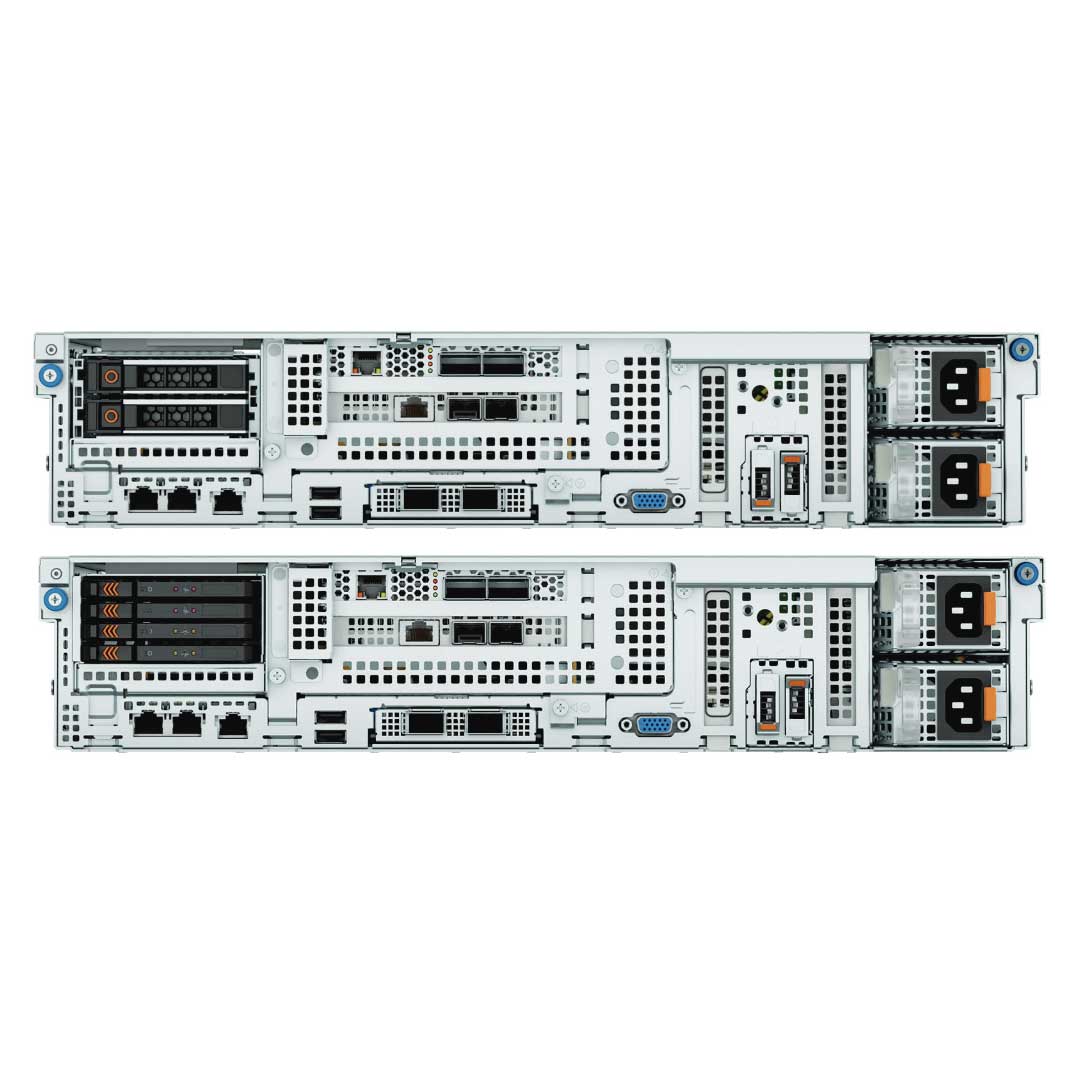

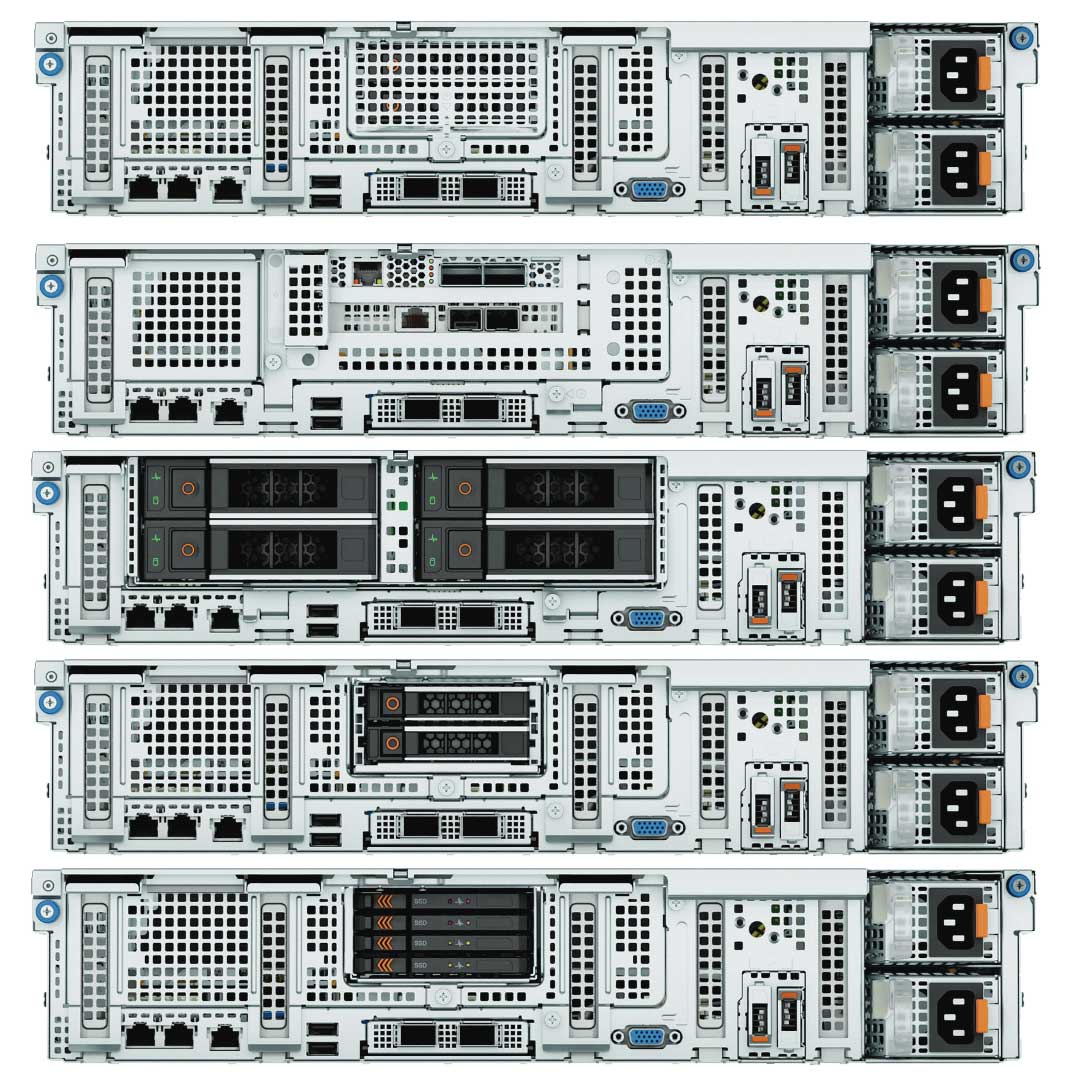

Rear bays:
Up to 4x 3.5" SAS/SATA Max: 88 TB
Up to 4x 2.5" NVMe with 3.5" carrier Max: 30.72 TB
Up to 2x 2.5" NVMe Max: 15.36 TB
Up to 4x E3.S NVMe Max: 30.72 TB

Boot Options

Boot Optimized Server Storage (BOSS-N1) Hot-Swap
USB

RAID Controller: (Adapter PERC)

S160 (SATA/NVMe SW RAID)
H355, H755, H965i, H355i, HBA355e, H965e

LOM

2 x 1GbE LOM card with BCM5720 LAN controller

Networking Options | Max Speed: 4x 100GbE Ports

OCP 3.0 x8 Mezz 3.0

Remote Management:

iDRAC9 with Lifecycle Controller

PCIe Slots:

Up to 5 PCIe slots
Slot 1: 1 x16 Gen4 Low profile, Half length
Slot 2: 1 x8 (x16 connector) Gen4 Low profile, Half length

or 1 x16 Gen4 Full height, Full length
or 1 x16 Gen4 Full height, Half length

Slot 3: 1 x16 Gen4 Low profile, Half length

or 1 x16 Gen4 Full height, Full length
or 1 x16 Gen4 Full height, Half length

Slot 4: 1 x16 Gen4 Low profile, Half length
Slot 5: 1 x16 Gen4 Low profile, Half length
Note: Slot 5 is dedicated for internal PERC card

GPU:

Up to 2 x 75 W SW,
1 x 75 W SW + 1 x 150 W SW or 1 x 180 W DW

Ideal for:

Video Analytics
Video Streaming

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Feature	Technical Specifications
Processor	Up to two 4th Generation Intel Xeon Scalable processors, with up to 32 cores per processor and optional Intel® QuickAssist Technology
Memory	• 16 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only
Storage controllers	• Internal Controllers (RAID): PERC H755, PERC H965i, PERC H355 • Internal Controllers (non-RAID): HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives (hot swappable), or USB • External HBAs (non-RAID): HBA355e • External Controllers (RAID): H965e
Drive Bays	Front bays: • Up to 12 x 3.5-inch SAS/SATA max 264 TB Mid bays: • Up to 12 x 3.5-inch SAS/SATA max 264 TB Rear bays: • Up to 4 x 3.5-inch SAS/SATA max 88 TB • Up to 4 x 2.5-inch NVMe with 3.5-inch carrier max 30.72 TB • Up to 2 x 2.5-inch NVMe max 15.36 TB • 4 x E3.S NVMe max 30.72 TB
Power Supplies	• 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant • 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant • 1100W LVDC –48 — –60 VDC, hot swap redundant • 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
Cooling Options	Air cooling
Fans	• Up to 6 Standard (STD) fans, hot swappable
Dimensions	• Height — 86.8 mm (3.41 inches) • Width — 481.6 mm (18.96 inches) • Depth — 837 mm (32.95 inches)
Form Factor	2U rack server
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module
Bezel	N/A
OpenManage Software	• OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin • CloudIQ for PowerEdge plug in • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center
Mobility	OpenManage Mobile
Tools	• iDRAC RESTful API with Redfish • IPMI • RACADM CLI • Dell System Update • Enterprise Catalogs • Dell Repository Manager
OpenManage Integrations	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager
Security	• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secure Erase • Secured Component Verification (Hardware integrity check) • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	2 x 1 GbE LOM
Network options	1 x OCP card 3.0 (optional)
GPU Options	Up to 2 x 75 W SW, 1 x 75 W SW + 1 x 150 W SW or 1 x 180 W DW
Ports	Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0	Rear Ports • 1 x Dedicated iDRAC Ethernet port • 1 x USB 2.0 • 1 x USB 3.0 • 1 x VGA
Ports	Internal Ports • 1 x USB 3.0 (optional)
PCIe	Up to five PCIe slots: • Slot 1: 1 x16 Gen4 Low profile, Half length • Slot 2: 1 x8 (x16 connector) Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length • Slot 3: 1 x16 Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length • Slot 4: 1 x16 Gen4 Low profile, Half length • Slot 5: 1 x16 Gen4 Low profile, Half length Note: Slot 5 is dedicated for internal PERC card
Operating System and Hypervisors	• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi

Spec Sheet 4

Features	PowerEdge R760xd2	PowerEdge R740xd2
Processors	Up to two 4th Generation Intel® Xeon® Scalable processors with up to 32 cores per processor. Support for up to 2 x 185W processors	Up to two 2nd Generation Intel® Xeon® Scalable processors with up to 22 cores per processor. Support for up to 2 x 140W processors
CPU interconnect	Intel® Ultra Path Interconnect (UPI) @ 16 GT/s	Intel® Ultra Path Interconnect (UPI) @ 10.4 GT/s
Memory	Up to 16 x DDR5 RDIMMs DIMM Speed: Up to 4800 MT/s	Up to 16 x DDR4 RDIMMs DIMM Speed: Up to 3200 MT/s
Storage Controllers	PERC 12: H965i	PERC H740P or HBA330
	PERC 11: HBA355i, H755, H355
	External PERC: HBA355e, H965e
Drive Bays	Front: Up to 12 x 3.5 inch SAS/SATA Middle: Up to 12 x 3.5 inch SAS/SATA Rear: Up to 4 x 3.5 inch Universal or Up to 2 x 2.5 inch U.2 NVMe or 4 x E3.S NVMe	Front: Up to 24 x 3.5 inch SAS/SATA Rear: Up to 2 x 3.5 inch SAS/SATA 3.5 inch or SSD
Power Supplies	15G/16G 60mm PSUs 48Vdc/1100W, 700W, 1100W, 1400W, 1800W	750W, 1100W
Cooling Options	Air cooled	Air cooled
Fans	Up to 6 STD fans	Up to 6 HPR fans
Dimension	H x W x D: 2U x 481.6 mm x 837 mm	H x W x D: 2U x 482 mm x 810.26 mm
Form Factor	2U	2U
Embedded Management	iDRAC9 Enterprise, Datacenter license options; OpenManage Enterprise and Plugins	iDRAC9 Enterprise, Datacenter license options; OpenManage Enterprise and Plugins
OpenManage Software	● OpenManage Enterprise ● OpenManage Power Manager plugin ● OpenManage Service plugin ● OpenManage Update Manager plugin ● CloudIQ for PowerEdge plug in ● OpenManage Enterprise Integration for VMware vCenter ● OpenManage Integration for Microsoft System Center ● OpenManage Integration with Windows Admin Center	● OpenManage Enterprise ● OpenManage Power Center ● OpenManage Mobile
Mobility	OpenManage Mobile	OpenManage Mobile
Integrations and Connections	OpenManage Integrations ● BMC Truesight ● Microsoft System Center ● OpenManage Integration with ServiceNow ● Red Hat Ansible Modules ● Terraform Providers ● VMware vCenter and vRealize Operations Manager	Integrations: ● Microsoft® System Center ● VMware® vCenter™ ● BMC Truesight ● Red Hat Ansible Modules	Connections: ● Nagios Core & Nagios XI ● Micro Focus Operations Manager i (OMi) ● IBM Tivoli Netcool/ OMNIbus ● IBM Tivoli® Network Manager IP Edition
Security	● Cryptographically signed firmware ● Data at Rest Encryption (SEDs with local or external key mgmt) ● Secure Boot ● Secured Component Verification (Hardware integrity check) ● Secure Erase ● Silicon Root of Trust ● System Lockdown (requires iDRAC9 Enterprise or Datacenter) ● TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ	● TPM 1.2/2.0, TCM 2.0 optional ● Cryptographically signed firmware ● Silicon Root of Trust ● Secure Boot ● System Lockdown (requires iDRAC Enterprise or Datacenter)
Embedded NIC	2 x 1 GbE LOM	2 x 1 GbE LOM
Networking Options	OCP 3.0 x8 (Optional)	OCP (Optional)
GPU Options	Up to 2 x 75 W SW , 1 x 75 W SW + 1 x 150 W SW or 1 x180 W DW	None
Ports	Front:1 x USB 2.0, 1x iDRAC Direct (Micro-USB) Rear: 1 x VGA, 1 x USB2.0 + 1 x USB3.0 Internal : USB3.0 ( Optional )	Front: 2 x USB 2.0, 1 managed (micro USB) + front VGA Rear: 1 x Gen2 + 1 x Gen3 USB Optional Internal USB
PCIe	Up to 5 x PCIe Slots Gen4 (mix of LP, HL, FL, DW)	Up to 2 x PCIe Slots Gen3
Operating System and Hypervisors	● Canonical Ubuntu Server LTS ● Microsoft Windows Server with Hyper-V ● Red Hat Enterprise Linux ● SUSE Linux Enterprise Server ● VMware ESXi	● Canonical® Ubuntu® LTS ● Citrix® Hypervisor ● Microsoft® Windows Server® LTSC with Hyper-V ● Oracle® Linux ● Red Hat® Enterprise Linux ● SUSE® Linux Enterprise Server ● VMware® ESXi
