Home / All / Dell PERC 11 HBA355i Non-RAID Front Controller | K6MCJ
SKU: K6MCJ

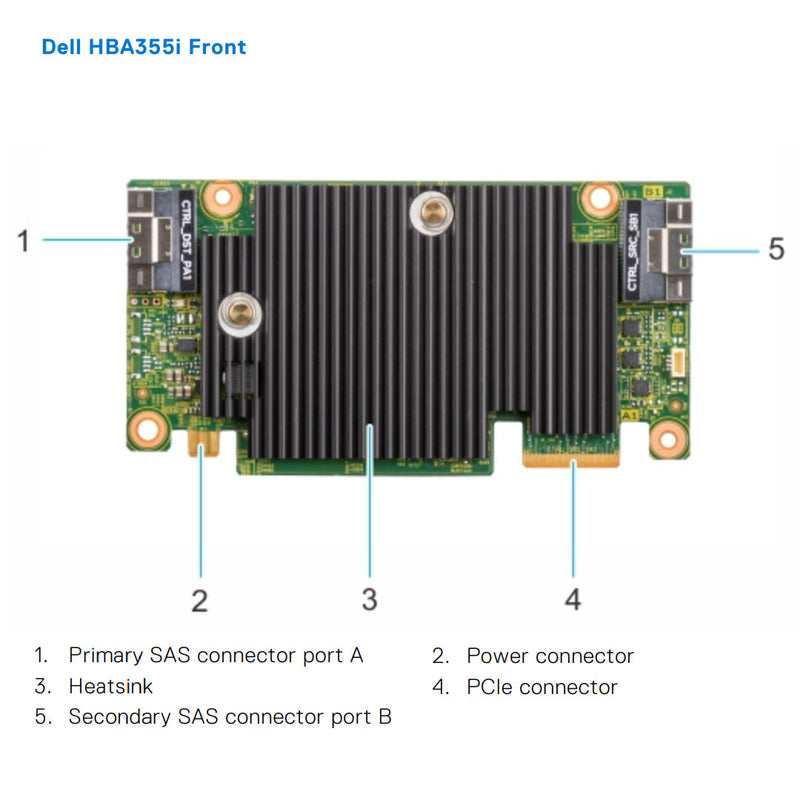

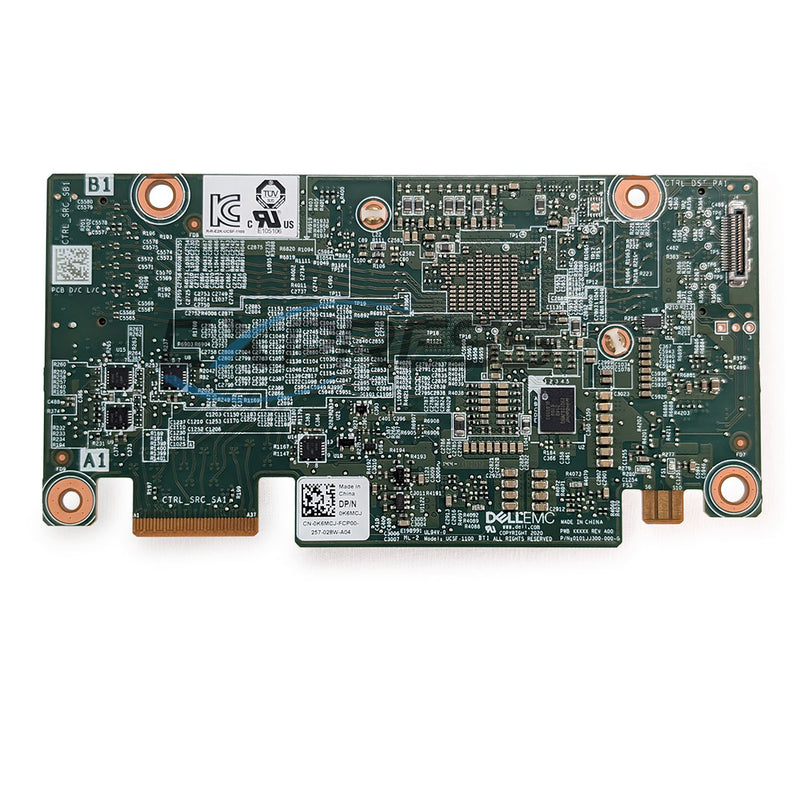

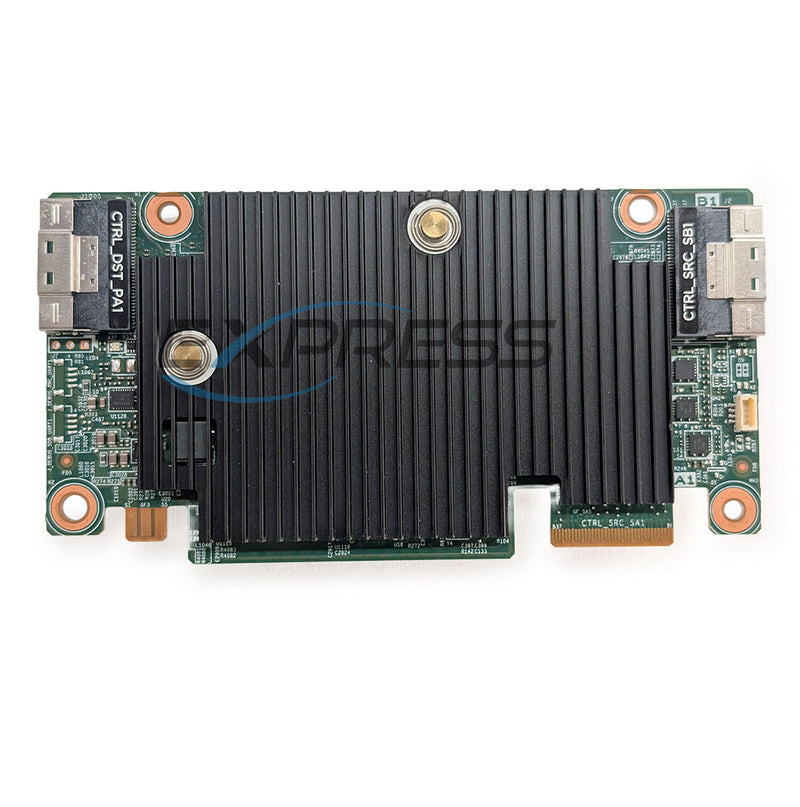

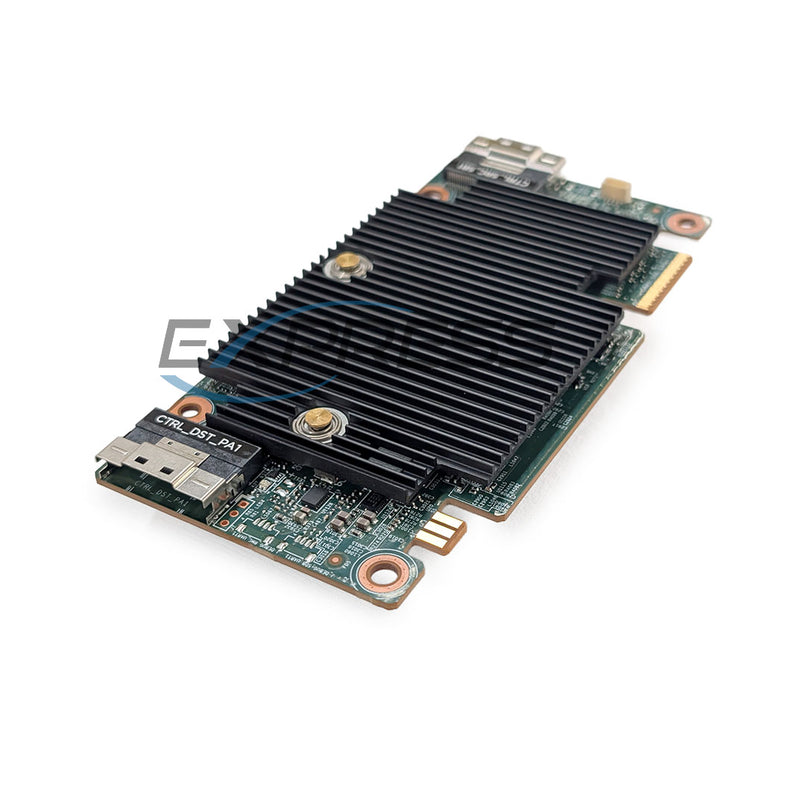

Dell PERC 11 HBA355i Non-RAID Front Controller | K6MCJ

Dell

| Adapter
$124.99
Adapter Specs
  • Models: Host Bus Adapter - Front
  • Drive Types: 12 Gb/s SAS, 6 Gb/s SAS/SATA, 3Gb/s SAS/SATA
  • PCI Support: PCI-e 4.0
  • SAS Connectors: 16 Port 2x8 Internal
  • Cache Memory: N/A
  • Write Back Cache: N/A
  • Boot Support: Yes
  • Max Drive Support: 16/controller, 50 with SAS Expander (Platform limit)
  • RAID Support: N/A

Part Numbers:

  • fPERC: K6MCJ
  • fPERC: T761Y
  • FH: GJYVJ

The Dell PERC 11 HBA355i Non-RAID Front Controller offers high-performance 12Gb/s SAS connectivity for enterprise servers needing direct-attached storage. Built with a PCI-e 4.0 interface, it provides robust support for SAS and SATA drives across a 16-port 2x8 internal connector design.

Featuring boot support and compatibility with SAS expanders, the HBA355i enables the connection of up to 50 drives within platform limitations. With no RAID functionality and no cache, it delivers streamlined, efficient storage management for scalable non-RAID deployments.

Compatible With:
  • Dell R350
  • Dell R450
  • Dell R550
  • Dell R650
  • Dell R650xs
  • Dell R6525
  • Dell R660
  • Dell R660xs
  • Dell R6615
  • Dell R6625
  • Dell R750
  • Dell R750xa
  • Dell R750xs
  • Dell R7525
  • Dell R760
  • Dell R760xa
  • Dell R760xs
  • Dell R7615
  • Dell R7625
  • Dell R860
  • Dell R960
  • Dell T550
  • Dell T560
  • Dell XR7620

(Click to View)

Spec Sheet 4

Model & Form Factors Interface Support PCI Support SAS Connectors Cache Memory Write Back Cache RAID Levels Max Drive Support RAID Support
H755N Front (NVMe Only) Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 2x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 8/per controller Hardware
H755 Adapter FH 3 Gbps SATA
6 Gbps SATA/SAS
12 Gbps SATA/SAS
Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 2x8 Internal 8GB NV Flash Backed Cache 0, 1, 5, 6, 10, 50,60 16/controller
50 with SAS Expander
*Platform limit		 Hardware RAID
H755 Adapter LP
H755 Front (SAS/SATA Only) 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 2x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 16/controller
50 with SAS Expander
*Platform limit		 Hardware RAID
H755 MX 3 Gbps SATA
6 Gbps SATA/SAS
12 Gbps SATA/SAS
Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 1x8 Internal 8GB NV DDR4 2666MT/s Flash Backed Cache 0, 1, 5, 6, 10, 50,60 8, Limited by platform N/A
H750 Adapter FH 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA
*SAS/SATA ONLY		 PCIe Gen 4 1x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 8/controller
50 with SAS Expander
*Platform limit		 Hardware RAID
H750 Adapter LP
H355i Adapter FH 12Gb/s SAS
6Gb/s SATA		 PCIe Gen 4 2x8 Internal No Cache No Cache 0,1,10 Up To 32 RAID
or 32 Non-RAID		 Hardware
H355i Adapter LP
H355 Front 12Gb/s SAS
6Gb/s SATA		 PCIe Gen 4 2x8 Internal No Cache No Cache 0,1,10 Up To 32 RAID
>or 32 Non-RAID		 Hardware
HBA355 Front (internal) 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 2x8 Internal N/A N/A N/A 16/controller
50 with SAS Expander
*Platform limit		 N/A
HBA355i Adapter FH 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 2x8 Internal N/A N/A N/A 16/controller
50 with SAS Expander
*Platform limit		 N/A
HBA355i Adapter LP
HBA355e Adapter FH 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 4x4 External N/A N/A N/A 240 N/A
HBA355e Adapter LP
H350 Adapter FH 12Gb/s SAS
6Gb/s SATA		 PCIe Gen 4 1x8 Internal No Cache No Cache 0,1,10 Up To 32 RAID
or 32 Non-RAID		 Hardware
H350 Adapter LP
H350 Mini Mono 12Gb/s SAS
6Gb/s SATA		 PCIe Gen 4 2x4 Internal N/A N/A 0, 1, 10 Without SAS Expander:
8 drives per controller

With SAS Expander:
Limited by platform offering 		N/A
HBA350i Adapter (internal) 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 2x8 Internal N/A N/A N/A 16/controller
50 with SAS Expander
*Platform limit		 N/A
HBA350 MX (internal) 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 1x8 Internal N/A N/A N/A 8
*Platform limit		 N/A
