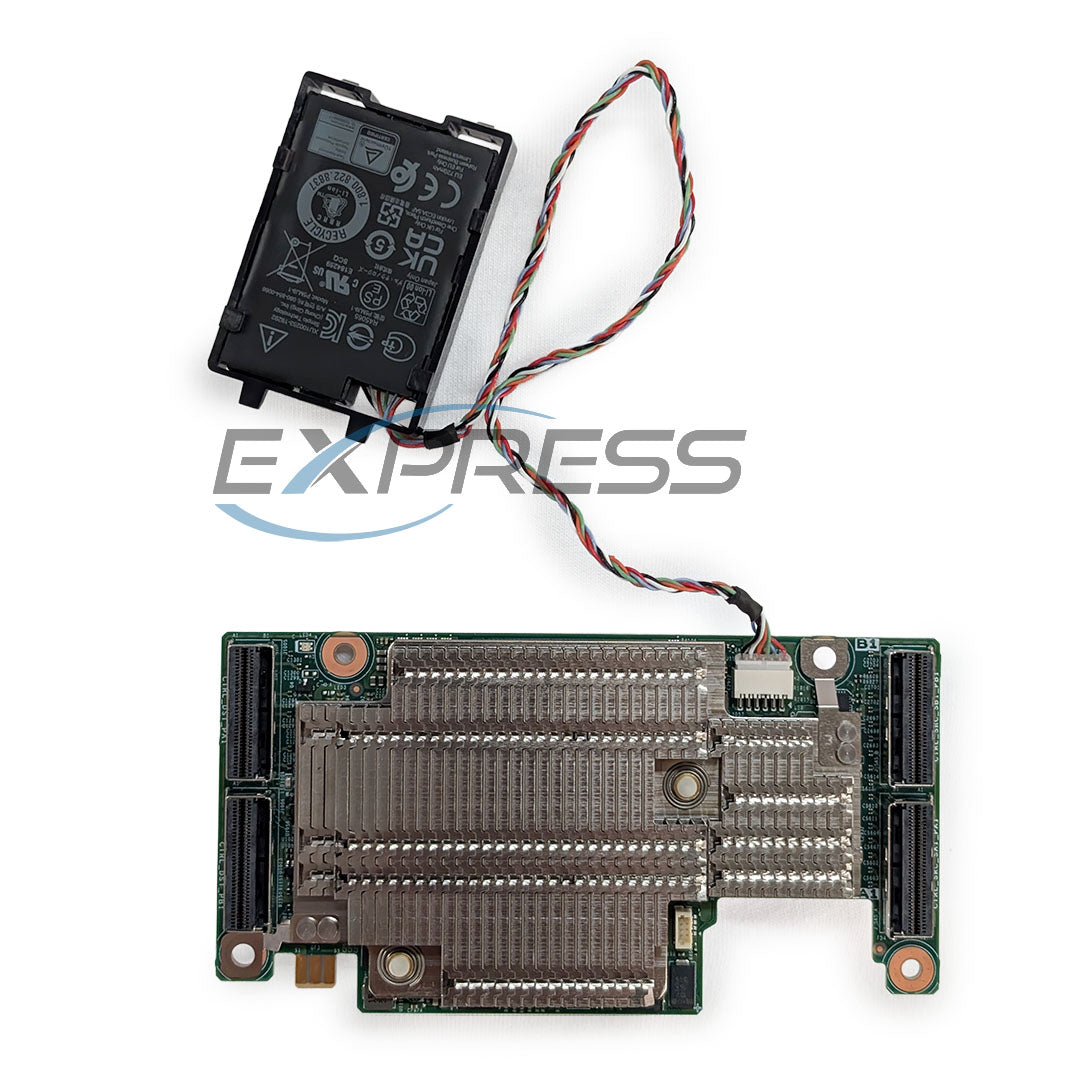

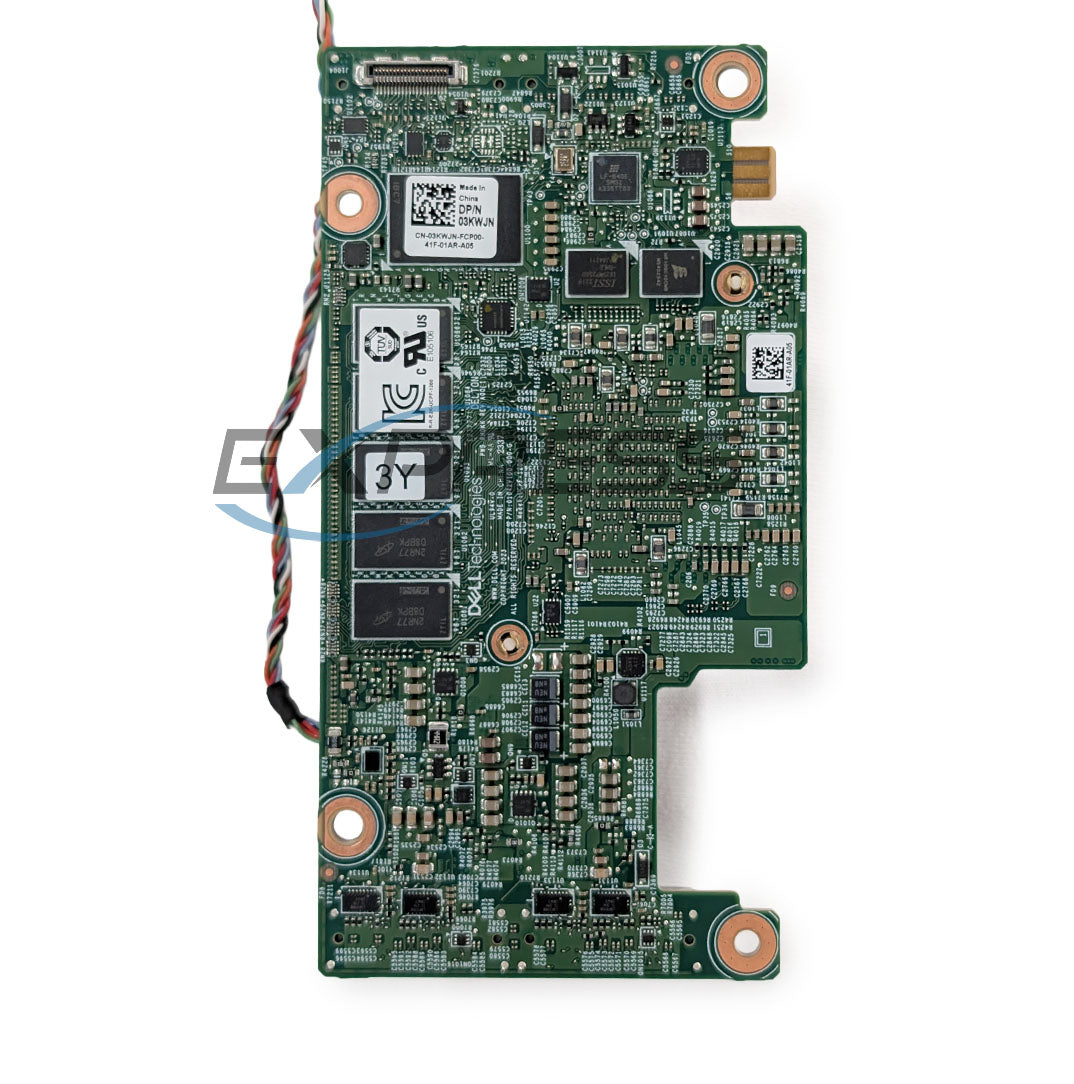

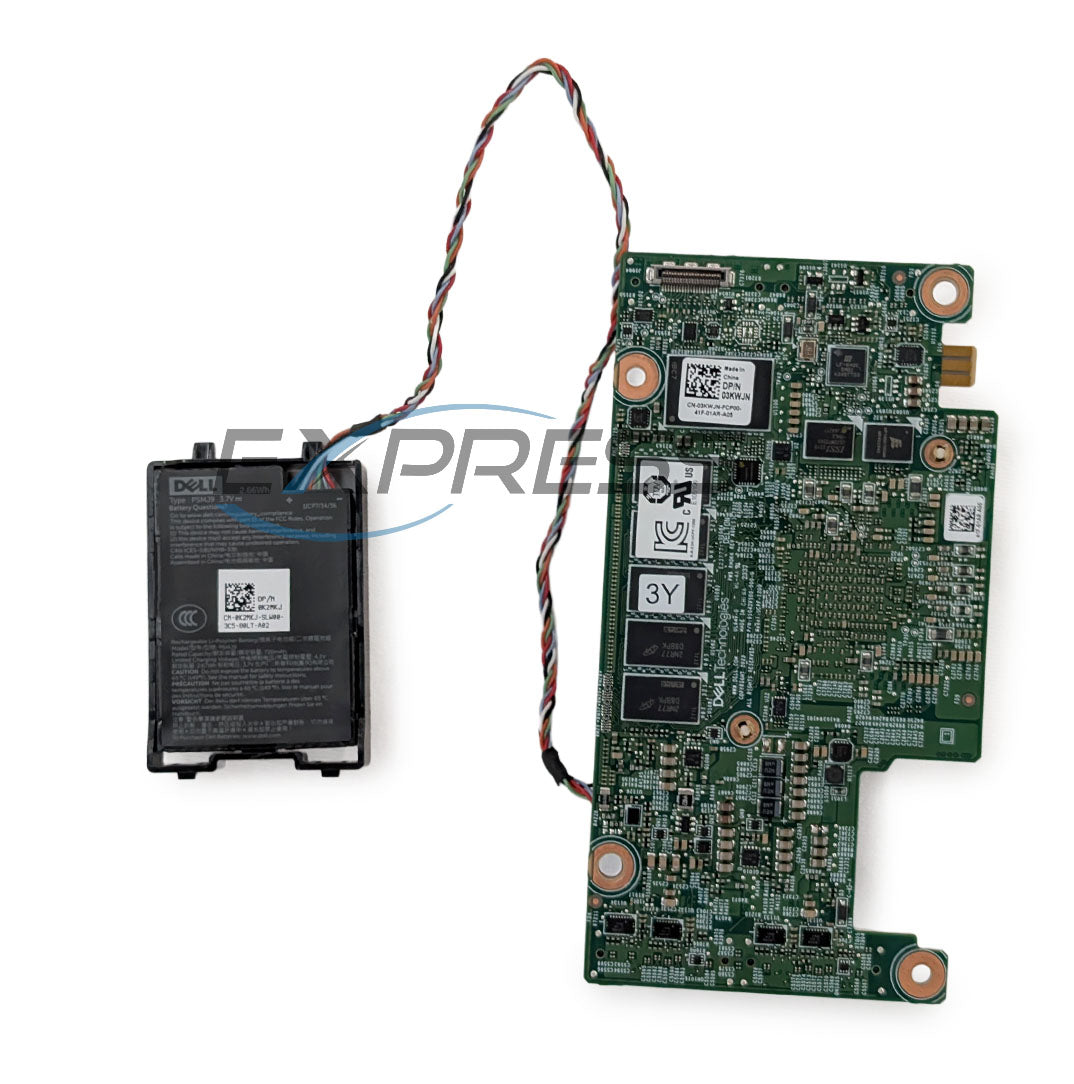

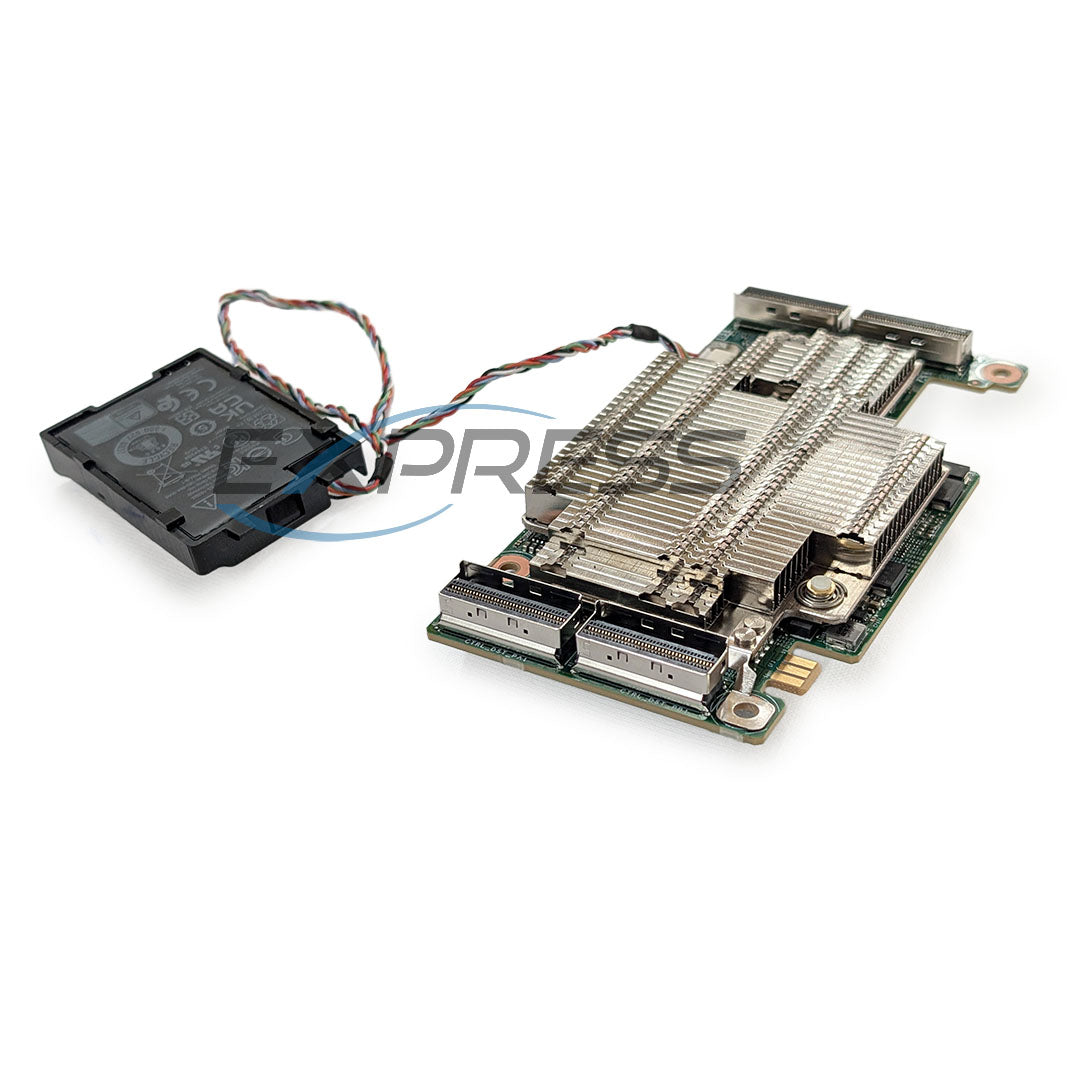

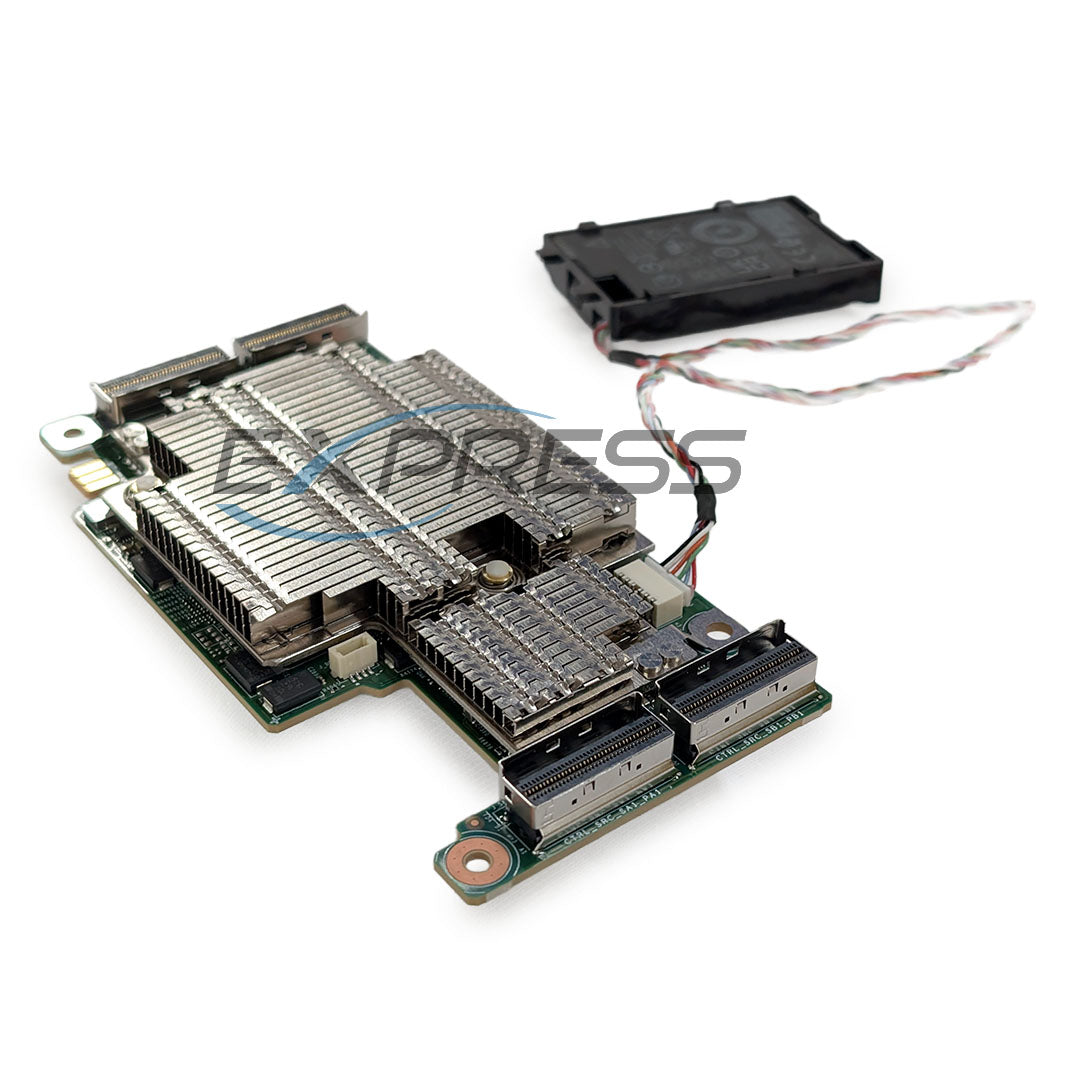

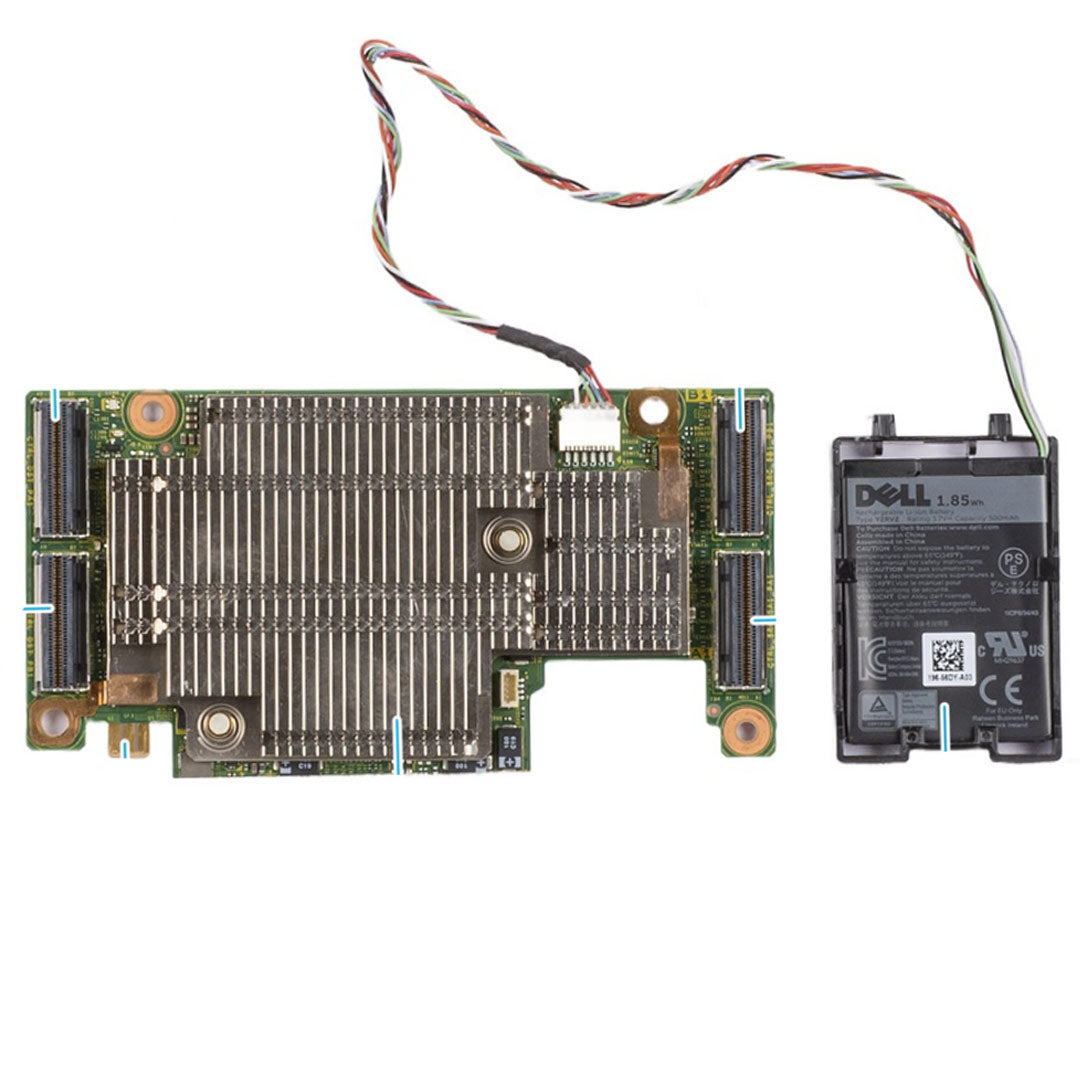

Dell PERC 12 H965i Front RAID Controller | GT7YG

SKU: GT7YG

Dell PERC 12 H965i Front RAID Controller | GT7YG

Name: Dell PERC 12 H965i Front RAID Controller | GT7YG
Brand: Dell
SKU: GT7YG
Price: 1033.95 USD
Availability: OutOfStock

Dell

| Adapter

.price-ui--loading { display: block !important; opacity: 1 !important; }

$1,033.95

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Enclosures per port

Not applicable

Cache:

8 GB DDR4 3200MT/s

RAID Level:

0, 1, 5, 6, 10, 50, 60

Non-RAID:

Yes

PCIe:

Gen 4

Processor:

Broadcom RAID-onchip, SAS4116W chipset

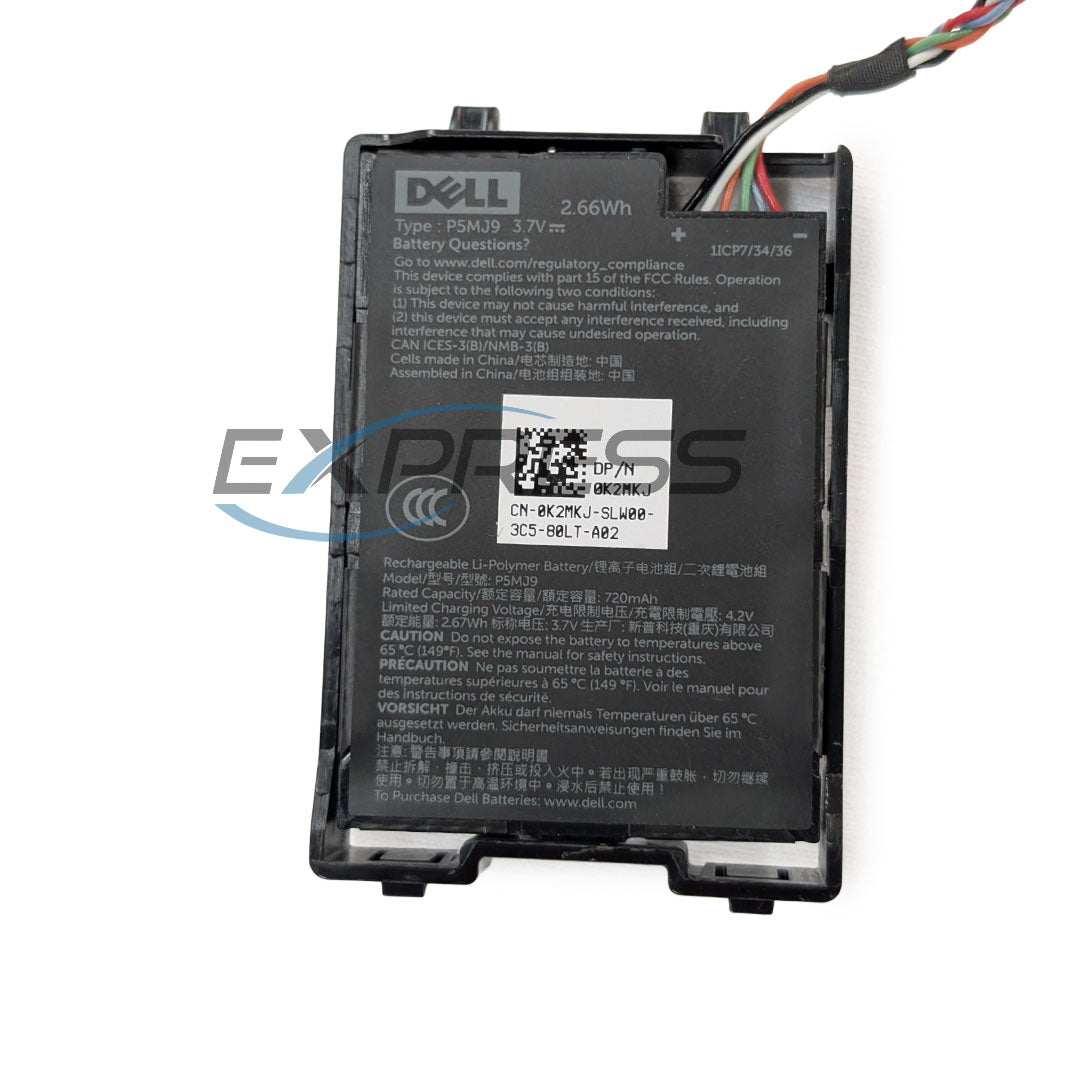

Battery Backup:

Yes

Max no of VDs in RAID mode:

240

Max no of disk groups:

64

Max no of VDs per disk group:

16

Hot-swap devices supported:

Yes

Drive sector size supported:

512B, 512e, and 4Kn

Storage Boot Support:

UEFI-only

Supported Drives:

6 Gbps SATA
22.5, 12, & 6 Gbps SAS
NVMe Gen3 (8 GT/s) and Gen4 (16 GT/s)

Max SAS/SATA disks:

16 drives per controller
w/ SAS Expander: Limited by platform offerings

Max NVMe drives:

8 drives per controller
w/ PCIe Switch Expander: Limited by platform offerings

Max physical disks:

240 SAS/SATA
24 NVMe

PERC Rules & Limitations

Dell Technologies PowerEdge RAID Controller 12 or PERC 12 is a series of RAID disk array controllers developed by Dell for its PowerEdge servers.

The PERC 12 controller tools such as PERCCLI2, drivers, and firmware are not backward-compatible with previous versions of PERC controllers.
Mixing disks of different speed (7,200 RPM, 10,000 RPM, or 15,000 RPM) and bandwidth (6 Gbps, 12 Gbps, or 24 Gbps) while maintaining the same drive type (SAS or SATA) and technology (HDD or SSD) is supported.
PERC 12 controllers support only single SCSI LUN and single NVMe namespace devices. Multi-LUN and MultiNamespace devices are not supported.
Shingled Magnetic Recording (SMR) drives are not supported on PERC 12 controllers.
Mixing NVMe drives with SAS and SATA is not supported. Also, mixing HDD and SSD in a virtual disk is not supported.
PERC 12 controller is supported in only UEFI mode as boot controller. (H965e is not supported as a boot controller)

H965 PERC Series Options

External H965i Click to view Server View PERC

Enclosures per port

4

Cache:

8 GB DDR4 3200MT/s

RAID Level:

0, 1, 5, 6, 10, 50, 60

Non-RAID:

Yes

PCIe:

Gen 4

Supported Drives:

22.5, 12 Gbps SAS

Max SAS/SATA disks:

240 SAS drives

Max NVMe drives:

Not supported

Max physical disks:

240 SAS

Internal H965i Click to view Server View PERC

Enclosures per port

0

Cache:

8 GB DDR4 3200MT/s

RAID Level:

0, 1, 5, 6, 10, 50, 60

Non-RAID:

Yes

PCIe:

Gen 4

Supported Drives:

6 Gbps SATA
22.5, 12, & 6 Gbps SAS
NVMe Gen3 (8 GT/s) and Gen4 (16 GT/s)

Max SAS/SATA disks:

16 drives per controller
w/ SAS Expander: Limited by platform offerings

Max NVMe drives:

8 drives per controller
w/ PCIe Switch Expander: Limited by platform offerings

Max physical disks:

240 SAS/SATA
24 NVMe

MX H965i Click to view Server View PERC

Enclosures per port

0

Cache:

8 GB DDR4 3200MT/s

RAID Level:

0, 1, 5, 6, 10, 50, 60

Non-RAID:

Yes

PCIe:

Gen 4

Supported Drives:

6 Gbps SATA
22.5, 12, & 6 Gbps SAS
NVMe Gen3 (8 GT/s) and Gen4 (16 GT/s)

Max SAS/SATA disks:

Limited by platform: 8 drives per controller

Max NVMe drives:

Limited by platform: 8 drives per controller

Max physical disks:

240 SAS/SATA
24 NVMe

Summary of RAID levels

Summary of RAID levels Following is a list of the RAID levels supported by the PERC 12 series of cards:

RAID 0
Uses disk striping to provide high data throughput, especially for large files in an environment that requires no data redundancy.
RAID 1
Uses disk mirroring so that data written to one physical disk is simultaneously written to another physical disk. RAID 1 is good for small databases or other applications that require small capacity and complete data redundancy.
RAID 5
Uses disk striping and parity data across all physical disks (distributed parity) to provide high data throughput and data redundancy, especially for small random access.
RAID 6
Is an extension of RAID 5 and uses an additional parity block. RAID 6 uses block-level striping with two parity blocks distributed across all member disks. RAID 6 provides protection against double disk failures, and failures while a single disk is rebuilding. If you are using only one array, deploying RAID 6 is more effective than deploying a hot spare disk.
RAID 10
Is a combination of RAID 0 and RAID 1, uses disk striping across mirrored disks. It provides high data throughput and complete data redundancy.
RAID 50
Is a combination of RAID 0 and RAID 5 where a RAID 0 array is striped across RAID 5 elements. RAID 50 requires at least six disks.
RAID 60
Is a combination of RAID 0 and RAID 6 where a RAID 0 array is striped across RAID 6 elements. RAID 60 requires at least eight disks.

Compatible With:

Dell R660
Dell R660xs
Dell R6615
Dell R6625
Dell R670
Dell R760
Dell R760xa
Dell R760xs
Dell R7615
Dell R7625
Dell R860
Dell R960
Dell T560
Dell xe8640
Dell xe9680
Dell XR7620

(Click to View)

Spec Sheet 4

Table 1. Technical specifications of PERC 12 cards
Feature	PERC H965i Adapter	PERC H965i Front	PERC H965i MX	PERC H965e Adapter
RAID levels	0, 1, 5, 6, 10, 50, 60	0, 1, 5, 6, 10, 50, 60	0, 1, 5, 6, 10, 50, 60	0, 1, 5, 6, 10, 50, 60
Non–RAID	Yes	Yes	Yes	Yes
Enclosures per port	Not applicable	Not applicable	Not applicable	4
Processor	Broadcom RAID-on-chip, SAS4116W chipset	Broadcom RAID-on-chip, SAS4116W chipset	Broadcom RAID-on-chip, SAS4116W chipset	Broadcom RAID-on-chip, SAS4116W chipset
Battery (Energy Pack) backup unit	Yes	Yes	Yes	Yes
Local Key Management security	Yes	Yes	Yes	Yes
Secure enterprise key manager security	Yes	Yes	No	Yes
Controller queue depth	8,192	8,192	8,192	8,192
Non-volatile cache	Yes	Yes	Yes	Yes
Cache memory	8 GB DDR4 3200 MT/s cache	8 GB DDR4 3200 MT/s cache	8 GB DDR4 3200 MT/s cache	8 GB DDR4 3200 MT/s cache
Cache function	Write-back, write-through, always write-back, no read-ahead	Write-back, write-through, always write-back, no read-ahead	Write-back, write-through, always write-back, no read-ahead	Write-back, write-through, always write-back, no read-ahead
Max no of VDs in RAID mode	240	240	240	240
Max no of disk groups	64	64	64	64
Max no of VDs per disk group	16	16	16	16
Hot-swap devices supported	Yes	Yes	Yes	Yes
Auto-Configure behavior (Primary and Execute once)	Yes	Yes	Yes	Yes
Hardware XOR engine	Yes	Yes	Yes	Yes
Online capacity expansion	Yes	Yes	Yes	Yes
Dedicated and global hot-spare	Yes	Yes	Yes	Yes
Supported Drive Types	22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe	22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe	22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe	22.5 Gbps SAS, 12 Gbps SAS
VD strip element size	64 KB, 256 KB	64 KB, 256 KB	64 KB, 256 KB	64 KB, 256 KB
PCIe support	Gen 4	Gen 4	Gen 4	Gen 4
Configuration maximum SAS/SATA physical disks support	Without SAS Expander: 16 drives per controller With SAS Expander: Limited by platform offerings	Without SAS Expander: 16 drives per controller With SAS Expander: Limited by platform offerings	Limited by platform: 8 drives per controller	240 SAS drives
Configuration maximum NVMe physical drives support	Without PCIe Switch Expander: 8 drives per controller With PCIe Switch Expander: Limited by platform offerings	Without PCIe Switch Expander: 8 drives per controller With PCIe Switch Expander: Limited by platform offerings	Limited by platform: 8 drives per controller	Not supported
Controller maximum physical disks supported	240 SAS/SATA 24 NVMe	240 SAS/SATA 24 NVMe	240 SAS/SATA 24 NVMe	240 SAS
Drive sector size supported	512B, 512e, and 4Kn	512B, 512e, and 4Kn	512B, 512e, and 4Kn	512B, 512e, and 4Kn
Storage Boot Support	UEFI-only	UEFI-only	UEFI-only	No boot support
