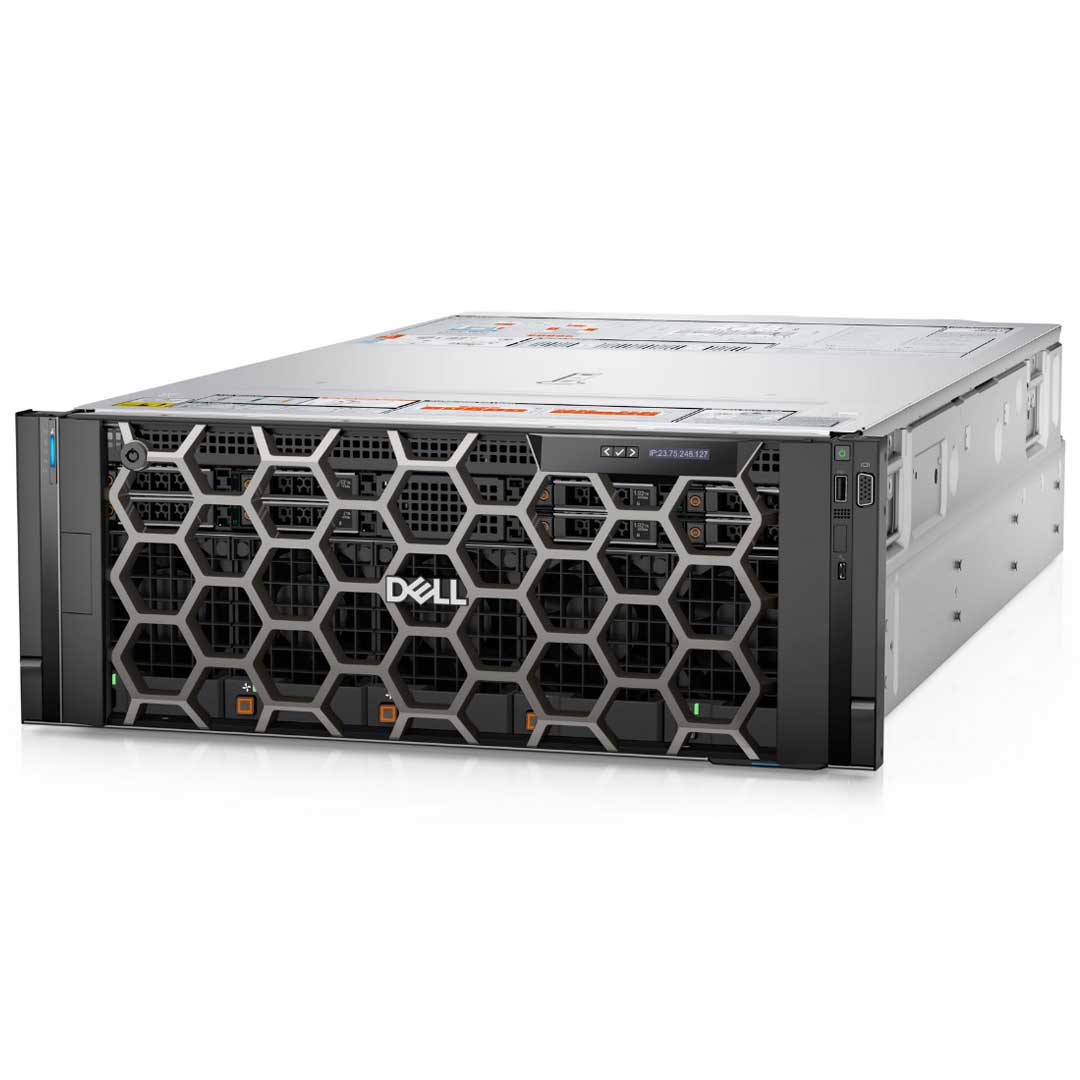

Dell PowerEdge XE8640 Rack Server Chassis (8x E3.S EDSFF)

Dell PowerEdge XE8640 Rack Server Chassis (8x E3.S EDSFF)

Price: Request a Quote

Brand:

Dell

MPN:

DEP-XE8640-8EDSFF-Chassis

Type:

Chassis

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Dell PowerEdge XE8640 Rack Server Chassis (8x E3.S EDSFF)

Quick Specs

Form Factor:

4U Rack Server

Processor | Max: 56 Cores (PP)

2x 4th Gen Intel Xeon Scalable Processors

Memory | Max: 4TB

32 DDR5 RDIMM 4800Mhz

Storage | Max: 122.88TB

8x E3.S NVMe SSD

Boot Options

BOSS-N1

RAID Controller:

S160 (SW RAID)
H965i

NIC/OCP

2 x 1GbE LOM
1 x OCP 3.0 (x8 PCIe lanes)

Remote Management:

iDRAC9

PCIe Slots:

4 PCIe slots (4 x16 Gen5)

GPU:

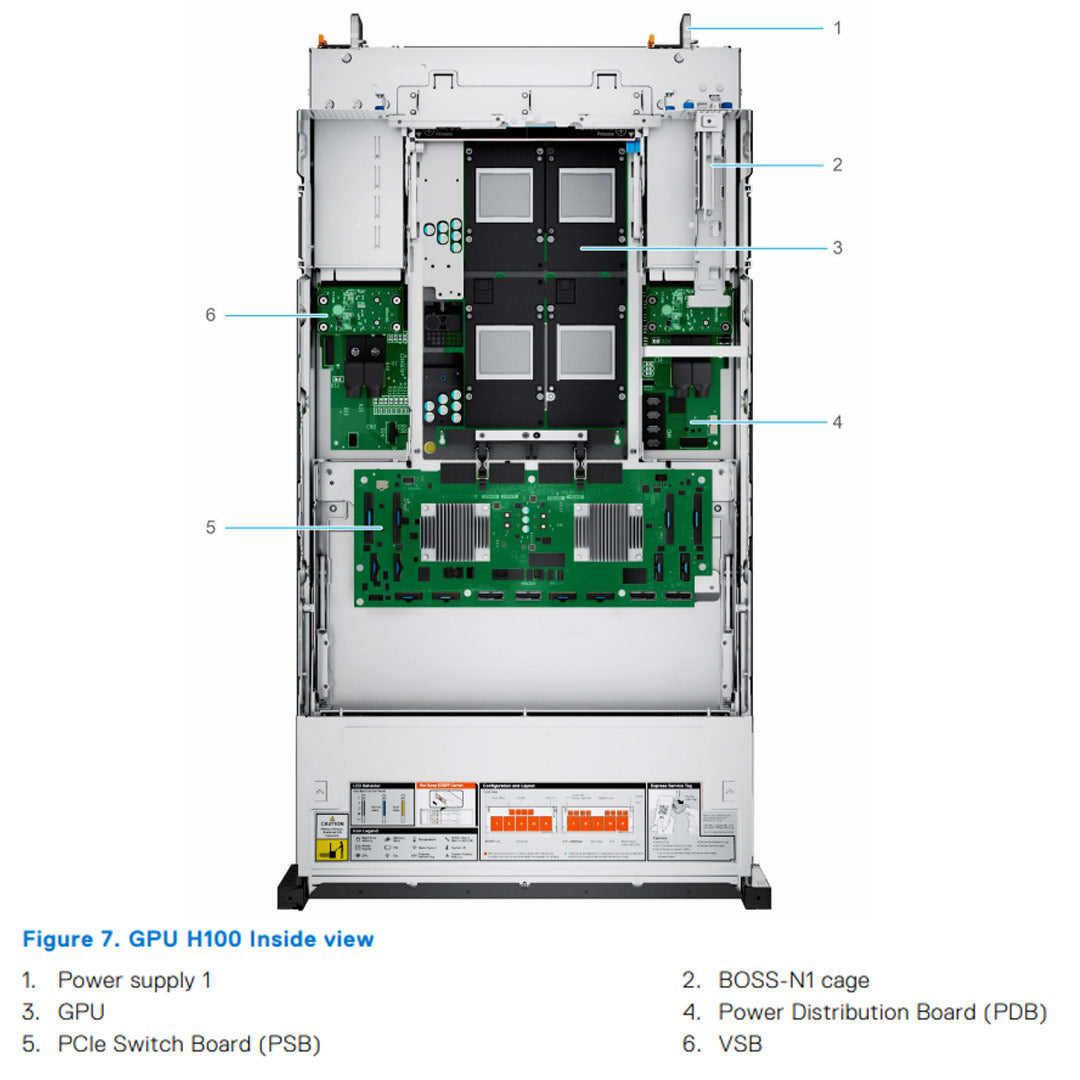

4 NVIDIA HGX H100 80GB 700W SXM5 GPUs
fully interconnected with NVIDIA NVLink technology

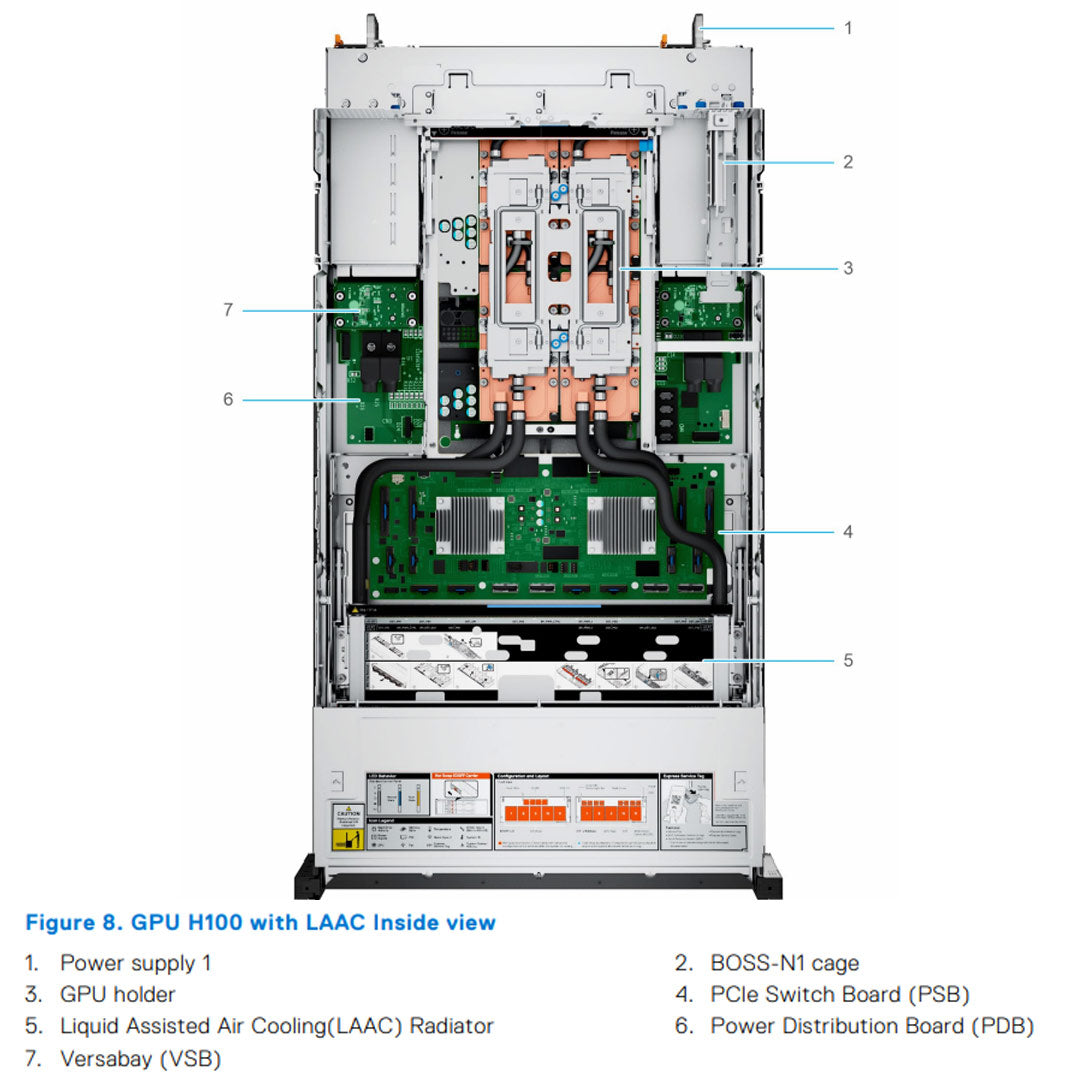

Liquid Assisted Air Cooling for GPU
Note: No facility water to rack required

Other Versions:

Ideal for:

Artificial Intelligence (AI)
Deep Learning (DL)
High Performance Computing (HPC)
Machine Learning (ML)
Virtualization

Harness the power of AI

Drive traditional AI, HPC and simulation applications with optimized compute and accelerated throughput for automating insights into outcomes. Develop and deploy machine learning models, maximize AI initiatives with the latest NVIDIA^® GPUs with a 4-way architecture.

Purpose-built performance

Efficiently drive traditional AI training, HPC and data analytics applications with four high performance accelerators and air-cooling. Get the ultimate balance of performance, power and price with Intel^® CPUs and the newest NVIDIA^® H100 Tensor Core GPUs.

Drive a wide range of AI workloads with two powerful 4th generation Intel ^® Xeon^® processors^®
Four (4) NVIDIA H100 Tensor core 700W SXM5 GPUs for extreme performance, fully interconnected with NVIDIA NVLink technology.
Improve training performance with up to 900GB/s bandwidth for GPU-GPU communication, 1.5x more than the previous generation.
Built for dense inferencing in fields like oil and gas, finance and healthcare
Boost performance with DDR5 memory and PCIe Gen5 support
Support for the highest wattage next-gen technologies up to 35°C ambient temperature with a 4U air-cooled design

Transform your business

Strike the perfect balance between performance, power and cost when deploying a solution to suit your IT strategy.

Next generation NVIDIA^® GPUs achieve superior AI performance in medical imaging, business decision making applications and most other applications
Get continuous data processing and faster I/O performance with GPU Direct Storage transfers, bypassing server CPUs
Scale with confidence thanks to support for up to 32 DDR5 memory DIMM slots, up to eight drives and up to 4 PCIe Gen 5 expansion slots

Accelerated I/O Throughput

Deploy latest generation technologies including DDR5, NVLink, PCIe Gen 5.0, and NVMe SSDs to push the boundaries of data flow and computing possibilities.

Up to four PCIe Gen 5 slots and up to 8 drives enable optimal expansion for high-performance AI operations.
Supports NVIDIA GDS (GPUDirect® Storage), a direct data path for direct memory access (DMA) transfers between GPU memory and storage, increasing system bandwidth and decreasing latency and utilization load on the CPU
4U air-cooled design chassis supports the highest wattage next-gen technologies in up to 35C ambient

Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.

Looking to Customize?

Need assistance with customization? Our sales experts will help you choose the best setup for your needs.

Start Customizing Today!

Dell PowerEdge XE8640 Rack Server Chassis (8x E3.S EDSFF) Spec Sheet

Manuals

Base Standard Capabilities

Feature	Technical Specifications** (Additional features Coming Soon.)
Processor	Two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor
Memory	• 32 DDR5 DIMM slots, supports RDIMM 4 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only
GPU	• 4 NVIDIA HGX H100 80GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology
Storage controllers	• Internal boot: Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs • Software RAID: S160

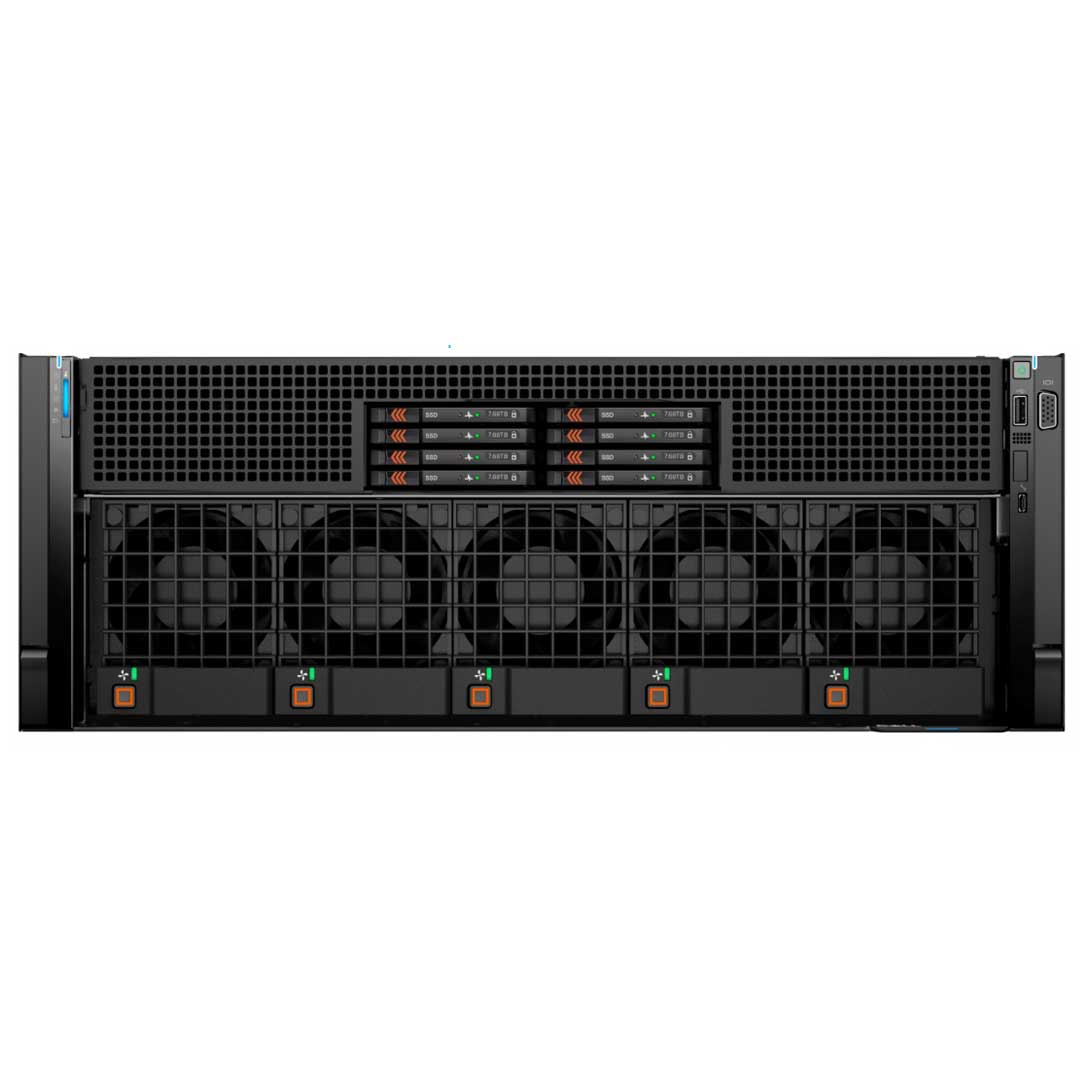

Drive bays	Front Bays • Up to 8 x 2.5-inch NVMe SSD drives max 122.88 TB
Power Supplies	2800W Titanium 200-240 VAC or 240 VDC, hot swap redundant
Cooling Options	• Air cooling for Processors • Liquid Assisted Air Cooling for GPU Note: No facility water to rack required.
Chipset	Intel® C741 chipset
PCIe	2 CPU configuration: Up to 4 PCIe slots (4 x16 Gen5)
Embedded NIC	2 x 1 GbE
Network Options	1 x OCP 3.0 (x8 PCIe lanes)
Fans	• Up to 6 Standard (STD) fans installed in mid tray • Up to 5 High performance (HPR) gold grade fans installed on the front of the system • All are hot swap fans
Dimensions and weight	• Height — 174.3 mm (6.86 inches) • Width — 481.91 mm (18.97 inches) • Depth — 901.4 mm (35.48 inches) with bezel — 865.54 mm (34.07 inches) inch without bezel • Weight — 61.4 kg (135.36 pounds)
Form Factor	4U rack server
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module
Bezel	Optional LCD bezel or security bezel
OpenManage Software	• CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center	• CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center
OpenManage Integrations	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow	• Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager
Security	• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check)	• Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Ports	Front ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA	Rear ports • 1 x USB 2.0 • 1 x USB 3.0 • 1 x VGA • 1 x RJ45 iDRAC9 ethernet port
Operating Systems and Hypervisors	• Canonical Ubuntu Server LTS • Red Hat Enterprise Linux

Compare Servers

Feature	PowerEdge XE8545	PowerEdge XE8640
Processor	● 2x AMD Milan Processor (SP3) processor ● Interchip global memory interconnect (xGMI2).	2x 4th Generation Intel Xeon Scalable processors with up to 56 cores
Accelerators/GPUs	● 4x NVIDIA GPUs w/ NVLINK HGX A100 4-GPU 40GB/400W or HGX A100 4-GPU 80GB/500W	● 4x NVIDIA GPUs w/ NVLINK ● HGX H100 4-GPU 80 GB/700 W
Memory	● 32x RDIMM, DDR4 with ECC, bandwidth up to 3200 MT/S	● 32x RDIMM, DDR5 with ECC, bandwidth up to 4800 MT/S
Disk Drives	● 10x 2.5 inches 12 Gb SAS SSD or 12 Gb SATA SSD - or mixed, with up to 8x NVMe SSD	● 8x 2.5 inches U.2 NVMe SSD ● 8x 2.5 inches U.2 SAS/ SATA,SSD ● 8x E3.S NVMe SSD
Storage Controllers	● BOSS S1.5, H745,H755	● BOSS N1, H965i
NVMe PCIe SSD	● Up to 8x NVMe SSD	● Up to 8x NVMe SSD
PCIe Slots	● Up to 4x PCIe Gen4 slots (3x 16 or 2 x16 + 2 x8)	● Up to 4x 16 PCIe Gen5 slots
LOM	● 2x 1 GbE	● 2x 1 GbE
OCP 3.0	● Max 1 x OCP 3.0	● Max 1 x OCP 3.0 (PCIe x8)
USB Ports	● Front: 1 port (USB 2.0), dedicated for iDRAC ● Rear: 1 port (USB 3.0) + 1 port (USB 2.0 + Bison)	● Front: 1 port (USB 2.0), dedicated for iDRAC ● Rear: 1 port (USB 3.0) + 1 port (USB 2.0 )
Rack Height	● 4U	● 4U
Power Supplies	● Platinum: 2400 W (Mixed Mode: AC 100 V~240 V input) ● Titanium: 2800 W (Mixed Mode: AC 200 V~240 V input) ● 2800 W (Mixed Mode: DC 240 V input)	● Titanium: 2800 W (Mixed Mode: 200-240 VAC or 240 HVDC input)
System Management	● iDRAC9 with Lifecycle Controller with feature additions. ● Front: 1 dedicated Micro USB for iDRAC ● Rear: 1 dedicated RJ45 for iDRAC	● iDRAC9 with Lifecycle Controller with feature additions. ● Front: 1 dedicated Micro USB for iDRAC
Availability	● Hot-plug drives ● Hot-plug redundant cooling. ● Hot-plug redundant power supplies. ● BOSS-S1V5	● Hot-plug drives ● Hot-plug redundant cooling. ● Hot-plug redundant power supplies. ● BOSS-N1
Security	● TPM 2.0	● TPM 2.0
