Home / All / Dell PowerEdge R7615 Rack Server Chassis (12x 3.5")
SKU: DPE-R7615-12LFF-Chassis

Dell PowerEdge R7615 Rack Server Chassis (12x 3.5")

Dell

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

2U rack server

Processor | Max: 128 Cores

1x Gen 4 AMD EPYC 9004 Series

Memory | Max: 3TB

12 ECC DDR5 RDIMM 4800Mhz

Storage | Max: 368.64TB

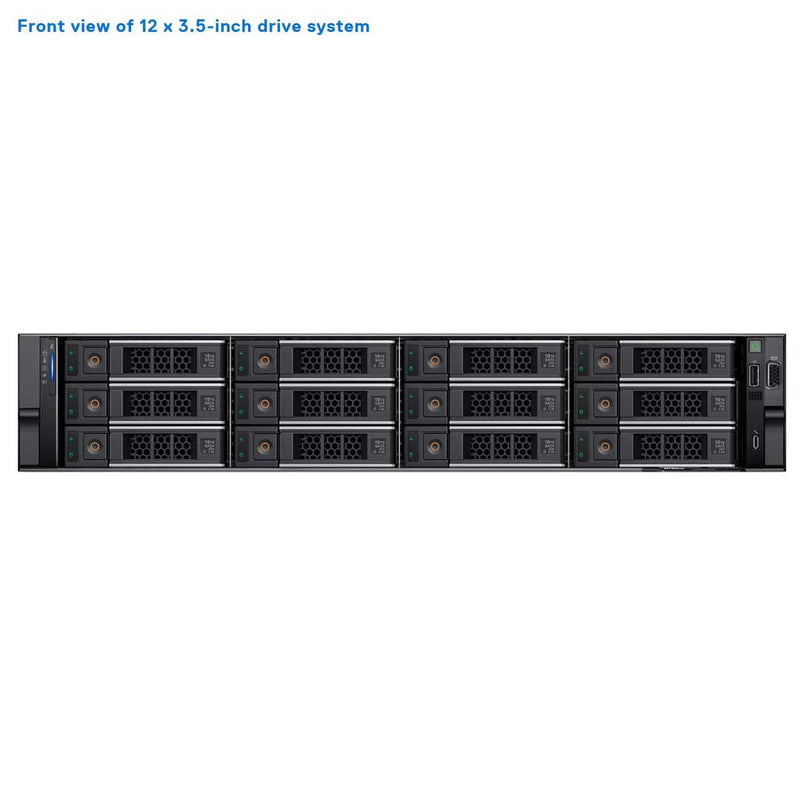

Front bays:
Up to 12x 3.5" SAS/SATA (HDD/SSD) Max: 240 TB
Rear bays:
Up to 2 x 2.5" SAS/SATA/NVMe (HDD/SSD) Max: 30.72 TB
Up to 4 x 2.5" SAS/SATA/NVMe (HDD/SSD) Max: 61.44 TB
Supported in the 12LFF and the 24SFF Backplane

Boot Options

Boot Optimized Server Storage (BOSS-N1) Hot-Swap
USB

RAID Controller: (Adapter PERC)

S160 (SATA/NVMe SW RAID)
H355, H755, H755N, H965i, HBA355i, HBA355e, HBA465e

LOM

2 x 1GbE LOM card with BCM5720 LAN controller

Networking Options | Max Speed: 4x 25GbE Ports

OCP 3.0 x8 Mezz 3.0

Remote Management:

iDRAC9 with Lifecycle Controller

PCIe Slots Max: 8

4 x PCIe Gen5 slots
4 x PCIe Gen4 slots

GPU:

Up to 3 x 300 W DW
or 6 x 75 W SW

Other Versions

Ideal for:

  • Data Analytics
  • High-Performance Computing (HPC)
  • Virtual Desktop Interface (VDI)
  • Virtualization
Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

FeatureTechnical Specifications
ProcessorOne 4th Generation AMD EPYC 9004 Series processor with up to 128 cores per processor
Memory• 12 DDR5 DIMM slots, supports RDIMM 3 TB max, speeds up to 4800 MT/s
• Supports registered ECC DDR5 DIMMs only
Storage controllers• Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
• External HBA (non-RAID): HBA355e
• Software RAID: S160
Drive BaysFront bays:
• Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB
• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
• Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
• Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
• Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 61.44 TB
• Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB
• Up to 32 x EDSFF E3.S Gen5 NVMe (SSD) max 245.76 TB

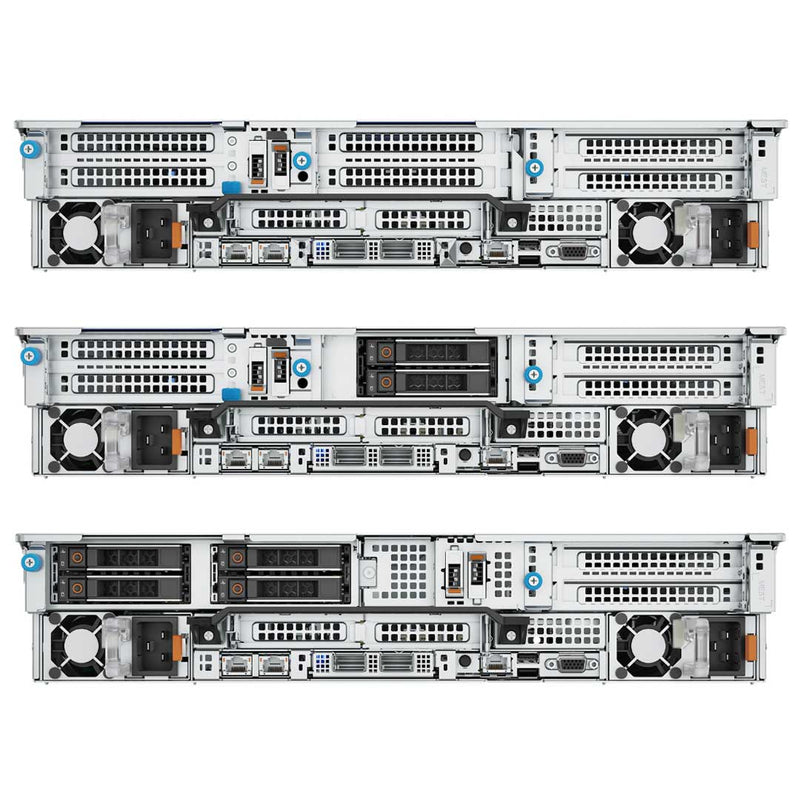

Rear bays:
• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
• Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Power Supplies• 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
• 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
• 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
• 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
• 1100 W LVDC -48 — -60 VDC, hot swap redundant
• 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
• 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
Cooling Options• Air cooling
• Optional Direct Liquid Cooling (DLC)
Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.
Fans• High performance Silver (HPR) fans/ High performance Gold (VHP) fans
• Up to 6 hot plug fans
Dimensions• Height – 86.8 mm (3.41 inches)
• Width – 482 mm (18.97 inches)
• Depth – 772.13 mm (30.39 inches) with bezel
758.29 mm (29.85 inches) without bezel
Form Factor2U rack server
Embedded Management• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
• Quick Sync 2 wireless module
BezelOptional LCD bezel or security bezel
OpenManage Software• CloudIQ for PowerEdge plug in
• OpenManage Enterprise
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin
MobilityOpenManage Mobile
OpenManage Integrations• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager
Security• AMD Secure Memory Encryption (SME)
• AMD Secure Encrypted Virtualization (SEV)
• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secure Erase
• Secured Component Verification (Hardware integrity check)
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC2 x 1 GbE LOM card (optional)
Network options1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system.
GPU OptionsUp to 3 x 300 W DW or 6 x 75 W SW
PortsFront Ports
• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 2.0
• 1 x VGA		Rear Ports
• 1 x Dedicated iDRAC Ethernet port
• 1 x USB 2.0
• 1 x USB 3.0
• 1 x VGA
• 1 x Serial (optional)
• 1 x VGA (optional for Direct Liquid Cooling configuration)
Internal Ports • 1 x USB 3.0 (optional)
PCIeUp to eight PCIe slots:
• Slot 1: 1 x8 Gen5 Full height, Half length
• Slot 2: 1 x8/1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length
• Slot 3: 1 x16 Gen5 or 1 x8/1 x16 Gen4 Low profile, Half length
• Slot 4: 1 x8 Gen4 Full height, half length
• Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
• Slot 6: 1 x8/1 x16 Gen4 Low Profile, Half length
• Slot 7: 1 x8/1 x16 Gen5 or 1 x16 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length
• Slot 8: 1 x8/1 x16 Gen5 Full height, Half length
Operating System and Hypervisors• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi
