SKU: X905N

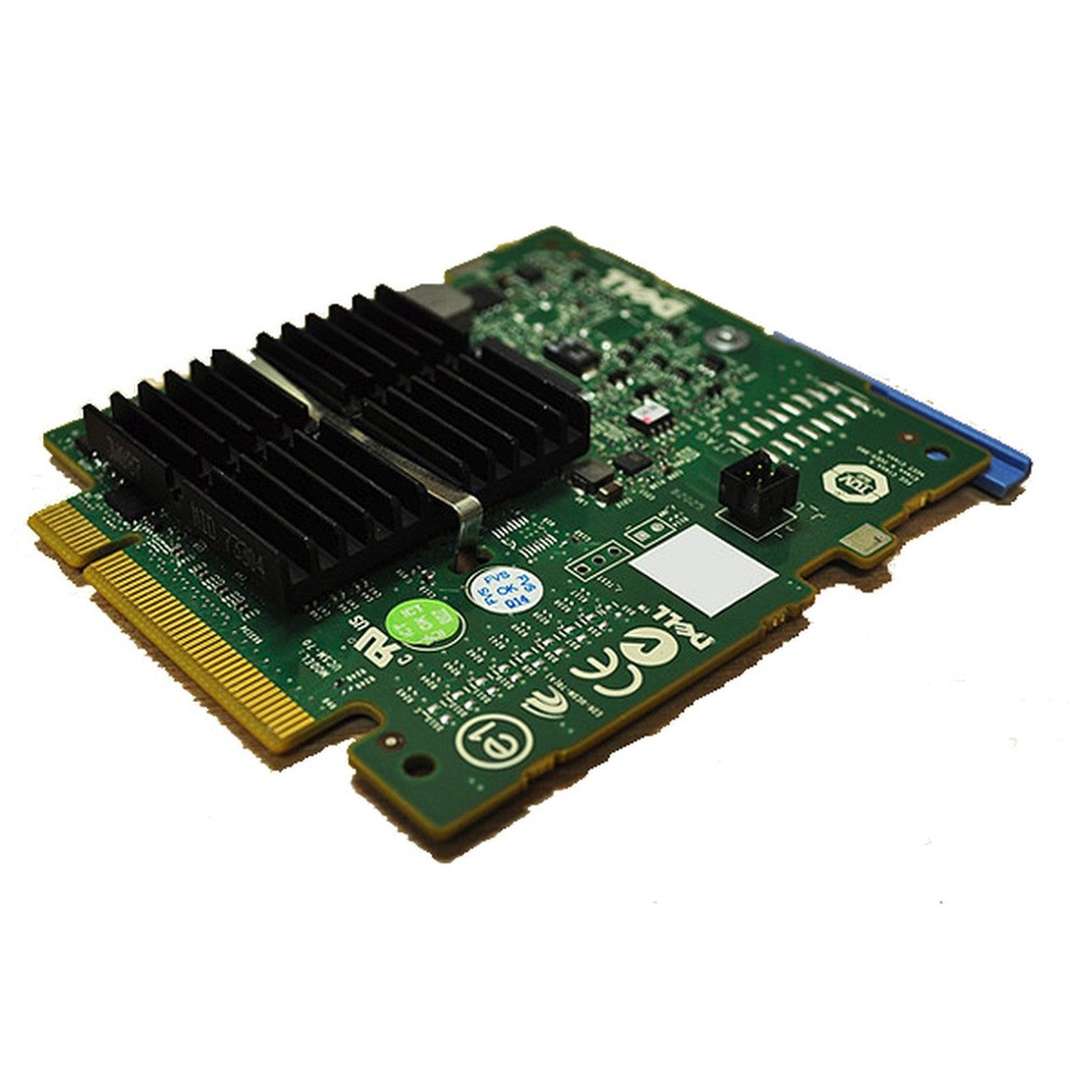

Dell PERC H200 HBA SAS x8 PCI-e RAID Controller, Modular | X905N

Name: Dell PERC H200 HBA SAS x8 PCI-e RAID Controller, Modular | X905N
Brand: Dell
SKU: X905N
Availability: InStock

Dell

| Adapter

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Device Type: Storage Controller (RAID) - Plug-in Card
Interface Speed: PCI Express 2.0 x8
Data Transfer Rate: 6Gb/s SAS Interface Support
Max Drive Support: 4
Cache Memory: None
Writeback Cache: None
RAID Controller: RAID 0 1 10 or Non-RAID

The M710HD internal PERC H200 HBA incorporates two four-channel SAS IOCs for connection to up to two SAS or SATA SSD hard disk drives. PERC H200 is based on LSI SAS2008e SAS IOC that is SAS 2.0 compliant and has 6Gbps throughput.

The M710HD embedded PERC H200 solution supports the following features:

PCIe Gen2
SAS Hard Drive up to 6Gb/s and Solid State Drive (SSD)
RAID 0 and 1
Array Management via BIOS Configuration Utility (CTRL+C) and OMSS
Selection of Preferred Boot Device
Background Initialization (BGI)
Consistency Check (CC)
Check-pointing for Rebuild, BGI and CC
Reporting of unsupported drives (no blocking)
Reporting of Negotiated Link Speed
HDD BP SEP/Status LED support
Enhanced UEFI/Maser Support

Compatible With:

Dell M710
Dell M710hd
Dell R210
Dell R210ii
Dell R510
Dell R610
Dell R710
Dell R810
Dell T610
Dell T710

(Click to View)
