Quick Specs
2U 25 (2.5”) SFF
Max Drives:750 | SAS, NL-SAS and Flash
RAID:RAID 0 / 1 / 3 / 5 / 6 / 10
I/O Supported:Support for File (CIFS and NFS), Block (FC, iSCSI & FCoE) and Object
Standby Power Supply (SPD)Two SPD are supported.
Supported Disk Array Enclosures (DAE):2U 25 (2.5”) | 3U 15 (3.5”) | 3U 120 (2.5”) | 4U 60 (3.5”)
VNX Gen 2 Controllers:
- VNX5200
- VNX5400
- VNX5600
- VNX5800
- VNX7600
- VNX8000
Ideal for:
- Corporate IT
- Data Analytics
- Database
- Virtual Desktop Interface (VDI)
- Virtualization

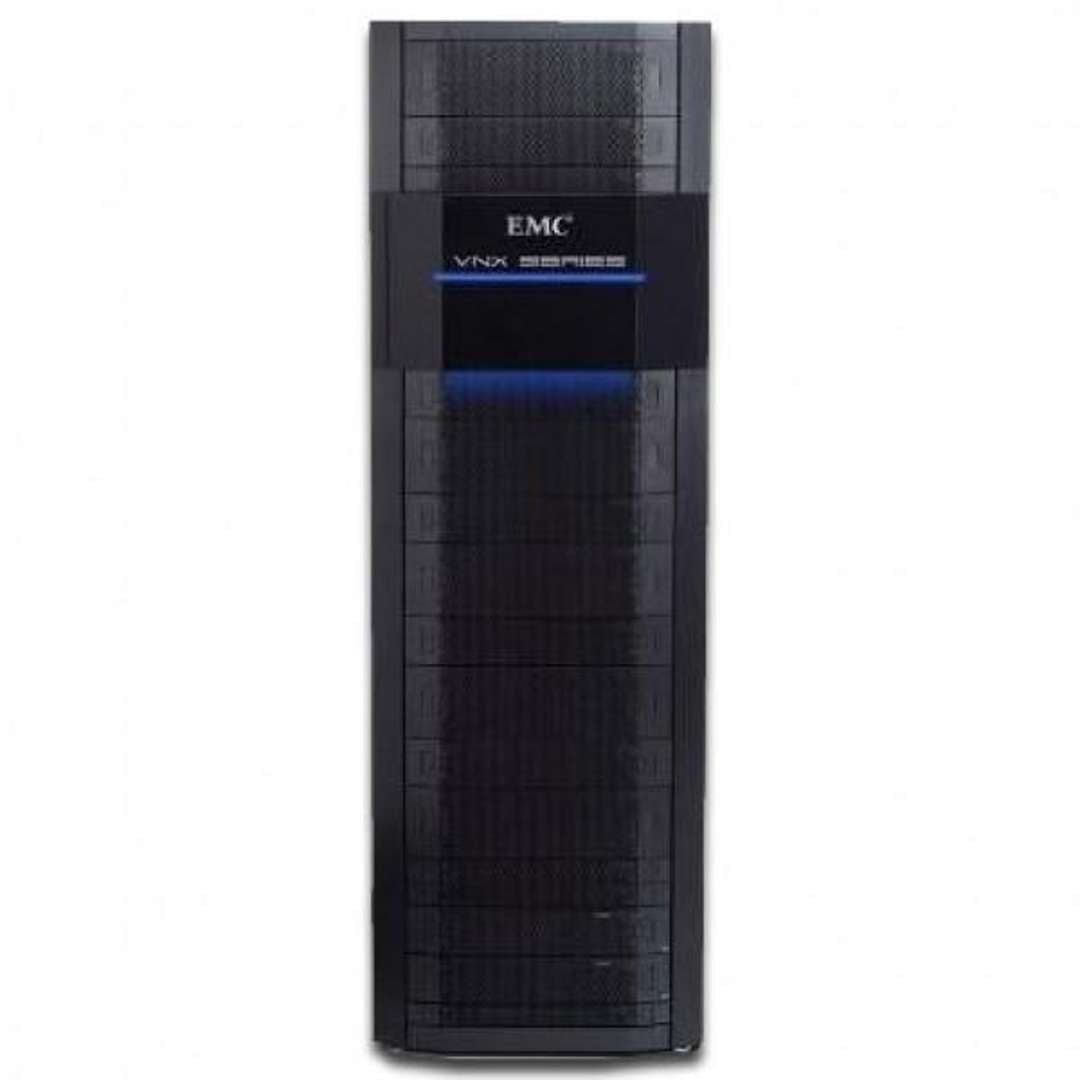

The EMC VNX5800 Disk Processor Enclosure (DPE) is a high-performance, scalable storage platform designed to meet the needs of growing mid-tier enterprises. With support for up to 750 drives, the VNX5800 accommodates various drive types including 3.5" and 2.5" SAS, NL-SAS, and Flash, allowing for flexible storage expansion. The VNX5800 supports a wide range of RAID configurations (0, 1, 3, 5, 6, 10), and its modular design includes dual Storage Processors powered by 2.0 GHz six-core Xeon E5 CPUs with 32 GB RAM. The system offers robust I/O capabilities through support for Fibre Channel (FC), iSCSI, and FCoE, and includes five I/O module slots per Storage Processor for maximum connectivity.
The VNX5800 delivers unified storage capabilities by supporting file (NAS), block, and object protocols concurrently. With 2–6 Data Movers and up to two Control Stations, the VNX5800 offers enterprise-grade performance and reliability for demanding workloads. Each Data Mover blade in the VNX5800 uses a 2.4 GHz four-core Xeon 5600 processor and supports up to 256 TB per blade, housed within 2U enclosures. The VNX5800 also supports various Disk Array Enclosures (DAEs) including 15x3.5", 25x2.5", 60x3.5", and 120x2.5" configurations, making it one of the most versatile and expandable platforms in the VNX family.
Storage Processor I/O Supported:
The SPs in this model use a 2.0 GHz, six-core Xeon E5 processor with 32 GB of RAM, supporting a maximum of 750 drives with the following host connectivity options: FC, iSCSI, and FCoE.Each SP has five I/O module slots, and the VNX5800 supports the use of all five. Any slots without I/O modules are populated with blanks (to ensure proper airflow).

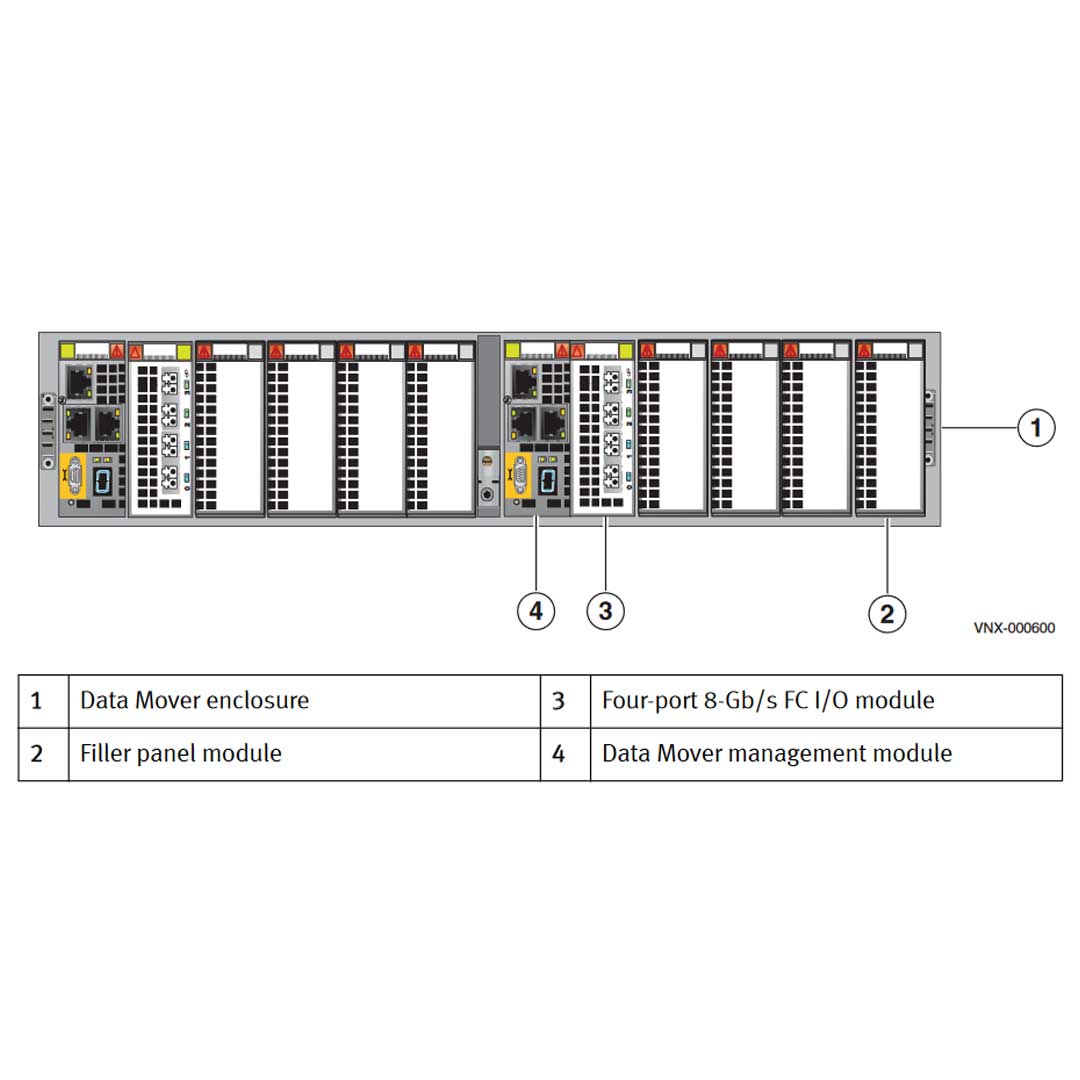

Data Movers Enclosure (DME):
Data Mover Enclosures (DMEs) with blades containing 2.4 GHz, four-core Xeon 5600 processors with 12 GB RAM per blade, with a maximum storage capacity of 256 TB per blade.The DMEs can house two blades per 2U enclosure, and each blade can accept a maximum of three I/O modules for front-end connectivity.

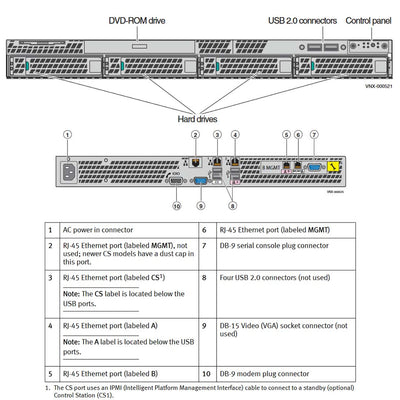

Control Station (CS):
The VNX5800 can support up to 2 Control Stations.
Spec Sheet 4
EMC VNX5800 Technical Specifications
| EMC VNX5800 TECHNICAL SPECIFICATIONS | |
|---|---|
| Storage Type | Unified |
| Maximum Raw Capacity (per controller) | 3000TB |
| Max FAST Cache | 3TB |
| Number of Drives (Min/Max) | 4/750 |
| Array Enclosure | 3U Disk Processor Enclosure - 25 x 2.5" SAS/Flash Drives |
| Drive Enclosure Options | 25 x 2.5" NL-SAS/SAS/Flash Drives (2U) 15 x 3.5" NL-SAS/SAS/Flash (3U) 60 x 3.5" NL-SAS/SAS/Flash Drives (4U) 120 x 2.5" NL-SAS/SAS/Flash Drives (3U) |
| Drive Options |
15 x 3.5" Drive Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS 2TB 6Gbps 7.2K NL-SAS 3TB 6Gbps 7.2K NL-SAS 4TB 6Gbps 7.2K NL-SAS 25 x 2.5" Drive Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS 1TB 6Gbps 7.2K NL-SAS 60 x 3.5" Drive Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS 2TB 6Gbps 7.2K NL-SAS 3TB 6Gbps 7.2K NL-SAS 4TB 6Gbps 7.2K NL-SAS 120 x 2.5" Disk Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 1.2TB 6Gbps 10K SAS |
| Standby Power System | Internal Batteries, one for each storage processor |
| CPU / Memory Per Controller | 2x Intel Xeon E5-2600 Six Core 2.0GHz / 64GB per Controller |
| Max Block UltraFlex IO Modules per Array | 10 |
| Embedded IO Ports per Array | 2 x 4 Lane SAS ports (for BE Connection) |
| Base 6Gbps SAS BE Buses per Array | 2 x 4 Lane |
| Max 6Gbps SAS BE Buses per Array | 6 x 4 Lane or 2 x 4 Lane + 2 x 8 Lane |
| Max Total Ports per Array | 44 |
| 2/4/8 Gbps FC Max Ports per Array | 40 |
| 1 GBaseT iSCSI Max Total Ports per Array | 32 |
| 10 GbE iSCSI Max Total Ports per Array | 20 |
| Max FCoE Total Ports per Array | 20 |
| File Components | |
| # File Data Movers | 2-6 |
| # Control Stations | 1 x 1U Server Standard, 2nd x 1U Server Optional |
| Data Mover CPU/Memory | Intel Xeon 5600 / 12GB |
| Max File UltraFlex IO MOdules per Data Mover | 4 |
| Min/Max 2/4/8 Gbps FC Ports per Data Mover | 4 |
| Max IP Ports per Data Mover | 12 |
| Max 1 GBaseT Ports per Data Mover | 12 |
| Max 10GbE Ports per Data Mover | 6 |
| Management | LAN 2x 10/100/1000 Copper GbE |
| Functional Limits | |
| Max Raw Capacity | 3000TB |
| Max SAN Hosts | 2,048 |
| Max Max Number of Pools | 40 |
| Max Number of LUNs (Pool) | 2100 |
| Max Number of LUNs (Classic) | 4096 |
| Max Pool Based LUN Size | 256TB (Virtual Pool LUN) |
| Max File System Size | 16TB |
| Maximum Usable File Capacity per Data Mover | 256TB |
| Compatible Disk Array Expansions (DAEs) | VNXB6GSDAE15 VNXB6GSDAE25 VNXB6GSDAE60 VNXB6GSDAE120 |
| Protocols Supported | CIFS, NFS, pNFS, FC, FCoE, ISCSI |
| Power - 25 x 2.5" DPE | |
| AC Line Current (Operating Maximum) | 4.4 A max at 200 Vac |
| Power Consumption (Operating Maxium) | 870 VA (845 W) max |
| Power Factor | 0.98 min at full load, low voltage |
| In-rush Current | 30 A max for 1/2 line cycle, per line cord at 240 Vac |
| Startup Surge Current | 29 A rms max for 50 ms, at any line voltage |
| AC Protection | 10 A fuse on each power supply |
| AC Inlet Type | IEC320-C14 appliance coupler, per power zone |
| Dimensions | |
| Height | 5.25" |
| Width | 17.5" |
| Depth | 24" |
| Vertical Size | 3 NEMA Units |
| Weight | 90.395 lbs |
| ECS Warranty | 1-Year Parts Replacement Warranty |
