    Cisco UCS 6248UP Fabric Interconnect Switch | UCS‑FI‑6248UP


    Price: Request a Quote

    Brand:
    MPN:
    UCS‑FI‑6248UP
    Type:
    Switches
    Condition:
    ECS Refurbished & Tested

    Request Quote

    Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


    -PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
    -SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

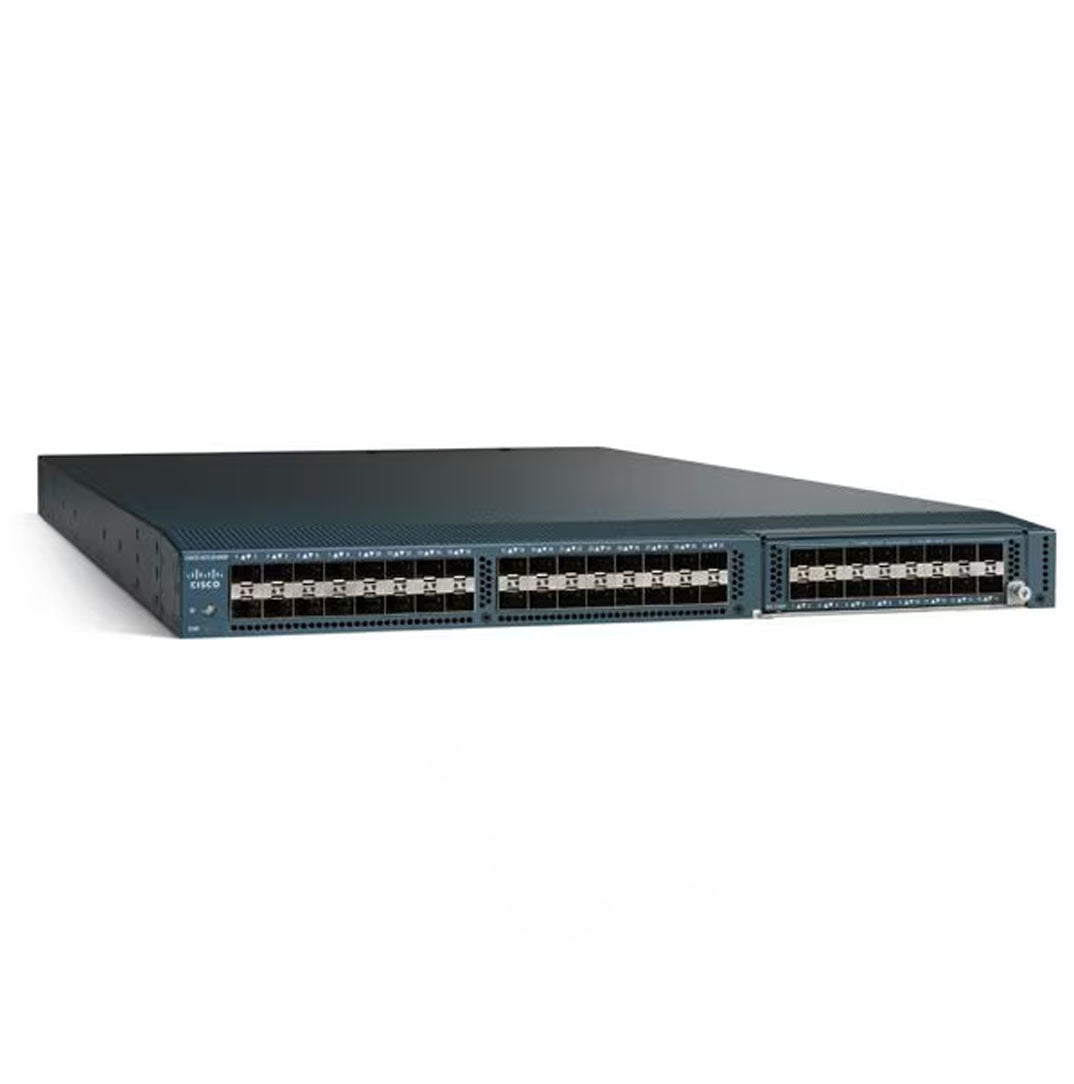

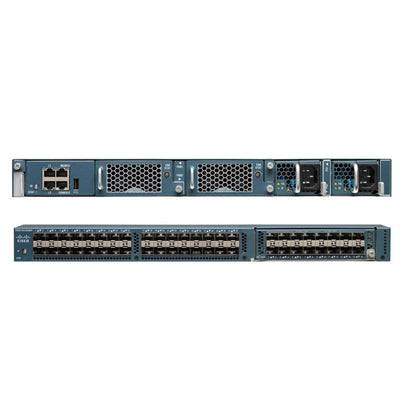

    Cisco UCS 6248UP Fabric Interconnect Switch | UCS‑FI‑6248UP

    Quick Specs

    • Model: Cisco UCS 6248UP
    • Ports: 32 fixed ports, up to 48 with 1 expansion module
    • Port Type: Unified ports (support 1/10GbE, FCoE, and Fibre Channel)
    • Form Factor: 1RU rack-mount
    • Throughput: 960 Gbps
    • Expansion Slots: 1 slot for optional 16-port unified expansion module
    • Management: Cisco UCS Manager (clustered configuration)
    • Latency: ~3.2 microseconds (cut-through architecture)
    • Redundancy: 1+1 hot-swappable fan modules and PSUs
    • Power Supply: Dual redundant, hot-swappable
    • Supported Protocols: Ethernet, FCoE, Fibre Channel (1/2/4/8 Gbps)

    Part Number:

    • PN: UCS-FI-6248UP

    The Cisco UCS 6248UP Fabric Interconnect is a high-performance, unified I/O platform that delivers 10 Gigabit Ethernet, Fibre Channel, and FCoE capabilities in a single compact 1RU form factor. It features 32 fixed SFP+ ports and supports up to 48 ports via an expansion module. With line-rate throughput of 960 Gbps and integrated Cisco UCS Manager, it provides centralized management for the entire UCS domain, consolidating LAN and SAN traffic into a single, highly efficient architecture.

    Ideal for Cisco UCS B-Series Blade Servers and 5100 Series Chassis, the 6248UP serves as the backbone of a unified data center fabric. It simplifies cabling, reduces hardware requirements, and supports virtualization with Cisco VM-FEX technology. With lossless Ethernet, low latency, and high scalability, the 6248UP is purpose-built for data centers requiring powerful, converged networking across compute and storage infrastructure.


    What the Cisco UCS 6248UP Does:
    • Consolidates LAN and SAN into a unified fabric
    • Supports Ethernet, Fibre Channel, and FCoE through unified ports
    • Provides centralized management via UCS Manager
    • Supports virtualization with Cisco VM-FEX technology
    • Enables up to 960 Gbps throughput with low latency switching
    What It Was Made For:
    • Unified connectivity for UCS B-Series Blade Servers
    • Data centers needing convergence of network and storage
    • Scalable enterprise compute infrastructure with up to 20 chassis
    • Reducing TCO via I/O consolidation and simplified cabling
    • High-performance environments requiring low-latency, lossless networking

    Cisco UCS 6248UP Module Fabric Interconnect (UCS‑FI‑6248UP)
    Expansion Module Option for Cisco UCS 6200 Series Fabric Interconnects

    The Cisco UCS 6200 Series supports an expansion module that can be used to increase the number of 10 Gigabit Ethernet, FCoE, and Fibre Channel ports (Figure 5). This unified port module provides up to 16 ports that can be configured for 10 Gigabit Ethernet, FCoE, and 1/2/4/8-Gbps native Fibre Channel using the SFP or SFP+3 interface for transparent connectivity with existing Fibre Channel networks.

    • Adds 16 unified ports for up to 48 total on 6248UP
    • Supports 1/10GbE, Fibre Channel, or FCoE per port
    • Hot-swappable for live expansion and maintenance
    • Delivers full 10 Gbps line-rate performance
    • Scales I/O for growing UCS domains and workloads

    Ask about our Customizable UCS Server Solutions!
    We can create custom Turn-Key UCS configurations based on your exact infrastructure needs.
    Click here to view Cisco UCS Servers
