RC5 - Riser Configuration 5 | Dell PowerEdge R6725
Contact For Pricing
Thanks for the request. We'll get back to you with in 24 hours.
Riser Config Specs
| Riser configurations (RC) | Expansion card risers | PCIe Slots | Form factor | Controlling processor | Slot's electrical physical/bandwidth connector |
|---|---|---|---|---|---|
| RC5: R2p + R4a |

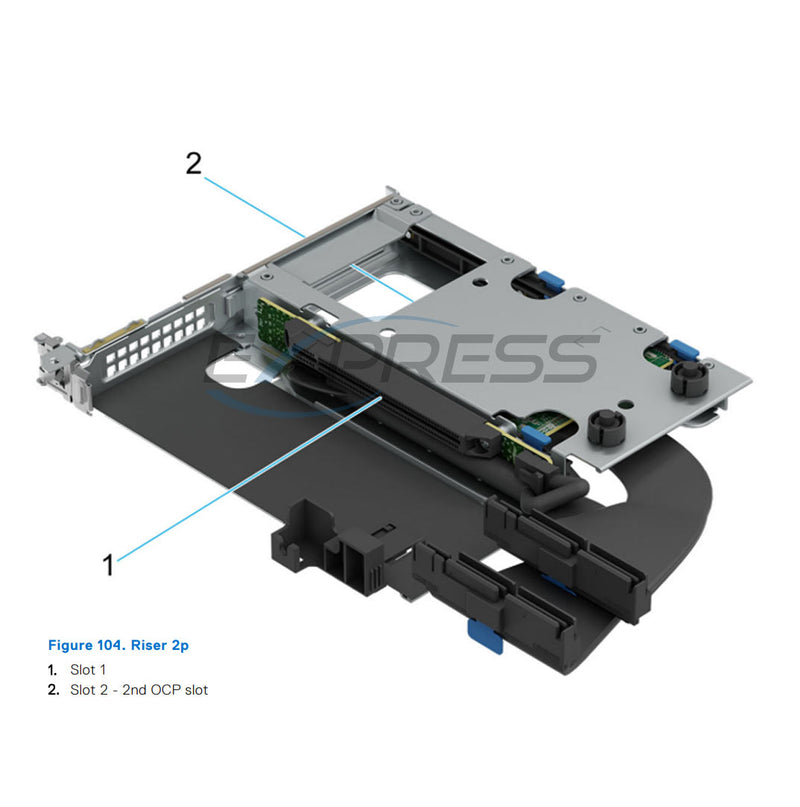

R2p | 1 | low profile | Processor 1 | PCIe Gen5 x16 (x16 connector) |
| 2 | 2nd OCP (SFF) | Processor 1 | PCIe Gen5 x16 (x16 connector) | ||

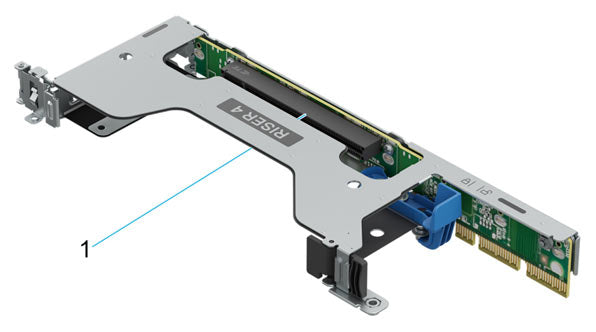

| R4a | 4 | low profile | Processor 0 | PCIe Gen5 x16 (x16 connector) | |
| BOSS | 3 | BOSS | Processor 0 | PCIe Gen3 x4 (1C connector) | |
| OCP | 5 | OCP | Processor 0 | PCIe Gen5 x16 (OCP 4C+ connector) |
Compatible With:
- Dell PowerEdge R6725
(Click to View)
