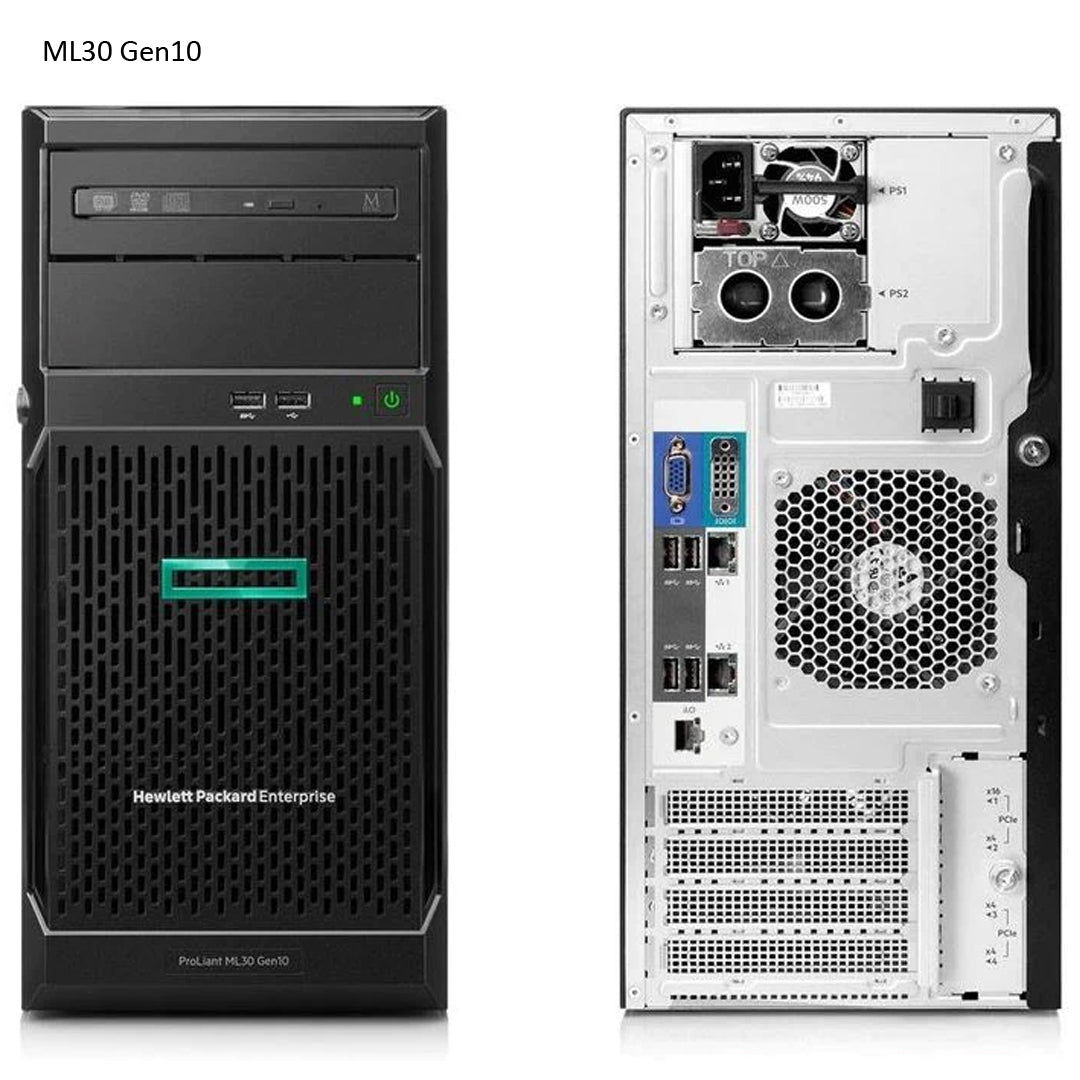

HPE ProLiant ML30 Gen10 Tower Server 4 LFF Chassis | P06761-B21

Form factor

4U Tower

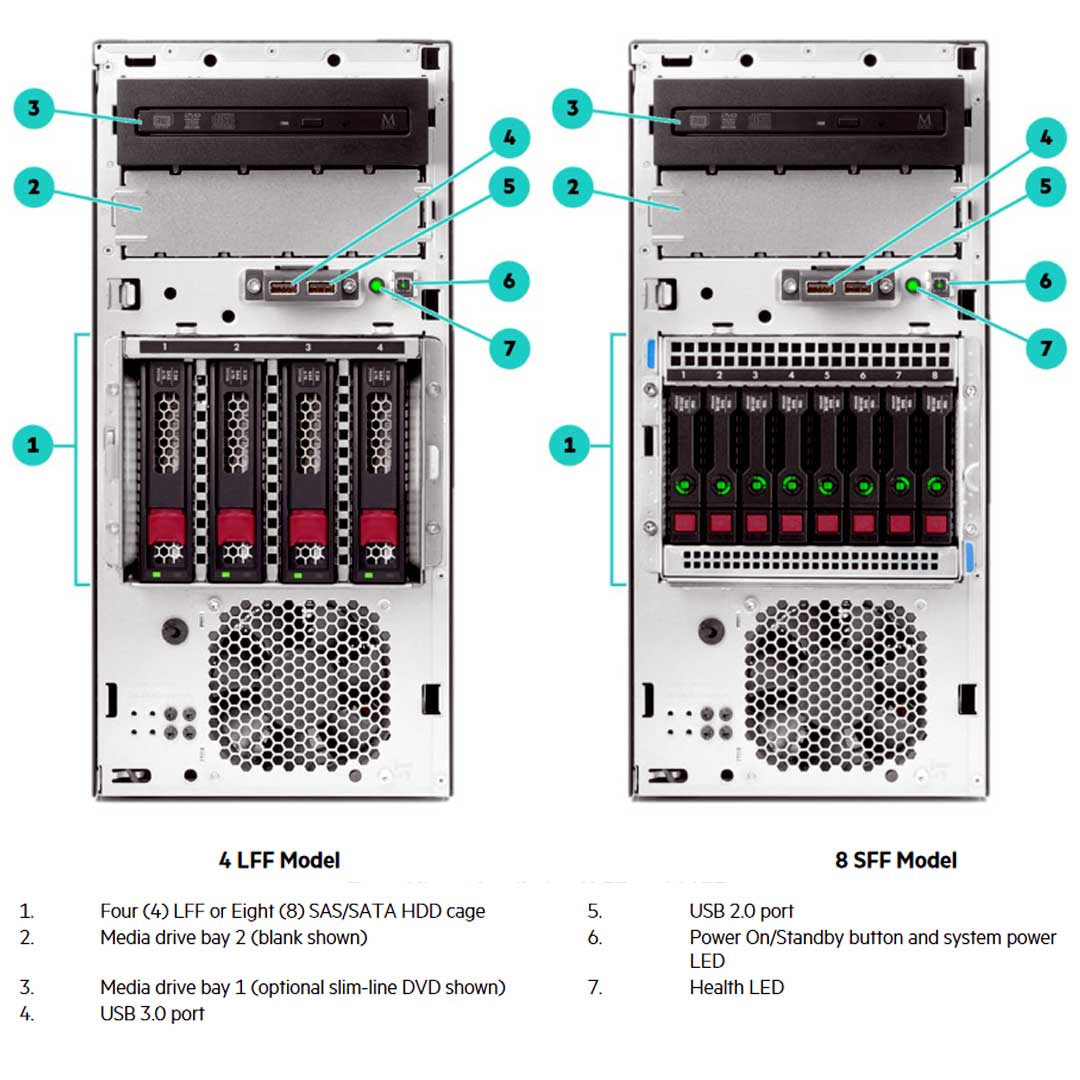

8 SFF chassis and 2 half-height (5.25 in) media drive bays with optional 1 slim-line DVD bay kit option.

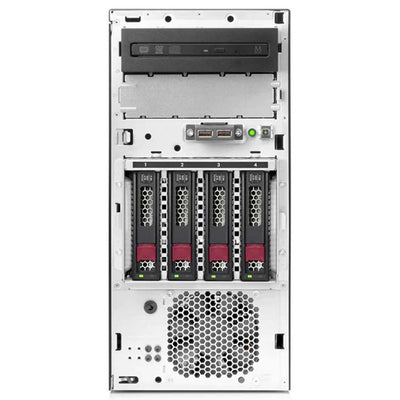

4 LFF chassis and 2 half-height (5.25 in) media drive bays with optional 1 slim-line DVD bay kit option.

4 LFF NHP chassis and 2 half-height (5.25 in) media drive bays with optional 1 slim-line DVD bay kit option or up to 2 LFF NHP HDD cage kits.

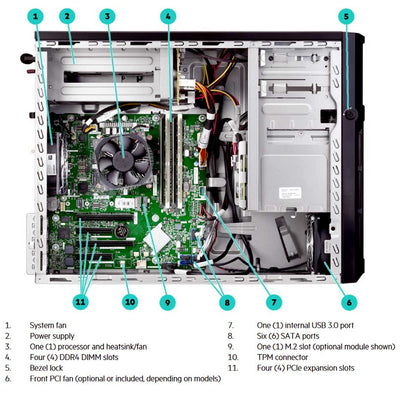

1 Default system fan module (92 x 32 mm).

1 Default PCI fan module (92 x 32 mm) depending on models.

Embedded HPE Ethernet 1Gb 2-port 361i network Adapter or

Embedded HPE Ethernet 1Gb 2-port 332i network Adapter

Performance RAID controller

HPE Smart Array E208e-p SR Gen10 controller

HPE Smart Array P408i-p SR Gen10 controller

HPE Smart Array P408e-p SR Gen10 controller

None ship standard

Optional: SATA 9.5 mm DVD-RW/DVD-ROM optical drive

HPE 350 W E-star 1.0 power supply FIO kit

HPE 500 W Flex slot Platinum hot plug low halogen redundant power supply

Video modes up to 1920 x 1200 @60 Hz (32 bpp)

16MB video memory

32MB flash

4Gb Dual Data Rate (DDR 3) with ECC protection

Up to 4 DIMM slots available for higher memory capacity

Up to 4LFF (+2LFF optional) non hot-plug, 4LFF hot-plug, or 8SFF hot-plug drive bays

HPE Smart Array or Smart HBA controller

Redundant power supply

Dedicated iLO management port

M.2 NVMe SSDs for boot

Secure boot and secure start enable for enhanced security

Operating System (OS) specific functionality

Support for > 2.2TB (Using GUID partition table (GPT)) boot drives

USB 3.0 stack

Embedded UEFI shell

Mass configuration deployment tool using iLO RESTful API that is Redfish API conformant

Preboot Execution Environment (PXE) boot support for IPv6 networks

Workload profiles for simple performance optimization

Trusted Platform Module (TPM) 2.0 support

iSCSI software initiator support

HTTP/HTTPs boot support as a PXE alternative

Boot support for option cards that only support a UEFI option ROM

UEFI secure boot and secure start support

Immutable silicon root of trust

FIPS 140-2 validation

Common criteria certification

Configurable for PCI DSS compliance

Ability to rollback firmware

Secure erase of NAND/user data

TPM 1.2 option

TPM 2.0 option

Front bezel Key-Lock feature, standard

Padlock slot, standard

Kensington lock slot, standard

Intel SGX

iLO advanced

HPE iLO advanced premium security edition

One Config Simple (SCE)

ACPI 6.1 compliant

PCIe 3.0 compliant

PXE support

WOL support

Microsoft logo certifications

VGA port

USB 3.0 compliant

USB 2.0 compliant

SMBIOS 3.1

UEFI 2.6

ASHRAE A3/A4¹¹

UEFI¹²

Microsoft Windows Server 2016 and 2019²

Red Hat Enterprise Linux (RHEL) 7.5 and 8.0²

SUSE Linux Enterprise Server (SLES) 12 SP3 and 15³

VMware ESXi 6.5 U2 and 6.7⁴

4 NHP LFF chassis with 1x LFF HDD, 1x processor including heatsink, 1xDIMM, 1x ATX power supply, cables for the above: 10.1 kg (22.1 lb)

Fully loaded - 4 Hot-plug LFF chassis with 4x LFF HDDs, 1x DVD-RW, 1xtape drive, 1x processor including heatsink, 4x DIMMs, 2x power supplies,cables for the above: 17.6 kg (38.7 lb)

100 to 120 V ac

200 to 240 V ac

For 350 W power supply: 1452 BTU/hr (At 100 V ac), 1544 BTU/hr (At 200 V ac)

For 500 W power supply: 1902 BTU/hr (At 100 V ac), 1840 BTU/hr (At 200 V ac), 1832 BTU/hr (At 240 V ac)

For 350 W power supply: 350 W (At 100 to 230 V ac)

For 500 W power supply: 500 W (At 100 V ac), 500 W (At 240 V ac)

For 350 W power supply: 350 W (At 100 to 230 V ac)

For 500 W power supply: 500 W (At 100 to 127 V ac), 500 W (At 200 to 240 V ac)

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight

Maximum rate of change is 10°C/hr (18°F/hr)

The upper limit may be limited by the type and number of options installed

System performance may be reduced if operating with a fan fault or above 30°C (86°F)

For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35°to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft)

For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft)

The approved hardware configurations for this system are listed at the below link:

Click here to access the Hewlett Packard Enterprise Information Library for hardware configuration .

System performance may be reduced if operating in the extended ambient operating range or with a fan fault

-30° to 60°C (-22° to 140°F)

Maximum rate of change is 20°C/hr (36°F/hr)

Operating: 8% to 90% - Rh, 28°C maximum wet bulb temperature, Non-Condensing

Non-Operating: 5% to 95% Rh, 38.7°C (101.7°F) maximum wet bulb temperature, Non-Condensing

3048 m (10,000 ft)

This value may be limited by the type and number of options installed

Maximum allowable altitude change rate is 457 m/min (1500 ft/min)

9144 m (30,000 ft)

Maximum allowable altitude change rate is 457 m/min (1500 ft/min)

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment

Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109)

The listed sound levels apply to standard shipping configurations

Additional options may result in increased sound levels

HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below

4.3 Bels (Entry)

3.6 Bels (Performance)

28 dBA (Entry)

23 dBA (Performance)

4.3 Bels (Entry)

3.8 Bels (Performance)

28 dBA (Entry)

23 dBA (Performance)
