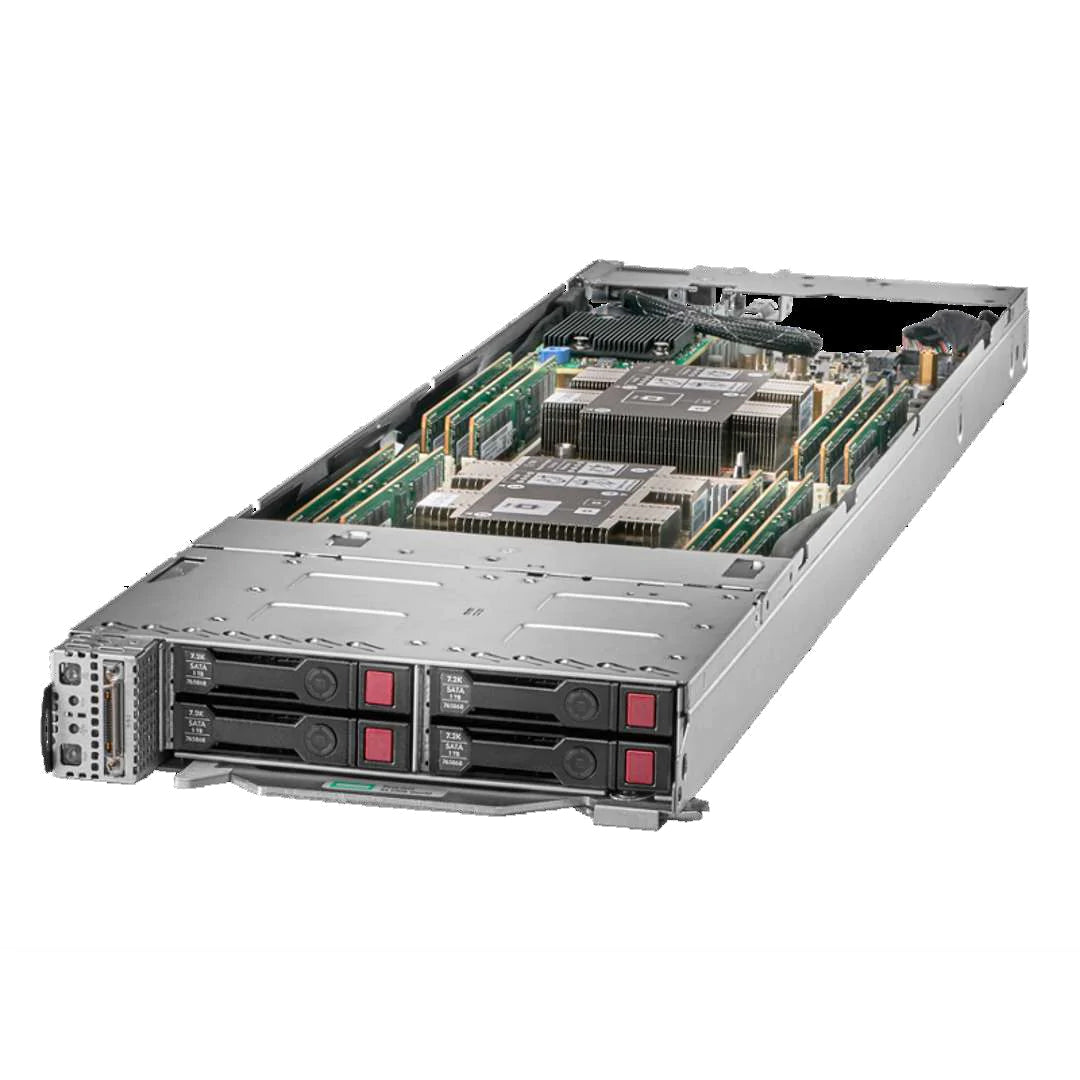

HPE ProLiant XL230k Gen10 CTO Blade Server

Brand:
Type:
CTO Servers
Condition:
ECS Refurbished & Tested
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

The HPE ProLiant XL230k Gen10 server delivers extreme compute performance using leading edge technologies needed to handle complex HPC workloads in enterprise data centers. This server leverages the 2nd generation Intel Xeon Scalable processor family along with up to 2933 MT/s DDR4 HPE SmartMemory. This modular, fully integrated, and highly flexible HPE Apollo k6000 Chassis accommodates up to 24 HPE ProLiant XL230k Gen10 server trays, Ethernet and high-speed fabric switches to address various HPC workload needs.

The HPE Apollo 6000 Gen10 System is a performance-enhanced, air-cooled solution that offers outstanding configuration flexibility, redundant power, simplified administration and rack-scale efficiency to lower the total cost of ownership (TCO) needed for mass scale HPC deployments.

What's New for XL230k Gen10

  • Added support for 2nd generation Intel Xeon Scalable Processors.
  • Intel® Deep Learning Boost - Vector Neural Network Instruction (VNNI) set to accelerate deep learning and AI workloads with a new set of Intel Advanced Vector Extension (Intel AVX-512) instructions.
  • Support for higher frequency DDR4 2933 MT/s 1 DIMM per channel (DPC) SmartMemory as well as larger capacity 128 GB SmartMemory.
  • Support for discrete Intel Arria 10 FPGA.

Platform for Extreme HPC Workloads

HPE ProLiant XL230k Gen10 server delivers extreme computing performance with top bin Intel Xeon Scalable processors, higher speed memory and 100 Gbps cluster connectivity.

Enables faster workload completion on more cores at a given CPU frequency for greater application efficiency than previous offerings.

Has up to two Intel Xeon Scalable processors, supporting up to 205W processors, and providing up to twice the performance of Gen9 processors.

The integrated network fabric with the server node offering a choice of Intel OPA or Mellanox EDR, providing low-latency 100 Gbps bandwidth for demanding HPC application workloads.

Designed for Lower Total Cost of Ownership (TCO)

HPE ProLiant XL230k Gen10 server has an integrated, robust design to allow rapid deployment of large numbers of servers to handle your HPC workloads.

Enables faster deployment and easier maintenance through integration of the network fabric with the server node, which reduces cabling and avoids stranded switch ports with an enhanced design for fabric radix alignment.

Supports HPE ProLiant Gen10 server features such as iLO 5, built-in security with Silicon Root of Trust and many additional features.



Please Upgrade Server

*This Configure to Order has not been created.
*You can still Contact Us for a quote on this server.
*Thank you.

Welcome to the Request Express Quoting Form!

for: HPE ProLiant XL230k Gen10 CTO Blade Server


This streamlined form is designed to simplify the quoting process for you. Whether you're uncertain about specific parts or seeking a hassle-free experience, you're in the right place.

Provide us with the necessary details, and we'll generate a customized quote for your server. Even if you're unsure about the exact components you need, we've got you covered. Our team will tailor a solution based on the information you provide.

Let's get started!
Simply fill out the form, and we'll take care of the rest.


Name *
Email *
Message *
Preferred Brand
Form Factor
Rack Unit of Height (#U)
Processor(s)
Memory
Total Amount of Memory
Total Amount of Usable Storage

Storage Type


RAID

List Networking Connection needed:
Rack Space Restrictions
Which OS do you plan on using:


Price as Configured: 0

Product Specs

Specs 1

Product features

Feature
Description
Processors 1
Intel Xeon Models
CPU frequency
Cores
L3 cache
Power
UPI
DDR4
Memory per socket
Platinum 8176 processor
2.1 GHz
28
38.50MB
165 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Platinum 8170 processor
2.1 GHz
26
35.75MB
165 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Platinum 8164 processor
2.0 GHz
26
35.75MB
150 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Platinum 8160 processor
2.1 GHz
24
33.00MB
150 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6152 processor
2.1 GHz
22
30.25MB
140 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6150 processor
2.7 GHz
18
24.75MB
165 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6148 processor
2.4 GHz
20
27.50MB
150 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6142 processor
2.6 GHz
16
22.00MB
150 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6138 processor
2.3 GHz
18
24.75MB
140 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6136 processor
2.0 GHz
20
27.50MB
125 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6134 processor
3.0 GHz
12
24.75MB
150 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6132 processor
3.2 GHz
8
24.75MB
130 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6130 processor
2.6 GHz
14
19.25MB
140 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6128 processor
2.1 GHz
16
22.00MB
125 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6126 processor
3.4 GHz
6
22.00MB
115 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 5122 processor
2.6 GHz
12
19.25MB
125 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 5122 processor
3.6 GHz
4
16.50MB
105 W
2 @ 10.4 GT/s
2666 MT/s
768GB
Chipset
Intel C622 chipset (Intel EY82C622 PCH)2
On compute management chipset
HPE iLO 5 ASIC3
Memory 4
One of the following depending on model
Type:
HPE SmartMemory DDR4 Load Reduced (LRDIMM), or Registered (RDIMM)
DIMM slots available
16 DIMM slots available
Maximum DIMMs (Per server tray)
1024GB (16 x 64GB)
Memory protection
Online spare
Advanced ECC
Memory mirroring with advanced ECC support
HPE fast fault tolerance
Maximum internal Storage

Capacity
Configuration
Hot-plug SFF SAS HDD
8TB
4 x 2TB
Hot-plug SFF SATA HDD
8TB
4 x 2TB
Hot-plug SFF SSD
15.36TB
4 x 3.84TB
M.2 internal
680GB
2 x 340GB
uFF
2.72TB
4 x (2 uFFx 340GB)
NVMe SFF
8TB
4 x 2TB
Interfaces
KVM
Serial USB Video port (SUV) P/N: 676277-B21 HPE 36 pin SUV dongle cord kit
USB ports
1 internal USB 3.0 and 2 external USB 2.0 via SUV
HPE iLO remote management network port
Aggregated via HPE Apollo k6000 chassis controller or Apollo platform manager
Health LED
1
Power
1
UID
1
Expansion slots 5
Expansion slot #
Technology
BusWidth
Form factor/physical connector
Internal PCIe
PCIe 3.0
x8
Low profile x16
External PCIe
PCIe 3.0
x16
Low profile x16
Internal/external
PCIe 3.0
x8/x8
Low profile x16/x16
Storage controllers
  • Software RAID

  • Essential RAID controller

  • Performance RAID controller

  • Storage controller cable kits

  • Other Storage controller options

Form factor
The ProLiant XL230k Gen10 Server is a single-slot tray for the HPE Apollo k6000 chassis
Industry standard compliance
  • ACPI 6.1 compliant

  • PCIe 3.0 compliant

  • WOL support

  • Microsoft logo certifications

  • PXE support

  • USB 3.0 compliant (Internal); USB 2.0 compliant (External ports via SUV)

  • SMBIOS 3.1

  • Unified Extensible Firmware Interface (UEFI) 2.6

  • Redfish API

Graphics
  • Integrated video standard

    • Video modes up to 1920 x 1200@60Hz (32 bpp)

    • 16MB video memory

HPE Server UEFI/legacy ROM 6
UEFI is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with the server at boot time. HPE ProLiant Gen10 servers have a UEFI class 2 implementation and support both UEFI mode (Default) and Legacy BIOS mode
  • Secure boot

  • Operating System (OS) specific functionality

  • Support for > 2.2TB (Using GPT) boot drives

  • USB 3.0 stack

  • Embedded UEFI shell

  • Mass configuration deployment tool using iLO RESTful API that is redfish API conformant

  • PXE boot support for IPv6 networks

  • Boot support for option cards that only support a UEFI option ROM

  • Network stack configurations

  • Workload profiles for simple performance optimization

Embedded management
  • HPE Integrated Lights-Out (HPE iLO)

  • UEFI

  • iLO RESTful API

  • Active Health System (AHS)

  • AHS viewer

  • Smart update manager

Server utilities
  • iLO amplifier pack

  • HPE iLO mobile application

  • RESTful interface tool

  • Scripting tools

  • HPE OneView standard

  • HPE Systems Insight Manager (HPE SIM)


Server management software licenses
  • HPE iLO advanced

  • HPE iLO advanced premium security edition

  • HPE iLO scale-out

  • HPE OneView advanced

  • HPE insight Cluster Management Utility (CMU)

  • HPE insight control

Security
  • UEFI secure boot and secure start support

  • Immutable silicon root of trust

  • Support for Commercial National Security Algorithms (CNSA)

  • iLO security modes including a new iLO advance premium security license

  • Granular control over iLO interfaces

  • Common Access Card (CAC) 2-factor authentication

  • Tamper-free updates - Components digitally signed and verified

  • Secure recovery - Recover critical firmware to known good state on detection of compromised firmware

  • Trusted Platform Module (TPM) 1.2 option

  • TPM 2.0 option bezel Locking Kit

  • Intrusion security kit option

Ethernet options
  • HPE Ethernet 10/25Gb 2p 631SFP28 adapter

  • HPE Ethernet 10Gb 2p 535T adapter

  • HPE Ethernet 10Gb 2p 562T adapter

  • HPE Ethernet 1Gb 4-port 366T adapter

  • HPE Ethernet 10/25Gb 2P 640SFP28 adapter

  • HPE Ethernet 1Gb 4-port 331T adapter

  • HPE Ethernet 4 x 25Gb 1p 620QSFP28 adapter

  • HPE Ethernet 1Gb 2P 361T adapter

  • HPE Ethernet 1Gb 2P 332T adapter

  • HPE Ethernet 10Gb 2-port 562SFP+ adapter

High speed fabric option
  • HPE Apollo IB EDR 100GB 840z FIO adapter

  • HPE 100Gb 1p OPA 860z FIO adapter

NOTE:
  1. 1.
    • All processors within the server must be identical and paired using -B21 and -B22 SKUs for front and rear
    • Select processors may limit the system’s inlet ambient support to 25°C (77°F) or lower
    • Only 2666 MT/s DDR4 memory is supported
  2. 3. For more information check the below link to access the quickspecs for HPE Integrated Lights-Out (iLO):

    Click here to access the quickspecs page for HPE Integrated Lights-Out (iLO) .

  3. 4.
  4. 5.
    • External PCIe riser requires ordering the HPE Apollo Server tray IO mod option kit 868858-B21
    • Internal mezzanine B slot will be unavailable with above PCIe options
  5. 6.
    • The UEFI system utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, check the below link:

      Click here to visit the Unified Extensible Firmware Interface (UEFI) page .

    • For UEFI boot mode, boot environment and OS image installations should be configured properly to support UEFI
    • UEFI FIO setting (758959-B22) can be selected to configure the system in legacy mode in the factory for the HPE ProLiant XL230k Gen10 Server

top

Software overview

Feature
Description
OS and virtualization software support for ProLiant Servers
  • Microsoft Windows Server

    • Windows 2012 R2 Standard, Datacenter, Essentials & Hyper-V

    • Windows Server 2016 Standard (Includes Nano Server), Datacenter & Hyper-V

  • Red Hat Enterprise Linux (RHEL) 7 & 8

    • RHEL 6.9

    • RHEL 7.3 w/eratta kernel 3.10.0-514.6.1.el7

  • SUSE Linux Enterprise Server (SLES) 11.4 or beyond

    • SLES 11 SP4 w/kISO

    • SLES 12 SP2

  • VMware ESX

    • ESXi 6.0 U3

    • ESXi 6.5 & 6.5 U1 (With custom image) - 3.29

  • Community OSes: Supported 90 days POST launch

    • CentOS 6.9/7.3/7.4

NOTE:

top

Physical specifications

Feature
Description
Server dimensions (L x W x D)
4.19 x 19.41 x 77.55 cm (1.65 x 7.64 x 30.53 in)
Shipping dimensions (L x W x D)
22.30 x 37.39 x 99.90 cm (8.78 x 14.72 x 39.33 in)
Weight (Approximate, maximum) (Four hard drives and two processors installed)
6.80 kg (15.0 lb)
NOTE: Operating temperature has an altitude derating of 1°C (1.8°F) per 1,000 ft (304.8 m). No direct sunlight. Upper operating limit is 10,000 ft (3,048 m) or 70 Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a maximum temperature of 45°C (113°F). Altitude maximum for storage is 70 KPa

top

Environmental specifications

Feature
Description
System inlet temperature
  • Standard operating support

    • 10° to 35°C (50° to 95°F)

  • Extended ambient operating support

    • 10° to 5°C (50° to 41°F)

    • 35° to 40°C (95° to 104°F)

Non-operating
-30° to 60°C (-22° to 140°F)
Relative humidity (Non-condensing)
  • Operating

    • 10% to 90%

  • Non-operating

    • 5% to 95%

Altitude
3050 m (10,000 ft)
Acoustic noise
Configuration SKU
Entry
Base
Performance
Idle - LWAd
6.9 B
6.9 B
6.9 B
Idle - LpAm
53 dBA
53 dBA
53 dBA
Operating - LWAd
8.1 B
8.6 B
9.0 B
Operating - LpAm
64 dBA
69 dBA
73 dBA

top

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments
  • Standard Ground
    • Shipping time: 2-7 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-10 business days
    • Excludes weekends, holidays or weather delays.
  • 3 Business Days
    • Shipping time: 3 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 3-6 business days
    • Excludes weekends, holidays or weather delays.
  • 2 Business Days
    • Shipping time: 2 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-5 business days
    • Excludes weekends, holidays or weather delays.
  • Overnight / Next Business Day
    • Shipping time: 1 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 1-4 business days
    • Excludes weekends, holidays or weather delays.
International Shipments
  • International Economy
    • Shipping time: 4-6 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 5-9 business days
    • Excludes weekends, holidays or weather delays.
  • International Priority
    • Shipping time: 1-3 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-6 business days
    • Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

  1. accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
  2. any improper use that contravenes the instructions in the user manual;
  3. problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

  • Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
  • FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Subscribe
