-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
- Support for AMD FirePro S4000X MXM mezzanine graphics
- Support for HPE Fibre Channel HBA mezzanine cards
- Support for HPE FlexFabric 20Gb 2-port 630FLB adapter
- Support for HPE OneView Software License
- Delivers the industry’s most comprehensive graphics acceleration capabilities for VDI in a blade form factor
- Now with Intel Xeon E5-2600 v2 12-core processors and 1866 MHz DDR3 memory
- Provides up to 60 percent cost reduction per seat, when compared to previous generation dedicated workstation blades1
- Furnishes savings in power, space, and management
- Achieves up to 4X improvement in user density2

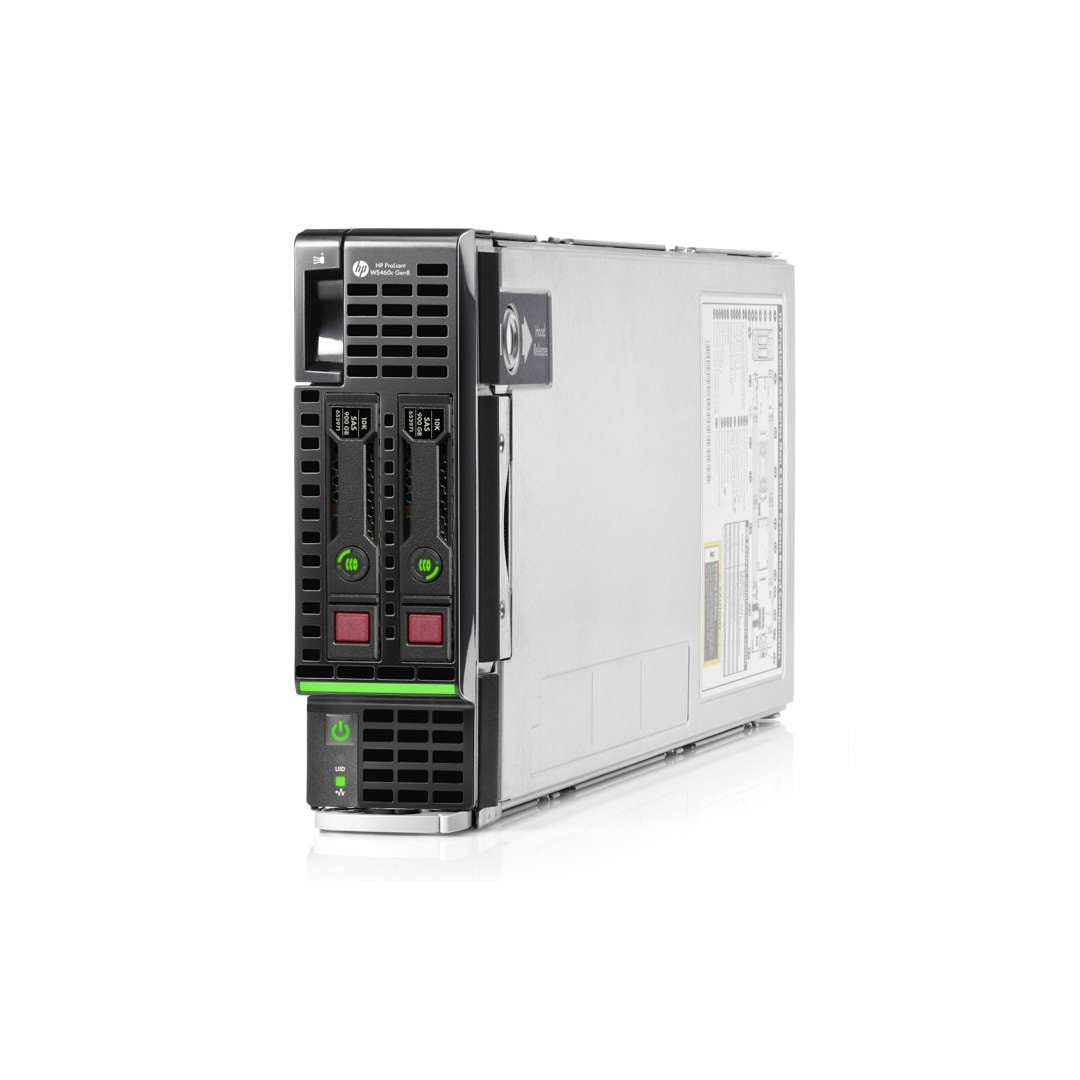

The HP ProLiant WS460c Gen8 Graphics Server Blade now delivers even more performance with new Intel Xeon Processor E5-2600 v2 processors and 1866 MHz DDR3 memory. It is the industry’s first bladed technology to support up to eight GPUs per blade, lowering the cost per user while enabling remote users to easily complete large model visualizations.
With this latest update, HP is expanding our comprehensive set of graphics offerings with NVIDIA GRID solutions that, for the first time, support hardware GPU virtualization and multiple GPUs on a single adapter card, providing an excellent end-user experience.
NVIDIA GRID GPU adaptors have an optimized multi-GPU design that helps to maximize user density. GRID K1 boards, which include four Kepler-based GPUs and 16 GB of memory, are designed to host the maximum number of concurrent users. GRID K2 boards, which include two higher end Kepler GPUs and 8 GB of memory, deliver maximum density for users of workstation-class graphics applications.
With GRID, users benefit from the best of both software virtualized and pass‑through GPU technologies, because the virtual machine (VM) shares the resource of a GPU, but has direct access to the dedicated resources of the GPU.
Please Upgrade Server
*This Configure to Order has not been created.
*You can still
Contact Us
for a quote on this server.
*Thank you.
The request has been sent.
Thank you.
Price as Configured:
$0
Base Standard Capabilities
Product features
Feature | Description | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HPE Processor (one of the following depending on model) | E5-2600 v2 series Processors
E5-2600 series Processors
| ||||||||||||
Cache memory (one of the following depending on model) |
| ||||||||||||
Chipset |
| ||||||||||||
Upgradeability | Upgradeable to two (2) processors | ||||||||||||
On system management processor | HPE iLO (Firmware: HPE iLO 4) | ||||||||||||
Memory protection |
| ||||||||||||
Memory |
| ||||||||||||
Network controller (one of the following depending on model) |
| ||||||||||||
Expansion slots | Two (2) I/O expansion mezzanine slots: (occupied and not available with expansion blade)
| ||||||||||||
Storage controller | One (1) HPE Smart Array P220i Controller with 512MB of flash backed write cache (FBWC), RAID 0 and 1 support, and upgradeable firmware with recovery ROM8,9 | ||||||||||||
Maximum internal storage (one of the following depending on model) |
| ||||||||||||
Industry standard compliance |
| ||||||||||||
Mezzanine support |
| ||||||||||||
Graphics adapter (mezzanine card) |
Ultra - High End PCI Express Adapters for WS460c Graphics Expansion Blade only:
| ||||||||||||
Graphics |
| ||||||||||||
Form factor | HPE ProLiant WS460c Gen8 and WS460c Gen8 Graphics Expansion Blade are both half-height server blades that plug into the HPE BladeSystem c3000 and c7000 enclosures. HPE WS460c Gen8 is a single-width blade while the Graphics Expansion Blade model is double-width. | ||||||||||||
Security |
| ||||||||||||
NOTE: 1: For Twelve-core processors. 2: For Six, Eight or Ten-core processors. 3: For Eight-core processors. 4: For Quad or Six-core processors. 5: For Quad-core processors. 6: For Dual-core processors. 7: FlexibleLOMs are not compatible with prior generation c-Class server blades. 8: The HPE Smart Array P220i supports two (2) small form factor (SFF) hot plug drive bays. 8: The server supports up to a combined total of two (2) FBWC battery options. | |||||||||||||
Software overview
Feature | Description |
|---|---|
Operating systems1 | Client Operating Systems:
Server Operating Systems:
|
NOTE: 1: For more information on HPE's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for the server. Click here to visit the Support Matrix . | |
Physical specifications
Specification | Description |
|---|---|
Dimensions (H x W x D) (with bezel) | 18.07 x 5.54 x 51.76 cm (7.11 x 2.18 x 20.37 in) |
Weight (approximate) | Maximum (all processors, 16 DIMMs, hard drives, mezzanine cards, and two flash cache batteries installed): 6.33 kg (14.00 lb) Minimum (one processor and 2 DIMMs installed): 4.75 kg (10.50 lb) |
Environmental specifications
Specification | Description |
|---|---|
Operating temperature | 10° to 35°C (50° to 95°F) |
Non-operating temperature | -30° to +60°C (-22° to +140°F) |
Operating relative humidity | 10% to 90%, non-condensing |
Non-operating relative humidity | 5% to 95%, non-condensing |
Operating altitude | 3050 m (10,000 ft) |
Non-operating altitude | 9144 m (30,000 ft) |
