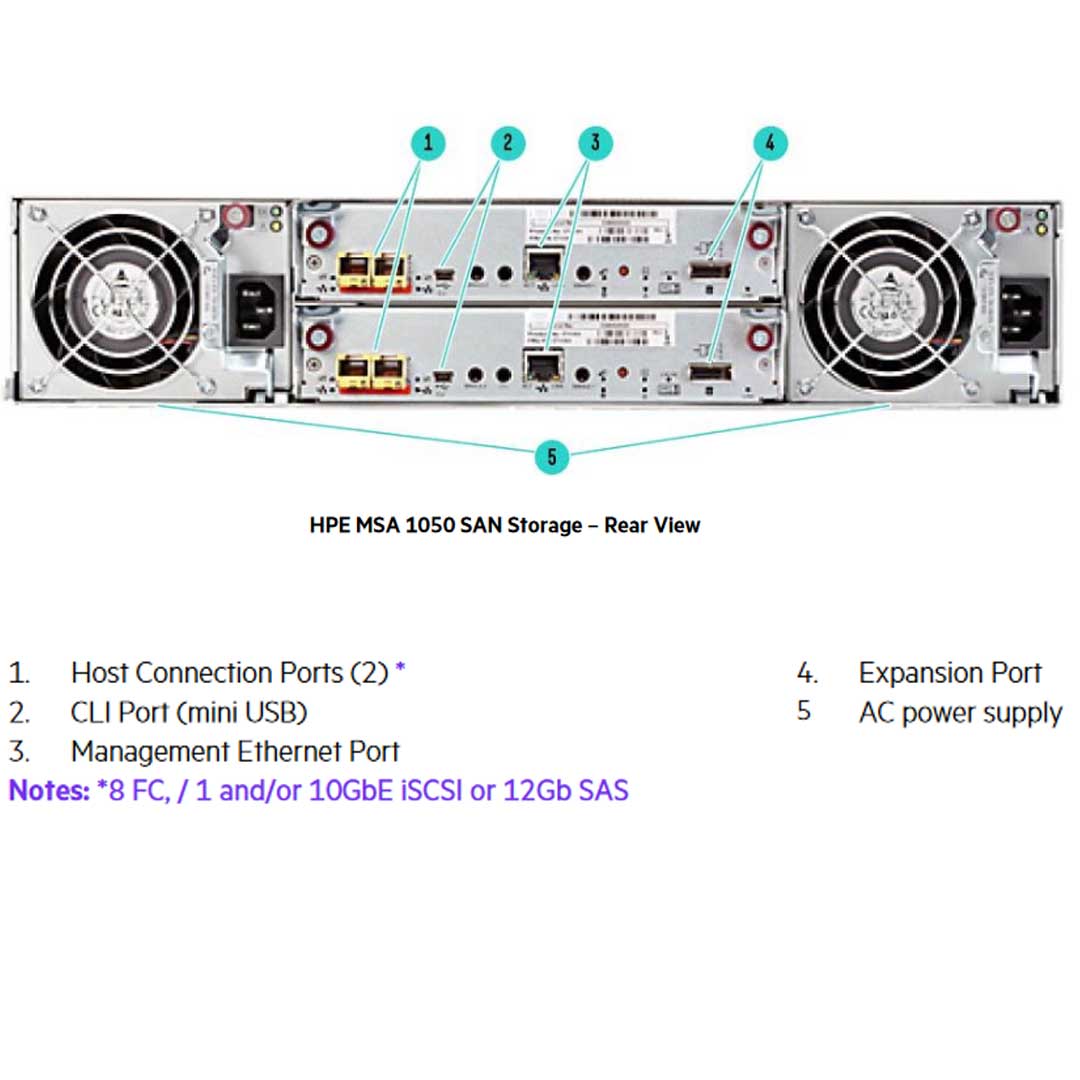

HPE ProLiant MSA 1050 Storage Array CTO

HPE

| CTO Servers



Multi-Quantity Discounts Available for ALL Line Items

** LARGE DISCOUNTS available for complete systems. Pricing displayed is for single item purchases **

Use the configuration tool to create your solution and submit it us for a quote OR send us a message with your complete build requirements to receive best pricing

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

HPE Pre-Configured Chassis

These chassis come with everything but Drives which you can choose below.

HPE LFF Drives SAS (3.5in) (Optional)

Supports up to 12 Drives

HPE SFF Drives SAS (2.5in) (Optional)

Supports up to 24 Drives

Select Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

What's New in the MSA 1050 array family
  • New free online MSA Health Check tool that provides users insight into the general health of their MSA array
  • New MSA variants are available that are in compliance with EU Commission Regulation No 2019/424.
  • New 960GB and 1.92TB Read Intensive SSDs
MSA 1050 storage system architecture maximizes performance
  • Includes SFF or LFF array chassis, depending on model
  • Two FC, iSCSI or SAS controllers, depending on model
  • Two host ports per controller
  • Each controller supports 8 Gb FC, 1GbE iSCSI, 10GbE iSCSI or 12Gb SAS host connectivity, depending on model
  • 6 GB cache per controller. (4GB Read/Write plus 2GB System)
  • Battery-free cache backup with super capacitors and compact flash
Available Drives

The MSA 1050 Storage systems support a wide variety of the MSA 3.5-inch LFF drives, and the MSA 2.5-inch SFF drives.

  • Solid-State Drives (SSDs) deliver the highest levels of performance and reliability.
  • Enterprise-class SAS hard disk drives (10K/15K RPM) offer a balance of performance, capacity, and cost while delivering enterprise-grade reliability.
  • Midline SAS hard disk drives (7.2K RPM) are optimized to provide the best ratio of capacity to cost.

The HPE MSA 1050 SAN Storage brings affordable flash storage down to ever lower customer segments. The MSA 1050 is designed to meet entry-level storage requirements and budgetary constraints. With the lowest storage array price points in the HPE Storage portfolio and field-proven ProLiant compatibility, the MSA 1050 is the platform of choice for smaller SAS, iSCSI and FC deployments.

The HPE MSA 1050 features 8Gb Fibre Channel, 12 Gb SAS, and 1GbE and 10GbE iSCSI at previously unattainable entry price points.

Current Configuration

(List below serves as quick links to each section)

HPE Pre-Configured Chassis

HPE LFF Drives SAS (3.5in)

HPE SFF Drives SAS (2.5in)

Select Warranty

The request has been sent.
Thank you.

Price as Configured:
$0

Error Submitting Cart. Please get in touch with us for support.

Please select all the mandatory items in the configuration list before submitting the cart.

One or more items in your cart has no price. This will be submitted as a "Request for a Quote".

Base Standard Capabilities

Product features

Feature
Description
Configurations

  • Factory-Configured, dual controller array with 4 host ports of either 8Gb FC, 1 GbE, 10 GbE or 12Gb SAS protocols

  • Small Form Factor (SFF) or Large Form Factor (LFF) models available

Simple, proven Gen10 ProLiant compatible shared storage

  • MSA continues its heritage of providing affordable, easy to use shared storage without a big learning curve

  • Intuitive setup and management for ProLiant administrators

  • New look-and-feel will fit right in with user's Gen10 ProLiant servers

Access to MSA 1050 advanced data services with simplified licensing approach

  • Leverage flash storage with easy to use, easy to maintain tiering and read cache technologies

  • No storage expertise necessary, system dynamically responds to workload changes, so user do not have to

Expandable and upgradable to meet new demands

  • Add new HDDs or disk expansions to user's MSA 1050

  • Upgrade system to the MSA 2050 through Data-in-Place upgrade: a simple 15 minute upgrade

  • No Time-Consuming migrations required

All MSA 1050 models offer a common set of valuable features

  • MSA 1050 storage system architecture maximizes performance

    • Includes SFF or LFF array chassis, depending on model

    • Two FC, iSCSI or SAS controllers, depending on model

      • Two host ports per controller

      • Each controller supports 8Gb FC, 1 GbE iSCSI, 10 GbE iSCSI or 12Gb SAS host connectivity, depending on model

    • 6GB cache per controller. (4GB Read/Write plus 2GB system)

    • Battery-Free cache backup with super capacitors and compact flash

  • Storage Management Utility (SMU)

  • Thin provisioning allows storage allocation of physical storage resources only once they are consumed by an application

  • All models feature a wide variety of drives

  • The MSA 1050 will support a maximum of 3 disk enclosures (Either LFF and/or SFF)

  • The MSA 1050 can grow incrementally to a maximum of 48 LFF, 96 SFF drives, or a combination of SFF and LFF enclosures up to the maximum of 4 total enclosures

  • Virtual storage disks groups can be spanned across multiple enclosures

  • Virtual storage RAID levels supported: 1, 5, 6, 10

  • Maximum hard drive counts vary by RAID levels

  • Multiple disk groups can be aggregated into a single storage pool

  • Storage pools allow data on a given LUN to span across all drives in a pool

  • The maximum LUN size is 140TB (128TiB)

  • Snapshot enhancements for virtual storage

  • Prioritize data by assigning appropriate affinity level (Performance, no affinity or archive)

  • End user can configure 512TiB capacity per virtual pool by enabling large pool support

  • Non-disruptive on-line controller code upgrade. Requires Multi-Pathing software

  • Upgradable by design. Owners of an MSA 1040 array are able to do Data-in-Place upgrades to the new MSA 1050 array. This unique ability protects the earlier investments in drives, and JBODs

  • Certain limitations are applicable. Please review the upgrading to the HPE MSA 1050/2050/2052 whitepaper before upgrading the MSA 1040, 2040 or 2042 systems

Application solutions
The HPE MSA 1050 SAN Storage is the ideal solution for users running Oracle, Microsoft, SAP environments and those users who are deploying virtual server technologies like VMware and Hyper-V. The MSA 1050 delivers enterprise functionality that enhances virtual environments, simplifies management, and reduces costs. Easy to deploy, scale and maintain, HPE MSA 1050 Arrays ensure that crucial business data remains available
Product technology
MSA 1050 Storage offers 8 factory configured models:

  • MSA 1050 8Gb FC with 4-ports per array system, Small Form Factor (SFF) or Large Form Factor (LFF)

  • MSA 1050 12Gb SAS with 4-ports per array system SFF or LFF

  • MSA 1050 1 GbE iSCSI with 4-ports per array system SFF or LFF

  • MSA 1050 10 GbE iSCSI with 4-ports per array system, SFF or LFF

Modular chassis
2U Rack height. 12 LFF or 24 SFF drive bays, accommodating SSDs, SAS and SAS MDL drives
Drives available
The MSA 1050 storage systems support both the MSA 3.5 in LFF drives, and the MSA 2.5 in SFF drives

  • SSDs Deliver exceptional performance for applications requiring high random read IOPs performance

  • Enterprise-Class Serial Attached SCSI (SAS) hard disk drives (10K/15K RPM) offer a balance of performance, capacity, and cost while delivering enterprise grade reliability

  • Midline SAS hard disk drives (7.2K RPM) are optimized to provide the best ratio of capacity to cost

Optional disk enclosures

  • MSA 2050 LFF Disk enclosure

    • The MSA 2050 LFF disk enclosure can be attached to the MSA 1050 LFF or SFF storage models

    • Each MSA 2050 LFF disk enclosure ships standard with two .5 m Mini-SAS to Mini-SAS cables for connection to the MSA 1050 array expansion port or existing disk enclosure cascade port

    • LFF and/or SFF Disk enclosures can be mixed up to the maximum of 3 total disk enclosures

    • “A” variant available for Americas and Asia Pacific countries only

    • “B” variant available for EMEA countries only

  • HPE MSA 2050 SFF Disk enclosure

    • The MSA 2050 SFF disk enclosure can be attached to the MSA 1050 LFF or SFF storage models

    • Each MSA 2050 SFF disk enclosure ships standard with a two .5 m Mini-SAS to Mini-SAS cables for connection to the MSA 1050 array expansion port or existing disk enclosure cascade port

    • LFF and/or SFF Disk enclosures can be mixed up to the maximum of 3 total disk enclosures

    • “A” variant available for Americas and Asia Pacific countries only

    • “B” variant available for EMEA countries only

Scalability

  • LFF Configurations can scale up to 160TB SAS MDL per array enclosure, expandable to 672TB SAS MDL with the addition of a maximum of three MSA 2050 LFF disk enclosure

  • SFF Configurations can scale up to 76.8TB SAS SSDs per array enclosure, expandable to 307.2TB SAS with the addition of a maximum of three MSA 2050 SFF disk enclosure

  • Users may configure an MSA 2050 SFF array enclosure with MSA 2050 LFF disk enclosure. This is an excellent option for a configuration that supports High-Speed SFF SSDs or fast SFF Enterprise-Class SAS drives in the array enclosure, combined with economical LFF drives staged for archival purposes, all in the same array

Disk group

  • Disk group is a collection of disks in a given redundancy mode (RAID 1, 5, 6, 10)

  • Disk group RAID level and size can be created based on performance and/or capacity requirements.

  • Multiple disk groups can be allocated into a storage pool for use with the virtual storage features

LUNs

  • The MSA 1050 arrays support 512 volumes and up to 512 snapshots in a system

  • All of these volumes can be mapped to LUNs. Maximum LUN sizes up to 140TB (128 TiB). Thin provisioning allows the user to create the LUNs independent of the physical storage

Storage pools

  • Storage pools are comprised of one or more disk groups. A volume’s data on a given LUN can now span all disk drives in a pool

  • When capacity is added to a system, users will benefit from the performance of all spindles in that pool

  • The MSA 1050 supports large, flexible volumes with sizes up to 128TiB and facilitates seamless capacity expansion. As pools are expanded data automatically reflows to balance capacity utilization on all drives.

RAID 1, 5, 6, 10
The MSA 1050 features several important additional RAID levels

  • RAID 6 Offers the highest level of RAID protection. It allocates two sets of parity data across drives and allows simultaneous write operations. It can withstand two simultaneous drive failures without downtime or data loss

  • RAID 10 is Mirroring and striping without parity and allows large Disk Groups to be created with high performance and mirroring for fault tolerance

  • RAID 5 Combines the block striping and parity. Because data and parity are striped across all of the disks, no single disk is a bottleneck. Striping also allows users to reconstruct data in case of a disk failure

  • RAID 0 (Striping) is supported for Read Cache only

Performance
MSA 1050 End-to-End performance results:(Using VE270 firmware release)
MSA 1050 Array performance
HPE MSA 1050 8Gb Fibre channel with HDDs
HPE MSA 1050 8Gb Fibre channel with SSDs
MSA 1050 RAID 1 SSD Performance results
Random reads (IOPs)
-
91,856
Random writes (IOPs)
-
39,146
MSA 1050 RAID 5 Performance results
Segmented sequential reads (MB/s)
3,079
-
Segmented sequential writes (MB/s)
2,771
-
Configuration and management tools

  • Management access:Out-of-Band, SMU, CLI

  • Interface types: USB 100/1000 Ethernet

  • Protocols supported: SNMP, SMI-S, SSH, SMTP, FTP, SFTP, HTTP, HTTPS, Telnet

Web browser support
The MSA 1050 management supports Microsoft Internet Explorer, Mozilla Firefox, and Google Chrome
Hot plug expansion and replacement support
All MSA 1050 models support hot plug expansion and replacement of redundant controllers, enclosures, fans,power supplies, and I/O modules for simple, fast installation and maintenance. Hot add expansion of disk enclosuresis also supported.
3rd Party server support
The MSA 1050 supports most Multi-Vendor industry standard Intel and AMD based (x86) servers. Hewlett Packard Enterprise requires the Third-Party server to be logged and listed on the Microsoft windows server catalog.

  • Hewlett Packard Enterprise recommends that the Third-Party server vendor is an active member of TSANet

  • Non-HPE servers will generally be supported if the HPE storage stack is used. This includes supported HPE branded HBAs and drivers, and supported FC switches.

Advanced virtualized features

  • Automated tiering of enterprise SAS (Standard tier) and MDL SAS (Archive tier)

  • Read cache and Wide-Striping

  • Sub-LUN tiering from SAS MDL to Enterprise SAS drives is also a standard feature

Advanced data services suite

  • The optional advanced data services suite includes the following functionality:

    • Performance tiering between the SSD tier and the standard or archive tier

    • 512 Snapshots

    • Remote snaps

Performance Tiering and Archive Tiering

  • A Performance tier with SSDs

  • A Standard SAS tier with enterprise SAS HDDs

  • An Archive tier utilizing MDL SAS HDDs

Snapshot and volume copy

  • All MSA 1050 arrays come standard with 64 snaps

  • A 512 Snapshot license is available as an option on the MSA 1050

  • Snapshots create up to 512 Point-in-Time copies of data

  • Volume copy can create up to 128 Point-in-Time copies of data

  • Point-in-Time copies become standard volumes when they are complete

  • Recovery is instant - Revert data from any previous snapshot or volume copy

  • Backup 'snapped' data to disk, virtual tape, or physical tape without a backup window

  • If telephone support and software updates are desired for bundled software functionalities like 64 snapshots and volume copy software, a combination HW + SW support care pack must be purchased

Remote snap

  • HPE Remote snap replication technology provides the ability to accomplish key data management andprotection capabilities.

  • HPE MSA Remote snap software is array based software that provides remote replication on the HPEMSA 1050 array products

  • In order to perform a replication, a snapshot of the volume to be replicated is taken, creating a point-intimeimage of the data

  • Storage based asynchronous snapshot replication

  • Support of iSCSI and Fibre Channel interconnects provides flexible options to the application environments

  • Snapshot based replication technology means only changed data will be replicated to alternate site

  • Replication between on MSA 1050 to another MSA is supported (1 to 1 peer connection)

  • Replication up to four MSA 1050s to a single MSA 2050 is supported. Typical use case is to replicate from "many" branch offices to the home office for the purpose of backing up data from the branches

  • Advanced scheduler provides several options to IT administrators for business continuance

  • Flexible architecture allows remote replication between MSA 1050 and MSA 2050 or MSA 2040/1040 arrays using the virtual storage architecture and licensed for Remote Snap. Protects existing investments and enhances business continuity planning objectives

  • Snapshot based replication enables both local and remote recovery depending on the need. Snapshot replication isolates problems to a specific point in time which can be selected by the administrator. Additionally snapshot replication supports longer distance replication

  • 512 Snapshots and Volume Copy integration provides better efficiencies by combining the management and array technologies to create local copies

  • Fast application recovery with minimal or no transaction loss

  • Creation of disaster tolerant copies of the critical business data

  • No single point of failure solution to increase the availability of user data

HPE OneView for VMware vCenter
When deployed with the MSA 1050 array, HPE OneView provides the following:

  • Active management functionality for the MSA 1050 array

    • Create/Expand/Delete a Datastore

    • Create a virtual mMachine from a template

  • Monitors the health and status of the MSA 1050

  • Displays LUN / volume connections from VMs and ESX servers to the arrays and provides the location and attributes of the MSA 1050 within the SAN

  • Identifies what storage features are available to allow administrators to match the features available on the MSA 1050 to their requirements

  • Provide a Cluster-Level view of the storage

You may also like
