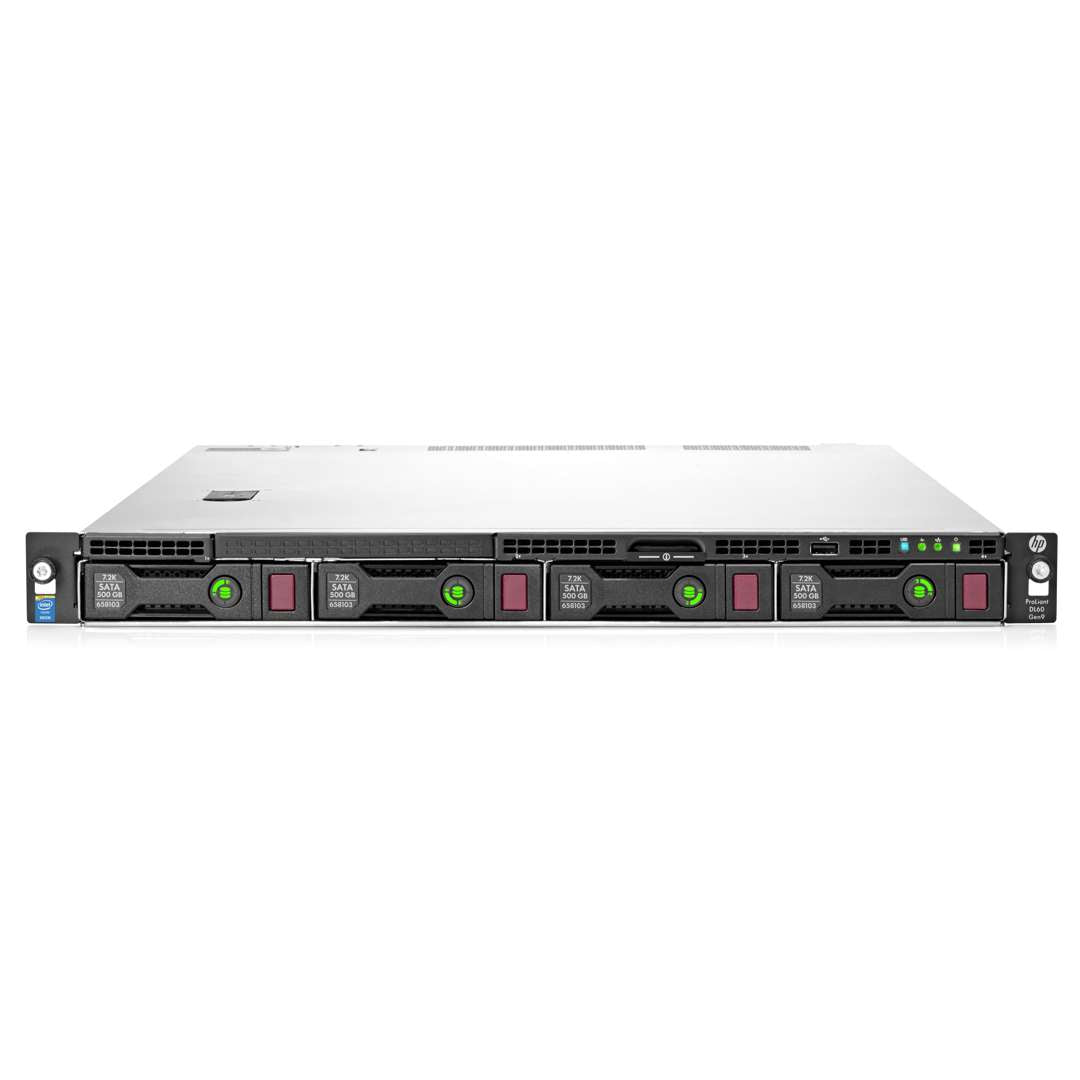

HPE ProLiant DL60 Gen9 Hot Plug 4 LFF Server Chassis | 777403-B21


Price: Request a Quote

Brand:
MPN:
777403-B21
Type:
Chassis
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

HPE ProLiant DL60 Gen9 Hot Plug 4 LFF Server Chassis | 777403-B21

What's New for the 1U DL60 Gen9
  • (2) Intel Xeon E5-2600v4
  • (8) 2400MT/s DDR4
  • Max Memory 256GB
  • (3) PCIe Gen3.0 slots
  • Supports up to (4 LFF) Drives
  • M.2 enabled
  • HPE Dynamic Smart Array B140i (RAID 0, 1, 1+0 & 5)
  • Optional FlexibleLOM slot on riser
  • HPE iLO 4

The HPE ProLiant DL60 Gen9 Server is a compact 1U server designed to meet the needs of cost-conscious service providers and SMBs. It delivers optimal performance and density for file and print, messaging, collaboration, and cloud environments. Key features include up to four LFF HPE SmartDrives, dual Intel Xeon E5-2600 v3/v4 processors, and eight DDR4 SmartMemory DIMM slots.

Additionally, the DL60 Gen9 prioritizes energy efficiency with 92% 80 PLUS Gold-certified redundant power supplies and support for HPE Extended Ambient Operating Support (ASHRAE A3). Flexible networking options, including an embedded 2 x 1GbE Ethernet adapter and up to three PCIe slots, ensure future-proofing. The server's simple design and HPE infrastructure management tools further enhance efficiency and reduce management overhead.


CTO Configuration Support

Need help with the configuration? Contact us today!

HPE DL60 Chassis Options | (4) Drives
[Chassis] HP ProLiant DL60 Gen9
Non-hot Plug 4LFF Configure-to-order Server 4LFF Configure-to-order Server
SKU Number 777404-B21 777403-B21
Processor 2 (optional) x HPE Smart Socket Guide
DIMM Slots 8 DIMM slots for RDIMM, LRDIMM DDR4 Memory
Storage Controller HPE Dynamic Smart Array B140i
PCIe 3 PCIe 3.0 slots
Drive Cage 4LFF Non Hot Plug 4LFF Hot Plug
Network Controller HPE Embedded Dual Port 361i Adapter Network Interface
Fans 3 hot swap fans, non-redundant
Management iLO Management (standard), Intelligent Provisioning (standard)
USB 1 front, 1 internal, 2 rear
Ears HPE Thumbscrew Ears

The HPE ProLiant DL60 Gen9 is a compact 1U server supporting single or dual Intel Xeon E5-2600v3/v4 processors. The system board (847393-001) does not allow mixing processor generations. Note that cooling requirements differ between single and dual-processor configurations. Single-processor systems use 3 non-redundant or 5 redundant fans, while dual-processor systems require 4 non-redundant or 6 redundant fans. To enable redundant fans on a dual-processor system, the Redundant Fan Option Kit (765513-B21) is necessary.

HPE DL60 Gen 9 4 LFF Drive Chassis

To Hot-Swap or not!

Now that you got the single and dual socket configurations worked out. It’s time to check what kind of chassis we need. You can have either the Hot-Swap LFF or the Non-Hot-Swap LFF. A total of 4 SAS/SATA Drives can be installed. The Maximum Internal Storage for this server is as follows:

  • Hot Plug LFF SAS 4 x 8TB = 32.0TB
  • Hot Plug LFF SATA 4 x 8TB = 32.0TB
  • Non-Hot-Plug LFF SATA 4 x 4TB = 16TB
  • Hot Plug LFF SATA SSD 4 x 3.84TB = 15.36TB
HPE DL60 Gen 9 4 LFF Drive Chassis

Looking to Customize?

Need assistance with customization? Our sales experts will help you choose the best setup for your needs.

Start Customizing Today!

Product Specs

Base Standard Capabilities

Product features

Feature
Description
Processor (One of the following depending on model)
Model
CPU frequency
Cores
L3 Cache
Power
QPI
DDR4 Hz
E5-2660v3
2.6 GHz
10
25MB
105 W
9.6 GT/s
2133
E5-2650v3
2.3 GHz
10
25MB
105 W
9.6 GT/s
2133
E5-2650Lv3
1.8 GHz
12
30MB
65 W
9.6 GT/s
2133
E5-2640v3
2.6 GHz
8
20MB
90 W
8.0 GT/s
1866
E5-2630v3
2.4 Ghz
8
20MB
85 W
8.0 GT/s
1866
E5-2630Lv3
1.8 GHz
8
20MB
55 W
8.0 GT/s
1866
E5-2623v3
3.0 GHz
4
10MB
105 W
8.0 GT/s
1866
E5-2620v3
2.4 GHz
6
15MB
85 W
8.0 GT/s
1866
E5-2609v3
1.9 GHz
6
15MB
85 W
6.4 GT/s
1600
E5-2603v3
1.6 GHz
6
15MB
85 W
6.4 GT/s
1600
E5-2660v4
2.0 GHz
14
35MB
105 W
9.6 GT/s
2400
E5-2650v4
2.2 GHz
12
30MB
105 W
9.6 GT/s
2400
E5-2650Lv4
1.7 GHz
14
35MB
65 W
9.6 GT/s
2400
E5-2640v4
2.4 GHz
10
25MB
90 W
8.0 GT/s
2133
E5-2630v4
2.2G Hz
10
25MB
85 W
8.0 GT/s
2133
E5-2630Lv4
1.8 GHz
10
25MB
55 W
8.0 GT/s
2133
E5-2623v4
2.6 GHz
4
10MB
85 W
8.0 GT/s
2133
E5-2620v4
2.1 GHz
8
20MB
85 W
8.0 GT/s
2133
E5-2609v4
1.7 GHz
8
20MB
85 W
6.4 GT/s
1866
E5-2603v4
1.7 GHz
6
15MB
85 W
6.4 GT/s
1866
On System Management Chipset (One of the following depending on model)
HPE iLO4 (Firmware HPE iLO4 2.0 or later), 2GB NAND.
Memory (One of the following depending on model)
Type
HP SmartMemory DDR4 Registered (RDIMM) or Load Reduced (LRDIMM)
DIMM Slots Available
8(4 DIMM slots per processor, 4 channels per processor, 1 DIMMs per channel)
Maximum Capacity (LRDIMM)
256GB(8 x 32GB LRDIMM @ 2400 MHz)
Maximum Capacity (RDIMM)
256GB(8 x 32GB RDIMM @ 2400 MHz)
Expansion slots
CPU1 PCIe riser slots
CPU1 PCIe riser slots
Expansion Slots #
Bus Width
Connector Width
Bus Number
Form Factor
Notes
1
1
PCIe 3.0
x16
x16
Low profile
CPU 1
CPU1 FlexibleLOM riser slots
Expansion Slots #
Technology
Bus Width
Connector Width
Bus Number
Device Number
Form Factor
Notes
2
PCIe 3.0
x8
x8


Low profile
CPU1
3
Flexible LOM
x8
x8


Flexible LOM
CPU 1 (Can only be used for flexibleLOMs)
CPU1 riser PCIe slots (Option 2)
Expansion Slots Number
Technology
Bus Width
Connector Width
Bus Number
Device Number
Form Factor
Notes
2
PCIe 3.0
x8
x8


Low profile slot
CPU1
3
PCIe 3.0
x8
x8


Full-height, half-length slot
CPU1
Only one of the CPU1 PCIe risers can be selected in any given configuration.
One of the CPU1 risers is mandatory for all configurations.
Storage controller (One of the following depending on model)
Entry models
Base models
HPE Dynamic Smart Array B140i Controller
HPE Dynamic Smart Array B140i Controller
B140i provides support for up to 4 SATA drives on DL60 Gen9 and supports RAID 0, 1, 1 + 0 & 5.
Internal storage devices (One of the following depending on model)
Optical drives
Hard drives
Hard drive bays
Optional: DVD-ROM, DVD-RW
None ship standard
4 LFF drive bays total with Optical bay
Maximum internal storage (One of the following depending on model)

Capacity
Configuration
Hot Plug LFF SAS
32.0TB
4 x 8TB
Hot Plug LFF SATA
32.0TB
4 x 8TB
Non-Hot Plug LFF SATA
16TB
4 x 4TB
Hot Plug LFF SATA SSD
15.36TB
4 x 3.84TB
Power supply (One of the following depending on model)
HP 550 W FIO Power Supply
HP 800 W/900 W Gold AC Power Input Module
System fans (One of the following depending on model)

Non-redundant
Redundant
1P model
3 fans
5 fans
2P model
4 fans
6 fans
Interfaces
Video
1 (Vaux Support)
LOM Network Ports
2 x 1GbE ports
Micro SD Slot
1 Micro SD
USB
  • 4 USB ports (standard)

  • Front: 1 x USB 2.0 standard

  • Rear: 2 x USB 3.0 Internal: 1 x USB 3.0

  • Internal: 1 x USB 3.0

Upgradeability (One of the following depending on model)
  • Upgradeable to two processors (24 cores)

  • up to 8 DIMM slots

  • FlexibleLOM slot for 1Gigabit or 10 Gigabit Ethernet or QDR/FDR InfiniBand networking options

  • Redundant power supply

  • Redundant Fan

Graphics
Integrated Matrox G200eH2 video standard
  • 1280 x 1024 (32 bpp)

  • 1920 x 1200 (16 bpp)

Form factor (One of the following depending on model)
1U Rack form factor, 4LFF version: 1.69" (4.29 cm) Height x 17.11" (43.46 cm) Width x 23.9" (60.70 cm) Length

top

More Specs

Software overview

Feature
Description
Operating systems and virtualization software support for ProLiant Servers
  • Microsoft Windows Server

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • VMware

top

Technical Specs

Technical specifications HPE ProLiant DL60 Gen9 Server
Compute Up to two Intel Xeon E5-2600 v3/v4 Series; 4/6/8/10/12/14 cores PCIe 3.0; up to three available slots
Memory HPE SmartMemory (8) DDR4; up to 2400 MHz (256 GB max)
Storage HPE Dynamic Smart Array B140i, optional HPE Smart Array Controllers, and HPE Smart host bus adapters via PCIe stand-up cards
HPE SmartDrives 4 LFF max, HDD/SSD, M.2 enabled
Networking 2 x 1GbE embedded Ethernet adapter with optional FlexibleLOM slot on riser
VGA/serial/USB ports/SD One rear VGA, three USB 3.0, one USB 2.0, one internal microSD, Dual microSD optional
System ROM UEFI and Legacy BIOS
Converged management HPE OneView with HPE iLO Advanced
Support management HPE Insight Online with enhanced mobile application
Embedded management HPE iLO 4, HPE Intelligent Provisioning, HPE Smart Update Manager (SUM), HPE RESTful Interface Tool, and HPE Scripting Tools for Microsoft® Windows Server® PowerShell
Power and cooling Up to 92 percent efficient (Gold), 550 W multi-output, 900 W RPS
Industry compliance ASHRAE A3*
Form factor/chassis depth Rack (1U) 23.9” (LFF)
Serviceability–Easy Install rails Standard
