- Up to 4 Intel® Xeon® 6 Performance-Core (P-Core) processors (8 to 86 cores per processor)
- 64 DDR5 DIMM slots (16 per processor) – maximum memory 16 TB
- Fans typically 4 dual-rotor hot-plug redundant fans (8 rotors total)
- Up to 32 SFF or
up to 32 EDSFF E3.S NVMe drives
(mixed SFF/EDSFF configurations also supported, depending on drive cage layout) - Up to 12 PCIe Gen5 slots (full-height, ¾-length)
- 2x OCP 3.0 slots (rear only)
- Up to 4 Power supplies (1500W, 2400W, or 3200W; 1+1, 2+2, or 3+1 hot-plug redundant HPE Flexible Slot Power Supplies)
- HPE NS204i-u Boot Device V2 (front or rear install options)
- HPE iLO 7 management
(Click to View)

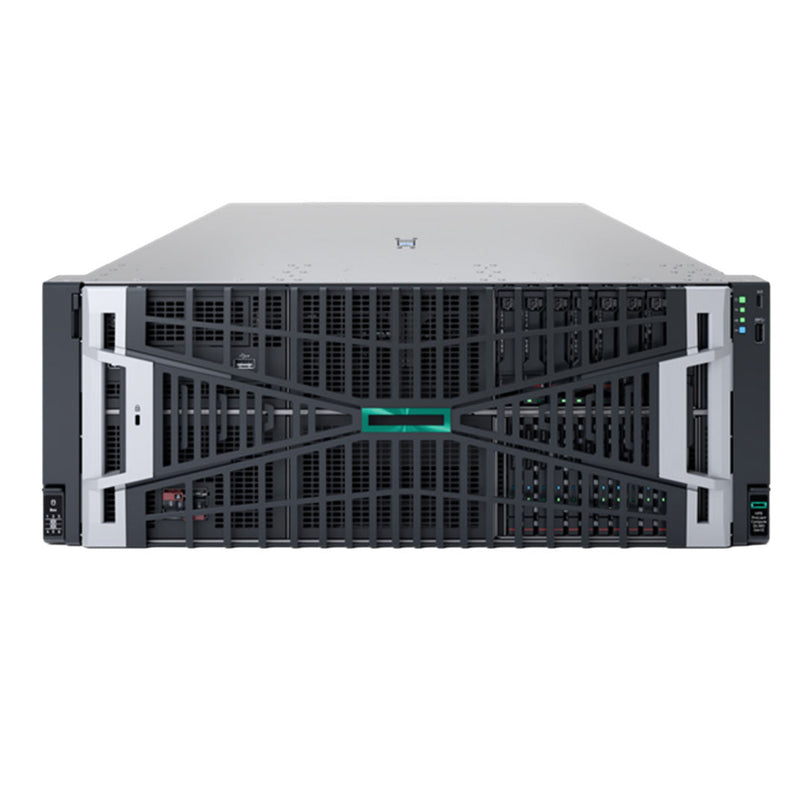

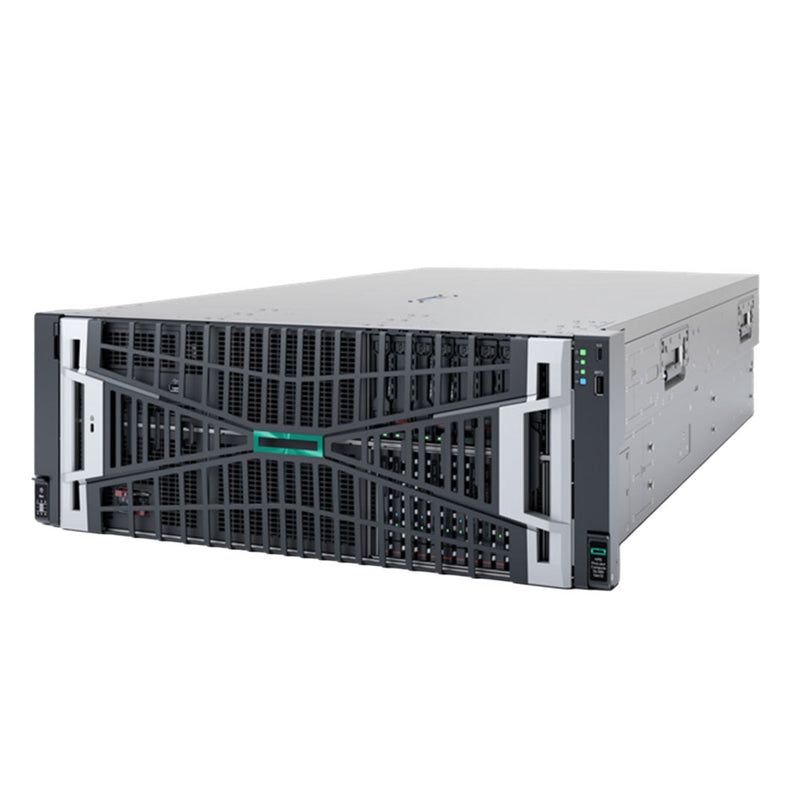

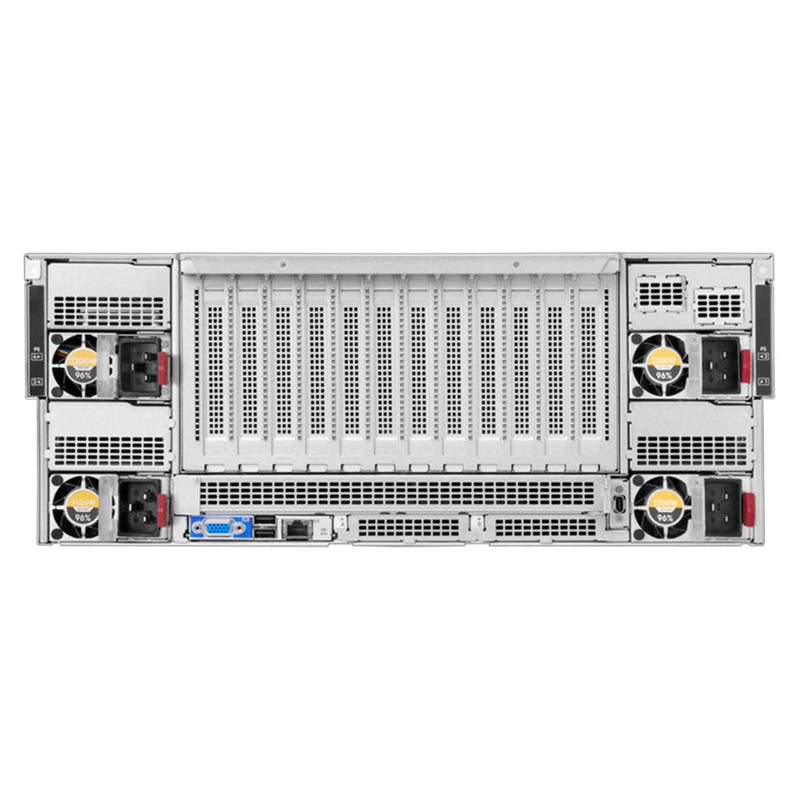

The HPE ProLiant Compute DL580 Gen12 is a high-density, four-socket 4U server built for data-intensive workloads like databases, analytics, and big data. It's powered by Intel Xeon 6 processors (up to 86 cores) and up to 16 TB of DDR5 memory at speeds up to 6400 MT/s, delivering up to 2x higher general-compute performance than previous generations. New upgrades include support for up to 32 mixed SFF/EDSFF E3.S drives, an optional front-accessible NS204i-u boot device, up to 12 PCIe Gen5 slots plus two OCP 3.0 slots, and an available Direct Liquid Cooling module. It's managed via HPE iLO 7, which adds a hardware-based secure enclave and quantum-resistant firmware signing for enhanced security.
LFF P72174-B21
SFF P72175-B21
10SFF/20EDSFF P72176-B21
Please Upgrade Server
*This Configure to Order has not been created.
*You can still
Contact Us
for a quote on this server.
*Thank you.
The request has been sent.
Thank you.
Price as Configured:
$0
Base Standard Capabilities
| Technical specifications | HPE ProLiant Compute DL580 Gen12 |
|---|---|
| Processor type | Intel |
| Processor family | Intel® Xeon® 6 processors |
| Processor number | 2 to 4 |
| Processor core available | 8 to 86, depending on processor |
| Processor speed | 4.0 GHz maximum, depending on processor |
| Processor cache | Up to 336 MB L3, depending on processor |
| Memory type | HPE DDR5 Smart Memory |
| Maximum memory | 16 TB with 256 GB DDR5 |
| Memory slots | 64 |
| Memory protection features | RAS – Advanced ECC, online spare, mirroring, combined channel (lockstep) functionality, and HPE Fast Fault Tolerant Memory (ADDDC) |
| System fan features | High Performance Hot-plug redundant Fan Kit |
| Expansion slots | Up to 12 PCIe Gen5, and 2 OCP 3.0 (rear), for detailed descriptions reference the QuickSpecs |
| Form factor | 4U Rack |
| Network controller | 1 Gb, 10 Gb, 10/25 Gb, 100 Gb, or 200 Gb, in PCIe adapter or OCP 3.0 form factor, depending on model. For detailed descriptions reference the QuickSpecs. |
| Storage controller | HPE MR216i-o and/or MR216i-p, HPE MR416i-o and/or HPE MR416i-p, HPE MR408e-p, HPE MR408i-o and/or HPE MR408i-p, depending on model. For detailed descriptions reference the QuickSpecs. |
| Drive supported | Up to 32 SFF/EDSFF NVMe drives, depending on configuration |
| Optical drive type | Optional DVD-ROM through Universal Media Bay |
| Power supply type | 1500W, 2400W, or 3200W Dual hot-plug redundant 1+1, 2+2, or 3+1 HPE Flexible Slot Power Supplies |
| Infrastructure management | HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard), HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE Compute Ops Management |
| Security | HPE TPM 2.0 standard on motherboard. Optional locking Bezel Kit, Intrusion Detection Kit. |
